Semi-automatic Dependency Model Creation based on

Process Descriptions and SLAs

Matthias Winkler

, Thomas Springer

, Edmundo David Trigos

and Alexander Schill

SAP Research CEC Dresden, SAP AG, Chemnitzer Str. 48, 01187 Dresden, Germany

TU Dresden, Faculty of Computer Science, Institute for Systems Architecture

Computer Networks Group, Nthnitzer Str. 46, 01187 Dresden, Germany

Abstract. In complex service-oriented business processes the composed ser-

vices depend on other services to contribute to the common goal. These depen-

dencies have to be considered when service compositions should be changed.

Information about dependencies is only implicitly available from service level

agreements and process descriptions. In this paper we present a semi-automatic

approach to analyze service dependencies and capture information about them

explicitly in a dependency model. Furthermore, we describe a system architec-

ture which covers the whole process of dependency analysis, dependency model

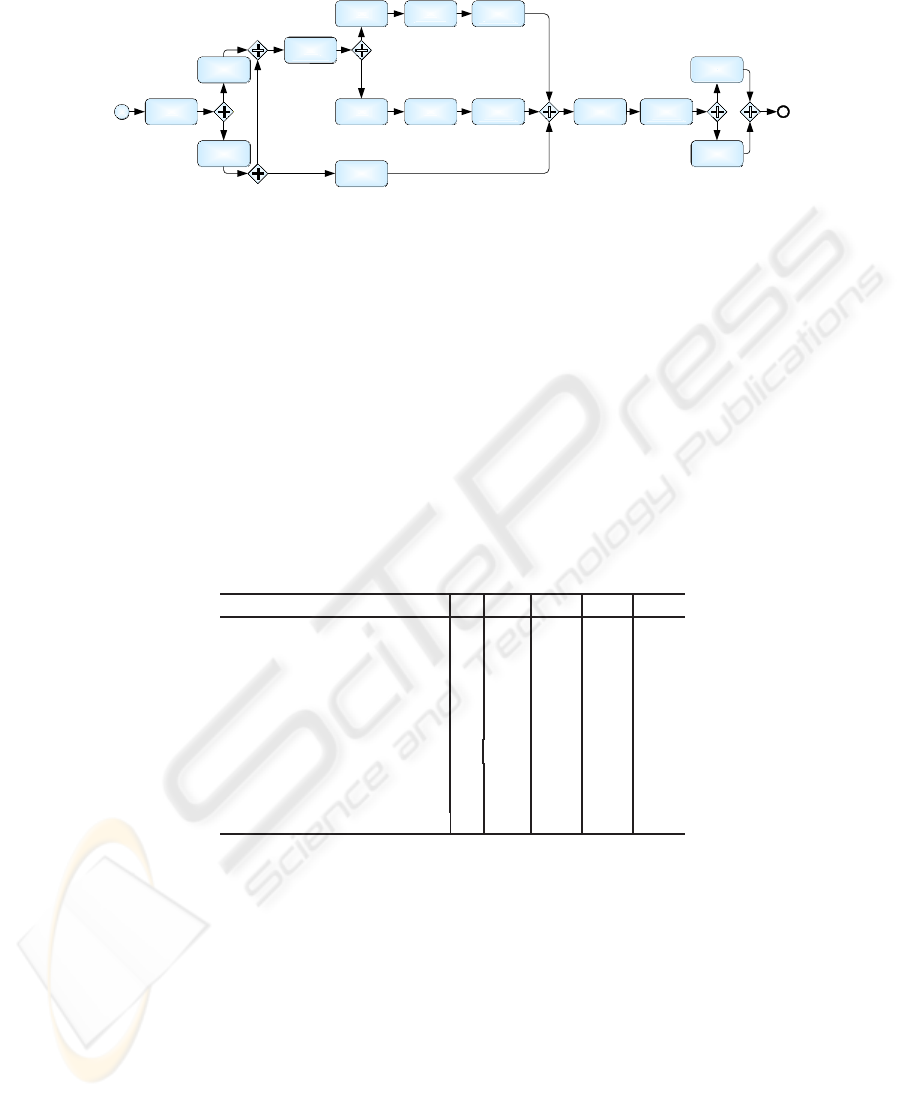

creation and provisioning. It has been implemented based on a healthcare sce-

nario.

1 Introduction

According to the Internet of Services vision services traded via open marketplaces are

composed to business processes. Services are provided fully automatically (credit card

check) or involve manual steps (healthcare services). The composed services have to

collaborate to achieve a common goal. Thus, the composition creates different types of

dependencies between involved services, e.g. with respect to produced and consumed

resources, timing, quality of service (QoS), and pricing. Dependencies occur between

atomic services (horizontal dependency) or between atomic services and the composi-

tion (vertical dependency).

Explicit knowledge about dependencies is needed for the management of service

level agreements (SLA) in service compositions. SLAs are negotiated between the ser-

vice provider and consumer to regulate service provisioning. During the negotiation

process it is necessary to ensure that all SLAs of the composition enable the proper col-

laboration between the different services and the fulﬁllment of all SLAs. Furthermore,

dependency information is also needed for the handling of SLA violations or explicit

SLA renegotiation requests by the different stakeholders. SLA violations as well as the

renegotiation of SLAs may affect other services and lead to the violation of other SLAs.

Thus, information about service dependencies is needed for SLA management by com-

posite service providers. Required information about service dependencies is usually

not explicitly available but is implicitly contained in SLAs and process descriptions.

From these sources it has to be extracted to be available at runtime.

Winkler M., Springer T., David Trigos E. and Schill A. (2010).

Semi-automatic Dependency Model Creation based on Process Descriptions and SLAs.

In Proceedings of the 4th International Workshop on Architectures, Concepts and Technologies for Service Oriented Computing, pages 16-28

DOI: 10.5220/0003042900160028

 SciTePress

In previous work we presented an approach to managing dependencies in service

compositions [1], where dependencies are analyzed at design time, dependency infor-

mation is captured in a dependency model [2], and dependency information is used at

runtime to evaluate effects of SLO violations and SLA renegotiation requests on other

services. This paper extends our work by two major contributions. Firstly, we detail

our work on dependency model creation by a process description. Secondly, we present

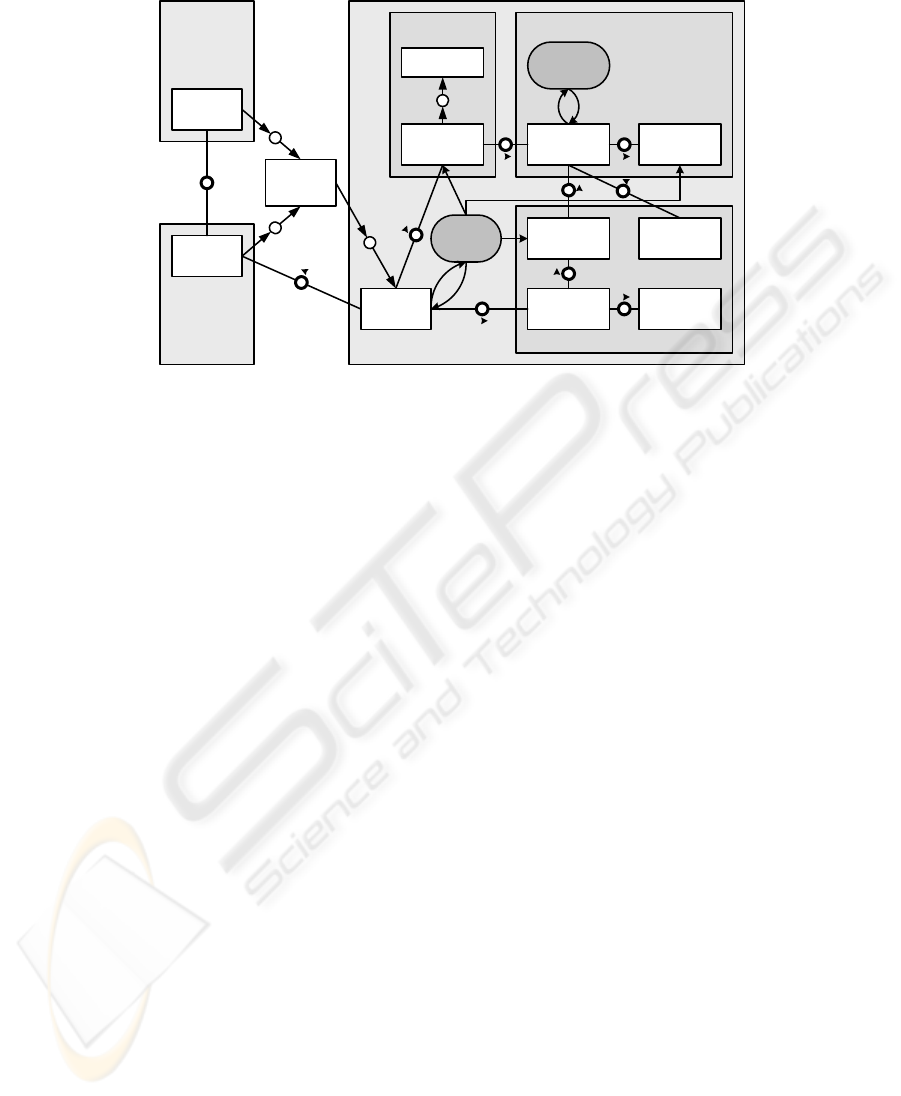

an architecture for managing dependencies. The remainder of this paper is structured

as follows: In Chapter 2 we describe the dependency model creation process followed

by the presentation of the architecture of the approach in Chapter 3. We evaluate our

work in Chapter 4 and discuss it with respect to related work in Chapter 5. Finally, we

conclude this paper with a discussion and outlook on future work in Chapter 6.

2 Dependency Model Creation

In order to manage the dependencies between services throughout the lifecycle of a

composite service, we developed an approach which captures dependencies in a depen-

dency model at design time and which uses this information to evaluate effects of SLO

violations as well as SLA renegotiation requests at runtime. We developed a lifecycle

for managing and using dependency information. This lifecycle consists of four phases:

creation and recalculation, validation, usage, and retirement. In this chapter we will de-

tail the ﬁrst lifecycle phase focusing on the model creation and its integration into the

development process of the composite service. In Fig. 1 the dependency model creation

process is depicted. This semi-automatic process is initiated by the composite service

modeler. As pre-requisite for executing the process two aspects have to be fulﬁlled:

1. The composite service workﬂow has been modeled (e.g. BPMN process). It pro-

vides information on temporal relationships between services.

2. SLA offers for all services are available specifying information regarding execu-

tion time and location, handled resources, supported QoS, and service price. This

information is needed for dependency model creation.

As a result a dependency model is created, which still needs to be validated with re-

spect to the negotiated SLAs. This is necessary in order to avoid conﬂicts between the

proposed SLAs (e.g. with respect to time and QoS attributes).

The creation process of a dependency model was realized as a semi-automatic ap-

proach consisting of automatic dependency discovery and the explicit modeling of de-

pendencies. The discovery of dependencies automates part of the dependency model

creation process. It also helps to reduce the chance of errors such as false or missing

dependencies introduced by manual modeling. The manual extension and modiﬁcation

of the generated dependency model enables the expression of dependencies which can-

not be discovered automatically. However, it also introduces the chance of errors being

added to the dependency model. In the following sections the dependency discovery

and dependency modeling are explained in more detail.

Create

service pairs

Create

workflow paths

Create

calculation

formulas

Create horizontal

time

dependencies

Create vertical

time

dependencies

Create horizontal

resource

dependencies

Create vertical

resource

dependencies

Create

dependency

model

Create QoS /

price

dependencies

END

START

Refine

dependency

model manually

Dependency

Model exists?

Yes

Analyze input

and output

parameters

Load composite

service workflow

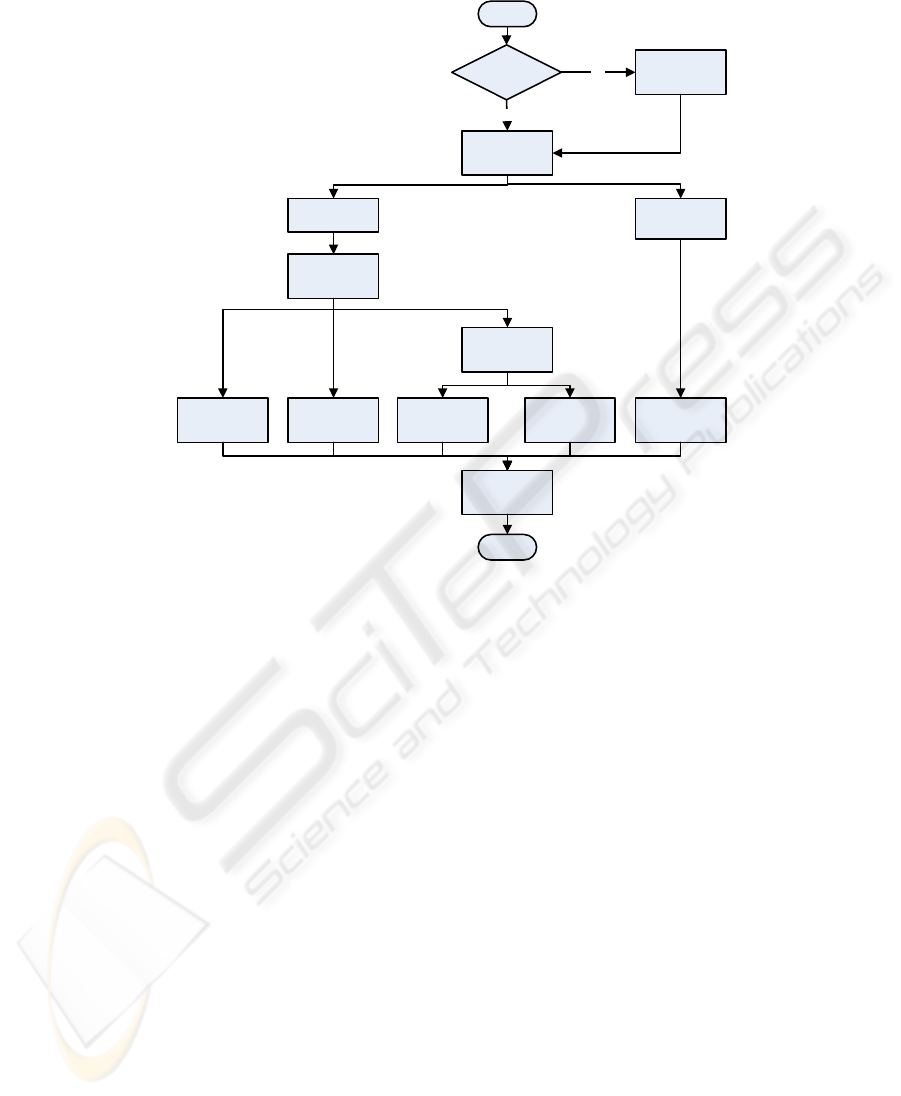

Fig.1. Dependency model creation process.

2.1 Dependency Model Creation Process

As a ﬁrst step in the process of creating a dependency model a new model instance is

created if it does not already exist. After that two parallel tasks are started for the dis-

covery of dependencies. This includes the creation of time and resource dependencies

on the one hand and the creation of aggregation formulas for QoS attributes and price

information on the other hand. For the creation of time and resource dependencies the

ﬁrst step is the creation of linear paths reaching from the start node to the end node of the

composite service workﬂow. For each path pairs of services are created. The selection

of the relevant services for pair creation is dependent on the type of dependency which

is analyzed (see section 2.2). Based on the created pairs the analysis of dependencies

is done. The creation of time dependencies is directly based on the different pairs. No

further analysis is necessary, since time dependency creation is based on the process

structure only, i.e. if a service S2 follows service S1 in the process, this implies that S1

is executed before S2. For the creation of resource dependencies the input and output

parameters of two services are compared. If a match is found, a resource dependency

is created. The different dependencies are then added to the dependency model. The

analysis for QoS and price dependencies is based on [3]. It starts with a reduction of the

service workﬂow based on workﬂow patterns. Formulas for calculating composite QoS

and price values for the respective workﬂow patterns are selected and an aggregation

formula is created. Finally, a dependency is created for each composite QoS and price

value. Following the discovery of dependencies the created dependency model can be

reﬁned in a manual modeling step.

2.2 Dependency Discovery

The goal of our work is to provide composite service providers with information about

service dependencies in a composition. This information should facilitate the manage-

ment of SLAs. A SLA contains a list of parameters such as time, price, location, and

quality of service provisioning. Dependencies occur with regard to these parameters:

e.g. the composite service price depends on the atomic service prices; provisioning of

the ﬁrst atomic services in the composition can be started as soon as the provisioning

of the composite service is initiated; provisioning of two atomic services needs to be

started or ﬁnished at the same time. These brief examples show that different types of

dependencies exists and that ﬁne grained dependency information is required.

The discovery of dependencies is speciﬁc for each dependency type. We will now

describe the discovery of time and resource dependencies in more detail including the

selection of services for service pair creation as well as the type of dependency being

created. Time dependencies are expressed based on time relations as used in project

management [4] or as deﬁned by Allen [5]. For resource dependencies the different re-

sources are listed. An overview of the mappings for creating dependencies is presented

in Table 1. The creation of aggregation formulas for composite QoS and price values is

achieved as described by [3]. Due to space limitations we would like to point the reader

to the respective work for further information.

Horizontal Time Dependencies are created between each pair of services, where one

service is directly connected to another service in a path. For each pair a ﬁnish-to-start

time dependency is created between the earlier and the later service.

Vertical Time Dependencies are created between the composite service and the ﬁrst

and last atomic service within a path. Between the composite service and the ﬁrst atomic

service a start-to-start time dependency is created. Between the last atomic service and

the composite service a ﬁnish-to-ﬁnish time dependency is created.

Horizontal Resource Dependencies are created between atomic services, which are

directly or indirectly connected within a path. To check whether two services have a de-

pendency the output of the preceding service is compared to the input of the succeeding

service. If a match is found a resource dependency is created. Information on input and

output of services is available from their SLAs.

Vertical Resource Dependencies are created between the composite service and an

atomic service. For each path the composite service input and output is compared to the

atomic services input and output. A resource dependency is created with all atomic ser-

vices along a path, which have a matching input with the composite service input and

which do not have a horizontal dependency regarding the matching resources. A fur-

ther resource dependency is created with the last atomic service, which has a matching

output with the composite service.

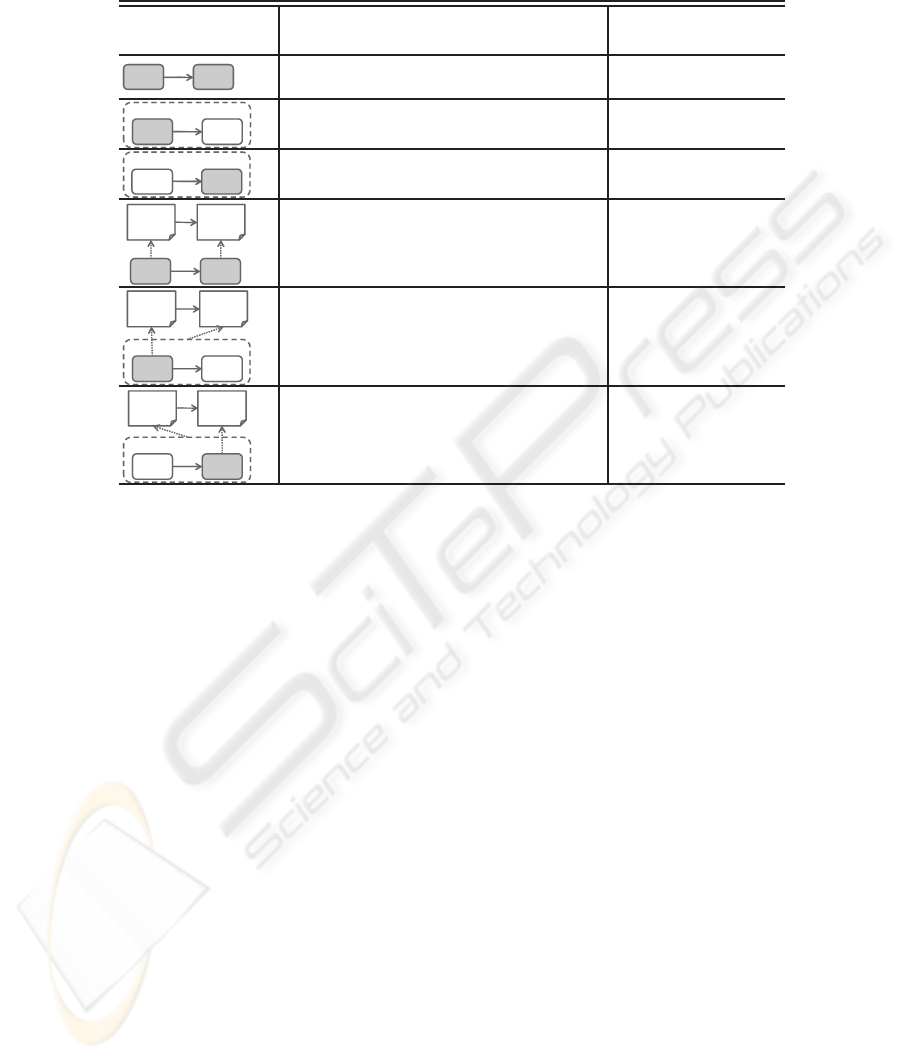

Table 1. Comparison of dependency model approaches.

Composite service

construct

Description

Dependency model

construct

AS2AS1

Two atomic services directly connected via

control ﬂow

Time dependency:

ﬁnish-to-start

AS2AS1

Composite service and ﬁrst atomic service in

a path

Time dependency:

start-to-start

AS2AS1

Last atomic service and composite service in

a path

Time dependency:

ﬁnish-to-ﬁnish

SLA

Par:out

SLA

Par:in

AS2AS1

Output of preceding atomic service matches

input of succeeding service

Resource depen-

dency: AS2.paramIn

resourceDependent

AS1.paramOut

SLA

Par:in

SLA

Par:in

AS2AS1

Input of composite service matches input of

atomic service

Resource depen-

dency: AS1.paramIn

resourceDependent

CS.paramIn

SLA

Par:out

SLA

Par:out

AS2AS1

Output of composite service matches output

of atomic service

Resource depen-

dency: CS.paramOut

resourceDependent

AS2.paramOut

2.3 Dependency Modeling

The dependency discovery algorithm produces a valid dependency model. However,

there are several types of dependencies which cannot be discovered. This includes de-

pendencies regarding the location for executing a service or QoS dependencies where

no aggregation formula can be created automatically. Furthermore, time dependencies

may exist between services which are not connected by the process ﬂow. A concrete

use case may have time constraints, which have to be modeled explicitly, i.e. the cre-

ated dependency model is extended manually.

3 Architecture and Integration

In this chapter the architecture of the dependency management components as well as

their integration into a service engineering toolchain are described. The components

provide functionality for the creation, validation, and storage of dependency models

(Dependency Model Management), the analysis and modeling of dependencies (Depen-

dency Analysis), and the evaluation of the dependency model with respect to different

events at runtime (Runtime Dependency Evaluation). An overview of the components

is presented in Fig. 2. Details about their functionality are described below.

ISE Development Environment

Dependency Model Management

Tradable Service

Runtime

Runtime Dependency

Evaluation

Service

Management

Platform

Dependency Analysis

ISE SLA

Management

Analysis

Manager

SLA Manager

Dependency

Evaluation

Dependency

Model Store

Process

Analysis

Dependency

Discovery

Dependency

Modeler

Dependency

Model Manager

Dependency

Model

Validation

Cockpit

Service

Monitoring

Service

Model

Repository

Message-

oriented

Middleware

Fig.2. Architecture Dependency Handling.

3.1 Dependency Model Management

The approach for managing service dependencies has at its core the dependency model,

which is used to capture information about services and the dependencies that occur

between them. The components, which are part of the dependency model management,

are responsible for the creation, validation, and storage of dependency models and for

making these models available to other components.

The Dependency Model Manager is the central component. It creates new depen-

dency model instances for each new SLA negotiated for a composite service. It is also

responsible for adding information to dependency models and making model infor-

mation available to other components such as Dependency Modeler and Dependency

Evaluation. The Dependency Model Validation component is responsible for validating

the dependency model with respect to the deﬁned constraints and the respective SLAs.

An example is the validation of negotiated times which are discovered based on the

workﬂow structure or modeled manually. Furthermore, validation regarding more gen-

eral aspects is realized (e.g. each consumed resource needs to be provided by an entity).

The ﬁnal dependency model instances are stored in the Dependency Model Store.

3.2 Service Dependency Analysis

The analysis of dependencies is executed after creating the service composition and

during the process of negotiating SLAs for the different services. It requires a process

description and SLAs in the offer state (i.e. containing offered SLO values) as input.

Our implementation is based on BPMN (Business Process Modeling Notation) process

descriptions. BPMN representsa suitable means for modeling business processes from a

business perspective at an abstract level. An alternative approach would be the usage of

a BPEL (Business Process Execution Language) process notation. BPEL is, however,

targeted at processes that are executed automatically and which are realized by web

services. Processes involving mainly human or machine tasks are typically not modeled

using BPEL. The dependency analysis functionality is distributed between components

supporting the automatic dependency discovery as well as dependency modeling. The

analysis process and the involved components are presented in Fig. 3.

The Analysis Manager handles the process of dependency discovery. It is initiated

by the composite service creator during the negotiation of SLAs with the consumer of

the composite service as well as the atomic service providers. It retrieves the workﬂow

description and SLA documents for the analysis and initiates the different steps of the

discovery. The Process Analysis component is responsible for decomposing the process

into linear paths leading from the start node all the way to the end node. These paths

are used for the discovery of dependencies. The Dependency Discovery component re-

alizes the different dependency discovery mechanisms. They include all horizontal and

vertical dependency evaluation tasks as described in section 2.2. The implementation is

based on the generated paths and SLA information. When it discovers a dependency it

requests the Dependency Model Manager to add the respective information to the de-

pendency model. Once the information has been added to the model, it is stored in the

Dependency Model Store. From there it can be accessed for further handling.

Dependency

Model Store

Dependency

Model

Manager

Composite

Service

Creator

Service

Model

Repository

Process

Analysis

Manager

Dependency

Discovery

result

analyzeDependencies(process)

pathList

getPaths(process)

result

analyzeDependencies(pathList)

slaInfo

getSLAInformation()

result

addDependencies(dep)

storeDependencyInfo(dep)

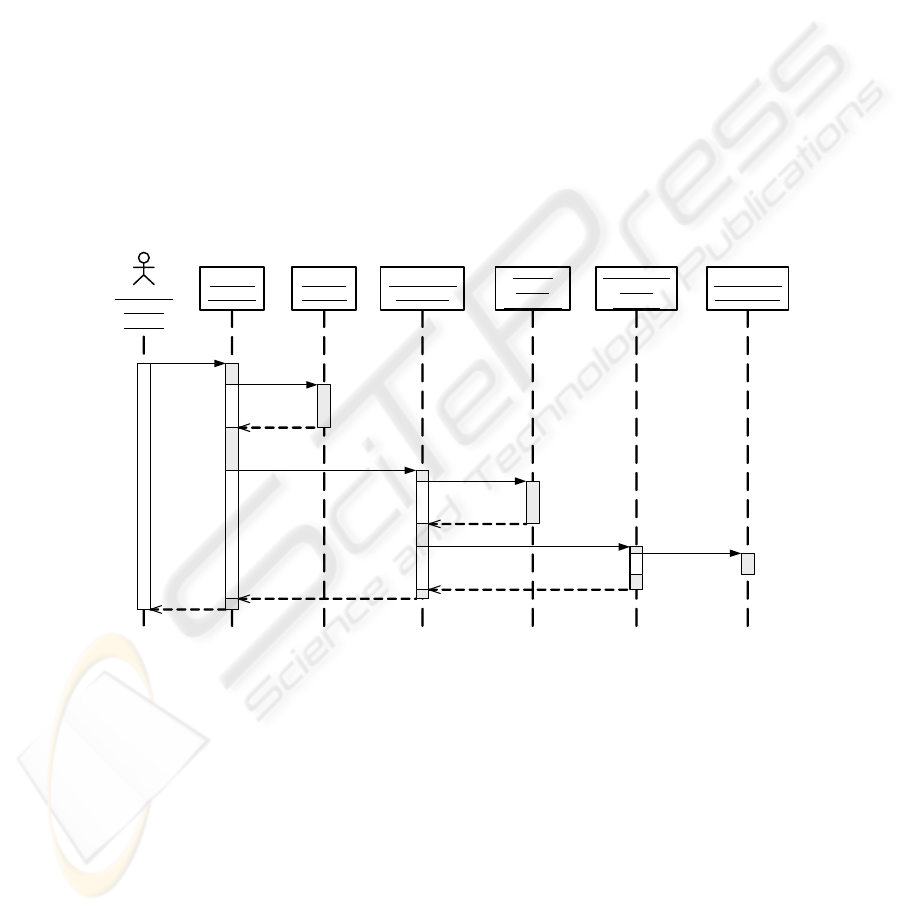

Fig.3. Process and components for analysis of dependencies.

The Dependency Modeler provides dependencymodeling functionality for the com-

posite service creator. It enables the creation of new as well as the adaptation of existing

dependency models. It was realized as a graphical model editor. The modeling process

is initiated by the composite service creator. As a ﬁrst step the Dependency Modeler

requests a dependency model from the Dependency Model Manager. Once the model

is available, the composite service creator uses the editing functionality to add, remove,

or modify dependency and service information in the dependency model.

3.3 Runtime Dependency Evaluation

The Runtime Dependency Evaluation component is responsible for the evaluation of

dependency information at runtime. The occurrence of SLO violation information re-

quires the determination of effects of this violation on other services (atomic or com-

posite service). Requests for renegotiating an SLA need to be evaluated with regard to

effects on other services before accepting them.

The runtime evaluation of dependencies is initiated by the ISE SLA Management

component calling the Dependency Evaluation component which executes the evalu-

ation process. It requests the relevant dependency model from the Dependency Model

Manager and evaluates it. Since the runtime dependency evaluation is not in the focus

of this paper we do not present more details about this.

3.4 Integration with Service Engineering Toolchain

The different dependency management components are integrated into the ISE devel-

opment environment, a tool created for the modeling of services. This enables proper

handling of dependencies for composite service providers while modeling their ser-

vices. Within the ISE development environment the dependency analysis components

also have access to the necessary information for executing the analysis (i.e. the BPMN

process description and SLA information). The Dependency Modeler tool is also in-

tegrated into the ISE development environment. The Runtime Dependency Evaluation

component is integrated with the ISE SLA Management components, which handle the

integration with the Service Monitoring on the Tradable Service Runtime (TSR) and

the SLA Manager on the Service Management Platform (SMP) respectively. The TSR

provides the service runtime infrastructure while the SMP offers service marketplace

functionality.

4 Evaluation

In the ﬁrst part of the evaluation we discuss the performance of the algorithms used

for the automatic discovery of dependencies. In the second part we present a set of

test cases to better illustrate the different steps of the dependency analysis process. The

results of both parts are discussed in a third section.

The performance measurements and test case handling were executed using the

workﬂow of a composite healthcare service (see Fig. 4). The scenario is based on a

healthcare workﬂow presented in [6]. In this scenario a patient undergoes several ex-

aminations at a healthcare center. The different examinations are executed by different

medical service providers. Further services include the analysis of blood samples, cre-

ation of documentation, and transport of the patient.

4.1 Performance Considerations

As a ﬁrst step we measured the times taken for the different tasks of the dependency

discovery approach for the healthcare service: path creation (5 ms), horizontal (7 ms)

100

Patient

Examination

Medical

Record

Creation

Determine

Medication

Patient

Transport

Check

Examination

Results

Follow-up

Treatment

Determination

Patient

Admission

Patient Data

Collection

Examine

Blood

Patient

Transport

Expert

Examination

Procurement

of Medication

Discharge

Patient

Give

Medication

Create

Report

Fig.4. Workﬂow of composite service - Stationary Patient Check-up.

and vertical (2 ms) time dependencies, horizontal (3 ms) and vertical (25 ms) resource

dependencies. The results show that all tasks are executed within a few milliseconds.

Furthermore, a number of measurements were made to test the scalability of the

approach. We modeled 5 business process workﬂows (P1..P5) of different complexity

(number of nodes, number of splits and joins). We counted the number of artifacts

created during dependency analysis and measured the times for creating relevantservice

pairs. The results presented in Table 2 show that with increasing workﬂow complexity

the number of paths as well as duplicate time and resource pairs increases strongly.

Thus it is necessary to ensure that the further analysis of pairs is only executed for

pairs which have not been handled before. The results also show that the discovery of

dependencies in relatively complex services is executed in less than a second.

Table 2. Measurement results.

P1 P2 P3 P4 P5

Nodes 12 31 36 55 87

Split/join 1/5 13/12 28/9 17/32 94/44

Created paths 21 60 952 1933 908

Duplicate time pairs 76 102 7387 14554 5535

Non-duplicate time pairs 14 32 45 74 91

Duplicate resource pairs 222 139 33686 65569 20951

Non-duplicate resource pairs 57 103 422 679 916

Time to get time pairs (ms) 1.7 2.0 78.7 289.7 293.8

Time to get resource pairs (ms) 0.9 2.1 188.7 554.0 153.5

4.2 Test Case based Evaluation

A number of test cases serve as the base for validating the different steps of the de-

pendency analysis process. Each test case is illustrated with a brief example. For the

analysis of dependencies the service workﬂow (see Fig. 4) and SLA descriptions are

needed. Due to space limitations only excerpts of SLAs of services relevant for the

presented examples are listed in Table 3.

TC1 - Path Creation: The composite service workﬂow is decomposed into linear

paths. Results: List of 10 paths reaching from the start to the end of the process. One

101

example path is the following: Patient Admission - Patient Data Collection - Exam-

ine Blood - Check Examination Results - Follow-up Treatment Determination - Create

Report

Table 3. Sample SLA information.

Service Input resources Output resources

Patient Admission - patient ID

Examine Blood patient ID, blood sample laboratory test result

Create Report medical record examination report

Stationary Patient Check-up - examination report

TC2 - Horizontal Time Dependencies: Pairs of directly connected services are created

along the paths. Duplicate pairs (e.g. pair Follow-up Treatment Determination - Create

Report occurs in 5 paths) are removed. Time dependencies of type ﬁnish-to-start are

created for each pair. Results: List of horizontal time dependencies. One horizontal time

dependency between Patient Data Collection and Examine Blood is shown in Table 4.

TC3 - Horizontal Resource Dependencies: All pairs of different services along the

paths are created. Duplicate pairs are removed. All pairs are analyzed with regard to

matching input and output resources. Information about input and output resources

is taken from the negotiated SLAs (see Table 3). Resource dependencies are created

when matching resources are found. Results: List of horizontal resource dependencies.

One resource dependency between the service Patient Admission and Examine Blood is

shown in Table 4.

TC4 - Vertical Time Dependencies: Creation of vertical time dependencies between

the composite service and the ﬁrst (start-to-start) and last (ﬁnish-to-ﬁnish) atomic ser-

vices in the paths. Results: List of vertical time dependencies. One vertical time depen-

dency between Stationary Patient Check-up and Patient Admission is shown in Table

TC5 - Vertical Resource Dependencies: All atomic services along the paths are ana-

lyzed with regard to matching input and output resources with the composite service.

Dependencies are created for matching resources if no horizontal dependency exists

regarding the matching resources. Results: List of vertical resource dependencies. One

vertical resource dependency between Create Report and Stationary Patient Check-up

is shown in Table 4.

TC6 - Dependency Model Extension: Manual creation of a location dependency be-

tween the Patient Transport service and the Expert Examination service. Results: One

location dependency between Patient Transport and Expert Examination (see Table 4).

4.3 Discussion

In this chapter we demonstrated the general feasibility of the approach to create depen-

dency models. We ﬁrst presented an overview about performance measurements. One

result of the measurements was that with increasing complexity of the workﬂows not

102

Table 4. Dependencies of healthcare process.

Antecedent - Dependant Dependency Description

Patient Data Collection - Examine

Blood

time endTime ﬁnish-to-start startTime

Patient Admission - Examine Blood resource patient ID

Stationary Patient Check-up - Pa-

tient Admission

time startTime start-to-start startTime

Create Report - Stationary Patient

Check-up

resource examination report

Patient Transport - Expert Examina-

tion

location endLocation equals startLocation

only the number of paths and relevant service pairs increased, but that a proportionally

large amount of time would be necessary for handling duplicate services. Thus, they

need to be removed. However, we also showed that the time needed to analyze rela-

tively complex processes is still less than a second, which allows to use the approach at

design time.

As a second part of the evaluation we applied different test cases which demon-

strated the functioning of our approach. We showed a sample path created during the

execution of the dependency discovery as well as a number of different dependencies.

In total this scenario produces 40 time and resource dependencies, which are discovered

automatically. Two more location dependencies can be modeled. A manual handling of

all these dependencieswould be very time consuming and error prone. In more complex

processes the number of dependencies will be much higher, which renders a manual

handling of dependencies even more difﬁcult. Our semi-automatic process facilitates

this.

5 Related Work

The handling of dependencies between services has been addressed for a variety of

purposes including the automatic composition of services [7], the optimization of se-

quencing constraints of composite services ([8,9]), root cause and impact analysis ([10,

11]), and SLA management ([3,12]).

Wu et al. [8] present an approach for modeling and optimizing the synchroniza-

tion dependencies of activities in business processes. A synchronization model, which

contains dependency information, is used to support activity scheduling in business

processes. In contrast to our approach automatic discovery of dependencies is not sup-

ported. In [9] the authors discuss control and data dependencies in business processes

and argue that they form the base for sequencing constraints in business processes.

They present an approach for deriving control dependencies from semantically anno-

tated business activities by evaluating their pre-conditions and effects. Input and output

parameters of business activities form the base for data dependencies. This approach

differs from our approach in several ways: While our resource dependencies are similar

to the data dependencies of their work, we also support dependencies regarding time,

location, QoS, and pricing information. Furthermore, their approach is limited to depen-

103

dencies between atomic services while our work also supports dependencies between

atomic and composite services.

Ensel and Keller [10] introduce an approach to handle dependencies between man-

aged resources (e.g. web application server, database, operating system) in a distributed

system. The goal is to support root cause as well as impact analysis for service failure

situations. Dependencies are represented in a distributed dependency model which cap-

tures the dependencies and attributes of these managed resources. However, no work is

presented with regard to the discovery of service dependencies. The MoDe4SLA [11]

approach supports the handling of response time and price dependencies of composite

services on its atomic services. The goal of the system is to support root-cause analysis

for problems caused by atomic services. The dependency information is captured by a

modeling approach. The discovery of dependencies is not supported.

The COSMA approach [3] supports the providers of composite services to man-

age their SLAs. Dependencies between composite QoS values and atomic ones are

expressed using aggregation formulas. The aggregation formulas for the different QoS

values are automatically derived from the process description. Further constraints need

to be added manually or from conﬁguration ﬁles. In contrast to our work, COSMA

focuses only on the relationship between composite services and atomic services, but

dependencies between atomic services are not handled . Dependency types such as re-

source, location, and time are not covered. However, our approach to QoS and price

dependency discovery is based on COSMA. Karnke et al. describe an agent-based ap-

proach to managing SLAs in value chains [12]. The focus is on SLA based resource

management in hierarchies of service level agreements. As part of the agent-driven ne-

gotiation process, dependencies between services are considered. However, no work

has been presented regarding the discovery of dependencies.

6 Conclusions

The approach presented in this paper enables management of service dependencies. We

have shown that different types of dependencies can occur in parallel within complex

service compositions representing business processes. It has been demonstrated that a

signiﬁcant subset of these dependency types can be automatically extracted from in-

formation provided by the process description and the SLAs negotiated between the

involved service providers and consumers. Based on the different characteristics of ser-

vice dependencies speciﬁc algorithms have been identiﬁed for automatic dependency

discovery. These algorithms are embedded into the process of dependency manage-

ment implemented by the presented architecture for dependency handling, particularly

in the dependency analysis component. In the process the evaluation of service depen-

dencies at runtime is foreseen. The automatically discovered dependencies are stored

in a dependency model and are made available for runtime dependency evaluation. The

presented performance measurements prove the applicability of our algorithms for de-

pendency discovery at runtime, since the processing time is in the range of few sec-

onds even for complex processes of up to 100 services. The test case based evaluation

demonstrated the feasibility of our approach, illustrating the complexity of the depen-

dency discovery and showing created artifacts.

104

In the future we will consider additional types of dependencies with respect to char-

acteristics, detection algorithms and modeling. Further use case studies will be carried

out to prove the applicability and practical relevance of our approach. Finally, the run-

time dependency evaluation will be implemented.

Acknowledgements

The project was funded by means of the German Federal Ministry of Economy and

Technology under the promotional reference “01MQ07012”. The authors take the re-

sponsibility for the contents.

References

1. Winkler, M., Schill, A.: Towards dependency management in service compositions. In

Filipe, J., Marca, D.A., Shishkov, B., van Sinderen, M., eds.: ICE-B 2009 - Proceedings of

the International Conference on e-Business, Milan, Italy. (2009)

2. Sell, C., Winkler, M., Springer, T., Schill, A.: Two dependency modeling approaches for

business process adaptation. In Karagiannis, D., Jin, Z., eds.: Knowledge Science, Engineer-

ing and Management, Springer (11 2009)

3. Ludwig, A., Franczyk, B.: Cosma–an approach for managing slas in composite services. In

Bouguettaya, A., Krueger, I., Margaria, T., eds.: ICSOC 2008. (2008)

4. PMI: A Guide to the Project Management Body of Knowledge (PMBOK Guide). 4 edn.

Project Management Institute (2008)

5. Allen, J.F.: Maintaining knowledge about temporal intervals. Commun. ACM 26(11) (1983)

832–843

6. Reichert, M., Bauer, T., Fries, T., Dadam, P.: Realisierung ﬂexibler, unternehmensweiter

workﬂow-anwendungen mit adept. In Horster, P., ed.: Proc. Elektronische Geschftsprozesse–

Grundlagen, Sicherheitsaspekte, Realisierungen, Anwendungen. (2001) 217–228

7. Zhou, J., Pakkala, D., Perala, J., Niemela, E.: Dependency-aware service oriented architec-

ture and service composition. In: IEEE International Conference on Web Services. (2007)

1146–1149

8. Wu, Q., Pu, C., Sahai, A., Barga, R.: Categorization and optimization of synchronization

dependencies in business processes. In: Proceedings of IEEE 23rd International Conference

on Data Engineering (ICDE’07). (2007) 306–315

9. Zhou, Z., Bhiri, S., Hauswirth, M.: Control and Data Dependencies in Business Processes

Based on Semantic Business Activities. In: Proceedings of iiWAS2008, ACM (2008)

10. Ensel, C., Keller, A.: An approach for managing service dependencies with xml and the

resource description framework. Journal of Network and Systems Management 10 (2002)

147–170

11. Bodenstaff, L., Wombacher, A., Reichert, M., Jaeger, M.C.: Monitoring Dependencies for

SLAs: The MoDe4SLA Approach. In: IEEE SCC (1). (2008) 21–29

12. Karaenke, P., Micsik, A., Kirn, S.: Adaptive sla management along value chains for ser-

vice individualization. In: Proceedings First International Symposium on Services Science

(ISSS’2009). (2009)

105
