Towards a Structure

for the Computation Independent Model

Samir Kherraf

, Alexandre Moïse

, Éric Lefebvre

and Witold Suryn

École de Technologie Supérieure

Information Technologies and Software Engineering Department

100 Notre-Dame West street, Montreal, Quebec, H3C 1K3, Canada

Almonix inc., 5524 Saint-Patrick street, ofﬁce 565, Montreal, Quebec, H2C 1X7, Canada

Abstract. Model Driven Architecture (MDA) is composed of a hierarchy of

three levels of models: computation independent model (CIM), platform inde-

pendent model (PIM) and platform speciﬁc model (PSM). Currently, there exists

no formal CIM deﬁnition describing its structure of elements to which transfor-

mation rules can be applied. It is therefore the goal of this paper to attempt such

a structure. In our view, the CIM can be divided into a hierarchy of three inter-

connected models: the business motivation model (BMM), the business process

model (BPM), and the requirements model (RM). This paper presents how these

three models can account for the CIM and how they are related to each other.

1 Introduction

Model Driven Architecture (MDA) is an architecture proposed by the Object Manage-

ment Group (OMG) which deﬁnes it as “an approach to using models in software de-

velopment" [1]. MDA is composed of a hierarchy of three levels of models where each

level represents a viewpoint, i.e. an abstraction, of a system or its requirements: com-

putation independent model (CIM), platform independent model (PIM) and platform

speciﬁc model (PSM). A model from one level is obtained through manual or, ideally,

automatic transformations from a model of the above level. Thus, the CIM transforms

into a PIM, the PIM transforms into a PSM, and the PSM transforms into source code.

In deﬁning MDA, the OMG limited itself to the “what?" rather than the “how?"

leaving the task of deﬁning the former to tool vendors or academics. While many efforts

were invested in the transformation from a PIM to lower levels, there is still plenty to

be done at the CIM level. However, before attempting to formalize a set of rules to

transform a CIM into a PIM, it is mandatory to deﬁne precisely what the CIM is all

about.

Currently, there exists no formal CIM deﬁnition, on the one hand, describing its

structure of elements to which transformation rules can be applied and, on the other

Source code is considered a model of the execution of the system, but is not part of the MDA

speciﬁcation.

Samir K., Moïse A., Lefebvre É. and Suryn W. (2010).

Towards a Structure for the Computation Independent Model.

In Proceedings of the 2nd International Workshop on Model-Driven Architecture and Modeling Theory-Driven Development, pages 53-59

DOI: 10.5220/0003044200530059

 SciTePress

hand, linking these elements to business intent. For instance, a set of CIM and PIM

interpretation attempts are summarized in [2]. The authors, adopting an information

systems perspective, have also proposed their own deﬁnition by dividing the CIM into

a Human Intelligence Model and an Artiﬁcial Information Model. Nonetheless, the

structure of these models and the relations of its elements to business intent are not

addressed.

It is therefore the goal of this paper to attempt the development of such a structure.

In our view, the CIM can be divided into a hierarchy of three interconnected models:

the business motivation model (BMM), the business process model (BPM), and the

requirements model (RM). Starting with the OMG deﬁnition of the CIM, the remainder

of this paper deﬁnes the CIM structure from the perspective of these three models.

2 The CIM According to the OMG

The following statements summarize the CIM deﬁnition from the OMG [1]:

1 It is independent of any computation;

2 It does not show details of the structure of a system;

3 It is often called a domain model or a business model and uses a vocabulary that is

familiar to the practitioners;

4 It bridges the gap between domain experts and technical experts;

5 It shows the system in the environment in which it will operate;

6 Its elements should be traceable to PIM elements.

This set of statements constitutes an overview of what a CIM is. However, it does

not deﬁne precisely the structure of elements of this level of the MDA which, according

to point 6, is needed to be transformed into a PIM. Some work has been done in that

direction (e.g. [3]), but the lack of precision impedes on a consensual deﬁnition. The

analyst is thus left to his/her experience and creativity when in charge of creating a

CIM. In order to standardize this task, we propose a structure of elements divided into

three models as presented in ﬁgure 1.

Moving upward from the PIM, the third model of the CIM stack is the RM. This

model presents what the system must do conceptually. Use cases are generally em-

ployed to this end [4][5][6][7]. Requirements should treat the system as a “black box"

in order to comply with points 1 and 2. Point 3 suggests that requirements are restricted

to the application domain vocabulary, thus, avoiding technical details such as database

concepts or mentioning user interface widgets. It is demonstrated in [4] how to trans-

form the RM into a PIM. This transformation shows that the RM conforms to points 4

and 6.

The second model is the BPM. It describes the operations that need to be supported

by the system described in the RM. More precisely, it describes the sequence of activ-

ities needed to achieve an organizational goal [8]. These activities generally transform

information, either manually or by automated mechanisms, and are realized by different

organizational units. Thus, the BPM is compliant to points 3 and 5. The BPM describe

the environment in which the system will operate in a way that is relevant to practition-

ers.

The uppermost model of the CIM stack is the BMM. This model describes the

organization for which the processes are created and the goals they aim to support. It

represents a knowledge model of CIM. The BMM is a speciﬁcation of the OMG [9].

Simply put, it consists of a meta-model of the main elements necessary to describe

business plans: end, means, inﬂuencer and assessment. It complements the BPM in

covering points 3 and 5.

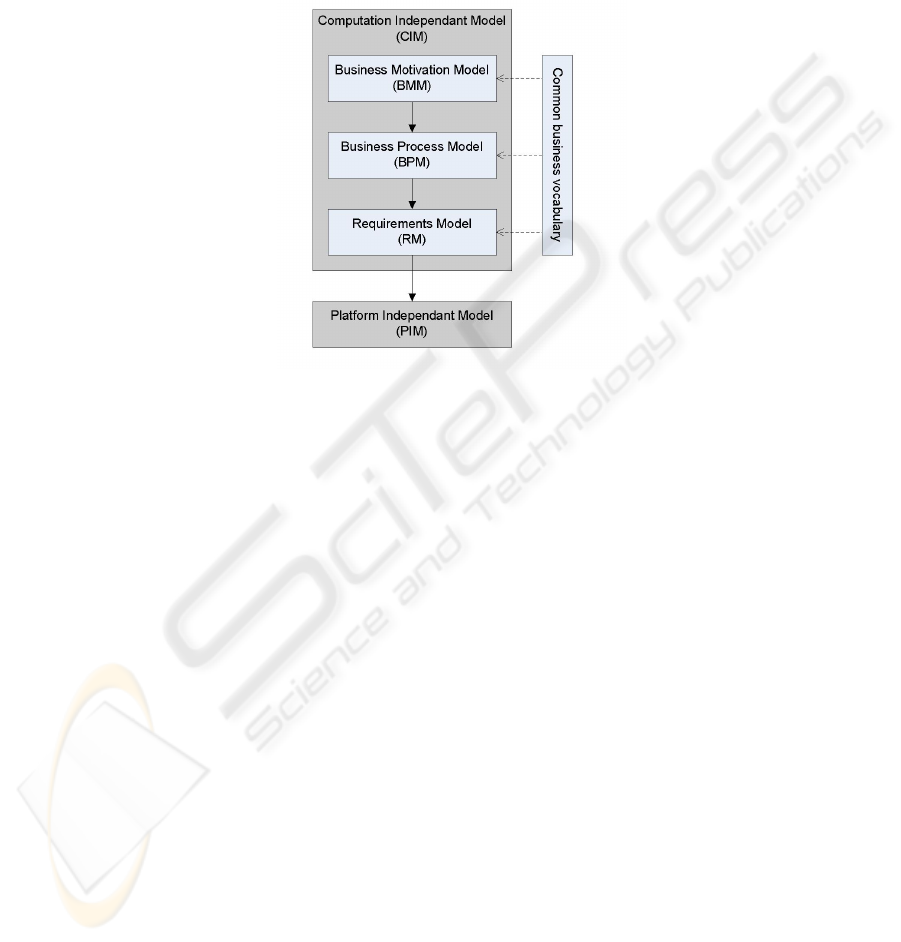

Fig. 1. Overview of the proposed CIM structure.

When creating a CIM, the stating point then should be the BMM. It describes what

the business is all about. From this description, a BPM can be created to support the

means to the ends deﬁned in the BMM. Based on the BPM, the RM can ﬁnally be

created to support automation.

3 The Proposed CIM Deﬁnition

The previous section presented an overview of the proposed CIM structure. This section

describes in more details the relationships between the three models composing the

CIM in the order of highest to lowest level: BMM, BPM and RM.

3.1 Business Motivation Model

Figure 2 presents the BMM according to [9]. There are four main elements: end, means,

inﬂuencer and assessment.

End. An end describes what an organization wishes to achieve. For example, it can

wish to be the leader in market shares or reduce ﬁnancial risks. An end can be either

a vision or a desired result, which in turn can be a goal or an objective. A vision is

optional. It gives an overview of the end. On the other hand, a desired result, whether a

goal or an objective, is more speciﬁc. An objective is a step in the attainment of a goal.

It can be used to measure progress towards a goal. While a goal is normally long-term

and can be deﬁned qualitatively, objectives have an end date and must be deﬁned in

such a way that it is possible to determine if it has been reached or not.

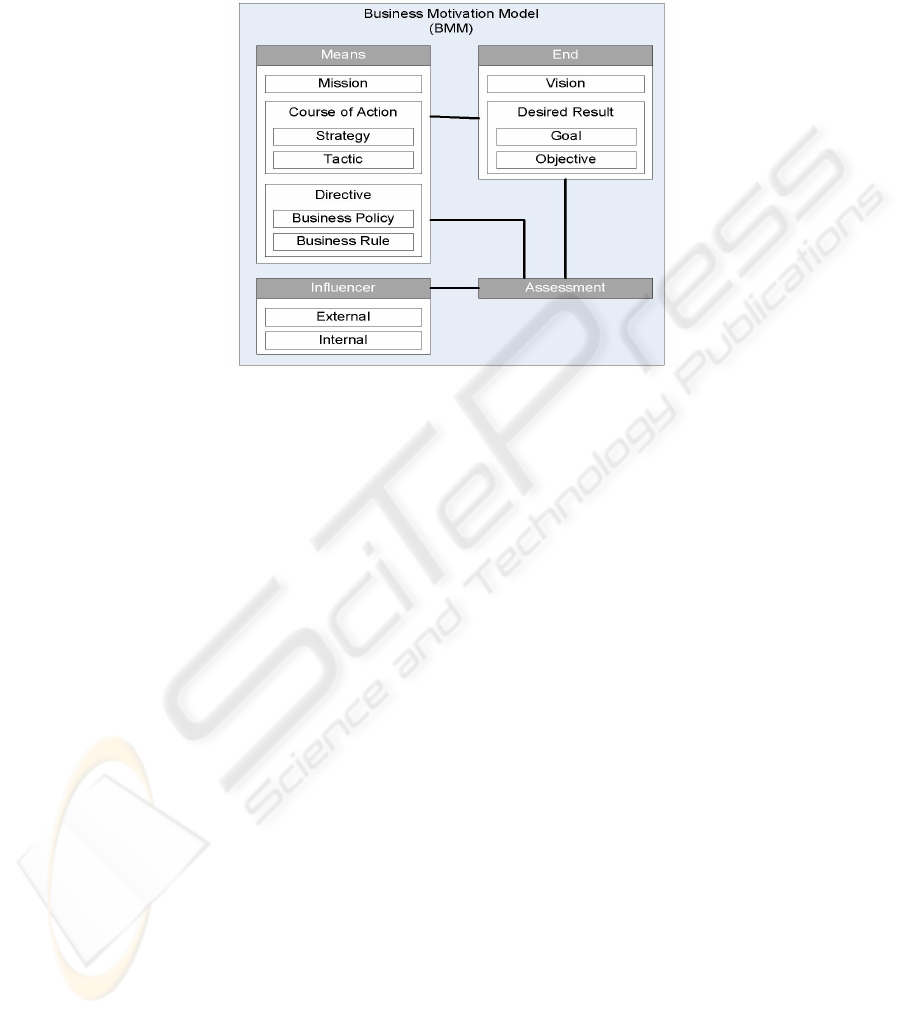

Fig. 2. Structure of the BMM [9].

Means. Means describe how an organization decides to achieve an end. Means can

be a mission, a course of action or a directive. Although optional, the mission broadly

deﬁnes the activity of an organization. Course of actions deﬁnes what needs to be done,

but not how to do it. It can be either a strategy or a tactic although [9] does not precisely

distinguish the two. Course of actions are related to desired results. It is suggested that

strategies are related to the attainment of goals and tactic are related to the attainment of

objectives. A directive, which can be either a business policy or a business rule, governs

courses of action. Business policies set limits on what can and cannot be done. Business

rules are said to be actionable and are derived from business policies.

Inﬂuencer. An inﬂuencer is supposed to affect means or ends. It can be external or

internal. External inﬂuencers can be of different types such as competitors, customers,

environments, partners, regulations or technology. Internal inﬂuencers can also be of

different types such as corporate value, habits or infrastructure.

Assessment. An assessment is a judgment of the impact of an inﬂuencer on means and

ends. Inﬂuencers are said to be neutral until an assessment is made about them.

3.2 Business Process Model

In its BMM speciﬁcation [9], the OMG relates elements of the BMM to the following

external elements: business process, organization unit and business rule. These three

elements compose the BPM which is deﬁned in more details in [10]. Figure 3 presents

the BPM and how it relates to the BMM.

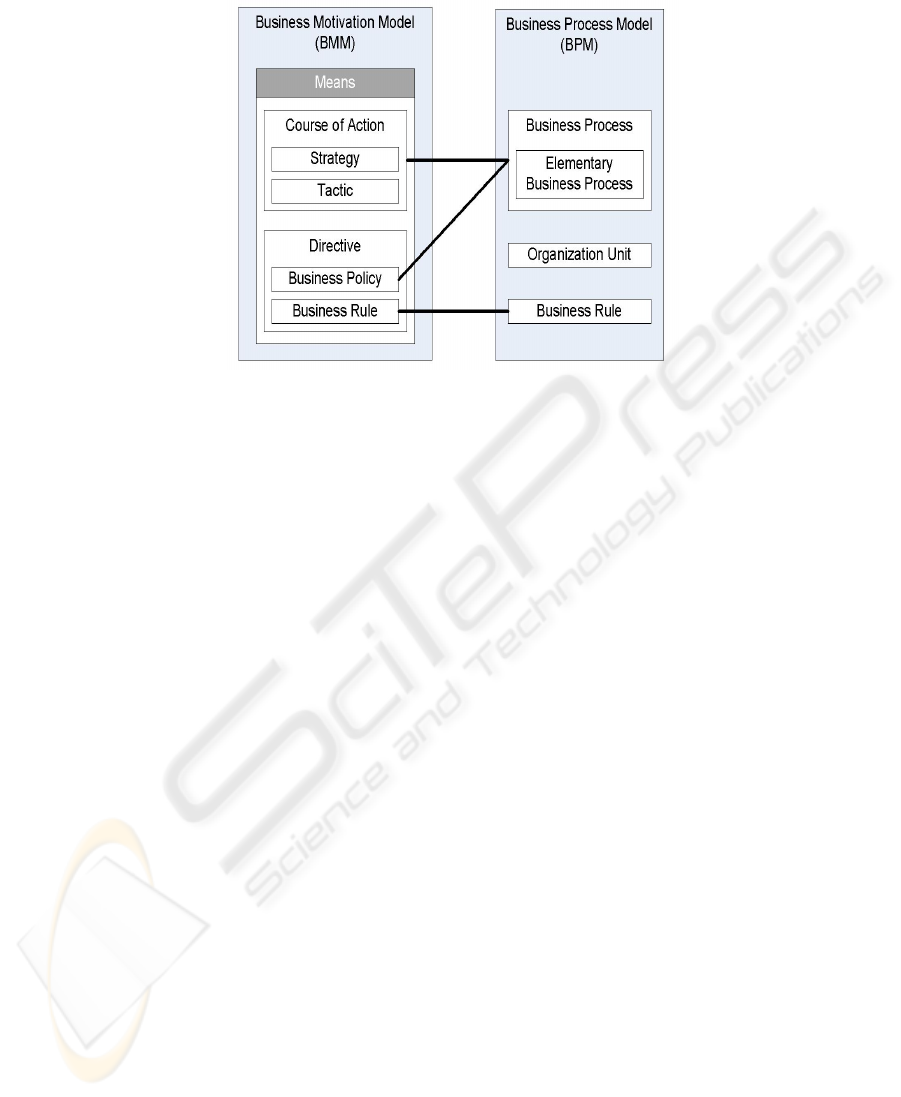

Fig. 3. Structure of the BPM.

Business Process. A business process realizes a course of action, mainly in terms of

sequences of steps. In other words, the justiﬁcation for a business process is its related

BMM course of action. Business processes are governed by business policies.

A business process can be decomposed into smaller business processes. It can be

decomposed all the way to an elementary business process (EBP) which is deﬁned

by [11] as “a task performed by one person in one place at one time, in response to a

business event, which adds measurable business value and leaves the data in a consistent

state (. . . )".

Organization Unit. In the BPM, business processes are under the responsibility of an

organization unit. An organization unit can be any structural element of an organization,

either internal or external, such as a business partner, a department, a team or a role.

Business Rule. BPM business rules come directly from the BMM business rules. They

serve to guide business processes in that they represent an obligation or a necessity.

According to [9], “they provide the basis for decisions that need to be made within

business processes".

3.3 Requirements Model

Systems development is based on deﬁned requirements. Figure 4 presents the RM and

how it relates to the BPM. In our view, the RM is composed of three elements: use case,

actor and business rule.

Use Case. Simply put, a use case describes the interactions between an actor and the

system through a sequence of steps called a scenario. A use case must have a main

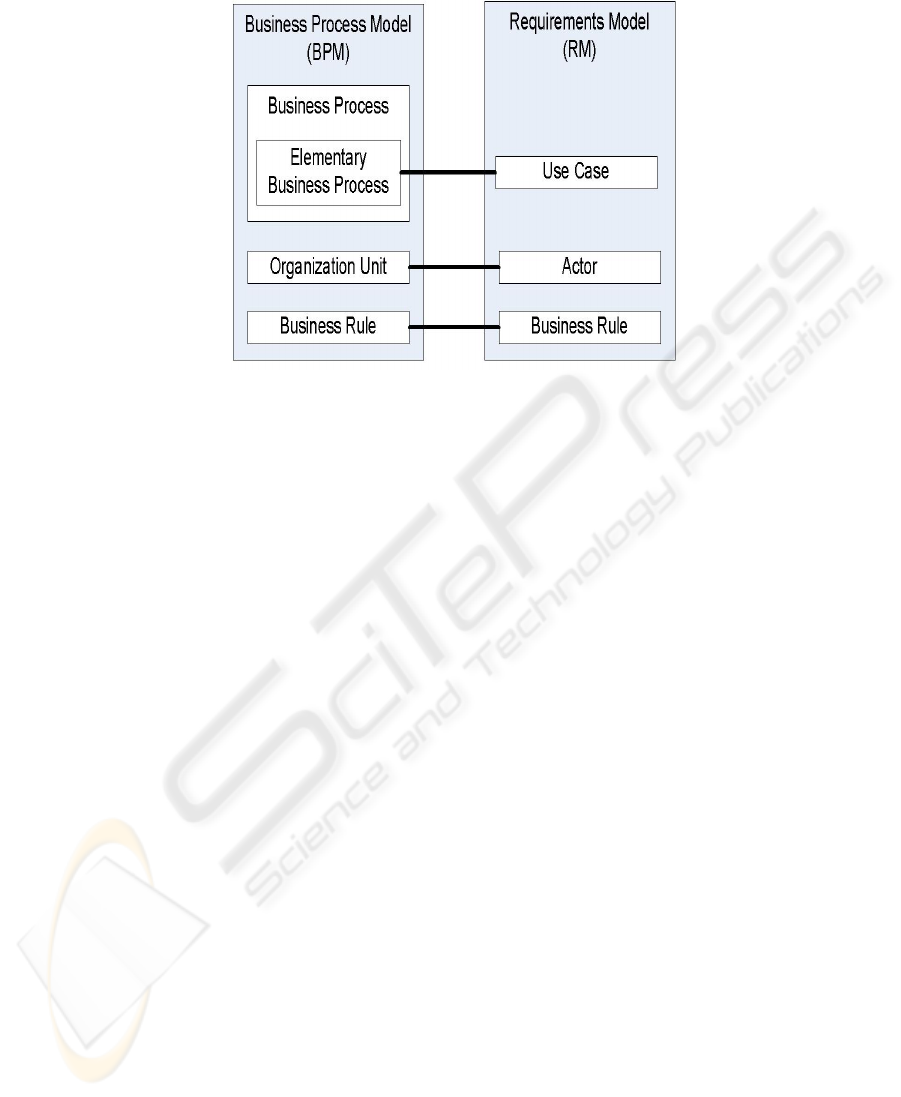

Fig. 4. Structure of the RM.

scenario that describes what should happen most of the time. It can also have alternate

scenarios that describe what should happen in case of an exception.

A use case describes the details of an EBP. Thus, the RM deﬁnes only structural

relationships between use cases, i.e. through «include» and «extend» associations. The

RM does not deﬁne ﬂow between use cases. It is deﬁned in the BPM.

The transformation of an EBP into a use case has been demonstrated by [4]. Fur-

thermore, it is demonstrated in [4] how to transform a use case into a PIM by using

patterns and archetypes.

Actor. An actor is an entity, either physical or logical, which beneﬁts from the use

case. A physical actor is a person such as manager or a clerk, while a logical actor is a

group of persons such as a department or a system such as a banking system. A use case

has one primary actor, but can have a secondary actor. The latter does not beneﬁt from

the use case, but is indispensible in its completion. For instance, in a use case about

credit card payment, the customer is the primary actor, but the system must rely on a

secondary actor - a banking system to validate the payment - in order to achieve the

goal. An actor is directly related to an organization unit in the BPM.

Business Rule. A RM business rule is related to a BPM business rule. In a use case,

business rules trigger alternate scenarios.

4 Conclusions

To facilitate the creation of a CIM, it is important to deﬁne a process for transforming,

respectively, a BMM into a BPM and a BPM into a RM. A set of rules and a process to

transform a BPM into a RM is proposed in [4]. Improvements and implementation of

these are in progress.

Using the BMM as the ﬁrst model to be speciﬁed within the CIM provides a simple

mean to manage high-level business requirements. It is sufﬁciently generic to capture

requirements from any business domain. A software tool will provide a better under-

standing of the relationships between the BMM, the BPM and the RM.

In order to improve our inter-model transformation strategy and strengthen the spec-

iﬁcation of source and generated models, it is essential to deﬁne a UML proﬁle to deﬁne

each of the three models that constitute the CIM. The deﬁnition of a UML proﬁle con-

forming to the MOF will greatly facilitate the inter-model transformations.

Traceability plays an important role in our proposal. Transformation rules that will

be proposed must allow traceability between elements of each model as partially pro-

posed in [4]. As such, relationships between these elements must be made explicit.

Finally, the transformation process will be supported by a tool that is yet to be

implemented.

References

1. Joaquin Miller and Jishnu Mukerji, MDA Guide Version 1.0.1.,OMG (2003)

2. Kirikova, M., A. Finke, and J. Grundspenkis, What Is CIM: An Information System Perspec-

tive, in Advances in Databases and Information Systems, (2010) p. 169-176

3. Osis, J., E. Asnina, and A. Grave, Formal Problem Domain Modeling within MDA, in Soft-

ware and Data Technologies. Springer Berlin Heidelberg. (2009) p. 387-398

4. Kherraf, S., E. Lefebvre, and W. Suryn, Transformation from CIM to PIM Using Patterns

and Archetypes, in Proceedings of the 19th Australian Conference on Software Engineering.

IEEE Computer Society, (2008)

5. Roussev, B., Generating OCL speciﬁcations and class diagrams from use cases: a Newtonian

approach, in Proceedings of the 36th Annual Hawaii International Conference on Systems

Sciences, (2003)

6. Giganto, Reynaldo and Smith, Tony, Derivation of Classes from Use Cases Automatically

Generated by a Three-Level Sentence Processing Algorithm, ICONS ’08: Proceedings of

the Third International Conference on Systems. IEEE Computer Society, Washington, DC,

USA, (2008) 75-80

7. Anda, Bente and Sjberg, Dag I. K., Applying Use Cases to Design versus Validate Class

Diagrams - A Controlled Experiment Using a Professional Modelling Tool, ISESE ’03: Pro-

ceedings of the 2003 International Symposium on Empirical Software Engineering, IEEE

Computer Society, Washington, DC, USA, (2003) 50

8. WFMC, Workﬂow Management Coalition, Interface 1: Process Deﬁnition Inter-change Pro-

cess Model WFMC-TC-1016-P, (1999)

9. OMG, Business Motivation Model (BMM) Speciﬁcation September (2007)

10. OMG, Business Process Deﬁnition MetaModel (BPDM), Process Deﬁnitions, dtc/2008-05-

09 (2008)

11. Larman, C., Applying UML and Patterns. Third ed. Prentice Hall (2004)
