MODEL-DRIVEN

AD HOC DATA INTEGRATION IN THE

CONTEXT OF A POPULATION-BASED CANCER REGISTRY

Yvette Teiken, Martin Rohde

OFFIS Institute for Information Technology, Escherweg 2, 26121 Oldenburg, Germany

Hans-J

urgen Appelrath

Department of Computing, University of Oldenburg, Ammerl

ander Herrstr. 144-118, Oldenburg, Germany

Keywords:

Data Management, Model Driven Software Development, MDSD, Data Analysis, Epidemiology, Data Inte-

gration

Abstract:

The major task of a population-based Cancer Registry (CR) is the identiﬁcation of risk groups and factors.

This analysis makes use of data about the social background of the population. The integration of that data

is not intended for the routine processes at the CR. Therefore, this process must be performed by data ware-

house experts that results in high cost. This paper proposes an approach, which allows epidemiologists and

physicians at the CR to realize this ad hoc data integration on their own. We use model driven software design

(MDSD) with a domain speciﬁc language (DSL), which allows the epidemiologists and physicians to describe

the data to be integrated in a known language. This description or rather model is used to create an extension

of the existing data pool and a web service and web application for data integration. The end user can do the

integration on his/her own which results in a very cost-efﬁcient way of ad hoc data integration.

1 INTRODUCTION

AND MOTIVATION

The principal tasks of a population-based Cancer

Registry (CR) are storing population related occur-

rences of cancer, differentiated monitoring and anal-

ysis of spatiotemporal trends, identiﬁcation of risk

groups and factors and quality assurance of health

care (Batzler et al., 2008). In simple terms the CR

must perform an effective and efﬁcient transforma-

tion of ”Input” (cancer reports of high quality and in

a timely manner) to an ”Output” (meaningful analysis

and reports as well as appropriate monitoring). This

also includes a couple of sub processes within the reg-

istry.

1.1 Population-based Cancer Registries

A CR needs a continuous documentation, commu-

nication and analysis process supported by software

tools due to the amount and complexity of the data.

In ﬁgure 1 the general system architecture of such

a database-driven information system is shown. The

integration of different data sources in a central data

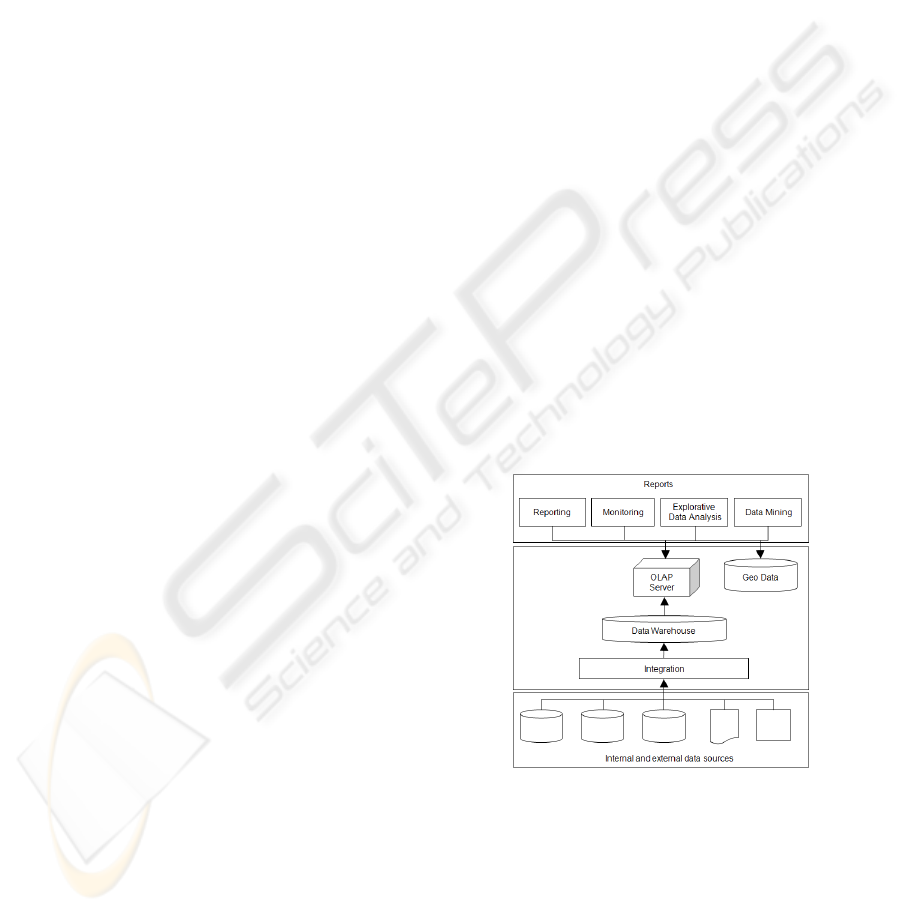

Figure

1: Software architecture at a CR.

warehouse is shown as well as the different analysis

options. These options range from reporting via con-

tinuous monitoring to spatial data mining with Gauß-

uger coordinates. The statistical data analysis in

cancer epidemiology distinguishes itself by its explo-

rative nature and complexity of statistical operations.

Therefore, it makes great demands on a data ware-

house system.

337

Teiken Y., Rohde M. and Appelrath H. (2010).

MODEL-DRIVEN AD HOC DATA INTEGRATION IN THE CONTEXT OF A POPULATION-BASED CANCER REGISTRY.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 337-343

DOI: 10.5220/0003044703370343

 SciTePress

Finding trends in health and the correlation of dis-

eases and potential inﬂuencing factors are examples

of such analysis. A multidimensional data model

which especially allows the integration of speciﬁc sta-

tistical operations is an important precondition for the

realization of a data warehouse system for the CR.

1.2 The Multidimensional Data Model

for CR

Comprehensive meta information is needed for a mul-

tidimensional data model that allows for the spe-

ciﬁc requirements of epidemiologic research. Due

to this need the data model cannot be modeled us-

ing Star or Snowﬂake schemas described in (Kimball

et al., 1998). Therefore, the schema of the data ware-

house used by CR is based on the special multidi-

mensional data model MADEIRA (Modeling Analy-

ses of Data in Epidemiological InteRActive studies)

(Wietek, 1999) which considers these requirements

and maps them to relational data structures.

Figure 2 shows that the dimensions, a hyper-

cube, and a multidimensional model, are deﬁned with

qualitative attributes as views on general dimensions.

Thereby, the comparison and conjunction of hyper-

cubes is simpliﬁed. The content of a hypercube is

speciﬁed by quantitative attributes. Quantitative at-

tributes describe a range for measures and an aggre-

gation function. The range can be given as lower and

upper values. The aggregation function is needed dur-

ing roll-up operations (Kimball et al., 1998) on data

pools.

A hypercube is deﬁned between a basic data pool,

data basis and data cubes. The data basis deﬁnes a

multidimensional view on the whole data of the data

warehouse by their meta data. Data cubes on the other

hand are used by statistical analysis. The qualitative

attributes of data cubes describe statistical measures

and contain algorithms for the derivation of measures

from other qualitative attributes. The layers above

hide the concrete data model from the end user.

Based on the data model the data analysis platform

MUSTANG (Multidimensional Statistical Data Anal-

ysis Engine)(Koch et al., 2003) and the epidemiologi-

cal analysis platform CARESS (CARLOS Epidemio-

logical and Statistical Data Exploration System) were

developed.

1.3 Ad Hoc Data Integration at a CR

In addition to the routine processes of data integration

sometimes more data need to be integrated in the data

warehouse system for speciﬁc statistical analysis.

There are indications that social diversity or

poverty increases the risk factors of contracting can-

cer. To follow this hint, data of drinking, eating habits

and other factors like working conditions must be in-

tegrated in the analysis. For this kind of integration

which is outside of routine processes, new multidi-

mensional data structures and their relational repre-

sentation must be created. Furthermore, the data itself

has to be integrated into the dataset. This integration

data can be in bulk or single data rate. Bulk data is

mostly extracted from given data sources. These data

sources are mostly simple text ﬁles. This data has to

meet some quality assurances.

Until now only trained data warehouse adminis-

trators in the IT departments were able to perform

the data management with the process steps explained

above.

Due to personal and institutional separation be-

tween epidemiologists and data warehouse admin-

istrators the integration of new data is a time-

consuming coordination process. Furthermore the

SQL scripts needed manual customizations which is

also a time-consuming process. Hence, a timely in-

tegration of new data is not possible. For this reason

we searched for an approach that allows epidemiolo-

gists and physicians to integrate these kinds of data on

their own. In this approach we searched for a natural

understandable way to deﬁne data pools and to add

single and bulk data.

2 CONCEPTUAL DESIGN OF

MODEL-DRIVEN AD HOC

DATA INTEGRATION BASED

ON A DSL

To meet the requirements an MDSD approach based

on a graphical DSL has been designed and imple-

mented (Kelly and Tolvanen, 2008).For this domain

speciﬁc models has been speciﬁed and through trans-

formations artifacts has been generated. The use

of a DSL-based approach has many advantages over

an MDA-based approach which makes use of UML-

based DSLs. Some of these advantages are introduced

in chapter 4. Widespread opinion is that UML is

easier to learn than other modeling languages (Dom-

browski and Lechtenb

orger, 2005). In our opinion

this may be true for software developers and archi-

tects but not for epidemiologist and physicians.

In ﬁgure 3 our MDSD-based approach is sketched.

If we want to integrate data into the data pool the

structure of the data must be clear. There must be

a description of the ad hoc data to integrate. This cir-

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

338

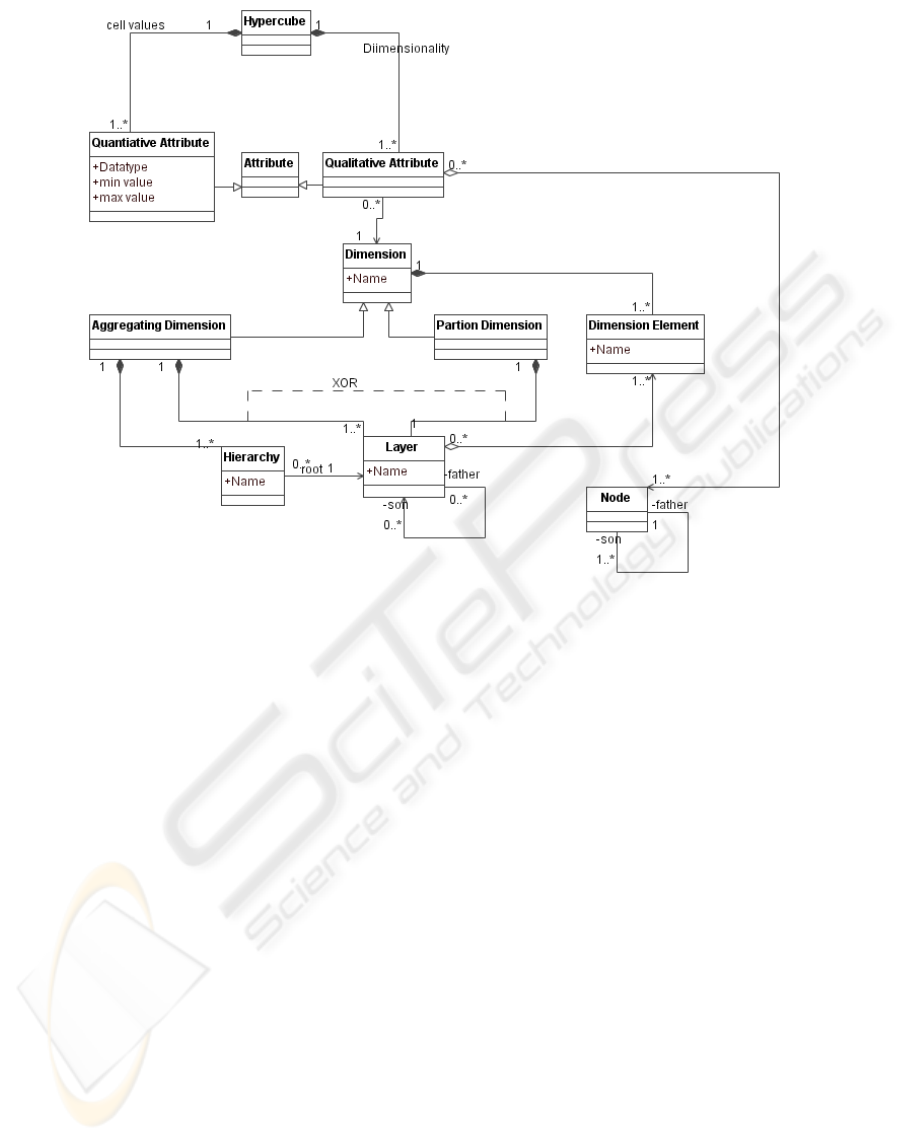

Figure 2: Meta model of the hypercubes and dimensions in MADEIRA.

cumstance is named information demand in ﬁgure 3.

Information demand describes measures and their di-

mensionality. This information demand can be seen

as a conceptual multidimensional model and is de-

scribed by a DSL. In the terminology of MDSD this

is called a Platform-Independent Models (PIM).

Based on this information demand two interme-

diate models are generated. The ﬁrst one is called

database-schema-model and the second one is called

integration-schema-model. These intermediate mod-

els are generated by model-to-model transforma-

tions. The database-schema-model describes how the

multidimensionally described information demand is

mapped to a relational schema. Storage of multidi-

mensional data in a relational structure is a common

approach. In the terminology of MDSD this is called

a Platform-Speciﬁc Models (PSM) these kind of mod-

els can be created from a PIM.

The integration-schema-model describes the data

to be integrated as a single dataset. Based on these

two intermediate models, artifacts are generated by

model-to-code transformations. These artifacts are

scripts, software components and deployment infor-

mation that can be used by the epidemiologists and

physicians at CR.

2.1 Graphical appearance of the DSL

For a DSL an abstract and a concrete syntax must be

deﬁned (V

olter and Stahl, 2006). The concrete syntax

contains the symbols of the DSL used by the end user

to create the models. So the concrete syntax must be

in the domain of the end user. Only in this case we

can make advantages of a Domain-speciﬁc modeling-

based approach. When choosing a concrete syntax for

a DSL we have to decide whether to develop a new

language from scratch or to use an existing language.

An existing language has sometimes to be adapted for

the particular case. In most cases an existing language

is better engineered than a self-developed language at

ﬁrst. Another big advantage of using an already ex-

isting language is that users of the language are al-

ready familiar with its concepts. They know the con-

cepts and notations and therefore need less training

time. The semantic of our DSL is not explicit mod-

eled but rather implicitly deﬁned through transforma-

tions, generated artifacts, and the corresponding do-

main.

Epidemiologists and physicians in CR are famil-

iar with multidimensional concepts. Therefore we

use a well-known multidimensional modeling lan-

guage for our concrete syntax. Well-known multidi-

MODEL-DRIVEN AD HOC DATA INTEGRATION IN THE CONTEXT OF A POPULATION-BASED CANCER

REGISTRY

339

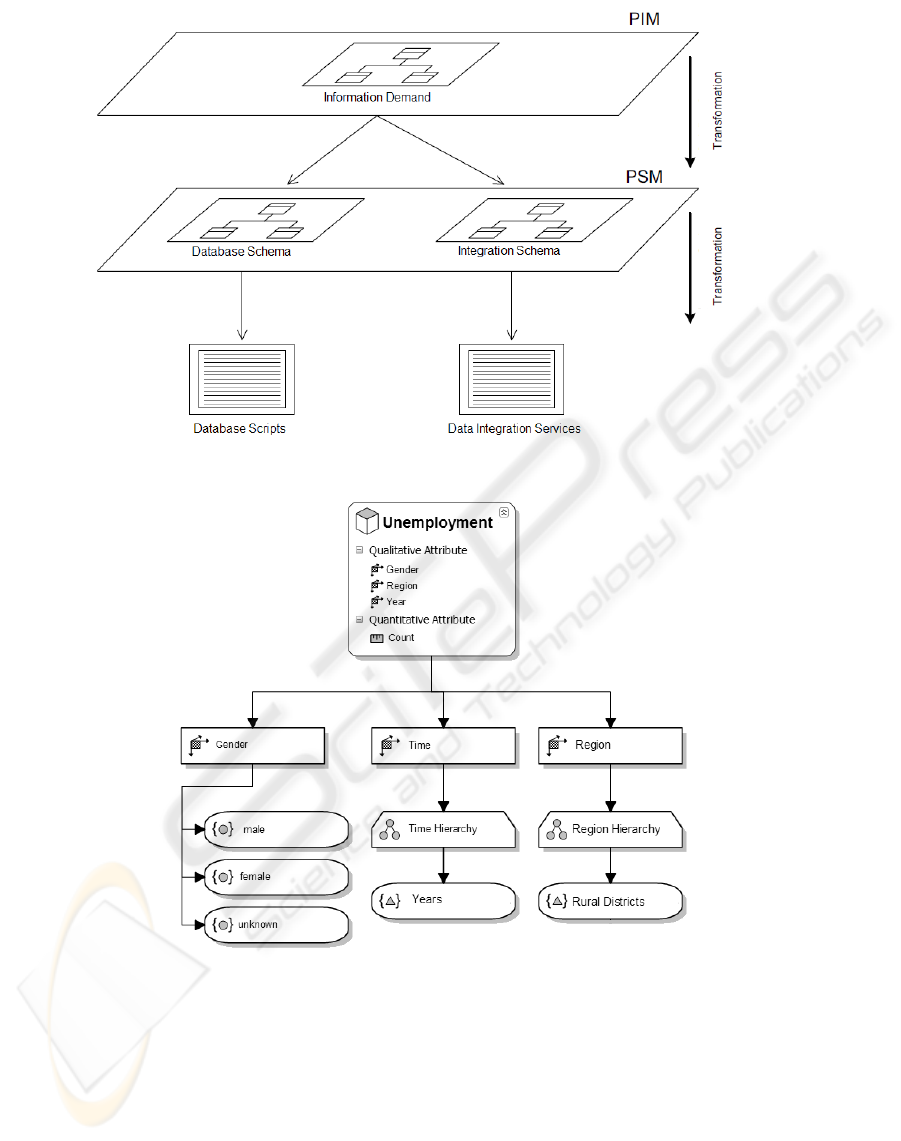

Figure 3: MDSD-based concept.

Figure 4: Example of a concrete syntax of the DSL (unemployment ﬁgures).

mensional modeling languages are Multidimension-

ale Entity-Relationship-Modell (MERM) by (Sapia

et al., 1999), Dimensional Fact Modelling (DFM)

by (Golfarelli et al., 1998) and Application Design

for Analytical Processing Technologies (ADAPT) by

(Bulos, 1996). From these three languages we wanted

to choose one as a fundament of our own DSL. Char-

acteristics for choosing the right language were ade-

quacy, maturity and usability. In all three languages it

is possible to model cubes and dimensions. ADAPT

is more ﬂexible regarding modeling parts of dimen-

sions. ADAPT is the most common multidimensional

modeling language as said in (Hahne, 2005). Regard-

ing usability ADAPT offers more signiﬁcant symbols

and notations than the other languages. One advan-

tage of MERM is that it is based on ER-Notation. In

computer science and related areas there are a lot of

people who are familiar with ER which makes it easy

for them to learn MERM. Thus, it is easy to address a

large numbers of users with MERM. However, based

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

340

on usability and spreading we chose ADAPT as con-

crete syntax of our DSL as we could expect that a

large number of potential users are familiar with the

concepts of ADAPT as multidimensional language.

ADAPT does not cover all of our use cases, e.g. it

does not distinguish between qualitative and quantita-

tive attributes. For the use of MADEIRA it is neces-

sary to differ between these kinds of attributes. In our

realization we enhanced ADAPT with these concepts.

Quantitative attributes are used to represent measures.

Qualitative attributes deﬁne the dimensionality of a

data cube. This is used to model the granularity of the

data to integrate. In ﬁgure 4 an example of the con-

crete syntax is given. As implementation platform we

used Microsoft DSL Tools (Cook et al., 2007). Deﬁn-

ing and modeling DSLs with Microsoft DSL Tools is

done graphically. A deﬁnition includes elements and

their relations between each other. In addition, ele-

ments can have a graphical representation.

2.2 Meta Models and Transformations

In the last section we described the concrete syntax of

our DSL. In this section we describe our meta model,

intermediate models, and our transformations.

ADAPT in its original form doesn’t have a meta

model. The deﬁnition of ADAPT is limited to a ver-

bal description of its elements. The reason for this

might be that the original attempt of ADAPT does not

have a technical representation. The most technical

representation of ADAPT that can be found so far are

Microsoft Visio shapes. If we want to use ADAPT

in a MDSD-based approach this is not sufﬁcient. We

have to deﬁne an additional meta model. Our goal is

to map our models to the relational representation of

MADEIRA so we can use MADEIRA as shown in

ﬁgure 2 as our meta model.

2.3 Description of Intermediate Models

Based on an instance of a cube model two model-

to-model transformations are performed. One is

the database-schema-model and the other one is the

integration-schema-model. In ﬁgure 5 the database-

schema-model and in ﬁgure 6 the integration-schema-

model are shown as MOF models. The database-

schema-model describes the fundamentals of rela-

tional concepts. This intermediate model describes

the fact that multidimensional data in the CR data

warehouse is stored in a relational database. In the

MOF model it is not deﬁned what kind of relational

storage is used. It is only clear that data is stored rela-

tional. What kind of relational representation is used

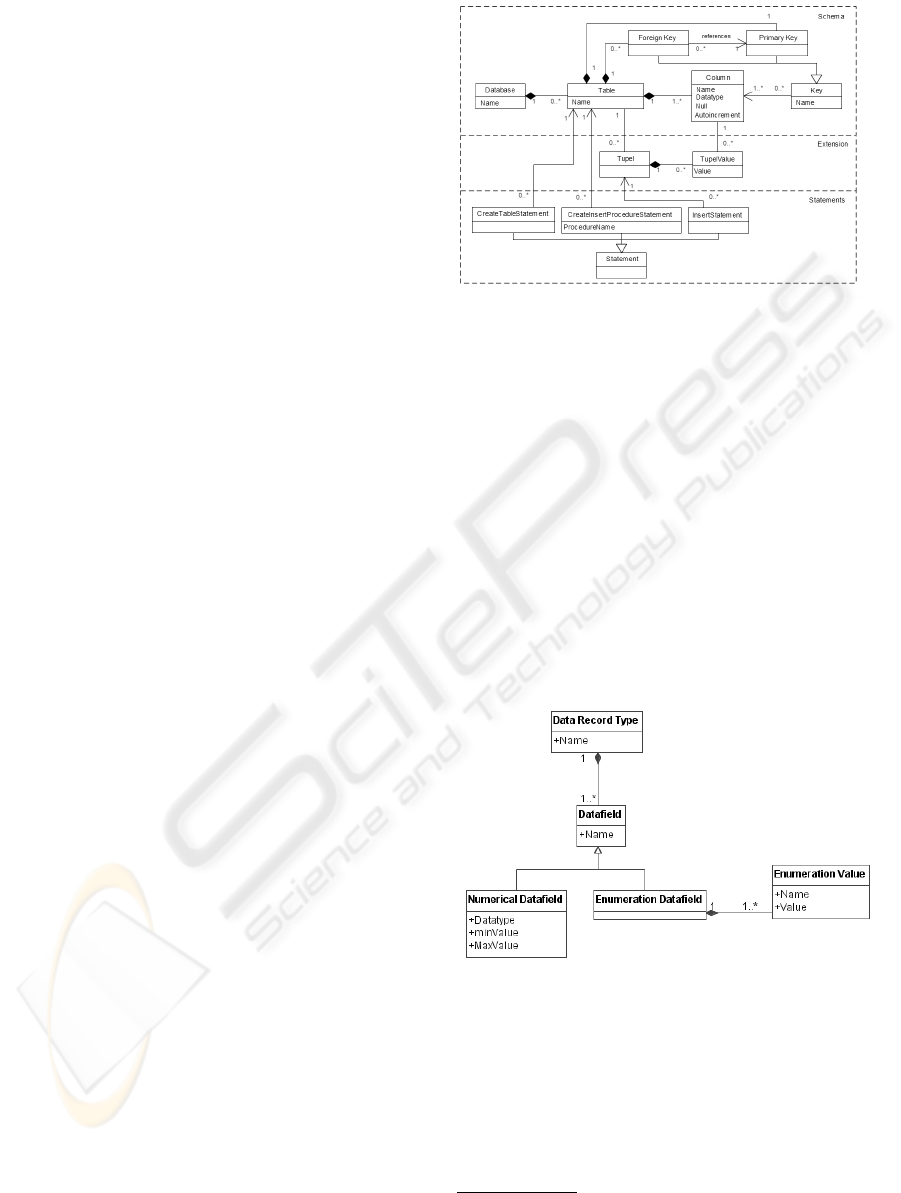

Figure 5: Relational meta model.

is deﬁned through transformation

. The transforma-

tion describes how multidimensional data is mapped

to tables, tupels, keys and commands like Create Ta-

ble or Insert. Based on a general relational model,

instances can be transformed to concrete SQL com-

mands and scripts. This circumstance is indepen-

dent from relational storage of multidimensional data.

This means an instance of the xdatabase-schema-

model can have a relational representation as Star

Schema or Snowﬂake, for example. In our case we

realized a transformation to T-SQL. This is used to

populate MS SQL Server. Depending on the target

DBMS other transformations can be realized. For

evaluation we also implemented a transformation to

PL/SQL to support Oracle and PostgreSQL databases.

Figure 6: Data record meta model.

Next to the database-schema-model there is also

an integration-schema-model generated based on a

cube model. The integration-schema-model describes

data records that will be integrated in the data pool

of CR. For this kind of integration we use the DTO-

Pattern by (Fowler, 2002). In our case the DTO-object

is called data record. A data record describes one

single cell in a data cube. In our example a data

In this article transformations are only described

schematically, because they are to extensive for this kind

of publication.

MODEL-DRIVEN AD HOC DATA INTEGRATION IN THE CONTEXT OF A POPULATION-BASED CANCER

REGISTRY

341

record consists of an unemployment ﬁgure and addi-

tional information for gender, region and year. This is

called dimensional meta data. A Numerical Dataﬁeld

as seen in ﬁgure 6 is used to store numerical data,

e.g. a single unemployment ﬁgure. A Numerical

Dataﬁeld can be modeled with a minimum and max-

imum value. In our case negative values are not valid

because unemployment cannot be negative. We can

also exclude values higher than eight million because

of the population of our federal state. Minimum and

maximum are used to increase data quality. Also for

quality issues we simpliﬁed the input of dimensional

data. In our case no new dimensional data is created,

so it is possible to only reference this kind of infor-

mation. For this reason this information is modeled

as enumeration. With this concept we can improve

data quality even more. Currently this is sufﬁcient

for data quality. For more broaden use of this ap-

proach some more complex data quality aspects have

to be taken in consideration. Based on instances of

database-schema-model and the integration-schema-

model artifacts can be generated.

3 GENERATED ARTIFACTS

In this section we describe how we generate artifacts

based on concrete instances of the meta model. The

artifacts we use in this article are parts of the informa-

tion logistic infrastructure, a web application, and an

XML web service for data acquisition. A prototypi-

cal implementation has been realized. Based on the

intermediate models model-to-model transformations

are triggered. Here, existing source code is extended

with generated schematic code. After this, the new

generated source code is compiled and the generated

application can be executed.

To deploy new databases within the data analy-

sis platform, models are transformed into executable

SQL scripts. These kind of scripts are identical with

those that have been written by the data warehouse ad-

ministrators before we introduced the MDSD-based

approach. When these scripts are executed with addi-

tional deployment information databases can be inte-

grated automatically in the data warehouse infrastruc-

ture.

We want to support single value data as well as

bulk data, so we generated different kinds of integra-

tion applications. First a web service is generated.

This web service accepts data based on the DTO deﬁ-

nition. This service can be used to integrate bulk data

as well as it accepts single value data. This function-

ality is used in the generated web application. The

generated web application adds code for forms and

validation code to integrate single value data.

This web application is automatically deployed at

the CR. The application consists of generic, individ-

ual and schematic code, as deﬁned in the principles

of MDSD (V

olter and Stahl, 2006). The generic part

of the application is the same in every instance of

the web application. In our case workﬂow function-

ality and the fundamentals of authentication. Some

parts of the application are non-generic and cannot be

generated, this is called individual code. In our case

we only have interfaces for authentication as individ-

ual code in case previously unknown authentication

mechanisms have to be introduced. Schematic code is

that part of the application which is repeated in differ-

ent ways. In the web application this is forms and data

record descriptions for integration. This part of the

application is describes by the integration-schema-

model.

4 RELATED WORK

Relating to ADAPT and other multidimensional mod-

eling languages Gluchowski recently presented a pro-

totype that can create relational structures based on

ADAPT models in (Gluchowski et al., 2009). This

prototype is based on a self-deﬁned meta model com-

parable to our approach. However, only SQL state-

ments for a single relational schema, the Star schema,

are generated and no services for data integration are

developed but there is an export to the Common Ware-

house Model (CWM) (OMG, 2001). This export al-

lows a better exchangeability of models by using an

accepted standard. For instance, in (Hartmann, 2008)

the CWM is used to overcome the heterogeneity of

data warehouses.

Although there is no standard for conceptual mod-

eling of data warehouses there are approaches to use

MDA and MDSD within the data warehouse process.

A as described in (Mazon et al., 2005) is an ex-

ample of using MDA in the context of data ware-

houses. However, these approaches are only based on

UML as modeling language. Dombrowski describes

in (Dombrowski and Lechtenb

orger, 2005) other ap-

proaches to using UML as data warehouse modeling

language. Likewise, the Multidimensional Modeling

Language (MML) in (Herden, 2000) is one example

of such a language.

In our opinion those approaches do not succeed

in proper abstraction. Proper abstraction and conse-

quently an alleviation in the data warehouse processes

can only be reached by specifying the models within

their domain and subsequently transform them to soft-

ware.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

342

5 EVALUATION

AND CONCLUSIONS

First tests were performed with epidemiologists and

physicians at the CR, who are experienced with mul-

tidimensional concepts. Given the graphical DSL and

new tools the people were able to model and create

new data integration scenarios as well as to import

single and bulk data. The acceptance and comprehen-

sibility of the graphical DSL is a result of the close co-

operation between our institute and CR with its users.

Using the DSL, unemployment ﬁgures could be

integrated into the data warehouse to analyze correla-

tions between unemployment and cancer incidence.

Unemployment ﬁgures made available by a statis-

tics ofﬁce, were imported as single data records of

47 rural districts. After discovering a correlation at

this level the cube model of the unemployment ﬁg-

ures was more detailed by the unemployment ﬁgures

of boroughs. Eventually, the unemployment ﬁgures

combined with gender data of about 1000 boroughs

were integrated for further analysis as bulk data start-

ing in 2003 by using the web service interface.

There are more evaluation scenarios that require

ad hoc data integration but in addition also need new

dimensions to be deﬁned. One important task of

the CR is to answer requests by rural health author-

ities and citizens’ groups. That analysis handles with

small-scale clusters of cancer. That analysis also re-

quired ad hoc integration of special data. For example

population ﬁgures on basis of boroughs provided by

the statistics ofﬁce are integrated yearly. However,

the requests by boroughs require more detailed ﬁg-

ures, e.g. based on street sections. On the one hand

those data requires research of the residents registra-

tion ofﬁce and on the other hand the spatial dimension

needs to be extended by, for example, street sections.

In addition to modeling new data cubes the creation

or extension of existing dimensions by suitable DSLs

is another important challenge and ﬁeld of research.

REFERENCES

Batzler, W. U., Giersiepen, K., Hentschel, S., Husmann,

G., Kaatsch, P., Katalinic, A., Kieschke, J., Kray-

winkel, K., Meyer, M., Stabenow, R., and Stegmaier,

C. (2008). Cancer in Germany 2003-2004 Incidence

and Trends. Robert Koch-Institut, Berlin.

Bulos, D. (1996). Olap database design: A new dimension.

Database Programming&Design, Vol. 9(6).

Cook, S., Jones, G., and Kent, S. (2007). Domain Speciﬁc

Development with Visual Studio DSL Tools (Microsoft

.net Development). Addison-Wesley Longman, Ams-

terdam.

Dombrowski, E. and Lechtenb

orger, J. (2005). Evalua-

tion objektorientierter Ans

atze zur Data-Warehouse-

Modellierung. Datenbank-Spektrum, 5(15):18–25.

Fowler, M. (2002). Patterns of Enterprise Application Ar-

chitecture. Addison-Wesley Longman.

Gluchowski, P., Kunze, C., and Schneider, C. (2009). A

modeling tool for multidimensional data using the

adapt notation. In 42nd Hawaii International Con-

ference on System Sciences (HICSS-42).

Golfarelli, M., Maio, D., and Rizzi, S. (1998). The dimen-

sional fact model: A conceptual model for data ware-

houses. International Journal of Cooperative Infor-

mation Systems, 7:215–247.

Hahne, M. (2005). Das common warehouse metamodel

als referenzmodell f

ur metadaten im data warehouse

und dessen erweiterung im sap business information

warehouse. In Vossen, G., Leymann, F., Lockemann,

P. C., and Stucky, W., editors, BTW, volume 65 of LNI,

pages 578–595. GI.

Hartmann, S. (2008). berwindung semantischer Hetero-

genitt bei multiplen Data-Warehouse-Systemen. PhD

thesis, University of Bamberg.

Herden, O. (2000). A design methodology for data ware-

houses. In Proc. of the 7th IEEE Intl. Baltic Workshop

(Baltic DB&IS 2000), pages 292–293. IEEE.

Kelly, S. and Tolvanen, J.-P. (2008). Domain-Speciﬁc Mod-

eling: Enabling Full Code Generation. John Wiley &

Sons.

Kimball, R., Reeves, L., Ross, M., and Thornthwaite, W.

(1998). The Data Warehouse Lifecycle Toolkit: Expert

Methods for Designing, Developing, and Deploying

Data Warehouses. John Wiley & Sons.

Koch, S., Meister, J., and Rohde, M. (2003). Mustang – a

framework for statistical analyses of multidimensional

data in public health. In Gnauck, A. and Heinrich, R.,

editors, 17th International Conference Informatics for

Environment Protection, pages 635–642.

Mazon, J.-N., Trujillo, J., Serrano, M., and Piattini, M.

(2005). Applying mda to the development of data

warehouses. In DOLAP ’05: Proceedings of the 8th

ACM international workshop on Data warehousing

and OLAP, pages 57–66, New York, NY, USA. ACM.

OMG (2001). Common warehouse metamodel (cwm) spec-

iﬁcation. Internet.

Sapia, C., Blaschka, M., H

oﬂing, G., and Dinter, B. (1999).

Extending the e/r model for the multidimensional

paradigm. In ER ’98: Proceedings of the Workshops

on Data Warehousing and Data Mining, pages 105–

116, London, UK. Springer-Verlag.

olter, M. and Stahl, T. (2006). Model-Driven Software

Development. Wiley & Sons.

Wietek, F. (1999). Modelling Multidimensional Data in

a Dataﬂow-Based Visual Data Analysis Environment,

volume 1626 of Lecture Notes in Computer Science.

Springer.

MODEL-DRIVEN AD HOC DATA INTEGRATION IN THE CONTEXT OF A POPULATION-BASED CANCER

REGISTRY

343
