Efficiency Requirements in PIM to PSM

Transformations

Dariusz Gall

Computer Science and Management Faculty, Wrocław University of Technology

Wybrzeże Wyspiańskiego 27, 50-370 Wrocław, Poland

Abstract. In the paper, we provide extensions for MDA (Model Driven

Architecture), taking into consideration efficiency requirements. The scope of

the proposition is limited to the PIM (Platform-Independent Model) and the

PSM (Platform Specific Model) extension. Efficiency requirements are

maximal rates of users requests under which the system has to perform. We

extend the PIM to the model containing efficiency requirements. We introduce

a PSMSpec (PSM Specification) containing a system architecture, platform,

efficiency requirements, and a PSMInst (PSM Instance) defining a deployment

of the system. The PIM’s functional specification and efficiency requirements

are transformed to the PSMSpec’s system architecture and efficiency

requirements. Finally, efficiency characteristics are estimated and verified

against the efficiency requirements, the PSMInst is suggested.

1 Introduction

Efficiency requirements shall be handled during development process from the

earliest stages [1]. In order to make it possible, we have to specify the requirements

with constraints in quantitative way, provide a transformation of the requirements

from specification level to design/deployment level, provide verification of the

requirements, and introduce changes to design/deployment based on the requirements

verification [1], [2].

In the paper, we introduce handling of efficiency requirements in the development

process, by extending the MDA (Model Driven Architecture). The MDA is software

development approach, which is based on models and the concept of separation of

specification from implementation. The concept is applied by transforming platform-

independent models (PIMs) into platform specific models (PSMs), which in result are

transformed to a system implementation [3].

In the related papers [2], [4], [5] idea of supporting efficiency requirements using

MDD (Model Driven Development), in particular MDA, is introduced. Efficiency

requirements are not supported by the MDA [2], but are implemented in the MDA by

adding new efficiency models at platform independent, platform specific level and by

providing transformations of the efficiency models [2], [4], [5]. The efficiency models

are resolved and results are used for architecture/design refactoring, if required [2],

[4]. In [5], a necessity of differentiating platforms' performance influence to the

overall system performance is discussed, e.g. software and hardware platform

Gall D. (2010).

Efﬁciency Requirements in PIM to PSM Transformations.

In Proceedings of the 2nd International Workshop on Model-Driven Architecture and Modeling Theory-Driven Development, pages 93-98

DOI: 10.5220/0003044800930098

 SciTePress

separation.

The paper is organized in the following way: in Chapter 2, requirements

transformation, extension of PIM and PSMs are discussed, in Chapter 3 we introduce

behavior metric and discuss a system’s efficiency estimation, an example of Payment

System is presented in Chapter 4, and the article is summarized in Chapter 5.

2 Extending MDA

In order to introduce efficiency requirements into the MDA, we have to include into

MDA models’ efficiency requirements, efficiency constraints, and transformations.

The PIM is platform independent model, which defines a software system’s

functional requirements [3]. We add to the PIM efficiency requirements. The

functional specification contains actors, use cases definition, and use cases’

scenarios. The use cases’ specification are defined by UML sequence diagrams in

terms of «boundary» and «logic» classes or «entity» classes [6].

The PIM’s efficiency requirements and efficiency constraints are defined for pairs

of an actor and an use case. We specify an efficiency requirement by defining a

maximal rate of an use case’s scenario executions by an actor. The constraints on the

requirements indicate most often executed scenarios of the use case. For each

possible scenario we define a weight, indicating execution rate. The efficiency

requirements and constraints are expressed using MARTE [7].

The PSM is a platform specific model defining a system architecture [3]. We

suggest to introduce two PSMs: PSMSpec (PSM Specification) and PSMInst (PSM

Instance). A PSMSpec consists of the software system architecture, deployment

specification, platform within the system is developed, efficiency requirements, and

efficiency constraints, required for a total computation effort calculation introduced in

Chapter 3. We define platform by UML structural elements [6] and efficiency

constraints, specifying computational complexity of platform’s operations. The

deployment specification defines system deployment on specification level [6] and

efficiency constraints [7], i.e. defines possible system deployments, e.g. number of

nodes’ instances, nodes efficiency constraints.

The PSMSpec’s efficiency requirements and efficiency constraints are mapped

from efficiency requirements

and the constraints defined in PIM, expressed in terms

of the software system architecture. An efficiency requirement is defined in context of

the actor and the use case from PIM’s use cases.

A PSMInst is a platform-specific model, which contains an instance of the

PSMSpec’s deployment specification [6] with efficiency characteristics of nodes [7],

i.e. computation power of nodes. The PSMInst represents a particular deployment of

the system.

The PIM is transformed into a PSMSpec. Two kind of transformation are

performed. The first type is a transformation of the PIM’s functional specification into

PSMSpec’s software system architecture and deployment specification, within a

platform. The second type is a transformation of the PIM’s efficiency requirements

with constraints into PSMSpec’s efficiency requirements with constraints.

The PSMSpec is transformed into PSMInst. A particular deployment of the system

is stored in PSMInst. During the transformation, instances are created and

configurations of the instances are set. The transformation is made with respect to

results of the efficiency assessment introduced in Chapter 3.

3 Efficiency Assessment

Fulfilling the efficiency requirements is necessary to find such a system’s

configuration, i.e. the PSMInst, where computation power provided by node types is

more than the computation power required by node types for the all system use cases.

Thereby, we have to: assess a computation effort for each use case’s scenario for each

node’s type, assess the required computation power for all system’s use cases for

each node type, and check if it is possible to find the system’s configuration which

provided computation power that is sufficient.

In first step, we assess the use case’s computation effort. We define the behavior

metric, which value is used for assessing computation effort of a use case

implemented within a particular PSMSpec. The metric is defined in terms of average

number of virtual instructions for each node type required to execute a use case. We

assume that each virtual instruction has similar time of execution on a given node

type. The metric’s argument are: the UML sequence diagram representing scenarios

of the use case and average lengths of scenarios’ input and context arguments. Each

occurrence specification in a UML sequence diagram, e.g. operation invocation,

combined fragments, etc. is mapped to a set of virtual instructions. A value of the

metric for a given sequence diagram is a collection, in which for each node type, a

number of virtual instructions corresponding to elements of the sequence diagram

executed on the node type is given.

The mapping may differ for different platforms, we use herein Java platform,

thereby a virtual instruction corresponds to a Java bytecode instruction [8] [9].

Because the virtual instruction is a bytecode, we are able to compute the metric’s

values for Java platforms’ libraries operations and use the values in use case’s metric

calculation [9]. We assume herein that for all necessary Java’s library operations the

metric is computed.

We calculate a value of the metric for a given use case’s scenarios and attribute

values taking into consideration each node type on which the scenarios are executed.

We calculate the metric according to the following steps:

1. If a given operation or an use case has already calculated complexity, return the

value, taking into consideration node type on which operation

is executed.

We assume that the value is already given for operations of platform’s libraries,

2. If a given operation or use case is defined by an UML sequence diagram than for

each occurrence specification, taking into consideration node type:

a. Calculate the metric for all called operations, i.e. repeat these steps from the

beginning for each operation,

b. If the occurrence specification is not inside any combined fragment then add

the occurrence specification metric’s value to the given operation or use

case total complexity,

c. If the occurrence specification is inside alternatives, option combined

fragment then add the occurrence specification metric’s value to the given

operation or use case total complexity multiplying it by weight attached to

appropriate combined fragment’s operand,

d. If the occurrence specification is inside loop combined fragment then add the

occurrence specification complexity to the given operation or use case total

complexity multiplying it by number of loop iterations attached to the loop.

In next step, we have to calculate a required computation power per node type for all

the system’s use cases taking into consideration the efficiency requirements. We

calculate it by summing for all pairs of an actor and a use case, multiplication of each

element of a collection of the use case metric’s value’s by a use case execution rate

Finally, we have to find a proper system configuration. For each node type in the

PSMSpec’s deployment specification, efficiency constraints on a computational power

are set. We check for each node type whether it is possible to create a proper number

of instance where computational power provided is more that computational power

required . If yes, then the condition is fulfilled, otherwise, we have to modify the

system architecture, or change the deployment specification constraints.

4 Payment System Example

We present the Payment System as an example of efficiency handling, which provides

a money transfer functionality. We present in the paper one use case with efficiency

requirements and constraints, which is the money transfer, see

Fig. 1. The efficiency

requirement, defined by «gaWorkloadEvent» and pattern tag, is to provide the use

case execution’s maximal throughput. Weights of each possible scenario are defined

by «paStep» and a weight tag [7], see

Fig. 1.

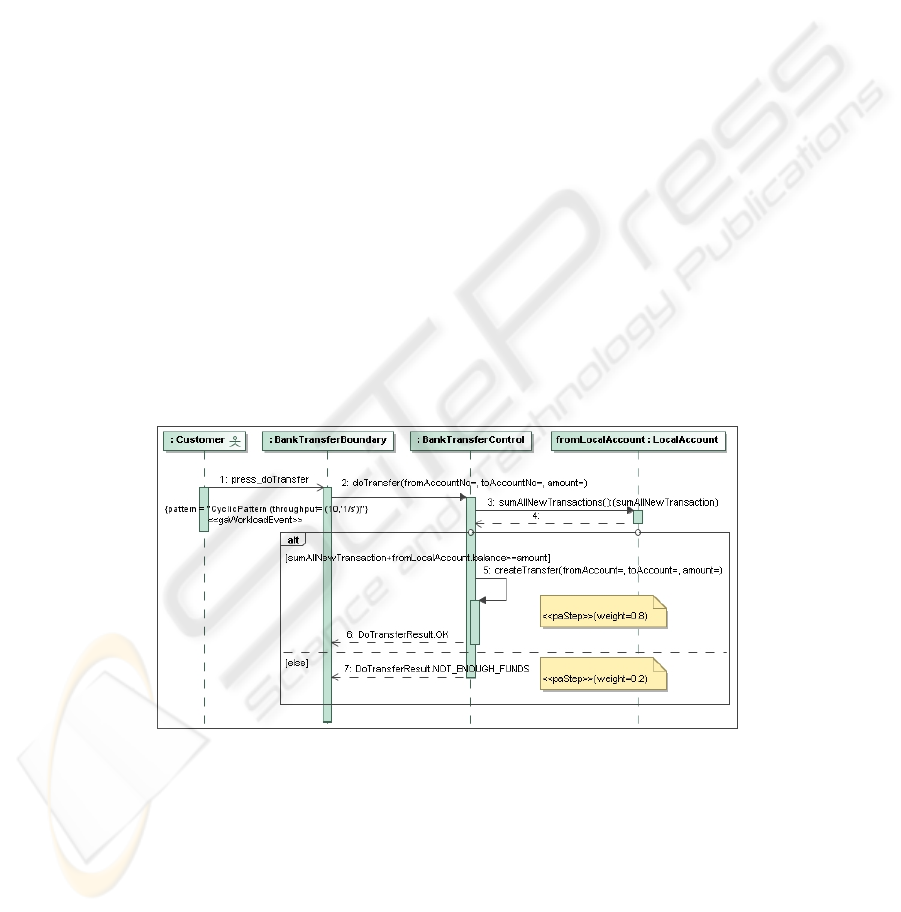

Fig. 1. PIM - The transfer money use case specification.

We transfer the PIM’s functional requirements to the PSMSpec, with respect to

client-server architecture pattern, adding the load balancer to provide system

scalability [10]. Because of the space limit, we do not present the platform’s model in

this paper. We present only transformation results in

Fig. 2 and Fig. 3: i.e. the sequence

diagram of the implementation of use case, and deployment diagram with types of

nodes etc. The Fig. 2 and Fig. 3 already contain efficiency requirements and

constraints, however, none of them are added during the PIM’s functional

requirements transformation. The deployment specification diagram is annotated by

efficiency characteristics of nodes, using «gaExecHost» throughput tag, see

DeploymentSpecification in

Fig. 3. Next PIM’s efficiency requirements and

constraints are mapped from the PIM to the PSMSpec with respect to the system’s

architecture, see

Fig. 2.

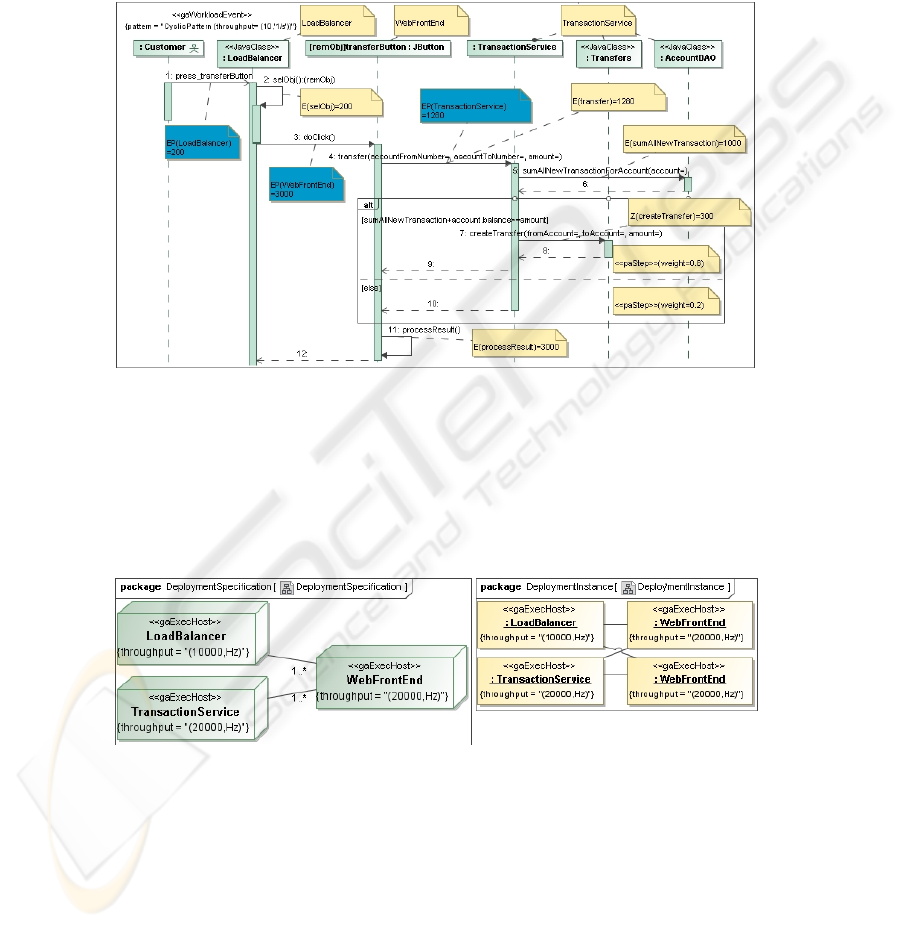

Fig. 2. PSMSpec - The transfer money use case realization.

We assess a computation effort of the money transfer use case. Each lifeLine’s

instance on Fig. 2 is linked with comment pointing out a node type. The sequence

diagram on Fig. 2, contains the behavior metric’s values for operations, specified by

E(methodName). A computation effort per a node type for the use case is specified by

EP(nodeName). These values were calculated with respect to the steps introduced in

Chapter 3.

Fig. 3 . PSMSpec deployment specification and PSMInst deployment instance.

We assess the required computation power, taking into consideration the efficiency

requirement and the results are: RCP(LoadBalancer)=2000[1/s],

RCP(WebFrontEnd)= 30000/n[1/s] and RCP(TransactionService)=12800[1/s]. In

next step, we have to find such number of nodes instances to fulfill the efficiency

requirements. Taking into consideration the PSMSpec’s deployment specification

efficiency characteristics, we generate a PSMInst, see deployment instance on Fig. 3.

Sum of nodes’ provided computation power for a given type is less than the required

computation power for the node type, thereby the efficiency requirements is fulfilled.

5 Conclusions

We provide the MDA models and transformation extensions for handling efficiency

requirements in the MDA. The PIM is characterized by efficiency requirements and

constraints, the PSMSpec contains a software system architecture, a deployment

specification and the efficiency requirements, and the PSMInst represent a instance of

the deployment specification. In the paper, we provide the efficiency estimation, using

the behavior metric and illustrate the method with an example.

We only consider the efficiency requirements for the system throughput, however,

time constraints are another type of the efficiency requirements to be investigated. We

also consider only an “average case”, though we should also be able to consider worst

case, etc. In the future, it would be advisable to take into consideration several

platforms types, e.g. Java, .Net, etc. Moreover, the method provided in the paper does

not take into consideration the network communication overhead.

References

1. C. U. Smith and L. G. Williams. Performance Solutions: A Practical Guide to Creating

Responsive, Scalable Software. Addison-Wesley, 2002.

2. V. Cortellessa, A. Di Marco, P. Inverardi, “Software Performance Model Driven

Architecture”, Proc. of ACM SAC 2006, Model Transformation track, 2006.

3. The Object Management Group: MDA Guide. Ver. 1.0.1. http://

www.omg.org/docs/omg/03-06-01.pdf (2003).

4. V. Cortellessa, A. Di Marco, P. Inverardi, “Nonfunctional Modeling and Validation in

Model-Driven Architecture”, Proc 6th Working IEEE/IFIP Conference on Software

Architecture (WICSA 2007), Mumbai, India, 2007.

5. M. Woodside, G. Franks, D. C. Petriu, “The Future of Software Performance Engineering”,

Proc. of Future of Software Engineering'07, 2007.

6. The Object Management Group: Unified Modeling Language: Superstructure, Version 2.0,

OMG document formal/05-07-04 (2004).

7. The Object Management Group (OMG). UML Profile for Modeling and Analysis of Real-

time and Embedded Systems (MARTE), 2007. http://www.omgmarte.org.

8. B. Dufour, K. Driesen, L. Hendren, and C. Verbrugge. Dynamic metrics for Java. ACM

SIGPLAN Notices, pp. 149-168, Nov. 2003.

9. T. Lindholm, F. Yellin: The JavaTM Virtual Machine Specification. http://

java.sun.com/docs/books/jvms/ second_edition/html/VMSpecTOC.doc.html

10. F. Marinescu. EJB Design Patterns - Advanced Patterns, Processes, and Idioms, John Wiley

and Sons, 2002.
