CONSTRUCTING EVOLVABLE ENTERPRISE IMPLEMENTATIONS

Philip Huysmans

Department of Management Information Systems, University of Antwerp, Prinsstraat 13, B-2000 Antwerp, Belgium

Keywords:

Enterprise ontology, Normalized systems, Enterprise architecture.

Abstract:

Contemporary organizations are operating in increasingly volatile environments. Hence, organizations must be

agile in order to be able to quickly adapt to changes in its environment. This may be a complex process, since

a change to one organizational unit may affect other units. Given the increasing complexity of organizations,

it has been argued that organizations should be purposefully designed. Enterprise architecture frameworks

provide guidance for the design of organizational structures. Unfortunately, current enterprise architecture

frameworks have a descriptive, rather than a prescriptive nature and do not seem to have a strong theoretical

foundation. In software engineering literature, the Normalized Systems approach has recently been proposed

to provide such deterministic design principles for the modular structure of software. The Normalized Systems

approach is based on the systems theoretic concept of stability to ensure the evolvability of information sys-

tems. In our PhD research, we explore the feasibility of extending the Normalized Systems design principles

to the ﬁeld of enterprise architecture. Our results show that such approach is feasible and illustrate how the

systems theoretic concept of stability can be used on the organizational level.

1 INTRODUCTION

In today’s economy, innovation plays an increasingly

important role in the strategy of organizations. Since

organizations nowadays have to compete on a global

level, it is important that organizations are able to gen-

erate and exploit innovations at a steady pace to seek

sustainability of their business (Van de Ven and An-

gle, 2000). There is consensus in literature that in-

formation technology (IT) is an important enabler for

innovation (Brynjolfsson and Saunders, 2010). Given

the importance of innovation to organizations, it is im-

portant that managers understand and are able to ef-

fectively manage the innovation process. It has indeed

been noted that “[a]t a time when so much attention is

given to innovation and entrepreneurship, it is rather

pathetic that a deep understanding of the process is

lacking. It is no wonder that ﬁrms and governments

have difﬁculty trying to stimulate (and manage) inno-

vation when its fundamental processes are so poorly

understood.” (Teece, 1987, p. 3). Although substan-

tial progress has been made in this ﬁeld, it remains re-

markable that almost 25 years later, much innovation

in organizations is still dependent on heuristic knowl-

edge of employees, and is not based on methods or

theories that explain and provide guidance in this pro-

cess. As a result, the innovation process is frequently

considered a black box in which it remains unclear

how a certain input results in the observed outcome

(Van de Ven and Angle, 2000; Aghion and Tirole,

1994; Fagerberg, 2005).

Innovation can take various forms. In our re-

search, we are concerned with the ability to change or-

ganizational elements (e.g., structures, processes and

people). The recent research efforts in the enter-

prise architecture domain are very relevant in this re-

gard. The goal of the enterprise architecture domain

is to construct organizations that are able to conduct

their business in a more efﬁcient and effective man-

ner. Several enterprise architecture frameworks have

been proposed in literature that try to make the com-

plexity of organizations more manageable by the use

of a systematic approach. Most of these frameworks

acknowledge the importance of aligning the IT infras-

tructure with the enterprise architecture (Zachman,

1987; The Open Group, 2003; Chan et al., 1997). An

IT architecture which is aligned with the enterprise ar-

chitecture contributes to diverse business goals, such

as a reduced time to market, the entering of new mar-

kets, and support for improved business processes

(Kazman and Bass, 2005).

Enterprise architecture frameworks are currently

faced with two important challenges. First, a short-

coming of many enterprise architecture frameworks

is that they have a descriptive, rather than prescriptive

nature (Hoogervorst, 2009). From an innovation man-

521

Huysmans P. (2010).

CONSTRUCTING EVOLVABLE ENTERPRISE IMPLEMENTATIONS.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 521-531

DOI: 10.5220/0003047605210531

 SciTePress

agement point-of-view, this means that these frame-

works are unable to open the black box of the innova-

tion process within the organization. Although such

frameworks are able to describe the original and the

revised structure of the organization, it remains un-

clear why the applied changes resulted in a desirable

outcome for the organization. This insight is essential

to be able to repeat the process in the future. Hence,

enterprise architecture frameworks should allow for

repeatability and reproducibility. Repeatability refers

to whether the approach would lead to the same re-

sults if it was repeated in the same context. Repro-

ducibility refers to whether the approach would lead

to the same results if it was repeated in a different con-

text (e.g., in a different organization or with different

people).

A second challenge is that organizations are com-

peting in increasingly volatile environments. In such

environments, it is important that organizations can

quickly adapt to changes in their environment. It has

been noted that in such contexts, no long-term com-

petitive advantages can be obtained, and that organi-

zations need to strive towards realizing a succession

of short-term competitive advantages (Teece et al.,

1997; Eisenhardt and Martin, 2000). Hence, even if

organizations succeed to innovate with IT, they will

need to ensure that the IT and enterprise architecture

is ﬂexible enough to adapt to a changing environment.

This requires that models created by enterprise archi-

tecture frameworks are evolvable. Evolvability is an

important property of an architecture. As mentioned

by Garlan and Perry: “software architecture can ex-

pose the dimensions along which a system is expected

to evolve. By making explicit the load-bearing walls

of a system, system maintainers can better understand

the ramiﬁcations of changes, and thereby more accu-

rately estimate the cost of modiﬁcations.” (Garlan and

Perry, 1995).

2 RESEARCH GOALS

In our research, we work towards (parts of) a method

to guide the implementation of an organization in an

evolvable structure. Scientiﬁc approaches are objec-

tively developed, tested, and veriﬁed. Consider for

example the second challenge addressed in the in-

troduction: the volatility of contemporary markets.

Given this volatility, we believe it is better to fo-

cus on the evolvability of organizational structures,

instead of optimizing a given structure against cur-

rent requirements. Therefore, we will select exist-

ing scientiﬁc concepts such as systems theoretic sta-

bility to assess the quality of proposed structures.

We will base our method on approaches which share

this perspective. More speciﬁcally, our approach will

be based on Normalized Systems, which introduced

systems theoretic evolvability and stability in IT ar-

chitectures. According to the Normalized Systems

approach, IT evolvability is hindered by combina-

torial effects (Mannaert and Verelst, 2009). Com-

binatorial effects occur when implementing changes

require increasing effort as the IT system grows.

Normalized Systems ensures that combinatorial ef-

fects in software systems can be avoided by adher-

ing to its four design principles. Such systems ex-

hibit systems theoretic stability towards a set of an-

ticipated changes. Anticipated changes can be imple-

mented without causing combinatorial effects. How-

ever, these changes are formulated at the software

level. In this research, we argue that combinatorial

effects affect the organizational level as well. When

a change needs to be applied to organizational ele-

ments, such as processes or people, implementation

can be hindered by the dependencies on other orga-

nizational elements. Therefore, in order to attain or-

ganizational evolvability, these combinatorial effects

should be avoided. In order to avoid combinatorial

effects, relevant organizational elements should be

identiﬁed. Guidance on how these elements should be

combined in order to implement an evolvable organi-

zation needs to be provided. Ideally, such guidance is

distilled into principles, which need to be adhered to

when implementing an organization. In our research,

we consider these principles as the most important as-

pect of an enterprise architecture. Consequently, the

use of an enterprise architecture aids the white-box

view on organizational change and facilitates the im-

plementation of innovations.

Therefore, our research concerns the design of

(parts of) an enterprise architecture which guides the

implementation of an organization which is stable

against anticipated changes.

3 RELATED WORK

On the practical level, our research topic can be po-

sitioned within the ﬁeld of enterprise architectures.

On the scientiﬁc level, we build upon the Normal-

ized Systems and Enterprise Ontology theories. In

this section, we introduce the relevant aspects of these

approaches for our research.

3.1 Enterprise Architecure

In order to be able to comprehend and manage the

complexity of modern organizations, enterprise ar-

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

522

chitecture frameworks have been introduced. These

frameworks usually distinguish between the business

system and the information system. The business sys-

tem consists of elements such as goals, people, pro-

cesses, data and events. These elements are usually

placed on a horizontal axis. A core model provides

an overview of these elements on an abstract level.

Such a model describes the scope of the enterprise

architecture, while abstracting away the the concrete

organizational elements (Ross et al., 2006).

By specifying conceptual models for the elements,

requirements for the supporting information system

are formed. The integration between the conceptual

models should facilitate the translation of a single

change in the outside world to all the different aspects

of the organization. As such, the models are translated

from abstract business concepts to concrete informa-

tion system artefacts. The vertical axis usually spec-

iﬁes certain layers or steps in which this translation

occurs. Despite the common goal of enterprise ar-

chitectures, many different frameworks are available.

Various authors (e.g. (Kozina, 2006; Leist and Zell-

ner, 2006; Op t Land, 2008)) have compared these

frameworks and identiﬁed differences and similari-

ties. The GERAM framework (Generalized Enter-

prise Reference Architecture and Methodology) was

created to provide a reference framework onto which

the individual frameworks could be mapped. Given

the broad scope covered by these frameworks and

the multitude of frameworks, it is logical that not ev-

ery framework contains all elements present in other

frameworks. Should an enterprise architect require to

use all available elements, several (complementary)

frameworks can concurrently be used, or a particu-

lar framework can be extended (as reported by, e.g.,

(Pereira and Sousa, 2004)).

However, by combining or extending existing

frameworks, the issue of integration becomes even

more complex. While most frameworks reduce the in-

herent complexity of an organization by offering sep-

arate views, it is not always clear how these views

relate to or affect each other. The proposed integra-

tion or mapping methods are mostly based on reﬁne-

ment or reiﬁcation, and focus on the vertical dimen-

sion. While some frameworks offer dedicated con-

structs for combining models (e.g. the process view

in ARIS), it is not clear how this integration affects

the ability of the models to change independently.

If a change in a certain model affects other models

it is combined with, a combinatorial effect occurs.

While originally used to describe evolvability in soft-

ware, combinatorial effects also seem to affect evolv-

ability on the Enterprise Architecture level. Anal-

ogously with combinatorial effects on the software

level, this implies that organizations would become

less evolvable as they grow. While the issue of inte-

gration has been acknowledged by other authors (e.g.,

(Lankhorst, 2005)), it has, to our knowledge, not yet

been studied based on system theoretic concepts such

as stability.

3.2 Theoretical Foundation

Normalized Systems. The basic assumption of the

Normalized Systems approach is that information

systems should be able to evolve over time, and

should be designed to accommodate change. To gen-

uinely design information systems accommodating

change, they should exhibit stability towards require-

ments changes. In systems theory, stability refers to

the fact that bounded input to a function results in

bounded output values, even as t → ∞. When applied

to information systems, this implies that no change

propagation effects should be present within the sys-

tem; meaning that a speciﬁc change to an informa-

tion system should require the same effort, irrespec-

tive of the information system’s size or the point in

time when being applied. Combinatorial effects occur

when changes require increasing effort as the system

grows. They need to be avoided in stable systems.

Normalized Systems are therefore deﬁned as infor-

mation systems exhibiting stability with respect to a

deﬁned set of changes (Mannaert and Verelst, 2009),

and are as such defying Lehman’s law of increasing

complexity (Lehman, 1980) and avoiding the occur-

rence of combinatorial effects.

The Normalized Systems approach proposes a set

of four design principles that act as design rules to

identify and circumvent most combinatorial effects

(Mannaert and Verelst, 2009). The ﬁrst principle, sep-

aration of concerns, implies that every change driver

or concern should be separated from other concerns.

This theorem allows for the isolation of the impact of

each change driver. The second principle, data ver-

sion transparency, implies that data should be com-

municated in version transparent ways between com-

ponents. This requires that this data can be changed

(e.g., additional data can be sent between compo-

nents), without having an impact on the components

and their interfaces. The third principle, action ver-

sion transparency, implies that a component can be

upgraded without impacting the calling components.

This principle can be accomplished by appropriate

and systematic use of, for example, polymorphism

or a facade pattern. The fourth principle, separation

of states, implies that actions or steps in a workﬂow

should be separated from each other in time by keep-

ing state after every action or step. This suggests an

CONSTRUCTING EVOLVABLE ENTERPRISE IMPLEMENTATIONS

523

asynchronous and stateful way of calling other com-

ponents.

The design principles show that software con-

structs, such as functions and classes, by themselves

offer no mechanisms to accommodate anticipated

changes in a stable manner. The Normalized Systems

approach therefore proposes to encapsulate software

constructs in a set of ﬁve higher-level software ele-

ments. These elements are modular structures that

adhere to these design principles, in order to provide

the required stability with respect to the anticipated

changes (Mannaert and Verelst, 2009). From the sec-

ond and third principle it can straightforwardly be

deduced that the basic software constructs, i.e., data

and actions, have to be encapsulated in their desig-

nated construct. As such, a data element represents

an encapsulated data construct with its get- and set-

methods to provide access to their information in a

data version transparent way. So-called cross-cutting

concerns, for instance access control and persistency,

should be added to the element in separate constructs.

The second element, action element, contains a core

action representing one and only one functional task.

Four different implementations of an action element

can be distinguished: standard actions, manual ac-

tions, bridge actions and external actions. In a stan-

dard action, the actual task is programmed in the ac-

tion element and performed by the same information

system. In a manual action, a human act is required

to fulﬁl the task. The user then has to set the state of

the life cycle data element through a user interface,

after the completion of the task. A process step can

also require more complex behaviour. A single task

in a workﬂow can be required to take care of other

aspects, which are not the concern of that particu-

lar ﬂow. Therefore, a separate workﬂow will be cre-

ated to handle these concerns. Bridge actions create

these other data elements going through their desig-

nated ﬂow. When an existing, external application is

already in use to perform the required task, the action

element would be implemented as an external action.

These actions call other information systems and set

their end state depending on the external systems’ re-

ported answer. Based upon the ﬁrst and fourth prin-

ciple, workﬂow has to be separated from other action

elements. These action elements must be isolated by

intermediate states, and information systems have to

react to states. To enable these prerequisites, three

additional elements are identiﬁed. A third element

is thus a workﬂow element containing the sequence

in which a number of action elements should be exe-

cuted in order to fulﬁll a ﬂow. A consequence of the

stateful workﬂow elements is that state is required for

every instance of use of an action element, and that

the state therefore needs to be linked to or be part of

the instance of the data element serving as argument.

A trigger element is a fourth one controlling the states

(both regular and error states) and checking whether

an action element has to be triggered. Finally, the con-

nector element ensures that external systems can in-

teract with data elements without allowing an action

element to be called in a stateless way.

Enterprise Ontology. In Enterprise Ontology, an

organization is modeled to represent the essential or-

ganizational processes. Enterprise Ontology has a

strong theoretical foundation and further builds upon

the results from theories from philosophy, sociology

and language, such as Habermas’ theory of Commu-

nicative Action (Habermas, 1984) and the Language-

Action Perspective (Flores and Ludlow, 1980). Enter-

prise Ontology assumes that communication between

human actors is a necessary and sufﬁcient basis for a

theory of organizations (Dietz, 2006). It aims to de-

velop high-level and abstract models of the construc-

tion and operation of organizations—independent of

the actual implementation—by focusing on the com-

munication patterns between human actors. These

communication patterns are represented in a univer-

sal transaction pattern. Enterprise Ontology considers

two actors in a transaction: an initiator, who requests

the transaction, and an executor, who fulﬁlls the trans-

action. The transaction pattern speciﬁes the essential

actions performed by these actors (essential acts), and

their results (essential facts).

The basic transaction pattern consists of the ﬁve

standard acts which occur in a successful scenario

(i.e., request, promise, execute, state and accept) (Di-

etz, 2006, p. 90). These ﬁve acts are shown in the cen-

tre of Figure 1. In the order-phase, the initiator actor

ﬁrst requests the creation of a fact. The executor actor

then promises to fulﬁl this request. In the execute-

phase, the executor actually performs the necessary

actions to create the fact in the execute act. In the

result phase, the executor ﬁrst states the successful

completion of the fact. Finally, the initiator accepts

this statement. Consider this transaction in the case

of a simple product delivery process. In a ﬁrst pro-

cess step, the customer requests the product. Once

this request is adequately speciﬁed, the request coor-

dination fact is created. Second, the supplier promises

to deliver the product according to the agreed terms.

This creates the promise coordination fact. The third

process step is the actual delivery. This results in the

production fact “Product X has been delivered”. In

the fourth process step, the supplier states that the de-

livery has been completed. If the customer is satisﬁed

with the delivery, he will accept the delivery in the

ﬁfth process step. Once the accept coordination fact is

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

524

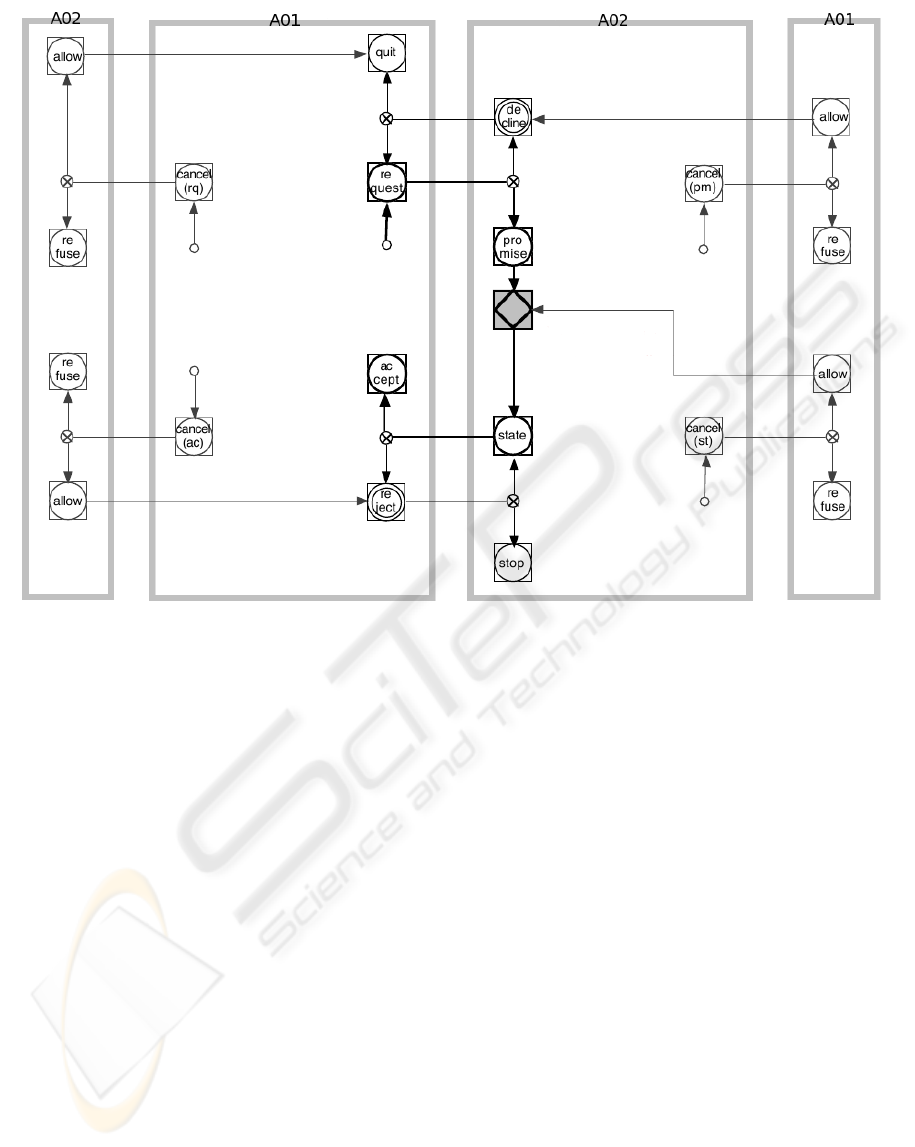

Figure 1: Graphical representation of the Enterprise Ontology Transaction Pattern.

created, the transaction is considered to be completed.

In the above example, it is not speciﬁed how, for

example, the request was made. This could be face-

to-face (in a retail store), or by using an online web

form. The execution of this example could be com-

pleted by manually delivering the product, or by send-

ing it through a complicated logistic chain. Enter-

prise Ontology abstract from these concrete imple-

mentations, and represent only the essential business

actions. Therefore, Enterprise Ontology models are

a good candidate to use as an enterprise architecture

core model.

4 METHODOLOGY

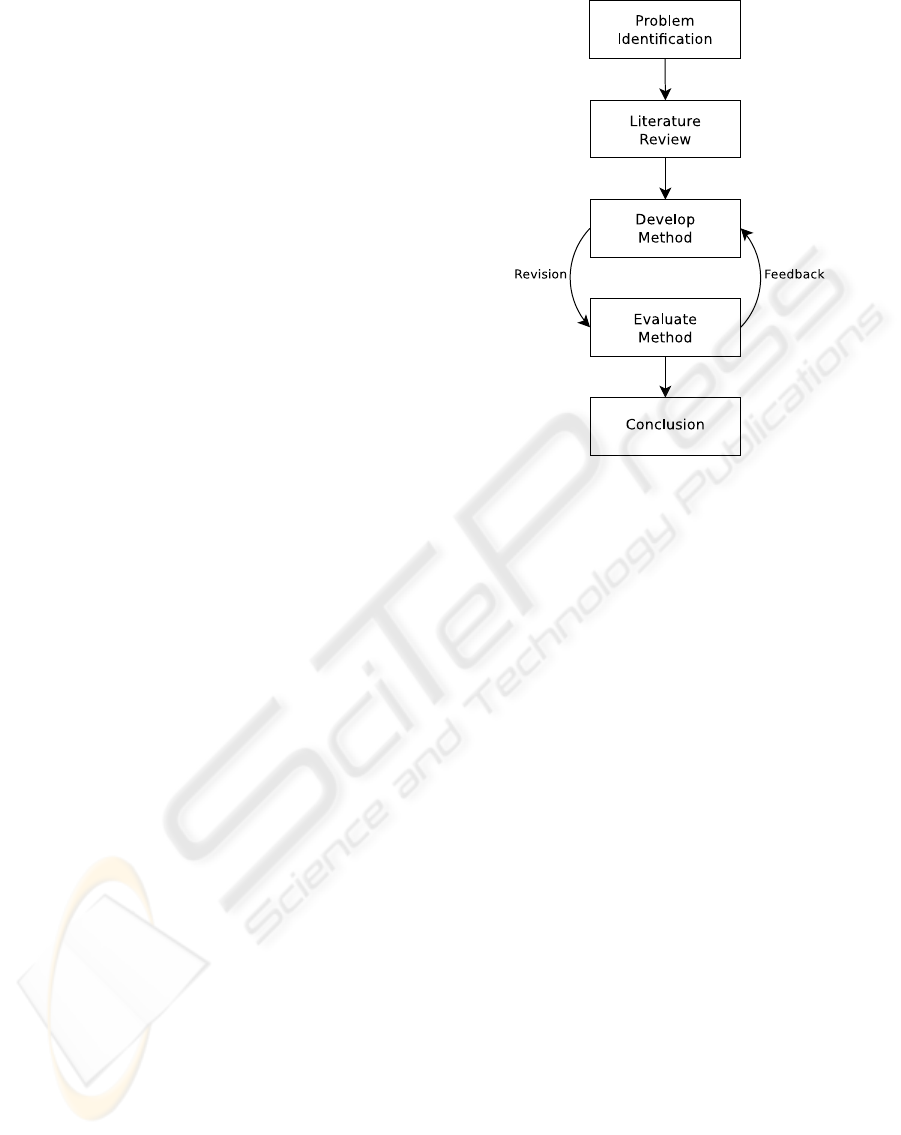

This research uses the design science methodology.

Regarding the research project’s goal to introduce a

prescriptive framework for enterprise architectures,

only a design science research methodology is suited

to provide the required research setting as it is pri-

marily aimed at solving problems by developing and

testing artefacts, rather than explaining them by de-

veloping and testing theoretical hypotheses. The de-

sign science research tradition focuses on tackling ill-

structured problems — in this research the lack of sci-

entiﬁc foundations within the engineering of organi-

zational artefacts — in a systematic way (Holmstr

et al., 2009). The search for a solution to these prob-

lems using design science is often based on proven

approaches in other related ﬁelds. Various authors in-

deed indicate that the use of theories of related ﬁelds

should be an essential part of a design science ap-

proach (Klahr and Simon, 1999; Simon, 1996; Peffers

et al., 2007). Moreover, these theories should be ap-

plicable in practice. Both the aspects of practical us-

ability and theoretical foundation are required for an

approach in order to be usable in a design science con-

text. On the one hand, a well-founded theory which

does not offer practical implications for the design of

artefacts is of limited practical use. On the other hand,

design guidelines which are not veriﬁable do not con-

tribute to the science of design. The Normalized Sys-

tems approach is well suited for this purpose, since it

expresses established design experience through prin-

ciples which are proven to be necessary. Moreover,

the correlation of Normalized Systems design princi-

ples with more general theories such as systems the-

ory and modularity, indicates its aptness for extension

to other research ﬁelds.

The research deliverable can unambiguously be

CONSTRUCTING EVOLVABLE ENTERPRISE IMPLEMENTATIONS

525

positioned within the design science classiﬁcation

scheme suggested by March and Smith (March and

Smith, 1995). March and Smith identify 4 different

research outputs (i.e., construct, model, method and

instantiation) and 4 different research activities (i.e.,

build, evaluate, theorize and justify). This paper fo-

cuses on the build-phase of a method artefact. In ac-

cordance with Simon, building a (part of a) method is

actually studying the artiﬁcial as a method is a man

made object designed to meet certain desired goals

(Simon, 1996). This conﬁrms the selection of the

design science methodology over a behavioral sci-

ence methodology. According to Hevner (Hevner

et al., 2004, p.79), a method “can range from for-

mal, mathematical algorithms that explicitly deﬁne

the search process to informal, textual descriptions of

“best practice” approaches, or some combination.”.

Winter (Winter, 2008) also mentions the paucity of

design science research aimed at constructing meth-

ods. In this sense, this study is concerned with the

only modestly researched area of Method Engineer-

ing. In summary, this research project’s main deliv-

erable is a method, mainly based on the Normalized

Systems approach, providing guidelines to purpose-

fully design enterprise architectures. We will attempt

to implement an enterprise core model which is evolv-

able. We will use Enterprise Ontology models to de-

ﬁne the core model, and use Normalized Systems as a

basis to guide the implementation process.

The applied research method exhibits a research

trajectory, as illustrated by Figure 2, which mimics

the “Generate/Test cycle” suggested by Simon (Si-

mon, 1996). A similar process is proposed by Peffers

et al. (Peffers et al., 2007). In this research trajec-

tory, we begin by deﬁning and motivating the prob-

lem based on literature or observations. This is the

ﬁrst step in Figure 2. Therefore, the research entry

point is problem-centered (Peffers et al., 2007). In

this research, we focus on the inhibition of the re-

quired enterprise agility caused by the lack of sci-

entiﬁc foundations when constructing organizational

artefacts. This problem is supported by a literature

review which shows lack of attention to combinato-

rial effects. Section 3.1 elaborates on this problem

identiﬁcation. Next, we identify approaches from re-

lated ﬁelds which can aid in constructing a solution

for the identiﬁed problem. This is the second step

in Figure 2. In order to introduce more determinism

in the construction of enterprise architecture frame-

works, the Enterprise Ontology and Normalized Sys-

tems approaches provide valuable insights. We intro-

duce these approaches and motivate their selection in

Section 3.2. We can already present some preliminary

results of our approach by showing the implementa-

Figure 2: Research design.

tion of the core model using Normalized Systems el-

ements. The method for the artefact construction is

described using a simple example from an e-business

context in Section 5. This is the third step in Figure 2.

We explain the reasoning behind the different steps in

detail and illustrate the resulting artefact and its use.

This description will focus on the correct construction

of a single construct instance. In subsequent research

steps, we will extend this method to include additional

organizational elements.

Evaluating the proposed guidelines will occur

by applying the guidelines on different problem do-

mains. These problems domains will be purposefully

sampled, controlling for different industries and or-

ganizational dimensions. Different industries will be

included, such as banking, government and manu-

facturing. In addition, the considered organizational

aspects will differ along their administrative dimen-

sion, ranging from operational order and accounting

to management reporting processes. The methods

constructed will be evaluated using two approaches.

First, through the multiple iterations the method will

be tested and altered to better suit the research ob-

jective of enhancing determinism. This approach can

be labeled as case study research. The cases studied

during initial iterations will mainly consist of rather

pedagogical, theoretical cases. Further iterations in-

clude more complex cases, based upon real-life or-

ganizations in order to enhance the generalization of

our results. As mentioned earlier, these cases will be

purposefully sampled to assure validity. Secondly, to

ﬁrmly evaluate the proposed methods, they will ﬁ-

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

526

nally be applied to real-life cases to assess their prac-

tical applicability. This kind of evaluation is based

on the action research methodology (Baskerville and

Wood-Harper, 1996) because the researcher actively

cooperates within the case.

5 PRELIMINARY RESULTS

Currently, we can present the implementation of the

Enterprise Ontology transaction pattern according to

our approach. An implementation of a complete

Enterprise Ontology model would provide a basis

for an evolvable implementation of an organization.

Evidently, additional organizational elements (such

as operational aspects, ﬁnancial aspects, human re-

sources) need to be added. However, once we can

construct an organizational implementation which is

free of combinatorial effects, these elements can be

added analogously to the addition of cross-cutting

concerns in Normalized Systems.

5.1 The Basic Transaction Pattern

We start by mapping the basic transaction pattern.

The basic transaction pattern consists of the process

steps request, promise, execute, state and accept. In

Normalized Systems, this transaction pattern process

is represented by a ﬂow element. A ﬂow element is

driven by precisely one data element, the life cycle

data element. Consider a transaction T01. In order

to deﬁne a Normalized Systems ﬂow, we thus need

a T01 data element. The completion of the different

acts in the transaction process is represented by the

creation of ontological facts. In Normalized Systems,

these facts are represented by the states which occur

in the ﬂow element, being the life cycle states of the

corresponding data element. To reach these states, a

state transition is required. A state transition is real-

ized by an action element. The successful completion

of that action element results in the deﬁned life cycle

state. In order to deﬁne the control ﬂow of the pro-

cess, we therefore need to specify the trigger states,

state transitions and transaction actions. Regarding

the request coordination fact, this implies that the T01

ﬂow element, and thus also the corresponding T01

data element, should reach the state Requested. This

means that upon initiation of a T01 transaction, a new

T01 data element is instantiated trough its default con-

structor, resulting in the life cycle state Initial. The

genuine act of requesting is encapsulated in the ac-

tion element Request. The concerns of creating the

data element and handling the request are separated

as they can clearly evolve independently from each

other. The request could, for example, contain addi-

tional information that needs to be processed. Since

we are currently only regarding the successful ﬂow

of the transaction, we do not yet need any branching.

The state transition can be expected to always result

in the end state Requested. The resulting Normalized

Systems ﬂow is shown in Figure 3, and schematically

represented in Table 1.

While all state transitions are deﬁned as action el-

ements, their different nature can mean that they need

to be implemented differently. Consider the example

with the product delivery transaction. In the promise

step, the executor needs to communicate whether the

request of the initiator will be handled. If this act re-

quires a human action, e.g., a manager has to decide,

the Promise action element would be implemented as

a manual action. However, the promise process step

can also require more complex behaviour. When for

example the product ﬁrst needs to be reserved in the

warehouse, the Promise action element would be im-

plemented as a bridge action triggering a ﬂow element

on another data element, e.g., a Part element. When

an existing application is already in use to perform

these reservations, the Promise action element would

be implemented as an external action.

5.2 The Execution Act

Besides the coordination acts, we also need to provide

an implementation for the production act Execute. At

this point, an issue surfaces as the Normalized Sys-

tems theory prescribes that a ﬂow is concerned with

precisely one data element (Mannaert and Verelst,

2009; Van Nuffel et al., 2009a). If the execution of

the production act does not require any actions to be

performed on other data elements, the production act

will be designed as an action element on the same

data element. The implementation of the production

act will then determine whether it is a manual action

or a standard action. Otherwise a second alternative

is appropriate, applying a bridge action. These op-

tions are, however, not interchangeable as only one

option can be chosen depending on the kind of per-

formed business transaction. Some common exam-

ples will exemplify the two scenarios. First, consider

an employee requesting a day off, which in Enter-

prise Ontology terminology is deﬁned as “Grant Ap-

plication for Leave A”. The production act is the de-

cision of the manager to grant the day off. The man-

ager simply veriﬁes the application based on the avail-

able information and takes a decision, thus only con-

sulting data of the underlying life cycle data element

LeaveApplication. This production act is therefore

considered a manual action. The manager probably

CONSTRUCTING EVOLVABLE ENTERPRISE IMPLEMENTATIONS

527

Table 1: Speciﬁcation of the basic transaction pattern ﬂow element.

Workﬂow name Basic Transaction Pattern

Data element T01-basic

Start state Action name End state Failed state

Initial Request Requested

Requested Promise Promised

Promised Execute Executed

Executed State Stated

Stated Accept Accepted

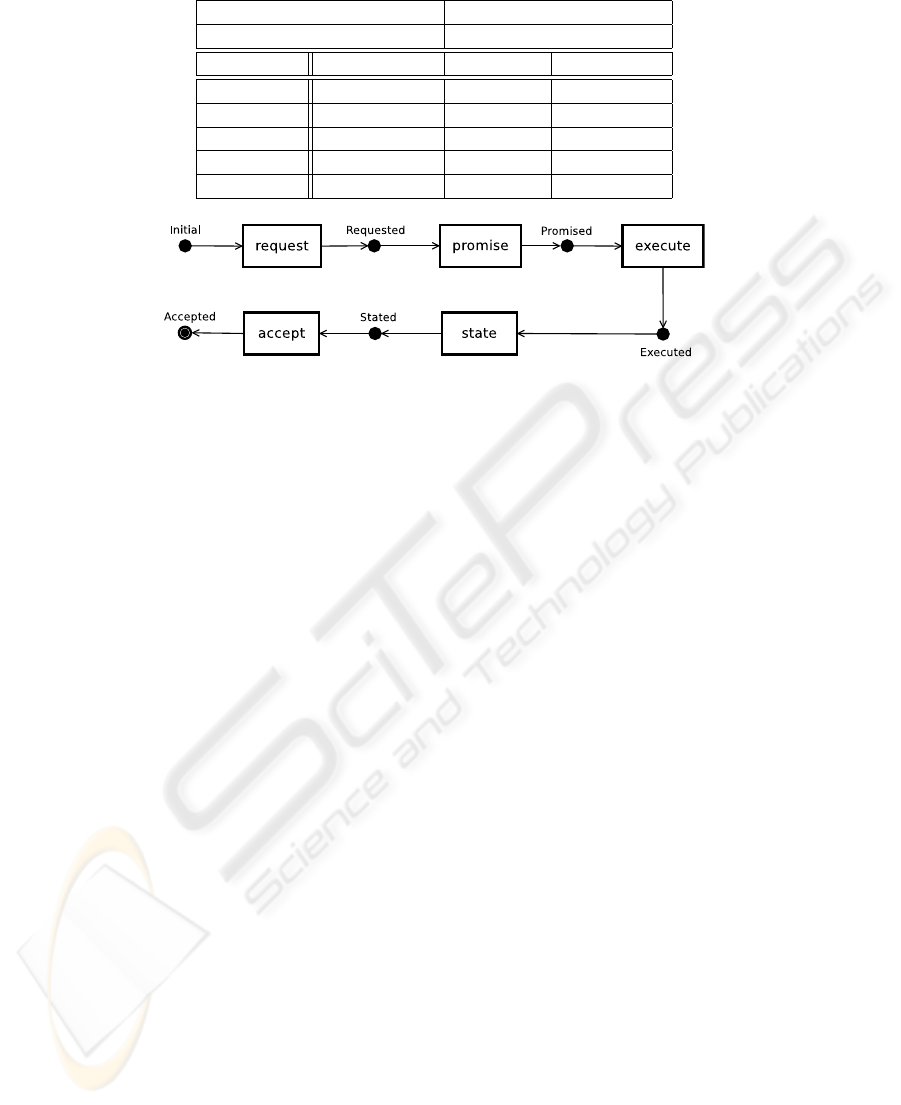

Figure 3: Graphical representation of the basic transaction pattern ﬂow.

selects either “Accept” or “Reject” in a GUI, trigger-

ing a state transition of LeaveApplication. It is how-

ever possible that such a decision is automated. Con-

sider for instance the case in which a person wants to

subscribe to a newsletter by initiating the transaction

“Start newsletter subscription N”. Adding the person

to the distribution list does probably not need to be

approved by a manager, and will be automatically ex-

ecuted. In this case, the production act of adding the

person to the distribution list is designed as a standard

action.

Second, if additional actions concerned with other

data elements are required to fulﬁll the execution of

the transaction, a bridge action has to implemented.

Consider for instance the execution step of our prod-

uct delivery example. When this product has to be

produced before it can be deliverd, additional actions

may be necessary. Producing a particular product im-

plies more than just the assembly: raw materials have

to ordered, received and reserved, the product has to

be scheduled in the production planning, etcetera. It

is clear that these are different concerns, and should

thus be separated. Compliant with the Normalized

Systems theory, this kind of behavior is implemented

by using a bridge action.

5.3 The Cancelation Patterns

Various extensions of the basic transaction pattern

have already been developed. Currently, we will dis-

cuss the addition of cancelation patterns. A cancela-

tion occurs when an actor changes his mind concern-

ing an already completed coordination act. For ex-

ample, the iniator can decide that he no longer wants

a certain product to be delivered, and cancel his or-

der. For the receiving actor, a cancelation consists

of two main issues: deciding whether or not to al-

low a cancel request and handling the cancelation it-

self. The ﬁrst issue actually consists of initially re-

ceiving the cancel request, then deciding whether or

not to allow the requested cancelation, and third po-

tentially to notify the initiator of the rejected cancel

request. As such, based on separation of states and

separation of concerns, these three concerns will be

separated. First, upon arrival of a cancel request, a

dedicated CancelRequest data element will be cre-

ated. This implies that for every life cycle data ele-

ment that can be cancelled, a related CancelRequest

data element instance will be created if such a request

arrives. For example, for a life-cycle data element

called Order, a corresponding OrderCancelRequest

data element will be created. Second, an action ele-

ment AcceptCancelation will implement the deci-

sion whether or not to accept. Third, in case of an

rejected request, the initiator will probably have to be

notiﬁed. This functionality is represented by a bridge

action Refuse executing the notiﬁcation in the way

as discussed in (Van Nuffel et al., 2009b). In case

of an allowed cancelation, the CancelTransaction

standard action element will initiate the cancelation

handling which will be explained next. The Nor-

malized Systems speciﬁcation for the workﬂow rep-

resenting the cancel request issue is shown in Ta-

ble 2 and Figure 4. In case of an allowed cance-

lation, CancelTransaction standard action element

will initiate the handling itself explained hereafter.

If the cancelation is allowed, it may be neces-

sary to partly or completely roll back the transaction.

Given the divergence of business contexts, a roll back

can imply different actions given the state of the trans-

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

528

Table 2: Speciﬁcation of the cancelation pattern ﬂow element.

Workﬂow name Transaction Cancelation

Data element T01-CancelRequest

Start state Action element End state Failed state

Initial CheckValidity CancelRequestValid

CancelRequestValid AcceptCancelation Allowed not-Allowed

not-Allowed Refuse Refused

Allowed CancelTransaction Canceled

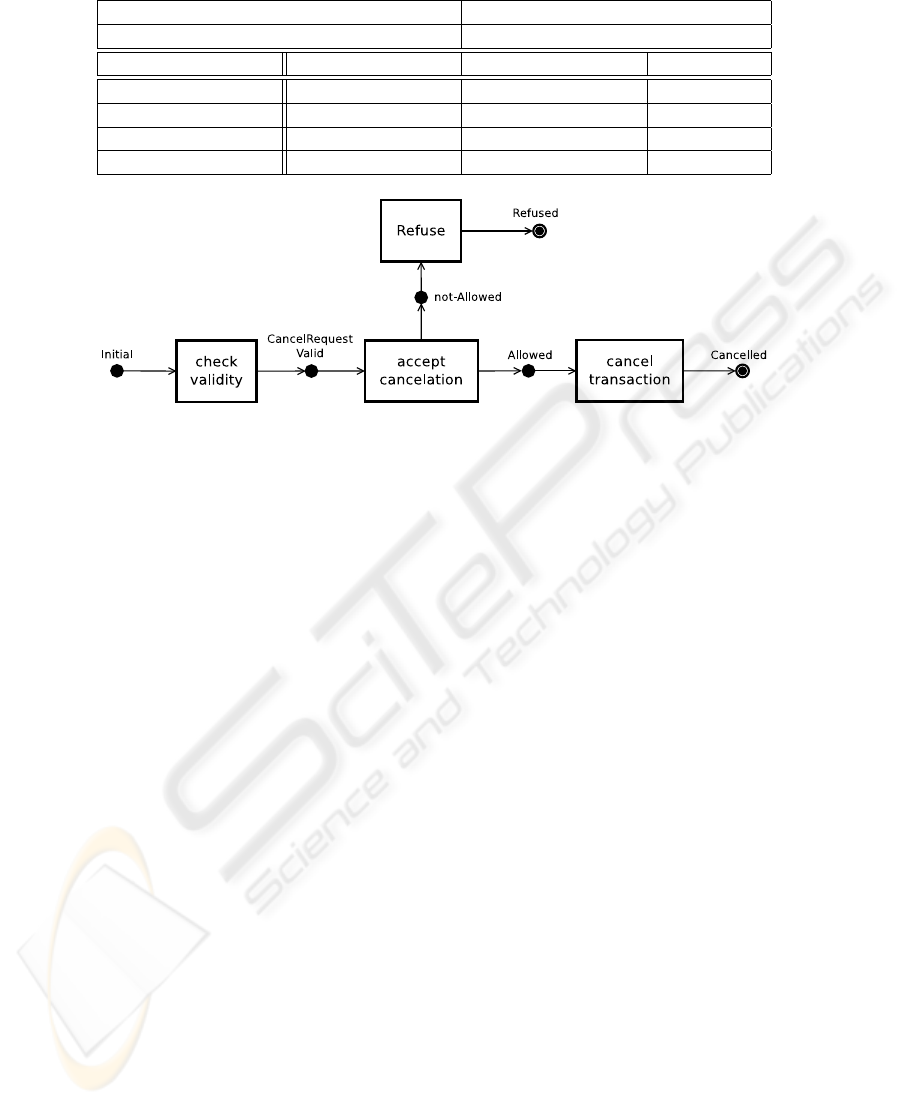

Figure 4: graphical representation of the cancelation pattern.

actions. Therefore, the cancelation process will be de-

signed using multiple scenarios implemented as sep-

arate action elements on the same life cycle data ele-

ment. Consider in our product delivery example the

scenario where various parts are ordered to complete

the assembly of a product. In case the parts have not

yet been received, an order cancelation can be sub-

mitted to the parts supplier. In case the parts are al-

ready received and reserved, they should be released

and made available for future assemblies. Thus, the

scenario and constituent action elements are depen-

dent on the life cycle data element’s state when the

cancelation request is initiated.

Since a cancelation can occur regardless of the

current state of the transaction, it is modelled in the

Enterprise Ontology transaction pattern as a separate

entry point, as can be seen in Figure 1. However, the

Normalized Systems theorems do not allow that the

state of the main ﬂow is simply altered by any other

ﬂow because a ﬂow element actively interfering with

another ﬂow element is considered a so-called GOTO

statement. In accordance with the seminal work of

Dijkstra (Dijkstra, 1968), Normalized Systems does

not allow this kind of statements, and therefore pro-

hibits such a direct state transition by another ﬂow.

We outline the solution for adding cancelation pat-

terns consistent with Normalized Systems theorems:

• A cancelRequest data attribute is added to the

data element operating the ﬂow.

• A cancel can be initiated in multiple ways. The

particular situation should be assigned to the

value of the cancelRequest data attribute by the

CancelTransaction standard action element.

• The engine operating the respective ﬂow element

checks the cancelRequest data attribute. If this

ﬁeld is set, the current state of the ﬂow will be

saved in the so-called parking state ﬁeld. The reg-

ular state ﬁeld of the workﬂow will be set to “can-

cel requested”.

• An action element will subsequently be triggered

to decide which cancelation ﬂow—i.e., sequence

of action elements on the corresponding life cycle

data element—has to be triggered as the cancela-

tion scenario will differ according to the life cycle

state as also illustrated by the cancelation patterns

in Enterprise Ontology. Therefore, this action el-

ement will use the value of the so-called parking

state ﬁeld, uniquely describing the life cycle state

of the corresponding data element when the can-

cel request was communicated.

This implies that a cancelation is handled as a se-

quence of action elements on the same life cycle data

element. This is in line with the observation that re-

questing, promising, executing, stating, declining, or

cancelling a fact addresses the same concern. How-

ever, the sequence of actions about the cancel re-

quest itself are separated in their designated elements.

It should be noted that we present a generic can-

celation pattern. The possibility of triggering dif-

ferent cancelation ﬂows, based on the value of the

cancelRequest data attribute, allows us to imple-

ment the four different Enterprise Ontology cancela-

tion patterns.

CONSTRUCTING EVOLVABLE ENTERPRISE IMPLEMENTATIONS

529

6 DISCUSSION AND

CONCLUSIONS

In this paper, we outlined the approach taken in our

PhD research. We use the design science methodol-

ogy to apply the insights of existing theories, i.e., Nor-

malized Systems and Enterprise Ontology, to the ﬁeld

of enterprise architecures. We discussed the relevance

of our research problem, our motivation, the related

work, the methodology, and presented some prelim-

inary results. We already have developed an imple-

mentation of the core model of our enterprise archi-

tecture which is free of combinatorial effects, called

the NSBT. Currently, we are working on the evalua-

tion of the NSBT in various case studies. Next, we

will describe the method to add additional concerns

to this core model, in order to be able to implement

other organizational elements.

While we may not be able to implement all en-

terprise architecure aspects, this research project has

signiﬁcant contributions. A ﬁrst contribution is that

we introduce the concept of combinatorial effects on

the level of enterprise architectures. We further il-

lustrate how the systems theoretic concept of stabil-

ity can be applied to the design of enterprise archi-

tectures. This requires the elimination of combina-

torial effects, which will lead to more evolvable or-

ganizations. As a result, we offer a view on enter-

prise agility that has a strong theoretical foundation.

A second contribution is that we demonstrate the fea-

sibility of constructing an enterprise architecture core

diagram based on existing scientiﬁc approaches. By

expressing the core diagram in Normalized Systems

elements, we extended the Normalized Systems ap-

proach to the organizational level. Using Enterprise

Ontology models as the basis for the core diagram

further demonstrates the feasibility of constructing an

enterprise architecture framework based on scientiﬁc

theories. This illustrates how theories from relevant

ﬁelds can be applied in a new setting by using a de-

sign science approach.

REFERENCES

Aghion, P. and Tirole, J. (1994). Opening the black

box of innovation. European Economic Review,

38(3/4):701–710.

Baskerville, R. L. and Wood-Harper, A. T. (1996). A criti-

cal perspective on action research as a method for in-

formation systems research. Journal of Information

Technology, 11(3):235–246.

Brynjolfsson, E. and Saunders, A. (2010). Wired for Inno-

vation: How Information Technology is Reshaping the

Economy. The MIT Press, Cambridge, MA.

Chan, Y. E., Huff, S. L., Barclay, D. W., and Copeland,

D. G. (1997). Business strategic orientation, informa-

tion systems strategic orientation, and strategic align-

ment. Information Systems Research, 8(2):125.

Dietz, J. L. (2006). Enterprise Ontology: Theory and

Methodology. Springer, Berlin.

Dijkstra, E. (1968). Go to statement considered harmful.

Communications of the ACM, 11(3):147–148.

Eisenhardt, K. M. and Martin, J. A. (2000). Dynamic capa-

bilities: What are they? Strategic Management Jour-

nal, 21(10/11):1105–1121.

Fagerberg, J. (2005). Innovation: A guide to the literature.

In Fagerberg, J., Mowery, D. C., and Nelson, R. R.,

editors, The Oxford handbook of innovation. Oxford

University Press, New York, NY.

Flores, F. and Ludlow, J. (1980). Doing and speaking in the

ofﬁce. In Fick, G. and Sprague, R. H., editors, Deci-

sion Support Systems: Issues and Challenges, pages

95–118. Pergamon Press, New York, NY.

Garlan, D. and Perry, D. E. (1995). Introduction to the spe-

cial issue on software architecture. IEEE Transactions

on Software Engineering, 21(4):269–274.

Habermas, J. (1984). The Theory of Communicative Ac-

tion: Reason and Rationalization of Society, vol-

ume 1. Beacon Press, Boston, MA.

Hevner, A. R., March, S. T., Park, J., and Ram, S. (2004).

Design science in information systems research. MIS

Quarterly, 28(1):75–105.

Holmstr

om, J., Ketokivi, M., and Hameri, A.-P. (2009).

Bridging practice and theory: A design science ap-

proach. Decision Sciences, 40(1):65–87.

Hoogervorst, J. A. P. (2009). Enterprise Governance and

Enterprise Engineering (The Enterprise Engineering

Series). Springer, 1st edition.

Kazman, R. and Bass, L. (2005). Categorizing business

goals for software architectures. Technical report,

Software Engineering Institute. CMU/SEI-2005-TR-

021.

Klahr, D. and Simon, H. A. (1999). Studies of scientiﬁc dis-

covery: Complementary approaches and convergent

ﬁndings. Psychological Bulletin, 125(5):524–543.

Kozina, M. (2006). Evaluation of aris and zachman frame-

works as enterprise architectures. Journal of Informa-

tion and Organization Sciences, 30(1).

Lankhorst, M. M. (2005). Enterprise architecture

modelling–the issue of integration. Advanced En-

gineering Informatics, 18(4):205 – 216. Enterprise

Modelling and System Support.

Lehman, M. (1980). Programs, life cycles, and laws of soft-

ware evolution. Proceedings of the IEEE, 68:1060–

1076.

Leist, S. and Zellner, G. (2006). Evaluation of current archi-

tecture frameworks. In SAC ’06: Proceedings of the

2006 ACM symposium on Applied computing, pages

1546–1553, New York, NY, USA. ACM.

Mannaert, H. and Verelst, J. (2009). Normalized Systems—

Re-creating Information Technology Based on Laws

for Software Evolvability. Koppa, Kermt, Belgium.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

530

March, S. T. and Smith, G. F. (1995). Design and natural

science research on information technology. Decision

Support Systems, 15(4):251–266.

Op t Land, M. (2008). Applying Architecture and Ontology

to the Splitting and Allying of Enterprises. PhD thesis,

TU Delft.

Peffers, K., Tuunanen, T., Rothenberger, M. A., and Chat-

terjee, S. (2007). A design science research method-

ology for information systems research. Journal of

Management Information Systems, 24(3):45–77.

Pereira, C. M. and Sousa, P. (2004). A method to deﬁne

an enterprise architecture using the zachman frame-

work. In SAC’04: Proceedings of the 2004 ACM sym-

posium on Applied computing, page 13661371, New

York,NY,USA. ACM.

Ross, J. W., Weill, P., and Robertson., D. C. (2006). Enter-

prise Architecture as Strategy – Creating a Founda-

tion for Business Execution. Harvard Business School

Press, Boston, MA.

Simon, H. A. (1996). The Sciences of the Artiﬁcial. MIT

Press, Cambridge, Massachusetts, third edition.

Teece, D. J., editor (1987). The Competitive Challenge:

Strategies for Industrial Innovation and Renewal.

Ballinger Publishing Company, Cambridge, MA.

Teece, D. J., Pisano, G., and Shuen, A. (1997). Dynamic

capabilities and strategic management. Strategic Man-

agement Journal, 18(7):509–533.

The Open Group (2003). The open group architecture

framework (togaf) version 8.1. Technical report.

Van de Ven, A. H. and Angle, H. L. (2000). An Introduc-

tion to the Minnesota Innovation Research Program.

Oxford University Press, New York, NY.

Van Nuffel, D., Mannaert, H., De Backer, C., and Verelst, J.

(2009a). Deriving normalized systems elements from

business process models. In Boness, K., Fernandes,

J. M., Hall, J. G., Machado, R. J., and Oberhauser,

R., editors, Proceedings of the Fourth International

Conference on Software Engineering Advances (IC-

SEA 2009), pages 27–32, Los Alamitos, USA. IEEE

Computer Society.

Van Nuffel, D., Mannaert, H., De Backer, C., and Verelst, J.

(2009b). Deriving normalized systems elements from

business process models. Software Engineering Ad-

vances, International Conference on, 0:27–32.

Winter, R. (2008). Guest editorial - design science research

in europe. European Journal of Information Systems,

17(5):470–475.

Zachman, J. A. (1987). A framework for information sys-

tems architecture. IBM Syst. J., 26(3):276–292.

CONSTRUCTING EVOLVABLE ENTERPRISE IMPLEMENTATIONS

531
