CONSTRUCTING AND EVALUATING SUPPLY-CHAIN

SYSTEMS IN A CLOUD-CONNECTED ENTERPRISE

Donald F. Ferguson

CA Technologies, NY, U.S.A.

Ethan Hadar

CA Technologies, Herzelia, Israel

Keywords: Supply-Chain Enterprise Systems, Cloud Computing, IT Services, Business-IT alignment, Enterprise

Service Architecture.

Abstract: An enterprise that exploits its IT-services from the cloud, and optionally provides some of the services to its

customers via the cloud, is defined by us as cloud-connected enterprise (CCE). Consumption from the cloud

and provisioning to the cloud of IT services defines an IT supply-chain environment. Considering the

conceptual similar offerings from different vendors is economical attractive, as specialization in services

increases the quality and cost-effectiveness of the service. The overall value of a service is composed of

characteristics that may be summarized as QARCC: Quality, Agility, Risk, Capability and Cost. Tradeoffs

between implementing services internally and consuming services externally may depend on these

characteristics and their sub-characteristics. Regardless of the origin of the services or sub-services, we

propose that the construction or consumption of the solution should follow dedicated cloud-oriented

lifecycle for managing such services. The proposed incremental and iterative process, fosters an agile

approach of refactoring and optimization. It is based on the assumptions that services change their QARCC

characteristics over time due to emerging opportunities for replacement of sub-components. It is designed to

operate in internal clouds as well as external and hybrid ones.

1 INTRODUCTION

IT departments currently deliver their IT services

(Wikipedia, 2010 a) to employees, customers and

partners, and manage these deliverables in a

business like fashion. Examples include online

banking, web commerce, finance and accounting,

order tracking, etc. IT systems may be considered as

the backbone of the business, controlling

manufacturing, supply chains, logistics, customer

relationship management, and more. In some cases,

IT is the realization of an enterprise’s business

model in which the IT services are the principle

implementation of business services. For example,

financial services that include transaction billing of

phone calls in telecommunication companies.

IT implementations of business services, or any

services for that matter, are composites of hardware,

software, applications, data, network, etc. A

common definition for the end-to-end solutions

implementing business services is composite

application (Wikipedia, 2010 b), where the

functionally needed for the service is driven from

several different sources, regardless of ownership of

these sources. The definition refers mainly to

software elements as the main sub-modules;

however, in the domain of IT management,

composite application includes hardware and other

non-software (SW) resources. More specifically,

when examining the end-goal of an IT service to

cater for business services, the delivered application

is the one that is perceived as the service in question.

Thus, the resources comprising such a service (e.g.

network elements and servers) are a means to

delivering the solution. These decomposition levels

of IT concerns focus the decision-making on the

managed solutions rather on technical elements

constituting it.

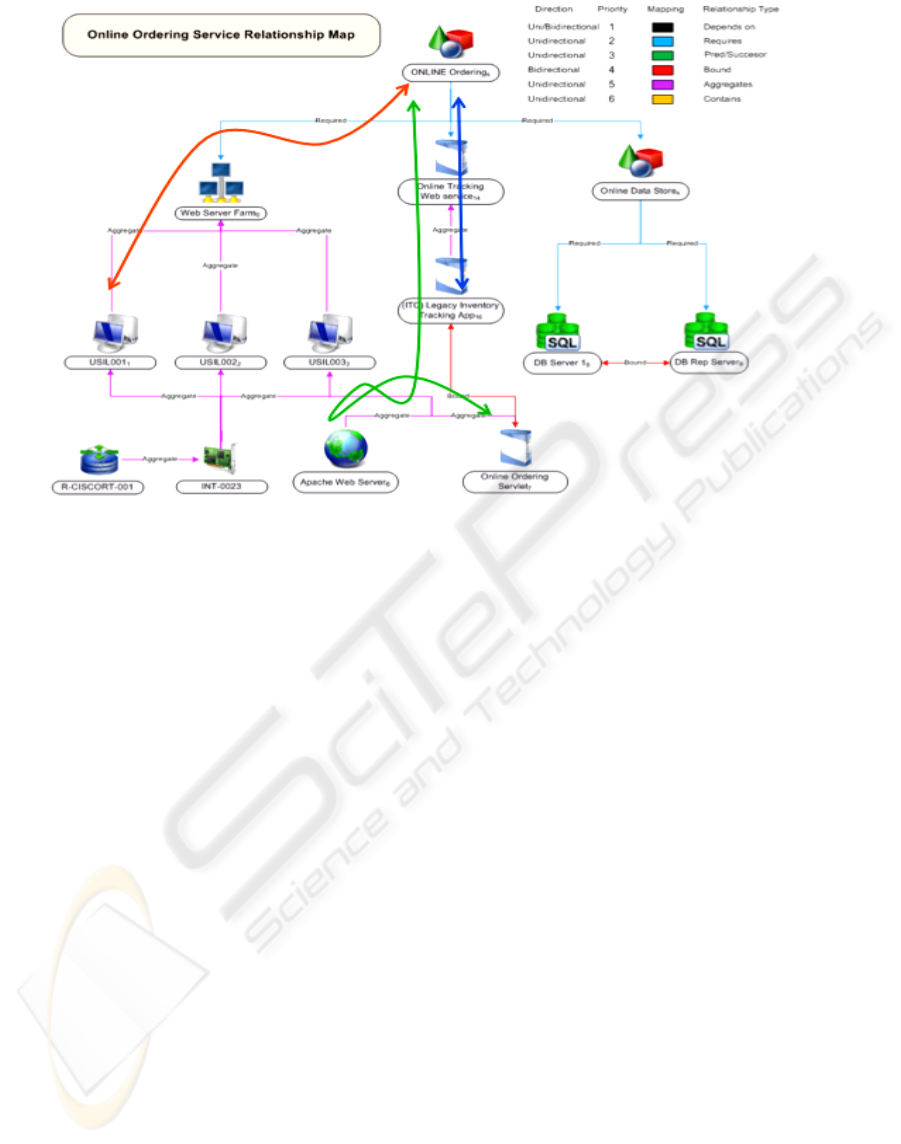

Figure 1: Composite Application of an on-

premise IT systems, analogous to an in-house supply

F. Ferguson D. and Hadar E. (2010).

CONSTRUCTING AND EVALUATING SUPPLY-CHAIN SYSTEMS IN A CLOUD-CONNECTED ENTERPRISE.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 69-76

DOI: 10.5220/0003048000690076

 SciTePress

chain. In such a case, the IT resources implementing

a business service are internal within the enterprise.

The model is logically constructed as a

manufacturing company that is vertically integrated,

has only an internal supply chain and performs all

manufacturing internally. In an on-premise

composite application, the enterprise’s IT

department purchases the raw material (e.g. servers,

routers, database SW, packaged applications,

namely, the composite application structure

elements), then installs, configures, integrates and

manages the base resources to form a completely

internal solution.

2 MOVING TOWARDS

A COMPOSITE APPLICATION

IN THE CLOUD

When off-premise or any cloud solution is

considered, modifications to the properties of the

elements structuring the “online ordering” system

described in Figure 2 can be ownership, location,

generic usage permits and elasticity.

Ownership of the full structure will define the

billing relationships between the IT department and

its supply chain such as leasing or renting the assets

comprising the structure (Danielson and Hadar

2009). The cost model of the offered composite

application between the IT department and the

internal consumers from the different enterprise

business units can be calculated per usage, periodic,

or fixed, paid and budgeted in advanced or charged

back.

The location of the composite application sub-

elements, namely internally within the enterprise

sites or externally on a third party hosting service,

defines the integrability of the elements and the type

of networks that binds them: local network, secured

wide area networks, or open networks (such as the

internet).

Usage limitations of such the composite

application elements offered from a remote location

and over the internet can be offered to restricted

groups as a private offering, or without grouping and

limitations to the public consumers.

Consequently, the Composite Application,

offered as a service, can be constructed from only

public Cloud elements, external to the enterprise, or

from elements that are offered by private cloud

vendors, still external to the enterprise. The offered

service can even be constructed as a hybrid cloud

solution, where part of the service is constructed

from on-premise, internal assets, and the other parts

from external private or public ones.

Thus, composite application deployment

models define the external types categorized as

Public, Private, and Hybrid. These types are derived

from the ownership, location and restricted usage of

the underlying elements. Cost models and levels of

dynamic flexibility (elasticity) of the offerings are

affecting the business models between the

providers of the cloud services (external or

internal), and the consumers of these cloud services

(either the IT department or a Business Unit of the

enterprise). Intermediation and bridging services

may enhance the relationship between Providers and

Consumers, facilitated by a broker, which can be a

third business entity, or be part of the Provider or

Consumer organizations.

For the sake of clarity, in this document, any

discussion termed with “Cloud” refers to Public,

Private, or Hybrid Clouds, which are external to the

organization. Solutions that address smart datacenter

capabilities, where the assets are fully located within

the enterprise sites (whether owned or leased) will

be referred to as “Internal cloud”, or as Physical-

Virtualized (PV) solution.

As detailed ahead in prototypical scenarios, it is

anticipated by analysts (Fellows and Piraino 2009)

that most of the cloud related solutions in 2010 will

be on internal clouds for mission-critical or data

sensitive Composite Applications. Non-critical

services will be consumed from external Public and

Private clouds (such as receiving CRM services

from SalesForce.com, or e-mail services from

Google), and only a small fraction will be

constructed in a hybrid manner. Thus, enterprises are

incrementally moving to a model in which cloud

service providers implement sub-elements of an

enterprise’s IT services, either having a transaction

crossing between the services, or as decoupled

standalone external solution. The transformation is

similar to enterprises that have optimized their

businesses through supply chain management

(Wikipedia, 2010 c) and enterprise resource

planning (Wikipedia, 2010 d), delegating services to

other businesses and gradually consuming such

services.

3 THE CLOUD-CONNECTED

ENTERPRISE

An enterprise that exploits its IT-services from the

cloud, and optionally provides some of the services

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

Figure 1: Composite Application.

cloud-connected-enterprise (CCE). Consumption to

its customers via the cloud, is defined by us as from

the cloud and provisioning to the cloud of IT

services define an IT supply-chain environment, as

detailed in Figure 2: Cloud Connected Enterprise.

The growing offerings from different vendors to the

same conceptual offerings, whether Infrastructure or

Software as a Service (IaaS, SaaS), generates an

economical attraction. Specialization in these

services presumably increases the quality of the

service, and the need to supply a service as fast as

possible supports its agility. Risk is associated with

sizing or performing a task which is not the

enterprise’s main business, and accordingly, all the

associated costs are also drivers for selecting a cloud

provider instead of constructing commoditized

solutions on-premise.

Such benefits can be summarized as QARCC:

Quality, Agility, Risk, Capability and Cost. An

enterprise evolving to a value-chain of cloud IT

services could achieve tremendous business benefits

focusing on the QARCC metrics only.

As a simple example, we can observe the

Akamai – Logitech case in which Logitech planned

a web marketing campaign that would increase Web

traffic to their site by 100 times per day. Logitech

used Akamai’s content distribution network (CDN)

and their Edge Computing technology to implement

the solutin.

The QARCC benefits with regard to a solution

of implementing the business needs in Logitech

internal datacenter where:

• Quality: Akamai’s technology is far less

likely to have transient errors than a quickly

deployed, in-house system. Customers would

perceive transient errors to be poor quality in

the Logitech website.

• Agility: Logitech did not need to purchase,

install and configure hardware and software.

This shortened the time required to deliver

the solution.

• Risk: A best-of-breed provider’s system

may be less likely to crash or become

overloaded. Logitech’s use of the Akamai

CDN for a Web promotional campaign

handled an unexpectedly large amount of

web access without degraded performance.

• Capability: The Akamai CDN provides

geographic content caching and distribution,

and end-to-end performance monitoring over

the Internet.

These capabilities would be impossible for

Logitech’s centralized datacenters.

CONSTRUCTING AND EVALUATING SUPPLY-CHAIN SYSTEMS IN A CLOUD-CONNECTED ENTERPRISE

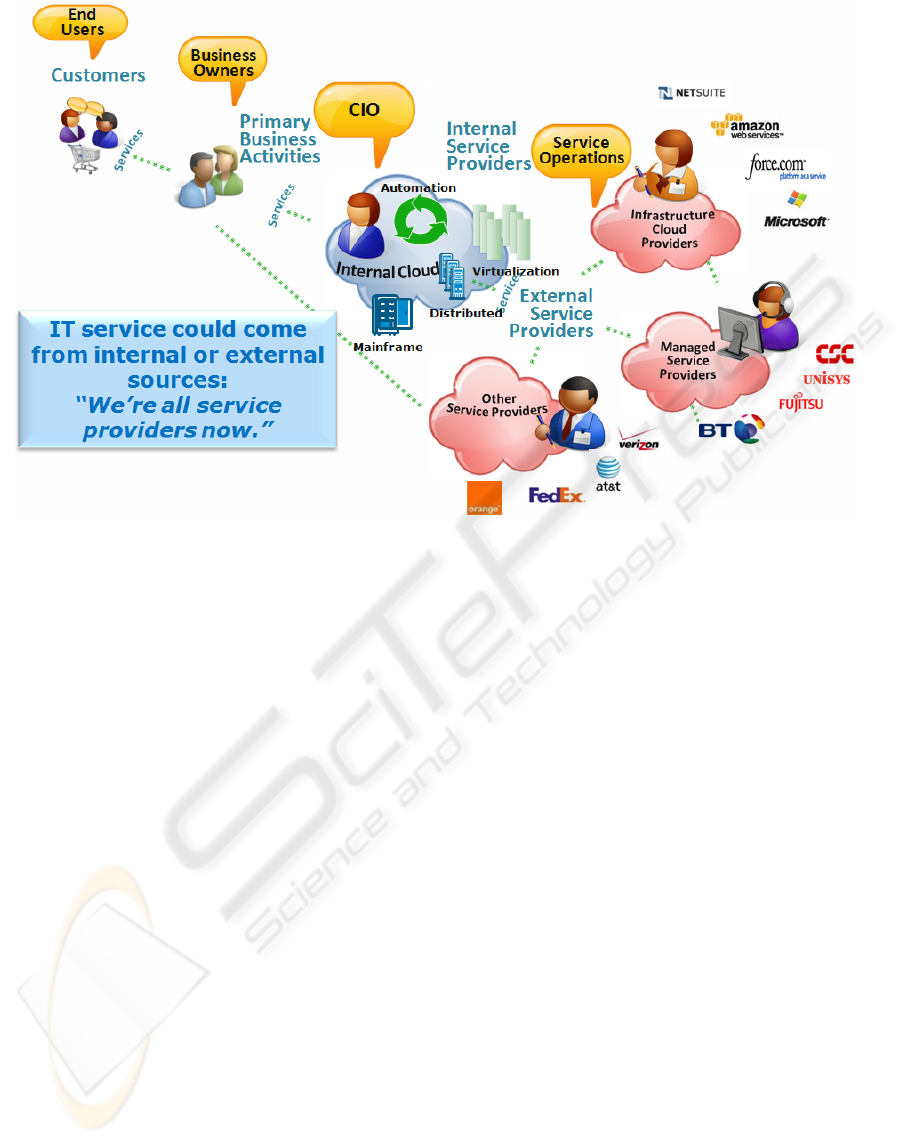

Figure 2: Cloud Connected Enterprise.

• Cost: Purchasing, installing and configuring

the IT resources would have been

prohibitively expensive for a short duration

campaign. Logitech simply paid for capacity

according to the amount of time the solution

was deployed.

Nevertheless, one should be careful when

analyzing this example. Becoming a cloud—

connected enterprise that gains value by

transforming from an IT factory to an IT service

value network (SVN) may have negative

consequences. Some obvious examples include:

• Information Security - An enterprise invoking

external business service no longer has direct

control over data, which hinders information

governance, risk, compliance, and access

control.

• Service Levels Assurance and Agreements -

Evaluating the quality of the business service is

more difficult. In an on-premise solution, it is

possible to debug the end-to-end solution.

Consider the example of invoking an external

source of demographic information or a

business intelligence system. The calling

consumer cannot see the input data, calculation

formulas, etc.

• Control - An enterprise can modify internal

hardware and software, and test and analyze

configurations. This allows the enterprise to

compute confidence in an internal composite

application’s availability and performance. The

enterprise calling an external service has no

visibility into how the service provider

implements the functions, and cannot assess the

reliability of a service level agreement.

Understandably, the next generation enterprises will

need to address these concerns of a cloud-connected

enterprise. By using QARCC metrics for

management decision, on-going improvement of

service selection and utilization can increase. By

providing tools to control these IT concerns and

automating the change, overall assurance of service

level agreements is met.

4 THE COMPOSITE

APPLICATION AND BUSINESS

SERVICES LIFECYCLE

(CABS-LC)

Existing IT management processes usually address

IT management responsibilities, or recommended

steps and best practices for managing IT assets, such

as ITIL (IT Infrastructure Library), or other common

workflows. Such workflows can be categorized into

Operation, Configuration, and Application

perspectives:

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

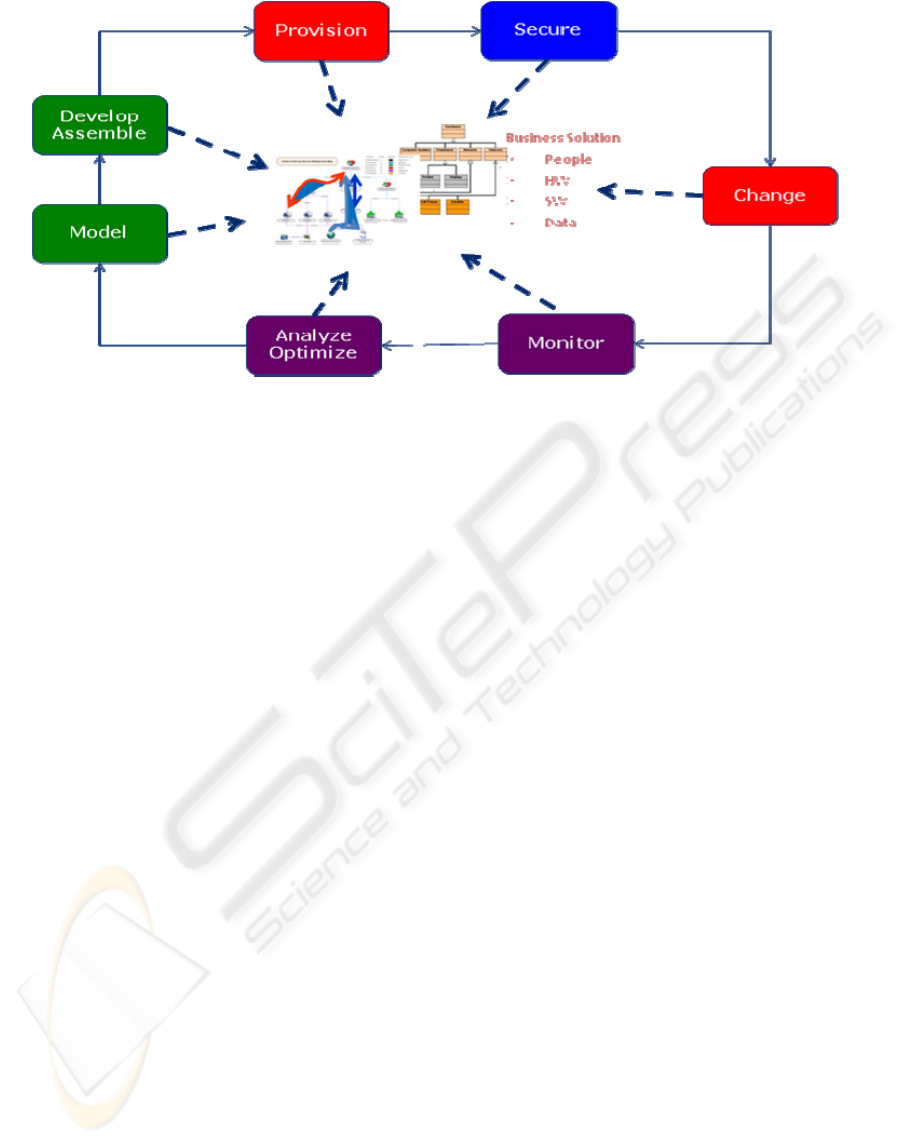

Figure 3: The Composite Application and Business Services Life Cycle (CABS-LC).

Operation perspective: When considering the

case of “keeping the lights on”, we first start with

monitoring the existing state, and accordingly,

analyze and plan for execution of a change, coupled

with knowledge. Namely, Monitor – Analyze – Plan

– Execute with Knowledge (MAPE-K).

Configuration perspective: When dealing with a

new service or solution, one needs first to define the

rational, and configure an existing solution (such as

servers and hardware) followed by maintaining its

life duration. Namely, Define – Configure – Deploy

– Operate – Monitor – Improve.

Application perspective: When considering

providing an application solution, one needs to

consider the integration points, and accordingly,

construct a solution to be optimized gradually.

Namely, Model – Assemble/Develop – Run –

Monitor/Optimize.

Consolidating these aspects into a cloud

environment, as well as considering that the main

approach in services is the construction of a

Composite Application and the consumption of a

remote service forms a new perspective. This new

perspective is The Composite Application and

Business Services Lifecycle (CABS-LC), shown in

Figure 4.

The CABS-LC is an incremental and iterative

cycle, fostering an agile approach of constant

refactoring and optimization. CABS-LC has a

dynamic and agile approach based on the

assumptions that services change their quality over

time and due to opportunities and alternatives that

emerge for replacement of sub-components, and

business needs change and mutate. CABS-LC is

designed to operate in internal clouds as well as

external or hybrid ones, distinguished by levels of

Information Security, Service Levels Assurance and

Agreements, and Control.

The major steps in CABS-LC are Model -

Develop/Assemble – Provision –Secure – Change –

Monitor – Analyze /Optimize, all acting on a

common integration and toolset framework.

CABS-LC deals not just with infrastructure

settings, but addresses Composite Applications (and

business services) concerns as well. Thus, the

lifecycle steps take a new dimension of software

development as well as IT configuration of

infrastructure, raising the discussion to a holistic

business solution one, rather then IT integration

conversation. Accordingly, the steps are:

Model – the goal of the modelling phase is to

capture the structure of the sub-elements and sub-

entities that are part of a Composite Applications or

a Business Service, including what metrics are

available and needed in order to evaluate the overall

QARCC metrics. The models define two main

layers: (1) the structure of the Composite

Application (components and dependencies), and (2)

the QARCC characteristics structure and needed

metrics, superimposing on the Composite

Application structure. Several models of the same

Composite Application, (constructed differently) can

be then evaluated and tuned according to the same

QARCC metrics. These structures may be defined

differently, providing a foundation for evaluation,

and eventually, automation of the selected structure

assembly and provisioning.

CONSTRUCTING AND EVALUATING SUPPLY-CHAIN SYSTEMS IN A CLOUD-CONNECTED ENTERPRISE

Develop/Assemble – Assembling a solution and

configuring its inner components including hardware

elements (such as images, VMs, routers, etc) and

software services (such as remote web service API

calls, configuring Web-service gateways, setting up

cross-enterprises identities, etc). This phase may

include new designs or adjustments to existing

solutions.

Provision (deploy) – Since in a public cloud the

notion of provisioning a service actually defines

connecting to one provided by a third part, the need

is for configuration of agreements. This

configuration means setting up a contract with the

service provider, and providing the data necessary

for the provider to perform the service. Regular

provisioning still applies when internal services and

applications, as well as infrastructure that the

enterprise owns or has access to, are distributed and

deployed on regular or virtualized environments.

Secure – Security concerns include identity

management that bridges domains as well as

applying security interception according to policies.

Example are limitations on the deployment locations

of servers (known as physical boundary limitations),

as well as network segmentations that enable

multiple different Composite Applications to co-

exist on the same environment. Such a configuration

of network firewall and relevant identities depends

not just on the theoretical assembly constructed on

the modelling environment, but rather self-adapts to

a selected location (internal, external, or hybrid),

protecting applications and data.

Change – Automation of the change process is

comprised of two categories: self-adaptive, and

workflow-driven. Workflow-driven implies that

change is defined and actuated firstly based on needs

and pre-configured triggers, to later on be reused by

automation tools. Self-adaptation is a change that

usually changes the system’s inner state in order to

optimize a goal, such as optimize a QARCC defined

thresholds. Self-Adaptation changes can be

comprised of automated workflow-driven changes,

if massive similar changes are applicable. An

example for self-adaptation is to structure a system

with five servers for load balancing, and a self-

adaptation rule that can increase the number of

servers up to ten according to load, and decrease the

number of provisioned servers to three in case the

system is not in use more than one day. The change

automated provisioning workflow that can be

defined once and reused many times according to

the self-adaptation rule.

Monitor – Metrics, thresholds and eventually

key performance indicators (KPIs), highlight the

status of the monitored Composite Applications by

aggregating and accumulating sources of

information into manageable knowledge. The

knowledge can be provided by automation tools and

humans, driven by machine or human perception,

and eventually can be transformed into actions.

Notice that monitoring includes measuring business

processes and real-world outcomes, not just

automated data provided by managed machines. An

example may be providing an event that informs on

the quality of the ground-mail service: “Did the

package arrive on time?”, in contrast to “What is the

average response rate of the package-delivery

company Web service API?” Thus, daily

operational information can be more than low-level

infrastructure driven one by becoming an element of

managing the application and business solution. For

example, “Do not create a new LDAP ID” or “Add a

user to SAP” indicate usage patterns that might

trigger a need for improvement that will affect the IT

service itself and not part of the underlying system.

Consequently, monitoring is set with composite

KPI at the business level, such as “95% of my

purchase orders should be completed in 2 business

days with no human intervention”

Analyze /Optimize – The result of carefully

configured monitors, can serve for analysis and

reasoning on the root-cause of a problem, optionally

leading to a resolution. An example may be that the

system correlates “unresolved requests”, with

“server transactions load”, and analyzes it to “My

web application server is aborting requests under

load”. The triggered resolution of this analysis will

be to provision additional capacity in order to reduce

the load that will increase the system quality.

Analysis can serve for alternative design

between similar services (global optimization), or

finding where to improve in a given service (local

optimization). Optimization can be done on a single

attribute (such as capacity), achieved by automated

changes, or done on multiple attributes that will

trigger a massive refactoring and replacement of a

service.

Changes are part of the dynamic nature of an

elastic cloud environment that can expand and

contract on need, regulation, or business

requirements. Accordingly, using analysis and

optimization for evolving and adjusting existing

solutions is an inherent part of this dynamic world.

As an example, consider the case of an enterprise

running a marketing campaign. In such a case the IT

department will need to rent more warehouse space,

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

purchase more pre-order parts for production,

change online pricing rules engines, modify the web

personalization rules and content database, acquire

and provision capacity on IaaS providers such as

EC2 and Microsoft Azure, set up end-to-end

monitoring with Gomez, etc.

This “marketing campaign” IT project, will be

defined as a set of Composite Applications that are

connected together, from storage and computing

space, to servers, database content changes,

recovery, success monitoring tools, business

transaction management and more. Accordingly, one

needs to:

1. Model the components dependency and define

components should be provisioned, including

architecture considerations such as availability,

scalability, recovery and backup plans.

2. Decide and select implementation components

either by buying, pay per use, or building, and

accordingly plan how to test the solution in the

appropriate testing environment.

3. After the test is successful, actual deployment

into an open-network segmentation will

commence, requiring additional configurations

of the composite application, specifically with

access and security permissions. The provisioned

solution needs to manage privileges for both

administrators as well as regular costumers.

4. Change will happen when the collected

marketing broadcast data is updated. Scalability

becomes an issue when non-planned users are

logging in, and of course, when problems and

malfunctions occur.

5. Monitoring the marketing campaign will mean

measuring transactions’ performance, user

experience, and availability as promised by the

service providers, and other metrics that could

indicate the quality of the Composite

Application. These metrics are coupled with

additional indications on the actual cost and

capacity planned, as well as the ability of the

composite application to handle load stress.

Namely, the QARCC (Quality, Agility, Risk,

Cost and Capacity) metrics. Examples are “how

many costumers leave the campaign without any

purchase?”, “what products are selling the

most?” and “is the load balancing system

working?”, “are there fulfilment problems and

bottlenecks in the financial transactions?”, “are

their hacking attacks to the marketing data?”.

6. Analysis of the QARCC metrics of the

campaign, as well as its individual sub-elements,

required smart threshold setting (KPI) as well as

considering alternative services. Analyzing

options may identify a need to optimize the

solution. Such an optimization may be a decision

to increase the service agreement with the

provider for more capacity or reduce the risk of

information lost by providing additional backup

cycle. If the amounts of transactions consumers

are activating change, performance might be

affected in one of the sub-elements. Triggering

and connecting to another sub-service provider to

enable the same service may be an option.

Consider the case of the sub-service credit-card

billing that was not designed to manage such

transactional load. This can be achieved by

analysis of the underlying elements that construct

the QARCC metrics, and finding the root-cause

for degradation in performance.

5 DISCUSSION

This paper described the supply-chain concerns of

the cloud-connected-enterprise (CCE), affecting the

selection of the structure of a composite application

that is based on its QARCC quality characteristics.

The Composite Application and Business Services

(CABS) lifecycle methodology and process supports

the selection of the best structure. Consequently, the

methodology is driven by a set of loosely-coupled

tools that can automate business and architecture

rules and assist in optimizing IT management of

cloud concerns.

The content and decision on which the

automation is acted upon is either driven by

community, vendor preferences, or customers’

specific needs. It is reasonable to assume that the

QARCC needs and CABS automation will differ

from one enterprise to another, however, similarities

in the QARCC evaluation structure and criteria will

emerge.

Our approach for loosely-coupled solutions

supporting CABS and QARCC, is propelled by

smart integrations of tools that provide capabilities

and data needed to compute and assess the structures

of the QARCC metrics and values, thus, drive the

decision-making of the optimization element of the

suggested change, and the following provisioning.

This work-in-progress is materialized by the

manifestation of such tools, and evidence based

results that will be provided as the research

progresses.

CONSTRUCTING AND EVALUATING SUPPLY-CHAIN SYSTEMS IN A CLOUD-CONNECTED ENTERPRISE

REFERENCES

Wikipedia, May 2010 a, Business Service Management.

http://en.wikipedia.org/wiki/Business_service_manage

ment

IBM web site, May 2010, A component-based approach

to strategic change, http://www-

935.ibm.com/services/uk/igs/html/cbm-intro.html

Wikipedia, May 2010 b, Composite Application,

http://en.wikipedia.org/wiki/Composite_application

Wikipedia, May 2010 c, Supply Chain Management,

http://en.wikipedia.org/wiki/Supply_chain_manageme

Wikipedia, May 2010 d, Enterprise Resource Planning,

http://en.wikipedia.org/wiki/Enterprise_resource_plan

ning

Danielson D., Hadar E., “Analysis of IT concern

landscape as trigger for innovation in cloud

computing” , CA’s white paper, May 2009, NY, USA

William Fellows, Antonio Piraino, “2010 preview – Cloud

computing”, 14 Dec 2009, 451 group.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies
