Optimizing Service Selection for Probabilistic QoS

Attributes

Ulrich Lampe, Dieter Schuller, Julian Eckert and Ralf Steinmetz

Multimedia Communications Lab (KOM)

Technische Universit

at Darmstadt

Rundeturmstr. 10, 64283 Darmstadt, Germany

Abstract.

The service selection problem (SSP) – i.e., choosing from sets of func-

tionally equivalent services in order to fulﬁll certain business process steps based

on non-functional requirements – has frequently been addressed in literature con-

sidering deterministic values for the Quality of Service (QoS) attributes. However,

the usage of deterministic values does not reﬂect the uncertainty about the actual

value of an attribute during execution, thus ignoring the risk of QoS violations.

In the paper at hand, a simulative step, based on stochastic QoS attributes, is per-

formed as complement for optimally solving the SSP using linear programming

methods. With this two-step approach, uncertainties in the selected set of services

can be explicitly revealed and addressed through repeated selection steps, thus

allowing to prevent the violation of QoS restrictions much more effectively.

1 Introduction

In Service-oriented Architectures (SOA), business processes can be realized by compos-

ing loosely coupled services. Depending on their granularity, these services provide a

more or less complex functionality [1]. Thereby, the services are not necessarily located

only within the boundaries of the own enterprise. In the Internet of Services, multiple

service providers offer their services at various service marketplaces [2]. If services with

substitutable functionalities are available at different cost and quality levels, service

requesters have the opportunity to decide which services from which service providers

to select, based on their preferences regarding Quality of Service (QoS). This service

selection problem (SSP) respectively its solution recently attracted a lot of attention in

the literature [3–6].

In this problem, an abstract representation of a workﬂow is assumed to be given

(e.g., in Business Process Modeling Notation – BPMN), as well as a list of functionally

equivalent services which are able to accomplish the tasks of the respective workﬂow

steps. The aim is to assign each workﬂow step exactly one service from the respective

set of functionally equivalent candidate services, so that the overall (workﬂow) QoS

is optimized and the requesters’ end-to-end QoS requirements are satisﬁed. In order

to compute an (optimal) solution, almost exclusively deterministic values for the QoS

attributes are considered at planning time in the literature. However, these values do not

reﬂect the uncertainty that is associated with an attribute during execution. E.g., response

times – i.e. the elapsed time period between the service invocation to the response arrival

Lampe U., Schuller D., Eckert J. and Steinmetz R. (2010).

Optimizing Service Selection for Probabilistic QoS Attributes.

In Proceedings of the 4th International Workshop on Architectures, Concepts and Technologies for Service Oriented Computing, pages 92-101

DOI: 10.5220/0003051000920101

 SciTePress

– may ﬂuctuate due to varying network or computational load, thus resulting in a violation

of the requester’s QoS requirements in the actual workﬂow execution.

Therefore, we propose to perform an additional simulation step that takes stochastic

distributions for the QoS attributes into account after having computed the optimal

solution to the SSP (considering only deterministic values). This simulation step allows

to detect potential violations of QoS restrictions in the actual execution, based on the

respective probability of such events. Depending on the requester’s preferences, the

outcome of the simulation may trigger repeated optimization steps using additional

restrictions. As a proof-of-concept, we implemented and evaluated a simulation for the

QoS attribute response time.

The remainder of this work is structured as follows: In Section 2, we will present our

approach for optimally solving the SSP using linear programming, based on deterministic

QoS values. In Section 3, the potential drawbacks of deterministic optimization will

be outlined. Based on the ﬁndings, a simulation process that relies on stochastic QoS

attributes will be presented and evaluated using a prototypical tool. The paper closes

with a conclusion and an outlook of our future work in Section 4.

2 Optimal Service Selection for Complex Workﬂows

In this section, we present our approach for the computation of an optimal solution to

the SSP. For this, we formulate a linear optimization problem, which can be solved

optimally – if a solution exists – using (mixed) integer linear programming (MILP)

techniques from the ﬁeld of operations research [7]. The optimization problem consists

of a target function and a set of constraints. We perform a worst-case analysis – instead

of an average-case analysis – by applying our aggregation functions proposed in [8]

in order to make sure that all restrictions are satisﬁed at planning time. Performing an

average-case analysis would have led to a solution, where the restrictions are satisﬁed

only in average.

For the optimization, we consider the QoS attributes response time

(elapsed time

from the service invocation until the response arrival), costs

(costs for the invocation

of a service), reliability

(the probability that the service successfully provides the

requested results), and throughput

(number of parallel service invocations), although

the mentioned simulation step will only be performed for response time

. With these

QoS attributes – in fact with a subset of these attributes – the aggregation types summa-

tion, multiplication and the min/max operator are covered. The integration of further

aggregation types is straightforward.

In the paper at hand, we concentrate on the workﬂow patterns sequence, parallel

split (AND-split), synchronization (AND-join), exclusive choice (XOR-split), simple

merge (XOR-join), and arbitrary cycles (Loop), which only form a subset of all workﬂow

patterns (cf. [9]). The patterns can be combined to create complex workﬂows. An

example for such a complex workﬂow is given in Figure 1.

We consider an abstract workﬂow (e.g., in BPMN), consisting of

tasks respectively

process steps

P S

. For each

P S

with

i ∈ I = {1, ..., n}

, a set

services

∈ J

= {1, ..., m

}

, able to realize

P S

, exists. Each process step

P S

thereby is

realized by exactly one service

. This is indicated by the demand for (binary) decision

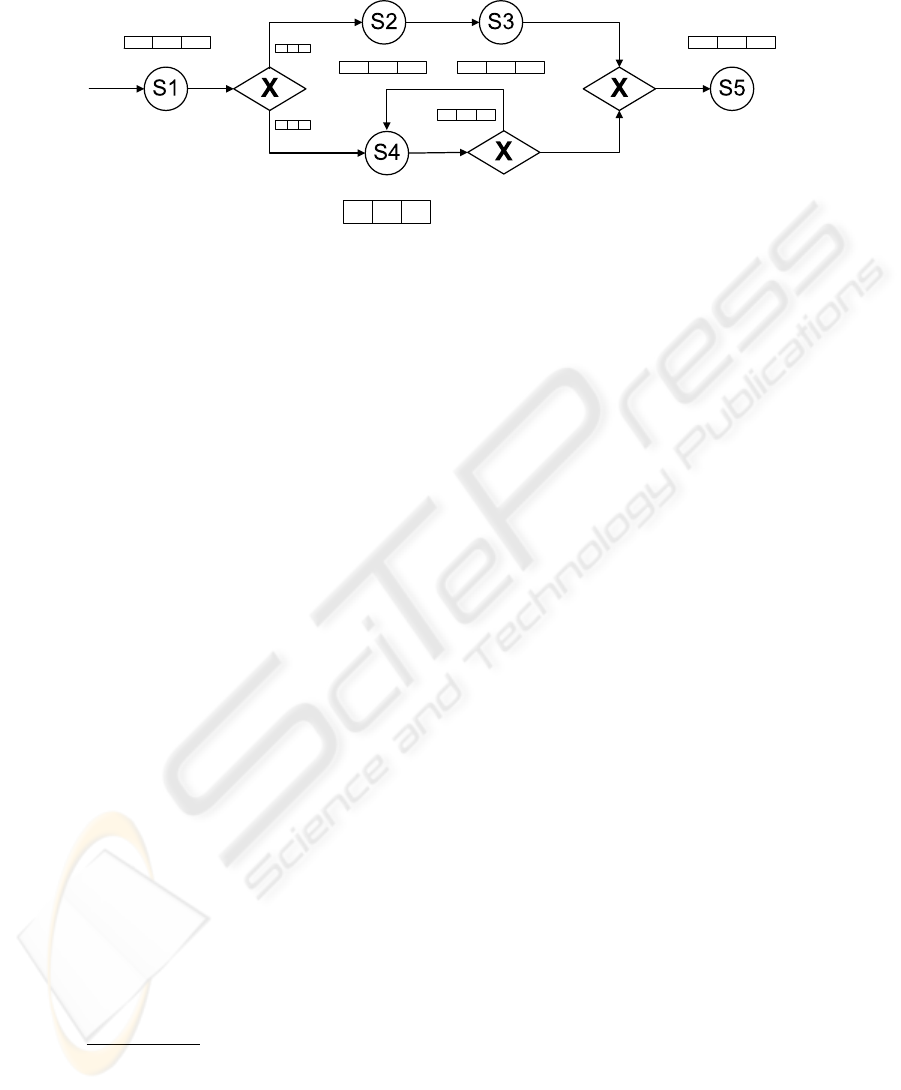

Fig. 1: Example abstract workﬂow.

variables

∈ {0, 1}

(cf. condition (14)). The logical order of the process steps is

depicted from the abstract workﬂow as follows: in case

P S

is a direct successor of

P S

, we add

P S

→ P S

to a set

DS = {P S

→ P S

|P S

direct successor of P S

}

is the set of start tasks, i.e., the tasks that need to be executed ﬁrst in the workﬂow.

In addition, we deﬁne

as the set of end tasks, i.e., tasks with no direct successor.

To give an example, we refer to Figure 1. Here,

P S

is a direct successor of

P S

. We

therefore add P S

→ P S

to DS.

With respect to XOR-splits and XOR-joins, we deﬁne a set

L = {1, ..., o}

path

numbers for the paths within the XOR-split and -join – and name these paths XOR-paths.

Thereby,

l ∈ L

represents the respective XOR-path number. The process steps

P S

within an XOR-path are assigned to a set

P S

∈ W

= {P S

|P S

in XOR-path l}

and their respective process step numbers

are assigned to the set

∈ IW

{i|P S

∈ W

}

. Further,

S = {P S

, ..., P S

}\(W

∨ ... ∨ W

)

represents a set of the

remaining process steps

P S

when removing process steps

P S

from a set of all process

steps.

IS = I\(IW

∨ ... ∨ IW

)

denotes the set of the corresponding process step

numbers.

Within an XOR-path, we assume a sequential arrangement of the process steps and

label the ﬁrst and last process steps with

P S

and

P S

. The respective start times

for these process steps are labeled analogously with

and

. The probability that

XOR-path l is executed, is indicated by p

. We demand

l=1

= 1.

Regarding the workﬂow pattern Loop,

loop

represents the set of process step num-

bers

with a Loop. Further,

denotes the respective probability that this Loop is

followed (cf.

P S

in Figure 1). Thereby,

is independent of whether the Loop was

followed or not before. If a Loop is followed multiple times, the respective process

steps are executed multiple times, too. As this affects the regarded, aggregated QoS

values, we deﬁne

∗

in (1),

∗

in (2), and

∗

in (3) in dependence of a boundary value

consideration of ρ (cf. [8]). The throughput d

is not effected by a Loop.

∗

(

1−ρ

, if i ∈ I

loop

, else

(1)

∗

(

1−ρ

, if i ∈ I

loop

, else

(2)

∗

(

(1−ρ

1−ρ

, if i ∈ I

loop

, else

(3)

Based on our aggregation functions in [8], we propose Model 1 to perform the

proposed worst-case analysis. Here, QoS restrictions are labeled with b (bounds).

Model 1: Optimization Problem.

Objective Function

minimize F (x) =

i∈I

j∈J

∗

(4)

s.t.

= 0 ∀i ∈ I|P S

∈ DS

(5)

j∈J

∗

≤ t

∀i ∈ I|P S

→ P S

∈ DS (6)

j∈J

∗

≤ b

∀i ∈ I|P S

∈ DS

(7)

max

l∈L

{(t

i∈IW

j∈J

∗

)} ≤ t

∀i ∈ I|P S

→ P S

∈ DS (8)

max

l∈L

{(t

i∈IW

j∈J

∗

)} ≤ b

∀i ∈ I|P S

∈ W

(9)

i∈IS

j∈J

∗

+ max

l∈L

{

i∈IW

j∈J

∗

} ≤ b

(10)

(

i∈IS

j∈J

∗

) · (min

l∈L

{(

i∈IW

j∈J

∗

)}) ≥ b

(11)

min{min

i∈IS

{

j∈J

}, min

l∈L

{ min

i∈IW

{

j∈J

}}} ≥ b

(12)

j∈J

= 1 ∀i ∈ I (13)

∈ {0, 1} ∀i ∈ I, ∀j ∈ J

(14)

Regarding Model 1, it has to be noted that the workﬂow patterns AND-split and

AND-join are already covered in (8) to (12) (cf. [8]).

To compute an optimal solution using MILP techniques, a linear optimization

problem is required. As the min/max operator as well as the multiplication are non-linear

aggregation types regarding the decision variables

, we apply the approximation (15)

to (11) – which is very accurate for values

close to 1 (like reliability) [10] – and

exchange constraints (8)–(12) for (16)–(20). To explain this (second adaptation step), it

has to be noted that if the minimum (maximum) of a set of values has to be higher (lower)

or equal to a certain bound, each element of this set needs to satisfy this constraint.

i=1

j=1

≈ 1 −

i=1

(1 −

j=1

) (15)

i∈IW

j∈J

∗

≤ t

∀l ∈ L, ∀i ∈ I|P S

→ P S

∈ DS (16)

i∈IW

j∈J

∗

≤ b

∀l ∈ L, ∀i ∈ I|P S

∈ W

(17)

i∈(IS∨IW

)

j∈J

∗

≤ b

∀l ∈ L (18)

1 −

i∈(IS∨IW

)

(1 −

j∈J

∗

) ≥ b

∀l ∈ L (19)

min

i∈I

{

j∈J

} ≥ b

(20)

Having conducted these substitutions, an optimal solution can be obtained by apply-

ing MILP techniques.

3 Stochastic Simulation of Complex Workﬂows

In the previous section, we have outlined how an optimal set of services can be selected

for the process steps in a complex workﬂow, based on given QoS constraints. Because

the underlying optimization problem is solved using MILP, the usage of deterministic

QoS attributes is required. These ﬁxed values commonly represent a lower or upper

bound that is guaranteed by a service provider with respect to a certain QoS attribute in

terms of a Service Level Agreement (SLA).

However, the usage of deterministic values does not reﬂect the uncertainty (or risk,

which we use as a synonym) that may be associated with QoS attributes. Response time,

e.g., is ultimately a stochastic variable that depends on various random determinants,

such as network and computational load. Consider two sets of services for the same

business process, where the second set has a slightly higher average response time for

each service. However, the variance in response time is much lower for the second set,

e.g., due to the usage of load-balancing techniques. While the ﬁrst set is optimal with

respect to the objective of minimal (average) response time, it exhibits a much more

ﬂuctuating behavior with respect to this attribute. This may lead to an increased risk of

exceeding certain reponse times threshold, which is undesired. Thus, we believe that

the notion of optimality in service selection needs to regard two aspects: the average

outcome of an QoS attribute as well as its ﬂuctuation.

Accordingly, we propose to extend the representation and computation of QoS

attributes in a manner that appropriately incorporates uncertainty. Our approach adapts a

methodology suggested by Dawson and Dawson in the domain of project planning [11].

They introduce the notion of generalized activity networks [12]. Such networks consist

of nodes and edges. Nodes represent activities (or tasks); edges represent precedence

relationships and thus paths between the activities, where each task may have one or

more incoming and outgoing incident edges. For additional details and an example, we

refer to Dawson and Dawson [12]. Notably, the duration for each activity is given as

stochastic distribution, rather than a deterministic value, in generalized activity networks.

This is a well-known principle that has been applied in traditional planning techniques,

such as PERT, which was devised in the early 1960s [13]. Furthermore, if more than

one edge results from an activity, all edges are annotated with an execution probability.

These execution probabilities may also be correlated between edges.

Following the ﬁndings by Schonberger [14], who states that traditional planning

techniques such as PERT commonly underestimate the overall duration of an activity

network, Dawson and Dawson utilize simulation as a means of analyzing generalized

activity networks [11]. I.e., the activity network is virtually executed a selected number

of times; in this process, the duration of each activity and choice of path execution

is drawn as a random variable. The individual durations of all executed activities are

then aggregated into an overall duration in each iteration. From the distribution of

aforementioned overall durations, conclusions can be drawn about the characteristic of

the activity network in actual execution. Most importantly, the probability that a set of

activities exceeds a certain threshold due to the ﬂuctuations in duration can be inferred.

The notion of generalized activity networks can easily be transferred to workﬂows

as a special application domain. In this scenario, services then correspond to activities,

while splits (joins) constitute dummy activities with multiple outgoing (incoming) edges.

Depending on the type of split (AND, XOR, or Loop), the execution probabilities of the

edges and respective correlations will differ. E.g., in the case of AND-splits, each edge

will be assigned a probability of 1, due to the fact that each edge is certainly executed.

Because services have multiple non-functional attributes, we not only adapt, but also

extend Dawson and Dawson’s approach. Namely, we allow for an arbitrary number of

random variables, representing QoS attributes, being associated with each activity (i.e.

service) apart from duration (which, in the context of workﬂows respectively services,

translates into response time). In our proposed methodology, each QoS attribute for each

service is modeled as an independent random variable adhering to some probability

distribution. This loosely relates to the idea of soft contracts in Web service orchestration,

as proposed by Rosario et al. [15].

The probability distribution may essentially be determined in two ways. The ﬁrst

option is to infer it, based on historic execution data of a service. This requires the

installation of proper monitoring mechanisms. After a relevant sample has been collected,

a QoS attribute such as response time may, e.g., be represented through a normal

distribution. The second option is that a service provider explicitly speciﬁes a probability

distribution for each QoS attribute.

In order to infer execution probabilities for each path, three options exist. The ﬁrst is

mining from historical data again. However, this requires that a workﬂow (or at least a

workﬂow segment) that is identical to one being simulated has previously been executed

and monitored. The second option is to have an user manually assign the probabilities,

based on his or her knowledge about the underlying business process. The third and ﬁnal

option is to utilize conservative default values, assuming that either each path (in case of

AND-splits) or the worst path with respect to each individual QoS attribute (XOR-splits)

will be executed.

Figure 2 depicts an example workﬂow for which a set of services (S1 through S5) has

been selected. It addition, the random variables and respective probability distributions

for each service, as well as execution probabilities for each edge, are illustrated. For

reasons of simplicity, solely the random variables for the QoS attribute response time

are included. For service S1, e.g., the response time is given by

e;1

, which is normally

distributed (

) with a mean value of 6.3 seconds and a standard deviation of 1.5 seconds.

For the XOR-split, the probability of executing the top and bottom path is 0.3 and 0.7

respectively. Accordingly, for the Loop construct, the probability of looping and thus

repeatedly executing S4 is 0.25.

= 0.7

● ●

= 0.3

●

e;2

= N(3.2,0.9)

3.5 - -

e;3

= N(2.0,0.5)

1.7 - -

ρ = 0.25

- 1x 0x

9.7 8.4 7.4

e;5

= N(8.1,2.5)X

e;1

= N(6.3,1.5)

5.8 6.7 6.4

e;4

= N(2.5,1.1)

2.8

2.3

3.0

Fig. 2: Example workﬂow including simulation outcomes.

Figure 2 further depicts three exemplary simulation runs for the sample workﬂow.

For every service, the randomly drawn response times are depicted in the boxes next to

the random variables. For the XOR-split, the pursued path is indicated by a bullet; for

the Loop construct, the number of additional executions (repetitions) of S4 is depicted.

As can be seen, each run results in a different outcome for each service with respect

to response time and in varying paths being executed. E.g., in the ﬁrst iteration in the

example, services S1, S2, S3, and S5 have response times of 5.8, 3.5, 1.7, and 9.7 seconds

respectively. The lower path is not executed, and thus, S4 and the consecutive Loop

construct are omitted. Accordingly, the overall response time for the ﬁrst iteration is

20.7 seconds (and 20.2 and 16.8 seconds for the second and third iteration respectively).

Once the process is repeated multiple times, a representative distribution for each QoS

attribute can be obtained.

Service selection and workﬂow simulation serve as a mutual complement: In the ﬁrst

step, a set of services is selected by solving a linear optimization problem. This provides

an optimal result with respect to the objective of minimizing total cost and allows to

make statements about the workﬂow characteristics in theory. In the second step, the

resulting workﬂow is simulated, ideally based on historic execution data, which allows

to anticipate the workﬂow characteristics in practical execution. If the uncertainty in the

workﬂow is found to be unacceptable with respect to given constraints, the selected set

of services is discarded. This may, e.g., be the case if a speciﬁed response time constraint

is not met with a certain probability. Consecutively, the process of computing an optimal

solution is repeated with further restrictions. A manifest strategy is to explicitly exclude

one or more services with the highest standard deviation in a critical QoS attribute from

the set of candidate services.

To assess the principal beneﬁts and effectiveness of our approach, we have imple-

mented a prototypical workﬂow simulation tool in Java. The tool allows to specify

complex workﬂows, consisting of services and their structure, using an XML-based for-

mat

. For each service, an arbitrary number of QoS attributes, along with the respective

probability distributions, may be speciﬁed and freely parameterized.

A simulation with one million iterations has been conducted for the example work-

ﬂow in Figure 2 using the aforementioned tool. Additionally, the workﬂow has been

A sample listing is available from

http://www.kom.tu-darmstadt.de/ lampeu/icsoft-2010/workﬂow.xml

2000

4000

6000

8000

10000

12000

14000

16000

18000

20000

5 s 10 s 15 s 20 s 25 s 30 s 35 s

Overall workflow response time

Absolute frequency

Original workflow Modified workflow

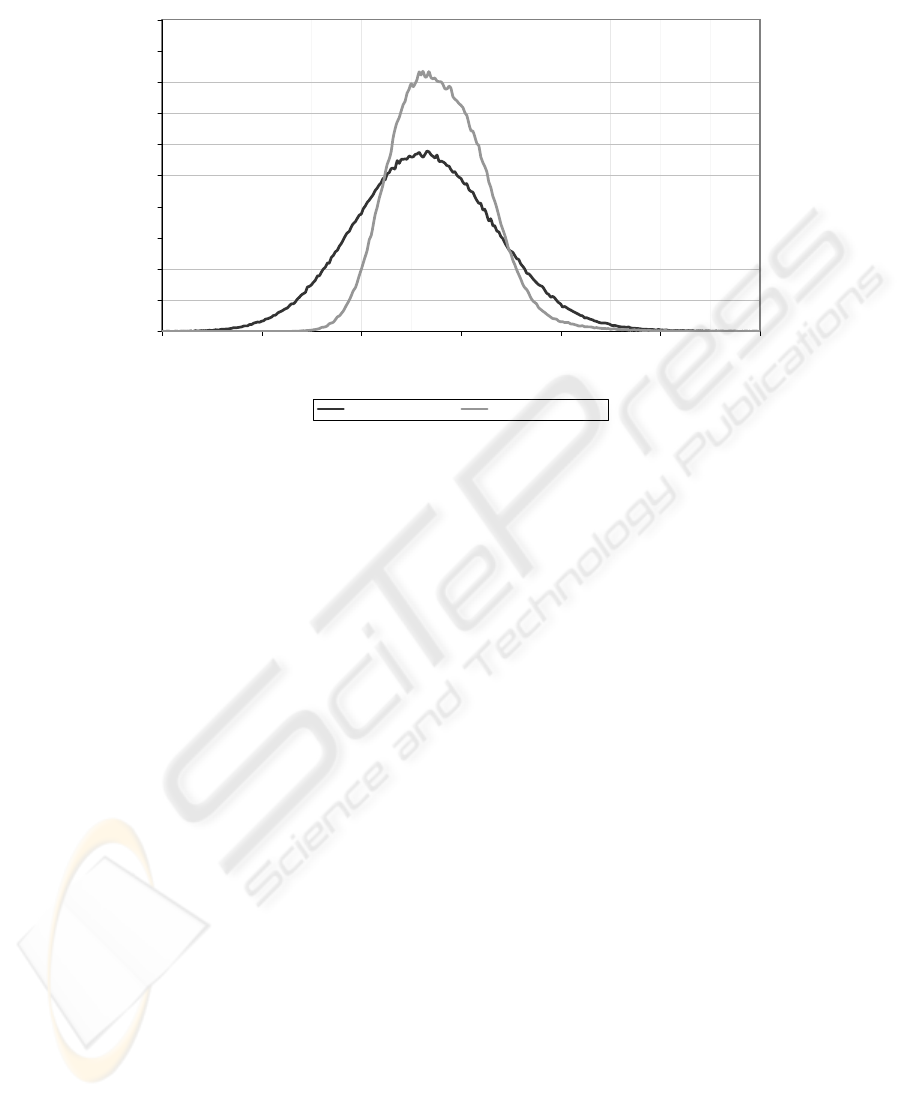

Fig. 3: Distribution of the overall response time for two workﬂows.

modiﬁed for a second simulation. In detail, the mean of the response time probability

distribution for each service was incremented by 0.2 seconds, and the standard deviation

was set to half of its original value. I.e., each initially selected service has been replaced

by a variant that is less optimal on average, but also shows less ﬂuctuation in terms of

response time. In practice, this process would be iteratively conducted for one service at

a time.

The resulting distributions of the workﬂows’ overall response times are depicted

in Figure 3, where the absolute frequency refers to clusters (or classes) of outcomes

that were identical up to the ﬁrst decimal place. While the modiﬁed workﬂow responds

slower on average, it can be seen that it is signiﬁcantly more favorable once a strict

response time constraint of approximately 20 seconds or more has been speciﬁed. This

ﬁgure is fairly close to the average response time of 18.2 and 18.9 seconds for the

original and modiﬁed workﬂow respectively. In these cases, the original workﬂow is

much more likely to break the constraint than the modiﬁed workﬂow. E.g., a response

time restriction of 22.5 seconds is violated with a probability of 11.15% by the original

workﬂow – for the modiﬁed workﬂow, the probability is only 6.25%, i.e. roughly half.

Differently stated, an increase in average response time (and cost) is traded against a

decrease in uncertainty – namely of breaking an overall response time constraint – by

replacing the original services through their alternative counterparts.

4 Conclusions

In the work at hand, we have presented two complimentary approaches to the problem

of QoS-aware service selection for complex workﬂows. As foundation, we have outlined

how an optimal set of services can be identiﬁed under given QoS constraints using

linear programming. However, this process is based on deterministic values, which

insufﬁciently reﬂect the uncertainty associated with a QoS attribute in actual execution.

E.g., response times may heavily ﬂuctuate due to network and computational load, thus

leading to QoS violations in the actual execution of a workﬂow.

As a solution, we have adapted an existing methodology for the simulation of

generalized activity networks to the speciﬁc ﬁeld of workﬂows in SOA. This simulation

process allows to assess the expected characteristics of a workﬂow, most importantly

the likelihood that a QoS constraint will be violated, in more detail. Depending on

a requester’s preferences, the outcome of the simulation process can be utilized to

repeatedly conduct the service selection procedure, thus minimizing the probability of

QoS violations more effectively. The practical applicability and beneﬁt of our approach

has been proven using a prototypical implementation of a workﬂow simulation tool.

In our future work, we aim at combining the currently separated steps of service

selection and workﬂow simulation into an integrated tool. We will further investigate

the issue of mining probability distributions from historic service execution data as a

prerequisite of more realistic simulation. In this context, QoS attributes besides response

time will also be explicitly addressed.

Acknowledgements

This work has partly been sponsored by the E-Finance Lab e. V., Frankfurt am Main,

Germany (http://www.eﬁnancelab.de).

References

Krafzig, D., Banke, K., Slama, D.: Enterprise SOA: Service-Oriented Architecture Best

Practices. Prentice Hall PTR, Upper Saddle River, NJ, USA (2004)

Papazoglou, M.P.: Web Services: Principles and Technology. Pearsor Education Limited,

Harlow, England (2008)

Anselmi, J., Ardagna, D., Cremonesi, P.: A QoS-based Selection Approach of Autonomic

Grid Services. In: International Conference on Service-oriented Computing. (2007) 1–8

Menasc

e, D.A., Casalicchio, E., Dubey, V.: A Heuristic Approach to optimal Service Selection

in Service-oriented Architectures. In: Workshop on Software and Performance. (2008) 13–24

Mabrouk, N.B., Georgantas, N., Issarny, V.: A Semantic end-to-end QoS Model for Dynamic

Service-oriented Environments. In: Proceedings of the 2009 ICSE Workshop on Principles of

Engineering Service-oriented Systems. (2009) 34–41

Huang, A.F.M., Lan, C.W., Yang, S.J.H.: An Optimal QoS-based Web Service Selection

Scheme. Information Sciences 179 (2009) 3309–3322

Domschke, W., Drexl, A.: Einf

uhrung in Operations Research. Springer Verlag, Heidelberg

(2007)

Schuller, D., Eckert, J., Miede, A., Schulte, S., Steinmetz, R.: QoS-Aware Service Composition

for Complex Workﬂows. In: International Conference on Internet and Web Applications and

Services. (forthcoming 2010)

van der Aalst, W.M., van Hee, K.M.: Workﬂow Management: Models, Methods, and Systems.

MIT Press (2002)

10.

Heckmann, O.: A System-oriented Approach to Efﬁciency and Quality of Service for Internet

Service Providers. PhD thesis, TU Darmstadt, Fachbereich Informatik (2004)

11.

Dawson, R.J., Dawson, C.W.: Practical Proposals for Managing Uncertainty and Risk in

Project Planning. International Journal of Project Management 16 (1998) 299–310

12.

Dawson, C.W., Dawson, R.J.: Generalised Activity-on-the-Node Networks for Managing

Uncertainty in Projects. International Journal of Project Management 13 (1995) 353–362

13.

Miller, R.W.: How to Plan and Control with PERT. Harvard Business Review 40 (1962)

93–104

14.

Schonberger, R.: Why Projects are ”always” late: a Rationale based on Manual Simulation of

a PERT/CPM Network. Interfaces (1981) 66–70

15.

Rosario, S., Benveniste, A., Haar, S., Jard, C.: Probabilistic QoS and Soft Contracts for

Transaction-Based Web Services Orchestrations. Transactions on Services Computing 1

(2008) 187–200
