THE LIQUID STATE MACHINE IS NOT ROBUST TO

PROBLEMS IN ITS COMPONENTS BUT TOPOLOGICAL

CONSTRAINTS CAN RESTORE ROBUSTNESS

Hananel Hazan and Larry Manevitz

Department of Computer Science, University of Haifa, Mount Carmel, Haifa 31905, Israel

Keywords: Liquid State Machine, Small world topology, Robustness, Machine Learning.

Abstract: The Liquid State Machine (LSM) is a method of computing with temporal neurons, which can be used

amongst other things for classifying intrinsically temporal data directly unlike standard artificial neural

networks. It has also been put forward as a natural model of certain kinds of brain functions. There are two

results in this paper: (1) We show that the LSM as normally defined cannot serve as a natural model for

brain function. This is because they are very vulnerable to failures in parts of the model. This result is in

contrast to work by Maass et al which showed that these models are robust to noise in the input data. (2) We

show that specifying certain kinds of topological constraints (such as "small world assumption"), which

have been claimed are reasonably plausible biologically, can restore robustness in this sense to LSMs.

1 INTRODUCTION

Processing in artificial neurons typically is a-

temporal. This is because the underlying basic

neuronal model, that of McCullough-Pitts

(McCullough & Pitts, 1943) is atemporal by nature.

As a result, most applications of artificial neural

networks are related in one way or another to static

pattern recognition. On the other hand, it has long

been recognized in the brain science community that

the McCullough-Pitts paradigm is inadequate.

Various models of differing complexity have been

promulgated to explain the temporal capabilities

(amongst other things) of natural neurons and

neuronal networks.

However, during the last decade, computational

scientists have begun to pay attention to this issue

from the neurocomputation perspective e.g. (Maass

W. , 1999; Maass, W; Natschläger, T; Markram, H,

2004; Fernando & Sojakka, 2005), and

investigations as to the computational capabilities of

various models are being investigated.

One such model, the LSM (Maass, W;

Natschläger, T; Markram, H, 2004), has had

substantial success recently. The LSMis a somewhat

different paradigm of computation. It assumes that

information is stored, not in "attractors" as is usually

assumed in recurrent neural networks, but in the

reverberating activity pattern in a sufficiently

recurrent and inter-connected network. This

information can then be retrieved by any sufficiently

strong classifying detector. (The name "liquid state”

comes from the idea that the history of, e.g. timings

of rocks thrown into a pond of water, is completely

contained in the wave structure.) Moreover, the

"persistence of the trace" (or as Maass put it, the

"fading memory") allows one to recognize at a

temporal distance the signal that was sent to the

liquid; and sequence and timing affects of inputs.

This is an exciting idea; and, e.g. Maass and his

colleagues have published a series of papers on it.

Amongst other things, they have recently shown that

once a detector has been sufficiently trained at any

time frame, it is resilient to noise in the input data;

and so it can be used successfully for generalization

(Maass, Natschläger, & Markram, 2002; Danielle &

Bullmore, 2006; Fernando & Sojakka, 2005).

Furthermore, there is a claim that this abstraction

is faithful to the potential capabilities of the natural

neurons and thus is explanatory to some extent from

the viewpoint of computational brain science. Note

that one of the underlying assumptions is that the

detector works without memory; that is the detector

should be able to classify based on instantaneous

static information; i.e. by sampling the liquid at a

specific time. That this is theoretically possible is the

258

Hazan H. and Manevitz L..

THE LIQUID STATE MACHINE IS NOT ROBUST TO PROBLEMS IN ITS COMPONENTS BUT TOPOLOGICAL CONSTRAINTS CAN RESTORE

ROBUSTNESS.

DOI: 10.5220/0003058902580264

In Proceedings of the International Conference on Fuzzy Computation and 2nd International Conference on Neural Computation (ICNC-2010), pages

258-264

ISBN: 978-989-8425-32-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

result of looking at the dynamical system of the

liquid and noting that it is sufficient to cause the

divergence of the two classes in the space of

activation.

Note that the detector systems (e.g. a back

propagation neural network, a perceptron or an

SVM) are not required to have any biological

plausibility; either in their design or in their training

mechanism, since the model does not try to account

for the way the information is used in nature.

Despite this, since natural neurons exist in a

biological and hence noisy environment, for these

models to be successful in this domain, they must be

robust to various kinds of noise. As mentioned

above, Maass (Maass, Natschläger, & Markram,

2002) addressed one dimension of this problem by

showing that the systems are in fact robust to noise

in the input. Thus small random shifts in a temporal

input pattern will not affect on the LSM to recognize

the pattern. From a machine learning perspective,

this means that the model is capable of

generalization.

However, there is another component to

robustness; that of the components of the system

itself.

In this paper we report on experiments

performed with various kinds of "damage" to the

LSM and unfortunately have shown that the LSM

with any of the above detectors is not resistant, in

the sense that small damages to the LSM neurons

reduce the trained classifiers dramatically, even to

essentially random values.

Seeking to correct this problem, we

experimented with different architectures of the

liquid. The essential need of the LSM is that there

should be sufficient recurrent connections so that on

the one hand, the network maintains the information

in a signal, while on the other hand it separates

different signals. The models typically used are

random connections; or those random with a bias

towards "nearby" connections. Our experiments

with these topologies show that the network is very

sensitive to damage because the recurrent nature of

the system causes substantial feedback.

Taking this as a clue, we tried networks with

"hub" or "small world" (Biancon & Barabási, 2001;

Barabás & Albert, Topology of evolving networks:

local events and universality, 2000) architecture.

This architecture has been claimed (Danielle &

Bullmore, 2006; Chklovskii, 2009) to be

"biologically feasible".

The intuition was that the hub topology, on the

one hand, integrates information from many

locations and so is resilient to damage in some of

them; and on the other hand, since such hubs follow

a power rule distribution, they are rare enough that

damage usually does not affect them directly. This

intuition was in fact borne out by our experiments.

2 LSMS ARE NOT ROBUST

2.1 The Experiments

To test this resistance to noise, we downloaded the

code of Maass et al from his laboratory site

and

then implemented two kinds of damage to the liquid.

We also reimplemented the LSM code so that we

could handle variants. These models use a kind of

basic neuron that is of the "leaky integrate and fire"

variety and in Maass' work, the neurons are

connected randomly. In addition, some biologically

inspired parameters are added: 20% inhibitory and a

connectivity constraint giving a preference to

geometrically nearby neurons over more remote

ones. (For precise details on these parameters, see:

neural Circuit SIMulator

) External stimuli to the

network were always sent to 30% of the neurons,

always chosen to be excitatory neurons.

Initially, we experimented with two parameters:

 The percentage of neurons damaged

 The kinds of damages.

The kinds were either transforming a neuron into

a "dead" neuron; i.e. one that never fires or

transforming a neuron into a "generator" neuron ,i.e.

one that fire as often as its refractory period allows

it, regardless of its input.

2.2 Results

First, there was not much difference between the

detectors (i.e Back-Propagation, SVM and

Tempotron (Gütig & Sompolinsky, 2006)); so

eventually we restricted ourselves to the Back-

Propagation detector which had inputs of 30

randomly sampled time points of the entire liquid.

(To be fair, none of units of the liquid input were

accessed by the detectors allowed to be input

neurons of the liquid.)

It turned out that while the detector was able to

learn the randomly chosen test classes successfully

with sufficient average connectivity almost any kind

of damage caused the detector to have a very

A neural Circuit SIMulator: http://www.lsm.tugraz.at/csim/.

THE LIQUID STATE MACHINE IS NOT ROBUST TO PROBLEMS IN ITS COMPONENTS BUT TOPOLOGICAL

CONSTRAINTS CAN RESTORE ROBUSTNESS

259

substantial decay in its detecting ability (See Table

1).

Reimplementing the LSM to allow for different

connectivities; showed the same basic responses. In

fact, when the network is connected randomly

without bias for geometric closeness, the network is

even more sensitive (Compare Table 1 and Table 2).

After our later experiments, we returned to this point

(see concluding remarks, below).

In Figure 1 we illustrate the difference in

reaction of the network by a raster (ISI) display.

Note that with 10% damage, it is quite evident to the

eye that the network diverges dramatically from the

noise free situation. In Table 3 one can see this as

well with 5% noise for purely random connectivity.

Actually, with low degrees of damage the detectors

under even the Maass connectivity show dramatic

decay in recognition although not to the extremes of

random connectivity. (See Table 2) These results

were robust and repeatable under many trials and

variants.

Table 1: Maass’s implementation: distribution preferring

local connections.

Damage Non 5% 10%

Dead Neurons

90.45% 80.35% 60.3 %

Noisy Neurons

92.01% 59.08% 53.8%

Table 2: 10% Random connections

Damage Non 1% 5% 10%

Dead Neurons

100% 53% 53% 50%

Noisy Neurons

100% 55% 53% 52%

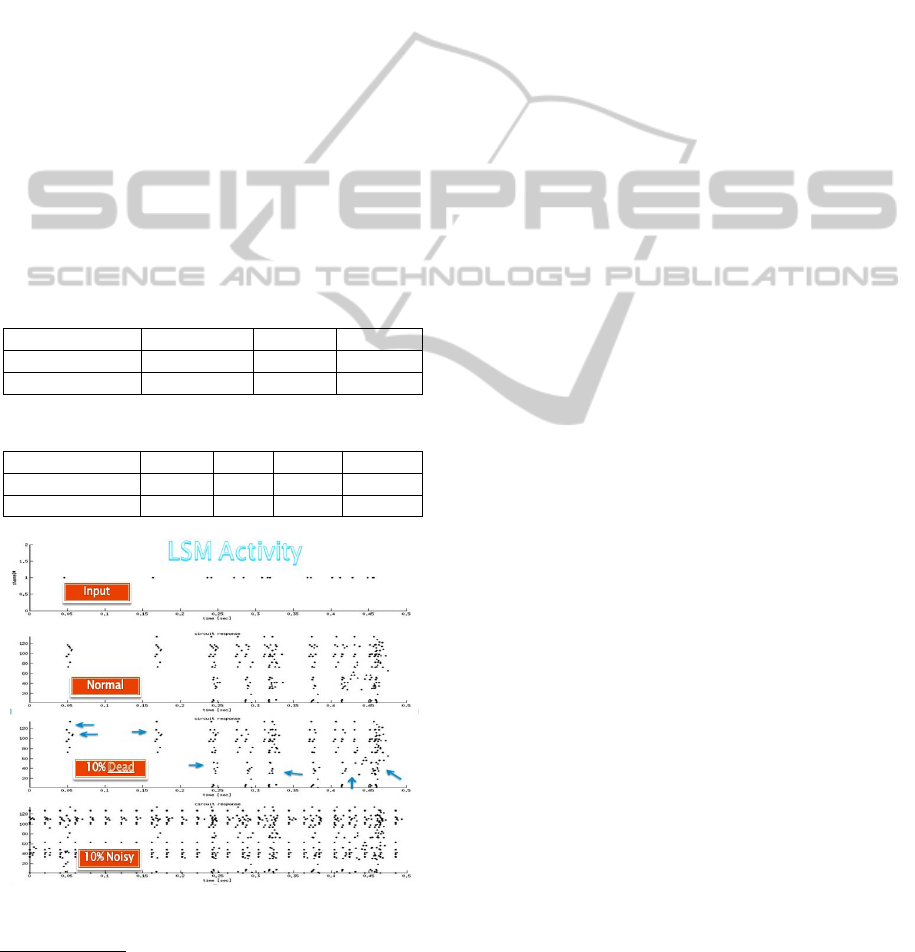

Figure 1: Maass LSM Activity (a) normal operation (b)

with 10% dead damage (c) with 10% noise.

For all the Tables that shown in this paper, 50% is the baseline

of random classification.

Accordingly, we conclude that the LSM, either

as purely defined with random connectivity, or, as

implemented in (Maass, W; Natschläger, T;

Markram, H, 2004) cannot serve as a biologically

relevant model.

3 MODIFICATIONS OF THE LSM

3.1 Different Kinds of Basic Neurons

In attempts to restore the robustness to damage, we

experimented with the possibility that a different

kind of basic neuron might result in a more resilient

network. Accordingly, we implemented the LSM

with various variants of "leaky integrate and fire

neurons" e.g. with history dependent refractory

period (Manevitz & Marom, 2002) and by using the

model of neurons due to Izhikevich (Izhikevich,

2003). The results under these variants were

qualitatively the same as the standard neuron. (The

Izhikevich model produces a much more dense

activity in the network and thus the detector was

harder to train but in the end the network was

trainable and the results under damage were very

similar.).

3.2 Allowing Detectors with Memory

In trying to consider how to make the model more

robust to damage, we focused first on the fact that

the detector has no memory. Perhaps, if we allow the

detector to follow the development of the network

for some time amount, both in training and running,

it would be more robust. To check this, we took the

most extreme other case; we assumed that the

detector system in fact takes as input a full time

course of its input neurons for about 30 iterations.

This means that instead of a Neural network with

input of 204; we had one with 30 times 204 time

course inputs. It seemed reasonable that (i) with so

much information, it should be relatively easy to

train the detector (ii) one could hope that damage in

the liquid would be local enough that over the time

period, the detector could correct for it. In order to

test this, we re-implemented the LSM to allow for

the time entry.

Our detector was trained and tested as follows.

There were 204 output units. At a “signal point”

each of them was sampled for the next 30 iterations

and all of these values were used as a single data

point to the detector.

Thus the detector had 204 times 30 inputs. We

chose separate detector points typically at intervals

ICFC 2010 - International Conference on Fuzzy Computation

260

of 80. We then used back propagation on these data

points. This means that eventually the detector could

recognize the signal at any of the “signal points”

after training There was no particular importance to

the choice of separation of the signal points except

that there was no overlap between the data points.

Classification of new data could then be done at

any of the signal points; We ran experiments as

follows: we randomly chose twenty temporal inputs;

i.e. random sequences of 0s and 1s of length 45,

corresponding to spike inputs over a period of time;

and trained an LSM composed of 240 integrate and

fire neurons to recognize ten of these inputs and

reject the other ten.

We tested the robustness of the recognition

ability of the network with the following parameters:

 The neurons in the network were either leaky

integrate and fire neurons (Maass W. , 1999) or

Izhikevich (Izhikevich, 2003) style neurons.

 The damages were either "generators ", i.e. the

neurons issued a spike whenever their refractory

period allowed it; or they were "dead" neurons that

could not spike.

 The degree of damage was systematically

checked at 1%, 2%…15% in randomly chosen

neurons.

The "detectors" were three level neural networks,

trained by back-propagation. We also did some

experiments with the Tempotron (Gütig &

Sompolinsky, 2006); and with a simple Adaline

detector (Widrow & Hoff, 1960). Training for

classification could be performed in the damage-less

environment successfully with any of these

detectors.

We exhaustively ran tests on these possibilities.

Some sample results with 5% and 10% damage for

the neural network detectors are presented in the

Figure 3 through Figure 6 below. (Since the results

for the other detectors were similar, we did not run

as many tests on them)

Table 3: 5% Random connectivity.

Damage Non 1% 5% 10%

Dead Neurons

100%

61% 58% 56%

Noisy Neurons

100%

60% 58% 57%

Table 4: 20% Random connectivity.

Damage Non 1% 5% 10%

Dead Neurons

100%

79% 49% 49%

Noisy Neurons

100%

97% 71% 63%

In all of these tests, following Maass, we

assumed that approximately 20% of the neurons of

the liquid were of the inhibitory type. The

architecture of the neural network detector was 204

input neurons (which were never taken from the

neurons in the LSM which were also used as inputs

to the LSM.) 100 hidden level neurons and one

neuron for the output. Results running the Maass et

al. architecture are presented in Table 1 and can be

compared with a random connected network of 20%

average connectivity. See Table 4.

The bottom line was that even with low amounts

damage and under most kinds of connectivity, the

networks would fail; i.e. the trained but damaged

network loss of function was very substantial and in

many cases could not perform substantially

differently from a random selection.

3.3 Changing the Architecture

Our next approach, and ultimately the successful

one, was to experiment with different architectures.

We looked at many variants of the following

ideas:

a) Random Connectivity as a baseline. (Note: This

is actually the basic definition of the LSM.)

b) Varying the amount of connectivity. Lowering

the average degree of connectivity shows decreased

sensitivity in all architectures. Unfortunately,

lowering the connectivity also decreases the strength

the network has in representability and, importantly,

in the persistence of the signal. Thus we see, as is to

be expected from the analysis in (Jaeger, 2001;

Maass, W; Natschläger, T; Markram, H, 2004) that a

higher connectivity gives a larger set of "filters" that

separate signals, but on the other hand makes it more

sensitive to changes. In any case, even with low

connectivities, the random topology was not robust;

nor was the Maass topology. While not at random

levels of identification, as we have seen, e.g. in

Table 1, it suffered very substantial decays with

even small amounts of damages.

c) "Hub" topologies (see Table 5). Here we

hub. In this case, the robustness was substantially

increased but the persistence was weak; and under

the algorithm chosen, there were substantial

disconnected components in the liquid.

d) Small world topologies (see Table 5). In this

system the connectivity follows a power rule law.

We constructed these networks in different ways. In

all cases, the number of connections was chosen

based on the average connectivity desired.

e) Assign a link from a uniformly randomly chosen

neuron to a second neuron chosen randomly

THE LIQUID STATE MACHINE IS NOT ROBUST TO PROBLEMS IN ITS COMPONENTS BUT TOPOLOGICAL

CONSTRAINTS CAN RESTORE ROBUSTNESS

261

according to a power law. In this case the input

connectivity follows a power law; while the output

connectivity follows a Gaussian distribution.

f) Reversing the above. In this case the input

connectivity is Gaussian while the output

connectivity is power law.

g) We also replaced Gaussian with uniform in the

above.

h) We also tried choosing a symmetric network

with Power law connectivity (ipso facto for both

input and output). (Note that in this case, the same

neurons served as "hubs" both for input and output.)

i) Finally, we designed an algorithm to allow

distinct input and output connectivity but both

obeying the same power law. (See algorithm1

below).

Algorithm 1: Generate a random number with Power

law distribution

Input: min, max, size, How_many

counterArry = array

MagnifyBy = 5 //increase probability

for i = 1 to How_many

index = random(array.start,array.end)

end_array = array.end

candidate = array[index]

AddCells(array , MagnifyBy);

for t = 0 to MagnifyBy

array[end_array+t] = candidate

end for

shuffle(array)

output_Array[i] = candidate

counterArry[candidate]++

end for

shuffle(counterArry)

3.4 Results

All architectures presented in section 3.3 above that

have a power law distribution, whether on the input,

output or both sides resulted in substantial

improvements in the resistance to noise, except for

case (h) where the input and output hubs were the

same. This was even worse than the random baseline

choice at the same connectivity. The best result was

obtained in case (i) when both input and output

connectivity were power law; but distinctly chosen.

Figure 2 shows the connectivity distribution in this

case. Table 5 shows the results in this case for some

sample damages.

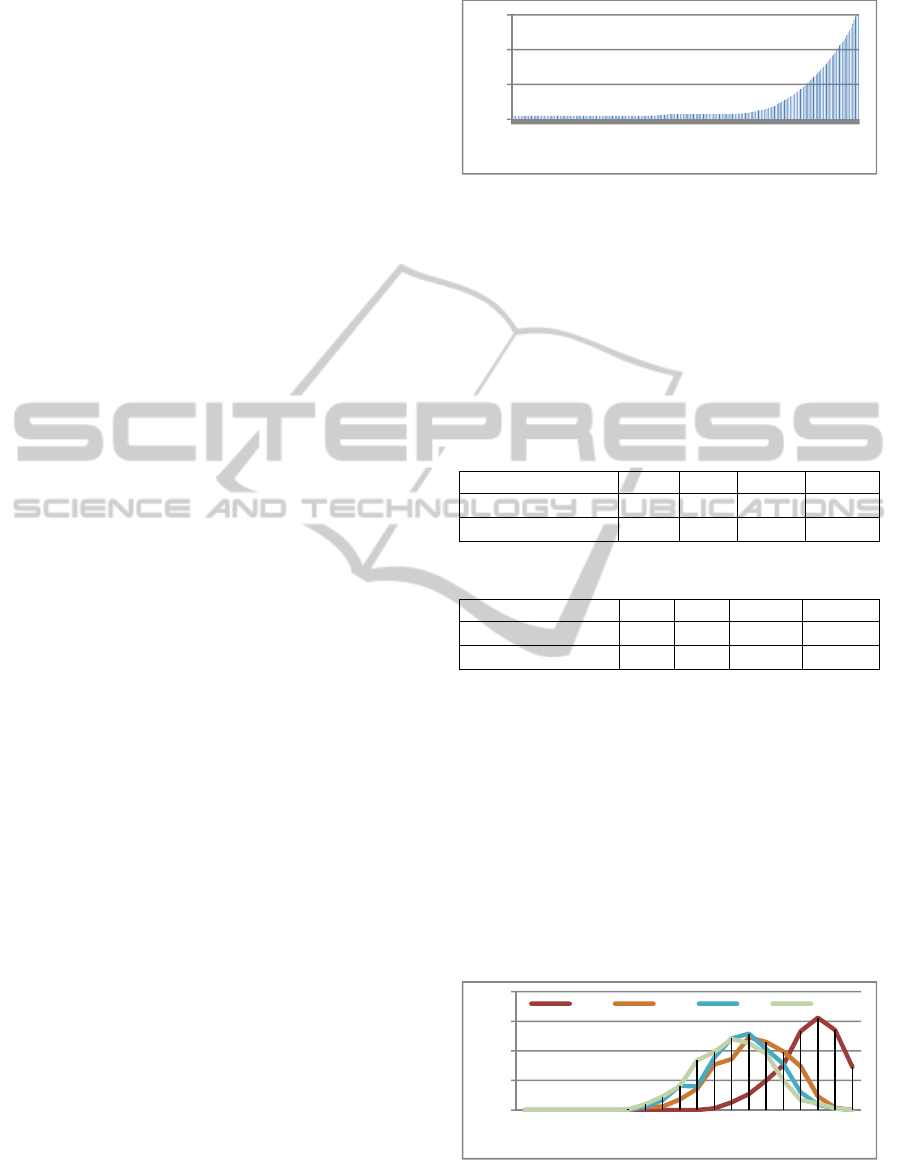

Figure 2: Distribution of power-law connection.

The results presented are the average of many

experiments. However, since this work is about

robustness, we thought it important to consider the

distribution of such results over many experiments.

Thus, instead of giving less revealing statistics, we

display the complete histograms for the different

kinds of networks under different amounts of

damages.

Table 5: Power-law distribution with small worlds.

Damage Non 1% 5% 10%

Dead Neurons

100%

87% 71% 68%

Noisy Neurons

100%

88% 79% 71%

Table 6: One hub network.

Damage Non 1% 5% 10%

Dead Neurons

100%

93% 66.73% 64.09%

Noisy Neurons

100%

98% 84.33% 70.77%

In Figure 3 through Figure 6, we display the

histograms of hundreds of networks at different

levels of success under each of the architectures.

The horizontal axis is the accuracy of classification

(50% is random guess), and the vertical axis is the

histogram count.

Table 4, Figure 5 and

Figure 6 show the

distribution of damage for a random connectivity

network with average connectivity of 20%.

Table 5, Figure 3 and

Figure 4 show the

robustness results for the power law small word

distribution.

Figure 3: Histographs of correctness results in LSM

networks with different amounts of “dead” neuron damage

with a power law distribution.

106

121

136

151

166

181

196

211

226

100

150

200

5% 15% 25% 35% 45% 55% 65% 75% 85% 95%

Numberof

Samples

Correctness

0.01 0.05 0.1 0.14

ICFC 2010 - International Conference on Fuzzy Computation

262

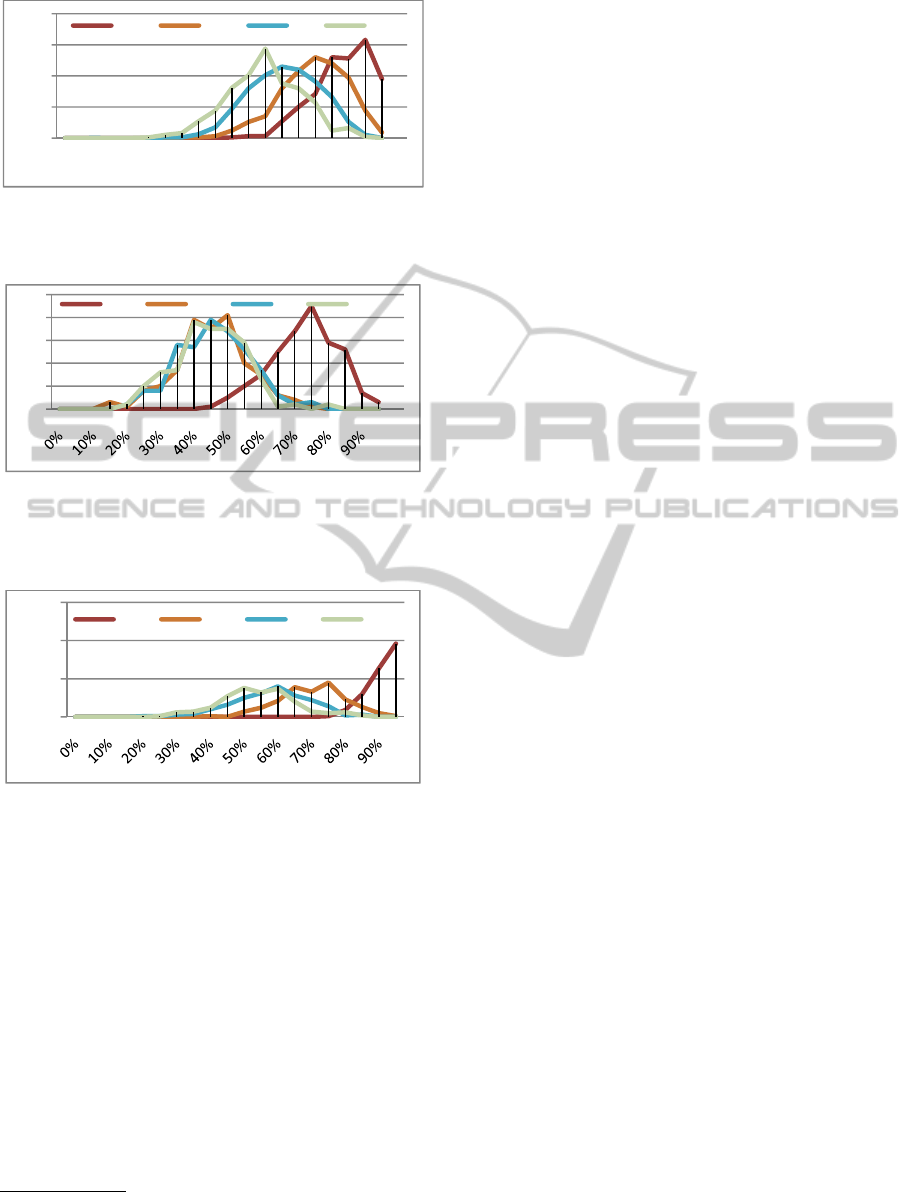

Figure 4: Histographs of correctness results in LSM

networks with different amounts of “noise generator”

neuron damage for power law distribution.

Figure 5: Histographs of correctness results in LSM

networks with different amounts of “dead” neuron

damage, average connectivity of 20% with a connectivity

of random distribution

Figure 6: Histographs of correctness results in LSM

networks with different amounts of “noise generator”

neuron damage, average connectivity of 20% with a

random connections

distribution.

4 DISCUSSION

We have shown experimentally that the basic LSM

is not robust to "damages" in its underlying neurons

and thus without elaboration cannot be seen to be a

good fit for a model for biological computation. We

mention (data not shown here) that this result holds

even if training is continued while the network is

suffering damage. However, choosing different

distributions of the connectivity can result in more

For all the Tables that shown in this paper, 50% is the baseline

of random classification

robust maintenance of the pertinent information over

time.

In the papers (Danielle & Bullmore, 2006;

Chklovskii, 2009), a distribution was chosen for

biological reasons to allow preference for close

neurons. This distribution is superior to the totally

random one, but is still not sufficiently robust.

Choosing a power law distribution and being careful

to making the assignments differently for in and out

connectivity proved to be the best. This is thought

of as a potentially biological arrangement (Danielle

& Bullmore, 2006; Barabás & Albert, Emergence of

Scaling in Random Networks, 1999); so LSM style

networks with this additional topological constraint

can, as of this date, are considered sufficiently

biological. Other distributions may also work.

REFERENCES

Barabás, A.-L., & Albert, R. (1999). Emergence of

Scaling in Random Networks. SCIENCE , 286, 509 -

512.

Barabás, A.-L., & Albert, R. (2000). Topology of evolving

networks: local events and universality. 85:5234–7.

Biancon, G., & Barabási, A.-L. (2001). Competition and

multiscaling in evolving networks. Europhys Lett ,

54:436.

Chklovskii, L. R. (2009, Jul). Structural Properties of the

Caenorhabditis elegans Neuronal Network.

Danielle, B. S., & Bullmore, E. (2006). Small-world brain

networks. Neuroscientist , 12(6), 512-523.

Fernando, C., & Sojakka, S. (2005). Pattern Recognition

in a Bucket. In Advances in Artificial Life (Vol.

2801/2003, pp. 588-597). Springer Berlin /

Heidelberg.

Gütig, R., & Sompolinsky, H. (2006). The tempotron: a

neuron that learns spike timing-based decision. ature

Neuroscience , 9(3), 420-428.

Izhikevich, E. M. (2003). Simple Model of Spiking

Neurons. IEEE TRANSACTIONS ON NEURAL

NETWORKS , 14 (6), 1569-1572.

Jaeger, H. (2001). "The ëcho state" approach to analysing

and training recurrent neural networks. German

National Research Institute for Computer Science.

Maass, W. (1999). Paradigms for computing with Spiking

Neurons. Springer.

Maass, W., Natschläger, T., & Markram, H. (2002). Real-

time computing without stable states: A new

framework for neural computation based on

perturbations. Neural Computation , 14 (11), 2531-

2560.

Maass, W; Natschläger, T; Markram, H. (2004).

Computational models for generic cortical

microcircuits. In J. Feng, Computational

Neuroscience: A Comprehensive Approach (pp. 575-

605). Boca Raton: Chapman & Hall/CRC.

100

150

200

5% 15% 25% 35% 45% 55% 65% 75% 85% 95%

Number of

Samples

Correctness

0.01 0.05 0.1 0.14

Number of

Samples

Correctness

0.01 0.05 0.1 0.14

100

150

Numberof

Samples

Correctness

0.01 0.05 0.1 0.14

THE LIQUID STATE MACHINE IS NOT ROBUST TO PROBLEMS IN ITS COMPONENTS BUT TOPOLOGICAL

CONSTRAINTS CAN RESTORE ROBUSTNESS

263

Manevitz, L. M., & Marom, S. (2002). Modeling the

process of rate selection in neuronal activity. Journal

of Theoretical Biology , 216(3), 337–343.

McCullough, W. S., & Pitts, W. (1943). A logical calculus

of the ideas immanent in nervous activity. Bulletin of

Mathematical Biophysics , 5, 115−127.

Widrow, B., & Hoff, M. (1960). Adaptive Switching

Circuits. IRE WESCON Convention Record , 4, 96-

104.

ICFC 2010 - International Conference on Fuzzy Computation

264
