AUTOMATIC GAIN CONTROL NETWORKS FOR

MULTIDIMENTIONAL VISUAL ADAPTATION

S. Furman and Y. Y. Zeevi

Faculty of Electrical Engineering, Technion, Haifa 32000, Israel

Keywords: Non-linear Recurrent NN, Visual Adaptation, AGC, HVS, Size, Depth, Curvature, Enhancement.

Abstract: Processing and analysis of images are implemented in the multidimensional space of visual information

representation. This space includes the well investigated dimensions of intensity, color and spatio-temporal

frequency. There are, however, additional less investigated dimensions such as curvature, size and depth

(for example - from binocular disparity). Along these dimensions, the human visual system (HVS) enhances

and emphasizes important image attributes by adaptation and nonlinear filtering. It is interesting and

possible to emulate the visual system processing of images along these dimensions, in order to achieve

intelligent image processing and computer vision. Sparsely connected, recurrent adaptive sensory neural

network (NN), incorporating non-linear interactions in the feedback loops, are presented. Such generic NN

exhibit Automatic Gain Control (AGC) model of processing along the visual dimensions. The results are

compared with those of psychophysical experiments exhibiting good reproduction of visual illusions.

1 INTRODUCTION

The perceived image is quite different from the

original image projected onto the retina. Some of the

image features are enhanced, while others are being

adapted to or even ignored. Some features are of

great importance, while other are barely noticed.

Understanding the organization and functioning

of visual systems is obviously of great interest and

importance to brain scientists and engineers because

of its potential use in the design of technological

systems. By matching image presentations (or

storage) with the known performance of the visual

system, more meaningful and efficient

communication can be achieved. After all, most

information generated for human use, is

communicated with the human observer via the

visual system as the final receiver. In yet another

way, image processing modelled after the visual

system may prove to be important in machine vision.

And of course, if visual prosthetics are to become a

workable reality, this understanding is essential.

Each cone in the central fovea is connected to

about 4000 cortical neurons (Zeevi & Kronauer

1985). The challenge is to determine what the 4000

or so different processes are, and then how they are

ordered in the tissue volume. Orientation and ocular

dominance (OD) (Hubel & Wiesel 1979) can

account for 40 different processing units (20

different orientations for each ocular projection).

This leaves an unexplained factor of 4000/40=100!

There are several candidates for the remaining

functions, such as color, intensity, texture, curvature,

range of field sizes and binocular disparity (for

depth perception).

Gibson (1937) had claimed that adaptation and

negative after-effect are to be conceived as a process

of adjustment and readjustment of the physical-

phenomenal correspondence of a certain type of

sensory dimension, under the influence of a

tendency for sensory activity to become normal,

standard or neutral. He noticed that this similarity

cuts across the sensory modalities of our world,

including pressure, size, distance, temperature,

brightness, curvature (convex-concave), etc.

Zeevi & Mangoubi (1978) showed that

Adaptation plays an important role in the

suppression of quantal and receptor internal noise.

Wainwright (1999) proposed that visual adaptation

in orientation, spatial frequency, and motion can be

understood from the perspective of optimal

information transmission.

Automatic Gain Control (AGC) has been widely

used to account for intensity adaptation (Shefer

1979) contrast adaptation in the primary visual

163

Furman S. and Zeevi Y..

AUTOMATIC GAIN CONTROL NETWORKS FOR MULTIDIMENTIONAL VISUAL ADAPTATION.

DOI: 10.5220/0003061901630175

In Proceedings of the International Conference on Fuzzy Computation and 2nd International Conference on Neural Computation (ICNC-2010), pages

163-175

ISBN: 978-989-8425-32-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

cortex (Weltsch-Cohen 2002), contrast adaptation

for “cyclopean” image (Ding & G. Sperling 2006),

contrast adaptation for motion detection (Lu &

George Sperling 1996) chromatic adaptation (Du

Croz & Rushton 1966) and (Krauskopf & Mollon

1971), and sound adaptation (Schwartz & Simoncelli

2001). It is, therefore, natural and tempting to

implement AGC NN which incorporates some other,

less investigated dimensions of adaptation, such as

size, depth and curvature in processing of images.

Likewise, such an investigation may facilitate our

understanding of how adaptation along these

dimensions takes place in the visual system (or other

sensory modalities for this matter).

The purpose of this study is to analyze adaptation

along these image dimensions and process these

image attributes by means of the AGC model in

order to mimic the human visual system (HVS), and

to propose a unified model for biological sensory

processing. Likewise, the AGC mechanism

considered in the context of visual systems

(biological and ANN-based alike), can be also

implemented in advanced image processing

algorithms that highlight various image structures

and feature. The performance of the proposed AGC

NN is tested by computer simulations, using Matlab,

for each dimension separately.

2 VISUAL AGC MODEL

The proposed AGC model of visual adaptation is

based on the original work of Shefer (1979), and on

the subsequent development of the adaptive

sensitivity camera that mimics the eye (Ginosar et al.

1992) and (Zeevi et al. 1995). The model has been

motivated by the structure and function of the eye

and, in particular, by its high spatio-temporal

sensitivity to small changes in intensity

accomplished over extremely wide dynamic range.

According to this nonlinear adaptation model, the

output of a cell in location “

i ” is adjusted by

subtracting from its input a nonlinear function of its

input and a weighted sum of the outputs, fed back

into the nonlinear synaptic operator (Fig. 1):

(, )T

iiii

rssf

=⋅−

(1)

where

r is the output,

is the input, W is a

feedback operator (matrix),

is the feedback (see

Eq. 2),

is a constant and T is a nonlinear function.

The crucial ingredient of this AGC model is the

nonlinearity within the feedback loop (i.e. the

function T). This is a fundamental extension of the

lateral inhibition recurrent NN into the nonlinear

regime, presumed to be mediated biologically by the

retinal interplexiform cells and/or similar structures

in other sensory neural networks, such as the

synaptic depression (Abbott et al. 1997). It is

important to note that qualitatively T may assume a

wide range of nonlinear functions and, yet, the

neural feedback loop in which such nonlinear

synaptic interactions are embedded will exhibit

functional AGC.

In a specific embodiment of this general

conceptual model, the nonlinearly component is a

multiplier (Fig. 2a). The model is then comprised of

a series of static multipliers, one for each foveal

receptor channel that multiply the input of the

channel with the output of the feedback. The

feedback is calculated by subtracting the output of

the operator "W" from a constant value. The

operator "W" is an averaging operator (in space).

The analytic domain of the model, in which we

will be interested, is the upper right handed quarter

of the multiplier. It is possible to choose the operator

"W" so the model will operate at the analytic domain

for an input i changing in a defined known range.

We will assume that this is the case.



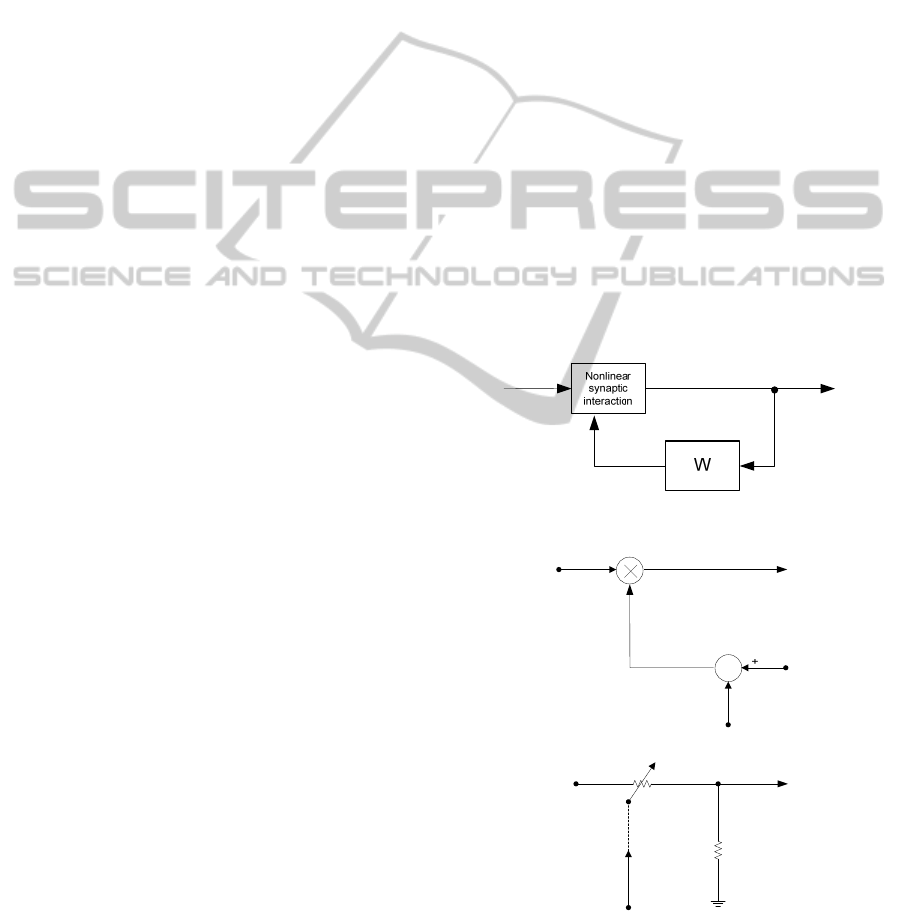

Figure 1: AGC model.

(a)

(

)

Figure 2: Gain control device. (a) Schematic drawing; (b)

Hypothetic explicit implementation.

The presented AGC NN necessitates the existence of

ICFC 2010 - International Conference on Fuzzy Computation

164

controlled gain device. One option for such a device

is shown in Fig. 2b. Bruckstein and Zeevi (1979)

showed that the gain control of Fig. 2 can be

implemented by a neural coding scheme with

threshold control.

Each of the functions of the model is of an image

dimension (curvature, size and depth). The feedback

is obtained by:

ijij

wr=

∑

(2)

Therefore the AGC model output is given by:

()

ii jij

rs wr

=−

∑

(3)

The function of the feedback is to position

symmetrically the oparting curve around the

operating point. W can be chosen as exponent,

gaussian, triangle, rectangular or any other

symmetric kernel without effect on the main

characters of the model.

The model has a unique solution for

0max{}

s i and s

≥∀ < ,

(4)

where

S is:

Wji

Sw=

∑

(5)



−<

∑

r→

rr→

ji j i

wr f→

∑

(1 )

iii

fr−→

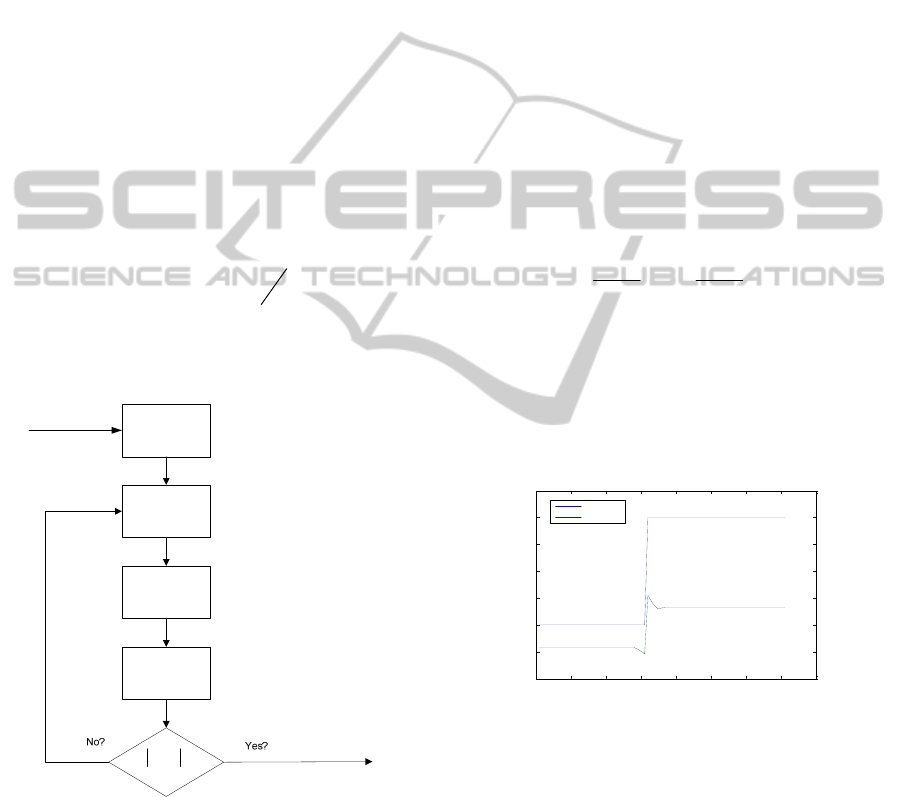

Figure 3: Flow chart for calcuating the visual AGC

response to some arbitrary input.

2.1 Small Signal Analysis

Although we are concerned with “large signal”

behaviour of the visual AGC, it is still useful to

perform small signal analysis of the model. For that

we assume that both the output and the input of the

model are composed of a ‘local DC’,

C (where

local is defined on the scale of effective W)

modulated by a small AC signal component:

isi

SCs

+ ,

(6)

∑

(7)

iri

RCr

+ ,

(8)

∑

(9)

For simplicity, we assume also that W is a

rectangular function. Under these assumptions, (2)

yields:

ijijr

wR C

∑

(10)

substituting (6),(7),(8),(9) and (10) in (3), we get:

;

ii r

rs C

⋅

(11)

Equation (11) expresses a sigmoidal function, which

is closely related to Weber law. The latter implies

that the system gain is inversely proportional to the

input’s average.

Weber law is characteristic for many sensory

modalities, including weight, vision and sound.



0 10 20 30 40 50 60 70 80

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

input step

output

Figure 4: AGC model step response.

2.2 Simulation Method

In its discrete form, Eq. (3) exhibits the complexity

of a manybody problem. To obtain a closed form

solution for some arbitrary input is a major

challenge, not yet dealt with. Therefore, we use a

numeric solution of an iterative process. In the

discrete final case, the solution is unique if the

process converges (Shefer 1979). Fig. 3 presents the

flow chart of the algorithm for numeric solution of

the AGC model.

AUTOMATIC GAIN CONTROL NETWORKS FOR MULTIDIMENTIONAL VISUAL ADAPTATION

165



0.1

0.2

0.3

0.4

0.5

I(x)

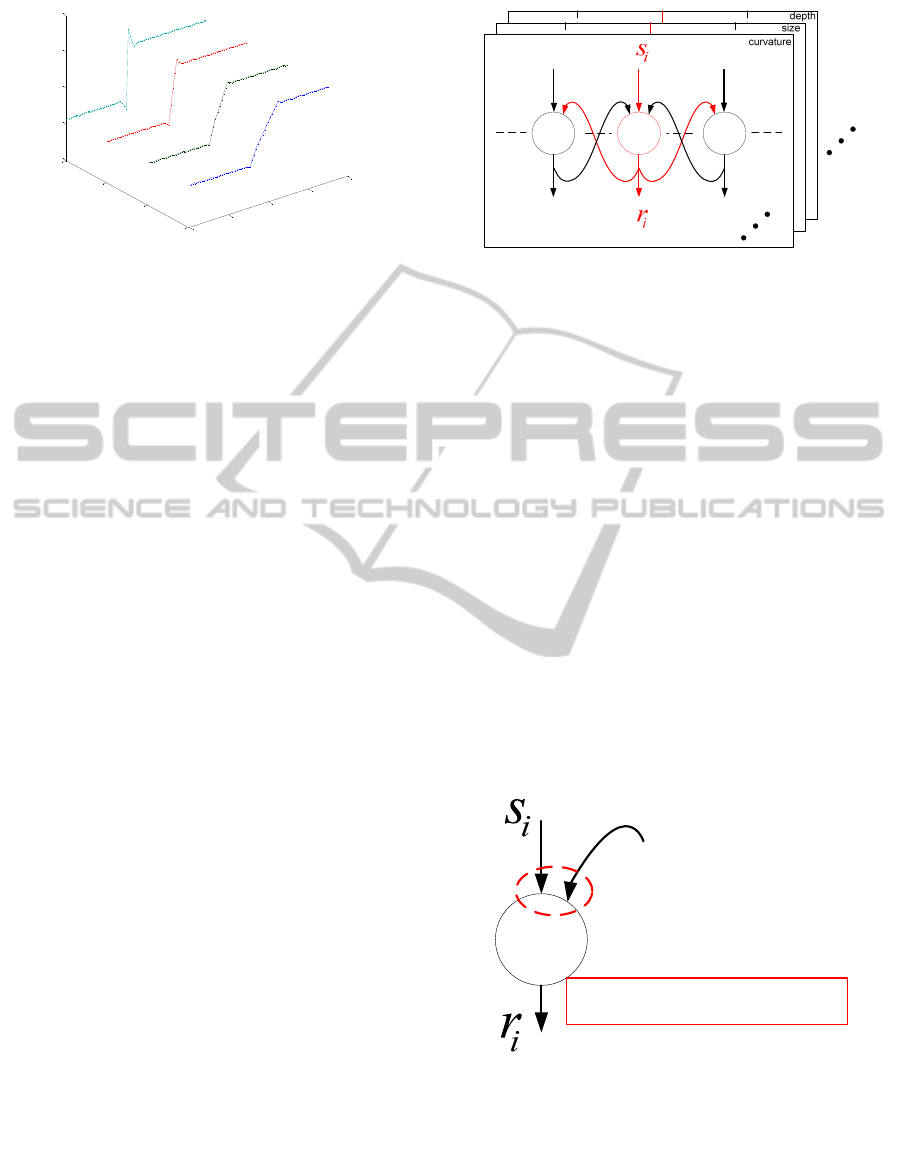

Figure 5: Ramp responses for various input slopes.

2.3 Step Response for AGC Model

Fig. 4 depicts step response of the non-linear AGC

model, superimposed on the step. This example

highlights the main characteristics of the model:

 The adapted response to a locally-constant input

is being decreased, while high values are more

affected than lower values. This is, in a way,

compression of a wide dynamic range of the

input.

 An edge enhancement – the relative contrast is

increased. This is caused by the overshoot and

undershoot of the model response. Note that due

to the nonlinearity of the model, the overshoot is

stronger than the undershoot. Fig. 5 shows

another nonlinear effect – the

overshoot/undershoot are depended on the slop

of the input step. The response is stronger for

steeper slopes. When the input represents

intensity, this phenomenon is the well known

"Mach Bands" (Ratliff 1965).

2.4 AGC NN

The adaptive, non-linear, recurrent NN which

exhibits multidimensional AGC characteristics

constitutes in its functional complexity a case of a

many-body problem. Yet, due to the local

characteristics of W in the case of visual information

processing, the network is sparsely connected and

the implementation is simple and efficient with only

one layer of a recurrent neural network (RNN). Fig.

6 depicts a schematic structure of such a RNN. One

should keep in mind that each neuron represents a

nonlinear function, as shown in Fig. 7. This is

biologically feasible (as discussed above). It can be

implemented in NN by other types of nonlinearities

and architechtural embodiments.



mi m

li l

Figure 6: AGC NN.

3 BACKGROUND

3.1 Localness and Parallelism

A key fact regarding the structural-functional

organization of the HVS (which support our AGC

NN model) is that processing along the image

dimensions of size, curvature, depth and/or other

dimensions is performed locally and in parallel over

the entire image (Hochstein & Ahissar 2002). These

image dimensions are believed to be part of the

"Elementary Features" (Cavanagh et al. 1990),

(Wolfe et al. 2003) of the image representation in

the HVS. In this case, the image is decomposed

along a number of dimensions and into a number of

separable components, and some specific cells

represent that local information (a concept

introduced by Hubel and Wiesel (1968) within the

context of retinotopic representation).

ijij

∑

(, )

iiii

rssf

⋅−T

Figure 7: Nonlinear function of each neuron.

This concept had been tested in many

psychophysical experiments such as “pop-ups”. In

these experiments, there is a target with a unique

feature which is not shared by the distractors.

If the feature is coded early in the visual processing

and is performed locally and in parallel, the target

ICFC 2010 - International Conference on Fuzzy Computation

166

tends to “pop-up” from the distractors with little

effect of the number of distractors. The features may

either be discrete and categorical elements (e.g.,

terminators) that can be only present or absent, or

they may be values on a continuous dimension that

activate nonoverlapping populations of functional

detectors and that, therefore, also mediate

categorical discriminations. Treisman & Gormican

(1988) showed that such "pop-up"s are asymmetric

in that some features are detected more easily when

they are present rather than when they are absent.

Fig. 8 (adopted form (Treisman & Gormican 1988))

presents an example of such experiment for a target

defined by curvature, while Fig. 9 presents an

example of such experiment for target defined by

depth cues (See Enns & Rensink (1990a), (1990b)).

Thus, we may conclude that size, curvature and

depth are processed locally and in parallel.

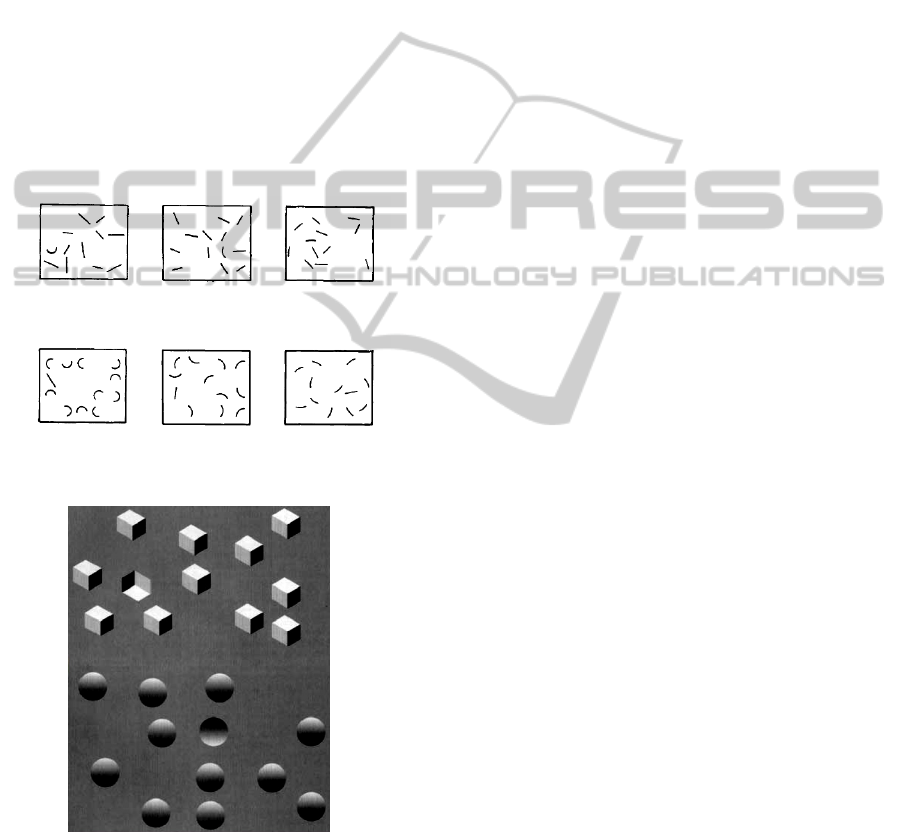

Figure 8: Examples of displays testing search for targets

defined by curvature or ‘straightness’.

Figure 9: Two examples of display, testing search for

targets defined by depth cues.

3.2 Adaptation and Feature Detectors

It is well known that prolonged inspection of a

curved line causes adaptation to curvature (e.g. the

curvature after-effect (Gibson 1937) and (Coltheart

1971)). Such after-effects are believed to reflect a

change in the sensitivity of neurons that encode the

adapted feature and, thus, imply the existence of

neurons that act as detectors of that feature

(Hancock & Peirce 2008).

Indeed, most of the investigators agree that

curvature detectors are present along the early stages

of the visual pathway (Riggs 1973), (Stromeyer &

Riggs 1974). Some investigators even showed how

such curvature calculations can be achieved by

convolution with certain reasonable receptive fields

of neural cells (Koenderink & Doorn 1987),

(Dobbins et al. 1987).

Sutherland (1968) concluded that many species

have the capacity to classify a shape as the same

shape regardless of changes in size, at least over a

considerable range, and that this capacity is innate.

This ability can be addressed as irrelevance of the

DC component of the size information (adaptation)

and relevance of changes only.

Blakemore and Campbell (1969) suggested that

the human visual system may possess neurons

selectively sensitive to size. They also suggested that

this neural system may play an essential preliminary

role in the recognition of complex images. Carey et

al (1996) suggested that size, motion and orientation

measures are processed in parallel by the dorsal

stream mechanisms.

The visual system perceives depth based on

several cues such as stereoscopic views, motion-

parallax, object size, object translation and rotation

(Bruno & Cutting 1988), (Dijkstra et al. 1995),

(Rogers & Graham 1979), (Bradshaw & Rogers

1996) and (Bradshaw et al. 2000). Hubel and Wiesel

(1962), (1970) have identified the cells that are

involved in depth information representation from

stereoscopic vision (“complex cells”). Inui et al

(2000) have discovered that an area involved in

monocular depth processing in the bilateral

occipitotemporal region.

It, therefore, seems reasonable to assume that

curvature, size and depth information are calculated

over the entire image (in parallel), wherein each of

the cells contains the feature information of a

specific location - each cell represents the feature

information of a specific part of the image and

together they create a projection of the image into a

specific image dimension, where the location of the

cells matches the location of the feature in the

image. Based on this reasoning, it is natural to use

AGC NN in processing of these image dimensions

in vision.

AUTOMATIC GAIN CONTROL NETWORKS FOR MULTIDIMENTIONAL VISUAL ADAPTATION

167

3.3 Overview of Differential Geometry

It is useful to review a few elementary notions of

differential geometry to establish the context in

which the curvature processing is formulated. The

review is focused on curves in the plane, although

generalizations to higher dimensional curves exist.

Let

be an interval in one-dimensional

Euclidian space

E . A curve C is defined as a

continuous mapping

IE→

from the interval to

the plane where

()

((), ())xxx

λλ

(12)

with

∈

being a parameter running along the

curve, and

are continuous functions of

. The

curve is said to have order of continuity k, denoted

, where all derivatives up to and including the

derivative of

and

are continuous. A curve

may be reparameterized in terms of its arc length s,

equivalent to a particle travelling at constant unit

velocity along the curve. In this case, the tangent

vectors are unit length vectors:

()

' ( ) ( '( ), '( ))

sts xsxs==

(13)

where

()sf

is a reparameterization of the curve,

and

'1x =

. The interesting aspect of the tangent is

its orientation. The geometric interpretation of the

tangent to a curve is depicted in Fig. 10(a). Letting P

be a point on a curve, and A a neighboring point, the

tangent T at P is the limit of the line AP as A

approaches P along the curve. The tangent yields

the orientation of a curve at a point. Taking the

second derivative with respect to s everywhere along

C, we obtain

(

)

'' ( ''( ), ''( ))

sxsxs=

(14)

where the vector

''( )

is normal to the vector

'( )

and the magnitude of

''( )

is the curvature of C:

()

'' '' ( ) '' ( )

sxsxs

== +

(15)

Curvature is a measure of the rate of change of

orientation per unit arc length. The geometric

interpretation for the curvature is depicted in Fig.

10(b). Let P be a point on a curve, T the tangent at

that point, and A a neighboring point on the curve.

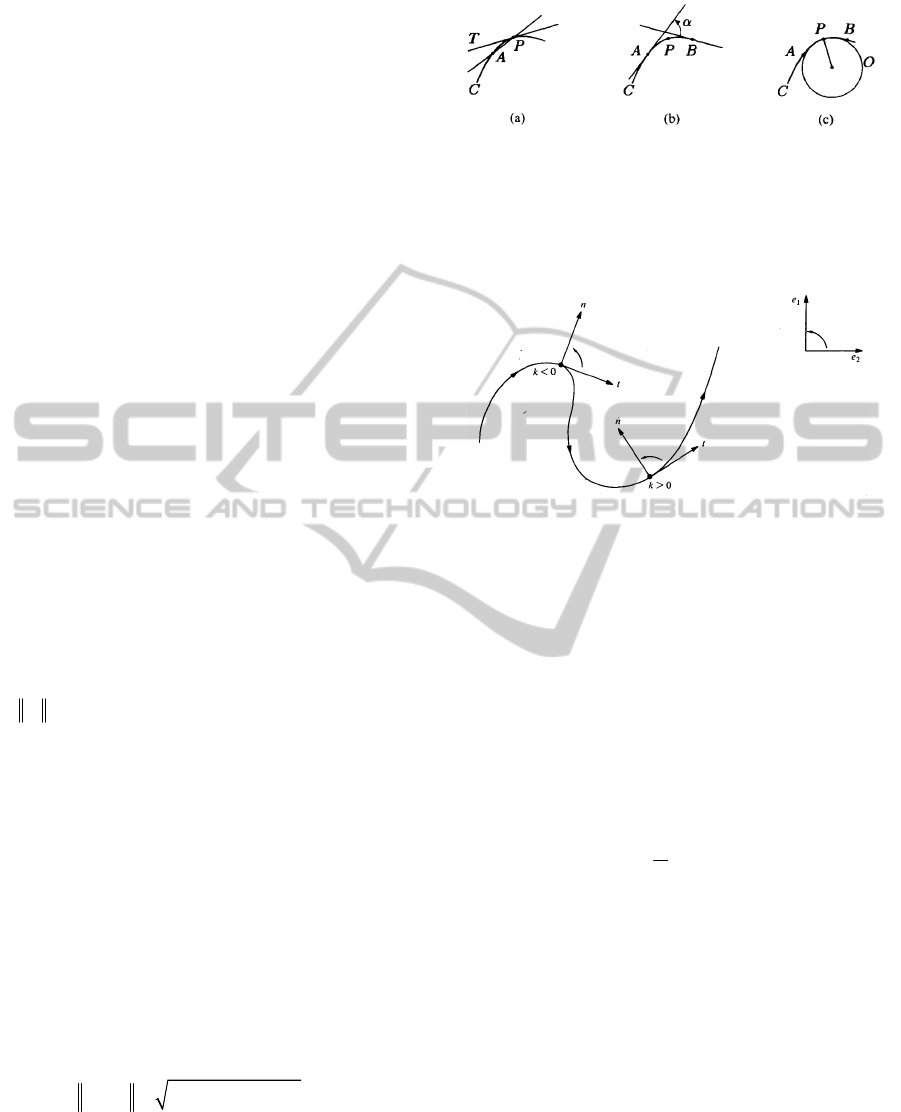

Figure 10: (a) Tangent T is the limit of segment PA as A

approaches P along C. (b) The curvature

of C at P is the

limit of the ratio

/AB as A and B approach P

independently along C. (c) The osculating circle 0 at P is

the limit of the circle that passes through A, P, and B, as A

and B approach P.

Figure 11: Signed curvature.

Let

denote the angle between the line AP and T,

and AB the arc length between A and B. The

curvature

at P is the limit of the ratio

/AB as A

approaches P along the curve. Related to this

interpretation of curvature is the osculating circle.

Referring to Fig. 10(c), let A, P, and B be three

neighboring points on a curve, and let U be a circle

through these points. As A and B independently

approach P along the curve, the circle O converges

towards a limit, whose radius is precisely the inverse

of the curvature

at P.

(16)

Since the curve is a plane curve (that is,

()

I is

contained in a plane), it is possible to associate a

sign with the curvature

. To this end, let

{

}

,ee

the natural basis of

and define the normal

vector

(),ns s I

∈

, by requiring the basis and might

be either positive or negative. It is clear that |

agrees with the previous definition and that

changes sign when we change either the

orientation of

or the orientation of

R (see Fig. 11).

In this work, we use the signed curvature notation.

The signed curvature indicates the direction along

which the unit tangent vector rotates as a function of

the parameter along the curve.

ICFC 2010 - International Conference on Fuzzy Computation

168

{

}

(), ()ts ns

to have the same orientation as the

basis

{

}

,ee

. The signed curvature

is then defined

(instead of (15)) by

'( )ts n

= ,

(17)

If the unit tangent rotates counter clockwise, then

. If it rotates clockwise, then

The signed curvature depends on the particular

parameterization chosen for a curve.

4 PSYCHOPHYSICAL

EXPERIMENTS

For illustrative purpose, two psychophysical

experiments are presented as an example. The first is

for size contrast effect (the Ebbinghaus illusion).

The second is for depth contrast effect. The AGC

model reproduces the illusions.

4.1 Size Contrast

The Ebbinghaus illusion is commonly used as an

example of a simple size-contrast effect. In this

illusion, the apparent size of a central target is

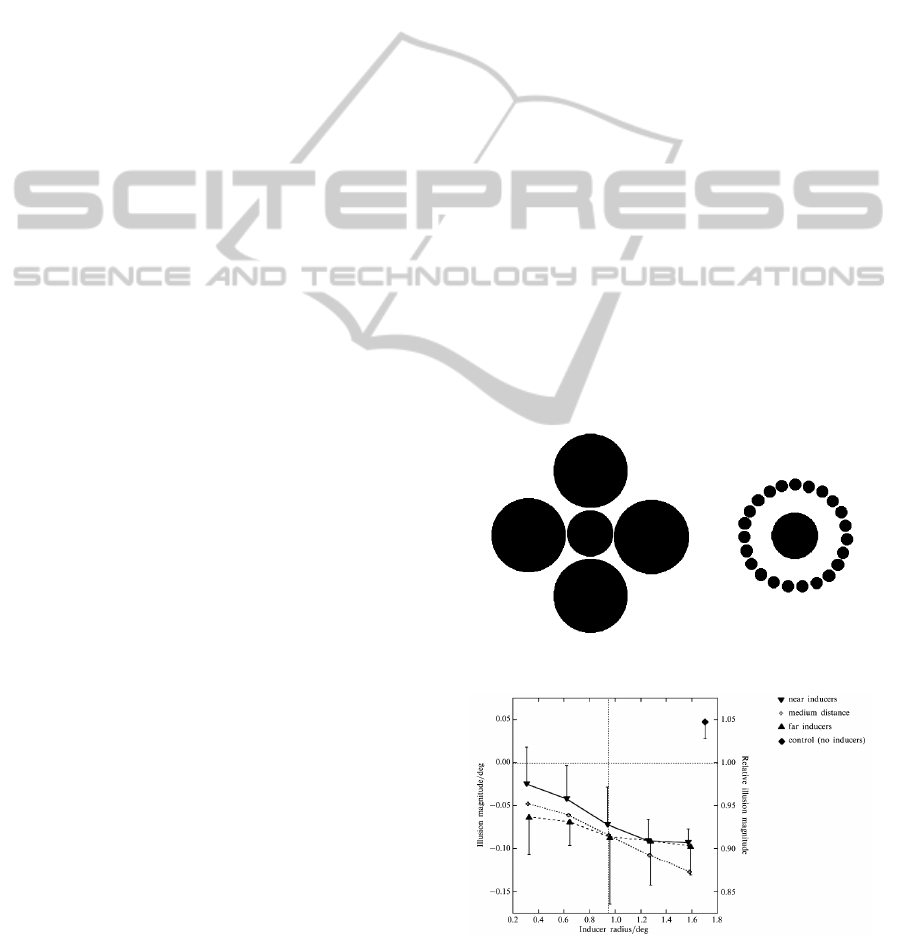

changed by a ring of surrounding inducers. Fig. 12

illustrates its most popular form, as it most often

appears in general textbooks. In this form, it is

typically used to illustrate a simple size-contrast

effect, in which large inducers make the target

appear smaller whilst small inducers make it

appear larger.

Roberts et al (2005) have further investigated the

above effect and concluded that it probably arises

from a number of factors that are:

 The relative size and number of the inducers

(comparing to the target): For a given distance

between the target and the inducers, the

magnitude of the Ebbinghaus illusion is

governed by the relative size and number of the

inducers

 The distance between the central target and the

inducers: For a given number and size of

inducers, the magnitude of the Ebbinghaus

illusion is governed by the distance between the

central target and the inducers.

 The completeness of the inducing annulus:

Keeping the number of the inducers constant,

and changing their size (or distant), provides a

change in the completeness of the inducing

annulus. This confounding effect can be

removed (the inducing annulus can be kept

constant) by changing also the number of the

inducers.

The authors performed several experiments, and the

main findings were:

4.1.1 Experiment 1

Varying the relative size of the inducers in the

Ebbinghaus illusion produces changes in the

apparent size of the target, consistent with a size-

contrast effect. Increasing inducer distance causes a

decrease in apparent target size irrespective of

inducer size. [Distance is measured from the centre

of the target to the centre of the inducers.]

Fig. 13 shows, separately for each inducer

distance, the average illusion magnitude, as a

function of inducer radius. Based on these results,

the authors concluded that “inducers generally

reduce apparent target size and that small inducers

are simply less effectual in doing this”, and that

“Inducer distance also has an effect, so that the

reduction in target size tends to be more pronounced

at greater distances”.

To summarize, the apparent size of the target is

reduced more efficiently when the inducers get

bigger and at greater distances.

Figure 12: The Ebbinghaus illusion.

Figure 13: Results of experiment 1 from (Roberts et al.

2005).

AUTOMATIC GAIN CONTROL NETWORKS FOR MULTIDIMENTIONAL VISUAL ADAPTATION

169

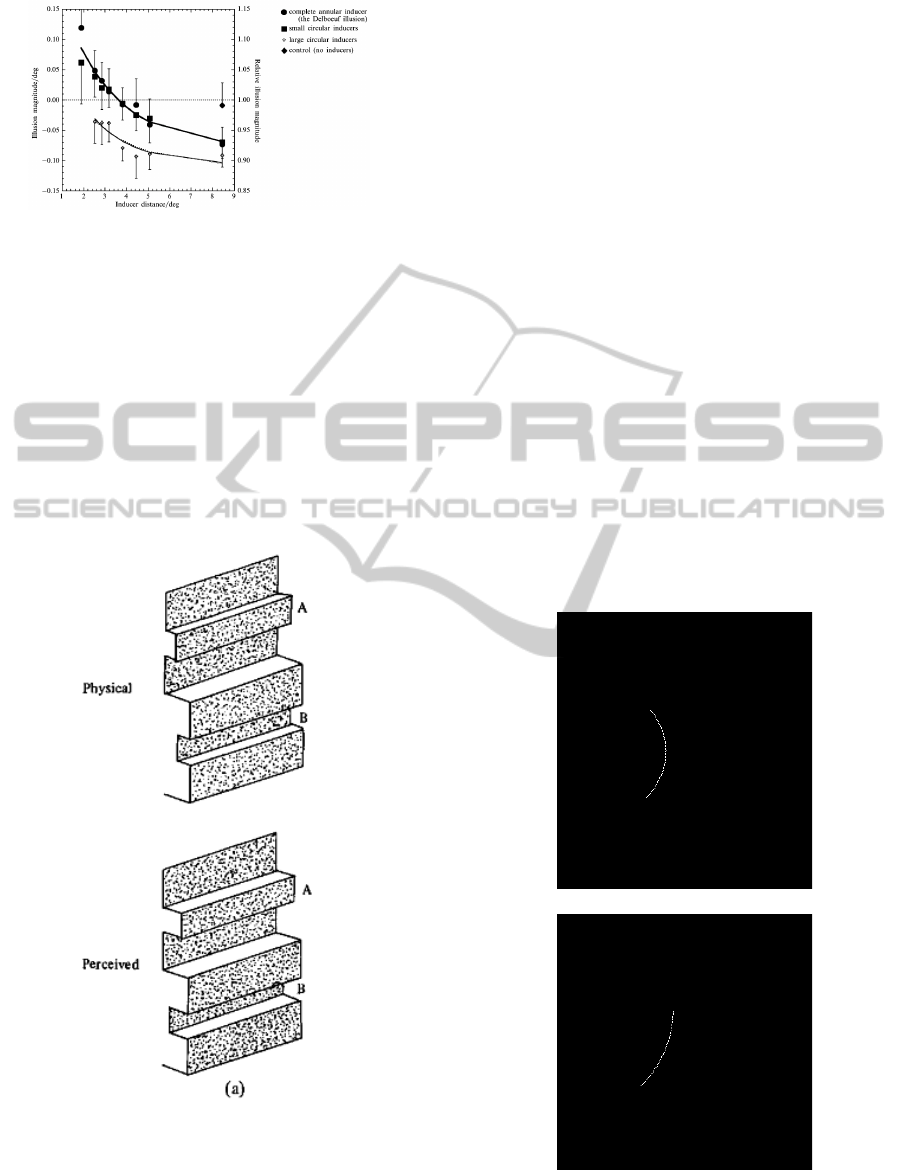

Figure 14: Results of experiment 3 from (Roberts et al.

2005).

4.1.2 Experiment 3

Here, The authors kept the inducing annulus and

inducer size constant and study the effect of inducer

distance. The results are given in Fig. 14. The

authors conclude that the data can be modelled by

the equation

exp( / )ab xc+− and that the effect is

governed mainly by two terms – inducers distance

from the target (which described by decaying

exponential), and by the inducers size which

modulate this function.

Figure 15: Bar A appeared to lie in front of bar B,

although are physically at the same depth.

4.2 Depth Contrast

Graham and Rogers (1982) have shown depth-

contrast effect perceived from motion parallax and

stereoscopic information. Their results are shown in

Fig. 15. The perceived depth is affected by the

surrounding, and so, even though bar A and bar B

are at the same physical depth, they are perceived as

though bar A is in front of bar B.

5 SIMULATION RESULTS

We assume that the features information is

represented, and we are not concerned with the issue

of how this information was acquired. This

assumption is quite valid because many techniques

of depth/size/curves (and therefore – their curvature)

estimation are available today. An example for such

technique for curves is presented by Parent &

Zucker (1989) and Zucker et al (1988).

In order to simulate a feature processing and see

its effect on a human observer, a tool (Matlab

function) that draws image corresponding to its

feature information input was created. The image

was then drawn according to its original feature

information, and according to its processed feature

information.



original curve



original curve filtered with AGC

Figure 16: AGC of constant curvature.

ICFC 2010 - International Conference on Fuzzy Computation

170

5.1 AGC of Curvature Processing

In this section two curves are presented. The first

one is a curve with constant curvature – part of a

circle (Fig. 16). The second is a combination of

straight lines and parts of circles with an opposite

curvature (Fig. 17).

The AGC parameters for both curves are:

() ; 20; 0.2

Wi k e k

−

===,

(18)

with W having 5 elements.

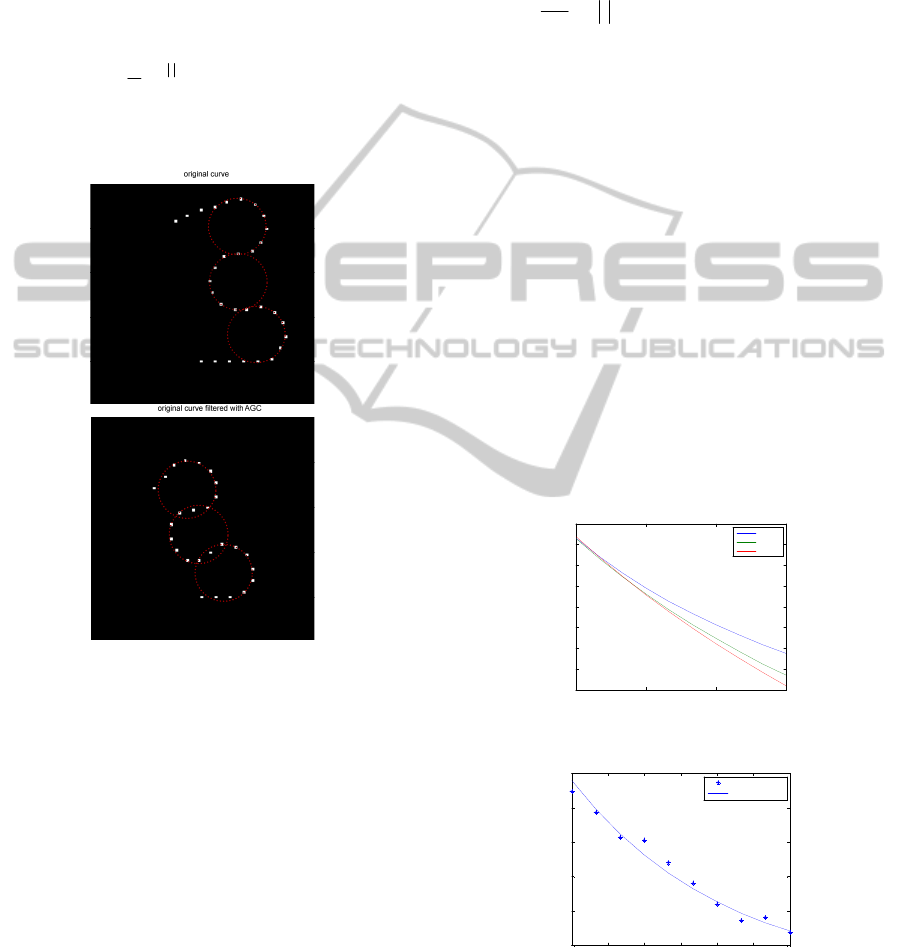

Figure 17: AGC of fragmented curvature.

The first result represents spatial adaptation – the

curvature decreased (the radius of the curved

increased according to (16)), whereas the second

result represents curvature enhancement (or

emphasis). For presentation and comparison

purposes only, the result of the second curve is

multiplied by 1.87, to “compensate” for the

adaptation phenomenon – in order to correct

comparison between the original curve and the

filtered curve. Red circles have been added to Fig.

17 to emphasis the changes between the original

curve, and the result. According to (16), points that

are inside the circles have larger curvature than

points that are on the circle. T herefore, the edge

points (where a change in the curvature occurs) are

emphasized in the same way as at Fig. 4.

5.2 AGC of Size Processing

The two experiments of Roberts et al. were

reconstructed using Matlab and simulating the

perceived target size by using the AGC algorithm

presented in section 2 using parameters of:

( ) ( ) : 5, 0.00007

121

Wi k i whenk

γγ

=− ==

(19)

meaning that the lateral effect of W is a triangular

function with width of 121 elements.

First, experiment 1 was reconstructed. Target

was surrounded by 8 inducers at different radii

(varying from 5 to 20 pixels). This was checked for

near (30 pixels away from target), medium (40

pixels away from target) and far (50 pixels away

from target) inducers. Target radius was 10 pixels.

Target size (in pixels) as a function of inducer radius

and distance is shown at Fig. 18.

Second, experiment 3 was reconstructed. Target

was surrounded by variant number of inducers in

order to occupy an approximately constant

proportion (about 0.75) of the surround

circumference. Inducers were kept at a constant

radius and their distance from the target was

changed from 30 to 60 pixels. Target radius was 10

pixels. Target size (in pixels) as a function of

inducer distance is shown in Fig. 19. The solid line

in this figure is the best fit for the data.

5 10 15 20

-6

-5.5

-5

-4.5

-4

-3.5

-3

-2.5

-2

illusion magnitude as function of inducer radius

Inducer radus [pixels ]

illusion magnitude [pixels]

near

medium

far

Figure 18: Results of experiment 1 using AGC model.



30 35 40 45 50 55 60

-5.5

-5

-4.5

-4

-3.5

-3

Inducer dist anc e [pixels ]

illusion magnitude [pixels]

experiment results

-6+11.85e

(-x/21.28)

Figure 19: Results of experiment 3 using visual AGC

model.

AUTOMATIC GAIN CONTROL NETWORKS FOR MULTIDIMENTIONAL VISUAL ADAPTATION

171



Depth information

0 5 10 15 20 25 30 35 40 45 50

Depth information

Depth information after AGC filter

0 5 10 15 20 25 30 35 40 45

Depth information after AGC filter

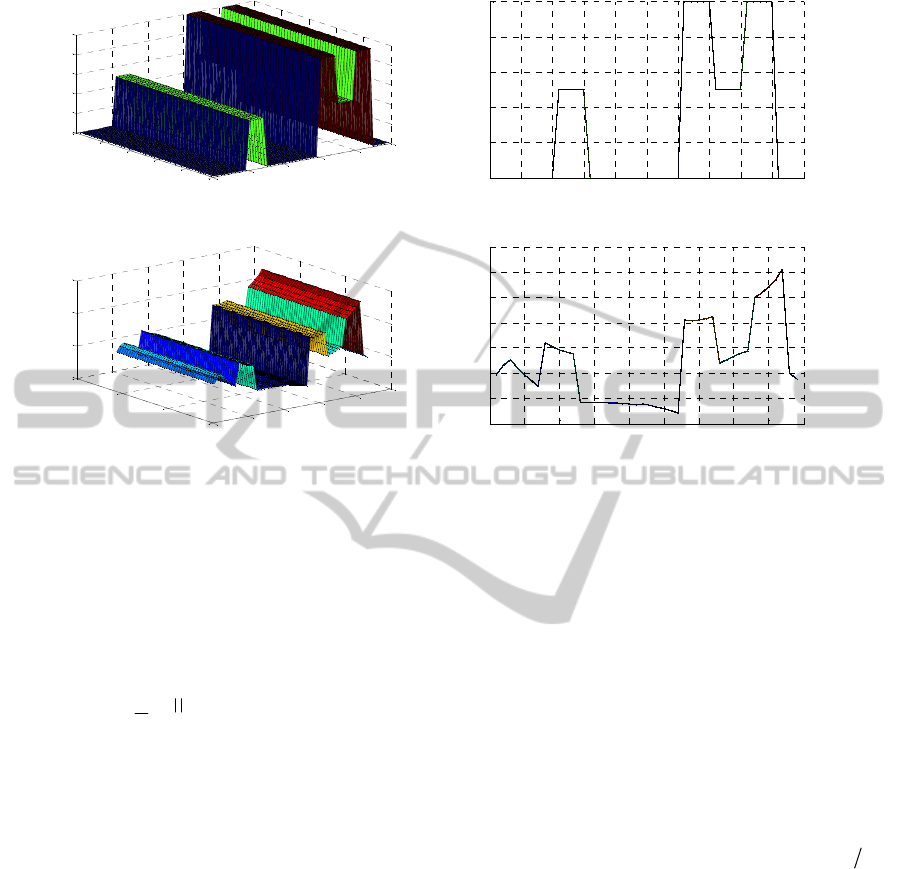

Figure 20: AGC processing of depth information. Input and output visual signals are displayed in the top and bottom rows,

respectively.

5.3 AGC of Depth Processing

We reconstruct Graham and Rogers’s experiment

using the visual AGC NN, implemented along the

visual dimension of depth, with:

() ; 1; 0.2

Wi k e k

−

===,

(20)

where W has 11 elements.

For each point of the 3D original image the

depth is calculated relative to a point in the middle

of the image and with height of 50 pixels. Fig. 20

shows the results in both 3D and cross sections

view. As a result of the AGC, the left bar, which is

at the same depth as the right bar, is now perceived

closer.

6 DISCUSSION

Qualitatively speaking, important and interesting

events along curves, for example, consist only of

abrupt changes of orientation and curvature, as is

the case with other image attributes (dimensions).

Local maxima of curvature, and inflection points

(i.e. zero crossings of curvature) identify in this case

such events (see (Hoffman & Richards 1984),

(Koenderink & Doom 1982), (Richards et al. 1986)

and (Fischler & Bolles 1986)).

Therefore, it is reasonable to assume that visual

systems emphasize these changes and adapt to the

locally-constant value. This is indeed an important

feature of processing curvature (or other image

attributes) by adaptive NN endowed with the

characteristic of AGC. Curvature emphasis (as is

demonstrated in Fig. 17) and adaptation (as is

demonstrated in Fig. 16) occur simultaneously and

their extent can be controlled by varying the

parameter k of the NN hardwired connectivity.

Further, the effective range of interaction,

characterized in the hardwired network by

becomes, due to the AGC of the nonlinear NN a

function of the slow rate of change (‘local DC’, i.e.

C of Eq. 6) along the image dimension processed

by the AGC NN, i.e. in the examples of Fig. 16 and

Fig. 17 the curvature.

Inspecting the results of size processing indicates

a good correspondence between the adaptive NN

response (Fig. 18 and Fig. 19) and the

psychophysical experimental results (Fig. 13 and

Fig. 14), both for the distance parameter and for the

size parameter. Such results should be expected due

to the dependency of AGC NN on these two

parameters as well, i.e. cells proximity and

specificity (in this case, objects’ size).

It is clear why increasing the inducer size

ICFC 2010 - International Conference on Fuzzy Computation

172

decreases the target perceived size. This is discussed

in section 2, and represents the size contrast effect of

the model. It is less obvious why farther positioned

inducers have stronger effect on target perceived

size, than that of the closer inducers (i.e. decreasing

the target size more effectively). The latter is due to

the mutual relation between the inducers. According

to the model of AGC visual processing, the cells

have a limited influence on their neighbors. If the

distance between cells is greater compared with W’s

effective width, then those cells will have a

minimum effect on each other (if any). When an

inducer is at a given distance

from the target, its

distance from the other inducers varies from 0 to

Thus, when distance increases, more and more

inducers are beyond the ‘influence zone’ of the other

inducers. This causes the perceived size of each

inducer to increase when the distance is increased.

Fig. 21 shows this phenomenon on the data of

experiment 1. Since the target is still inside the

‘influence zone’ of the inducers, and the size of the

inducers is now larger, the target seems smaller (the

size-contrast effect is enhanced).

When we add inducers while increasing the

distance (as in experiment 3), the target size is

reduced since each one of the inducers contribute to

the size-contrast effect.

Note that here we modelled only the target and

the inducers as objects with size. But, it is also

possible that the visual system treats the space

between the target and the inducers as an object with

size. In this case, if the space between the target and

the inducer is large, the inducer size has only a

secondary effect, and the target size is determined

mainly by the nearest object (for example see Fig.

22 - Delboeuf illusion. In this illusion, the target gets

smaller when the inducer diameter increases). This

model can explain also the moon size illusion.

30 32 34 36 38 40 42 44 46 48 50

3.9

3.95

4.05

4.1

4.15

4.2

4.25

inducers perceived size as a function of the distance from the target

Inducer distance [pixels]

inducers perceived size [pixels]

Figure 21: Results indicating that inducers perceived size

is increased at greater distances.

Figure 22: Delboeuf illusion.

7 CONCLUSIONS

Understanding the HVS and modelling certain

characteristics of it by adaptive NN is of a

considerable interest because of its potential use in

the design of intelligent computer vision and image

processing NN and systems. Because of the

complexity of the processes involved, and in order to

account for the vast volume of available

experimental data, there is need for relatively simple

models. As shown, the recurrent nonlinear adaptive

NN that exhibits AGC is relatively simple (only few

parameters) and versatile. It does not call for

postulating any components of neural circuitry more

complex than those well known to exist in biological

neural networks. It is important to stress that these

networks are sparsely connected. This fact allows

also to implement them sequentially by using Peano

– Hilbert scan for a quick and efficient processing

‘on the fly’ (for a review see (Jagadish 1990)). The

sparse NN proposed by us is in contrast to Hopfield-

type networks that are fully connected. The sparsely

(locally) connected NN can be also analyzed

theoretically (Shefer 1979).

Using the AGC model for all of the image base

dimensions (or other modalities for this matter)

provides great advantages. It constitutes a universal

and parsimonious model that explains how our

visual system processes visual information along its

various dimensions, before the later stage of

sequential “visual routines” is implemented. Having

this model allows us to process an image not only in

the intensity/spatio-temporal domain, but also along

all other dimensions as well. For example, given a

noisy curve, we can reduce the noise along the

curvature dimension with standard filters, such as

non-linear diffusion filter (Fig. 23).

The proposed visual AGC mechanism can

enhance existing schemes of intelligent image

processing with reference to enhancement of various

image attributes and features, i.e. curvature, size and

AUTOMATIC GAIN CONTROL NETWORKS FOR MULTIDIMENTIONAL VISUAL ADAPTATION

173

other image attributes. The decomposition of the

image into separable components is by no means the

only possible model of representation and

processing of images, and definitely not always the

optimal one. An alternative approach, introduced in

the context of image processing and computer vision

(Kimmel et al. 2000), (Sochen & Zeevi 1998),

considers an image to be a manifold embedded in

higher dimensional combined position (spatial)-

feature space. The features are the image attributes

or dimensions, such as color, curvature and size

mentioned above. Adaptation by means of nonlinear

gain control is executed in this case in the

multidimensional space in a unified manner. Such

manifolds of adaptive NN are yet to be further

investigated.



0 10 20 30 40 50 60 7

-0.03

-0.02

-0.01

0.01

0.02

0.03

original curve

noisy curve

curve after diffusion filter

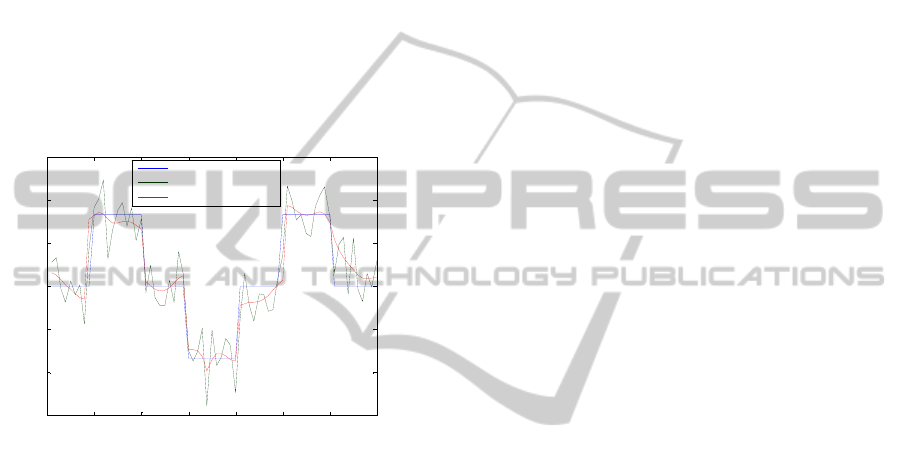

Figure 23: Filtering a noisy curve with non-linear

diffusion filter (15 iterations) along the curvature

dimension.

REFERENCES

Abbott, L. F. et al., 1997. Synaptic Depression and

Cortical Gain Control. Science, 275(5297), 221-224.

Blakemore, C. & Campbell, F. W., 1969. On the existence

of neurones in the human visual system selectively

sensitive to the orientation and size of retinal images.

The Journal of Physiology, 203(1), 237-260.1.

Bradshaw, M. F., Parton, A. D. & Glennerster, A., 2000.

The task-dependent use of binocular disparity and

motion parallax information. Vision Research, 40(27),

3725-3734.

Bradshaw, M. F. & Rogers, B. J., 1996. The Interaction of

Binocular Disparity and Motion Parallax in the

Computation of Depth. Vision Research, 36(21),

3457-3468.

Bruckstein, A. M. & Zeevi, Y.Y., 1979. Analysis of

"integrate-to-threshold" neural coding schemes.

Biological Cybernetics, 34(2), 63-79.

Bruno, N. & Cutting, J. E., 1988. Minimodularity and the

perception of layout. Journal of Experimental

Psychology. General, 117(2), 161-170.

Carey, D. P., Harvey, M. & Milner, A. D., 1996.

Visuomotor sensitivity for shape and orientation in a

patient with visual form agnosia. Neuropsychologia,

34(5), 329-337.

Cavanagh, P., Arguin, M. & Treisman, A., 1990. Effect of

surface medium on visual search for orientation and

size features. Journal of Experimental Psychology:

Human Perception and Performance, 16(3), 479-491.

Coltheart, M., 1971. Visual feature-analyzers and

aftereffects of tilt and curvature. Psychological

Review, 78(2), 114-121.

Dijkstra, T. M. H. et al., 1995. Perception of three-

dimensional shape from ego- and object-motion:

Comparison between small- and large-field stimuli.

Vision Research, 35(4), 453-462.

Ding, J. & Sperling, G., 2006. A gain-control theory of

binocular combination. Proceedings of the National

Academy of Sciences of the United States of America,

103(4), 1141-1146.

Dobbins, A., Zucker, S.W. & Cynader, M. S., 1987.

Endstopped neurons in the visual cortex as a substrate

for calculating curvature. Nature, 329, 438-441.

Du Croz, J. J. & Rushton, W. A. H., 1966. The separation

of cone mechanisms in dark adaptation. The Journal of

Physiology, 183(2), 481-496.

Enns, J. T. & Rensink, R. A., 1990a. Influence of scene-

based properties on visual search. Science (New York,

N.Y.), 247(4943), 721-723.

Enns, J. T. & Rensink, R. A., 1990b. Sensitivity to Three-

Dimensional Orientation in Visual Search.

Psychological Science, 1(5), 323-326.

Fischler, M. A. & Bolles, R. C., 1986. Perceptual

organization and curve partitioning. IEEE Trans.

Pattern Anal. Mach. Intell., 8(1), 100-105.

Gibson, J.J., 1937. Adaptation with negative after-effect.

Psychological Review, 44(3), 222-244.

Ginosar, R., Hilsenrath, O. & Zeevi, Y. Y., 1992. United

States Patent: 5144442 - Wide dynamic range camera.

Graham, M. & Rogers, B. J., 1982. Simultaneous and

successive contrast effects in the perception of depth

from motion-parallax and stereoscopic information.

Perception, 11(3), 247 – 262.

Hancock, S. & Peirce, J. W., 2008. Selective mechanisms

for simple contours revealed by compound adaptation.

Journal of Vision, 8(7), 1-10.

Hochstein, S. & Ahissar, M., 2002. View from the top:

hierarchies and reverse hierarchies in the visual

system. Neuron, 36(5), 791-804.

Hoffman, D. D. & Richards, W.A., 1984. Parts of

recognition. Cognition, 18(1-3), 65-96.

Hubel, D. H. & Wiesel, T. N., 1979. Brain mechanisms of

vision. Scientific American, 241(3), 150-162.

Hubel, D. H. & Wiesel, T. N., 1968. Receptive fields and

functional architecture of monkey striate cortex. The

Journal of Physiology, 195(1), 215-243.

Hubel, D. H. & Wiesel, T. N., 1962. Receptive fields,

binocular interaction and functional architecture in the

cat's visual cortex. Journal of Physiology (London),

160(1), 106-154.

ICFC 2010 - International Conference on Fuzzy Computation

174

Hubel, D. H. & Wiesel, T. N., 1970. Stereoscopic Vision

in Macaque Monkey: Cells sensitive to Binocular

Depth in Area 18 of the Macaque Monkey Cortex.

Nature, 225, 41-42.

Inui, T. et al., 2000. Neural substrates for depth perception

of the Necker cube; a functional magnetic resonance

imaging study in human subjects. Neuroscience

Letters, 282(3), 145-148.

Jagadish, H. V., 1990. Linear clustering of objects with

multiple attributes. In Proceedings of the 1990 ACM

SIGMOD international conference on Management of

data, 332-342.

Kimmel, R., Malladi, R. & Sochen, N., 2000. Images as

Embedded Maps and Minimal Surfaces: Movies,

Color, Texture, and Volumetric Medical Images.

International Journal of Computer Vision, 39(2), 111-

129.

Koenderink, J. J. & Doom, A. J .V., 1982. The shape of

smooth objects and the way contours end. Perception,

11(2), 129 – 137.

Koenderink, J. J. & Doorn, A. J. V., 1987. Representation

of local geometry in the visual system. Biological

Cybernetics, 55(6), 367-375.

Krauskopf, J. & Mollon, J. D., 1971. The independence of

the temporal integration properties of individual

chromatic mechanisms in the human eye. The Journal

of Physiology, 219(3), 611-623.

Lu, Z. & Sperling, G., 1996. Contrast gain control in first-

and second-order motion perception. Journal of the

Optical Society of America A, 13(12), 2305-2318.

Parent, P. & Zucker, S.W., 1989. Trace Inference,

Curvature Consistency, and Curve Detection. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 11(8), 823-839.

Ratliff, F., 1965. Mach bands: Quantitative studies on

neural networks in the retina. Holden-Day inc.

Richards, W., Dawson, B. & Whittington, D., 1986.

Encoding contour shape by curvature extrema. Journal

of the Optical Society of America A, 3(9), 1483-1491.

Riggs, L. A., 1973. Curvature as a Feature of Pattern

Vision. Science, 181(4104), 1070-1072.

Roberts, B., Harris, M.G. & Yates, T.A., 2005. The roles

of inducer size and distance in the Ebbinghaus illusion

(Titchener circles). Perception, 34(7), 847 – 856.

Rogers, B. J. & Graham, M., 1979. Motion parallax as an

independent cue for depth perception. Perception,

8(2), 125 – 134.

Schwartz, O. & Simoncelli, E. P., 2001. Natural signal

statistics and sensory gain control. Nat Neurosci, 4(8),

819-825.

Shefer, M., 1979. AGC models for retinal signal

processing. M.Sc. Thesis. Technion.

Sochen, N. & Zeevi, Y. Y., 1998. images as manifolds

embedded in a spatial feature non euclidean space.

IEEE ICIP, 166-170.

Stromeyer, C. F. & Riggs, L.A., 1974. Curvature

Detectors in Human Vision? Science, 184(4142),

1199-1201.

Sutherland, N. S., 1968. Outlines of a Theory of Visual

Pattern Recognition in Animals and Man. Proceedings

of the Royal Society of London. Series B, Biological

Sciences, 171(1024), 297-317.

Treisman, A. M. & Gormican, S., 1988. Feature analysis

in early vision: Evidence from search asymmetries.

Psychological Review, 95(1), 15-48.

Wainwright, M. J., 1999. Visual adaptation as optimal

information transmission. Vision Research, 39(23),

3960-3974.

Weltsch-Cohen, Y., 2002. AGC models for signal

processing in the primary visual cortex. M.Sc. Thesis.

Technion.

Wolfe, J. M. et al., 2003. Changing your mind: On the

contributions of top-down and bottom-up guidance in

visual search for feature singletons. Journal of

Experimental Psychology: Human Perception and

Performance, 29(2), 483-502.

Zeevi, Y. Y., Ginosar, R. & Hilsenrath, O., 1995. United

States Patent: 5420637 - Dynamic image

representation system.

Zeevi, Y. Y. & Kronauer, E. R., 1985. Reorganization and

diversification of signals in vision. EEE transactions

on systems, man, and cybernetics, 15(1), 91-101.

Zeevi, Y. Y. & Mangoubi, S.S., 1978. Noise suppression

in photoreceptors and its relevance to incremental

intensity thresholds. Journal of the Optical Society of

America, 68 (12), 1772-1776.

Zucker, S. W. et al., 1988. The Organization Of Curve

Detection: Coarse Tangent Fields And Fine Spline

Coverings. In Computer Vision., Second International

Conference, 568-577.

AUTOMATIC GAIN CONTROL NETWORKS FOR MULTIDIMENTIONAL VISUAL ADAPTATION

175
