SACCADES GENERATION

From the Visual Input to the Superior Colliculus

Wahiba Taouali

Universit

e Henri Poincar

e - LORIA, Campus Scientiﬁque, Vandoeuvre-l

es-Nancy Cedex, France

Nicolas Rougier, Fr

eric Alexandre

INRIA Nancy - Grand Est Research Center, Villers les Nancy Cedex, France

Keywords:

Superior Colliculus, Dynamic Neural Field, Visual Attention, Ocular Saccades

Abstract:

The superior colliculus is an important structure in the visuomotor pathway of mammals, that is known to be

deeply involved in visual saccadic behavior. We present a model of this structure based on biological data, the

speciﬁcity of which is related to the homogeneity of the underlying substratum of computation. This makes

it more suitable to process massive visual ﬂows on a distributed architecture, as it could be requested in a

realistic task in autonomous robotics. The model presented here is embedded in the exogenous part of the

visual pathway, from the retina to the superior colliculus.

1 INTRODUCTION

Displaying an intelligent behavior is often synony-

mous of intelligently exploiting the surrounding en-

vironment. In many animals and animats, this is mas-

sively performed through the visual channel. Partic-

ularly, two adaptive behaviors allow to decrease the

huge amount of information brought by this chan-

nel: visual attention proposes a sequential process-

ing of possible targets; saccadic movements orient the

body and particularly the fovea on regions of inter-

est in the visual scene. The premotor theory of at-

tention (Rizzolatti et al., 1987) stipulates that there

are common processes between these key behaviors

and, more precisely, that they share common neuronal

circuits: Attention would be pre-programming of a

saccade. The importance of these visuomotor behav-

iors and the impact of the premotor theory certainly

explains why there have been so many works to ob-

serve and model the superior colliculus (SC). Indeed,

this small structure in the midbrain of mammals is

known to be implicated in these behaviors. From an

hodological viewpoint, it integrates visual informa-

tion from many sources (cortical or not) in the brain

and sends projections toward the brainstem premo-

tor circuits that trigger saccades (Isa, 2002). From

an anatomical viewpoint, it consists of a set of topo-

logical maps, mapping the surrounding space, from

visual to motor reference frames (Girard and Berthoz,

2005). And from a physiological viewpoint, its inac-

tivation or electrical stimulation conﬁrms its role in

visual attention and saccades (Muller et al., 2005).

Many models have studied the SC and associated

properties (cf. (Girard and Berthoz, 2005) for a re-

view). We just mention here some models underlying

the link to information ﬂows and underlying behav-

ior. The structure of the model described in (Find-

lay and Walker, 1999) underlines that the main task

is to decide when and where the saccade must be

performed. As a consequence, two hierarchical axes

are deﬁned. The When axis (corresponding to the

FEF (Frontal Eye Field) area in the prefrontal cor-

tex) decides when to leave the current ﬁxation point,

whereas the Where axis corresponds to the SC and

implements a spatial competition between candidate

targets. A double-axis model combining FEF and the

SC is also proposed in (Kramer et al., 1999), to ex-

plain the integration of exogenous elements (external

stimuli coming from the retina to the SC) and endoge-

nous elements (internal expectancies or instructions

elaborated in the prefrontal cortex). Later on, (Godijn

and Theeuwes, 2002) proposed a competitive integra-

tion model based on strong experimental evidences at

the behavioral level, indicating that all these elements

(spatial vs temporal processing and integration of ex-

ogenous vs endogenous stimuli) can be integrated in a

176

Taouali W., Rougier N. and Alexandre F..

SACCADES GENERATION - From the Visual Input to the Superior Colliculus.

DOI: 10.5220/0003065501760181

In Proceedings of the International Conference on Fuzzy Computation and 2nd International Conference on Neural Computation (ICNC-2010), pages

176-181

ISBN: 978-989-8425-32-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

unique map, seen as a model of the SC. This common

saccade map also includes features generally reported

as physiologically plausible in the SC: a local exci-

tation in the map allowing to combine close stimuli

and a wider inhibition mechanism to trigger a com-

petition between far stimuli. This interaction scheme

explains why it was possible to use such a formal-

ism as Dynamic Neural Field (DNF) (Amari, 1977)

to implement this kind of model, as it is also the case

in (Trappenberg et al., 2001; Schneider and Erlhagen,

2002).

In summary, the SC is undoubtedly an important

integrative structure, to be included in a cognitive

neuroscience modeling approach of visuospatial be-

haviors. Most recent models give a stronger role to

the SC at the price of a more complex internal func-

tioning. Indeed, those models deﬁne several kinds of

units, depending on their location on the map, which

is not very consistent with the principle of homogene-

ity in DNF. More precisely, in (Trappenberg et al.,

2001), the reported behavior is obtained with some

units standing for the currently ﬁxated stimulus (con-

sequently in the fovea), other units representing po-

tentially ﬁxated stimuli in the periphery, both kinds

sending inhibition to other units triggering saccades

toward a target. These kinds of units, also exploited

in the model by (Schneider and Erlhagen, 2002), are

presented as representing respectively so-called ﬁxa-

tion, build-up and burst neurons, which are sometimes

reported as parts of the intermediate layer of the SC

(Wurtz and Optican, 1994), though this is still to be

clearly established. In (Godijn and Theeuwes, 2002)

also, the substratum of computation is not homoge-

neous, since the sensitivity of units decreases with

their eccentricity onto the map. This trick is used to

reproduce the observation that the latency of a sac-

cade toward a target, presented together with a dis-

tractor, is longer when the distractor is closer from the

rostral zone of the SC (corresponding to the fovea).

In this paper, we present a model of the SC, based

on DNF formalism, with an identical functioning rule

for all the units in the map. Obtaining such an homo-

geneous substratum can yield fully distributed com-

putation, which is important to design models that can

be used online in robotic visuomotor tasks. Finally,

the proposed model is not an isolated structure but is

a function of exogenous information ﬂows and asso-

ciated geometrical properties.

2 MODEL

We designed a three layers neural network model of

the visual pathway for generating a saccade from the

retina (R) to the superior colliculus (SC) through the

primary visual cortex (V1):

• Retina (R, 256 × 512 units) receives visual input

from a CCD camera.

• Visual cortex (V1, 256 × 256 units) implements

the actual cortical magniﬁcation.

• Superior colliculus (SC, 63×63 units) is the place

where salient locations enters competition.

The retina model is restricted to the right visual ﬁeld

as it is known to be the case in mammals visual path-

way (left visual ﬁeld projects to right colliculus and

right visual ﬁeld projects to left colliculus). We used

an image size of 512 × 512 pixels and fed the retina

with a normalized gray-level image of size 512 × 256

pixels.

2.1 Cortical Magniﬁcation

The retina, the sensory input space, has a com-

plex structure composed of layers of neurones. The

phenomena of vision begins in the layer of photo-

receptors. Then the ﬂow is transmitted to the gan-

glion cells which are large nerve cells whose cylin-

draxes form the optic nerve. Due to the non homoge-

neous repartition of photo-receptors on the (human)

retina surface, visual acuity decreases from the cen-

ter of the retina (fovea) to the periphery. This prop-

erty is attributed to a variation in the density of photo-

receptors that decreases from the center to the periph-

ery (Marilly et al., 1999). Consequently, the foveal

region beneﬁts from a much higher resolution than pe-

ripheral regions and this property is preserved along

the visual pathway up to early visual areas (Purves,

2004). This is referred as cortical magniﬁcation. To

analyze this magniﬁcation in a quantitative way, a co-

ordinate system is often deﬁned in the visual ﬁeld.

The coordinates that are best suited to the visual sys-

tem are polar coordinates (ρ, φ) that characterizes a

position in the visual ﬁeld by its eccentricity ρ from

the center of gaze and its polar angle φ is measured

for example in relation to the lower vertical merid-

ian. We can therefore deﬁne a retinotopic map which

corresponds to the spatial transformation of the image

by the spatial arrangement of the grid of neurons. It

is often approximated by a log-polar transformation

of the spherical image centered on the eye (Robin-

son, 1972). We used a simpliﬁed model of the retina

considering only the photo-receptors layer. And for

computational reasons (speed), we did not enforce

the non-uniform repartition of photo-receptors on the

retina surface but we modeled instead a uniform dis-

tribution of neurons onto the retina associated with

a deformed polar coordinate system as proposed by

SACCADES GENERATION - From the Visual Input to the Superior Colliculus

177

(Ottes et al., 1986). Each cortical visual cell is sup-

posed to be connected to a single or several photo-

receptor cells, with respect to a logpolar deformation,

that form its receptive ﬁeld. So the non uniformity

is caused by the changing size of the receptive ﬁelds.

We used equations mapping retinotopic polar coor-

dinates (ρ, φ) onto V1 Cartesian coordinates (x, y).

These equations were ﬁrst introduced by (Ottes et al.,

1986):

x = B

ln(

+ 2Aρ|cos(φ)| + A

) (1)

y = B

arctan(

ρsin(φ)

ρ|cos(φ)| + A

) (2)

with A = 3

◦

, B

= 1.4mm, B

= 1.8mm. These pa-

rameters have been chosen to ﬁt the stimulation map

of the SC given by (Robinson, 1972). A neuron in

the visual cortex ﬁres an action potential when a vi-

sual stimulus appears within its receptive ﬁeld. But

for any given neuron, it may respond best to a sub-

set of stimuli within its receptive ﬁeld correspond-

ing to its preferred direction. Neurons with similar

tuning properties (what the neurons respond to) tend

to cluster together but the exact structure is still un-

clear. Then, it is acceptable to assume that V1 has

a retinotopic map similar to the collicular motor map

in (Bear et al., 1996). It means that a cell at a given

position (x, y) in the V1 map is activated by retinal

cells in positions (ρ, φ) according to given equations.

One result of this deformation is that the same stim-

ulus causes a large activation in the V1 map if it is

located near the fovea and smaller activation in pe-

ripheral positions (ﬁg1). Visual receptors of V1 have

been modeled in two dimensions corresponding to an

eye visual hemiﬁeld with no connection between the

different receptors.

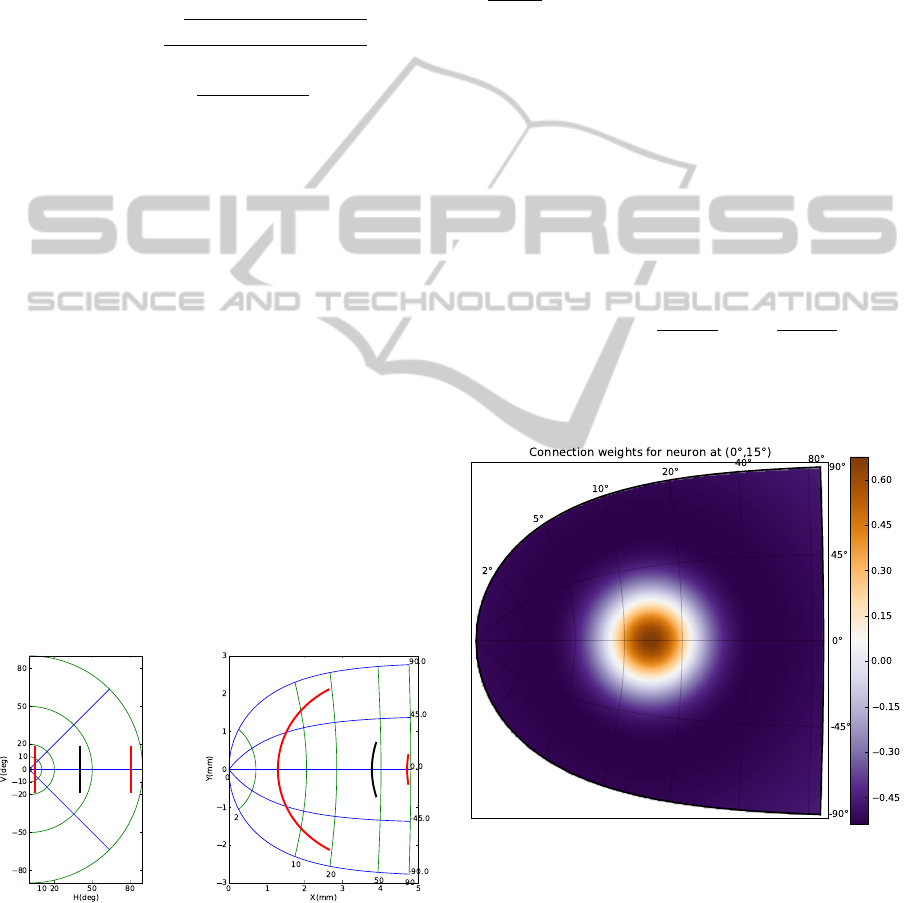

Figure 1: Cortical magniﬁcation from the retina to the

visual cortex distorts geometrical properties of the image

while keeping neighborhood relationship.

2.2 Dynamic Neural Field Theory

Collicular population (the motor layer of one supe-

rior colliculus) has been modeled with respect to the

dynamical neural ﬁeld theory (Wilson and Cowan,

1973; Amari, 1977; Taylor, 1999) that describes the

evolution of a neural population using equation (see

(Rougier and Vitay, 2006) for details):

∂u(x, t)

∂t

= −u(x, t)+

w(x − y) f (u(y))dy + h + I(x, t)

(3)

where x denotes a location onto the SC; t is time;

u(x, t) denotes the membrane potential of a neural

population at point x and time t; τ is the temporal de-

cay of synapses, f is a sigmoid function computing

the mean ﬁring rate, w is a neighborhood function,

s(x) is the input received at position x and h is the

mean neuron threshold. w has been set as a differ-

ence of Gaussian (DoG) with short-range excitations

and long range inhibitions following anatomical and

physiological data as reported in (Munoz and Istvan,

1998) (see also ﬁgure 2):

w(x − y) = Ae

−

|x − y|

− Be

−

|x − y|

(4)

and f has been set as a simple rectiﬁcation of x. The

input I(x, t) is a direct one-to-one relationship accord-

ing to V1 and SC respective sizes.

Figure 2: The lateral weights connecting neurons from the

SC is a difference of Gaussian with short-range excitations

and long range inhibitions following anatomical and phys-

iological data. The ﬁgure displays incoming weights from

all SC neurons to the neuron at position (0

◦

, 15

◦

ICFC 2010 - International Conference on Fuzzy Computation

178

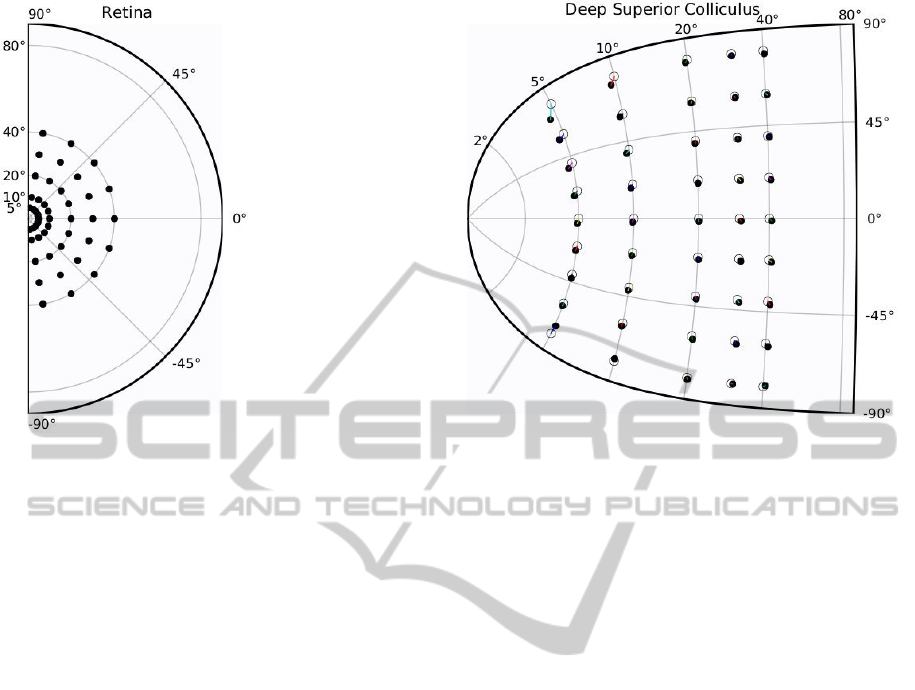

Figure 3: Accuracy of the model of the superior colliculus has been measured using a set of retina targets (black dots on left

ﬁgure) that have been sequentially presented to the SC model. For each target and after convergence (difference of activity

between time t and time t + dt is negligible), the center of mass of the collicular activity has been decoded and represented as

a circle on right ﬁgure (black dots represent the actual projection of the target in collicular coordinates).

3 RESULTS

3.1 Output Decoding

One of the questions related to the superior colliculus

concerns the proper way to decode the output. Since

the amplitude and direction of a saccade depend on

the activity of the neural population in the deep SC

(Sparks et al., 1990), different ways of SC output eval-

uation have been proposed in the past:

• winner-take-all where the most active site indi-

cates the direction

• summation(McIlwain, 1976; Sparks et al., 1976)

where all activities of active neurons are summed

with weights determined by their individual labels

• weighted average (Lee et al., 1988) using a nor-

malization according to the number of active neu-

rons

These three evaluation schemes are equivalent in the

case of a normally activated population but differ

when there is a deactivation or an over-activation.

We’ve retained the last decoding scheme because we

modeled the superior colliculus using a dynamic neu-

ral ﬁeld and it is thus ensured that a stereotyped ac-

tivity proﬁle emerges anytime corresponding to the

most salient location of the V1 area. Furthermore, this

stereotyped activity possesses a Gaussian shaped two-

dimensional proﬁle and it is possible to ﬁnd its center

of mass. We have been testing the accuracy of this

coding scheme by feeding the model with standard

Gaussian shaped stimuli (aperture 0.016

◦

) at different

locations (see ﬁgure 3). Despite the magniﬁcation ef-

fect, one can see that the model has a high precision

in the standard saccadic range (−30

◦

to +30

◦

, 0 to

50). We also tested the inactivation of a subpart of the

colliculus to check that we obtain both hypo-metric

and hyper-metric saccades as reported in (Robinson,

1972) but those results are not presented in this paper.

3.2 Natural Images Processing

We have also tested the model using natural images

taken from a color CCD camera. No image process-

ing has been performed on the image but a conver-

sion to a gray-level representation. Figure 4 exhibits

an example where a subpart of a computer keyboard

has been shot. This allows to illustrate the main fea-

ture of the proposed model. If one look closely at

the half retina representing the keyboard (upper left

part of the ﬁgure), one can see that several letters (O,

P, L, M are eligible for attention focus and an ocu-

lar saccade. However, the retinotopic projection onto

the model of the V1 area reduces quite naturally this

set to letters O and L. The model of the SC is thus

confronted with a choice between these two locations

and the dynamic ﬁeld theory, as it has been introduced

in the previous section, ensures that only one location

remains after competition. However it is hard to spec-

SACCADES GENERATION - From the Visual Input to the Superior Colliculus

179

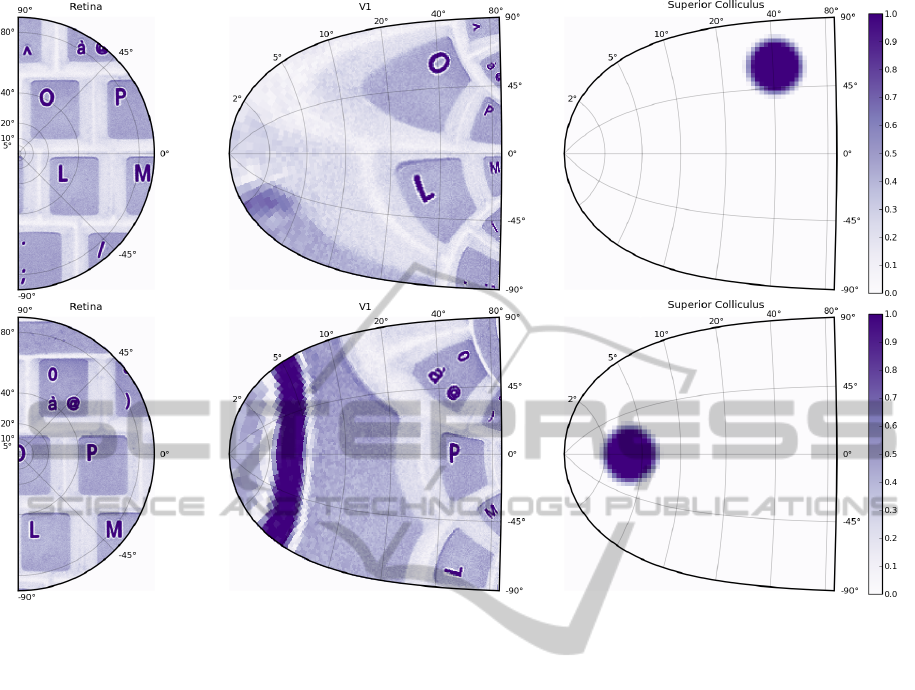

Figure 4: An image of a computer keyboard has been captured using a color camera (resolution 1024×1280) and transformed

into a normalized gray level image. Upper ﬁgure. The right half of the image is presented to the half retina area which in turn

feeds the V1 area where retinotopy is applied following equation 2. The colliculus area enters a competition stage where most

salient locations are eligible for ﬁnal activation and after some iterations, the competition ends up onto the O letter that is thus

considered the most salient location of the visual scene according to its location and activation. Lower ﬁgure. A saccade has

been simulated to center the O letter into the center of the fovea and the colliculus now focuses onto a subpart of the O letter

that appears to be the newly most salient location of the new visual scene.

ify the exact conditions that make the model to focus

on the O instead of the L letter in the given example

and the spatially compact shape of the O is certainly

to be taken into account. This example also under-

lies the inherent difﬁculty in temporally organizing

ocular saccades without any top-down control. If we

were to let the model only reacts to its environment,

it would certainly focus on the most salient location

without ever exploring other point of interest (from

a behavioural point of view). If the actual saccade

brings into view another salient location, the model

would jump again to the new location (provided we

inhibited the foveal region to prevent the model to

be stuck forever on this single location) but in such

a case, nothing would prevent the model from going

to location A then location B and the again location A,

being trapped in a cycle. Exploring the whole visual

scene thus requires some kind of top down control to

be able to dynamically inhibit visited location once

they have been focused in order to favor other loca-

tions. This is out of scope of the present article but

this has been already made in a less realistic model

(Fix et al., 2006).

4 DISCUSSION

In many visuomotor behaviors, the superior collicu-

lus is reported as an important multimodal map, in-

tegrating various kinds of exogenous and endogenous

information. Most of the models of this structure in-

sist on its internal structure and function, but rarely on

its implication in the main information ﬂows, which

is important from a behavioral point of view.

The model of the superior colliculus presented in

this paper has two speciﬁcities: (i) It is based on a

bio-inspired homogeneous local functioning rule. (ii)

It is linked with the external world through an infor-

mation ﬂow coming from the retina. In ongoing and

future works, these speciﬁcities will be developed fur-

ICFC 2010 - International Conference on Fuzzy Computation

180

ther. Concerning the ﬁrst aspect, the model has been

designed together with colleagues from neuroscience

and its justiﬁcation with regard to biological data is

being also prepared for publication. Concerning the

second aspect, we have only considered for the mo-

ment exogenous inputs coming from the retina. Fur-

ther works will consider endogenous inputs convey-

ing such information as instructions, goals or motiva-

tions from other neural structures.

REFERENCES

Amari, S.-I. (1977). Dynamics of pattern formation in

lateral-inhibition type neural ﬁelds. Biological Cyber-

netics, 27(2):77–87.

Bear, M., Connors, B., and Paradiso, M. (1996). Neuro-

science: Exploring the Brain. Lippincott Williams &

Wilkins.

Findlay, J. and Walker, R. (1999). A model of saccade gen-

eration based on parallel processing and competitive

inhibition. Behavioral and Brain Sciences, 22(4):661–

674.

Fix, J., Vitay, J., and Rougier, N. (2006). A computational

model of spatial memory anticipation during visual

search. In Anticipatory Behavior in Adaptive Learn-

ing Systems.

Girard, B. and Berthoz, A. (2005). From brainstem to cor-

tex: computational models of saccade generation cir-

cuitry. Progress in Neurobiology, 77(4):215–251.

Godijn, R. and Theeuwes, J. (2002). Programming of en-

dogenous and exogenous saccades: evidence for a

competitive integration model. Journal of experimen-

tal psychology: human perception and performance,

28(5):1039–1054.

Isa, T. (2002). Intrinsic processing in the mammalian su-

perior colliculus. Current opinion in Neurobiogy,

12(6):668–677.

Kramer, A., Irwin, D., Theeuwes, J., and Hahn, S. (1999).

Oculomotor capture by abrupt onsets reveals concur-

rent programming of voluntary and involuntary sac-

cades. Behavioral and Brain Sciences, 22(4):689–

690.

Lee, C., Rohrer, W., and Sparks, D. (1988). Population

coding of saccadic eye movements by neurons in the

superior colliculus. Nature, 332(6162):357–360.

Marilly, E., Mercier, A., Coroyer, C., Faure, A., and

Cachard, O. (1999). Proprits d’un pr-processeur de

vision fovale. Dix-septime colloque GRETSI.

McIlwain, J. (1976). Large receptive ﬁelds and spatial

transfor- mations in the visual system. Int. Rev. Phys-

iol., 10:223–248.

Muller, J., Philiastides, M., and Newsome, W. (2005). Mi-

crostimulation of the superior colliculus focuses atten-

tion without moving the eyes. Proceedings of the Na-

tional Academy of Sciences, 102(3):524–529.

Munoz, D. and Istvan, P. (1998). Lateral inhibitory interac-

tions in the intermediate layers of the monkey superior

colliculus. J. Neurophysiol., 79:1193–1209.

Ottes, F., Gisbergen, J. V., and Eggermont, J. (1986). Visuo-

motor ﬁelds of the superior colliculus: a quantitative

model. Vision Res, 26(6):857–873.

Purves, D. (2004). Neurosciences. De Boeck, second edi-

tion.

Rizzolatti, G., Riggio, L., Dascola, I., and Umil, C. (1987).

Reorienting attention across the horizontal and verti-

cal meridians: evidence in favor of a premotor theory

of attention. Neuropsychologia, 25(1):31–40.

Robinson, D. (1972). Eye movements evoked by collicu-

lar stimulation in the alert monkey. Vision Research,

12(11):1795–1808.

Rougier, N. and Vitay, J. (2006). Emergence of atten-

tion within a neural population. Neural Networks,

19(5):573–581.

Schneider, S. and Erlhagen, W. (2002). A neural ﬁeld model

for saccade planning in the superior colliculus: speed-

accuracy tradeoff in the double-target paradigm. Neu-

rocomputing, 44-46:623–628.

Sparks, D., Holland, R., and Guthrie, B. (1976). Size and

distribution of movement ﬁelds in the monkey supe-

rior colliculus. Brain Res., 113(1):21–34.

Sparks, D., Lee, C., and Rohrer, W. (1990). Population cod-

ing of the direction, amplitude, and velocity of sac-

cadic eye movements by neurons in the superior col-

liculus. Cold Spring Harbor symposia on quantitative

biology, 55:805–811.

Taylor, J. (1999). Neural bubble dynamics in two dimen-

sions: foundations. Biological Cybernetics, 80:393–

409.

Trappenberg, T., Dorrisn, M., Munoz, D., and Klein, R.

(2001). A model of saccade initiation based on the

competitive integration of exogenous and endogenous

signals in the superior colliculus. Journal of Cognitive

Neuroscience, 13(2):256–271.

Wilson, H. and Cowan, J. (1973). A mathematical theory of

the functional dynamics of cortical and thalamic ner-

vous tissue. Biological Cybernetics, 13(2):55–80.

Wurtz, R. and Optican, L. (1994). Superior colliculus cell

types and models of saccade generation. Current

Opinion in Neurobiology, 4(6):857–861.

SACCADES GENERATION - From the Visual Input to the Superior Colliculus

181
