ANSWER GRAPH CONSTRUCTION FOR KEYWORD SEARCH ON

GRAPH STRUCTURED(RDF) DATA

K. Parthasarathy

∗

Indian Space Research Organisation, Bangalore, India

P. Sreenivasa Kumar

Department of Computer Science and Eng., Indian Institute of Technology Madras, Chennai, India

Dominic Damien

Indian Space Research Organisation, Bangalore, India

Keywords:

Keyword search, Answer graph, RDF.

Abstract:

Keyword search is an easy way to allow inexperienced users to query an information system. It does not need

knowledge of speciﬁc query language or underlying schema. Recently answering keyword queries on graph

structured data has emerged as an important research topic. Many efforts focus on queries on RDF(Resource

Description Framework) graphs as RDF has emerged as a viable data model for representing/integrating semi-

structured, distributed and interconnected data. In this paper, we present a novel algorithm for constructing

answer graphs using pruned exploration strategy. We form component structures comprising closely related

class and relationship nodes for the keywords and join the identiﬁed component structures using appropriate

hook nodes. The Class/SubClass relationships available in RDF schema are also utilized for the answer graph

construction. The paper illustrates the working of the algorithm using AIFB institute data.

1 INTRODUCTION

Query processing over graph based data has attracted

considerable attention recently as increasing amount

of data which is available in web, XML and DBMS

can be modeled in the form of a graph. RDF being

a framework for web resource description appears to

have a greater momentum on the web and an increas-

ing collection of repositories of data are modeled us-

ing RDF framework. Notable examples are biological

and chemical databases, Web-scattered data, health-

care, Personal Information Systems(where emails.

documents and photos are merged into a graph us-

ing connection elements) and enterprise information

management (EIM) systems like launch vehicle de-

sign data where details about vehicle stages, param-

eters and stage sequence events are modeled. In this

class of applications raw data may not be graph struc-

tured at the ﬁrst level but implicit connections will

∗

External Research Scholar, CSE Dept, IIT Madras.

provide a graph structure. The largeness and complex-

ity of datasets in these domains make their querying a

challenging task.

As keyword queries do not require the users to

know complex query language or know details re-

garding the underlying schema much work has been

carried out on keyword search on databases(Bhalotia

et al., 2002; He et al., 2007; Kacholia et al., 2005),

tree structured data(Guo et al., 2003) and recently on

graph structured data(Tran et al., 2007; Zhou et al.,

2007; Revuri et al., 2006). A generic approach ﬁrst

identiﬁes parts of graph containing the keywords of

interest, explores for discovering possible intercon-

nections between identiﬁed parts. Candidate solu-

tions built out of the connections found are scored and

ranked.

Following are some of the speciﬁc issues related

to the approaches adopted both by existing database

and graph based keyword search methods:

• The methods explore all possible paths. Unimpor-

tant results are logically pruned by means of scor-

162

Parthasarathy K., Sreenivasa Kumar P. and Damien D..

ANSWER GRAPH CONSTRUCTION FOR KEYWORD SEARCH ON GRAPH STRUCTURED(RDF) DATA.

DOI: 10.5220/0003067001620167

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 162-167

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

ing and ranking mechanism. They do not attempt

to prune the search space in the earlier exploration

phase of the graph search.

• Class/Sub-Class and other relations available in

RDFS framework are not being exploited suitably

for keyword queries. For example in the RDF

repository of AIFB institute, if the query {person,

aifb, publication} is submitted and if the interpre-

tation is to retrieve all publications from persons

related to the institute aifb, exploration scheme

described in (Tran et al., 2007) will not function

properly if some of the RDF instance data related

to a publication belongs to a class TechnicalRe-

port which is a subclass of Publication.

• As input RDF graph becomes bigger, traversing

through all the nodes in the exploration phase for

all possible paths as adopted in (Tran et al., 2007)

will lead to performance issues.

In this paper we propose a novel approach to key-

word search in the graph structured data represented

as RDF. The approach attempts to provide possible set

of answers in an efﬁcient way. For each mapped node

or edge for the keyword the closest concept or set of

concepts and relationship nodes are identiﬁed to form

a keyword cluster. Using a pruning strategy nodes

from the clusters which cannot contribute to the over-

all structure of the query are removed. The modiﬁed

set of clusters are explored to ﬁnd suitable hook ele-

ments for joining and constructing the answer graph

for the keyword query.

The paper is organized as follows. Section 2

describes the preliminaries of the problem, Section

3 describes the overall approach and algorithm de-

scription, Section 4 presents the illustration, Section

5 presents the evaluation, Section 6 presents related

works and Section 7 presents conclusion and future

works.

2 PROBLEM DEFINITION

Given a data graph G of an RDF data model, we are

concerned with querying the graph using keywords.

Deﬁnition 1. A data graph G is a tuple of the form

(N,R,E) where

• N is a ﬁnite set of nodes which can represent

classes, entities and data values. Nodes repre-

senting entities are referred by speciﬁc IDs as

shown in Figure 1. These IDs will not be used

for queries as they are internal to the RDF graph.

id3instance

ResearchGroup

ResearchTopic

SmartWeb

id2084instance

id50instance

id227instance

Project

Pascal Hitzler

Name

Member

CarriedOutBy

IsAbout

Class

Name

Knowledge

Management

Semantic Web

Topic

Class

Name

Class

SubClass

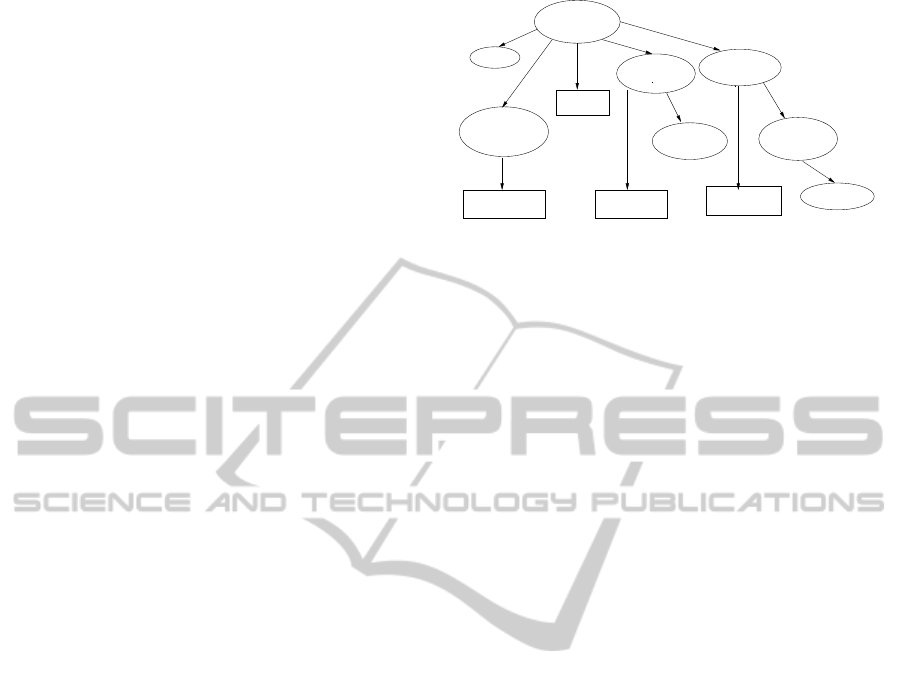

Figure 1: RDF graph fragment from AIFB Institute

Data.

• R is the set of edge labels for edges which can

represent inter-entity edges, entity-attribute edges

or class/sub-class edges.

• E is the ﬁnite set of labeled edges of the form

e(n

) with n

, n

ε N and e ε R.

Class and Subclass are two predeﬁned type of special

edges which capture class membership and class hier-

archy. Figure 1 shows a fragment of RDF graph con-

taining data taken from AIFB institute(University of

Karlsruhe) which is also the data set used for illustra-

tion of the algorithm in this paper. The fragment mod-

els the information that Pascal Hitzler is a member

of a Project called SmartWeb carried out by Knowl-

edge Management ResearchGroup on ResearchTopic

Semantic Web.

Queries. A keyword search query Q consists of a list

of keywords {k

,. . . k

}. Given this list of key-

words the answer graph to the query is the set of

minimal possible subgraph A s.t

• Every keyword is contained in at least one node

or edge in A.

• The graph consists only of keyword nodes,

class nodes connected by inter-entity and entity-

attribute edges. The edge labels also form part of

the answer graph.

• Answer A is minimal in the sense that no sub-

graph of A can be an answer to Q. If keyword

node is removed then that keyword is not present

anywhere else in A. If a non keyword node is re-

moved the graph becomes disconnected.

It may be noted that the answer graph is not a result set

to the keyword query, but only provides a view of the

bonding structure of the keywords with respect to the

RDF repository. The answer graph could be used to

provide more insight into the schema or can be used to

generate structured queries using query frameworks

like SQL and SPARQL.

ANSWER GRAPH CONSTRUCTION FOR KEYWORD SEARCH ON GRAPH STRUCTURED(RDF) DATA

163

Problem. We are concerned with the construction of

set of possible answer graphs to the query using

RDF data repository represented as a graph.

Assumption. We assume that the mapped elements

for the keywords are available for the algorithmic

step to proceed with the construction of the an-

swer graph. Mapping refers to a process where a

keyword is lexically analyzed and a list of graph

elements having labels that are syntactically sim-

iliar to the keyword is returned.

3 ALGORITHM APPROACH AND

DESCRIPTION

Answer Graph Generation. The terms from the

term mapping stage are mapped to a set of

nodes/edges of the graph corresponding to the

data model. By taking one nodal element for each

term a nodelist NL is formed which is an input

for answer graph construction. In order to gener-

ate an answer graph using the mapped elements

of the nodelist in the graph, each mapped ele-

ment is used to construct a closely related clus-

ter consisting of the element class category and

list of relationship nodes along with the edges and

edge labels(component structure creation step).

In the next step the algorithm attempts to prune

the loosely hanging nodes which cannot possi-

bly be hooked to any other nodes in the clus-

ter(pruning step). In the next step which does

the hooking operation the algorithm incrementally

constructs answer graph by ﬁnding suitable hook-

ing elements between the clusters(hooking step).

The steps mentioned maintains the following class

of nodes

• C-Node (Class Node) - Node which corresponds

to a Class Category

• D-Node (Data Value Node) - Nodes which repre-

sents data values

• CR- Node (Relationship Nodes) - Class Nodes

which are connected by inter-entity edges

Component Structure Creation. In this step each

node from NL is taken and the characterstic of the

node is found. If the node is a C-Node, then the

inter-entity edges along with the edge labels are

added to the component structure which will be

initially empty. If the node is a D-node, then the

C-Node for which this D-node is associated and

CR-Nodes for the C-Node along with the edge la-

bels are added. If the node is mapped to an inter-

entity edge, then the corresponding C-Nodes are

added and if it is mapped to an entity-attribute

edge, then a dummy node for the attribute side,

C-Node for the class to which entity is associated

and CR-Nodes for the C-Node are added. The

component structures obtained for all nodes in NL

will act as input to the pruning step.

Pruning. In this step the algorithm prunes the

loosely hanging nodes which possibly cannot be

utilised for hooking. For each pairwise compo-

nent structure, common nodes which are similiar

are found. This is found by the intersection of

the nodelist pair. Two nodes are considered si-

miliar if they are the same node in the graph or

they are connected by means of Class/SubClass

relationship. This concept of similiarity can be

extended for other scenarios e.g when the nodes

are connected by means of a chain of intermediate

nodes.The union of all the common nodes found

by considering all pairs of component structure

represents the participating nodelist. The nodes to

be pruned is the complement node list of the par-

ticipating node list with respect to the full node

list. The pruned node along with the edge label

to which is connected is removed from the cor-

responding component structure. The new list of

component structures obtained will act as input to

hooking step.

Hooking. In this step we start to explore whether CR-

node of a component structure can be hooked on

to a similiar CR-Node or C-Node of another com-

ponent structure. Initially a component structure

with lowest cardinality is chosen for starting the

hooking operations. If there are multiple choices,

the component structure in which there is a CR-

Node which can be hooked to C-Node of another

component structure is chosen for start of hook

operations. The hooking step uses the node simil-

iarity feature as deﬁned in pruining step for hook

operations. Once nodes to be hooked are identi-

ﬁed, the corresponding component structures are

glued together. Nodes which are duplicates are

removed and a new glued component structure is

used for further hooking operations. This process

continues until no more nodes could be hooked.

The ﬁnal component structure arrived at is anal-

ysed for loosely hanging nodes and they are cut

off. The closely connected structure thus formed

will be the answer graph for the keywords pre-

sented by the user.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

164

4 ILLUSTRATION OF THE

ALGORITHM

Keyword Query. abstract schmeck 2005

This query has been chosen for illustration to

show that our approach exploits the class/subclass

relationship during the graph exploration phase for

choosing the relevant nodes. The term mapping step

provides one of the following mapping.

• Keyword abstract will be mapped on to the term

abstract.

• keyword Schmeck will be mapped on to the term

Schmeck Blohm.

• keyword 2005 will be mapped on the term 2005.

The structural component creation step will form the

three components as shown in Figures 2a,2b and 3.

In the pruning step the node Project with re-

lationship worksAtProject and node ResearchGroup

with relationship afﬁliation associated with cluster

for Schmeck gets removed. Even though it appears

that Publication is also an isolated node category, the

class/subclass relationship of Publication with InPro-

ceedings, InCollection and Misc is used to retain the

node.

The hooking step starts with a node in a compo-

nent structure having smallest cardinality. If there

are multiple options any one can be chosen. Starting

with the Person node in Figure 3 we explore whether

it can be hooked with any node in Figure 2a, 2b.

Even though FullProfessor and Person are syntacti-

cally different they are related by class/subclass rela-

tionship. We use this feature to hook them. In a si-

miliar manner, after this hooking step, the node Pub-

lication in the merged component structure is hooked

with nodes InProceedings, InCollection and Misc in

component structure of Figure 3. Since Person node

has already been considered and no more compo-

nent structures need to be considered we get the ﬁnal

joined subgraph as shown in Figure 4.

(Tran et al., 2007) does not capture the

Class/SubClass relationship as part of the RDF graph.

As such it cannot handle the keyword scenario where

the keywords either refer to the superclass or a sub-

class. We exploit this knowledge to arrive at the cor-

rect answer graph reﬂecting the data repository. Our

approach uses schema knowledge rather than relying

purely on the graph paths alone.

InCollection MiscInProceedings

Person

AbstractString

Abstract

Author

(a) abstract.

Schmeck

FullProfessor

ResearchGroup PublicationProject

Name

WorksAtProject Affliation

Publishes

(b) Schmeck.

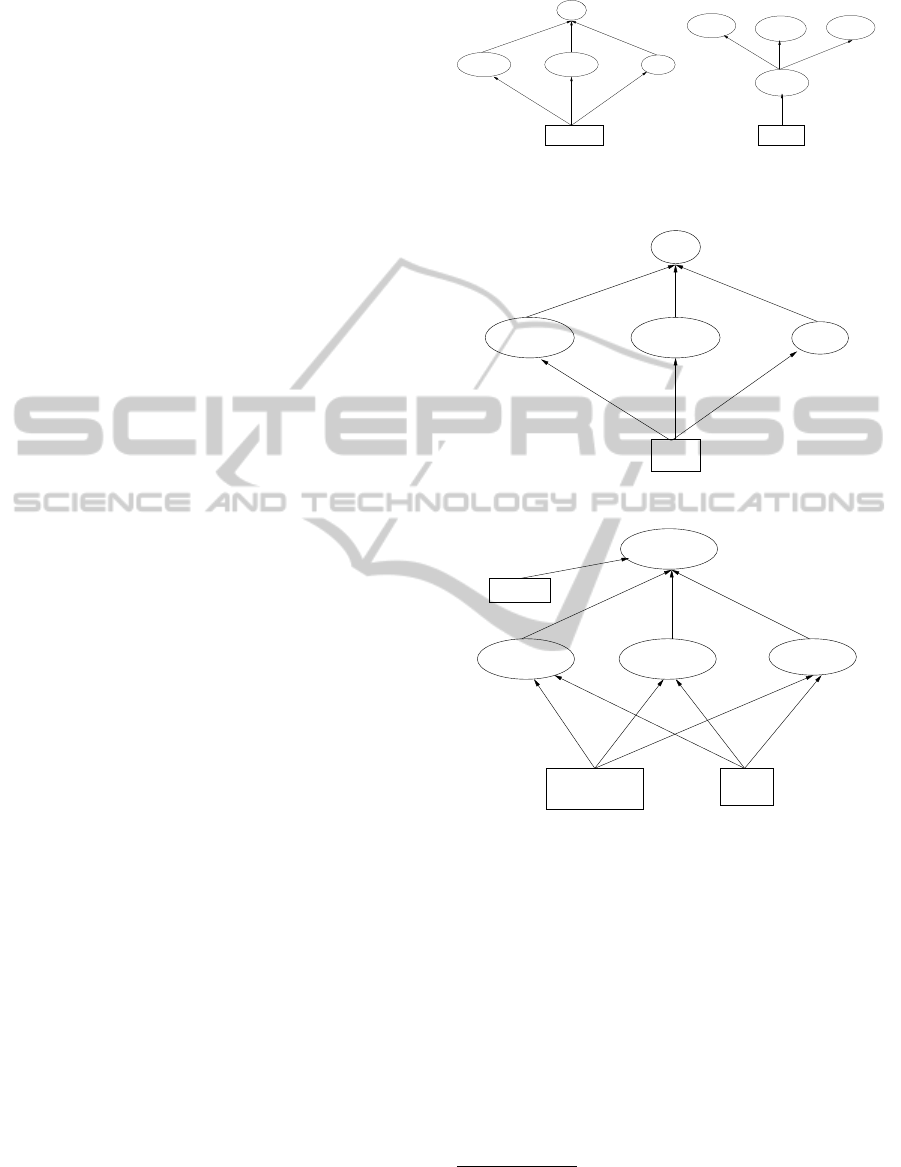

Figure 2: Structural component for the Illustration.

InCollection MiscInProceedings

Person

Author

Year

2005

Figure 3: Structural component for term 2005.

InCollection

abstractstring 2005

Misc

FullProfessor

Abstract

Author

Abstract

Schmeck

Author Author

Year

InProceedings

Name

Figure 4: Answer graph for Example.

5 EVALUATION

In order to carry out an evaluation of our approach,

the knowledge repository of AIFB institute, Uni-

versity of Karlsruhe

2, 3

was used. The knowledge

represents projects ﬁnanced by the institute, details

about researchers working on those projects and de-

tails about the publications of those projects. This

knowledge is represented in RDF framework using

OWL. For evaluation this framework was ﬁrst rep-

resented as a graph and around 25 different queries

http://km.aifb.uni-karlsruhe.de/ws/eon2006/ontoeval

.zip

http://ontoware.org/swrc/swrc/SWRCOWL/swrc_v0.3

.owl

ANSWER GRAPH CONSTRUCTION FOR KEYWORD SEARCH ON GRAPH STRUCTURED(RDF) DATA

165

were generated. One such query is already illus-

trated. Some of the other queries were: “”projects

X(Retrieve all projects that X is working), “author

publications data mining”(publication details related

to data mining), “journal 2006 publications”(journal

publications in 2006) and “topic webservice publi-

cations”(publications dealing with topic webservice).

The approach seems to be promising as the answer

graphs constructed for these queries provided the

closest assembly of nodes and relationships to the

keywords submitted. On the negative side, the algo-

rithm proposed fails for the following keyword query

“AIFB journal”. In this example which corresponds

to an extreme case, Organisation and Project nodes

get added to component structure of AIFB and Article

and Publication gets added to component structure of

journal. The pruning step does not identify any si-

miliar nodes. The reason for the failure is that the

keywords are far apart and hence pruning step fails to

identify similiar nodes for hooking to happen. Prun-

ing step will be suitably extended to handle these class

of examples.

In our illustrations we have shown one answer

graph that gets constructed out of the exploration

phase. But given keywords multiple interpretations

are possible and this leads to multiple answer graphs.

For e.g given the keyword list {X-Media, Philip, Pub-

lications} the possible interpretations are

• publications by Philip in Project X-Media;

• publications by Philip with X-Media in title;

• publications by Philip with X-Media in abstract.

During the term mapping phase X-Media will be

mapped on to name node , title node and abstract

node. This leads to three answer graphs for the same

set of keywords. There is a need to rank these graphs.

We are working on a ranking metric which will be a

function of the strength of the individual cluster and

also on the strength of the hook between clusters.

6 RELATED WORK

In this paper we have addressed the issue of an-

swer graph construction for keyword queries on graph

structured data through a concrete algorithm for graph

exploration. We have tried to improve the graph ex-

ploration through an alternative approach by adopt-

ing pruning and hooking as compared to (Zhou et al.,

2007; Tran et al., 2007).

Keyword search on structured data has been ex-

tensively investigated in recent years under different

contexts. Earlier approaches (Bhalotia et al., 2002;

He et al., 2007; Kacholia et al., 2005) tried to address

keyword search in the context of relational databases.

Exact matches between keywords and labels of data

elements were done. Also substructures in the form

of trees were constructed and the root element is as-

sumed to be the answer. (Bhalotia et al., 2002) uses

backward search algorithm. In order to improve the

search by limiting the nodes to be visited, (Kacho-

lia et al., 2005) proposed bi-directional search algo-

rithm where the exploration is through both backward

and forward edge. The idea is to reach the root ele-

ment faster through this approach. (He et al., 2007)

also adopts distinct root semantics but improves the

efﬁciency of the search using partitioning, balanced

cost strategy and indexing to support forward jumps.

These methods however do not exploit the schema

knowledge for processing queries.

(Revuri et al., 2006) presents a system for key-

word search that ﬁts the query terms in an appropriate

way from the ontology graph and derives an enhanced

query. This query is given to the basic keyword search

engine and results obtained are ranked. The system

adopts a template based approach where it ﬁxes the

structure and then enhances the terms. Also the key-

words are restricted to two terms. (Tran et al., 2007)

presents a generic graph based approach to explore

the connections between terms mapped to keywords

of the query using knowledge available in ontolo-

gies. A three step process consisting of term mapping,

connection exploration and DL query construction is

used. The exploration is restricted to connections

where an instance is related to a concept by an is-a

relation and two instances are related by object and

data properties.The exploration builds a graph con-

necting a term element with all its neighbours within

a speciﬁed range d. The process of exploration re-

lies mainly on assertional knowledge resulting in a

large number of paths that need to be processed. The

graph does not model class/sub-class forms of rela-

tionship. (Zhou et al., 2007) also adopts three step

process: term mapping, query graph construction and

query ranking. For each grouping of terms different

query sets are constructed by enumerating all possi-

ble combinations from different sense of terms. From

each query set a query graph is derived. A probabilis-

tic ranking model is adopted for ranking the query

graphs. In this system also the knowledge features

and pruning mechanisms are not exploited during the

exploration phase.

In our approach we have adopted a different strat-

egy for the exploration phase. Unlike above we are

not considering all the nodes for exploration.We cre-

ate a fragment of closely related concept and re-

lationship cluster and then prune unwanted nodes

and edges. We also adopt a guided exploration

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

166

strategy which exploits other knowledge character-

stics(class/subclass relationship) instead of purely re-

lying on assertional knowledge. This approach can be

logically extended if the keywords provided are not

within a distance neighbourhood.

7 CONCLUSIONS AND FUTURE

WORK

We have presented a concrete algorithm for answer

graph construction, given a set of key- words and a

knowledge repository represented as an RDF graph.

We have also illustrated the approach for differ-

ent keyword sets and AIFB in- stitute knowledge

base.The results obtained on sample queries seem to

be promising. This approach needs to be validated

using implementation on standard benchmarks.

REFERENCES

Allemang, D. and Hendler, J. (2008). Semantic Web for

the Working Ontologist Modeling in RDF, RDFS and

OWL. Morgan Kaufmann Publishers, MA, 1st edition.

Bhalotia, G., Hulgeri, A., Nakhe, C., Chakraborti, S.,

and Sudharshan, S. (2002). Keyword searching and

browsing in database using banks. In ICDE 2002.

Guo, L., Shao, F., Botev, C., and Shanmugasundaram, J.

(2003). Xrank: Ranked keyword search over xml doc-

uments. In SIGMOD Conference 2003.

He, H., Wang, H., Yang, J., and Yu, P. S. (2007). Blinks:

Ranked keyword searches on graphs. In SIGMOD

Conference 2007.

Kacholia, V., Pandit, S., Chakraborti, S., Sudharshan, S.,

Desai, R., and Karambelkar, H. (2005). Bidirectional

expansion for keyword search on graph databases. In

VLDB 2005.

Kimﬁeld, B. and Sagir, Y. (2006). Finding and approximat-

ing top-k answers in keyword proximity search. In

PODS 2006.

Lei, Y., Uren, V., and Motta, E. (2006). Semsearch: A

search engine for the semantic web. In 15th Inter-

national Conference on Knowledge Engineering and

Knowledge Management(EKAW),(2006).

Revuri, S., Upadhyaya, S. R., and Kumar, P. S. (2006).

Using domain ontologies for efﬁcient information re-

trieval. In International Conference on Management

of Data COMAD 2006.

Sure, Y., Bloehdorn, S., Haase, P., Hartmann, J., and Oberle,

D. (2005). The swrc ontology - semantic web for re-

search communities. In Proceedings of the 12th Por-

tuguese Conference on AI(EPIA 2005).

Tran, T., Camiano, P., Rudolph, S., and Studer, R. (2007).

Ontology based interpretation of keywords for seman-

tic search. In ISWC/ASWC,2007.

W3C (2004). Owl web ontology language reference. In

http://www.w3.org/TR/owl-ref/.

Zhou, Q., Wang, C., Xiong, M., Wang, H., and Yu, Y.

(2007). Spark: Adapting keyword query to semantic

search. In ISWC/ASWC,2007.

ANSWER GRAPH CONSTRUCTION FOR KEYWORD SEARCH ON GRAPH STRUCTURED(RDF) DATA

167
