INFLUENCE

AND SELECTION OF BASIC CONCEPTS ON

ONTOLOGY DESIGN

Tomasz Boinski, Piotr Orlowski, Piotr Szpryngier and Henryk Krawczyk

Faculty of Electronics, Telecommunications and Informatics, Gdansk University of Technology

11/12 Gabriela Narutowicza Street, Gdansk, Poland

Keywords:

Ontology, Set of basic concepts, Ontology learning.

Abstract:

Ontologies as entities representing individual point of view on surrounding world introduce heterogeneity

to knowledge representation. Common set of core concepts can introduce similarity big enough for further

interoperability between ontologies. In this paper an experiment is presented proving that despite differences

in detail ontologies stay similar in regard of core concepts. During the experiments NOIA methodology

enhanced by OCS methodology was used to create ontologies from three signiﬁcantly different sources of

knowledge about risk management.

1 INTRODUCTION

Ontology creation is a complex task dependent on

methodology and a set of basic concepts. Ontologies

presenting different points of view limit interoperabil-

ity, making mapping or merging a tedious task.

To be usable by a wide range of recipients the

created ontology needs to represent a common view

of the described problem. Humans, however tend to

have a distinct way of perceiving the surrounding re-

ality. Different sets of basic concepts can be used and

utilized. Furthermore a common set of basic concepts

not always means a common set of basic deﬁnitions.

Even slight differences can lead to potentially differ-

ent ontologies. There are some upper ontologies pro-

posed (Niles and Pease, 2001) (Masolo et al., 2003)

but it’s highly unlikely that a global agreement will

be met upon a common set of concepts or the shape

of an ontology. Without such agreement upon basic

concepts and their deﬁnitions, interactions between

systems using different ontologies will be difﬁcult -

a need for costly manual mapping arises.

The purpose of this paper is to test whether us-

ing distinct sets of deﬁnitions for chosen sets of basic

concepts can provide ontologies similar enough to in-

teroperate with each other. In other words, how the

choice of a knowledge source implies the ﬁnal struc-

ture of the ontology.

Objectives for this test were as follow:

1. To choose the ontology domain and three different

sources of knowledge.

2. To build three ontologies using chosen knowledge

sources.

3. To evaluate prepared ontologies.

4. To compare result ontologies and conclude the re-

search.

The following section will present the initial as-

sumptions. Next, in section 3, methodology and

groupwork model used for ontology creation will be

described. In section 4 the basic set of concepts and

their deﬁnitions are described. In section 5 the pro-

cess of creating ontologies and achieved results are

presented. Section 6 shows achieved results.

2 INITIAL ASSUMPTIONS

2.1 Ontology Domain

Choice of a vague domain of concepts was needed to

allow use of more diversiﬁed knowledge sources. The

risk has many, often contrary, deﬁnitions i.e. (Waste,

2006) (Hall and Hulett, 2002) (Knight, 2002) and that

was the main reason of choosing it as the ontology

domain.

2.2 The Ontology Purpose and Scope

The prepared ontology has a strictly research purpose.

It should answer the question, what are the main rela-

364

Boinski T., Orlowski P., Szpryngier P. and Krawczyk H..

INFLUENCE AND SELECTION OF BASIC CONCEPTS ON ONTOLOGY DESIGN.

DOI: 10.5220/0003076103640369

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 364-369

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

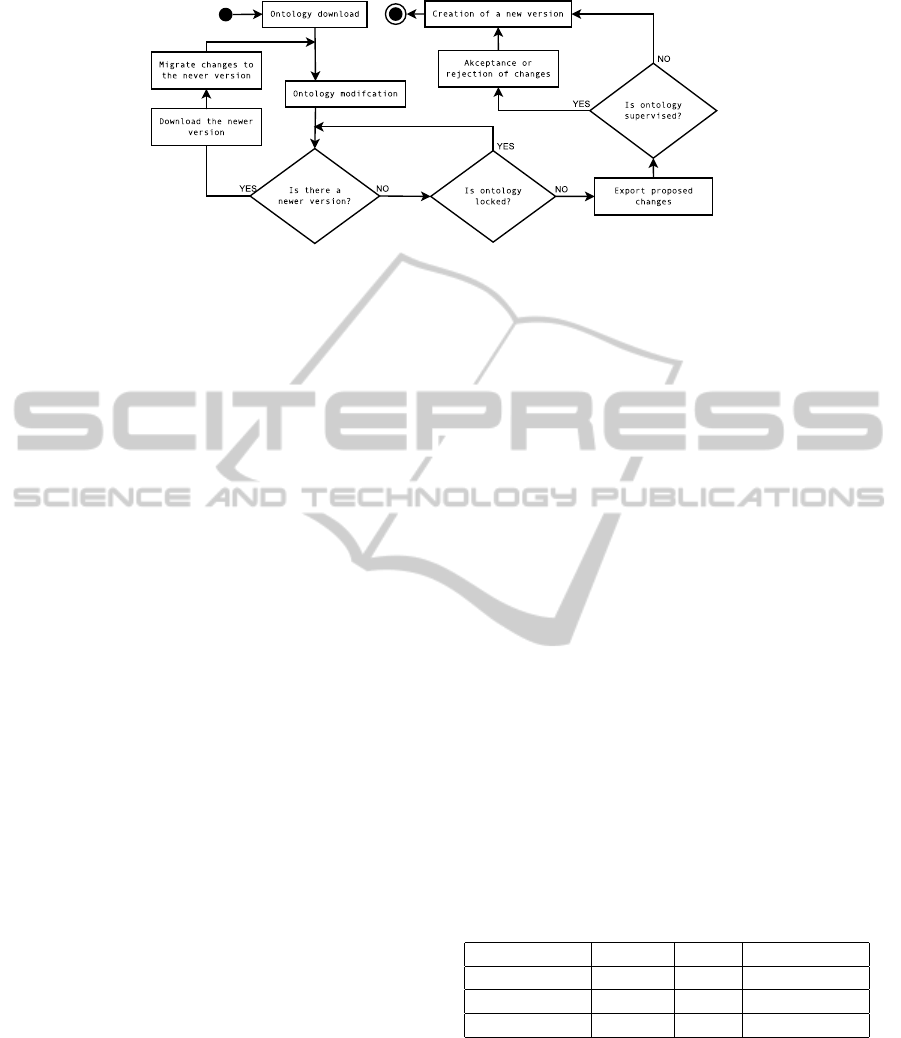

Figure 1: Process of creating new version of an ontology in OCS.

tions between the concepts of risk, threat, vulnerabil-

ity and asset. These terms appear in most risk deﬁni-

tions.

2.3 Knowledge Sources

Basing on a search of the literature, three sources of

knowledge were chosen:

• NIST Glossary of Key Information Security

Terms (Kissel, 2006),

• ENISA Risk Management Glossary (Enisa,

2010),

• Software Engineering, Ian Sommerville (Som-

merville, 2006).

Two of them are glossaries prepared by recog-

nized organizations: one American, NIST - National

Institute of Standards and Technology and one Eu-

ropean, ENISA - European Network and informa-

tion Security Agency. The third one is a recognized

software engineering university coursebook from The

United Kingdom, but it also contain deﬁnitions of

used terms. All are texts written in natural language

and describing security domains. NIST glossary con-

tains deﬁnitions used in USA and gives us a view to

terminology used in America. ENISA Glossary was

prepared for European Union Institutions and Mem-

ber States. Consequently it presents terminology used

in Europe and often utilises ISO (International Orga-

nization for Standardization) deﬁnitions. The book

written by Ian Sommerville presents risk terminology

in a more objective way, according to concepts used

by software engineers.

2.4 Used Groupwork Model and

Software

Ontologies have been created using a methodol-

ogy initially designed for Ontology Creation System

(OCS) (Boinski et al., 2009) developed by The De-

partment of Computer Architecture of Gdansk Uni-

versity of Technology. Opposed to methodology

available in Protegeeditor (Gennari et al., 2002) (Noy

et al., 2000) with Collaborative Protege (Tudorache

et al., 2008) extension, this methodology ensures that

the creator of the ontology will retain control over it.

Whereas Protege resolves conﬂicts by means of vot-

ing, OCS methodology always leaves the ﬁnal word

to the ontology owner.

Any registered user can propose some changes in

any ontology. A privileged user, i.e. ontology creator

or an expert designated by him, can accept or reject

proposed changes. After that, a new version is created

and accepted changes are available for other develop-

ers. The whole process is showed in Figure 1. When

an ontology is public and its development is not re-

stricted in any way, the process of submitting propo-

sitions of changes can be combined with creating a

new version.

For the purpose of this paper we distinguish a se-

curity expert, who was assigned the role of an ontol-

ogy owner and all changes needed to be accepted by

him.

Table 1: Aggregated results of ontology comparison using

Falcon-OA (Jian et al., 2005).

ENISA NIST Sommerville

ENISA X 26 17

NIST 26 X 18

Sommerville 17 18 X

3 RESEARCH METHODOLOGY

3.1 Ontology Learning

There are many methodologies of learning ontolo-

gies from natural text, for example (McGuiness and

INFLUENCE AND SELECTION OF BASIC CONCEPTS ON ONTOLOGY DESIGN

365

Table 2: Similarity between ENISA and NIST based ontologies.

No. Concept name Concept name Similarity

in ENISA in NIST

1 Group Group 1.0

2 Operation Operation 0.9989048162438352

3 Safeguard Safeguard 0.9984604434491676

4 Mission Mission 0.9979042801363289

5 Denial Of Services Denial Of Service 0.9900581108148236

6 Attack Attack 0.9805473496555192

7 Weakness Weakness 0.9641696140783707

8 Harm Harm 0.9203099356002691

9 Circumstance Circumstance 0.9177295789689781

10 Potential Potential 0.9140700859364972

11 Threat Threat 0.8307676361865943

12 Event Event 0.811927478336268

13 Modiﬁcation Of Data Unauthorized Modiﬁcation Of Data 0.8098784893405487

14 Implementation Error Implementation 0.797691170284476

15 Risk Risk 0.7695468416659597

16 Vulnerability Vulnerability 0.756619672104696

17 Procedure Security Procedure 0.7487199546707506

18 Application Major Application 0.7344763940853262

19 Control Security Control 0.713245540577225

20 Unauthorized Access Unauthorozed Access 0.7084168873642644

21 Destruction Unauthorized Destruction 0.7079624012576695

22 exploits exploits 0.999738325227409

23 isMemberOf isMemberOf 0.9994788690128461

24 hasMember hasMember 0.9992265192460275

25 causes causes 0.9898447200777993

26 isPotentialOf isPotentialThat 0.9075646311625767

27 hasPotentialToImpact hasPotentialTo 0.7669824888017037

Table 3: Similarity between ENISA and Sommerville based ontologies.

No. Concept name Concept name Similarity

in ENISA in Sommerville

1 Value Value 1.0

2 Weakness Weakness 0.9564709904052531

3 Potential Potential 0.9271158225611422

4 Harm Harm 0.9209783867451191

5 Circumstance Circumstance 0.9171607954808378

6 Attack Attack 0.8580363426992699

7 Control Control 0.8539265029954892

8 Asset Asset 0.8204264111517303

9 Computer system Computer Based System 0.7963994582890108

10 Information Resource Resource 0.7959453114871415

11 Threat Threat 0.7820141153736444

12 Event Event 0.7815727930842786

13 Risk Risk 0.758768058194784

14 Vulnerability Vulnerability 0.73883024261744

15 reduces reduces 0.9997731663396932

16 hasValue hasValue 0.9982319005180453

17 exploits canBeExploited 0.777640801540454

Noy, 2005) or (Fernandez et al., 1997). The modiﬁed

“Noy and McGuiness” approach was used here. Orig-

inal “Noy and McGuiness” Knowledge Engineering

Methodology consist of 7 steps:

1. To determine the domain and the scope.

2. To consider reusing of existing ontologies.

3. To enumerate important terms.

4. To deﬁne classes and class hierarchy.

5. To deﬁne properties of classes.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

366

Table 4: Similarity between NIST and Sommerville based ontologies.

No. Concept name Concept name Similarity

in NIST in Sommerville

1 Potential Potential 1.0

2 Protective Measure Protective Measure 0.9997987609025334

3 Circumstance Circumstance 0.9997494477352709

4 Weakness Weakness 0.9995264158511349

5 Harm Harm 0.9988494092141691

6 Information System Vulnerability System Vulnerability 0.8857014523683819

7 Attack Attack 0.8825122910116765

8 Event Event 0.8683697978162398

9 Loss Of Information Loss 0.8139334750047373

10 Vulnerability Vulnerability 0.8110371584661011

11 Asset Asset 0.7870205803749836

12 System System 0.7637258019185644

13 Risk Risk 0.7144767829186948

14 Threat Threat 0.7110288987415302

15 concerns concerns 0.999822352134665

16 canBeExploited canBeExploited 0.9967319547095099

17 resultsFrom resultsIn 0.8593064400982773

18 exploits isExploitationOF 0.7494414710908577

6. To deﬁne properties restrictions.

7. To create instances.

Steps 2 and 7 were not performed. As the knowl-

edge source in step 3 we used 3 different documents.

Terms were taken from different deﬁnitions of Risk,

Threat, Vulnerability, Asset and Safeguard. Step 6

was extended by adding deﬁnitions to classes (to

change these classes into protege deﬁned classes), ac-

cording to deﬁnitions found in glossaries. All steps

were enhanced by groupwork possibilities introduced

by OCS methodology.

3.2 Ontology Evaluation

Evaluation was performed with use of advice given

in (Staab and Studer, 2009). By evaluation we mean

veriﬁcation and validation of our ontology. The veri-

ﬁcation answers the question “did we build ontology

in a correct way?”. The validation answers the ques-

tion “did we build the proper ontology?”. The follow-

ing quality criteria were considered during evaluation

phase:

• accuracy - does the ontology present knowledge

given in knowledge source?

• clarity - is the ontology understandable? is it doc-

umented?

• completeness - does it cover the domain of inter-

est?

• consistency - does it match the speciﬁcation?

Chosen methodologies made both the ontology owner

and the participants responsible for the evaluation

of the ontology. OCS methodology required dou-

ble checking of created ontologies asking the afore-

mentioned questions multiple times - once by normal

users suggesting changes in ontology, and later by the

ontology owner during the process of changes accep-

tance. Using Protege and Pellet (the reasoner plug-

in used by Protege) provided the proper structure of

OWL ﬁle.

4 ACHIEVED RESULTS

Three ontologies were constructed. Their inferred

hirarchies are depicted on Figure 2. Final ontolo-

gies had different number of classes. ENISA based

ontology had 43 classes (Figure 2 a), Sommerville

based had 38 classes (Figure 2 b) and NIST based

had 71 classes (Figure 2 c). They were compared us-

ing Falcon-AO (Jian et al., 2005) Ontology Matching

tool. Falcon is based on linguistic matching for on-

tologies and uses promising (Euzenat and Shvaiko,

2007) graph modeling algorithms (GMO) with sup-

port of WordNet technology. Similarity of two enti-

ties from two ontologies comes from the combination

of similarities of involved statements (triples) taking

the two entities as the same role (subject, predicate,

object) in the triples, while the similarity of two state-

ments comes from the accumulation of similarities of

involved entities of the same role in the two state-

ments being compared (Hu et al., 2005). Compacted

results are presented in Table 1. Values in the table

represent the number of common concepts found in

ontologies based on knowledge sources designated by

INFLUENCE AND SELECTION OF BASIC CONCEPTS ON ONTOLOGY DESIGN

367

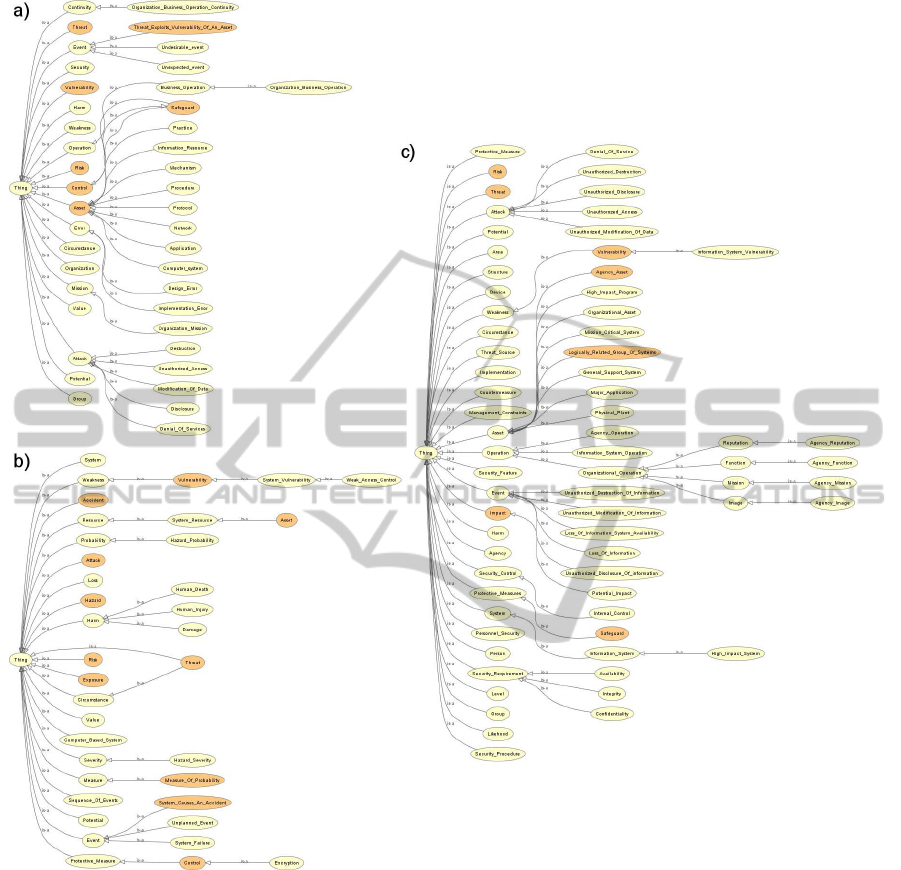

Figure 2: ENISA (a), Sommerville (b) and NIST (c) based ontology.

row and column.

Full results (Tables 2, 3 and 4) show that main

concepts are very similar. Differences occur mainly

in leaf classes differentiating ontologies in details

but not in main elements. Five core concepts (Risk,

Threat, Vulnerability, Asset and Safeguard), and some

other meaningful concepts, i.e. Attack, Weakness,

Event and Harm were found similar in over 70% of

all created ontologies.

5 CONCLUSIONS

Performed experiments show that despite differences

in details, ontologies proved to be similar in regard of

core concepts. Choosing a common set of basic enti-

ties enables users to design their own ontologies, yet

creating a common base for interoperability at execu-

tion time. With the introduction of semantic dictionar-

ies like WordNet (Fellbaum et al., 1998) such under-

takings became possible and widely accepted. Com-

mon sets of core concepts deﬁned by such dictionaries

allow merging or mapping of ontologies on reasoning

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

368

time, using knowledge from both ontologies. Con-

cepts from chosen core sets are used as a bridge be-

tween those ontologies, opening new opportunities in

knowledge integration and creating new possibilities

when interoperating with other parties.

As a next step, research on ontology merging and

integration will be performed examining new possi-

bilities emerging from usage of a common set of core

concepts.

REFERENCES

Boinski, T., Budnik, L., Jakowski, A., Mrozinski, J., and

Mazurkiewicz, K. (2009). OCS – Domain Oriented

Ontology Creation System. In SMI’09, 4th Interna-

tional Conference ’Congress of Young IT Scientists’.

HARD Olsztyn.

Enisa (2010). Enisa: a European Union

Agency - Glossary of Risk Management.

http://www.enisa.europa.eu/act/rm/cr/risk-

management-inventory/glossary.

Euzenat, J. and Shvaiko, P. (2007). Ontology matching.

Springer-Verlag New York Inc.

Fellbaum, C. et al. (1998). WordNet: An electronic lexical

database. MIT press Cambridge, MA.

Fernandez, M., Gomez-Perez, A., and Juristo, N. (1997).

Methontology: from ontological art towards ontologi-

cal engineering. In Proceedings of the AAAI97 Spring

Symposium Series on Ontological Engineering, pages

33–40.

Gennari, J. H., Musen, M. A., Fergerson, R. W., Grosso,

W. E., Crubzy, M., Eriksson, H., Noy, N. F., and Tu,

S. W. (2002). The evolution of Protege: An environ-

ment for knowledge-based systems development. Stan-

ford Medical Institute, Stanford.

Hall, D. and Hulett, D. (2002). Universal risk project, ﬁnal

report. Risk Special Interest Group, PMI.

Hu, W., Jian, N., Qu, Y., and Wang, Y. (2005). Gmo: A

graph matching for ontologies. In Integrating Ontolo-

gies Workshop Proceedings, page 41. Citeseer.

Jian, N., Hu, W., Cheng, G., and Qu, Y. (2005). Falcon-

AO: Aligning ontologies with Falcon. In Integrating

Ontologies Workshop Proceedings. Citeseer.

Kissel, R. (2006). Glossary of key information security

terms. Glossary, National Institute of Standards and

Technology, US Department of Commerce.

Knight, F. (2002). Risk, uncertainty and proﬁt. Beard Books

Inc.

Masolo, C., Borgo, S., Gangemi, A., Guarino, N.,

and Oltramari, A. (2003).

WonderWeb Deliverable

D18. Laboratory For Applied Ontology - ISTC-CNR,

Trento, Italy.

McGuiness, D. and Noy, N. (2005). Ontology development

101: a guide to creating your ﬁrst ontology. Universi-

dad de Stanford.

Niles, I. and Pease, A. (2001). Towards a Standard Up-

per Ontology. In Formal Ontology in Information Sys-

tems, Proceedings of the international conference on

Formal Ontology in Information Systems, Ogunquit,

Maine, USA.

Noy, N. F., Fergerson, R. W., and Musen, M. A. (2000). The

knowledge model of Protege-2000: Combining inter-

operability and ﬂexibility. In Lecture Notes in Com-

puter Science. Springer-Verlag.

Sommerville, I. (2006). Software Engineering. 8th. Harlow,

UK: Addison-Wesley.

Staab, S. and Studer, R. (2009). Handbook on ontologies,

Ontology Validation. Springer Verlag.

Tudorache, T., Noy, N. F., Tu, S. W., and Musen, M. A.

(2008). Supporting collaborative ontology develop-

ment in Protege. In Seventh International Semantic

Web Conference, Karlsruhe, Germany.

Waste, R. (2006). IAEA Safety Glossary.

INFLUENCE AND SELECTION OF BASIC CONCEPTS ON ONTOLOGY DESIGN

369
