TACTICAL ANALYSIS MODELING THROUGH DATA MINING

Pattern Discovery in Racket Sports

Antonio Terroba Acha

Telefonica I+D, Madrid, Spain

Walter A. Kosters, Jonathan K. Vis

Leiden Institute of Advanced Computer Science, Universiteit Leiden, Leiden, The Netherlands

Keywords:

Data mining, Pattern, Sequence, Tennis.

Abstract:

We explore pattern discovery within the game of tennis. To this end, we formalize events in a match, and

deﬁne similarities for events and event sequences.We then proceed by looking at unbalancing events and their

immediate prequel (using pattern masks) and sequel (using nondeterministic ﬁnite automata). Structured in

this way, the data can be effectively mined, and a similar approach might also be applied to more general areas.

We show that data mining is able to ﬁnd interesting patterns in real-world data from tennis matches.

1 INTRODUCTION

The analysis of tennis sequences has been studied be-

fore with an aim to either automatically annotate the

score or to classify the content for later retrieval, see,

e.g., (Sudhir et al., 1998; Calvo et al., 2002; Christ-

mas et al., 2005; Zhu et al., 2006). This analysis

and the methods to recognize and classify the im-

ages have been usually undertaken by the computer

vision research community. However, the study of

the captured data in order to ﬁnd patterns and rela-

tionships between variables (Tan et al., 2005) is rela-

tively novel. The objective of this paper is to establish

a framework that allows us to obtain such knowledge.

The contributions of this paper are fourfold.

Firstly, we establish a framework for multivariate data

mining based on distances and thresholds. Secondly,

we introduce the concept of pattern masks as a means

to mine regular patterns. Thirdly, splitting patterns

into a prequel and a sequel, we propose an efﬁcient

algorithm to mine winning patterns, anchored on so-

called unbalancing events. For the prequel we con-

sider a distance notion based on event similarities,

whereas the sequel has to comply with a nondetermin-

istic ﬁnite automaton. Finally, we apply the frame-

work to real-world examples and extract novel knowl-

edge in the sports strategy arena. In this way, where

current analysis simply states winner percentages, we

are able to indicate how these winners were performed

and how they relate to each other.

The rest of the paper is organized as follows. Sec-

tion 2 contains related work. In Section 3 we for-

malize a tennis match and present deﬁnitions used

in the rest of the paper. In Section 4 we deﬁne the

concepts of multivariate similarity, similarity thresh-

olds and pattern masks, as well as the mining prob-

lem to consider. In Section 5, we propose an algo-

rithm to ﬁnd winning patterns. Finally, we present the

results obtained in Section 6 and the conclusions in

Section 7.

2 RELATED WORK

Wang et al. (Wang et al., 2005) treat the sub-

ject in a similar way, but they only consider rela-

tive player movements and no other variables. Wang

and Parameswaran (Wang and Parameswaran, 2005)

take into account 58 possible patterns and try to ﬁnd

them in the footage using Bayesian networks. Zhu

et al. (Zhu et al., 2007) propose a tactic representa-

tion based on temporal-spatial interactions in soccer.

Lames (Lames, 2006) focuses on relative phases of

lateral displacements.

Schroeder et al. (Schroeder et al., 2005) use a

176

Terroba Acha A., A. Kosters W. and K. Vis J..

TACTICAL ANALYSIS MODELING THROUGH DATA MINING - Pattern Discovery in Racket Sports.

DOI: 10.5220/0003078101760181

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 176-181

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

framework based on short term and long term mem-

ory that allows an incremental processing of data

streams. However, the tennis model used only in-

cludes one variable (the ball landing position) and

only eight different locations. Chu and Tsai (Chu and

Tsai, 2009) use symbolic sequences to tackle tactics

analysis. They use players location (four areas), play-

ers movement direction (up, down, left, right, still)

and players speed (fast, medium, still) to ﬁnd frequent

movement patterns.

3 FORMALIZATION

In this section we explain how we formalize a tennis

match between two players, 1 and 2. For the rules of

tennis, the reader is referred to (International Tennis

Federation, 2010).

Although many computerized systems exist for

collecting and managing observational data, our need

to record the exact position of the players and the ball

on the court, forced us to develop a standalone appli-

cation that allowed us to calculate those positions on

a reference court model by means of computer vision

algorithms and camera calibration techniques. It is

not the aim of this paper to detail the methods and

algorithms used to obtain the data. The interested

reader is referred to (Hartley and Zisserman, 2003;

Hayet et al., 2005) for further information. Along

with player and ball positions, other relevant variables

were also collected as part of our sequential data.

3.1 Deﬁnitions

We will consider an event as a single stroke episode.

This event will contain all attributes that characterize

the stroke, i.e., the player that hits the stroke, the type

of stroke, the position of both players at the time of

hitting the ball, the position of the ball landing on the

opponent’s side after the stroke, the generated speed

of the ball, etc. A rally, on the other hand, refers to the

sequence or series of events that completely describe

the strokes exchanged by the players during a game

point. In other words, a rally will always start with a

service and will end with the ﬁnal stroke that leads to

the conclusion of the point.

We will also deﬁne a partial rally as a subse-

quence of a rally. Partial rallies are made of consec-

utive events, with players alternating. For instance,

looking at rally hA,B,C, D, Ei, then hB,C, Di is a par-

tial rally, whereas hB, Di is not.

3.2 Reference Model

All integer coordinate pairs of events will be in the set

C = {0, 1, . . . , 316} × {0, 1, . . . , 768}. The positions

between (0, 0) and (316, 768) represent coordinates

both inside and outside of the court, being (50, 150)

and (266, 618) the coordinates of the top left corner

and the bottom right corner of the doubles court re-

spectively. This reference system gives us 2.5 m of

space at each side of the doubles sidelines and 7.5 m

at each side of the baselines which is sufﬁcient to cap-

ture all the action within a match.

Because the players change sides every couple of

games, a transformation in the coordinates is needed

so that the data is always coherent.

3.3 Attributes Considered

We will now ﬁrst focus on the stroke level and rally

level. There we have the following attributes (for each

attribute the possible values are mentioned):

• pl: player hitting the ball, {1, 2};

• st: stroke type, {FS, SS, FH, FHS, BH, BHS, VOL,

SM, LOB, DSH}, corresponding to: ﬁrst serve,

second serve, forehand, forehand sliced, back-

hand, backhand sliced, volley, smash, lob and

drop shot, respectively;

• P

= (x

, y

): position of the player when the ball

is hit, C;

• P

= (x

, y

): position of the opponent when the

ball is hit, C;

• P

= (x

, y

): position of the ball when it bounces

on the opponent’s half of the court, C;

• sb: speed of the ball generated after the stroke,

{slow, normal, fast};

• us: unbalancing stroke that breaks the exchange

equilibrium, {0, 1, 2, 3}.

As an example, a sequence including the ﬁrst

events within a rally might look like this:

h(2, FS, (142, 618), (231, 56), (163, 267), fast, 1),

(1, BHS, (191, 64), (134, 610), (103, 566), slow, 0),

(2, FH, (78, 608), (173, 55), (108, 239), fast, 2), . . .i

Most attributes are self-explanatory. Attribute us

represents the intention of one player to attack and

destabilize the rally with his/her stroke. The non-zero

values indicate whether it is a ﬁrst, second or third

attack. Very rarely a player will need more than three

strokes to ﬁnish an attack, and in such a case, one

could argue that the opponent did recover from the

initial attack and lost the point later on due to a new

and different attack.

TACTICAL ANALYSIS MODELING THROUGH DATA MINING - Pattern Discovery in Racket Sports

177

4 PATTERN MINING

In this section we describe all necessary deﬁnitions.

We start with relatively simple similarity measures,

and generalize these to so-called pattern masks.

4.1 Similarity Measure

First, we deﬁne a similarity measure sim be-

tween individual events. In this case, when we

have events e = (pl, st, P

, P

, sb, us) and e

(pl

, st

, P

, sb

, us

), we put:

sim(e, e

) = simplayer(P

, P

) + simplayer(P

, P

)

+ simball(P

, P

) + simstroke(st, st

)

+ δ(sb, sb

) + δ(us, us

) (1)

if pl = pl

, where each function determines the simi-

larity between the corresponding attributes. If pl 6= pl

then sim(e, e

) = 0 (it is in this case also possi-

ble to apply a rotation to the coordinates involved;

we will return to this issue in a subsequent paper).

With dist(P, Q) representing the Euclidean distance

between points P and Q, we deﬁne:

simplayer(P, Q) = f (dist(P, Q)) ∈ [0, 1] (2)

simball(P, Q) = g(dist(P, Q)) ∈ [0, 1] (3)

simstroke(st, st

) = δ(st, st

) + ε(st, st

) ∈ [0, 1] (4)

δ(u, v) =



1 if u = v

0 otherwise

(5)

Here we have used suitable monotonically decreasing

functions f and g with f (0) = g(0) = 1. The function

ε allows for additional weight in the case of near equal

stroke types. All of the six terms can get their own

weight, if necessary (cf. Section 4.3). Note that 0 ≤

sim(e, e

) ≤ sim

max

for suitable sim

max

≤ 6.

Now that we have deﬁned the similarity be-

tween events, we can easily determine the similarity

sim(seq

, seq

) between same-length sequences (or

partial rallies) seq

and seq

of single events as fol-

lows. If the length of both sequences equals n and

seq

= he

, . . . , e

i and seq

= he

, . . . , e

i, then:

sim(seq

, seq

) =

∑

i=1

sim(e

, e

) (6)

If the sequences are of unequal length, we deﬁne their

similarity to be 0.

4.2 Similarity Thresholds

Once we know the similarity value between events

sim(e, e

) and sequences sim(seq

, seq

), we need to

establish the criteria by which we will consider two

events or two sequences as similar.We will use the

thresholds event

thr

and series

thr

for this matter. Note

that we are deﬁning two different thresholds to al-

low greater ﬂexibility. This way, two events e and e

will be considered similar if and only if sim(e, e

) ≥

event

thr

and likewise, two sequences seq

and seq

of length n will be considered similar if and only if

sim(seq

, seq

) ≥ n × series

thr

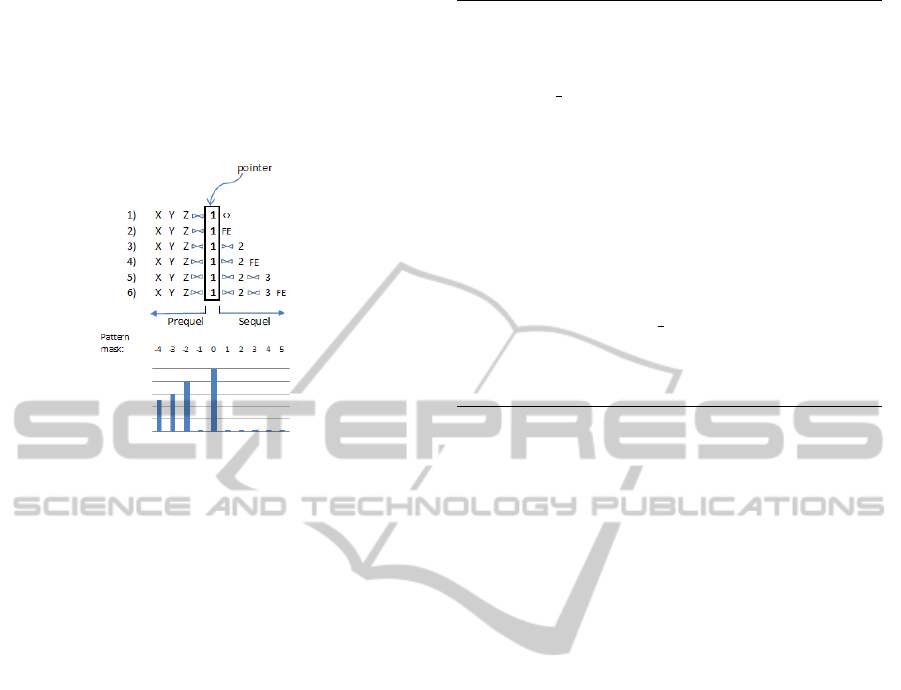

4.3 Pattern Masks

It will be shown later that we might want to compare

two sequences that do not correlate exactly. A typi-

cal example will be the response to an attack that may

produce different answers. For instance, a fast ﬁrst

serve to the same corner may result in 1) an ace, 2) a

forced error or 3) a short ball that will trigger a win-

ner. All these cases have one thing in common: the

initial attacking service. However, the short ball in

case 3 might bounce in many areas and therefore the

similarity measure deﬁned above cannot be used.

Thus, in this case, the sequence similarity will be

more relaxed at certain points than others, and only

some events will enforce a high similarity condition.

In other words, we are trying to identify sequential

patterns with constraints.

Before we deﬁne the generalized pattern simi-

larity measure, we introduce the concept of a pat-

tern mask pmask = hsim

, sim

, . . . , sim

i, where each

sim

represents a particular similarity measure (a sim-

ple example being sim

= sim from Section 4.1, i =

1, 2, . . . , n). This deﬁnition implies that a variety of

different similarity measures for each event within the

sequence could be used, e.g., concentrating on the

stroke types. Some similarity functions will indeed

favor certain attributes over others in order to fully

characterize a pattern.

In this case, a sequence seq

= he

, . . . , e

i will be

considered similar to a sequence seq

= he

, . . . , e

(with respect to pmask and corresponding thresholds

event

thr,i

(i = 1, 2, . . . , n)), if and only if:

sim

, e

) ≥ event

thr,i

for i = 1, 2. . . , n (7)

Therefore, for a particular event, the similarity thresh-

old could be very low or even 0, meaning that event

wildcards could effectively be allowed. Note also that

this similarity implies the sequence similarity concept

deﬁned in Section 4.2, when the pattern mask is made

of equal similarity functions, all sharing the same

threshold series

thr

. Instead of adjusting the thresh-

olds, it is also possible to rescale the similarity func-

tions; however, the current approach seems to have a

better underlying intuition.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

178

4.4 Mining Problem

We are now able to deﬁne our mining problem. Given

a match between two players, we want to determine

the partial rallies that lead to winners or forced errors.

In this case, we are not so much interested in ﬁnding

very close similar partial rallies, but rather similar at-

tacking patterns that may bring about different defen-

sive responses that do not have to be exactly similar.

These patterns should also occur often enough, i.e.,

be frequent. More precisely, we deﬁne:

Mining Problem — Winning Rallies.

Given a pattern mask pmask of a certain length n

with corresponding thresholds, and a minimum sup-

port threshold min support, determine those partial

rallies seq

in the match that end with an unbalanc-

ing event, and for which there are at least min support

partial rallies seq

that satisfy Equation 7. Such a rally

seq

is called a winning (partial) rally.

5 APPROACH

The key to ﬁnding similar winning patterns is to iden-

tify similar attacking events. These events will act

therefore as ﬁngerprints in the process.

5.1 Completion of Attack Patterns

We ﬁrst establish the following equivalences. If we

call 1 a ﬁrst attacking event and FE a possible forced

error as a consequence of 1, and then, depending on

whether the ﬁrst attack results in a winner (meaning a

stroke that will not get a response from the opponent)

or in a forced error, we state that 1, EOR ≡ 1, FE,

where EOR denotes the end of a rally. Note that FE

automatically includes this last event.

The implication of the previous equation is that

two sequences of different lengths can be similar and

will represent nonetheless the same winning pattern.

Similarly, if 2 represents a second attacking event per-

formed by the player that produced event 1, then we

have 1, , 2, EOR ≡ 1, , 2, FE, where  indicates an

event (not being FE) that does not carry strategic in-

formation, as it is a forced defensive response, and

therefore no similarity constraint should be enforced.

It will usually be a soft ball that can be attacked. And

analogously: 1, , 2, , 3, EOR ≡ 1, , 2, , 3, FE.

The three equivalences above represent the basic

patterns to ﬁnish an attack depending on whether the

attacking player needed one, two or three strokes to

ﬁnalize the point.

5.2 Pattern Prequel and Sequel

For each winning pattern, we deﬁne its prequel as the

sequence of events that appear in the pattern up to the

ﬁrst attacking event. Similarly, we deﬁne its sequel to

be the remaining events in the pattern. We consider

the ﬁrst unbalancing event as being part of both pre-

quel and sequel.

For the remainder of the section, and in order to

describe a winning pattern, we will use the following

convention. We will continue to use 1, 2 and 3 to

indicate the ﬁrst, second and third unbalancing event,

FE to indicate a forced error event and  to indicate

any event (again not being FE). We will also use X,

Y , Z to indicate a particular event on which we may

enforce a similarity function.

Take, for example, the following pattern. The two

players are exchanging crosscourt strokes keeping the

ball deep until one player gets a short ball that trig-

gers an attack changing the direction and driving the

ball down the line. This represents pattern 19 from

(United States Tennis Association (USTA), 1996). If

X represents the crosscourt stroke and assuming that

we do not want to impose any similarity check on the

response to the attack, then the pattern of the prequel

could be represented as: p =

X, , 1

. In this case,

the possible sequels would be

1, FE

1, , 2

1, , 2, FE

1, , 2, , 3

1, , 2, , 3, FE





3









Figure 1: NFA for the winning pattern sequel.

The sequel can be represented by a nondetermin-

istic ﬁnite state machine or nondeterministic ﬁnite au-

tomaton (NFA) which can be dealt with in the pattern

mining computation. See Figure 1 where S

is the

initial state, and S

represents the ﬁnal state.

5.3 Algorithm

In order to clarify the algorithm, and to explain the

different choices made so far, we begin with an ex-

ample. Note that we will use the Mining Problem

from Section 4.4 for the prequel and the NFA from

Section 5.2 for the sequel.

Figure 2 below shows a variation on the pattern

just mentioned. Here, we are interested in studying

three events prior to the attacking one. In this case, we

use the pattern

X,Y, Z, , 1

to try to ﬁnd a similar

TACTICAL ANALYSIS MODELING THROUGH DATA MINING - Pattern Discovery in Racket Sports

179

sequence of three events

X,Y, Z

that will allow the

ﬁrst player to attack the ball and unbalance the op-

ponent. The use of the pattern mask allows to select

which events in the pattern should have a high sim-

ilarity. This ﬁgure also takes into account both the

prequel and sequel of the winning pattern.

Figure 2: Winning pattern similarity.

In this example, if we assume for simplicity that

all similarity functions in the pattern mask are the

same, event

thr,e

represents the event similarity thresh-

old for the event e, and e

.us represents the unbalanc-

ing stroke attribute of event i, then the two rallies:

= he

, e

= he

, e

where e

and e

are both last events, will be similar

and belong to the same winning pattern

X,Y, Z, , 1

if all the following conditions are true:

sim(e

, e

) ≥ event

thr,X

, sim(e

, e

) ≥ event

thr,Y

sim(e

, e

) ≥ event

thr,Z

, sim(e

, e

) ≥ event

thr,1

.us = 1, e

.us = 2

The algorithm implemented to identify the win-

ning patterns is described in the pseudocode from Fig-

ure 3. Firstly, we locate events that verify the con-

dition of being ﬁrst attacking events. Then for each

pattern, we expand the projected database (cf. (Pei

et al., 2001)) in depth-ﬁrst fashion checking from the

pointer to the left using the similarity mask. For each

sequence found, we expand likewise the sequel to the

right checking the NFA as well. Several optimiza-

tions are possible, like search space pruning, but the

current implementation does not focus on this issue,

the datasets being of relatively small size.

6 RESULTS

Over 3,000 events from more than 7 hours of record-

ings where captured and analyzed, covering men’s

and women’s matches in both hard and clay courts.

input R, a series of rallies;

pmask, a pattern mask (with thresholds);

NFA, an automaton;

min support, a threshold

output W , a set of winning patterns with support

begin

Put all events e from R with e.us = 1 into set S

foreach e ∈ S

support ← 0

foreach e

∈ S with e 6= e

if prequels similar according to pmask

and sequels satisfy NFA

support

if support ≥ min support

Add prequel and support to W

return W

end

Figure 3: Algorithm — Winning patterns identiﬁcation.

As a ﬁrst experiment, we tried to analyze the

successful service winning patterns displayed by the

players. Depending on the court surface, these points

can account for more than half the total points won

(i.e., excluding unforced errors by the opponent).The

winning pattern here is simply

, equal to its pre-

quel (no prior events: the unbalancing stroke belongs

to a service) and the usual sequel of

1, FE

, etc.

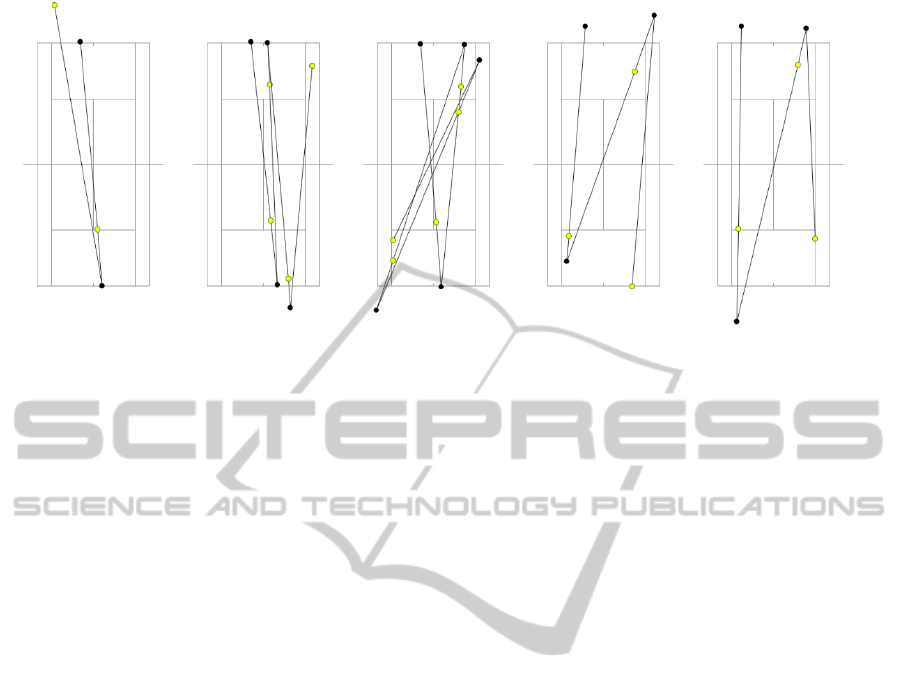

The three left panels from Figure 4 show a few ex-

amples of successful service winning patterns found

for the 2010 Australian Open semiﬁnal between Na Li

and Serena Williams. Black circles represent player

positions, yellow (light) circles refer to ball landing

positions. Each panel represents the same winning

pattern (service to the T on the Deuce court), being

completed by one, two or three strokes, respectively.

A second experiment was set up to try to ﬁnd

groundstroke attacking patterns. The winning pattern

here was set to be

X,Y, 1

. The pattern mask is set

in such a way that the event threshold at the ﬁrst un-

balancing event (or pointer) and the event Y is fairly

high, but it is lower at the event X. Note that by low-

ering these thresholds or even eliminating the event X

from the winning pattern, we would get more results.

The outcome of this new search for the 2009

French Open match between Rafael Nadal and Robin

oderling produced the following results: 11 ground-

stroke attacking winning sequences by Nadal all have

the same pattern. The three right panels from Fig-

ure 4 show a few examples of successful groundstroke

attacking winning patterns by Nadal. We have not

shown the completion of the attack (i.e., the sequel)

in order to make the ﬁgures clearer.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

180

Figure 4: Successful winning patterns.

7 CONCLUSIONS

The use of multivariate sequential data mining along

with a comprehensive set of spatiotemporal attributes

has proved to be an effective approach in order to

discover successful tennis strategies within a tennis

match. To this purpose, we have introduced the con-

cepts of event thresholds, rally similarities and pattern

masks so that any winning pattern can be deﬁned and

mined. These patterns consist of a prequel and a se-

quel, that are characterized by a pattern mask and an

automaton (that accepts unbalancing events), respec-

tively. Results demonstrate that this framework can

be of help for the analysis of tennis matches.

However, other interesting problems remain un-

solved: the identiﬁcation of frequent rallies, the possi-

ble characterization of a tennis player based on his/her

rallies, the discovery of unforced-error and losing pat-

terns, and the effect of the score in the game.These

will be analyzed in subsequent papers.

REFERENCES

Calvo, C., Micarelli, A., and Sangineto, E. (2002). Auto-

matic annotation of tennis video sequences. In 24th

DAGM Symposium on Pattern Recognition, pages

540–547.

Christmas, W., Kostin, A., Yan, F., Kolonias, I., and Kittler,

J. (2005). A system for the automatic annotation of

tennis matches. In 4th Int.Workshop on Content based

Multimedia Indexing (CBMI).

Chu, W.-T. and Tsai, W.-H. (2010). Modeling spatiotem-

poral relationships between moving objects for event

tactics analysis in tennis videos. Multimedia Tools

Appl., 50(1).

Hartley, R. and Zisserman, A. (2003). Multiple view geom-

etry in computer vision. Cambridge University Press,.

Hayet, J.-B., Piater, J. H., and Verly, J. G. (2005). Fast

2d model-to-image registration using vanishing points

for sports video analysis. In ICIP 2005. Proc. of IEEE

Int. Conf. on Image Processing, pages 417–420.

ITF (2010). Rules of tennis.

http://www.itftennis.com/technical/rules/.

Lames, M. (2006). Modelling the interaction in game sports

relative phase and moving correlations. Journal of

Sports Science and Medicine, 5:556–560.

Pei, J., Han, J., Mortazavi-asl, B., Pinto, H., Chen, Q.,

Dayal, U., and chun Hsu, M. (2001). Preﬁxspan: Min-

ing sequential patterns efﬁciently by preﬁx-projected

pattern growth. In 17th Int. Conf. on Data Engineer-

ing (ICDE01), pages 215–224.

Schroeder, B., Hansen, F., and Schommer, C. (2005). A

methodology for pattern discovery in tennis rallys us-

ing the adaptative framework anima. In Second In-

ternational Workshop on Knowledge Discovery from

Data Streams (IWKDDS).

Sudhir, G., Lee, J. C. M., and Jain, A. K. (1998). Automatic

classiﬁcation of tennis video for high-level content-

based retrieval. In IEEE Int. Workshop on Content

Based Access of Image and Video Databases, pages

81–90.

Tan, P.-N., Steinbach, M., and Kumar, V. (2005). Introduc-

tion to Data Mining. Addison-Wesley.

(USTA), U. S. T. A. (1996). Tennis Tactics Winning Pat-

terns of Play. Human Kinetics.

Wang, J. R. and Parameswaran, N. (2005). Analyzing tennis

tactics from broadcasting tennis video clips. In 11th

Int. Multimedia Modelling Conf., pages 102–106.

Wang, P., Cai, R., and Yang, S.-Q. (2005). A tennis video

indexing approach through pattern discovery in inter-

active process, chapter Advances in Multimedia Infor-

mation Processing (PCM), page 4956. LNCS.

Zhu, G., Huang, Q., Xu, C., Rui, Y., Jiang, S., Gao, W.,

and Yao, H. (2007). Trajectory based event tactics

analysis in broadcast sports video. In 15th Int. Conf.

on Multimedia, pages 58–67.

Zhu, G., Xu, C., Huang, Q., Gao, W., and Xing, L. (2006).

Player action recognition in broadcast tennis video

with applications to semantic analysis of sports game.

In 14th Annual ACM Int. Conf. on Multimedia, pages

431–440.

TACTICAL ANALYSIS MODELING THROUGH DATA MINING - Pattern Discovery in Racket Sports

181
