INFORMATION RETRIEVAL FROM HISTORICAL DOCUMENT

IMAGE BASE

Khurram Khurshid

CSE department, Institute of Space Technology,44000, Islamabad, Pakistan

Imran Siddiqi

College of Telecommunication Engineering, MCS-NUST, 46000, Rawalpindi, Pakistan

Claudie Faure

UMR CNRS 5141 - GET ENST, 46 rue Barrault, 75634 Paris, France

Nicole Vincent

Laboratoire CRIP5 – SIP, Université Paris Descartes, 45, rue des Saints-Pères, 75006, Paris, France

Keywords: Information retrieval, Word spotting, Dynamic Time Warping (DTW), Ancient document images, Edit

distance.

Abstract: This communication presents an effective method for information retrieval from historical document image

base. Proposed approach is based on word and character extraction in the text and attributing certain feature

vectors to each of the character images. Words are matched by comparing their characters through a multi-

stage Dynamic Time warping (DTW) stage on the extracted feature set. The approach exhibits extremely

promising results reading more than 96% retrieval/recognition rate.

1 INTRODUCTION

The importance of digital libraries for information

retrieval cannot be denied. Historical collections are

of interest to a number of people, like historians,

students and scholars, who need to study the

historical originals. These documents contain

invaluable knowledge but it is very time consuming

for the researchers to search the required information

in these books. Unfortunately, digitization alone is

not enough to render historical document collections

useful for such research purposes. Having the

information available in an electronic image format

makes it possible to share it with many people across

large distances via the internet, DVDs or other

digital media. The ability to search in ancient

historical documents enhances the importance of

digital libraries manifolds. However, the size of a

collection is often substantial and the content is

generally unstructured, which makes it hard to

quickly find particular documents or passages of

interest. Professional OCR software, designed for

different languages especially Latin alphabets, give

excellent recognition results on scanned images of

contemporary documents in good quality. However,

when used with ancient documents suffering from

different degradations, discussed in detail in (Baird

2004), the recognition results drop significantly. The

factors that affect the recognition rates mainly

include the physical issues like document quality,

strains and marks of liquids, dust and ink etc. on the

pages; and also the semantic issues like labeling of

entities on foreground etc.

Our work in this domain aims to facilitate

information search in the invaluable content of

ancient digitized books by spotting the instances of a

given query word and presenting the user with all

retrieved document images relevant to the given

query. Since the content cannot be recognized, the

query word is searched by creating the

188

Khurshid K., Siddiqi I., Faure C. and Vincent N..

INFORMATION RETRIEVAL FROM HISTORICAL DOCUMENT IMAGE BASE.

DOI: 10.5220/0003087401880193

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 188-193

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

corresponding image template and using pattern

classification techniques to find all of its instances in

the digitized image corpus; a technique commonly

known as ‘word spotting’ in the document analysis

community. This ability to search in ancient

historical documents will further enhance the

importance and utility of such digital libraries

providing users with instant access to the required

information.

Word spotting, especially on the Latin alphabet,

has been the focus of research in the last few years

and a variety of techniques have been proposed to

improve recognition rates. The field however,

remains challenging and inviting, especially if the

document base comprises low quality images, which

in fact will be the subject of our research. Rath et al.

(Rath 2007) introduced an approach for information

retrieval and image indexing which involves

grouping word images into clusters of similar words

using word image matching. Four profile features

for the word images are found which are then

matched using different methods. Khurshid et al.

(Khurshid 2008) have argued that features at

character level give better results for word spotting

as compared to word-level features. In (Rothfeder

2003), correspondences between the corner features

have been used to rank word images by similarity.

Harris corner detector is used to detect corners in the

word images. Correspondences between these points

are established by comparing local context window

using the Sum of Square Differences (SSD)

measure. Euclidean distance is then found between

the word correspondences to give a similarity

measure. Telugu scripts, a native Indian language,

have been characterized by wavelet representations

of the words in (Pujari 2002). Variations in image at

different scales are studied using the wavelets.

Wavelet representation exploits the inherent

characteristics of the Telugu character. This wavelet

representation does not give good results for the

Latin letters. Adamek et al. introduced word contour

matching in holistic word recognition for

information extraction. The closed word contours

are extracted and matched using an elastic contour

matching technique (Adamek 2007).

In this paper, we propose an effective method for

information retrieval from historical printed

documents using word spotting. The proposed

approach is based on matching the features of

character images using multistage dynamic time

warping (DTW). We first present an overview of the

proposed scheme followed by a detailed discussion

on indexing and retrieval phases. We then discuss

the results obtained with the proposed methodology

and a comparison with existing methods. Finally we

present our concluding remarks and some interesting

future research directions.

2 PROPOSED METHOD

The basis of our model for word spotting is the

extraction of a feature set from character images. As

opposed to (Rath 2007) where features are extracted

at word-level, we first find all the characters in

words and then extract features from these character

images, thus giving more precision in word spotting

than (Rath 2007) as later proved by the results. To

begin, document image is first binarized and then a

horizontal Run Length Smoothing Algorithm

(RLSA) is applied to separate text in the image from

graphics and extract the words. For each word, its

characters are segmented using connected

component analysis and applying a set of heuristics

on the extracted components to find the actual

characters. Once the characters are segmented, a set

of six features is extracted for each character.

Features of query word character images are

compared with candidate word characters using

multistage DTW.

Document processing is carried out offline,

and an index file is created for each document

image. The coordinates of each word, number and

position of characters in the word, and also the

features for each character image are stored in the

index files. One advantage of having the index files

beforehand is the capability it gives to crisply select

the query word by just clicking on the word in the

graphical interface of our document processing

system. Similar processing is done on this query

word to extract its character features. The features

corresponding to the characters of query word are

matched with the already stored features of character

images in the corpus. The words for which the

matching distance is less than a pre-defined

threshold are considered to be the resulting spotted

instances of the query word, representing the

retrieval of required information.

3 INDEXING

The first step towards the extraction of features from

a document image is separation of text and

background – the binarization. Binarization of

historical documents pose additional problems since

the quality of these collections is generally quite

INFORMATION RETRIEVAL FROM HISTORICAL DOCUMENT IMAGE BASE

189

poor owing to storage over a long period of time,

strains of liquids, dust, ink marks etc. Binarization

methods that are based on computing a global

threshold for the entire image are therefore not likely

to work on these degraded images. We thus employ

a local binarization method NICK (Khurshid 2009)

that is adapted to low quality documents and where a

binarization threshold is calculated for each pixel in

the image as a function of its neighboring pixels.

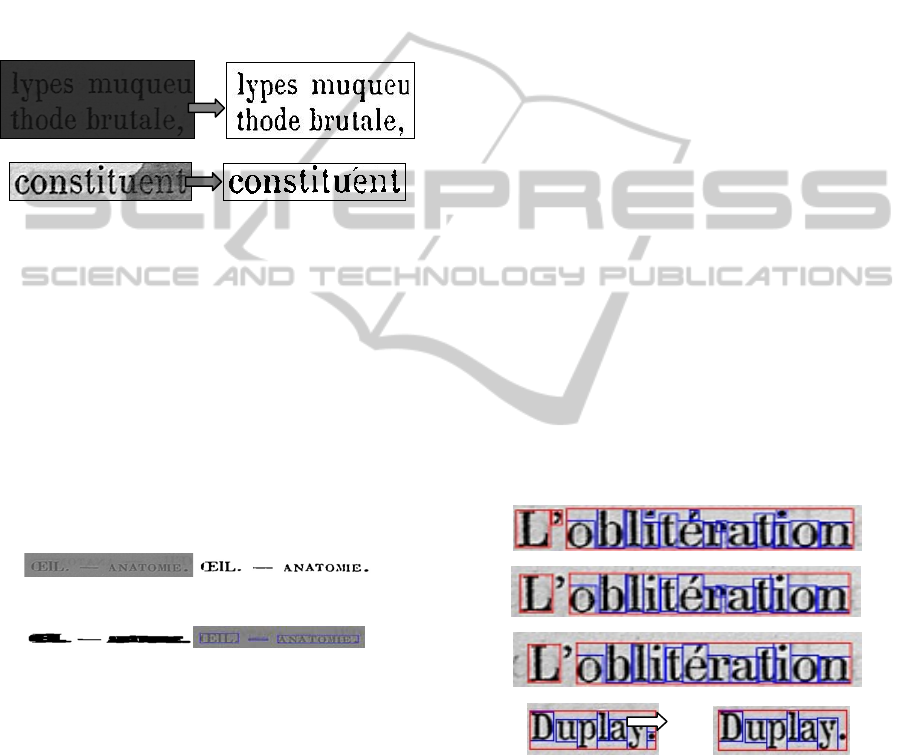

Figure 1 shows some binarization results using this

method while the algorithmic details of threshold

calculation can be found in (Khurshid 2009).

Figure 1: Binarization using NICK algorithm.

Once the document image is binarized, we seek

to extract the words in document image. Since the

inter-word distance (in pixels) is known to be greater

than intra-word distance, applying a horizontal Run

Length Smoothing Algorithm (RLSA) (Wong 1982)

would merge all characters within a word into a

single connected component. These connected

components are then extracted to find the words in

the image as illustrated in Figure 2. The threshold in

RLSA is set as a function of the average distance

between the raw connected components in the image

which in fact provides an approximate idea of the

intra-word distances.

(a) (b)

Figure 2: a) Original image, b) binary image using NICK,

c) horizontal RLSA, d) Extracted words (Khurshid, 2009).

Connected components extracted from RLSA

applied image may also contain figures and images.

Naturally they are larger in size in comparison to the

components that correspond to words and hence are

filtered out by comparing the area of each connected

component with the average area of connected

components in an image.

3.1 Extraction of Characters

A word comprises a set of characters and these

Characters in an ideal case should be the connected

components in a word. However, a connected

component does not necessarily correspond to a

character. A component may be composed of

multiple characters or multiple components may

form a single character. Therefore once we have the

connected components of a word, we need to fix

them so that they correspond to characters. This is

achieved by applying a three-pass fixation method

which is based on a set of heuristics. In the first pass,

we fix the characters comprising two or more

components on top of each other (figure 3a).

Examples include characters like ‘i’, ‘j’ etc. and all

such components are merged into one single

character. In the second pass, we fix the characters

which are broken into more than one component

owing to poor quality of the document. These

components overlap with each other at some point

(figure 3b). Generally, these include characters like

‘r’, ‘g’ etc. The errors persisting after the first two

passes are handled in the third pass where we

remove the unnecessary punctuation marks (like ‘,’

or ‘.’) which are incorrectly found as a part

(character) of the word (figure 4). All such marks

are removed by eliminating the characters having an

area significantly smaller than the average character

area in the word.

Where A

represent the area of character i in

word j, µ

is the average character area of word j

while the parameter α is an empirically chosen

constant.

Figure 3: a) Original comps b) After Pass1 c) After Pass 2

d) Pass 3 demonstration, bounding box of the punctuation

mark is removed (Khurshid, 2008).

The punctuation marks and all the small noisy

characters are marked in this pass and hence they no

longer constitute a part of the word.

3.2 Feature Extraction

Once the characters are segmented, we represent

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

190

them by a set of six feature vectors. Unlike (Rath

2007), where there are only four profile features and

those too for characterizing the word image as a

whole, our approach of having a set of six feature

sequences for each character image provides a better

representation as will be shown in the results

section. The length of each of the six feature

sequences is equal to the pixel width of the character

image. These features are:

Vertical Projection Profile – Sum of intensity

values in vertical direction; calculated in gray scale

character image and normalized to get values

between 0 and 1.

Upper Character Profile – For binarized character

image, in each column we find the distance of the

first ink pixel from the top of bounding box.

Lower Character Profile – The distance of the last

ink pixel from the top of bounding box. Both the

profiles are normalized to interval [0 1].

Vertical Histogram – Number of ink pixels in one

column of the binarized character image.

Ink/non-ink Transitions – To capture the inner

structure of a character, we find the number of non-

ink to ink transitions in each binarized character

image column.

Middle Row Transition– For the central row of the

character image we find the transitional vector for

ink/non-ink transitions. We place a 1 for every

transition and 0 for all the non-transitions in the row.

For each word, we find these feature vectors for

each of its characters. An index file is then created

for each document where we store the location of the

word components, the location of each of its

characters and the features of each character.

4 INFORMATION RETRIEVAL

For information retrieval/key-word spotting, a two-

step retrieval system is proposed. The first step finds

out all eligible candidate words by applying a

length-ratio filter. A bound has been set on the ratio

of lengths of the two words for them to be

considered eligible for matching. If the ratio of

query word and some other word does not lie within

a pre-specific interval, the word is excluded from the

list of candidates.

The second step which is the main matching stage,

query and candidate words are matched using a

multi-stage DTW method. The first stage

implements the classic DTW Edit distance algorithm

(Wagner 1974) for matching the characters of the

two words while elastic DTW coupled with

Euclidean distance is used in the second stage for

matching the features of the two characters.

Consider two words A and B to be compared, A

having m characters while B comprising n

characters. Both words are treated as series of

characters, A = (a

... a

) and B = (b

... b

). Edit

distance between the two character-series is found

by defining a matrix W that calculates the cost of

aligning the two subsequences. The entries of the

matrix W are calculated as:

⎪

⎭

⎪

⎬

⎫

⎪

⎩

⎪

⎨

⎧

→Λ+−

Λ→+−

→+−−

)()1,(

)(),1(

)()1,1(

min),(

bjiW

ajiW

bajiW

jiW

for all i, j,

njmi ≤

≤

1;1

Λ is an empty character for which we have set all the

values in its feature vectors to zero. The cost of

replacing a

with b

is given by γ(a

→ b

) while the

costs of deleting a

or inserting b

are given by γ(a

→ Λ) and γ (Λ → b

) respectively. These character

matching costs are calculated in the second stage of

DTW where we match the feature vectors of two

characters. The advantage of using elastic DTW in

this stage is its ability to cater for the nonlinear

compression and stretch of characters. Hence two

same characters will be matched correctly even if

they differ in dimension.

To match two characters X and Y of widths m

and n respectively, we treat the feature vectors of

both as two series X = (x

... x

) and Y = (y

... y

The distance between the two feature series is found

by calculating an mxn matrix D representing the cost

of aligning the two subsequences. The entries of D

matrix are found using the following equation:

),(

)1,1(

),1(

)1,(

min),(

yxd

jiD

jiD +

⎪

⎭

⎪

⎬

⎫

⎪

⎩

⎪

⎨

⎧

−−

−

Where d(x

) is a distance metric which in our

case is the Euclidean distance in the feature space.

Figure 4 visually depicts the proposed multi-stage

DTW.

Once the entries of D are calculated, the warping

path is determined by backtracking from (m, n)

towards (0,0) along minimum cost path. The final

distance between the two characters is the cost D(m,

n) divided by the number of steps of the warping

path. If this final distance is less than a pre-defined

character-threshold, the two characters are ranked

similar. The same is done for the matrix W to get the

cost of matching the two words. If this cost W(m,n)

INFORMATION RETRIEVAL FROM HISTORICAL DOCUMENT IMAGE BASE

191

is less than a word-threshold, A and B are

considered to be the instances of the same word.

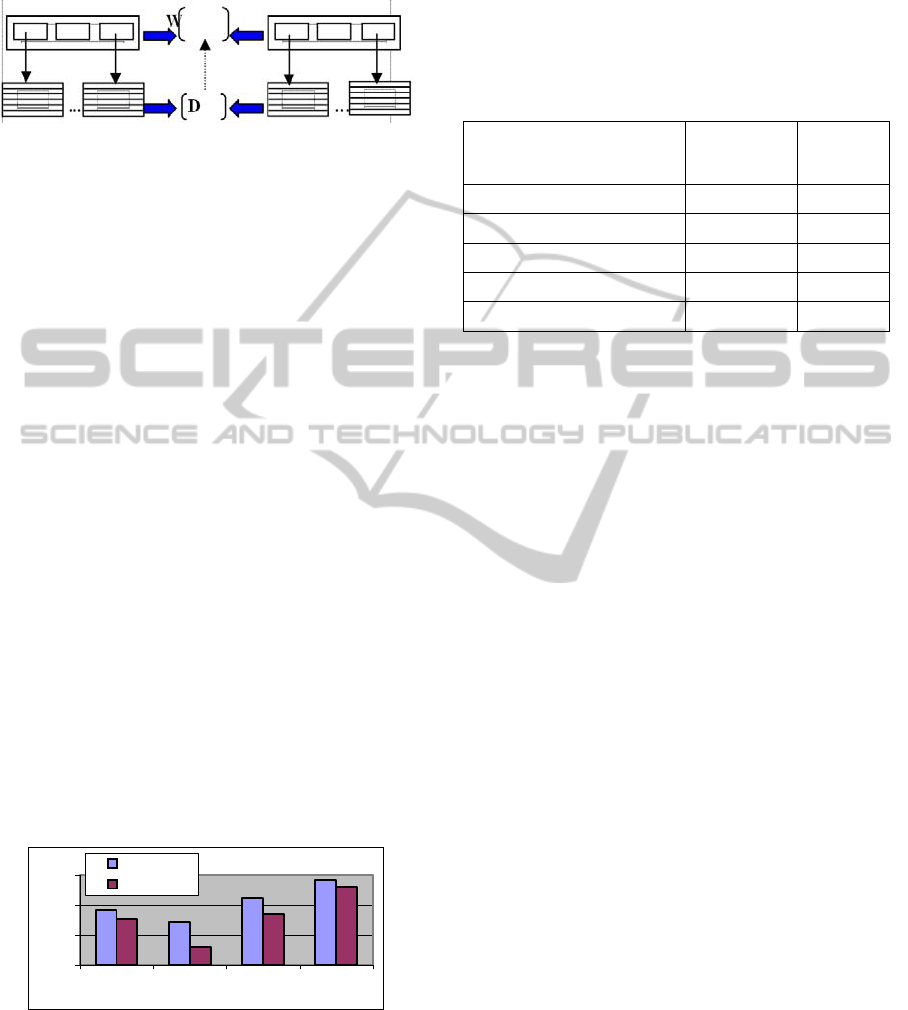

Figure 4: Multistage DTW: Two words are compared

using Edit matrix W whose each entry represents the cost

of matching two characters/substrings; while D gives the

cost of matching two characters & is calculated by

matching the feature sequences of the two characters.

5 EXPERIMENTAL RESULTS

Owing to the absence of a benchmark of ancient

printed documents, we not only applied our method

to a set of documents but also evaluated other

approaches on the same data set for a rational

comparison. In our previous work (Khurshid 2008),

we compared a character-matching based word

spotting method (employing simple DTW) with

other approaches such as correlation-based word

matching, the word matching based on features

presented in (Rath 2007) and word matching using

our six features computed from words (instead of

characters). The results showed that our character-

matching system achieved the best results (Figure 5)

(Khurshid 2008).

In the present study we compare the results of

(Khurshid 2008) with our multistage DTW to

analyze if introducing multi-stage DTW would

produce any improvements in results. Evaluations

were carried out on the document images provided

by the Bibliothèque Interuniversitaire de Médecine,

Paris (BIUM).

100

abcd

Recall

Precision

Figure 5: Comparison of information retrieval (via

precision and recall rates) using different methods a)

Correlation b) Matching using four word features (Rath

2007) c) Using six word features d) Matching using

character features (Khurshid 2008).

For the experimental dataset, we chose, from 10

different books, 40 document images having a total

of 17,010 words in all. For evaluation, 50 different

query lexiques of varied lengths and styles having

400 instances in total were selected. The results of

word spotting are summarized in Table 1.

Table 1: Results summary.

(Khurshid

2008)

Multi-

stage

DTW

#query word instances

400 400

#words detected perfectly

381 386

#False positives (FP)

51 16

Precision %

88.19% 96.20%

Recall %

95.25% 96.50%

It can be seen from the above table that the new

multi-stage DTW based method has higher precision

with better recall rate, thus exhibiting its robustness

and usability in information retrieval for commercial

applications. Considering optimum threshold values

for different word lengths, a precision of 96.2% is

achieved by our system with a recall rate of 96.5%.

6 CONCLUSIONS

We have proposed a new system of information

retrieval in ancient document images using word

spotting. The approach is based on the matching of

character features by employing a multi-stage

Dynamic Time Warping. Results obtained by the

proposed methodology are very encouraging. The

number of false positives is very less as compared to

the previous results, which shows the prospects of

taking this method even further by improving

different stages and adding more features to achieve

even higher percentages. Currently, the word

spotting is done only on the horizontal text but we

also intend to focus on spotting words in vertical text

lines in our future research. A web based user-

friendly interface can be built using the proposed

algorithm at the back end which will give a global

accessibility to the system. The system can be

enhanced in future for information retrieval in

Oriental scripts as well.

REFERENCES

Adamek, T., O'Connor, N. E., Smeaton, A. F., 2007. Word

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

192

matching using single closed contours for indexing

handwritten historical documents, IJDAR, 9, 153 –

165

Baird H. S., 2004. Difficult and urgent open problems in

document image analysis for libraries, 1st

International workshop on Document Image Analysis

for Libraries

Digital Library of BIUM (Bibliothèque Interuniversitaire

de Médecine, Paris), http://www.bium.univ-

paris5.fr/histmed/medica.htm

Keogh, E. and Pazzani, M., 2001. Derivative Dynamic

Time Warping, First SIAM International Conference

on Data Mining, Chicago, IL.

Rath, T. M, Manmatha, R., 2007. Word Spotting for

historical documents, IJDAR, 9, 139-152

Khurshid, K., Faure, C., Vincent, N., 2008. Feature based

word spotting in ancient printed documents, 8

International workshop on pattern recognition in

information systems, Spain

Khurshid, K., Faure, C., Vincent, N., 2009. A novel

approach for word spotting using Merge-Split Edit

distance, CAIP’09, Germany

Khurshid, K., Siddiqi, I., Faure, C., Vincent, N., 2009.

Comparison of Niblack inspired binarization

techniques for ancient document images, 16

internation conference of document recognition and

retrieval (DRR), USA.

Leedham, G., Yan, C., Takru, K., Hadi, J., Tan, N., Mian,

L., 2003. Comparison of Some Thresholding

Algorithms for Text/Background Segmentation in

Difficult Document Images, 7th International

Conference on Document Analysis and Recognition,

USA

Pujari, A. K., Naidu, C. D., Jinaga, B. C. 2002. An

adaptive character recogniser for telugu scripts using

multiresolution analysis and associative memory,

ICVGIP’02

Rothfeder, J. L., Feng, S., Rath, T. M., 2003. Using corner

feature correspondences to rank word images by

similarity, Conference on Computer Vision and

Pattern Recognition Workshop, Madison, USA

Wagner, R. A., Fischer, M. J., 1974. The string-to-string

correction Problem, Journal of ACM, v21, pp 168-173

Wang, K. Y., Casey, R. G., Wahl, F. M., 1982. Document

analysis system, IBM J. Res.Development, Vol. 26, pp.

647-656

INFORMATION RETRIEVAL FROM HISTORICAL DOCUMENT IMAGE BASE

193
