EXTRACTING MAIN CONTENT-BLOCKS FROM BLOG POSTS

Saiful Akbar

1,2

, Laura Slaughter

and Øystein Nytrø

Department of Computer and Information Science

Norwegian University of Science and Technology (NTNU), Trondheim, Norway

School of Electrical Engineering and Informatics, Institut Teknologi Bandung (ITB), Bandung, Indonesia

Keywords: Blog post, Main block, Informative block, Content extractor.

Abstract: A blog post typically contains defined blocks containing different information such as the main content, a

blogger profile, links to blog archives, comments, and even advertisements. Thus, identifying and extracting

the main/content block of blog posts or web pages in general is important for information extraction

purposes before further processing. This paper describes our approach for extracting main/content block

from blog posts with disparate types of blog mark-up. Adapting the Content Structure Tree (CST)-based

approach, our approach proposed a new consideration in calculating the importance of HTML content nodes

and in definition of the attenuation quotient suffered by HTML item/block nodes. Performance using this

approach is increased because posts published in the same domain tend to have similar page template, such

that a general main content marker could be applied for them. The approach consists of two steps. In the

first step, the approach employs the modified CST approach for detecting the primary and secondary

markers for page cluster. In the next step, it uses HTMLFilter to extract the main block of a page, based on

the detected markers. When HTMLFilter cannot find the main block, the modified CST is used as the

second alternative. Some experiments showed that the approach can extract main block with an accuracy of

more than 94%.

1 INTRODUCTION

The blogosphere is one means for

patients/caregivers to write their daily journal about

their own/patient’s health problems and share the

information with others. These blogs contain a huge

amount of information, either medical- or non

medical-related problems, which can be worth

something for other patients, caregivers, or clinical

researchers who are searching specific health issues.

As an example, a person published his/her

experience of living with her mother who has Lewy

Body disease in LewyBodyJournal.org and the

publication is represented in a 50-page ebook.

The blogosphere is one example of a collection

of web pages that are published in a systematic

standard format. They are automatically generated

using a pattern, where the pattern is a set of HTML

tags (Tseng & Kao 2006). The pattern divides the

web page into several blocks, each with a specific

purpose. A blog page may contain a blogger profile

block, an archives links block, an advertisement

block, a post/main block, a comment block and other

blocks. Figure

1 shows a blog page with the main

block, a comment block, an archieves link block,

and a calendar block. In order to extract valuable

information from the blog post, we need to

distinguish a block, especially the main block, from

the others.

Our research focuses on analyzing and extracting

valuable information from blogs written by

alzheimer patients or their caregivers. The paper

discusses our initial step on the research, i.e.

extracting the main content of alzheimer/dementia

(AD) blog posts. We adopted and modified an

approach based on Content Structure Tree (CST)

proposed by 0. Although the extraction method

described in this paper is tested only for alzheimer

blog posts, it is reasonably applicable for general

blog posts.

The rest of this paper is organized as follows.

Section 2 discusses the classification of and some

methods of extracting the main/content block,

including the CST-based approach. Sections 3

presents our modification and extension of the CST

438

Akbar S., Slaughter L. and Nytrø Ø..

EXTRACTING MAIN CONTENT-BLOCKS FROM BLOG POSTS.

DOI: 10.5220/0003091804380443

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 438-443

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

approach: mCST and E-mCSTE-mCST. Section 4

presents experiments,performance comparisons

between the methods, and evaluations. The

conclusion is presented in Section 5.

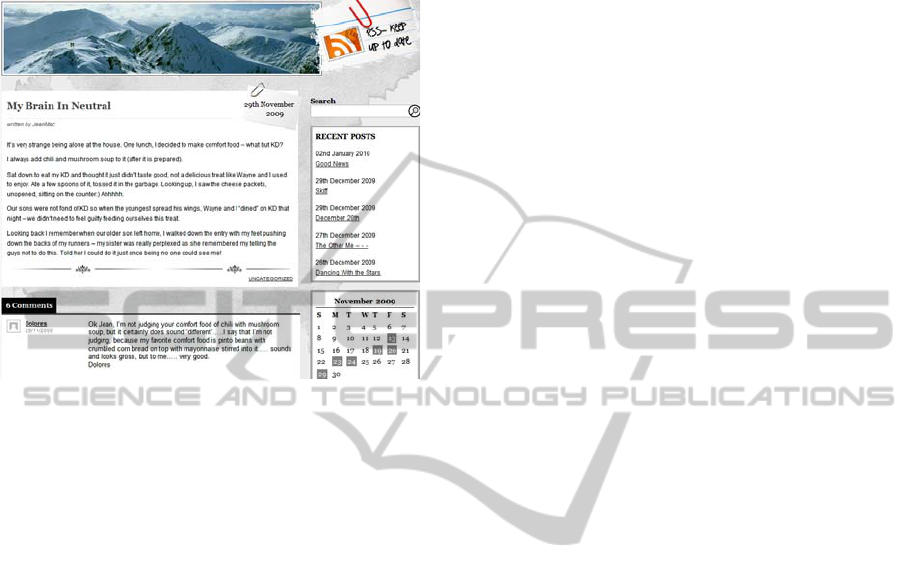

Figure 1: A blog post and its blocks.

2 RELATED WORK

In general, there are 3 approaches to extracting main

block content from web pages: the static rule-based

approach, the DOM-based approach, and the

machine learning (ML) approach. Another

approaches are basically built as a combination of

some of the three approaches.

In general, rule-based approaches attempt to

extract main content by establishing a rule

associated with how the author of the blog or the

blog builder software organizes and divides the

blocks in a blog post. The approach is usually time-

consuming since the rules are built manually. It also

does not dynamically adapt new cases since the rule

is designed to work for some specific blogs. In order

for it to be dynamically adaptable, the rule should be

built in a generalized form using such as pattern

matching rule. An example of this approach is

implemented by Attardi and Simi (2006). They

extract the main block by identifying specific HTML

elements that mark the main block, e.g. <div

class=”post”> for blogs published through

WordPress. In order to filter out non-relevant

blocks, such as the navigation block, they identify

elements that mark the non-content block. The main

block is extracted by filtering in the part marked by

a main content marker while out the parts marked

by non-relevant block markers.

The second approach, DOM-based approach,

focused on the observation of the tree structure of

HTML document (i.e. the Document Object

Model/DOM). In general, in order to determine the

main/content block, the approach builds the tree

structure of a page and evaluates the importance of

each block,which is represented as a node in the tree

structure. Then, the block with the highest block-

importance value is determined as the main/content

block. Examples are approaches proposed by Tseng

& Kao (2006) and Li & Yang (2009). Tseng & Kao

(2006) proposed some features for measuring the

importance of a block, i.e.: regularity of node group,

the density of a block, and the distribution of items

style of objects. The importance of a block is

defined as the product of the three measures.

Different from Tseng & Kao (2006), Li & Yang

(2009) employ the attenuation quotient and the

importance of HTML item and content item. The

attenuation quotient is used to decrease the node

importance when a node is closer to the root. In

other words, the deeper position of a node in the

three, the bigger the attenuation is. The importance

value of content item is defined as the number or the

length of text, images, and links. Then, the

importance of an HTML item node is defined by

calculating the sum of attenuated-importance of its

descendants and the content items. A more detailed

description of the approach will be presented in

Section 0.

A machine learning approach has been proposed

by Lin & Ho (2002). They observe most of dotcom

web sites use <table> as a layout template, and

pages in the same domain contain redundant

identical blocks (which is non-content block) and

distinguishable blocks (which is considered as

informative content block). By observing the tag

<table>, a page is partitioned into several blocks.

Thus, features of each block are extracted. In a page

cluster (cluster with pages from the same domain),

the entropy values of block features are calculated.

A block with entropy less than a defined threshold is

considered as an informative block since it is

distinguishable from others (Lin & Ho, 2002). A

similar approach has been proposed by Debnath et.

al. (2005). The approach employs two algorithms:

FeatureExtractor (FE) and ContentExtractor (CE).

FE extracts text, link, and image features from block

candidates and employs K-mean clustering to

identify k blocks in an HTML page. CE observes

some HTML pages from the same domain and

calculates the similarity between each block in a

page and other blocks in another page. Based on the

fact that many pages in the same domain have

EXTRACTING MAIN CONTENT-BLOCKS FROM BLOG POSTS

439

redundant blocks, except the main block, if two

blocks are very similar to each other, they are

considered as redundant blocks, and hence are not

the main/informative blocks.

The work presented in this paper adopts and

modifies the CST approach proposed by Li & Yang

(2009). Different from the approach (Li & Yang,

2009), our approach employs the following strategy:

1. Employing HTML cleaner before processing

pages.

2. Using only text for calculating block significance

3. Utilizing both the depth and number of a node’s

children as the attenuation quotient factor.

4. Employing two steps of main block detection. In

the first step, modified CST is used for detecting

primary and secondary main block markers of post

from the same domain, while in the second step the

main block is detected by filtering the post using the

markers and by using the modified CST as the

second alternative.

3 EXTENDED CST APPROACH

The CST approach (Li & Yang, 2009) consists of

two steps: (1) building the CST of an HTML page,

and (2) measuring the importance of nodes which

represents nested blocks, and determining the block

with the highest importance value as the main block

of the page. The CST contains two types of nodes:

HTML item node and content node types. The

former is generated from <body>, <div>, or

<table> tags and represents blocks, while the later

represents the actual content of the page and is

generated from text, <image>, or <link> tags.

Starting from the deepest node, the importance of

an HTML item node is calculated by counting the

length or the number of texts, links, and images

occupied by the HTML item. The importance of an

HTML item node N is recursively defined as (Li &

Yang, 2009):

CCNN









 .

(1)

where



is the attenuation quotient of the node,



is the importance of the children of the node N,

and



is the importance of HTML item nodes

which are the children of node N,



is the

importance of content nodes which are the children

of the node N and is calculated by counting the

weighted sum of the size of text, the number of

images and the number of links. The experiment

reported by Li & Yang (2009) has shown that the

optimal weight is 1.0, 0.75, and 40 for text, links,

and images respectively. For a more detailed

explanation the reader should refer to the original

article (Li & Yang, 2009).

Based on the CST approach, we proposed two

improvements: the modified CST approach (mCST)

and the extended mCST (E-mCST). Our

modification of the CST approach (the mCST

approach) includes the following:

(1) We observe that in a blog post, a block is

represented by not only <body>, <table>,

<div>, but also other tags such as <id> and

<span>. For simplicity, in our implementation we

consider any tags other than text, image, and link

tags as HTML item tags.

(2) Note that in our research case we need to extract

the textual information from blog posts. Moreover,

we observe that the main block of blog post usually

contains very limited links and images. Hence, we

propose to use text as the only factor for calculating

the importance of content node.

(3) In the original CST approach (Li & Yang, 2009),

the attenuation quotient is defined as:

1, 10

log( ), 10















(2)

where D

is the depth of the node N. The definition

does not distinguish between a wide substree and a

narrow subtree. Figure 2 ilustrates the situation. For

clarity, circles represent item nodes and round-edge

rectangle represent content nodes.

As shown in Figure 2, a node with narrow

subtree contains more dense content than the one

with wider subtree, therefore the the former should

suffer from attenuation less than the later. Hence,

considering thatbthe attenuation quotient should be

influenced by not only the depth of the node but also

the wide of the subtree of the node, we propose a

new definition of attenuation quotient as:

1.0 1.0

(10)(10)

Log D Log C







(3)

where D

is the depth of the node N, and C

is the

number of the children of the node N.

In the E-mCST approach, we would also like to

take the benefit of the fact that posts of the same

domain tend to have similar block layout, which is

represented by similar HTML item nodes. Thus, for

posts from the same domain of address, we identify

the HTML tags and their attributes that are

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

440

considered as the content block markers for the

group of posts. Figure 3 shows the steps of the E-

mCST approach).

(a) (b)

Figure 2: (a) Narrow, and (b) wide trees.

Figure 3: The Extended mCST (E-mCST) approach.

As depicted in Figure 3, we employ two steps:

(a) marker detection and (b) content block

extraction. In both steps, we employ HTMLCleaner

for cleaning up the page from unnecessary

components such as HTML comments and scripting.

It also used to obtain a well-formed HTML page

before further processing.

In the first step (Figure 3.a), the input of the

subsystem is page cluster, i.e. posts in the same

address domain, and the output is marker list M.

This subsystem used mCST (mCST) as a marker

detector to identify tags and attributes considered as

content block markers. From a page clusters we

extract maximum 2 alternative markers (primary and

secondary markers) that are most commonly

identified by mCST.

For example, suppose that we obtain markers

identified from a page cluster as depicted in Table 1.

In the example, markers that are determined as the

primary and the secondary markers are

div|class|entrybody (found 3 times) and

div|class|snap_preview (found twice),

respectively. Thus, both markers are considered as

the content block markers for the corresponding

http://htmlcleaner.sourceforge.net/

cluster. The detail of the algorithm for detecting

markers is shown in Figure 4.

Table 1: An example of markers identified from a page

cluster.

Page# Identified Markers

div|class|snap_preview

div|class|entrybody

div|class|snap_preview

div|class|outer

div|class|entrybody

Body

Algorithm 1: mcST_MarkerDetector

Input: Set S of HTML pages

of the same domain

Output : Primary and Secondary content

block markers, pCM, sCM

Begin

for each page H in S

B  mcSTExtractMainBlock(H)

m  GetTheRootMarker(B)

if (m is unique in H)

PutInList(m,M)

pCM  GetMarkerWith1stMaxOccurence(M)

sCM  GetMarkerWith2ndMaxOccurence(M)

 {pCM, sCM}

End

Figure 4: The algorithm for detecting markers.

In the second step (Figure 3.b), we employ

HTML Filter

based on list M for extracting the

content block of a page. If the domain of the input

page is found in the M list, HTMLFilter will use the

first marker to filter the page. If the first marker is

not found in the page, then the second marker is

employed. If none of the marker is found in the page

or the domain of a page is not found in the list, then

mCST is employed.

4 EXPERIMENTS

AND EVALUATIONS

In order to have the data set for the experiments,

using Google search engine we search blogs that

most likely contain text about alzheimer/dementia

(AD) disease. We manually observe the blogs in

order to decide whether the blogs contain significant

number of posts. We also observe the links in the

blogs to find other potential blogs. Using HTTrack

HTML Filter is built using HTMLParser

http://htmlparser.sourceforge.net/

Page

clusters

mCST

Marker

Page

Conten

t Block

HTML

Cleaner

List

HTML

Cleaner

mCST

List

HTML

Filter

(a)

(b)

EXTRACTING MAIN CONTENT-BLOCKS FROM BLOG POSTS

441

Website Copier

we download the blogs and get the

post pages of the blogs. In total, we have 8270 posts

from 48 blogs. We separate the blogs into two

datasets: (1) well know blogs, i.e. blogs published in

wordpress.com and blogspot.com, and (2)

others. The first dataset contains 4713 posts of 38

blogs, while the second contains 3557 post of 10

blogs

In order to build the ground truth (the golden

standard), we manually inspect some posts from

each blogs and identify marker tags and build a rule

for extracting the correct block content. There are

two types of marker tag: IN marker and OUT

marker. IN marker marks a block that should be

taken as the content block, while the OUT marker

marks a block nested in the block marked by IN

marker that should be excluded from the content

block. Together with HTMLFilter, the rule is used to

filter in the content block and filter out some

irrelevant nested blocks.

Figure 5 shows an example of rule for filtering

in/out page content from posts with address domain

wordpress.com.

Figure 5: A rule for filtering in/out page content.

In order to measure the performance of the

approach, we compare text in the content block

automatically extracted by employing the approach

with the ground truth. We use cosine similarity for

comparing the text. In order to measure the global

performance of the approach, we employ two

measurements: (1) ACS: the average of cosine

similarity and (2) TCS: threshold based cosine

similarity. In the first measurement, we calculate

cosine similarity between a content block and its

corresponding content block in the ground truth.

Then, the average of cosine similarity is calculated.

In the second measurement, if the similarity between

http://www.httrack.com/

an automatically extracted main block and its

corresponding block in the ground truth is greater

than a given threshold, then the two content blocks

are accepted as identical. Then, the TCS total

performance is defined as:





(4)

where I is the number of instances that are accepted

as identical with the corresponding instances in the

ground truth and N is the total number of instances

in the dataset. In this experiment we used the

threshold value of 0.9.

In order to observe the performance of each

improvement step, we implemented and

experimented with four methods as depicted in

Table 2. First, we implemented the CST approach as

proposed by Li & Yang (2009), used the same

parameter, but used different definition of the

HTML item node. In our implementation (see CST*

in Table 2), an HTML item node is defined as a

node representing any HTML tags other than image

tags, link tags, and text. We consider this method as

the baseline for the experiments. Second, we employ

HTMLCleaner before employing the CST*. The

HTMLCleaner not only removes unnecessary parts

of an HTML page such as comments and scripts, but

also more importantly transforms the page into a

valid and well-formatted HTML page. The third

implementation (mCST) differs from the second in

two ways: (1) using text as the only factor for

calculating the importance of content nodes, and (2)

using the new attenuation quotient as described in

Section 0. Finally, we implemented the extended

CST approach (E-mCST) which is illustrated in

Figure 3.

The performance comparison among the 4

different methods is shown in Table 2. As can be

seen in the table, the use of HTMLClean

outperforms the baseline, and the mCST approach

outperforms the CST*+HTMLCleaner approach. It

is also important to highlight that the E-mCST

approach delivers the best performance among the

others. We observe that by generating and

employing filtering rule for specific domains, the E-

mCST approach is still able to detect main blocks

containing only little text, while the other

approaches is not. Therefore we propose to use the

E-mCST approach for extracting the informative

block of blogposts.

It is interesting to see whether or not different

domains yield significantly different performance. In

order for that, we measure the performance of E-

mCST for each cluster/domain as shown in Table 3.

(

addr =.*\.wordpress\.com.*

in = div|id|content-main

out = p|class|postmetadata

out = div|class|post-content

out = div|id|respond

in = div|id|content

out = div|class|navigation

………

out = div|id|respond

)

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

442

Table 3 shows that in general E-mCST delivers very

high accuracy (i.e. ACS > 95%, and TCS>93%),

except for the three domains:

zarcrom.com,

judyscaregiver.com, and yellowwallpaper

.net. The lower performance suffered by the three

domains is due to the approach cannot detect/remove

irrelevant blocks nested in the main block. This will

be one of the issues for the next improvement.

Table 2: Performance comparison among the different

methods.

Dataset Dataset #1

(4713 posts)

Dataset #2

(3557 posts)

Measure ACS TCS ACS TCS

CST* 0.878 0.445 0.900 0.642

CST*+HTMLCleaner 0.908 0.631 0.902 0.656

mCST 0.940 0.797 0.957 0.797

E-mCST 0.982 0.944 0.980 0.956

5 CONCLUSIONS

We proposed an extended CST approach (E-mCST)

to identify the main/content block of blog posts. We

modified the calculation of node importance

proposed by Li & Yang (2009), by ignoring links

and images and using text as the only factor for

calculating content node importance. We also

considered both number of children of a node and

the depth of the node as factors for attenuation

quotient. The approach consists of two steps. In the

first step, the modified CST (mCST) is used to

identify the primary and secondary content block

markers of posts of the same domain, while in the

second step the primary and secondary content block

marker is used for filtering and extracting the

content block, together with mCST as the

alternative. The experiments have shown that the

extended CST-based approach (E-mCST)

outperforms the CST-based content block detector.

Table 3: Performance of E-mCST for each domain.

Domain Posts# ACS TCS

wordpress.com 420 0.971 0.938

blogspot.com 4293 0.983 0.944

zarcrom.com 54 0.944 0.741

lewybodyjournal.org 24 0.999 1.000

judyscaregiver.com 28 0.953 0.714

mydementedmom.com 54 0.988 1.000

themomandmejournalsdotnet.net 1970 0.977 0.944

yellowwallpaper.net 111 0.927 0.784

blog.fadingfrommemory.info 329 0.998 1.000

annerobertson.com 165 0.998 1.000

thetripover.com 531 0.983 1.000

amountaintoohigh.com 291 0.990 1.000

REFERENCES

Tseng, Y. F., Kao, H. Y., 2006. The Mining and

Extraction of Primary Informative Blocks and Data

Objects from Systematic Web Pages. Proceeding of the

2006 IEEE/WIC/ACM International Conference, pp.

370-373.

Attardi, G., Simi, M., 2006. Blog Mining Through

Opinionated Words. Proceeding of Text Retrieval

Conference.

Li, Y., Yang, J., 2009. A Novel Method to Extract

Informative Blocks from Web Pages. International

Joint Conference on Artificial Intelligence, pp.536-

539.

Lin, S. H., Ho, J. M., 2002. Discovering Informative

Content Blocks from Web Documents. SIGKDD, pp

588 – 593.

Debnath, S., Mitra P., Giles, C. L., , 2005. Automatic

Extraction of Informative Blocks from Webpages.

Proceedings of the 2005 ACM symposium on Applied

computing, pp. 1722 – 1726.

EXTRACTING MAIN CONTENT-BLOCKS FROM BLOG POSTS

443
