THE EFFECT OF SEMANTIC CLUSTERING ON WEB

SEARCH PERSONALIZATION

Garofalakis John and Oikonomou Flora

Computer Engineering and Informatics Department, Patras University, University Campus, Patras, Greece

Keywords: Semantic Clustering, Ontology, User Profiles, Dietary Profiles, Web Search, Personalization, Web Usage

Mining, Information Search and Retrieval.

Abstract: The World Wide Web has become a huge data repository and it keeps growing exponentially, whereas the

human capability to find, process and understand the provided content remains constant. Search engines

facilitate the search process in the WWW and they have become an integral part of the web users' daily

lives. However users are characterized by different needs, preferences and special characteristics, navigate

through large Web structures and may lost their goal of inquiry. Web personalization is one of the most

promising approaches for alleviating information overload providing tailored navigation experiences to Web

users. This paper presents the methodology which was implemented in order to personalize a search

engine’s results for corresponding users’ preferences and dietary characteristics. This methodology was

implemented in two parts. The online part uses a search engines’ log files and the dietary characteristics of

the users in order to extract information for their preferences. With the use of an ontology and a clustering

algorithm, semantic profiling of users’ interests is achieved. In the online part the methodology re-ranks the

search engines’ results. Experimental evaluation of the presented methodology shows that the expected

objectives from the semantic users’ clustering in search engines are achievable.

1 INTRODUCTION

The World Wide Web is a system of interlinked

computer documents (webpages) that can be

accessed via the internet, which is a network of

computers that is distributed all over the world and

that communicate with one another. People use the

World Wide Web for two main reasons: in order to

communicate with other people or extract desired

information. Based on the latter, we can assume that

the World Wide Web is a huge data repository, a

global library which is expanding at exponential

rates.

However, the human capability to find, process

and understand the provided content remains

constant. The phenomenal growth of the number of

new users who access the web and the huge amount

of data that the web has, make the searching for

particular information not only time consuming but

also a daunting task. There comes the need for

search engines which facilitate the search process

and have become an integral part of the web users’

daily lives.

Traditional search engines obtain the results by

matching the words in the query with the document

content and finally give out thousands of result

pages of which only a handful are relevant.

Moreover, users are characterized by different

needs, preferences and special characteristics, and

by navigating through large Web structures may lost

their goal of inquiry.

Personalization is a popular remedy for the

above problem. Personalization improves the search

by considering the user’s interests and

characteristics and hence provides context oriented

search results, which are the direct answers to the

user’s information need. Semantic searches on the

other hand attempt to augment and improve the

traditional search results by using semantic

information from resources like ontology and

thesaurus.

In this work, we propose a personalization

method, which couples data mining techniques with

the underlying semantics of the web content in order

to build semantic clusters of user profiles. Regarding

the semantic clusters, they actually comprise

ontological subsets of a general ontology which was

John G. and Flora O..

THE EFFECT OF SEMANTIC CLUSTERING ON WEB SEARCH PERSONALIZATION .

DOI: 10.5220/0003094500600069

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 60-69

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

specifically designed for this project, representing

the categories of interest and the characteristics for

groups of web users with similar search tasks and

dietary profiles. In this methodology apart from

exploiting a specific user search history and the

search history of other users with similar interests,

we further exploit their individual traits. The user is

assigned to relevant classes of common interest and

dietary characteristics, so as to predict the relevance

score of the results with the user goal and finally re-

rank them. To this purpose, we exploit a reference

ontology which was based on the Finnish Food

Composition Database for the National Institute for

Health and Welfare and the information for the

ontology’s construction is freely available online at

http://www.fineli.fi/index.php?lang=en.

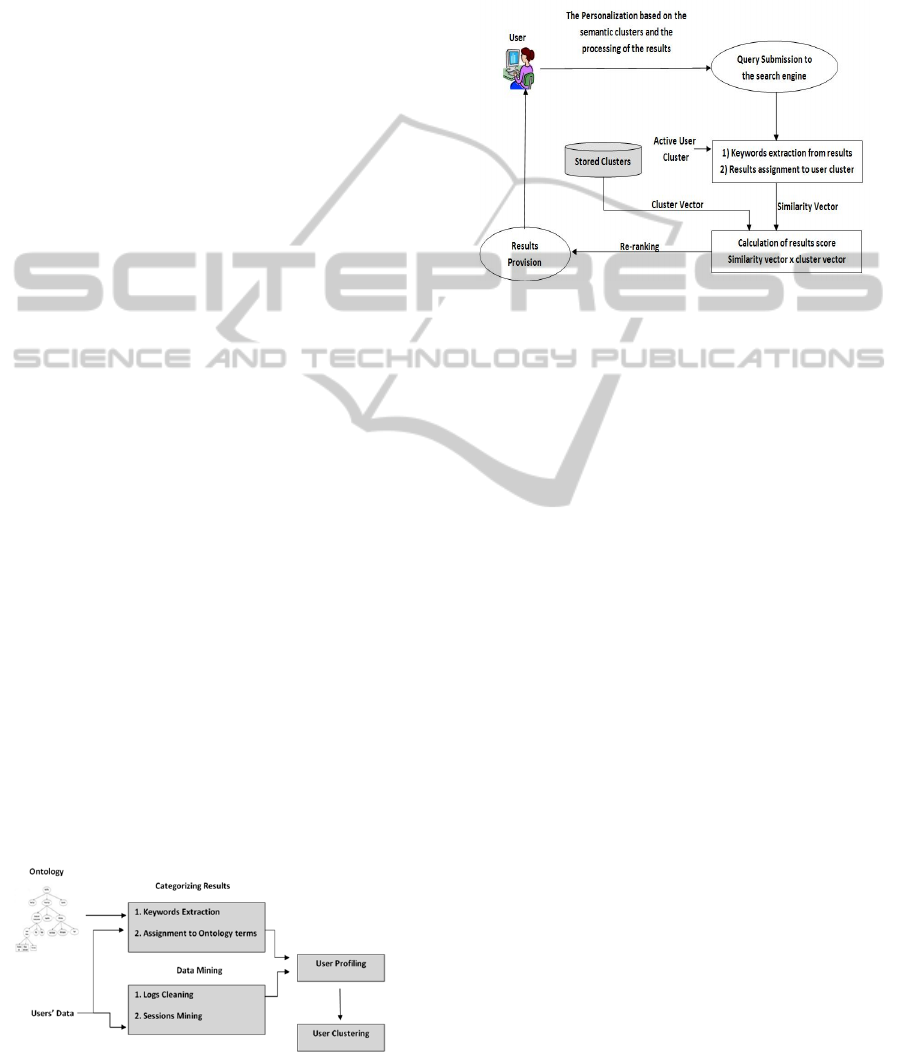

Specifically the methodology consists of two

major parts: the offline and the online part. In the

former three tasks can be described. First of all, we

gather the user’s search history and his/hers dietary

profile and then we process his/hers activity, taking

into consideration other users’ activities and dietary

profiles and constructing clusters of commonly

preferred concepts. The final task of the offline part

is to define ontology-based profiles for the active

user based on the detected interests from his current

activity, the interests from the semantic cluster in

which he has been assigned from previous searching

sections and the dietary characteristics of the current

user and the users who belong to the aforementioned

cluster. As far as the online part is concerned, two

tasks can be described here. At first, we re-rank the

web results combing the above information with the

semantics of the delivered search engine results and

then we constantly re-organize the conceptual

clusters in order to be up-to-date with the user’s

interests and personal characteristics.

Our approach has been experimentally evaluated

by utilizing the Google AJAX Search API and the

results show that semantically clustering users in

terms of using ontologies in search engines is

effective.

The remainder of the paper is structured as

follows: Section 2 discusses related work. In Section

3 we present the motivation for creating this project.

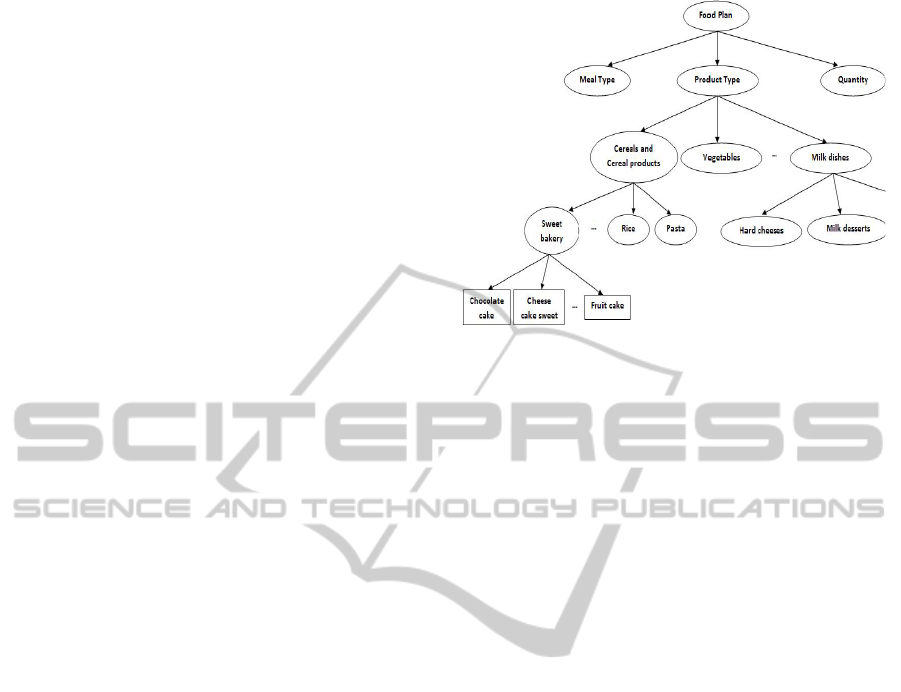

In Section 4, we describe the reference ontology that

our approach uses and we outline the semantic

annotation of web results to the ontology classes.

Furthermore, a presentation of how the user profiles

are defined over the reference ontology and how the

semantic clusters are formed is documented. In

Section 5, we propose a technique for web search

personalization combining profiles of semantic

clusters and users’ special dietary characteristics

with the emerging profile of the active user. In

Section 6, we mention the technologies which were

used for this project. Finally in Section 7, we exhibit

our experimental results and in Section 8

conclusions and further work is presented.

2 RELATED WORK

Our work touches various fields. In the following we

review related work in personalization, cluster

formatting and personalized semantic search.

2.1 Personalization

As the amount of information on the web

continuously grows, it has become increasingly

difficult for web search engines to find information

which satisfies users’ individual needs. Personalized

search is a promising way to improve search quality

by customizing search results for people with

different information goals. Many recent research

efforts have focused on this area. Most of them

could be categorized into two general approaches:

Re-ranking query results returned by search engines

locally using personal information; or sending

personal information and queries together to the

search engine (Pitkow, et al, 2002).

Moreover significant studies have been

conducted for personalization based on user search

history. A general framework for personalization

based on aggregate usage profiles is presented in

(Mobasher, et al, 2000). This work distinguishes

between the offline tasks of data preparation and

usage mining and the online personalization

components. (Qui, et al, 2006) suggest learning

user’s preferences automatically based on their past

click history and show how to use this learning for

result personalization. (Yabo, et al, 2007) presented

a scalable way for users to automatically build rich

user profiles which summarize a user’s interests into

a hierarchical organization according to specific

interests. Another approach to personalization is

presented in (Radlin ski, et al, 2006) where three

methods are proposed to increase the diversity of the

top N search results which are returned by a search

engine. Their approach involves re-ranking the top

N search results such that documents likely to be

preferred by the user are presented higher.

Furthermore they presented a number of methods to

collect diverse results for a given query using past

query reformulations. Additionally research on

personalizing search results (Dou, et al, 2007; Shen,

et al, 2005; Teevan, et al, 2005) has found that

THE EFFECT OF SEMANTIC CLUSTERING ON WEB SEARCH PERSONALIZATION

implicitly gathered information such as browser

history, query history, and desktop information, can

be used to improve the ranking of search results on a

per-user basis.

Ideas from all of these works where used in our

approach in order to create a personalized system.

2.2 Cluster Formatting

In order to enhance the performance of personalized

search a lot techniques suggest the use of clusters of

users with similar interests and characteristics.

(Teevan, et al, 2005) found that the performance of

the personalization algorithm they studied improved

as more data became available about the target user.

This finding confirms the suggestion that additional

data from similar people may be useful in enhancing

personalization systems.

(Dou, et al, 2007) compared several

personalization strategies and found that the use of

click-through data and k-nearest neighbor

collaborative filtering was a promising approach.

(Almeida & Almeida, 2004) used Bayesian

algorithms to cluster users of an online bookstore’s

search service into communities based on links

clicked within the site and found that the popularity

of different links within different communities could

be used to customize the search result rankings.

VisSearch system developed by (Lee, 2005) uses

data mining to uncover patterns in users’ queries and

browsing in order to generate recommendations for

users with similar queries. Some recommender

systems, such as the movie recommender system

PolyLens created by (O’ Conner, et al, 2001)

attempted to generate recommendation lists for

groups of users. (Smyth, 2007) suggested that click-

through data from users in the same “search

community” (e.g., a group of people who use a

special-interest Web portal or who work at the same

company) could enhance search result lists. Smyth

provided evidence for the existence of search

communities by showing that a group of employees

from a single company had a higher query similarity

threshold than general Web users. (Freyne &

Smyth’s, 2006) I-SPY system expanded the notion

of search communities to include related

communities, measuring intercommunity similarity

based on the degree to which communities’ queries

and result click through overlap.

(Mei and Church, 2008) found that geographic

location might serve as a reasonable proxy for

community, since they observed that grouping users

into classes based on the similarity of their IP

addresses could improve search results.

(Teevan, et al, 2009) found that groupization, a

personalization technique that combines personal

and group content improves Web rankings for

different groups/queries. (Smith, et al, 2009)

managed to develop unambiguous clusters of URLs

from clickthrough data from the MSN search query

log excerpt (the RFP 2006 dataset) whereas (Tesic,

et al, 2007) proposed a cluster-based sampling

method and data modelling of the semantic context

in fusion with text and visual search baselines in

order to boost search performance for a diverse

range of query topics. Moreover, (Nguyen, et al,

2009) proposed a different way of clustering in order

to facilitate personalization; they enriched short

snippets with hidden topics from huge resources of

documents on the Internet, and managed to cluster

and label such snippets effectively in a topic-

oriented manner without concerning the whole Web

pages.

In our work we used ideas from the

aforementioned clustering techniques in order to

create effective clusters for personalizing the web

search results.

2.3 Personalized Semantic Search

The enormous increase of information in the web led

the information retrieval community to strive

towards changing the concept of “good for all” to

“good for everyone”. This in turn popularized

personalized semantic search engines and

semantically enhanced recommendation systems,

with some related work in (Pretschner, et al, 1999;

Gauch, 2003; Sheth, et al, 2002; Liu, et al, 2002;

Liu, et al, 2004; Liu, 2002; Kim & Chan, 2005;

Bose, et al, 2006; Sieg, et al, 2007). (Zhuhadar &

Nasraoui, 2008) presented an approach for

personalized search in a e-learning platform, that

takes advantage of semantic web standards (RDF

and OWL) to represent the content and the user

profiles. In this approach, however, the authors used

a taxonomy to semantically characterize their

context whereas in this paper we used an ontology

which contains a greater amount of information.

(Sendhilkuman & Geetha, 2008) designed a

personalized search index with the use of an

ontology which provided them with a conceptual

relation between the search keywords and the pages

which matches the user’s information need.All of

these approaches in combination with the

(Garofalakis, et al, 2008, 2009) led to the

development of our presented system.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

3 MOTIVATION

Why did we need a Semantic Cluster-based Search

Engine? As already mentioned the World Wide Web

grows exponentially where as the human capability

to find, process and understand the provided content

remains constant. Moreover, users are characterized

by different needs and characteristics may face

problems during their navigation in the Web and

may lose their goal of inquiry. Web personalization

is a promising solution which alleviates the problem

of information overload. Furthermore, semantic

searches augment and improve the traditional search

results by using semantic information from

resources like ontology and thesaurus. Additionally,

health-related searches constitute a 4.5 % of all the

searches on the Web which means that about 6.75

million health-related searches per day in Google

alone are being conducted (Eysenbach & Kohler,

2003).

Taking all of these under consideration, we

thought of creating a semantic cluster-based search

engine which not only meets its corresponding

users’ preferences but it also considers their dietary

characteristics.

4 SEMANTIC PROFILING

The general aim of this work is to introduce a

method for personalizing the results of web

searching. For this reason we focused on

constructing user profiles implicitly and

automatically, according to their interests, dietary

characteristics and their previous behaviour on

searching. At this direction we were based on the

work described in (Pretschner, et al, 2003;

Garofalakis, et al, 2009).

4.1 Reference Ontology

Our first goal was to create a reference ontology

upon which we will base the user profiles. The

profile of each user will be represented by a

weighted ontology, depicting the users’ interest for

every class of the reference ontology and the users’

dietary characteristics. We decided to create a new

ontology from scratch, which was based on the

Finnish Food Composition Database for the National

Institute for Health and Welfare. In Figure 1 there is

a depiction of some of the concepts of the

constructed ontology.

Figure 1: Part of the constructed ontology.

The ontology created is actually a directed

acyclic graph (DAG). Since we wish to create a

relatively concise user profile that identifies the

general areas of a user’s interests and dietary

characteristics we created our reference ontology by

enhancing with lots of food information. Thus, we

not only created classes and instances as it has been

done in previous works (which were presented in

Section 2), but properties and methods were also

implemented making the ontology more rich in

context. The ontology in addition to the instances

and the methods, constitute a knowledge base very

thorough in information which can be used to

effectively answer competency queries from the

developed search engine. The ontology was created

by Protégé, the free, open source ontology editor and

knowledge-base framework and the language used

for development was OWL.

4.2 Semantic Annotation

The construction of the profile, i.e. the weighted

ontology, for every user includes two parts; the

semantic annotation of user’s previous choices and

the dietary profile characterization which will be

presented in Section 4.3. The semantic

characterization of user choices is based on the

methodology proposed in (Garofalakis, et al, 2009).

Therefore, the user’s previous choices are analyzed

into keywords extracted from the visited web pages

and the keywords are semantically characterized.

The calculation of the semantic similarity

between each keyword and each term of the

ontology was computed by using semantic similarity

measures with WordNet. In Wordnet, English nouns,

verbs, adjectives and adverbs are organized into

synonym sets, each representing one underlying

lexical concept. Several experiments were made in

THE EFFECT OF SEMANTIC CLUSTERING ON WEB SEARCH PERSONALIZATION

order to select the appropriate measure for our

ontology. The measure that was applied is the

PATH measure which calculates the relatedness by

counting nodes in the noun and verb WordNet 'is-a'

hierarchies.

distance

srelatednes =

(1)

If two concepts are identical, then the distance

between them is one; therefore, their relatedness is

also 1. However, the assignment process is time-

consuming; therefore we have implemented a

caching policy to improve system response. The

assignments of instance words are kept in cache, to

minimize response time in case these words are met

again. Every time that this process is executed the

amount of previous choices that are semantically

annotated are the users’ choices that have not been

annotated at the last execution of this step of the

methodology. This saves time from the execution,

since semantic annotation is a quite time consuming

step of the overall method applied. As a result, the

keywords and consequently, the users’ choices are

assigned to relevant classes of the ontology.

4.3 User Profiles’ Formulation

In this step, our methodology uses the semantic

annotations of the users’ choices so as to construct

the profile for every user. After the semantic

characterization of user’s choices to the ontology

concepts our methodology moves on the profile

creation.

From the web access logs kept in the web server

our method extracts the user’s previous choices,

which have already been semantically annotated.

Therefore, for every user we extract the concepts

and the frequency of appearance from the previous

choices that the specific user has made. In the end of

the execution of this step, there is an accumulation

of the preferences for every user and of the

frequency for every concept, which is the initial

weight, for every class (preference) in the ontology.

Additionally, for every user we construct his/hers

dietary profile based on the data which the user

enters to specific forms of the system. Based on

these data, we calculate the Body Mass Index (BMI)

of each user. The initial weight which was

mentioned earlier in combination with each user’s

BMI constitute the overall weight for every class in

the ontology.

Apart from the accumulation of the concepts for

which the user has shown interest and his/hers

dietary profile, we construct the vector that

represents each user’s profile. The vector’s size is

the number of concepts that the ontology consists of.

The value of each element of the vector corresponds

to the weight of the user interest for this concept. So

we propose that, the weight for a concept i for the

user u, is calculated as:

)( u

cfsum

w =

(2)

where

= the number of times that the concept i has been

assigned to the user u.

sum(cf

) = the sum of the times that all the concepts

of the ontology has been assigned to the user u.

For the concepts that the user has not selected any

previous choice assigned to this concept the value is

set to zero. So for a user u the profile is represented

as follows:

=<w

, w

,…, w

(3)

Where n is the number of concepts in the ontology

and

⎭

⎬

⎫

⎩

⎨

⎧

otherwise

iconceptifpconceptiweight

0_),(

(4)

Therefore, it is obvious that the weight of each

concept is the relative frequency of the concept

among all concepts of the ontology. The sum of all

weight is equal to one, representing the percentage

of the user’s interest for every concept. Moreover,

for each user we create a file that has the profile

vector.

4.4 Semantic Clustering

After creating each user profile, we move on to

profile clustering. From the profile creation step, a

profile for every user is stored in the database and a

file with the user’s vector weighted ontology is

created. At this step of the methodology, the profiles

of all the users that reacted with the search engine

and have similar BMI values are accumulated and

are clustered into clusters with similar interests.

The clustering algorithm that has been applied in

the methodology proposed in the profile clustering

step is the K-Means algorithm (Ma, et al, 2007). The

K-Means algorithm accepts the number of clusters to

group data into and the dataset to cluster as input

values. It then creates the first K initial clusters (K=

number of clusters needed) from the dataset by

choosing K rows of data randomly from the dataset.

Next, K-Means assigns each record in the dataset to

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

only one of the initial clusters. Each record is

assigned to the nearest cluster (the cluster which it is

most similar to) using a measure of distance or

similarity like the Euclidean Distance Measure,

which was used in this module. K-Means re-assigns

each record in the dataset to the most similar cluster

and re-calculates the arithmetic mean of all the

clusters in the dataset. The preceding steps are

repeated until stable clusters are formed and the K-

Means clustering procedure is completed. Stable

clusters are formed when new iterations or

repetitions of the K-Means clustering algorithm does

not create new clusters as the cluster centre or

Arithmetic Mean of each cluster formed is the same

as the old cluster centre. In the end of the execution

of this step the users are grouped into clusters with

similar interests and the clusters are stored to the

database. Thus, a cluster profile is built, utilizing the

average of preferences of all cluster members:

=<w

, w

,…, w

(5)

Every time this step is executed, the clusters are

constructed from the beginning and the users are

grouped again. Thus, the clustering procedure is not

based on the previous constructed clusters because

we considered that the user’s choices will alter

periodically. The construction of the semantic users’

profiles clusters is presented in Figure 2.

5 PERSONALIZATION

ALGORITHM

The pre-processed user’s choices, their semantic

characterization and the users’ clusters are used for

processing and personalizing the results from a

search engine. At this point every user that has

reacted previously with the online search engine has

been put in one cluster.

This cluster consists of users with similar

interests and can be depicted as a weighted ontology

such as the profiles. This weighted ontology will be

presented as a vector, too. The personalized search

Figure 2: Clusters Creation by using semantic user’s

profiles.

includes the calculation of the similarity of each

result returned by the search engine with the

cluster’s interests and its dietary characteristics. This

calculation requires the execution of all the steps of

the ontology-based user clusters for each result

returned by the search engine.

Figure 3: Personalization Algorithm.

Therefore, for every query that is set to the

search engine the proposed methodology follows the

following steps:

1. Extract keywords from users’ previous

choices.

2. Apply semantic annotation step not to the

reference ontology but to a part of the

ontology for which the cluster that the user

belongs has a non-zero weight.

3. Calculate the value score value for each result.

The above three steps are executed for every

result and the score value is kept in cache.

Afterwards, the results of the search engine are

organized for presentation to the user according to

the score that has been calculated, beginning with

the one with the highest score (Figure 3). The

interaction with the search engine is made by using

the Google AJAX search API which is referred to

Section 7.

6 TECHNOLOGIES USED

The technologies which were used for the

implementation of this work include the .NET

framework and more specifically the C#

programming language. For the database framework

the SQL server was chosen. Those technologies

were selected due to their high reliability,

interconnectivity and portability. Moreover the .NET

framework is a platform in which a lot of strange to

THE EFFECT OF SEMANTIC CLUSTERING ON WEB SEARCH PERSONALIZATION

it technologies can be applied effectively and

enhance its operations.

In addition to the .NET framework, Perl

programming language was used to create modules

which performed the semantic similarity of the

keywords with the ontology’s terms. Perl was

selected due to its capability of managing effectively

strings of characters.

The applied ontology was created in the Protégé

platform which supports the OWL (Web Ontology

Language). Protégé was selected since it is a user

friendly open source platform and it is

systematically used by the scientific community.

Finally, AJAX search API was used in order to

connect Google’s search engine with our presented

system. AJAX search API is actually a web service

which is appropriate for keyword position tracking

and can easily incorporated in a web page with the

use of Javascript language.

7 TESTING AND EVALUATION

We developed a WWW search engine utilizing the

Google AJAX Search API so as to test our

methodology. The Search API returns the URL, the

title and a short summary for each one of the eight

results of the Google search engine. At first we run

this limited search engine without personalizing the

results but accumulating the users’ choices. Next, we

applied the method proposed and compared the

results of the personalized representation with the

non personalized representation.

For our experimental implementation, we used a

database for storing users’ BMI and their choices for

every query applied in the limited search engine

used for testing. Every time that a user enters the

search engine there is an identification of the IP

address, the agent and the domain name keeping off

the multiple storage of a user in the database

Moreover, the search engine stores in the database

the query, user’s calculated BMI profile which is

based on the data the user inserted in a special

system’s form, and the choices of the user in every

query. For every result that is clicked by the user the

search engine stores the title, the URL and the short

summary returned in the database. This database

consists of the history of the requests and therefore

is used as the web access logs in this methodology.

At next we apply the steps of the methodology

proposed earlier for the creation of the semantic

users’ profiles clusters. In the web choice, i.e. the

search engine’s result, that has been selected we

extract the keywords. For the experimental

implementation the methodology for the keyword

extraction is similar to the one proposed in (Dai, et

al, 2002) for the keywords of the pages that have a

link for a specific page. The keywords that are

extracted for every URL are accumulated from the

title of the URL and the short summary returned by

the Google AJAX search API.

The title and the summary are parsed and are

cleaned by the HTML tags and the stop words (very

common words, numbers, symbols, articles) are

removed, since they are considered not to contribute

to the semantic denotation of the web page’s

content. The words that remain are considered the

keywords for every URL since their number is small

and no frequency is being taken into consideration.

After the running of this step the keywords for every

URL are stored to the database. At next the

keywords are semantically characterized according

to the way described in paragraph 4.2. Afterwards,

the profiles of the users are created as analyzed in

paragraph 4.3 and finally the users are grouped into

clusters as referred in 4.4 according to the

methodology proposed. In order to evaluate the

proposed method and prove the efficient behavior of

our personalization method, we performed some

queries with polysemy and we used different types

of users with different BMI values expecting the

personalized results to be personalized according to

the profile of the cluster that a user is set and to

verify that our method can improve the results’

ranking quality as desired. We applied the queries in

the experimental implementation that returns the

first eight results from the Google search engine

through the Google AJAX search API. In one case

we applied our personalization methodology

whereas in the other case we extracted the results as

they were returned by the search API. We evaluated

the use of our automatically created user profiles for

personalized search using the approach of ranking.

A function is applied to the document query match

values and the rank orders returned by the search

engine. The relevant documents are moved higher in

the results set and demote non-relevant documents.

Our experimental implementation was online for 1

month and twelve users have reacted with it. The

choices that they have made for every query were

stored in the database and their dietary profile was

formed. The choices were processed and the user

profiles were created. Next, we clustered the users in

three clusters. The user that made the queries has

already been put in a cluster and the reference

ontology of the cluster upon which the score of the

results will be based has been created.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

The first example query which was applied in the

search engine was the keyword “cookie”. The word

“cookie” not only has a twofold meaning, since it

means the small, flat-baked treat or the text string

stored by a user’s web browser (also known as web

cookie/ browser cookie/ HTTP cookie) but also

constitutes a type of food which belongs to the

cereal class according to the developed ontology. In

this example a user with a dietary profile of class I

obesity, interacts with the search engine. This type

of user is advised to consume small quantities of

such food categories (i.e. cookies) which provide

his/hers body with enough energy without a lot of

fat.

Based on all these, we expect that the search

engine’s results will refer both to food and

computers. The user who gives this query in the

search engine asks for information about cookie as a

kind of food and expects results related to food. The

search engine’s role is twofold: on the one hand the

returned results must be personalized according to

the user’s profile who is class I obese and on the

other hand the results must be personalized based on

the user’s cluster which is a group of people who are

interested in food and not in computers. In the

following table we can see the results of the search

engine for the query “cookie”. The first column

represents the order of the results of the AJAX

search API without the application of the

personalization methodology while in the second

column we can see the order of the personalized

results of the experimental application.

Next to each title we give in parenthesis the

general concept of the result, which we have

concluded after reading the summary. In the first

column the result that the user searches is in place 5

and another result close to food but not the one that

the user is interested in is in place 2. In the second

column with the personalized results, the requested

webpage is in place 2 and the similar to food

webpage is in place 5. It is obvious that after the

application of the personalization methodology that

is proposed the results related with the user’s

interests are pushed to places closer to the top. The

cluster into which the user belongs, as we have

mentioned, has many interests that include food and

this has been taken into consideration while

calculating the score of each result pushing the

results related with food in a higher place in the list

of the results.

Apart from this query, we have tested the

proposed methodology in a second query, the

keyword “egg”. This keyword is not characterized

by polysemy as was the case in the first example but

Table 1: Experimental results for query “cookie” for a user

interested in a cookie related with food, with the cluster he

belongs to has interest in food and the user has class I

obesity.

Non Personalized

Results

Personalized Results

HTTP cookie -

Wikipedia, the free

encyclopedia (computers)

The Unofficial Cookie FAQ

(computers)

Cookie - Wikipedia, the

free encyclopedia (food)

Cookies - All Recipes (food)

Cookie Mag: the Stylish

Parenting Magazine for

the New Mom: Home

(people)

Enable Cookies: Search

History and Settings –Web

Search Help (computers)

What is cookie? - A

Word Definition From

the Webopedia Computer

(computers)

Cookie Central (computers)

Cookies - All Recipes

(food)

Cookie - Wikipedia, the

free encyclopedia (food)

The Unofficial Cookie

FAQ (computers)

HTTP cookie - Wikipedia,

the free encyclopedia

(computers)

Cookie Central

(computers)

What is cookie? - A Word

Definition From the

Webopedia Computer

(computers)

Enable Cookies: Search

History and Settings –

Web Search Help

(computers)

Cookie Mag: the Stylish

Parenting Magazine for the

New Mom: Home (people)

is related with user’s dietary profile. The user who

performs this query is classified as underweight and

the cluster to which he belongs has similar

characteristics. Thus, the returned results which are

related with food should be placed in higher places

to the personalized search engine.

People who are categorized as underweight

should consume food rich calories. Eggs are

characterized as such and contain lots of nutrients.

Consequently, for this user results related with food

should be ranked higher.

In the second table we can see the results of the

search engine for the query “egg”. Again, in the first

column the results that the user searches are in

places 3 and 6 whereas in the second column, with

the personalized results, the requested webpages are

now in places 1 and 2. It is obvious that after the

application of the personalization methodology the

results related with the user’s interests are pushed to

places closer to the top.

In both examples, it has been shown that the

methodology given the relatedness of the results

with the cluster’s preferences and user’s

characteristics has pushed the desired results in

THE EFFECT OF SEMANTIC CLUSTERING ON WEB SEARCH PERSONALIZATION

Table 2: Experimental results for query “egg” for a user

who is underweight and the cluster he belongs to has

similar characteristics and is interested in food.

Non Personalized

Results

Personalized Results

Egg (food) - Wikipedia,

the free encyclopedia

Eggs, How To Cook Eggs,

Egg Recipes, Egg Nutrition

Facts, All (food)

Egg (biology) -

Wikipedia, the free

encyclopedia

WHFoods: Eggs (food)

Eggs, How To Cook

Eggs, Egg Recipes, Egg

Nutrition Facts, All

(food)

Incredible Edible Egg | Eggs

- what's inside the shell?

Welcome to the

American Egg Board

Welcome to the American

Egg Board

Incredible Edible Egg |

Eggs - what's inside the

shell?

Egg (food) - Wikipedia, the

free encyclopedia

WHFoods: Eggs (food)

Easter Eggs - Eeggs.com

Easter Eggs - Eeggs.com Egg (biology) - Wikipedia,

the free encyclopedia

egg - Kitchen Dictionary

- Recipezaar

egg - Kitchen Dictionary -

Recipezaar

places higher than the places they were put without

personalization.

8 CONCLUSIONS AND FUTURE

WORK

We presented a personalization methodology which

is based on clustering semantic user profiles. The

method calculates users’ BMI, analyzes and

annotates semantically the web access logs. At next

it organizes the users’ profiles based on their choices

and their BMI, and groups the users into clusters.

The personalization of the results returned by the

search engine is done by an on-the-fly semantic

characterization and the score of each result is

calculated. The scores of the results are kept in

cache and the results are reorganized and presented

to the user according to this score putting the one

with the highest score first. By the experimental

implementation we showed that the personalized

method proposed has notably possibilities to change

the scene in personalization. Future work includes

the use of Fuzzy K-Means (Qiang, et al, 2008) that

allows the creation of overlapping clusters, so that a

user may belong to different cluster profiles with

different weights or the use of K-Max algorithm.

Also, the development of a reference ontology with

more levels and alteration in factors such as the

score of each result taking into consideration the

user’s preference with greater weight than the rest

users of the cluster.

REFERENCES

Almeida, R. and Almeida, V., 2004, A community-aware

search engine. In Proceedings of the World Wide Web

Conference 2004, pp. 423-421

Bose, A., Beemanapalli, K., Srivastava, J., Sahar. S., 2006,

Incorporating Concept Hierarchies into Usage Mining

Based Recommendations. Proc. of WebKDD 2006:

KDD Workshop on Web Mining and Web Usage

Analysis, in conjunction with the 12th ACM SIGKDD

International Conference on Knowledge Discovery

and Data Mining (KDD 2006), Philadelphia, PA.

Dai, H., Mobasher, B., 2002, Using Ontologies to

Discover Domain-Level Web Usage Profiles, In

Proceedings of the 2

Workshop on Semantic Web

Mining, PKDD 2002

Dou, Z., Song, R., Wen, J.R., 2007, A large-scale

evaluation and analysis of personalized search

strategies. In Proceedings of the World Wide Web

Conference 2007, pp. 581-590

Eysenbach, G., Kohler, Ch., 2003, What is the prevalence

of health-related searches on the World Wide Web?

Qualitative and quantitative analysis of search engine

queries on the Internet, In AMIA, Annual Symposium

Proceedings Archive, pp. 225-229

Freyne, J. and Smyth, B., 2006, Cooperating search

communities, In Proceedings of the AH’06, pp. 101-

110

Garofalakis, J., Giannakoudi, T., Vopi, A., 2008,

Personalized Web Search by Constructing Semantic

Clusters of User Profiles, In Proceedings of 12th

international Conference, KES 2008, pp. 238-247

Garofalakis, J., Giannakoudi, T., 2009, Exploiting

Ontologies for Web Search Personalization, In Web

Personalization in Intelligent Environments, pp.49-64

Gauch, S., 2003, Ontology-based personalized search and

browsing. Web Intelligence and Agent Systems, 1(3),

pp. 219–234

Kim, H., Chan, P. K., 2005, Personalized ranking of

search results with learned user interest hierarchies

from bookmarks. WEBKDD 05 Workshop, pp. 32–43

Lee, Y-J., 2005, VizSearch: A collaborative Web

searching environment, Computers & Education,

44(4), pp. 423-439

Liu, F., Yu, C., Meng, W., 2002, Personalized web search

by mapping user queries to categories. Proceedings of

the eleventh international conference on Information

and knowledge management, pp. 558–565

Liu, F., Yu, C., Meng, W., 2004, Personalized Web Search

for Improving Retrieval Effectiveness

Liu, J., 2002, Resource-bounded online search for dense

neighbourhood on the Web, PhD thesis, Canada

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

Ma, Z., Pant, G., Sheng, O., 2007, Interest-based

personalized search, ACM Transactions Information

Systems, 25(1)

Mei, Q. and Church, K., 2008, Entropy of search logs:

How hard is search? With personalization? With

backoff? In Proceedings of WSDM’ 08

Mobasher, B., Cooley, R., Srivastana, J., 2000, Automatic

Personalization based on web usage Mining, In

Communications of the ACM, 43(8), pp.142-151

Nguyen, C., Phan, X., Horiguchi, S., Nguyen, T., Ha, Q.,

2009, Web Search Clustering and Labeling with

Hidden Topics, In ACM Transactions on Asian

Language Information Processing, 8(3), Article 12

O’ Conner, M., Cosley, D., Konstan, J., Riedl, J., 2001,

PolyLens: A recommender system for groups of users.

In Proceedings of ESCW’01, pp. 199-218

Pitkow, J., Schuetze, H., Cass, T., Cooley, R., Turnbull,

D., Edmonds, A., Adar, E., and Breuel, T., 2002,

Personalized Search. In Communications of the ACM,

45(9), pp.50-55

Pretschner, A., Gauch, S., 1999, Ontology based

personalized search. Master’s thesis, University of

Kansas, Electrical Engineering and Computer Science

Pretschner, A., Cauch, S., Chafee, J., 2003, Ontology-

Based User Profiles for Search and Browsing, In Web

Intelligence and Agent Systems, 1 (3-4), pp. 219-234

Qiang, W., Yunming, Y., Huang, J.Z., 2008, Fuzzy K-

Means with Variable Weighting in High Dimensional

Data Analysis, In Web-Age Information Management

2008, WAIM’08, pp. 365-372

Qui, F., Cho, J., 2006, Automatic identification of user

interest for personalized search. In Proceedings of the

International WorldWide Conference, Edinburgh,

Scotland, U.K., ACM Press, New York

Radlinski, F., Dumais, S., 2006, Improving Personalized

Web Search using Result Diversification, In

Proceedings of the SIGIR’06, Seattle, Washington,

USA, 6-11 August 2006

Sendhilkuman, S., Geetha, T. V., 2008, Personalized

Ontology for Web Search Personalization, In Compute

2008

Shen, X., Tan, B., Zhai, C. X., 2005, Implicit user

modeling for personalized search, In Proceedings of

CIMK’05, pp. 824-831

Sheth, A., Bertram, C., Avant, D., Hammond, B., Kochut,

K., Warke, Y., 2002, Managing semantic content for

the Web. Internet Computing, IEEE, 6(4), pp. 80–87

Sieg, A., Mobasher B., Burke, R., 2007, Ontological user

profiles for representing context in web search. Web

Intelligence and Intelligent Agent Technology

Workshops, 2007 IEEE/WIC/ACM International

Conferences, pp. 91–94

Smith, G., Brailsford, T., Donner, C., Hooijmaijers, D.,

Truran, M., Goulding, J., Ashman, H., 2009,

Generating unambiguous URL clusters from Web

search, Proceedings of WSDM’09

Smyth, B., 2007, A community-based approach to

personalizing Web search. In IEEE Computer, 40(8),

pp. 42-50

Teevan, J., Dumais, S. T., Horvitz, E., 2005, Beyond the

commons: On the value of personalizing Web

search. In Proceedings of SIGIR’05, pp. 449-456

Teevan, J., Ringel Morris, Μ., Bush, S., 2009, Discovering

and Using Groups to Improve Personalized Search. In

Proceedings of WSDM’09, pp. 15-24

Tesic, J., Natsev, A., Smith, J., 2007, Cluster-based Data

Modeling for Semantic Video Search, In Proceedings

of CIVR’07, pp. 595-602

Yabo, X., Benyu, Z., Zheng, C., Ke, W., 2007, Privacy-

Enhancing Personalized Web Search, In Proceedings

of the International World Wide Web Conference

IW3C2, Banff, Alberta, Canada, 8-12 May 2007

Zhuhadar, L., Nasraroui, O., 2008, Personalized Cluster-

based Semantically Enriched Web Search for E-

learning, In Proceedings of the ONISW’08

Conference, pp. 105-111

THE EFFECT OF SEMANTIC CLUSTERING ON WEB SEARCH PERSONALIZATION
