VISUALLY SUMMARIZING THE EVOLUTION OF DOCUMENTS

UNDER A SOCIAL TAG

Andr

e Gohr

Leibniz Institute of Plant Biochemistry, Weinbergweg 3, 06120 Halle, Germany

Myra Spiliopoulou

Institute of Computer Science, Otto-von-Guericke University, 39016 Magdeburg, Germany

Alexander Hinneburg

Institute of Computer Science, Martin-Luther University Halle-Wittenberg, 06099 Halle, Germany

Keywords:

Knowledge management, Visualization, Social web, Tag semantics, Topic modeling.

Abstract:

Tags are intensively used in social platforms to annotate resources: Tagging is a social phenomenon, because

users do not only annotate to organize their resources but also to associate semantics to resources contributed

by third parties. This leads often to semantic ambiguities: Popular tags are associated with very disparate

meanings, even to the extend that some tags (e.g. ”beautiful” or ”toread”) are irrelevant to the semantics of

the resources they annotate. We propose a method that learns a topic model for documents under a tag and

visualizes the different meanings associated with the tag.

Our approach deals with the following problems. First, tag miscellany is a temporal phenomenon: tags ac-

quire multiple semantics gradually, as users apply them to disparate documents. Hence, our method must

capture and visualize the evolution of the topics in a stream of documents. Second, the meanings associated

to a tag must be presented in a human-understandable way; This concerns both the choice of words and the

visualization of all meanings. Our method uses AdaptivePLSA, a variation of Probabilistic Latent Semantic

Analysis for streams, to learn and adapt topics on a stream of documents annotated with a speciﬁc tag. We

propose a visualization technique called Topic Table to visualize document prototypes derived from topics and

their evolution over time. We show by a case study how our method captures the evolution of tags selected

as frequent and ambiguous, and visualizes their semantics in a comprehensible way. Additionally, we show

the effectiveness by adding alien resources under a tag. Our approach indeed visualizes hints to the added

documents.

1 INTRODUCTION

Collaborative tagging systems provide a popular way

to share and organize various resources including

bibliographic entries describing academic articles.

Examples are Bibsonomy

, CiteYouLike

and Con-

notea

. Quoting Golder and Huberman (Golder and

Huberman, 2006, pp. 200 and 203) ”tagging is funda-

mentally about sensemaking”, it is ”an act of organiz-

ing through labeling, a way of making sense of many

http://www.bibsonomy.org

http://www.citeulike.org

http://www.connotea.org

discrete, varied items [resources] according to their

meaning.” Aiming at organizing resources, collabora-

tive tagging systems assist users at two levels. First, at

user level, they help users to organize their own doc-

uments. Second, at community level, such systems

allow users to ﬁnd interesting resources contributed

by other users through searching by tags. To work ef-

fectively at community level, two assumptions must

hold: (i) users assign tags in a coherent way and (ii)

users are capable to deduce the meanings of resources

from tags. In real life, often both assumptions are vi-

olated because collaborative tagging systems are not

centrally managed.

Gohr A., Spiliopoulou M. and Hinneburg A..

VISUALLY SUMMARIZING THE EVOLUTION OF DOCUMENTS UNDER A SOCIAL TAG.

DOI: 10.5220/0003096100850094

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 85-94

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

We identify two situations that might be unsatis-

fying for particular users: (i) tags with multiple se-

mantics and (ii) unfamiliar tags without clear mean-

ing. Widely used tags might have multiple semantics

(Suchanek et al., 2008), some of which a particular

user might not be aware of. That ambiguity of tags is

likely to be promoted by the very fact that tagging is a

social activity: if a ”leader” user (Goyal et al., 2008)

favors a speciﬁc tag for a document, other users may

decide to use the same tag for documents even when

those documents diverge in content. Second, tags that

are unfamiliar to a user cannot be effectively used for

organizing and searching resources. If a user wants

to learn about the meanings of an ambiguous or un-

known tag, the user might inspect a sample of the re-

sources annotated with that tag. But inspecting whole

documents is time consuming especially when the tag

is frequently used.

Therefore, we propose a new method, comprised

of an unsupervised learner and a visualization tech-

nique. The unsupervised learner is based on proba-

bilistic topic modeling and discovers topics associated

with a given tag on the foundation of documents an-

notated with it. From the topics we derive document

prototypes that are presented by the proposed visual-

ization technique. Thereby, the visualization summa-

rizes the documents’ contents at a glance allowing a

user to get an overview about the meanings of the tag

itself.

The appearance of ambiguous meanings of a tag

can be also a temporal process, e.g. methods de-

veloped for social network analysis are later applied

and modiﬁed to analyze gene regulatory networks and

documents from both research areas are annotated

with the tag network. Consequently, our method sum-

marizes the evolution of document prototypes under a

tag through time.

We integrate two kinds of information into the vi-

sualization, namely the document prototypes as well

as their evolution and relative strength over time. The

challenges of the design of a new visualization tech-

nique are (i) to use the canvas efﬁciently and (ii) dis-

play the dominant information (main document pro-

totypes) while retaining less dominant information.

Document prototypes are derived from topics

learned by probabilistic latent semantic analysis

(PLSA) (Hofmann, 2001). We capture the evolution

of topics by AdaptivePLSA (Gohr et al., 2009), an ex-

tension of PLSA for dynamic topic modeling. Adap-

tivePLSA learns a series of PLSA topic models over

time and effectively prevents label switching meaning

the k

topic at the (i+1)

time point evolves from the

topic k at the previous time point i. This makes Adap-

tivePLSA especially useful to extract topics over time

in an intuitive manner.

We introduce document prototypes for document

collection summarization, explain how collaborative

tagging systems capture user interactions and de-

scribe how we construct a stream of documents under

a tag in Section 3. These streams are used to learn

topics over time as we brieﬂy review in Section 4. In

Section 5, we introduce our new visualization tech-

nique and explain its features in detail. In Section 6,

we present a case study using data from the collabo-

rative tagging system Bibsonomy and show the effec-

tiveness of our approach.

2 RELATED WORK

In topic modeling literature (Hofmann, 2001; Blei

et al., 2003), topics, which are not predeﬁned but

learned from documents and represented as discrete

probability distributions over the vocabulary, are of-

ten presented by listing most likely words. Additional

pieces of information like the relative strength of top-

ics are neglected. Research (Boyd-Graber et al., 2009;

Mei et al., 2007) to enhance presentation of topics for

human inspection suggests to present words that not

necessarily have to be the most likely words but the

most descriptive words for a topic. To report topics

learned by dynamic topic modeling, (Blei and Laf-

ferty, 2006) list the most likely words for topics at sev-

eral time points. Additionally, they plot the probabil-

ity of certain words for a topic at different time points

to give hints about how this topic changes through

time. We propose Topic Table that deals with any type

of word lists for topics and visualizes all topics and

their relative strength through time at a glance.

ThemeRiver (Havre et al., 2002) uses a river

metaphor to visualize changes in document contents

over time but it relies on manually predeﬁned words

for which it visualizes their document frequencies

several time points. Curved ﬂows to whose widths

the frequencies are mapped visualize their change

through time. Space of the canvas is wasted when-

ever the width of the ThemeRiver is small and inte-

gration of text into narrow curved ﬂows is difﬁcult.

Applying ThemeRiver to report topics over time with

additional pieces of information as Topic Table does

is not straight forward because ThemeRiver aims at

presenting other kinds of information changing over

time.

We apply Topic Table and AdaptivePLSA to sum-

marize document contents of a social tagging sys-

tem under tags. Tags reﬂect user interests and can

Number of documents containing the word.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

be exploited to assist users A common assumption

is that tags are representative of resource semantics.

Recently, this assumption started being questioned.

Quoting Zanardi and Capra ”. . . as tags are informally

deﬁned, continually changing, and ungoverned , so-

cial tagging has often been criticized for lowering,

rather than increasing, the efﬁciency of searching .. .”

(Zanardi and Capra, 2008, p. 51). Hence, it seems

reasonable to use tags, especially popular ones, with

caution. Nonetheless, we believe that visually sum-

marizing contents of documents that people associate

with such tags helps users to learn the multiple mean-

ings of a tag or to understand for what resources a yet

unknown tag is used. Summarization and visualiza-

tion of document contents is a way of knowledge gen-

eration in collaborative tagging systems which sub-

sumes perspectives on a tag of many different users.

The study of content to assess tag semantics is not by

itself new. For example, (Moxley et al., 2009) derive

semantics of tags assigned to Flickr pictures by an-

alyzing geographical coordinates of the depicted lo-

cations. However, we also account for the fact that

the meaning(s) associated with a tag may change over

time.

Beside AdaptivePLSA (Gohr et al., 2009) that ex-

tends PLSA (Hofmann, 2001) to streaming document

collections and that is used in this study, other ap-

proaches (Mei and Zhai, 2005; Blei and Lafferty,

2006; Wang and McCallum, 2006) model dynamic

document collections, too. Some allow for words to

become obsolete and irrelevant while others emerge

(AlSumait et al., 2008; Chou and Chen, 2008). Cap-

turing terminological evolution is indispensable for

visualizing the semantic evolution of tags, because

that evolution is inevitably associated with the in-

creased importance of some words that were irrele-

vant or unknown in the past.

3 SUMMARIZING DOCUMENTS

The aim is to provide users of collaborative tagging

systems with a summary of contents under tags by

document prototypes so that these users, if in doubt

about the meaning and usage of a certain tag, might

inspect this summary to clarify its meaning.

3.1 Document Prototypes

The contents of a document collection

D can be sum-

marized by prototypes of documents in

D. Document

prototypes abstract from the documents and thereby

describe the whole set of documents in a condensed

way. Thus, inspecting them allows to get an overview

about the contents of the documents. Because their

number is much smaller than the number of docu-

ments, inspecting prototypes is more efﬁcient than

reading single documents. We denote the collection

of documents by the vector

D of document IDs to al-

low for multiple occurrences of documents.

We use probabilistic topic modeling of documents

to derive document prototypes. Topic modeling of-

ten assumes topics to be represented by multinomial

distributions over words of the vocabulary (Hofmann,

2001; Blei et al., 2003). Topics capture patterns of

words that often co-occur in different documents.

Because topics are distributions over words they

are less suitable to summarize document collections.

But being a word distribution a topic allows to rank

words according to their probability. The top ranked

words are most strongly associated to that topic.

Inspecting these words allows to deduce what the

topic’s meaning. Consequently, we deﬁne for each

learned topic a document prototype consisting of the

top

top ranked words for that topic.

Many collections change over time, because, for

example, new documents are added. As an exam-

ple of such a collection, consider the documents as-

sociated with a certain tag in a collaborative tagging

system. As users interact with such systems, they

contribute new documents over time and tag these

documents. To provide a summary of contents of

documents annotated with a tag, we determine doc-

ument prototypes over time. In contrast to summa-

rizing static collection, we would also have to derive

how these prototypes change over time to capture the

dynamic nature of these collections.

We adapt the approach of summarizing a static

document collection by examining the collection as

it evolves over time. Therefore, we deﬁne a stream

of documents and learn topics for successive parts of

the stream using an extension of probabilistic latent

semantic analysis (Hofmann, 2001) described in Sec-

tion 4. From the topics over time we derive docu-

ment prototypes over time to be visualized for study-

ing how the contents of documents change through

time. But ﬁrst, we elaborate on how collaborative

tagging systems are used for managing annotations of

documents with tags. Next, we explain how we con-

struct a stream of documents under a tag to study how

that content changes over time.

3.2 Tagging Events in Collaborative

Tagging Systems

Collaborative tagging systems for academic articles

manage bibliographic entries that are contributed by

users. Bibliographic entries contain author informa-

VISUALLY SUMMARIZING THE EVOLUTION OF DOCUMENTS UNDER A SOCIAL TAG

time

tag t

Figure 1: Stream of tagging events (small black dots) according to tag t. Each tagging event assigns tag t to one document.

Positions of the sliding window of length l = 7 are represented by horizontal lines. The sliding window shifts forward by

new

= 5 new tagging events (tagged documents) and it covers at its four positions the following document subsequences

and

tion, the title and the abstract. We use the abstract

substitutional for the content of the corresponding full

article because articles are often not available due to

copyrights. In the sequel, we term these abstracts doc-

uments. In addition, collaborative tagging systems

manage tagging events. Tags are short descriptors de-

ﬁned by users and can be arbitrarily assigned to doc-

uments. A tagging event is an annotation of a biblio-

graphic entry – and hence of the corresponding docu-

ment – with a certain tag by a particular user at some

time point.

In this study, we neglect the information about

which particular user has assigned a tag to a docu-

ment. Thus, a tagging event is a triple (t,d,τ) of a tag

t, a document with ID d and a time stamp τ.

3.3 Document Stream under a Tag

Time stamps of tagging events induce an ordering on

documents

= hd

,..., d

i annotated with a tag t.

We call all documents of

documents under tag t.

The stream

may include identical documents if

these have been annotated multiple times by differ-

ent users with tag t. Document contents of the se-

quence

reﬂect how users understand tag t and, if

it changes, how that understanding changes through

time.

To study the stream of documents

we deﬁne

a sliding window covering l successive documents

(Guha et al., 2003) that comprise a partial docu-

ment collection under tag t. Typically, that window

shifts by one document at a time, i.e. the least re-

cent document within the sliding window is forgot-

ten when a new tagging event is recorded for tag t.

But such a ﬁne-grained analysis is impractical for our

purposes, because tag semantics do not change by

one assignment of a tag to a single document. We

rather slide the window by l

new

documents, i.e. the

window slides to a new position after l

new

new doc-

uments have been annotated with tag t. Hence, the

sliding window at position i covers the following par-

tial sequence of documents

= hd

r(i)

,..., d

r(i)+l

i of

with r(i) = 1 + (i −1)l

new

. Figure 1 shows an ex-

ample with 22 tagging events. The sliding window

covers l = 7 documents and it slides by l

new

= 5 doc-

uments. The ﬁgure depicts four sequential positions

of that sliding window, each covering a certain subse-

quence

and

of the stream

of docu-

ments.

As a result of applying the sliding window to the

stream of documents under tag t, we get a sequence

subsequences of document IDs h

,...,

4 LEARNING DOCUMENT

PROTOTYPES

We use AdaptivePLSA (Gohr et al., 2009), which is

an extension of probabilistic latent semantic analysis

(PLSA) for topic modeling over streaming document

collections. We review PLSA and brieﬂy explain how

AdaptivePLSA evolves a sequence of PLSA models

from which we extract topics over times. These are

used to derive document prototypes for summarizing

of evolving document contents over time.

4.1 Topic Modeling

We use PLSA to extract K hidden topics for each se-

quence of documents

under tag t. We denote the

set of all words (vocabulary) seen in documents of

as V

. Topics are denoted by the unobserved variable

z which takes values 1 ≤ z ≤ K. Each topic is repre-

sented by a multinomial distribution p(w|z) over word

IDs 1 ≤ w ≤ |V

|. The data D

used to learn topics is a

set of triples (d, w, n) meaning that word with ID w is

seen n > 0 times in document with ID d. If document

d occurs m times in

then we increase all corre-

sponding word counts by the factor m: (d,w,n ∗m).

PLSA models word distributions of documents

as mixtures of the determined topics: p(w|d) =

∑

z=1

p(z|d)p(w|z). The probabilities p(z|d) are mix-

ture weights for document d.

The parameters of a PLSA model ζ

are:

• document probabilities which form a vector

with elements δ

= p(d), d ∈

• mixture weights which form a matrix

θ with ele-

ments

= (θ

,..., θ

) and

= p(z = k|d),d ∈

, 1 ≤ k ≤ K, and

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

• topics which form a second matrix

ω with ele-

ments

= p(w|z = k), 1 ≤ w ≤ |V

|, 1 ≤ k ≤ K.

Usually K is much smaller than the number of docu-

ments in

but greater than one to capture the domi-

nant word correlations.

Because PLSA is a probabilistic model it deﬁnes

the probability of some data given the trained model:

p(D

|ζ

) =

∏

j=1

p((d,w)

|ζ

)

p((d,w)

|ζ

) = p(d

)p(w

)

= p(d

)

∑

z=1

p(w

,z|d

)

= p(d

)

∑

z=1

p(w

|z)p(z|d

)

The last line follows because words and documents

are assumed to be conditionally independent if the

hidden topic from which the word comes is known.

Informally, estimating the parameters of a PLSA

model for some given data means to ﬁnd topics

and mixture weights such that the word distributions

p(w|d) for the training documents are as best as possi-

ble approximated. The expectation maximization al-

gorithm (EM) (Dempster et al., 1977) is used for pa-

rameter estimated because it allows to estimate model

parameters even in presence of hidden (unobserved)

variables like variable z.

4.2 Topic Modeling over a Stream of

Documents

So far we had a closer look on how topics are learned

for each subsequence of documents

under a tag

t. The contents of documents of these subsequences

,...,

i indicate emerging or abandoned mean-

ings of tag t. Studying document prototypes derived

from topics over time might reveal such changing

meanings of the tag.

A problem of modeling resources under a tag over

time is that these may introduce new words. Con-

sequently, AdaptivePLSA evolves PLSA models un-

der a tag over time by taking account for this volatil-

ity in vocabulary of the growing document collection.

In addition, because AdaptivePLSA evolves the later

PLSA model from the former one, the k

topic of the

later model evolves from the k

topic of the former

model.

The sliding window at a certain position i covers

the sequence

of documents which partially over-

laps with

i+1

(see Figure 1). We denote by

new

the

latest l

new

documents of

covered by the i

sliding

window. AdaptivePLSA adaptively learns a sequence

of PLSA models ζ

,..., ζ

for the stream of docu-

ments under tag t; i.e. it evolves the later PLSA mod-

els from the former ones. The PLSA model learned

for the i

position of the window (

) is denoted by

To evolve model ζ

into ζ

i+1

AdaptivePLSA

adapts ζ

ﬁrst to new documents and then to new

words by ﬁve steps.

Estimating Mixture Weights for New Documents.

Mixture weights of new documents

new

i+1

are es-

timated by folding-in (Hofmann, 2001) these docu-

ments into ζ

. Therefore, topics p(w|z) 1 ≤ z ≤ K are

ﬁxed and the EM algorithm estimates mixture weights

p(z|d) for new documents. Only that part of the new

documents is considered that consists of words which

are already known by model ζ

Removing Mixture Weights of Old Documents.

The ﬁrst l −l

new

documents of window i are “out-

dated”. Their mixture weights

are removed from

θ.

Integrating New Words. New words are folded-in,

which is not straight forward because words are con-

nected by the word distributions p(w|z). To allow

folding-in of new words AdaptivePLSA converts the

current model

p(w,d) = p(d)

∑

z=1

p(w|z)p(z|d) (1)

into the equivalent model by Bayesian Calculus

p(d,w) = p(w)

∑

z=1

p(d|z)p(z|w)

Informally, documents and words have changed their

roles. Thus, folding-in words is done analogously as

we have previously folded-in new documents. We ﬁx

parameters p(d|z) and use the EM algorithm to esti-

mate p(z|w) for the new words. The EM uses data

which consists of occurrences of these words in the

new documents.

Removing Old Words. Words that are not seen in

documents of

i+1

are removed by deleting the cor-

responding parameters p(z|w) for all 1 ≤ z ≤K.

Consolidation. To allow adaption to new words

and new documents AdaptivePLSA converts back the

PLSA model (Eq. 1) and runs the EM algorithm a

few iterations using all data D

i+1

. Thereby, it adapts

mixture weights and topics.

VISUALLY SUMMARIZING THE EVOLUTION OF DOCUMENTS UNDER A SOCIAL TAG

5 VISUALIZING DOCUMENT

PROTOTYPES

The goal of our proposed visualization technique,

called Topic Table, is to present K comprehensible

document prototypes and their evolution over time.

The document prototypes are derived from topics

of PLSA models ζ

,..., ζ

– each model learns K

topics– learned for documents h

,...,

Topic Table arranges pieces of information in a

table. For tag t, Topic Table has K rows and

columns. The cell (k,i) in row k and column i corre-

sponds to the k

prototype derived from the k

topic

of the PLSA model ζ

. Hence, the rows correspond to

document prototypes and the columns correspond to

snapshots of these prototypes over time. By arranging

the k

document prototypes in one row, Topic Table

establishes a correspondence among them. This cor-

respondence stems from the fact that AdaptivePLSA

evolves model ζ

i+1

from the former model ζ

for all

1 ≤ i ≤

−1. Hence, the k

topic of model ζ

i+1

evolved from the k

topic of model ζ

. Inspecting the

sequence of the prototypes along the k

row allows to

better deduce how they change over time.

The Topic Table arranges three pieces of infor-

mation for each document prototype and time point

in different layers. From background to foreground,

these pieces are i) how fast does a topic change be-

tween successive time periods, ii) how prominent a

topic and the derived prototype are in documents un-

der tag t during a certain period of time, and iii) the

corresponding document prototypes. Figure 2 de-

picts how these pieces of information are visually pre-

sented by Topic Table.

First, we must visually depict how the learned

topics change between two successive time points.

To achieve this, we propose the metaphor of a river

that “ﬂows through time” and associate each evolv-

ing topic with a river. Narrow parts of the river rep-

resent watergates that strongly separate what comes

before and what afterward. These watergates indicate

time points at which the corresponding topic changes

much. Topic Table visualizes the rivers as gray straps

along each row, which correspond to the evolution of

one topic over time. The width of each river changes

between successive cells to indicate watergates. Suc-

cessive cells, say (k, i) and (k,i + 1), correspond to

the k

topic of model ζ

and ζ

i+1

, respectively. These

topics are multinomial distributions, which can be

represented by two vectors

and

i+1

. The entries

are probabilities of words of the respective vocabular-

ies of documents of

and

i+1

. The more similar

these two vectors are the more stable the correspond-

ing topic is. We use the cosine similarity which is

equal to 1 if both vectors point into the same direc-

tion and equal to 0 if the vectors are orthogonal to

each other. Hence, the width of the river at the border

between cells (k, i) and (k,i +1) is proportional to the

determined similarity between

and

i+1

such that

when the similarity is equal to one the width of the

river would be equal to the height of the cells. Vocab-

ularies of

and

i+1

are likely to be different. To

compute cosine similarity between the vectors

and

i+1

which might be deﬁned in different spaces, we

embed them into the joint space deﬁned by the union

of both vocabularies.

Another useful information is the relative strength

of the learned topics and corresponding document

prototypes in the data over time. This kind of infor-

mation is helpful in two respects. First, a user might

want to study only the strongest document prototypes

at each time point. Second, a user wants to inspect at

a glance temporal patterns of strong prototypes; how

the strength of them changes over time. Each PLSA

model allows to derive the probabilities of each ex-

tracted topic p(z=k). All these probabilities sum to

one 1 =

∑

k=1

p(z=k) for each studied time period. A

large probability indicates a topic that is prevalent in

the data. Topic Table visualizes these probabilities

by circles in the center of each cell (see (c) in Fig-

ure 2); The probability is mapped to the area of the

circle. We follow (W. S. Cleveland, 1994) and map

the strength of a topic to the circle area in a nonlin-

ear way to enhance human perception of differences

in the quantity; The radius of the circle visualizing

the probability of a topic k is equal to

p(z=k)

5/7

√

2π

.The

circles are depicted in the background of the cell on

top of the background river. Studying all circles of a

column top-down gives a fast impression about what

topics are the most dominant ones at a certain time

period. Inspecting the circles along a row allows to

deduce how the relative strength of the corresponding

topic changes over time.

Last, Topic Table shows the document prototypes

for each topic consisting of the most likely words.

Topic Table lists these words in the foreground of the

corresponding cells. The number of words that con-

stitute a document prototype is not ﬁxed. Common

choices are ten to twenty words. An experienced user

may need only ten-word prototypes (N

top

= 10) to de-

duce what they are about. New users or users who

study resources under unknown tags might need more

words. Consequently, Topic Table lets the user decide

how many words should constitute the document pro-

totypes. To assist users who want to ﬁnd new words

Topic Table highlights words of the k

prototypes at

time point i + 1 that are not part of the k

prototype

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

word1 word2

word3 . . .

i+1

i+2

Column i

Row k+1

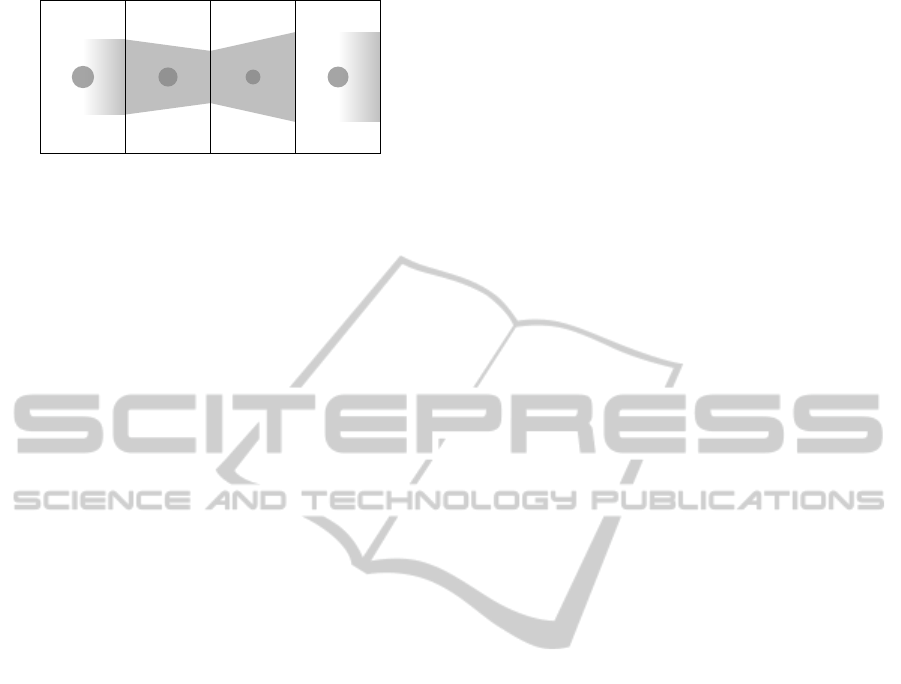

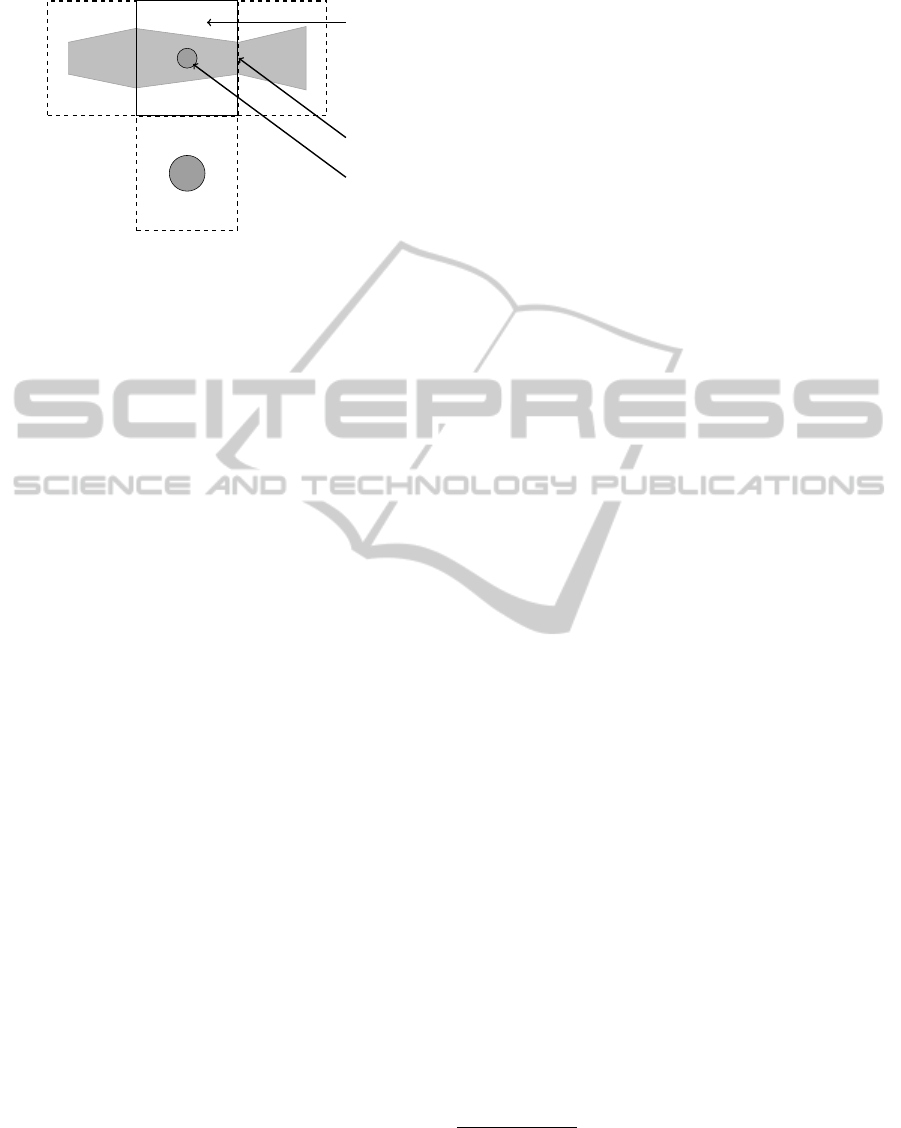

Figure 2: The cell in row k and column (i + 1) of Topic

Table corresponds to the k

topic extracted from the docu-

ments

i+1

under tag t. Features of Topic Table are (a) the

top

most likely words per topic that deﬁne the correspond-

ing document prototype (bold face words are new and not

part of the previous prototype), and (b) the river in the back-

ground of each row has a width at each border between the

(i+1)

and (i+2)

that is proportional to the similarity be-

tween the k

topic at (i + 1)

and (i + 2)

position of the

sliding window, and (c) the radius of the background cir-

cle is non-linearly proportional to the probability/strength

of the corresponding topic/derived prototype.

at time point i.

To enhance perception which visual elements of

Topic Table belong to the same layer, Topic Table

uses different gray shades. All background rivers are

shown in light gray. Light gray elements are often

strongly assigned to the background. Because the

rivers are drawn along a row they combine cells of

one row and thereby strengthen the perception of rows

and hence conveys the evolution of the document pro-

totypes through time. The circles belong to another

layer on top of the background layer. Consequently,

they are all drawn in a darker gray shade. The darker

the elements, the more important they are assumed to

be. Because the circles are positioned in the center

of the cells they enhance the perception of the struc-

ture of Topic Table. Last, the document prototypes are

listed in the foreground. Words are written in black

what enhances perception as important foreground el-

ements.

By displaying the different kinds of information in

layers on top of each other, Topic Table uses the can-

vas efﬁciently. In addition, because Topic Table uses

always one cell per document prototype less dominant

prototypes are visually retained and not suppressed.

6 Bibsonomy CASE STUDY

To show how our visualization technique helps in

clarifying the semantics of ambiguous tags, we run

experiments on the Bibsonomy social platform.

6.1 Data Preparation and Parameter

Setting

Resources in Bibsonomy are bibliographic entries in

Bibtex format which were contributed by the users

between 2005-12-31 and 2008-12-31. We use the

cleaned dump of the Bibsonomy

. We enriched some

Bibsonomy entries by retrieving abstracts from the

ACM Digital Library

. Entries are omitted when they

contain an insufﬁcient abstract being shorter than 400

characters. German and French abstracts were pruned

by a simple heuristics that checks for German arti-

cles

and “sociaux”. The remaining English abstracts,

which we call documents, are subjected to standard

preprocessing techniques, i.e. stopword removal and

Porter stemming.

Three parameters inﬂuence the visualization and

AdaptivePLSA. First, the length l of the sliding win-

dow determines the number of documents a particular

PLSA model is trained on. It also speciﬁes implicitly

with respect to what time scale a PLSA model is com-

puted, meaning the difference in time between the last

and least covered document. The parameter l might

be adapted to the amount of available documents un-

der a tag. The parameter l

new

controls how fast the

sliding window moves over the document stream un-

der a tag. Without making further assumptions it

can be meaningfully varied between 1 and l. We set

new

= 0.75 ·l to force some overlap while analyzing

the streams under tags in a rough manner. The num-

ber of hidden topics K learned by a PLSA model af-

fects the roughness of the summary of resources. A

reasonable choice is K l if a rough summary of the

contents of documents is desired. Consequently, we

set K equal to 5.

6.2 Topic Table for Tag network

The tag network(s), having many meanings as we will

see, stands for the two tags network and networks.

That tag was assigned to 1218 documents from 2006-

01-24 until 2008-12-27. The sliding window covers

350 documents and moves by 75% (260 documents)

of its length. This setting results in four positions of

the sliding window covering 350 documents. Hence,

Topic Table summarizes the contents of documents

covered by the four window positions in four columns

as shown in Figure 3.

www.kde.cs.uni-kassel.de/ws/dc09/dataset It was part

of the data mining contest of the ECML/PKDD conference

2009.

www.acm.org

der, die, das, dieser, diese, dieses, ein, eine, einer

VISUALLY SUMMARIZING THE EVOLUTION OF DOCUMENTS UNDER A SOCIAL TAG

Topic 1

2007-06

350

network system

model complex

simul result cell

popul structur

informat scale

interact natur

perform show

2008-01

350

network model

active paper

node manag

cell system

state informat

agent result

human control

distribut

2008-06

350

network pro-

gram genet

result problem

approach evolv

paper model

agent control

algorithm

base techniqu

method

2008-11

350

program genet

network re-

sult model

problem algo-

rithm approach

learn neural

system evolv

gp techniqu

method

Topic 2

socy network

web commun

data algorithm

semant structur

graph comput

analysy infor-

mat measur

base interact

network socy

commun

analysy in-

format web

research base

ontology data

system knowl-

edg structur

semant capit

commun socy

network knowl-

edg practic

organiz web

informat de-

velop base

capit chapter

study analysy

research

network inno-

vat knowledg

paper develop

process re-

search socy

technology

ﬁrm scienc

informat study

actor organiz

Topic 3

tag collabor

system user

network model

structur dynam

content share

bookmark dis-

tribut web relat

shape

network system

tag user design

sensor com-

mun pattern

frequ data pa-

per ad structur

activity model

design system

user pattern tag

develop school

network in-

teract resourc

recent languag

data model

learn

design pattern

develop user

data system

object languag

applicat detect

paper model

knowledg base

softwar

Topic 4

network model

phase dynam

degre system

process graph

time distribut

study connect

node scale

order

network degre

graph model

node phase

dynam time

distribut transit

study connect

show process

correl

network model

system graph

process algo-

rithm neural

connect dynam

time set show

data function

structur

network small

world model

system graph

neural regular

dynam search

connect power

node biolog

algorithm

Topic 5

network scale

model weight

time system

distribut com-

mun property

node gener cor-

rel core degre

free

network struc-

tur model

evolut prop-

erty time link

node scale visu

predict mea-

sur commun

complex socy

network socy

structur visu

data link

evolut model

time property

method in-

dividu scale

degre path

network socy

method analysy

applicat book

review data

comprehens

research be-

havior ﬁeld

methodology

ﬁnd refer

Figure 3: Topic Table for tag network(s). The sliding win-

dow covers 350 documents. The window moves by 75% of

its length (262 documents). Document prototypes consist

of the top 15 most likely words (stemmed by Porter stem-

mer) for each extracted topic. Time stamps at the top are

those of the last document covered by the sliding windows.

Numbers at the bottom indicate the number of summarized

documents.

The bottom row shows prototypes over time de-

rived from one of the ﬁve topics under tag network.

At the ﬁrst time point, 2007-06, it is associated with

the stemmed words cell, natur and simul which might

stand for research about biological networks or simu-

lation of biological processes using networks. At the

next time point that topic changes and the prototype

consists of words like genet and program which might

stand for aspects of genetic programming. One time

point later, the prototype uncovers aspects of neural

networks and learning approaches using genetic pro-

gramming.

The second derived prototype emphasizes until

2008-06 aspects of social networks, their analysis,

ontologies and usage of social networks to organize

data. Later, the role of networking among ﬁrms but

also among research communities to enhance the pro-

cess of innovation seems to emerge. Perception of

that change is visually supported by the river in the

background of the second row: Its width decreases at

the transition from 2008-06 to 2008-11.

The third prototype focuses ﬁrst on collabora-

tive tagging systems used to manage shared and dis-

tributed resources, e.g. bookmarks. At 2008-01 that

prototype gets more diverse: It is enriched by aspects

of sensor and communication networks, their design

and analysis of frequent patters in those networks.

Then, at 2008-06, stemmed words like school, lan-

guag and learn give hints that some content under tag

network(s) is about networks of schools to improve

learning of pupils. At 2008-11 words develop, ap-

plicat and softwar bring aspects of software develop-

ment, e.g. for network applications into play. The

liveliness of the underlying topic is also indicated by

the river in the background of the third row: It is rela-

tively narrow over the whole period of time.

Topic Table lists for the fourth prototype at the be-

ginning words dynam, degre, process and time which

might stand for the analysis of network features like

node degree. Further inspecting the fourth row, we

see that the prototype seems to evolve through 2008-

11 toward neural networks, while the word biolog

may refer to biological networks or to life-inspired

networks.

Prototype ﬁve, at the top of Figure 3, is at ﬁrst

about scale-free networks. At the next time point we

see that the aspect of social networks arises, associ-

ated with the word visu that indicates documents on

network visualization. At the last time point this topic

seems to have drifted toward literature on networks

(e.g. books and reviews), while the words behavior

and individu may refer to individual behavior in so-

cial networks.

At two points in time the background rivers are

especially narrow. The river corresponding to the ﬁrst

topic has a watergate at the transition from the sec-

ond to the third cell. We indeed ﬁnd that the corre-

sponding derived prototype changes drastically; The

accentuation on biological networks disappears, and

genetic programming appears. Second, the river that

indicates how the second topic changes over time is

especially narrow at the transition from the third to

the last cell. Again, at this transition we ﬁnd an ob-

vious change from accentuation on social networks

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

Topic 4

network model

dynam phase

system order

time interact

distribut transit

phy simul equat

gene cell

phase antibody

network assay

system order

detect dynam

enzyme model

determin cell

transit coupl

interact

network model

neural func-

tion genet time

state system

dynam process

number pro-

gram set cell

produc

network model

neural genet

predict system

data time dy-

nam regular

process per-

form program

show method

Figure 4: Part of Topic Table for tag network(s). Same pa-

rameter setting as for Figure 3. 25 documents annotated

with tag immunoassay have been mixed in so that they will

be covered by sliding window at its second position (second

cell).

to the issue of networking among (or in) technology

ﬁrms.

Inspecting the circles along the Topic Table, we

ﬁnd that the second topic, and hence its derived pro-

totype, dominates especially during the time period

covered by the second and third position of the sliding

window, meaning that social networks are a prevalent

topic under tag network(s). The dominance of the sec-

ond topic disappears in the last period of time while

the ﬁrst topic becomes the most dominant one indicat-

ing that neural networks are another important topic

under tag network(s).

6.3 Effectiveness

To show that reported prototypes are not only artifacts

but indeed summarize contents of documents under

tags we did the following experiment. We added 25

documents annotated with the tag immunoassay to the

stream of documents under the tag network(s). These

documents have been added such that all of them are

covered by the sliding window at its second position.

Because this sliding window covers 350 documents

in total, documents annotated with immunoassay are

a fraction of only about 7% of all covered documents.

Figure 4 shows the fourth topic of Topic Table, which

is the only one that has changed dramatically. We

ﬁnd three words antibody, assay and enzyme among

listed words in the second cell that corresponds to the

time period with alien documents. The emergence of

three stemmed words corresponding to documents an-

notated with the tag immunoassay within the 15 most

likely words demonstrates the effectiveness of Adap-

tivePLSA and the proposed visualization technique to

summarize document contents and capture their evo-

lution over time.

7 CONCLUSIONS

We propose Topic Table, a new visualization tech-

nique for studying the evolution of contents in a

stream of documents. Topic Table visualizes docu-

ment prototypes learned in an unsupervised manner

by topic models like PLSA.

We apply Topic Table and PLSA to analyze the

document content over time under a tag of the col-

laborative tagging system Bibsonomy that aims at

sharing bibliographic entries. By inspecting the am-

biguous tag network(s) and by ﬁnding a bunch of of

themes tag network(s) is associated with (e.g. so-

cial, neural and biological networks), we show that

Topic Table summarizes document contents over time

in a clear and apprehensive fashion. With respect

to time, Topic Table indicates that social networks

are prevalent from 2007-06 to 2008-06 and that later

neural networks become the strongest single aspect.

We demonstrate the effectiveness of our approach by

adding some alien documents to the documents un-

der tag network(s). Re-learning topics over time and

visualizing them by Topic Table, we indeed ﬁnd one

prototype that indicates the existence of the alien doc-

uments although their minor abundance.

Because of Topic Table’s general applicability to

visualize topics over time learned by any available

topic modeling method, we believe Topic Table has

the potential to become a general tool for visualizing

and summarizing document contents changing over

time.

REFERENCES

AlSumait, L., Barbara, D., and Domeniconi, C. (2008).

On-line LDA: adaptive topic models for mining text

streams with applications to topic detection and track-

ing. In ICDM.

Blei, D. and Lafferty, J. (2006). Dynamic topic models. In

ICML.

Blei, D. M., Ng, A. Y., and Jordan, M. I. (2003). Latent

Dirichlet Allocation. J. Mach. Learn. Res., 3:993–

1022.

Boyd-Graber, J., Chang, J., Gerrish, S., Wang, C., and Blei,

D. (2009). Reading tea leaves: How humans inter-

pret topic models. In Neural Information Processing

Systems (NIPS).

Chou, T.-C. and Chen, M. C. (2008). Using incremen-

tal PLSI for threshold-resilient online event analysis.

IEEE Trans. on Knowl. and Data Eng., 20(3):289–

299.

Dempster, A. P., Laird, N. M., and Rubin, D. B. (1977).

Maximum likelihood from incomplete data via the em

algorithm. Journal of the Royal Statistical Society. Se-

ries B (Methodological), 39(1):1–38.

VISUALLY SUMMARIZING THE EVOLUTION OF DOCUMENTS UNDER A SOCIAL TAG

Gohr, A., Hinneburg, A., Schult, R., and Spiliopoulou, M.

(2009). Topic evolution in a stream of documents. In

SIAM Data Mining Conf. (SDM’09), pages 378–385,

Reno, CA.

Goyal, A., Bonchi, F., and Lakshmanan, L. V. (2008).

Discovering leaders from community actions. In

CIKM’08, pages 499–508, Napa Valley, CA, USA.

ACM.

Guha, S., Meyerson, A., Mishra, N., Motwani, R., and

O’Callaghan, L. (2003). Clustering data streams: The-

ory and practice. IEEE Trans. of Knowlende and Data

Eng., 15(3):515–528.

Havre, S., Hetzler, E., Whitney, P., and Nowell, L. (2002).

Themeriver: Visualizing thematic changed in large

document collections. IEEE Trans. Visualization and

Computer Graphics, 8(1):9–20.

Hofmann, T. (2001). Unsupervised learning by proba-

bilistic latent semantic analysis. Machine Learning,

42(1):177–196.

Mei, Q., Shen, X., and Zhai, C. (2007). Automatic labeling

of multinomial topic models. In KDD, pages 490–499.

Mei, Q. and Zhai, C. (2005). Discovering evolutionary

theme patterns from text: an exploration of temporal

text mining. In SIGKDD, pages 198–207, New York,

NY, USA. ACM.

Moxley, E., Kleban, J., Xu, J., and Manjunath, B. S. (2009).

Not all tags are created equal: learning ﬂickr tag se-

mantics for global annotation. In ICME’09: Proceed-

ings of the 2009 IEEE international conference on

Multimedia and Expo, pages 1452–1455, Piscataway,

NJ, USA. IEEE Press.

Suchanek, F. M., Vojnovic, M., and Gunawardena, D.

(2008). Social tags: Meanings and suggestions. In

CIKM’08, pages 223–232, Napa Valley, CA, USA.

ACM.

W. S. Cleveland (1985, 1994). The Elements of Graphing

Data. Hobart Press, Summit, New Jersey, U.S.A.

Wang, X. and McCallum, A. (2006). Topics over time: a

non-markov continuous-time model of topical trends.

In SIGKDD, pages 424–433. ACM.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval
