TWO-PHASE CATEGORIZATION OF WEB DOCUMENTS

Vladimír Bartík and Radek Burget

Faculty of Information Technology, Brno University of Technology, Božetěchova 2, Brno, Czech Republic

Keywords: Web Page Categorization, Visual Block Classification, Term Weighting, TF-IDF, Page Segmentation.

Abstract: The number of pages on the World Wide Web is permanently growing and there is a need to process pages

efficiently and obtain some useful knowledge from them. Web page categorization is a very important issue

in this area. The method proposed here takes both visual and textual information into consideration. It

consists of two phases. In the first phase, web page areas obtained by segmentation are classified based on

their visual properties, and in the second phase, pages are classified, based on information from the first

phase and textual information. Several experiments with web pages taken from news web sites are presented

in the final part of the paper.

1 INTRODUCTION

Due to the fact that the amount of data on the web is

still increasing, it is necessary to find some

interesting knowledge on the web by means of web

mining techniques. Web page categorization (or

classification) is a process of assigning some of pre-

defined class labels to a web document.

There are two basic types of information

contained on each web page – textual and visual

information. In the contemporary methods, only the

textual information is usually used to classify the

page. In our categorization method, both visual and

textual information are reflected in a document

representation. Therefore, the process of document

categorization is divided into two phases.

In the first phase, the web page is rendered and

information about visual blocks of a page is obtained

via a page segmentation algorithm. The information

about visual blocks is stored and classification

algorithm is applied.

For each visual block, also text contained in the

block is stored to perform text-based categorization

of pages.

In the method proposed here, the second phase

includes creation of modified weight vectors. The

modifications are based on an assumption that some

parts (referred to as content blocks) of a page are

more important for page content representation than

others (non-content blocks). In these vectors, both

textual and visual information are reflected. It is then

used for the whole web page categorization.

In the following chapters, some related work in this

area is introduced. Then, the whole process of two-

phase categorization of web documents is described.

In the final part, several experiments with both

phases and the whole process are described.

2 RELATED WORK

There are two basic approaches to segmentation of

web pages. The first one is based on a Document

Object Model (DOM) representation of page

content, while the second one is based on visual

properties of web page blocks.

The first segmentation method proposed in (Lin

and Ho, 2002) divides a page according to HTML

tags, where the entropy is computed for each content

block. This method is limited to pages using the

table HTML tag. The segmentation method based on

a DOM tree structure analysis, is proposed in (Chen

et al., 2003). Here, in the first step, the DOM tree is

used to find top-level content blocks, which are

divided in the smaller ones in the next steps by

finding the separators between the blocks.

The use of both methods is limited, because it

does not reflect visual properties of web page

blocks. The VIPS algorithm (Cai et al., 2003) uses

page rendering and then, visual properties of

rendered page are used to find visual blocks.

The method proposed in (Xiang et al., 2006)

combines both approaches. It takes both visual

458

Bartik V. and Burget R..

TWO-PHASE CATEGORIZATION OF WEB DOCUMENTS.

DOI: 10.5220/0003096204580462

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 458-462

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

properties and the most reliable properties from the

DOM tree into consideration for segmentation.

Regarding page categorization, most of recent

methods for web document classification is text-

based. For basic text-based method, a set of text

terms is extracted from the document and

preprocessed. Then, each term is represented by a

weight, while the most used are TF (term frequency)

and TF-IDF (Salton and Buckley, 1999) weights (TF

multiplied by inverse document frequency).

Several methods, which try to enrich TF-IDF

weighting with some web page properties, have been

proposed. In (Kwon and Lee, 2003), the information

from HTML tags is reflected in the term weights.

HTML tags are divided according to importance.

In some web page classification methods, graph

representation instead of weight vectors is used. This

allows to keep also the structural information about

the document (Schenker et al., 2004).

3 2-PHASE CLASSIFICATION

As mentioned above, the process of web page

classification consists of two separate classification

phases. In Phase I, web page is rendered and visual

text blocks and their visual properties are obtained

by means of segmentation. The blocks are then

classified according to their visual properties.

In Phase II, the text content is extracted from

visual blocks and weight of each term is computed

with respect to its frequency and importance of

visual block, in which it is contained. The resultant

weight vectors are input of the final classification.

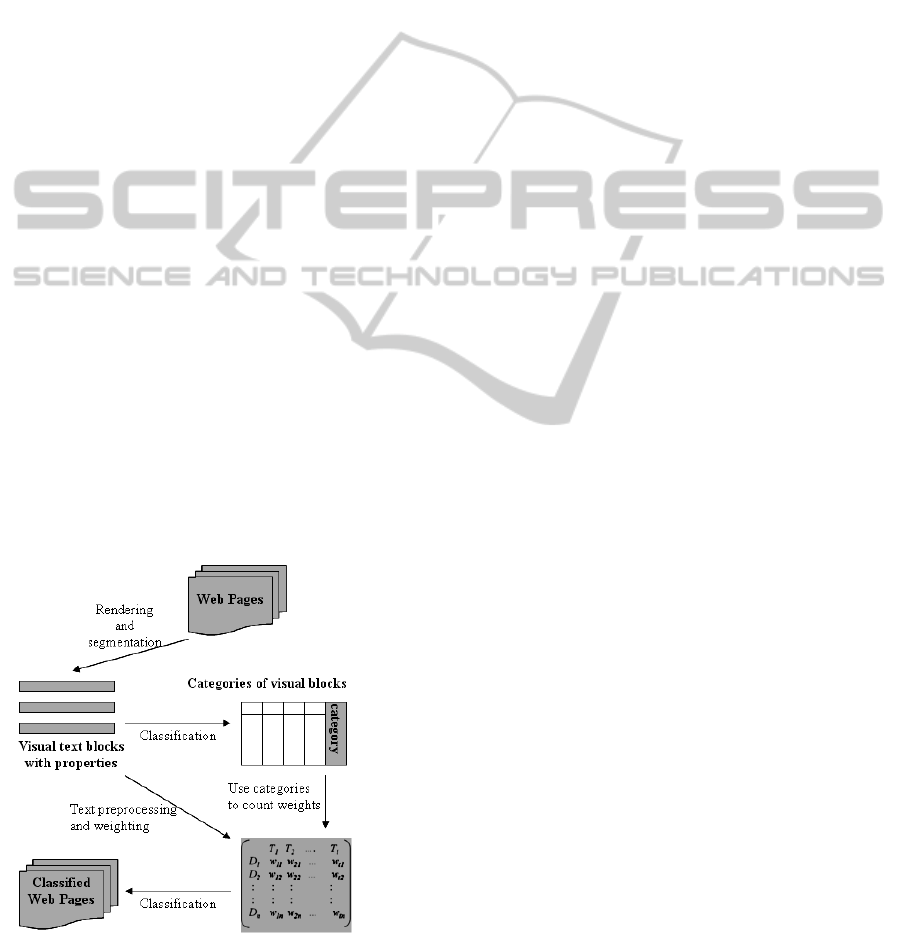

Figure 1: Outline of the method.

3.1 Phase I – Visual Block

Classification

In the beginning of the process, to obtain a suitable

representation of a document, it is necessary to make

page rendering. This includes interpretation of the

document’s HTML code and creation of document

representation in a form of a set of boxes. A box in

this set represents a unit of the document content

placed on some place of the page. This is a result of

page rendering. Because these visual boxes can be

nested, a tree of boxes is obtained.

This model contains all the information

necessary for classification. This includes the

content of the document (mainly text content) and

visual style of each part of a page.

After rendering, page segmentation is performed.

Its task is to obtain visual blocks contained in the

document and their organization. A visual block

represents a rectangular region in the page that is

visually separated from other parts of the page.

Our segmentation algorithm (Burget, 2007),

works in a bottom-up manner. Each block is

represented by the coordinates of top-left and

bottom-right point of a box. The task is to find the

blocks that are visually separated from others by one

of the following means:

 It contains a text or an image (represented by

leaf block of a tree).

 It has some background color that is different

from the background color of its parent block.

 It is separated by a visible frame.

The resultant tree is created recursively: if a

block is visually separated, a new corresponding

block is added to a tree. Then, the same is applied to

the child boxes.

In the next step, the blocks are clustered – we

find all visual blocks that are placed in the adjoining

cells and are not visually separated from each other

by the means mentioned above. Such areas are

joined into a single area. This step corresponds to

the detection of content blocks (for example text

paragraphs) that consist of several boxes.

Lastly, we look for areas that are not separated

but they are delimited with the visually separated

areas around. These blocks are also clustered.

As we know, various visual blocks of a page

have different importance for representation of the

whole document. Therefore, we need to classify

each block into one of categories from Table 1

according to visual properties shown in Table 2

obtained by the rendering machine.

If we have necessary information about visual

properties and position of a block on a page, we can

use arbitrary classification method to assign some of

these categories for each web page block. As already

TWO-PHASE CATEGORIZATION OF WEB DOCUMENTS

459

mentioned, the visual properties are obtained with a

web page rendering method.

Table 1: Categories of web page blocks.

Category Description

Heading

The main heading and subheadings

of a page (with higher font size).

Main text The main text content.

Link area

Links to other related web pages –

some of them may be irrelevant.

Navigation

Links to other sections of the web

site – typically at the top of a page.

Date/Authors

Information about date and authors

of a page – typically small font size.

Other contents

Other unimportant parts, such as

advertisement, caption etc.

Table 2: Visual properties used to classify visual blocks.

Property Description

Fontsize

Size of text in the block, expressed

as percentage of average fontsize in

the whole document.

Weight, Style

Dominating text weight / style in

the block.

Above, Below,

Right, Left

Number of visual blocks located

above/below from the actual block

or right/left from it.

Length, Digits Text/digit characters in a block.

Lower, Upper,

Spaces

Count of lower case / upper case /

space characters that appear in the

text inside the visual block.

Textbtns,

Bgbtns

Average luminosity of the text /

background of the visual block

Contrast

Contrast of the text – difference

between luminosity of text and

luminosity of background.

3.2 Phase II – Classification of Whole

Web Pages

The knowledge about classes of visual blocks

obtained in the first phase can be used in the second

phase to improve the representation of text content.

This is ensured by modifications of TF-IDF weights.

At first, two standard pre-processing procedures

are applied on the text obtained from a web page.

Stop words removal is performed to reduce the

number of words in vectors. After that, stemming is

executed to reduce the words into their stems.

Then, according to the knowledge about visual

block categories, there are several possibilities to

modify TF-IDF weights.

The basic idea is to set different weights for

different page block categories by multiplying the

weight by an importance coefficient, which is set for

each category of visual block. Moreover, some non-

content blocks (e.g. date/authors or navigation) can

be omitted from representation.

Let us denote an input set of web documents as

D = {d

… d

} and a set of terms (words) T = {t

…

}, which are appearing in documents from D.

It is possible to divide each document into

several visual blocks, each of which can be

classified with some of pre-defined label. Let us

denote a vector of all class labels as C = (c

, …, c

Each class is evaluated by a coefficient according to

its importance for representation of page contents.

We can represent it as a vector of coefficients V =

,…, v

), where v

is the coefficient of a class label

assigned to visual block c

Then, a modified document frequency of a term

∈

T in a web document d

∈

D is defined as:

∑

∗=

cdtFvdtMTF

),,(),(

(1)

where F(t, d, c

) is a frequency of term t in all

blocks with class label c

in a document d. The

resultant term weight is obtained as a summarization

of all weights for component visual blocks, in which

the term is present. The modified inverse document

frequency (IDF) is computed as:

)log(1)(

tMIDF +=

(2)

where t is a term from the set of terms T, n is the

count of documents, k

is the count of documents, in

which content blocks at least once contain the term t.

The resultant modified TF-IDF weight is

obtained as a multiplication of MTF and MIDF.

If the two-phase classification is used, it is

important to decide, if the blocks of different

categories are content or non-content.

Another task is to set the importance coefficients

for each block class. According to experiments, we

have found a suitable setting described later.

4 RESULTS OF EXPERIMENTS

Some experiments showing the classification

accuracy are presented here. We have used the

WEKA tool (Holmes et al., 1994) for experiments.

A dataset with web pages from 5 news web sites

(CNN.com, Reuters.com, nytimes.com, boston.com

and usatoday.com) has been used. This dataset

contains almost 500 web pages, which have been

manually annotated. Each of the web pages belongs

to one of six possible categories: politics, business,

sport, art, health and science.

For Phase I, the classification accuracy depends

on a condition, if all pages from the dataset are from

one web site or from various web sites. Best results

are provided by one of lazy classification methods

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

460

(k-nearest neighbours) and by two decision tree

based methods (J48, based on C4.5, and

RandomTree method). The results of classification

accuracy for this experiment are shown in Table 3.

The table shows that classification achieves good

accuracy above 90%; it is slightly lower for the

whole dataset of pages from 5 different sites. If we

perform classification only for one web site only

(CNN.com), the accuracy is above 95%.

Table 3: Results of visual blocks classification.

Method All web sites One site only

J48 92.4% 97.5%

k-NN 90.5% 94.9%

R_Tree 91.1% 96.0%

From these results we can see that the visual

blocks classification can be a good foundation for

successful two-phase classification.

For the second phase, best results are provided

by a Bayes Net classifier, a tree-based classifier

(Functional Trees) and SMO method (Sequential

Minimal Optimization). We will take the results of

J48 algorithm in the Phase I as input for Phase II.

The setting of coefficients for individual content

visual block categories is following: for links, the

value is 1; for main text: 2; for heading: 5. Detailed

experiments with different setting of coefficients and

detailed description of possibilities to modify

weights are presented in (Bartik, 2010).

The classification accuracy is compared with a

classical text-based classification (extracted text

weighted by TF-IDF). Again, results on dataset of

pages from one web site and from all five web sites

are compared.

The results in Table 4 lead to a conclusion that

using modified weights causes better web page

classification accuracy, even if all the visual blocks

are not classified correctly in the first phase.

Table 4: Results of the whole two-phase categorization.

Method

Text

Based

All sites

(2-phase)

One site

(2-phase)

Bayes Net

90.6%

93.3% 94.7%

88.6%

91.8% 92.9%

SMO

88.0%

91.9% 93.9%

4 CONCLUSIONS

We have presented a method of two-phase

classification of web pages. The basic idea is that the

text, which is extracted, is represented by modified

term weights. They are modified according to

importance of a visual block, in which the term is

present. The information about category of visual

blocks is obtained by classification in the first phase.

The second phase makes classification of whole

web pages with use of vectors of modified weights.

The experiments with data from news sites

showed that the accuracy of two-phase classification

exceeds 90%.

In the future research, it is possible to try using

results of visual block classification and modified

term weights in some other web mining problems,

for example finding similar documents within some

dataset or in some information retrieval tasks.

ACKNOWLEDGEMENTS

This research was supported by the Research Plan

No. MSM0021630528 – “Security-Oriented

Research in Information Technology” and by the

BUT FIT grant No. FIT-10-S-2.

REFERENCES

Lin, S. H., Ho, J. M., 2002. Discovering Informative

Content Blocks from Web Documents. In SIGKDD

2002, 8

Conference on Knowledge Discovery and

Data Mining, ACM.

Chen, Y., Ma, W. Y., Zhang, H. J., 2003. Detecting Web

Page Structure for Adaptive Viewing on Small Form

Factor Devices. In WWW 2003, Twelfth International

World Wide Web Conference, ACM.

Cai, D., Yu, S., Wen, J. R., Ma, W. Y., 2003. VIPS: a

Vision-based Page Segmentation Algorithm. Microsoft

Research.

Xiang, P., Yang, X., Shi, Y., 2006. Effective Page

Segmentation Combining Pattern Analysis and Visual

Separators for Browsing on Small Screens. In

International Conference on Web Intelligence, ACM.

Salton, G., Buckley, C., 1999. Term Weighting

Approaches in Automatic Text Retrieval. In

Information Processing and Management, Vol. 24,

Elsevier.

Kwon, O. W., Lee, J. H., 2003. Text Categorization Based

on K-nearest Neighbor Approach for Web Site

Classification. In Information Processing and

Management, Vol. 39, Elsevier.

Schenker, A., Last, M., Burke, H., Kandel, A., 2004.

Classification of Web Documents Using Graph

Matching. In International Journal of Pattern

Recognition and Artificial Intelligence, Vol. 18,

World Scientific.

Burget, R., 2007. Layout Based Information Extraction

from HTML Documents. In ICDAR 2007, Ninth

International Conference on Document Analysis and

Recognition, IEEE.

TWO-PHASE CATEGORIZATION OF WEB DOCUMENTS

461

Holmes, G., Donkin, A., Witten, I.H., 1994. WEKA: A

Machine Learning Workbench. In Second Australia

and New Zealand Conference on Intelligent

Information Systems.

Bartik, V., 2010: Text-Based Web Page Classification

with Use of Visual Information. In OSINT-WM 2010,

International Symposium on Open Source Intelligence

& Web Mining, IEEE (accepted).

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

462
