SPATIO-TEMPORAL BLOCK MODEL FOR VIDEO INDEXATION

ASSISTANCE

Alain Simac-Lejeune

Listic, Universit

e de Savoie and Gipsa-lab / Universit

e Joseph Fourier, Grenoble, France

Mich

ele Rombaut

Gipsa-lab, Universit

e Joseph Fourier, 961 rue de la Houille Blanche, BP 46, F-38402 Grenoble Cedex, France

Patrick Lambert

Listic, Universit

e de Savoie, BP 80439 74944 Annecy-le-Vieux Cedex, France

Keywords:

Video indexing, Spatio-temporal blocks, Assistance system, Questions/Answers approach.

Abstract:

In the video indexing framework, we have developed an assistance system for the user to deﬁne a new concept

as semantic index according to the features automatically extracted from the video. Because the manual

indexing is a long and tedious task, we propose to focus the attention of the user on pre selected prototypes

that a priori correspond to the concept. The proposed system is decomposed in three steps. In the ﬁrst one,

some basic spatio-temporal blocks are extracted from the video, a particular block is associated to a particular

property of one feature. In the second step, a Question/Answer system allows the user to deﬁne links between

basic blocks in order to deﬁne concept block models. And ﬁnally, some concept blocks are extracted and

proposed as prototypes of the concepts. In this paper, we present the two ﬁrst steps, particularly the block

structure, illustrated by an example of video indexing that corresponds to the concept running in athletic

videos.

1 INTRODUCTION

In the image or video indexing framework, the auto-

matic indexation task generally requires a preliminary

learning task in order to link the index to the features

extracted from the video. This learning task may be

realized in two different ways. The ﬁrst one consists

in using a learning data base already annotated by

users, but this manual annotation task is long and te-

dious despite some attempts to reduce the task length

using a collaborative annotation (Ayache and Qu

enot,

2008). In this case the knowledge is indirectly intro-

duced through the annotated data. The second way is

the direct use of expert knowledge, but the method-

ology to extract this expert knowledge is not easy as

generally experts are not specialists in image process-

ing. An example of such an approach is detailed in

(Valet et al., 2003) where the authors use a fuzzy rule

system to translate user expertise. In any case, the

user task is essential. The solution proposed in this

paper is an hybrid solution. It consists to develop a

system to assist the user to deﬁne new index and to

annotate the learning data base.

In some way, the proposed approach is inspired

by the text retrieval methods, and by the visual words

(visual vocabulary) proposed by Sivic and Zisser-

man (Sivic and Zisserman, 2003) who ﬁrst proposed

quantizing local image descriptors for the sake of

rapidly indexing video frames. They showed that lo-

cal descriptors extracted from interest points could

be mapped to visual words by computing prototyp-

ical descriptors with k-means clustering, in order to

make faster the retrieval of frames containing the

same words. Csurka et al. (Csurka et al., 2004)

ﬁrst proposed to use quantized local descriptors for

the purpose of object categorization. Some image

descriptors are mapped to a bag-of-words histogram

corresponding to the frequency of each word. Then,

the categories are learned using this vector represen-

tation. These proposed approaches are always funded

475

Simac-Lejeune A., Rombaut M. and Lambert P..

SPATIO-TEMPORAL BLOCK MODEL FOR VIDEO INDEXATION ASSISTANCE.

DOI: 10.5220/0003098904750480

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 475-480

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

on a learning phase where the user must manually in-

dex the frames and video. Based on the same type of

data architecture, the goal of the proposed system is

to manage this learning phase.

In this paper, we present a new model of repre-

sentation adapted to the video indexation. The pro-

posed idea is to help the user to deﬁne concepts (i.e

high level index). In a ﬁrst step, some ”basic spatio-

temporal blocks” (section 3) are extracted from a

set of low level features. Then the user is interro-

gated, with a set of adapted questions, in order to de-

ﬁne some links between these basic blocks and the

searched concepts. In order to make easier the deﬁ-

nition of new index, only a set of ”natural” questions

and answers are proposed to the user. From these an-

swers, ”concept blocks” are deﬁned (section 4). Fi-

nally, some video prototypes that seem correspond to

concepts are proposed to the user who validates or

not. The performances of this system are studied on

the speciﬁc running concept within a set of 100 shots

(section 5).

2 GENERAL ARCHITECTURE

OF THE GLOBAL SYSTEM

The general architecture is composed of a three main

steps with one preliminary step:

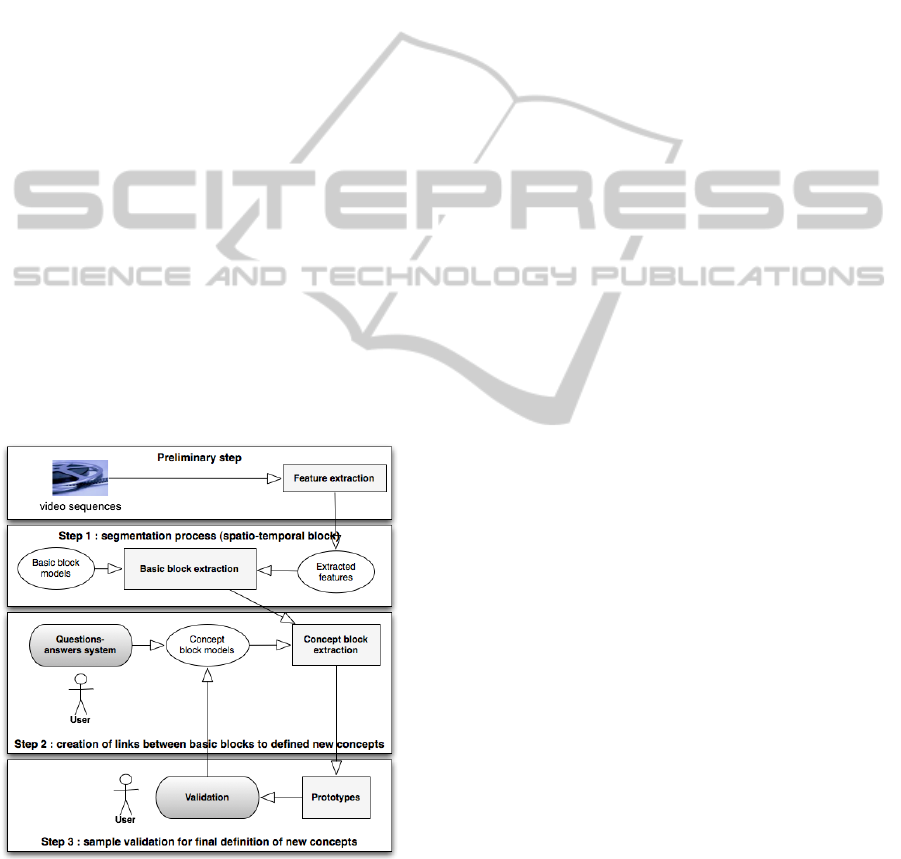

Figure 1: General process to deﬁne new concepts.

Feature Extraction. (Figure 1 - Preliminary step)

Low level features are extracted from videos. The

extractors used are among the most classical: in-

terest points (Harris and Stephens, 1988),(Laptev

and Lindeberg, 2003), optical ﬂow (Bouguet,

2000), Hough detector (Duda and Hart, 1972),

dominant motion (Odobez and Bouthemy, 1995)

and dominant color.

Basic Spatio-temporal Block Extraction. (Figure

1 - Step 1) The basic spatio-temporal blocks

are built using the features provided by the

preliminary step and some basic block models.

These models are a priori deﬁned according to

three main characteristics:

• a continuous temporal interval,

• a property of a speciﬁc feature (typically a fea-

ture value or a feature value interval),

• a spatial shape where the above property is ver-

iﬁed. This shape could be a part of the image

or the entire image.

Then, for each video, the basic spatio-temporal

block extraction can be seen as an instantiation of

the block models according to the extracted fea-

tures.

Concept Block Extraction. (Figure 1 - Step 2) A

concept is a high level index which has a se-

mantic interpretation. It corresponds to a com-

bination of different blocks, which can be basic

blocks or other concept blocks. As for the pre-

vious step, this extraction requires the deﬁnition

of concept block models. In order to build these

models, it is necessary to use an expert knowl-

edge given by a user. As the user is not neces-

sarily familiar with image processing and is not

able to explicitly express the links between these

concept blocks, the basic blocks and the concept,

a Question/Answer system is used in order to get

this expertise and simultaneously build the con-

cept block model. Then, instantiations of these

models are performed by searching in videos the

occurrences of these concept blocks, and conse-

quently occurrences of concepts. This step is pre-

sented in section 4.

Sample Validation. (Figure 1 - Step 3) Each

founded concept, which is regarded as a concept

sample prototype, is proposed to the user who

may accept or refuse it.

In this paper, we focus our attention on the extraction

of the basic spatio-temporal and concept blocks.

3 BASIC SPATIO-TEMPORAL

BLOCK

The ﬁrst step of the video processing concerns the

segmentation of the video in spatio-temporal objects

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

476

or blocks which are a sequence of images associated

to a particular attribute. In such a block, the con-

cerned attribute veriﬁes a particular property, for in-

stance it belongs to a particular interval. Thus, before

video processing, a set of block models is deﬁned. It

can be seen as a visual vocabulary where each block

is a space-time word.

3.1 Deﬁnition of Basic Block Models

A block model is deﬁned through an attribute associ-

ated to a property. The property can be a value (the at-

tribute has a speciﬁc value) or an interval (the attribute

is within an interval - the most frequent situation). As

a consequence, for a given attribute, there are several

models of blocks corresponding to different values or

intervals. For instance, we deﬁne the compactness

c ∈ [0, 1] of an object as c =

minimum(width,height)

maximum(width,height)

. For

this attribute, we propose to deﬁne three blocks mod-

els: low compactness (0 to 0.4), average compactness

(between 0.4 and 0.65) and high compactness (be-

tween 0.6 and 1). Until now, the different ranges or

values and the number of blocks are deﬁned by exper-

tise. At the end of this pre-processing phase, we ob-

tain a database containing all the models of the basic

block models. These models are relatively generic for

different types of application, because they are only

linked to the attributes and they have no particular se-

mantic meaning. At the end of this modeling phase,

we obtain a database containing all the basic block

models. With the 40 attributes, 120 basic block mod-

els are deﬁned. This number has to be compared to

the size of visual word vocabulary used in static im-

age indexation, which is typically equal to a few thou-

sands.

The characteristics of all these models are stored in

a database, that is: name, model type (value or in-

terval), level (sequence, image or object) and ﬁnally

the attribute values related to this block. Then, this

structure can dynamically create queries to detect the

occurrence of blocks in different indexed sequences.

3.2 Extraction of Basic Blocks

The extraction of the spatio-temporal blocks consists

in looking for occurrences of model blocks within the

videos. In other words, it consists in founding images

or block of images within which an attribute veriﬁes a

model property. A block is deﬁned by a model com-

posed of an attribute and a property, an initial and a

ﬁnal image. For one model, a lot of basic blocks can

be extracted. Conversely, an image or block of im-

ages can belong to different models. If the attribute

of a block model corresponds to a moving object, an

extracted basic block will correspond to a sequence of

images containing the object and verifying the prop-

erty. As all information is stored in databases and are

classiﬁed by sequence, by block and increasing num-

ber of frames, the block extraction is realized using a

query mechanism. To eliminate too small blocks and

merge too close blocks, a morphological ﬁltering is

performed.

4 CONCEPT BLOCK MODEL

The indexation process is generally realized in a

manual way because it refers to index with a high se-

mantic level (denoted as concepts). For instance, a

concept can be the running action of a personage. It is

difﬁcult to make this indexing process automatic, be-

cause it needs to link the low level attributes extracted

from the video to the concepts that have a semantic

interpretation. We assume that these links must be

deﬁned only with the help of the user. But before

explaining how we propose to build these links, we

deﬁne the concept block models.

4.1 Notion of Concept Block Models

A concept block model has a high-level semantic

meaning which ﬁts the user need in terms of index-

ation task. In this paper, we propose to build these

models by combining models previously deﬁned: ba-

sic block models or other concept block models.

The construction of such block models is per-

formed by using simples combination rules: simul-

taneity of blocks (logical AND operator), presence of

at least one block (logical OR operator), presence of

only one block among two blocks, (logical XOR oper-

ator), succession of blocks (sequentiality), and alter-

nation of blocks which is composed of several succes-

sion of blocks (periodicity). Initially, these operators

are sufﬁcient to deﬁne a number of concepts. There-

after, it will be interesting to establish additional op-

erators.

4.2 Learning Concept Block Models

The problem is to build relevant links between blocks.

In such a situation, a classical approach consists in us-

ing a neural network or a supervised classiﬁcation as-

sociated to a set of learning data corresponding to al-

ready indexing data (Burgener, 2006). But this man-

ual indexing task, realized by users, is very tedious

and very long. Another classical approach is to use

the knowledge of an expert who explicitly deﬁnes the

searched links. But in this case, he must be an expert

SPATIO-TEMPORAL BLOCK MODEL FOR VIDEO INDEXATION ASSISTANCE

477

of image processing as well as an exert of the domain

present in the video. Furthermore, the software trans-

lation of the user’s expertise is not trivial. This is why

we suggest in this paper a new approach that mod-

els the knowledge usually managed by the user with-

out real assimilation. For this purpose, we propose to

use an assistance system based on a Question/Answer

process. The questions are addressed to a user who

is not an expert in image and video processing but

who is an expert in the speciﬁc domain present in the

video. For each question, a set of answers are pro-

posed and these answers are used to deﬁne the links

between blocks, and ﬁnally the concept block model.

The Question/Answer structuring is a well known

problem. The usual approach is to build a tree

where nodes correspond to Question/Answer that lead

to other questions, and where leaves correspond to

Question/Answer that lead to the block models pre-

viously deﬁned.

In the case of concept block model deﬁnition, the

aim is to ﬁnd most information based on extracted at-

tributes, i.e. based on the block models deﬁned pre-

viously. In other words, the system looks for all the

leaves of the tree that correspond to the concept.

The system we have developed is composed of a

list of Question/Answer. Each question can be acti-

vated or deactivated. If it is activated, it will be asked

to the user. A list of possible answers is associated to

each question. According to the concept he wants to

deﬁne, the user chooses one of the answers. Each an-

swer can be associated to i) one or more basic block

models, ii) to combination rules between block mod-

els or iii) to the activation or inhibition of other ques-

tions.

As the links and the basic extracted blocks are

mostly related to spatio-temporal situations, the main

theme of the application is the movement. The cur-

rent proposal contains 50 questions. All potential

questions are ordered from the most generic (Envi-

ronmental issues and context, type of shooting (cam-

era)) to the most speciﬁc (Presence of moving or static

persons, characteristics of the observed motion). We

show in section 5 the scenario obtained when the user

wants to deﬁne the running concept.

4.3 Extraction of ”Concept” Blocks

Two approaches can be proposed to extract the con-

cept blocks from the video. The ﬁrst one consists

in deﬁning the model in a ﬁrst step, then according

to this model, building search requests in the block

database previously deﬁned in the second step. In this

paper, we propose a second approach. The idea is

to manage a dynamic list of spatio-temporal blocks

or prototypes that potentially correspond to the con-

cept. During the Question/Answer process, a request

in the block database is done after each answer in or-

der to select the prototype candidates in this dynamic

list. The list is reduced to the candidates after each

answer and the number of prototypes is transmitted

to the user. The Question/Answer system stops when

there is no more questions allowed from the list, or

when the number of prototypes in the dynamic list is

considered as enough reduced for the user. Finally,

the prototypes are ﬁltered and are stored in the basis

with the others blocks.

In the third phase evoked in ﬁgure 1 but not de-

scribed in this paper, the prototypes of the concept

are presented to the user who can accept them as rep-

resentative of the concept or not.

5 PERFORMANCES OF THE

SYSTEM

In terms of video indexing, we are interested by the

dynamic aspects. That is why the attributes extracted

are movement oriented, and the proposed questions

in the Question/Answer process essentially concerns

the moving object and human behavior. In order to

illustrate the system behavior, we propose to deﬁne

the concept running for a personage.

5.1 Sequence Database

The video database is composed of: 100 shots (ani-

mation, TV, ﬁlms, sports) with 20 of running and 80

of others without running that correspond to 12500

images, and 620 seconds of video. All informa-

tion obtained on these 100 sequences represent about

0.6 MB. This represents about 50 bytes per image.

The system is implemented in C++ with the use of

OpenCV Library.

5.2 Basic Block Extraction

The ﬁrst steps of the process are the feature extrac-

tion and basic block extraction as represented ﬁgure

1. These steps are achieved by preprocessing or off-

line process. The feature extraction is performed with

an average speed of 10 frames per second. The ba-

sic block models use 6 attributes that correspond to

22 basic block models. The extraction of images cor-

responding to each basic block model is carried out

fully automatically using a query builder requiring 30

seconds. The ﬁltering concerns 2200 operations (two

stages) for 100 shots and 22 basic block models. This

step is less than 2 minutes. Finally, we obtain 8972

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

478

blocks, an average of 90 blocks per sequence with

a maximum of 172 and a minimum of 20. The dif-

ference between min and max is mainly due to the

fact that the attribute interval values are crisp. So

variations around these values induce lot of differ-

ent blocks. The 6 attributes (22 block models - each

attributes generates two or three basic blocks) used

for our application concern: moving object compact-

ness, moving object orientation (horizontal or verti-

cal), camera (static or moving), number of STIP, num-

ber of STIP by quadrant of the moving object.

5.3 Questions-answers system

We present in this section an example of scenario that

corresponds to the step 2 of the ﬁgure 1. It is assumed

the user wants to deﬁned the concept running. The

goal is to select prototypes in the videodatabase pre-

sented section 5.1 that potentially correspond to this

concept.

A sample question with the answers provided and

selected bricks are :

Question: Is the personnage standing ?

yes always, yes sometimes, no, impossible to answer

Answer: yes always

Corresponding Block: attribute compactness with

property low AND attribute orientation with prop-

erty vertical

5.4 Performances

The video database has been processed with the con-

cept block models, and concept blocks have been ex-

tracted. A shot is considered as true if a concept block

is included in. The results have been compared to the

ground truth manually indexed. The results are the

following:

Table 1: Precision and recall for the detection of the running

concept on 100 shots.

Real True False Precision Recall

Running 20 18 7 72% 90%

Others 80 73 2 97% 91%

In the database of 100 shots, the system extracted

25 shots of running where 18 shots are real running

and 7 are false detection. The recall index is better

than the precision index. This is due to the fact that

the shots are eliminated from the list of prototypes all

along the Question/Answer process. If attributes are

not enough numerous and relevant for the concept, lot

of shots remain after the Question/Answer process is

ﬁnished. However, this step restricts the number of

shots for the third step of validation by the user as

represented ﬁgure 1. In this example, the user must

manually index only 25 shots instead of 100 shots.

6 CONCLUSIONS

AND PERSPECTIVES

The proposed system allows the user to limit this work

of manual indexing for the construction of a learning

data base. The Question/Answer principle is built as-

suming that the user is not a specialist of image pro-

cessing, but is a specialist of the application. Un-

til now, the system addresses speciﬁc applications of

personage behavior analysis in the video. The ex-

tracted attributes are chosen to be relevant, but other

attributes can be added for other types of application.

For the same reasons, questions and answers are also

oriented according to this application. As a future

work, in order to extend the question/answer set, or

to adapt the basic block models, an adaptive system

corresponding to the third step of the ﬁgure 1 could

use the user’s opinion on the prototypes and ask the

user to propose new question more relevant for his

application.

ACKNOWLEDGEMENTS

We thank the Rh

one-Alpes region for their support

with LIMA project.

REFERENCES

Ayache, S. and Qu

enot, G. (2008). LIG and LIRIS at

TRECVID 2008: High Level Feature Extraction and

Collaborative Annotation. In TRECVID Workshop,

Gaithersburg, MD, USA.

Bouguet, J.-Y. (2000). Pyramidal implementation of the

Lucas Kanade feature tracker description of the algo-

rithm.

Burgener, R. (2006). Artiﬁcial neural network guessing

method and game - European Patent EP 1710735

(A1).

Csurka, G., Dance, C. R., Fan, L., Willamowski, J., and

Bray, C. (2004). Visual categorization with bags of

keypoints. In ECCV International Workshop on Sta-

tistical Learning in Computer Vision.

Duda, R. O. and Hart, P. (1972). Use of the Hough trans-

formation to detect lines and curves in pictures. ACM,

15:11–15.

Harris, C. and Stephens, M. (1988). A combined corner and

edge detector. In The Fourth Alvey Vision Conference,

pages 147–151.

SPATIO-TEMPORAL BLOCK MODEL FOR VIDEO INDEXATION ASSISTANCE

479

Laptev, I. and Lindeberg, T. (2003). Space-time interest

points. ICCV’03, pages 432–439.

Odobez, J. and Bouthemy, P. (1995). Robust multiresolu-

tion estimation of parametric motion models. Journal

of Visual Communication and Image Representation,

6(4):348–365.

Sivic, J. and Zisserman, A. (2003). Video Google: A text

retrieval approach to object matching in videos. Pro-

ceedings of the International Conference on Computer

Vision.

Valet, L., Mauris, G., Bolon, P., and Keskes, N. (2003). A

fuzzy rule-based interactive fusion system for seismic

data analysis. 4(2):123–133.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

480
