SEMANTICS AND MACHINE LEARNING FOR BUILDING THE

NEXT GENERATION OF JUDICIAL COURT MANAGEMENT

SYSTEMS

E. Fersini, E. Messina

University of Milano-Bicocca, Viale Sarca 336, Milan, Italy

D. Toscani, F. Archetti, M. Cislaghi

Consorzio Milano Ricerche, Via Cozzi 53, Milan, Italy

Keywords:

e-Justice, Digital trial folder, Information extraction and retrieval, Speech processing, Video analysis.

Abstract:

Information and Communication Technologies play a fundamental role in e-justice: the traditional judicial

folder is being transformed into an integrated multimedia folder, where documents, audio and video record-

ings can be accessed and searched via web-based judicial content management platforms. Usability of the

electronic judicial folders is still hampered by traditional support toolset, allowing search only in textual in-

formation, rather than directly in audio and video recordings. Transcription of audio recordings and template

ﬁlling are still largely manual activities. Thus a signiﬁcant part of the information available in the trial folder

is usable only through a time consuming manual search especially for audio and video recordings that describe

not only what was said in the courtroom, but also the way and the speciﬁc trial context in which it was said. In

this paper we present the JUMAS system, stemming from the JUMAS project started on February 2008, that

takes up the challenge of using semantics towards a better usability of the multimedia judicial folders. The

main aim of this paper is to show how JUMAS has provided the judicial users with a powerful toolset able to

fully exploit the knowledge embedded into multimedia judicial folders.

1 INTRODUCTION

The use of Information and Communication Tech-

nologies (ICT) is considered one of the key elements

for making judicial folders more usable and accessi-

ble to the interested parties, reducing the length of

judicial proceedings and improving justice. The pro-

gressive deployment of ICT technologies in the court-

room (audio and video recording, document scan-

ning, courtroom management systems), jointly with

the requirement for paperless judicial folders pushed

by e-justice plans (Council of the European Union,

2009), are quickly transforming the traditional judi-

cial folder into an integrated multimedia folder, where

documents, audio recordings and video recordings

can be accessed usually via a web-based platform

(Velicogna, M, 2008). This trend is leading to a con-

tinuous increase in the number and the volume of

case-related digital judicial libraries, where the full

content of each single hearing is available for online

consultation. A typical trial folder contains:

• audio hearing recordings

• audio/video hearing recordings

• transcriptions of hearing recordings

• hearing reports

• attached documents (scanned text documents,

photos, evidences, etc.)

The ICT container is typically a dedicated judicial

content management system (court management sys-

tem), usually physically separated and independent

from the case management system used in the in-

vestigative phase, but interacting with it. Most of

the present ICT deployment has been focused on the

deployment of case management systems and ICT

equipment in the courtrooms, with content manage-

ment systems at different organisational levels (court

or district). ICT deployment in the judiciary has

reached different levels in the various EU countries,

but the trend toward a full e-justice is clearly in

progress. Accessibility of the judicial information,

Fersini E., Messina E., Toscani D., Archetti F. and Cislaghi M..

SEMANTICS AND MACHINE LEARNING FOR BUILDING THE NEXT GENERATION OF JUDICIAL COURT MANAGEMENT SYSTEMS.

DOI: 10.5220/0003099300510060

In Proceedings of the International Conference on Knowledge Management and Information Sharing (KMIS-2010), pages 51-60

ISBN: 978-989-8425-30-0

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

both of case registries, more widely deployed, and of

case e-folders, has been strongly enhanced by state-

of-the-art ICT technologies. Usability of the elec-

tronic judicial folders is still affected by a traditional

support toolset, being information search limited to

text search, transcription of audio recordings (indis-

pensable for text search) is still a slow and fully man-

ual process, template ﬁlling is a manual activity, etc.

Part of the information available in the trial folder is

not yet directly usable, but requires a time consum-

ing manual search. Information embedded in audio

and video recordings, describing not only what was

said in the courtroom, but also the way and the spe-

ciﬁc trial context in which it was said, still needs to

be exploited. While the information is there, informa-

tion extraction and semantically empowered judicial

information retrieval still waits for proper exploita-

tion tools. The growing amount of digital judicial in-

formation calls for the development of novel knowl-

edge management techniques and their integration

into case and court management systems. Several EU

research projects have proposed actionable models of

legal knowledge (ESTRELLA, METALEX), and in-

vestigated interoperability of legal documents and the

potential of text-based semantic analysis. Research

about multimedia judicial trial folder and courtroom

technologies in criminal trials has been addressed by

e-COURT project and SecurE-Justice projects in FP5

and FP6, with the main objective of the digital trial

folder and its secure accessibility. JUMAS project

(JUdicial MAnagement by digital libraries Seman-

tics), started of February 2008 and under validation

in the Court of Wroclaw (Poland) and in the Court

of Naples (Italy) with the support of the Polish and

Italian Ministries of Justice, faces the issue of a better

usability of the multimedia judicial folders, including

transcriptions, of information extraction and semantic

search, to provide to users a powerful toolset capa-

ble to fully address the knowledge embedded in the

multimedia judicial folder. The JUMAS project has

several scientiﬁc objectives:

• Knowledge Models and Spaces: Search directly

in the audio and video sources without a verbatim

transcription of the proceedings.

• Knowledge and Content Management: Exploit

hidden semantics in audiovisual digital libraries in

order to facilitate search and retrieval, intelligent

processing and effective presentation of multime-

dia information. Research addresses also multiple

cameras and audio sources.

• Multimedia Integration: Information fusion from

multimodal sources in order to improve accuracy

in automatic transcription and annotation phases.

• Effective Information Management: Streamline

and Optimize the document workﬂow allowing

the analysis of (un)structured information for doc-

ument search and evidence base assessment.

• ICT Infrastructure: Service Oriented Architecture

supporting a large scale, scalable, and interopera-

ble audio/video retrieval system.

In this paper we present how the results of JUMAS

can help to meet the challenges in analyzing audio

and video recordings and outline the impact on ICT

infrastructure in the court.

2 THE JUMAS SYSTEM

2.1 The JUMAS Concept

In order to explain the relevance of the JUMAS objec-

tives we report some volume data related to the judi-

cial domain context. Consider for instance the Italian

context, where there are 167 courts, grouped in 29 dis-

tricts, with about 1400 courtrooms. In a law court of

medium size (10 court rooms), during a single legal

year about 150 hearings per court held with an av-

erage duration of 4 hours. Considering that approxi-

mately in 40% of them only audio is recorded, in 20%

both audio and video while the remaining 40% has no

recording, the multimedia recording volume we are

talking about is 2400 hours of audio and 1200 hours

of audio/video per year. The dimensioning related to

the audio and audio/video documentation starts from

the hypothesis that multimedia sources must be ac-

quired at high quality in order to obtain good perfor-

mances in audio transcription and video annotation,

which will in turn affect the performance connected to

the retrieval functionalities. Following these require-

ments one can ﬁgure out a storage space of about 8.7

MB/min for audio and 39 MB/min for audio/video.

The total amount of data to process in one year in a

court is summarized by the following table:

Table 1: Dimension of the problem.

Hypothesis of Data Amount per Year /court

Hearing Duration Required Space

(hrs) (TB)

Audio 2400 1,2

Audio/Video 1200 2,8

During the deﬁnition of the space dimension required

on a single site, the estimation will also take into ac-

count that a trial includes some additional data: (1)

textual source as for example minutes in .doc and .pdf

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

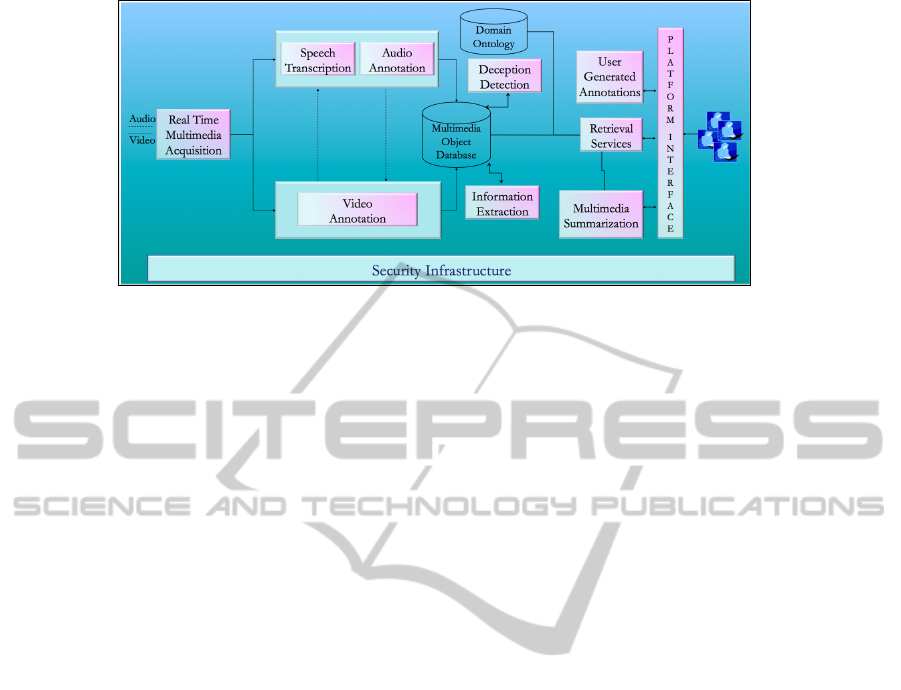

Figure 1: Information ﬂow in JUMAS.

format; (2) images; (3) other digital material. Un-

der these hypotheses, the overall size generated by all

the courts justice system only for Italy in one year is

about 800 terabyte; this shows how the justice sec-

tor is a major contributor to the data deluge (The

Economist, 2010). The typical deployment of JU-

MAS is at district level (about 5 courts), in which

it is performed the coordination among courts. In-

stallations in speciﬁc courts can be justiﬁed by the

needs of particular trials, which involve huge quan-

tities of very sensitive data (e.g. class actions, orga-

nized crime). The issue of scalability has to be con-

sidered for a proper dimensioning of the hardware in-

frastructure in which to run the system: the most com-

putationally intensive part of JUMAS is the automatic

audio transcription; the transcription engine based on

an ensemble of Hidden Markov Models requires high

performance computing. Also video processing has

high computational needs. In order to manage such

quantity of complex data, JUMAS aims to:

• Optimize the workﬂow of information through

search, consultation and archiving procedures.

• Introduce a higher degree of knowledge through

the aggregation of different heterogeneous

sources.

• Speed up and improve decision processes discov-

ering and exploiting knowledge embedded into

multimedia documents, in order to consequently

reduce unnecessary costs.

• Model audio-video proceedings in order to com-

pare different instances.

• Allow traceability of the proceedings during their

evolution.

2.2 System Architecture

The architecture of JUMAS is based on a set of

key components: a central database, a user interface

on a web portal and the integration and orchestra-

tion modules which allows composing several me-

dia analysis components, as described in the follow-

ing. Figure 1 presents the information ﬂows in JU-

MAS: the media stream recorded in the courtroom in-

cludes both audio and video which are analyzed to ex-

tract semantic information used to populate the mul-

timedia object database. The outputs of these pro-

cesses are Annotations, which are the common name

in JUMAS to identify tags that are attached to me-

dia streams and stored in the database (Oracle 11g).

The links between audio and video analysis com-

ponents in Figure 2(a) show that the algorithms ap-

ply exchange information, using the annotations pro-

duced by one component as input to improve the per-

formance of the other (e.g. through face recognition

performed on video is possible to identify changes in

speaker, which is used to cut audio streams to sep-

arate transcriptions). Figure 2(b) displays a higher

level overview of the JUMAS components and the

software architecture, which shows also the links with

the external courtroom infrastructure. The integra-

tion among modules is performed through a work-

ﬂow engine and a module called JEX (JUMAS Ex-

change library). The workﬂow engine is a service ap-

plication that manages all the modules for audio and

video analysis (described in Sect. 3). It is written in

Java; it deﬁnes an entity model for annotations with

a corresponding XML schema for web services and a

database schema for Hibernate persistence. JEX pro-

vides a set of services to upload and retrieve Annota-

tions to and from the JUMAS database; these services

are hosted in a J2EE application server, with SOAP

support for direct usage. The integration of the JU-

MAS components is supported by a client library that

allows manipulating objects that are stored in the DB

through web services or direct database access, with-

out having to cope with web services, SQL or XML.

A client console multi-platform application exposes

all the functionality of the JEX services through XML

SEMANTICS AND MACHINE LEARNING FOR BUILDING THE NEXT GENERATION OF JUDICIAL COURT

MANAGEMENT SYSTEMS

(a) JUMAS components and data ﬂows (b) Software architecture of JUMAS

Figure 2: The JUMAS system.

ﬁles. This integration schema allows clear and sim-

ple data exchange, making JUMAS ﬂexible enough

to be deployed in different conﬁgurations, including

all or part of its components, and is also open to fu-

ture improvements with the inclusion of new mod-

ules. In JUMAS it has been deﬁned a wide set of

annotations categories and events, to deal with the

potentially wide set of annotations produced by the

media analysis modules. The JEX client library (and

the applications) can use two communication proto-

cols (web services and database) because each one

has pros and cons: web services are easier to be ac-

cessed by remote modules; moreover, this approach

can be used directly in different languages/platforms.

On the other side, the direct database access does not

require the presence of the JEX service (i.e. of the

J2EE application server). The users interact with JU-

MAS through the JUMAS Portal, a web application

whose server runs where JUMAS is deployed. Clients

can access the data through secure authentication. JU-

MAS actually integrates a court management system

(namely SIDIP - Sistema Informativo DIbattimento

Penale - (as shown in Figure 2(a)) for the creation

of the trial folder, the management of lawyers and

judges registries and the attachment of textual docu-

ments. The same results can be obtained by includ-

ing alternative Court Management Systems (CMS).

All the annotations produced by the JUMAS compo-

nents and stored in the Database serve as basis for the

Hyper Proceedings View described in Sect. 5.1.

3 KNOWLEDGE EXTRACTION

3.1 Automatic Transcription

A ﬁrst fundamental information source, for a digital

library related to the courtroom debate context, is rep-

resented by the audio recordings of actors involved

into hearings/proceedings. The automatic transcrip-

tion is provided by an Automatic Speech Recognition

(ASR) system (Falavigna et al., 2009) trained on real

judicial data coming from courtrooms. Currently two

languages, Italian and Polish, have been considered

for inducing the models able infer the transcription

given the utterance. Since it is impossible to derive

a deterministic formula able to create a link between

the acoustic signal of an utterance and the related se-

quence of associated words, the ASR system exploits

a statistical-probabilistic formulation based on Hid-

den Markov Models (Rabiner and Juang, 1993) In

particular, a combination of two probabilistic models

is used: an acoustic model, which is able to represent

phonetics, pronounce variability and time dynamics

(co-utterance), and a language model able to repre-

sent the knowledge about word sequences. The audio

acquisition chain in the courtroom has been designed

speciﬁcally to improve the Word Error Rate (WER),

using lossless compression such as FLAC and cross-

channels analysis. This allows a good trade-off be-

tween the conﬂicting needs of a manageable dimen-

sion of the audio ﬁle and good quality recording. The

ASR system developed was facing with several do-

main constraints/limitations:

• Noisy audio streams: the audio stream, recorded

during a judicial trial, can be affected by different

types of background environmental noises and/or

by noises caused by the recording equipment.

• Spontaneous Speech: the sentences uttered by a

speaker during a trial are characterized by breaks,

hesitations, and false starts. Spontaneous speech

- with respect to read utterance - plays a funda-

mental role in ASR systems, by originating higher

values of WER.

• Pronounce, language and lexicon heterogeneity:

the actors interacting during a trial may be differ-

ent for language, lexicon and pronounce types. In

particular, the judicial debates could contain many

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

words (e.g. person names, names of Institutions

or Organizations, etc.) that are not included in the

dictionary of the ASR, thus increasing the number

of out-of-vocabulary words and, consequently, the

resulting WER.

• Variability of a vocal signal: the word sequences

provided by the ASR can be inﬂuenced by differ-

ent circumstance such as posture of the speaker,

emotional state, conversation tones, and differ-

ent microphone frequency responses. These el-

ements introduce perturbations that are difﬁcult

to be taken into account during automatic speech

transcription activities.

• Non-native speakers: the actors involved in a pro-

ceeding can be characterized by linguistic difﬁcul-

ties or can be non-native speaker. These linguis-

tic distortion negatively affect the accuracy of the

produced transcriptions.

Currently the ASR modules in the JUMAS system,

offer a 61% accuracy over the generated automatic

transcriptions and represent the ﬁrst contribution for

populating the digital libraries behind the judicial

trials. In fact, the produced transcriptions are the

main information source that can be enriched by other

modules and then can be consulted by the end users

through the information retrieval system.

3.2 Emotion Recognition

Emotional states represent a bit of knowledge embed-

ded into courtroom media streams. This kind of in-

formation represents hidden knowledge that may be

used to enrich the content available in multimedia dig-

ital libraries. The possibility for the end user to con-

sult the transcriptions, also by considering the associ-

ated semantics, represents an important achievement

that allow them to retrieve an enriched written sen-

tence instead of a ﬂat one. This achievement radi-

cally changes the consultation process: sentences can

assume different meanings according to the affective

state of the speaker. In order to address the prob-

lem of identifying emotional states embedded into

courtroom events, an emotion recognition system is

comprised into the JUMAS system. A set of real-

world human emotions obtained from courtroom au-

dio recordings has been gathered for training the un-

derlying supervised learning model. In particular,

this corpus encloses a set of 175 sentences uttered

by different actors involved into the considered de-

bates, i.e. judges (46 samples), witnesses (67 sam-

ples), lawyers (29 samples) and prosecutors (33 sam-

ples). The corpus contains emotional speech signals

coming from 95 males and 80 females, with a dura-

tion ranging from 2 to 25 seconds. The dataset con-

tains the following emotional states: anger, neutral,

sadness and happiness. Given the emotional corpus, a

features extraction step is performed in order to map

the vocal signals into descriptive attributes (prosodic

features, formant frequencies, energy, Mel Frequency

Cepstral Coefﬁcients, etc...). Given this representa-

tion, a supervised emotion recognition model can be

trained. Into the emotion recognition component, a

Multi-layer Support Vector Machines (SVMs) have

been deﬁned (Fersini et al., 2009). At the ﬁrst layer a

Gender Recognizer model is trained to determine the

gender of the speaker, for distinguishing the “male”

speakers from the “female” ones. In order to avoid

overlapping with other emotional states, at the second

layer gender-dependent models are trained. In par-

ticular, Male Emotion Detector and Female Emotion

Detector are induced to produce a binary classiﬁca-

tion that discriminates the excited emotional states by

the not excited ones (i.e. the neutral emotion). The

last layer of the hierarchical classiﬁcation process is

aimed at recognizing different emotional state using

Male Emotion Recognizer and Female Emotion Rec-

ognizer models, where only sentences uttered as ex-

cited are used to train the models for discriminating

the remaining emotional states. Since SVMs are a

linear learning machine able to ﬁnd the optimal hy-

perplane separating two classes of examples (binary

classiﬁcation) and in our ﬁnal layer we have a multi-

class problem, we adopted the pairwise classiﬁcation

approach (Hastie and Tibshirani, 1998). In this case,

one binary SVMs for each pair of classes is learned to

estimate the posterior probability to assign an instance

to a given class label. A given instance is ﬁnally as-

sociated to the class with the highest posterior.

3.3 Human behaviour Recognition

A further fundamental information source, for a se-

mantic digital library into to the trial management

context, is concerned with the video stream. Rec-

ognizing relevant events that characterize judicial de-

bates have great impact as well as emotional state

identiﬁcation. Relevant events happening during de-

bates trigger meaningful gestures, which emphasize

and anchor the words of witnesses, highlighting that

a relevant concept has been explained. For this rea-

son, human behaviour recognition modules have been

included into the JUMAS system. The human be-

haviour recognition modules capture relevant events

that occur during the celebration of a trial in order

to create semantic annotations that can be retrieved

by the end users. The annotations are mainly con-

cerned with the events related to the witness: change

SEMANTICS AND MACHINE LEARNING FOR BUILDING THE NEXT GENERATION OF JUDICIAL COURT

MANAGEMENT SYSTEMS

of posture, change of witness, hand gestures, ﬁght-

ing. The Human Behaviour Recognition modules are

based on motion analysis able to combine localiza-

tion and tracking of signiﬁcant features with super-

vised classiﬁcation approaches. In order to analyze

the motions taking place in a video, the optical ﬂow

is extracted as moving points. Then active pixels are

separated from the static ones for ﬁnally extracting

relevant features and for recognizing relevant judi-

cial events (Briassouli et al., 2009), (Kov

acs et al.,

2009). The set of annotations produced by the human

behaviour recognition modules provide useful infor-

mation for the information retrieval process and for

the creation of a meaningful summary of the debates

(see section 5.2). The human behaviour recognition

modules developed was constrained by several do-

main limitations:

• Quality of the input video stream: the video cap-

turing equipment used into courtroom is mostly

low-cost. This resulting in low quality input video

stream has a great impact into the recognition of

relevant events.

• Stationary camera hampers shot detection: cam-

eras are usually installed in ﬁxed positions with

a background that remains nearly stationary dur-

ing the whole process. Indeed, it is difﬁcult to cut

the video-stream into shots for then understanding

eventual relevant events.

• Long distance shots: video is usually shot from

long distance. This implies that all involved peo-

ple belong to the shot and, consequently, features

of peoples faces are most of the time not distin-

guishable. Therefore, video analysis tasks, as for

instance face recognition or expression analysis,

become extremely difﬁcult or even impossible.

In order to address the mentioned challenges, the ac-

quisition chain related to the video source has been

opportunely tuned. In order to allow the video analy-

sis procedures to use a high quality stream albeit lim-

iting the growth of the dimension of the video into

the judicial folder, a double chain has been developed.

The high quality video is analyzed by the human be-

haviour recognition components, while the low qual-

ity video is stored into the judicial folder and synchro-

nized with the extracted semantic annotations.

3.4 Deception Detection

The discrimination between truthful and deceptive

assertion is one of the most important activity per-

formed by judges, lawyers and prosecutors. In order

to support their reasoning activities, aimed at corrobo-

rating/contradicting declarations (lawyers and prose-

cutors) and judging the accused (judges), a deception

recognition module has been developed as a knowl-

edge extraction component. The deception detection

module stands at the end of the data processing chain,

as it fuses the output of the ASR, Video Analysis,

and Emotion Recognition modules. This module is

based on the idea initially presented by Mihalcea and

Strapparava (Mihalcea and Strapparava, 2009), where

a variety of machine learning algorithms have been

investigated to distinguish between truth and false-

hood. The deception detection module developed for

the JUMAS system is based on Nave Bayes classiﬁer

(Ganter and Strube, 2009). To study the distinction

between true and deceptive statements, we required a

corpus with explicit labelling of the truth value as-

sociated with each statement. In order to train the

model, a manual annotation of the output of the ASR

module - with the help of the minutes of the tran-

scribed sessions has been performed. The knowl-

edge extracted for then training classiﬁcation models

is concerned with lies, contradictory statements, quo-

tations and expressions of vagueness. To date, 8 ses-

sions (∼70.000 words) have been annotated, yielding

88 lies, 109 contradictory statements, and 239 expres-

sions of vagueness. Given the training data, the Nave

Bayes classiﬁer can be induced for providing indica-

tions about future trials. In fact, the deception indi-

cations are provided only to the judges by highlight-

ing into the text transcription, through an interactive

interface, those relevant statements derived from ver-

bal expression of witnesses, lawyers and prosecutors.

In this way the identiﬁed statements may support the

reasoning activities of the judicial actors involved in a

trial by triggering relevant portion of the debate rep-

resenting cues of vagueness and contradiction.

3.5 Information Extraction

The current amount of unstructured textual data avail-

able into the judicial domain, especially related to

transcriptions of debates, highlights the necessity to

automatically extract structured data from the un-

structured ones for an efﬁcient consultation processes.

In order to address the problem of structuring data

coming from the automatic speech transcription sys-

tem, we deﬁned an environment that combines regu-

lar expression, probabilistic models and relational in-

formation. The key element of the information ex-

traction functionality is represented by the Automatic

Template Filling component, which is based on a

probabilistic model for labelling and segmenting se-

quential data by handling the correlation among fea-

tures. In particular, a probabilistic framework based

on Conditional Random Fields (Lafferty et al., 2001)

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

for labelling a set of trial transcriptions coming from

an ASR system, has been developed for JUMAS. The

core elements of the information extraction module

can be distinguished in:

• Data: training data represented by annotated

transcriptions and domain knowledge information

available into (national) relational databases. The

main information sources used for producing a

structured view of unstructured texts are repre-

sented by:

– Automatic speech transcriptions that corre-

spond to what is uttered by the actors in-

volved into hearings/proceeding. The ASR out-

put related to 20 sessions has been annotated

( 165.000 words), yielding about 3.500 seman-

tic annotations. The semantic items stated for

annotating include: name of the lawyer, name

of the defendant, name of the victim, name of

the witness, name of cited subjects, cited date

and date of the verdict.

– Domain knowledge information, which cor-

respond to databases containing information

about National Lawyers, National Judges,

Common Weapons, etc

• Model: Conditional Random Fields, which are

discriminative graphical models trained with both

transcriptions as training examples and domain

knowledge as additional information. The tradi-

tional model has been extended in order to train

from ASR features and from domain knowlegde

databases.

The Information Extraction functionalities are pro-

vided to judges, lawyers, prosecutors and court clerks.

In particular, the structured information is exploited in

two different ways: (1) to provide additional informa-

tion, to the Information Retrieval component, for an

efﬁcient storage and retrieval of proceedings; (2) to

provide, through an interactive user interface, an im-

mediate overview of trial contents for consequently

speeding up the consultation process.

4 KNOWLEDGE MANAGEMENT

4.1 Information Retrieval

Currently the retrieval process of audio/video materi-

als acquired during a trial needs the manual consul-

tation of the entire multimedia tracks. The identiﬁ-

cation of a particular position on multimedia stream,

with the aim at looking/listening at/to speciﬁc dec-

larations, participations and testimonies, is possi-

ble either by remembering the time stamp in which

the events were occurred or by watching the whole

recording. In order to address this problem, an Infor-

mation Retrieval system should address the following

challenges for retrieving relevant multimedia objects:

1. Users tend to specify the queries by using only

few keywords.

2. Search terms might be ambiguous or simply not

the right ones.

3. The information retrieval system might not be

able to automatically extract the information nec-

essary, e.g., in case the search term relates to a

high-level concept that cannot be understood at

the machine level.

The conjunction of automatic transcriptions, semantic

annotations and ontology representations (outlined in

section 4.2), allow us to build a ﬂexible retrieval envi-

ronment based not only on simple textual queries, but

on wide and complex concepts. In order to deﬁne an

integrated platform for cross-modal access to audio,

video recordings and their automatic transcriptions,

a retrieval model able to perform semantic multime-

dia indexing and retrieval has been developed (Darczy

et al., 2009). In particular, a linear combination of the

following information has been developed:

• Similarity of representative frames of shots.

• Face detector output for topics involving people.

• High level feature considered relevant by text

based similarity.

• Motion information extracted from videos.

• Text similarity based on ASR lattices.

The main goal of the information retrieval module is

to provide the users with a ﬂexible search system on

judicial documents through the realization of the fol-

lowing type of services:

• Basic search: speciﬁcation of single terms, list of

terms, pairs of adjacent terms, preﬁxes or sufﬁxes.

• Advanced search: speciﬁcation of linguistic query

weights associated with single terms, speciﬁca-

tion of linguistic quantiﬁers (most, all, at least

n) to aggregate the terms, searching in speciﬁed

XML sections of documents ordered by impor-

tance scores, and query translation based on bilin-

gual dictionaries.

• Semantic search: the user may not only deﬁne

simple text keyword queries, but also rely on wide

and complex concepts based on multimedia con-

tent or ontology usage.

In this way, all the relevant information of a trial may

be retrieved in terms of multimedia objects (audio,

SEMANTICS AND MACHINE LEARNING FOR BUILDING THE NEXT GENERATION OF JUDICIAL COURT

MANAGEMENT SYSTEMS

video and text with the associated embedded seman-

tics) by using low level textual queries and high level

semantic concepts.

4.2 Ontology as Support to Information

Retrieval

An ontology is a formal representation of the knowl-

edge, which characterizes a given domain, through a

set of concepts and a set of relationships that hold

among them. Into the judicial domain, ontologies rep-

resent a key element that support the retrieval process

performed by the end users. Textual-based retrieval

functionalities are not sufﬁcient for ﬁnding and con-

sulting transcriptions (and other documents) related

to a given trial. A ﬁrst contribution of the ontology

component developed in the JUMAS system is con-

cerned with its query expansion functionality. Query

expansion aims at extending the original query speci-

ﬁed by the end users with additional related terms for

then automatically submitting the whole set of key-

words to the retrieval engine. The main objective is

to narrow the focus (AND query) or to increase recall

(OR query). When expanding the query, new terms

are enhanced with a conﬁdence weight used by the

scoring function of the retrieval component. Let’s in-

troduce an example in order to understand the aim of

the query expansion functionality in the whole search-

ing process. Suppose that a judge needs to retrieve

the transcription about a weapon crime: a knife. By

specifying knife in the search form the system ﬁnds

only few documents containing this word. Then the

retrieval module invokes the query expansion web ser-

vice in order to obtain the related terms. The web

service ﬁnds the knife instance in the ontology and

explores the ontological relationship in order to ﬁnd

related terms. The query expansion module is a web

service based on Jena (Carroll et al., 2003) that pro-

vides a programmatic environment for OWL ontolo-

gies and includes a rule-based inference engine. A

further functionality offered to the end user is related

to the possibility of knowledge acquisition. In fact,

the ontology component offers to the judicial users

the possibility of acquiring speciﬁc domain knowl-

edge, i.e. they have the opportunity of specifying

semantic relationships among concepts available into

the trial transcriptions. This knowledge management

component provides not only the possibility of more

advanced and accurate search, but also the opportu-

nity to contribute to the construction of sophisticated

domain ontology without any background knowledge

about the ICT and ontological modelling aspects.

4.3 User Generated Semantic

Annotations

Judicial users usually tag manually some papers for

highlighting (and then remembering) signiﬁcant por-

tion of the debate. An important functionality offered

by the JUMAS system relates to the possibility of dig-

itally annotating relevant arguments discussed during

a debate. In this context, the user-generated annota-

tions may help judicial users for future retrieval and

reasoning processes. The user-generated annotations

module enclosed into the JUMAS system allows the

end-users to assign free tags to multimedia content

in order to organize the trials according to their per-

sonal preferences. It also enables judges, prosecutors,

lawyers and court clerks to work collaboratively on a

trial, e.g. a prosecutor who is taking over a trial can

build on the notes of his predecessor. The tags are

analysed to suggest related tags to the user for search

and to automatically ﬁnd related documents that con-

tain related terms. The user-generated semantic anno-

tation module exposes all annotations to the common

JUMAS JEX annotation infrastructure, which can be

searched in by the retrieval models. To allow users of

JUMAS to browse through the various available doc-

uments in a focused manner, upon viewing a speciﬁc

document, a dedicated interface shows several tags,

which can be used to browse the documents. The

tags recommended by the module for a speciﬁc doc-

ument are found by several techniques, which have

been combined to a meta-recommender as proposed

in (J

aschke et al., 2009). In particular, Collaborative

Filtering, Tag co-occurrence-based and occurrence-

based recommendations have been enclosed into the

meta-recommender module. As outcome, this mod-

ule offers the possibility of personalizing contents ac-

cording to the user preferences or working routines,

providing then a better usability of multimedia con-

tents.

5 KNOWLEDGE VISUALIZATION

5.1 Hyper Proceeding Views

As introduced in Section 2.2, the user interface of JU-

MAS is a web portal, in which the contents of the

Database are presented in different views, to support

the operations of clerks, judges and all the people in-

volved in the trial. The basic view is the browsing

of the trial archive, like in a typical court manage-

ment system, to present general information (dates of

hearings, name of people involved) and documents at-

tached to each trial in the archive. JUMAS has also

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

(a) Hyper proceedings view (b) Multimedia Summarization Visualization

Figure 3: Knowledge visualization.

distinguishing features among which the automatic

creation of a summary of the trial, the presentation of

user generated annotations and, primarily, the Hyper

Proceeding View (see Figure 3(a)), i.e. an advanced

presentation of media contents and annotations that

allows to perform queries on contents, jumping di-

rectly to relevant parts of media ﬁles. The Annota-

tions are shown in the portal while media ﬁles are

played and it is also possible to browse media by

clicking on annotations. The contents can be browsed

over several dimensions: audio, video, text annota-

tions; the user can switch among them. This ap-

proach, typical of web applications, provides a new

experience for the user that, in existing systems, can

only passively watch the contents or perform time-

consuming manual search.

5.2 Multimedia Summarization

Digital videos represent a fundamental informative

source of those events that occur during a trial: they

can be stored, organized and retrieved in short time

and with low cost. However, considering the dimen-

sion that a video source can assume during a trial

recording, several requirements have been pointed out

by judicial actors: fast navigation of the stream, ef-

ﬁcient access to data inside and effective represen-

tation of relevant contents. One of the possible so-

lutions to these requirements is represented by mul-

timedia summarization aimed at deriving a synthetic

representation of audio/video contents, characterized

by a limited loss of meaningful information. In or-

der to address the problem of deﬁning a short and

meaningful representation of a debate, a multime-

dia summarization environment based on an unsuper-

vised learning approach has been developed (Fersini

et al., 2010). The main goal is to create a storyboard

of either a hearing or an entire proceeding, by taking

into account the semantic information embedded into

a courtroom recording. The storyboard construction

creates a uniﬁed representation of contents. In partic-

ular, the summarization module exploits two matri-

ces: one matrix associated with speech transcription

and one matrix associated to the audio/video annota-

tions. The ﬁrst matrix represents textual transcription

scoring, obtained through the TFIDF weighting tech-

nique (Salton and Buckley, 1998). The second matrix,

deﬁned as binary, represents the presence or absence

of a speciﬁc audio/video annotation associated to a

given transcription segment. Starting from these two

matrices, the multimedia summarization module may

start the summary generation. The core component

is based on a clustering algorithm named Induced Bi-

secting K-means (Archetti et al., 2006). The algo-

rithm creates a hierarchical organization of (audio,

video and textual as well automatic annotations) clips,

by grouping in several clusters hearings or sub-parts

of them according to a given similarity metric. At the

moment the relative length of the summary is set by

the system administrator. In the next release each user

will be enabled to control the length of his/her sum-

mary. The resulting storyboard is presented to judge,

prosecutor, lawyer and court clerk as shown in Figure

3(b).

6 CONCLUSIONS

JUMAS project is demonstrating that it is possible

to enrich the court management system with an ad-

vanced set of tools for extracting and using the knowl-

edge embedded into the multimedia judicial folder.

Automatic template ﬁlling, semantic enrichment of

the judicial folder through audio and video pro-

cessing, enhanced transcription process, help judges,

prosecutors not only to save time, but in a special

SEMANTICS AND MACHINE LEARNING FOR BUILDING THE NEXT GENERATION OF JUDICIAL COURT

MANAGEMENT SYSTEMS

way to enhance the quality of their judicial decision

and actions. These improvements are mainly due to

the possibility to search not only text, but also events

that occurred in the courtroom. The ﬁrst outcome in

JUMAS indicates that transcription and audio anal-

ysis with an acceptable word error rate and video

analysis can provide additional information in an af-

fordable way. The demonstration and validation in

progress are also providing indications about the re-

quirements for the next generation of ICT-empowered

courtrooms. Recording systems and ICT infrastruc-

ture in the courtroom that are actually under deploy-

ment or to be deployed in the near future can be de-

signed in order to support audio and video process-

ing capabilities, while information retrieval relies on

state-of-the art ICT infrastructure. JUMAS is provid-

ing not only tools for a better usability of the trial

folder, being the audio-related tools the closest to a

ﬁrst deployment, but also inputs for a more future

oriented speciﬁcation of e-justice systems in different

countries.

ACKNOWLEDGEMENTS

This work has been supported by the European

Community FP-7 under the JUMAS Project (ref.:

214306).

REFERENCES

Archetti, F., Campanelli, P., Fersini, E., and Messina, E.

(2006). A hierarchical document clustering environ-

ment based on the induced bisecting k-means. In Proc.

of the 7th Int. Conf. on Flexible Query Answering Sys-

tems, pages 257–269.

Briassouli, A., Tsiminaki, V., and Kompatsiaris, I. (2009).

Human motion analysis via statistical motion process-

ing and sequential change detection. EURASIP Jour-

nal on Image and Video Processing.

Carroll, J., Dickinson, I., Dollin, C., Reynolds, C.,

Seaborne, A., and Wilkinson, K. (2003). Implement-

ing the semantic web recommendations. Technical

Report HPL-2003-146, Hewlett Packard.

Council of the European Union (2009). Multi-annual euro-

pean e-justice action plan 2009?2013. In the Ofﬁcial

Journal of the European Union (OJEU) 31.3.2009 C

75/1.

Darczy, B., Nemeskey, D., Petrs, I., Benczr, A. A., and Kiss,

T. (2009). Sztaki @ trecvid 2009.

Falavigna, D., Giuliani, D., Gretter, R., Loof, J., Gollan,

C., Schlueter, R., and Ney, H. (2009). Automatic tran-

scription of courtroom recordings in the jumas project.

In ICT Solutions for Justice.

Fersini, E., Messina, E., and Archetti, F. (2010). Mul-

timedia summarization in law courts: A clustering-

based environment for browsing and consulting judi-

cial folders. In Proc. of 10th Industrial Conference on

Data Mining.

Fersini, E., Messina, E., Arosio, G., and Archetti, F. (2009).

Audio-based emotion recognition in judicial domain:

A multilayer support vector machines approach. In

Proc. of the 6th International Conference on Machine

Learning and Data Mining in Pattern Recognition,

pages 594–602.

Ganter, V. and Strube, M. (2009). Finding hedges by chas-

ing weasels: hedge detection using wikipedia tags

and shallow linguistic features. In Proc. of the ACL-

IJCNLP 2009 Conference, pages 173–176.

Hastie, T. and Tibshirani, R. (1998). Classiﬁcation by pair-

wise coupling. In Proc. of the 1997 conference on

Advances in neural information processing systems,

pages 507–513.

aschke, R., Eisterlehner, F., Hotho, A., and Stumme, G.

(2009). Testing and evaluating tag recommenders in

a live system. In Proc. of the 3rd ACM conference on

Recommender systems, pages 369–372.

Kov

acs, L., Utasi, A., and Szir

anyi, T. (2009). Visret - a

content based annotation, retrieval and visualization

toolchain. In Advanced Concepts for Intelligent Vision

Systems.

Lafferty, J. D., McCallum, A., and Pereira, F. C. N. (2001).

Conditional random ﬁelds: Probabilistic models for

segmenting and labeling sequence data. In Proc. of the

18th International Conference on Machine Learning,

pages 282–289.

Mihalcea, R. and Strapparava, C. (2009). The lie detector:

explorations in the automatic recognition of deceptive

language. In Proc.of the ACL-IJCNLP 2009 Confer-

ence, pages 309–312.

Rabiner, L. and Juang, B. H. (1993). Fundamentals of

Speech Recognition. Prentice-Hall Inc.

Salton, G. and Buckley, C. (1998). Term-weighting ap-

proaches in automatic text retrieval. Information Pro-

cessing and Management, 24(5):513–523.

The Economist (2010). Data, data everywhere. Feb 25th

2010. The Economist.

Velicogna, M (2008). Use of information and communi-

cation technologies (ict) in european judicial systems.

In European Commiission for the Efﬁciency of Justice

Reports, Council of Europe.

KMIS 2010 - International Conference on Knowledge Management and Information Sharing
