SUPPORTING DIGITAL COLLABORATIVE WORK

THROUGH SEMANTIC TECHNOLOGY

Simon Scerri, Gerhard Gossen and Siegfried Handschuh

Digital Enterprise Research Institute, National University of Ireland Galway, IDA Business Park, Galway, Ireland

Keywords: Computer Supported Collaborative Work, Semantic Email, Workflow Management, Email Visualisation,

Social Semantic Desktop, Intelligent User Interface, Speech Act Theory.

Abstract: Taking advantage of the fact that knowledge exchanged within digital working environments can be made

persistent, a lot of research has strived to make sense of the ongoing communications in order to support the

participants with their shared management. Semantic technology has been applied for the purpose as it

ensures a shared understanding of the underlying collaboration, between both humans and machines. In this

paper we demonstrate how, coupled with appropriate information extraction techniques, robust knowledge

models and intuitive user interfaces; semantic technology can provide support for digital collaborative work.

As a virtual working environment, e-mail was a natural contender for testing our hypothesis. Taking a

workflow management-based approach, we demonstrate how semantics can indeed support email-based

collaboration via Semanta – a tool extending popular email clients enabling semantic email. In particular we

present a novel workflow-based email visualisation, the tool’s summative evaluation, and discuss the odds

of semantic applications like Semanta evolving beyond research prototypes.

1 INTRODUCTION

The vast amount of heterogeneous information

reaching the users' desktops outstrips their abilities

to correctly manage and exploit it. This results in

widespread information management problems that

especially affect those users that thoroughly depend

on electronic collaboration to carry on with their

daily work. With email persisting as the most

popular digital communication medium, email users

are not spared the effects of this problem. These are

aggravated by the fact that the uses of email have

evolved beyond its original intended design

(Whittaker, 2007), and the majority of these uses are

either not supported at all or only to a very limited

degree. The problem of information overload within

email, or simply Email Overload, is particularly

notorious. Numerous research efforts in various

computer science sub-domains have attempted to

alleviate the problem, by attempting to enable

machines to support the user with the management

of their email data. Some have taken a direct

approach, through the development of technologies

for email classification, search and retrieval;

whereas others have taken less direct approaches to

solving the problem, e.g. by facilitating email

visualisation. Central to our own approach is the

idea that email overload can be reduced by

providing automated support for the underlying

workflows in email applications.

In the next section we provide the motivation for our

implementation in Semanta, focusing particularly on

the epistemological gap between the user’s mental

visualisation of email collaboration and its visible

representation on the desktop. In Section 3 we

provide an overview of the underlying knowledge

models enabling Semantic Email. Here we will

review our earlier presented models (Scerri, 2008a)

(Scerri, 2008b) enabling the representation of email

workflow knowledge in a machine-processable

language. These models enable machine support for

the user's email information management and

promote the sharing and integration of email data

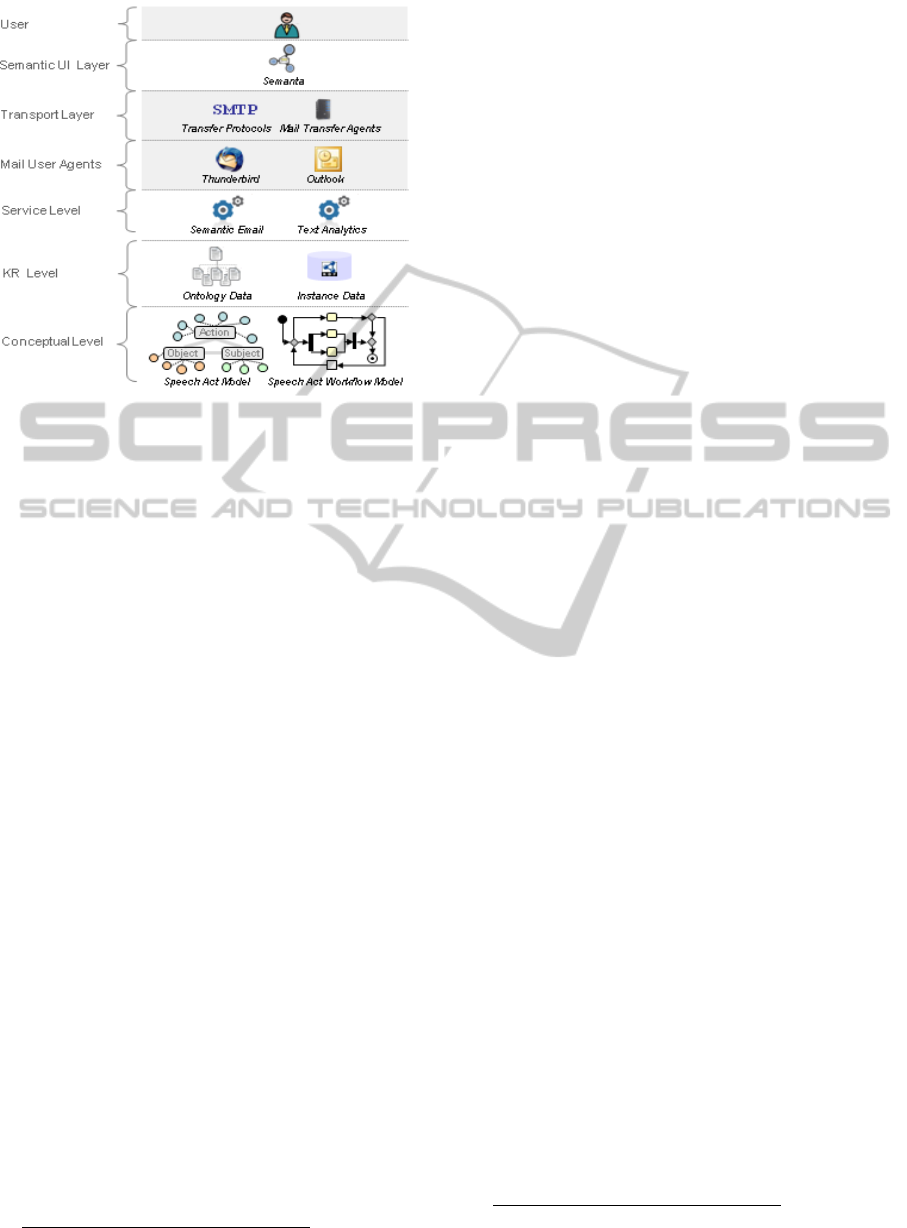

over a network of social semantic desktops. Details

as to Semanta's final architecture will be presented

in Section 4 whereas in Section 5 we will describe

how the latest version of Semanta utilises

information extraction techniques to elicit workflow

knowledge. A number of workflow supportive

features have previously been demonstrated in

(Scerri, 2009). In Section 6 we provide a brief

overview of these features before presenting the

Scerri S., Gossen G. and Handschuh S..

SUPPORTING DIGITAL COLLABORATIVE WORK THROUGH SEMANTIC TECHNOLOGY .

DOI: 10.5220/0003103300920101

In Proceedings of the International Conference on Knowledge Management and Information Sharing (KMIS-2010), pages 92-101

ISBN: 978-989-8425-30-0

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

novel workflow-based email visualisation technique

which has now been incorporated in this tool. In

Section 7 we describe the process and results of the

summative evaluation of Semanta as a whole. After

an overview of the most relevant related work in

Section 8, we provide guidelines for future works

and some concluding remarks on the prospects of

semantic technology in supporting the management

and sharing of collaboratively-generated knowledge.

2 EMAIL OVERLOAD

Email can be considered an extension to the

collaborative workers' working environment, serving

as a virtual workplace where they collaborate, carry

out tasks, etc., generating and sharing new personal

information in the process. From this perspective

email overload can be considered as a workflow

management problem where, faced with an

increasing amount (and complexity) of co-executing

workflows, users become overwhelmed and lose

their control over them.

Our approach is to identify and place patterns of

email communication into a structured form, without

changing the email experience for the end-user. We

start by considering Action Items embedded in email

content (e.g. Task Assignment, Meeting Proposal).

Sequences of related action items exchanged in

email messages are then treated as implicit but well-

defined Ad-hoc Email Workflows (e.g. Task

Delegation, Meeting Scheduling). The nature of

these workflows is such that they occur

spontaneously and evolve dynamically and to an

extent unpredictably with time. Besides their lack of

support, the way these workflows (or rather their

implicit components) are represented on the user's

conventional desktop system is too different than the

way the user would visualise them through their

mind's eye. In fact, we say that there is a huge

epistemological gap between the way users

conceive email workflow knowledge and the way it

is represented on their desktop.

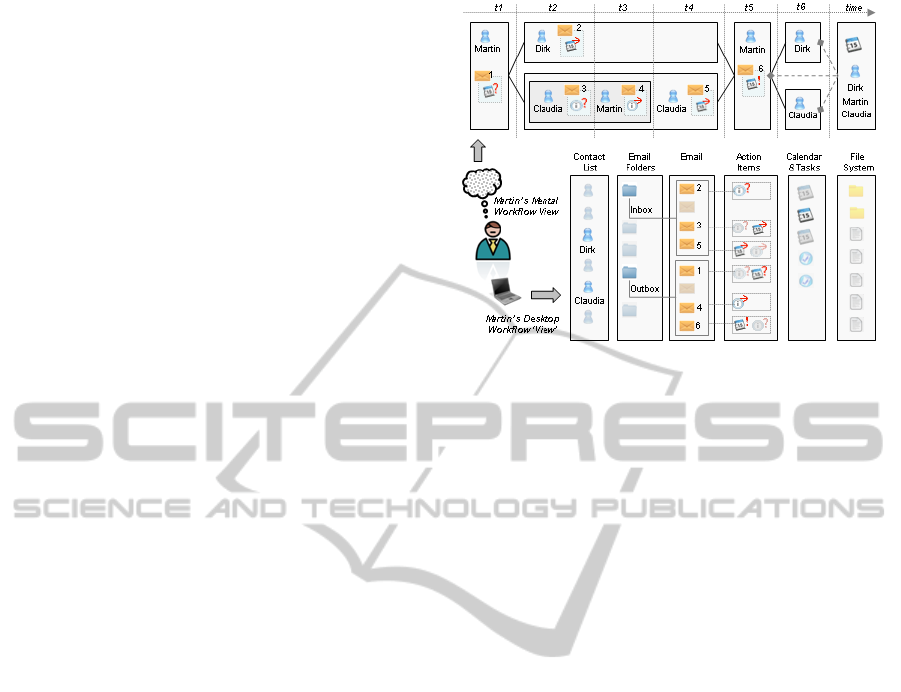

We will explain this situation via the example in Fig.

1, which illustrates how Martin conceives an email

conversation (workflow) in his mind and how he can

see the corresponding fragmented information

physically on his desktop. At time t1, Martin writes

an email (1) to Dirk and Claudia, which amongst

other things contains a Meeting Proposal action item

asking about their availability for a group meeting.

This initiates an implicit Meeting Scheduling email

workflow, which splits in two co-executing paths at

time t2 – control of which is passed to Dirk and

Figure 1: Martin's Workflow Views.

Claudia individually. Dirk reacts to the meeting

proposal immediately by sending an email (2) with

his feedback (Deliver Feedback action item) back to

Martin. Claudia instead, is not sure about the

purpose of the meeting and thus sends an email back

to Martin (3) with her inquiry (Information Request

action item). This is considered a sub-workflow of

the currently executing workflow. Martin deals with

this sub-workflow at time t3 by replying with an

Information Delivery in Email 4. Martin's answer to

Claudia's query terminates this sub-workflow, upon

which Claudia can get back to the initial workflow.

At time t4, she also sends her feedback back to

Martin (Email 5). At this point Martin has all the

required information for the meeting proposal he

sent in Email 1. Thus at time t5 the two parallel

workflow paths to merge back together and Martin

is passed back its control. He decides on a specific

date and time for the meeting right away and sends

another email (6) with an Event Notification to both

Dirk and Claudia. Upon sending the email, an event

involving Dirk, Martin and Claudia has been

generated for Martin. After both Dirk and Claudia

have acknowledged the Event Announcement action

item at time t6, the same shared event has been

generated for all of them.

Unfortunately for Martin, the email workflow

knowledge as presented above is in no way similar

to what he can visually gather through a

conventional email client on his desktop. Unless the

email conversation is fresh in his mind, there is no

straightforward way for him to quickly get an

overview. Especially if there are many such

workflows running at the same time, within tens or

hundreds of email messages, and varying in priority

and complexity. Fig. 1 shows the fragmented

physical view of the same workflow with which

SUPPORTING DIGITAL COLLABORATIVE WORK THROUGH SEMANTIC TECHNOLOGY

Martin would have to contend. The main workflow

components are scattered within a number of

separate, largely unconnected, data 'islands'. The

action items making up the workflow are obscurely

strewn across a number of usually (physically)

unrelated email messages, belonging to different

email folders. People in the contact list are only

associated with these emails, and their roles in the

contained workflows remain unspecified. The

workflow artefact generated at the end of the

example is stored in the Calendar, with little or no

connection to the email or the email thread wherein

it was generated. Workflow artefacts can also be

dispersed in additional data islands, such as

generated tasks which end up in a separate task list

or having attached documents propagated onto the

file system without keeping any connection to their

source emails.

3 MODELLING WORKFLOW

KNOWLEDGE

To provide for the elicitation, support and

visualisation of email workflows, we required robust

knowledge representation. We will next review the

models enabling Semantic Email, that is, email

enhanced with machine-processable metadata about

the underlying workflow knowledge. Here we intend

only to provide an overview of this research

, as the

details have been covered in existing publications

(Scerri, 2008a) (Scerri, 2008b). However, this is

essential to appreciate the non-trivial technology

behind the functions provided by the latest Semanta

prototype as presented and evaluated in this paper.

The first milestone of this research was reached with

the design of a concise but expressive model with

which various email action items could be

represented. The model is based on aspects of the

speech act theory (Searle, 1969), which is based on

the idea that every explicit utterance, or email

statements in this case, implies one or more explicit

or implicit actions. The model is thus aptly referred

to as the Speech Act Model (Scerri, 2008b), and has

at its core an action item (or speech act) concept

consisting of the triple (action, object, subject),

where the action defines the nature of the action

item, the object (of the action) defines what the

action is in relation to, and the subject(s) (of the

action) corresponds to the people implied by the

action. The model provides for seven different

actions (Request, Assign, Propose, Suggest, Deliver,

http://smile.deri.ie/projects/smail/

Abort, Decline) and five objects (Task, Event,

Information, Feedback, Resource). The subject

depends on the email participants, and is a member

of the power set for the email sender and the

recipient(s). Thus a request from Claudia to Dirk for

a joint task can be represented as (Request-Task-

{Claudia, Dirk}); a permission request for an event

from Claudia as (Request-Event-{Claudia}).

The second milestone was the design of the Speech

Act Workflow Model (Scerri, 2008a). Here we took

our approach one step further by considering each

action item as the start (or the continuation) of a

workflow as depicted in Fig. 1. Although ad-hoc

email workflows are spontaneous by nature, there

exist trends which enable the prediction of what

occurs after certain action items are received or sent.

Our workflow model is based on a statistical study

of real email threads, whereby human annotators

annotated email threads in the Enron corpus with

sequential speech acts

. Thus the model is

considered a formal representation of the ad-hoc

workflows taking place over email communication,

outlining the most likely reactions to incoming email

action items while allowing for email’s

characteristic flexibility. The model is grounded on

key research in the area of control flow workflow

patterns, utilising a number of patterns from a

standardised workflow language (Voorhoeve, 1997).

4 IMPLEMENTATION

Fig. 2 depicts how the conceptual framework for

semantically-enabled email was put into practice to

provide additional support to the user via Semanta

Knowledge expressed in the semantic email models

at the conceptual level is exploited within the

knowledge representation (KR) level via a semantic

email ontology

. This ontology re-uses knowledge

from within additional ontologies on the Semantic

Web, especially those designed for the Social

Semantic Desktop project (SSD) (Groza, 2007). In

fact, Semanta is one of the semantic applications

conceived within this project. Although Semanta

still functions on a normal desktop, the semantic

desktop has the added benefit of desktop data

integration – whereby machine-processable data

generated by multiple semantic applications can be

shared across multiple machines and desktops. The

rich knowledge representation models provided by

http://www.cs.cmu.edu/~enron/

http://smile.deri.ie/projects/semanta/

http://ontologies.smile.deri.ie/smail#

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

Figure 2 : Semantic Email across the different levels.

SSD mean that the representation and integration of

workflow components can be extended to the whole

user's personal information model. Thus, the objects

in Fig. 1 could be linked and related to other

physical and abstract personal concepts, e.g. to a

concept representing a project to which the

scheduled meeting is related. Additionally, the social

aspect of the SSD makes it possible for all those

involved in the meeting to actually share the same

instance of the meeting across their desktops. The

merits of Semanta as one of many interoperable SSD

applications have been discussed in (Scerri, 2008a).

In this paper we will instead focus on the personal

information management support provided by

Semanta as a stand-alone semantic application.

Semanta is empowered by the services in the service

level, which provide for all the business logic of the

system. The text analytics service performs email

action item classification whereas the semantic

email service is responsible for the running of most

of Semanta's underlying technology, including the

generation, retrieval and querying of all metadata.

Data elicited and generated through this service is

expressed in the machine-processable RDF

format,

serving as the instance data stored in the system's

RDF store (KR level). The semantic email service

then acts as an intermediary between the knowledge

in the KR level and the enhanced semantic user

interface. Although this interface is only the tip of

the iceberg, this semantic UI is what the user

perceives as Semanta. The enhanced UI is built on

top of two popular email clients – Microsoft Outlook

and Mozilla Thunderbird, which utilise standard

http://www.w3.org/RDF/

email transfer technology. The shaded levels in Fig.

2 are in fact to stress that Semanta relies on the

existing mail user agent and email transportation

layers. As a result, aside from the additional

functionality provided by Semanta's UI extensions,

the user's email experience also remains relatively

unchanged. Thus most of Semanta's technology and

the generated semantic data are conveniently hidden

from the user beneath an enhanced UI that is itself

integrated within the existing technological

landscape.

5 ELICITING WORKFLOW

KNOWLEDGE

In the next section we will present the many ways in

which Semanta is able to support the user with

managing their email workflows. However, for this

support to be provided the system needs to be aware

of the workflows in the first place. The bottleneck is

thus the recognition of action items not executing in

an existing workflow, e.g. a new meeting request,

rather than an amendment to an existing one. The

text analytics service in Fig. 2 is an important

component as it provides for the semi-automatic

classification of action items in email text. This

service implements a rule-based classification

model

that classifies email segments into action

item instances from the speech act model. The

results of a separate evaluation of this classification

technique indicate an accuracy level of around 60%.

Although this is considered a low score, this has to

be seen in the light of an earlier evaluation (Scerri,

2008b) which highlighted the difficulty of the

classification task, even when performed by humans.

In fact this experiment calculated a human inter-

annotator agreement rate (via the Kappa statistic) of

81%. As pointed out in the evaluation of MailCat

(Segal, 1999), an error rate of over 20% is

completely unacceptable in automated processes.

Thus our semi-automatic classification is meant to

facilitate, rather than completely automate email

annotation. Consequently, when the user hits the

send button for a new email, the results of automatic

classification are highlighted in the content and

presented to the user for review. Additionally, an

annotation wizard facilitates this task, supporting the

user with the easy creation or modification of action

item annotations while hiding the complexity of the

speech act model. The resulting action item

Details of this model and technique are sufficiently

covered in (Scerri, 2010).

SUPPORTING DIGITAL COLLABORATIVE WORK THROUGH SEMANTIC TECHNOLOGY

annotations together with other harvested metadata

are then encoded in RDF within the email headers

and transported alongside the email. Once Semanta

is aware of the initial action items in a workflow the

email workflow model is employed keep track of

subsequent action items (updates to the workflow)

and to support with their management on both the

sender and the recipient(s) side.

6 SUPPORTING WORKFLOW

MANAGEMENT

When an email reaches the inbox, Semanta displays

the number of pending action items alongside the

other email information in the inbox (last column,

Fig. 3). This count adjusts dynamically when action

items are taken care of. When an email is selected,

action items are highlighted in the content (red

italic). Users can interact with each item, where a

number of relevant options are provided given the

item’s type and the knowledge provided by the

workflow model. For the Task Request shown in

Fig. 3, Claudia can approve or disapprove the task or

alternatively amend its properties.

Some of these options result in a reply email item

being generated, but this is not always necessary.

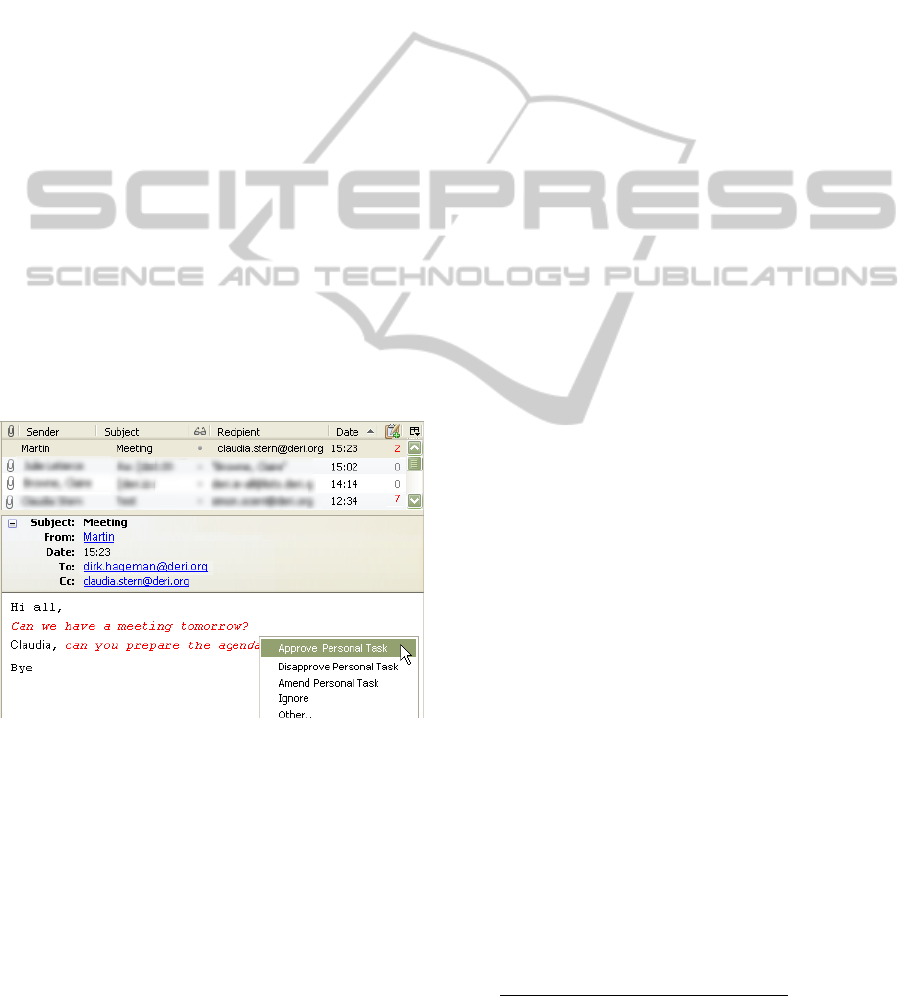

Figure 3: Semanta's email action item support.

For example upon receiving a Task Assignment

instead of a task request, the user can simply

acknowledge the assignment without the need for a

reply, as per the semantics of this type of action item

specified by the workflow model. Action items can

also be ignored (and later unignored) indefinitely.

Most importantly Semanta's support for ad-hoc

workflows allows the user to react to an action item

in additional ways. For example in Fig. 3, before

submitting her availability for the proposed meeting,

Claudia decides to question its purpose. After

selecting the ‘Other..’ option, Claudia writes her

question (e.g. “I thought the meeting was

cancelled?”) and is then assisted once again with the

annotation wizard to select an appropriate action

item for this text (Information Request). This results

in an ensuing email reply and constitutes a

subworkflow of the original, control of which is

passed back to Martin when Claudia sends the

automatically generated email. This information is

stored and updated with each workflow update that

ensues. Semanta detects events/tasks generated

when writing or reacting to incoming email, in

which the current user is implied. For example,

when Claudia approves the requested task in Fig. 3,

Semanta support her with storing the workflow

artefacts directly to the associated Tasklist. The

default Outlook task list and calendar are used for

Outlook, whereas the Lightning add-on is required

for Thunderbird

. Semanta auto completes some of

the properties of so-generated tasks/events. The

subject of the task generated from the email will

carry the textual excerpts from the workflow (e.g.

Martin wrote: “can you prepare the agenda?”: You

replied: “Yes”). The contacts implicated in the

activity are also known; in this case Claudia has the

sole responsibility.

Links between email messages and the tasks/events

generated from within are stored and exploited for

the user’s benefit. Fig. 4 shows three items related

the workflow which ensued following the task

request in Fig. 3. This request (Fig. 4 - 1) was

answered via an email reply (Fig 4- 2). These two

emails therefore belong to the same thread, and are

linked via the ‘Previous Email’ and ‘Next Email’

buttons. The last item (Fig 4- 3) is the task generated

by this workflow, specifically from the second email

(Fig 4 - 2). The user can jump to this event from this

email via the ‘Related Activity’ button. Semanta

extends the display of the task item by a

‘Conversation’ panel which shows the history of the

workflow until the generation of this task. In the

example, the workflow before the task generation

consisted of two action items shown. The user can

also directly jump from these items to the emails in

which they were exchanged, i.e. (Fig. 4 - 1) and

(Fig. 4 - 2) respectively.

We will now introduce Semanta’s latest and most

novel latest feature – the workflow-based

visualisation of email. As discussed in Section 2,

email users have so far only been able to view

scattered fragments of email workflows when

http://www.mozilla.org/projects/calendar/lightning/

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

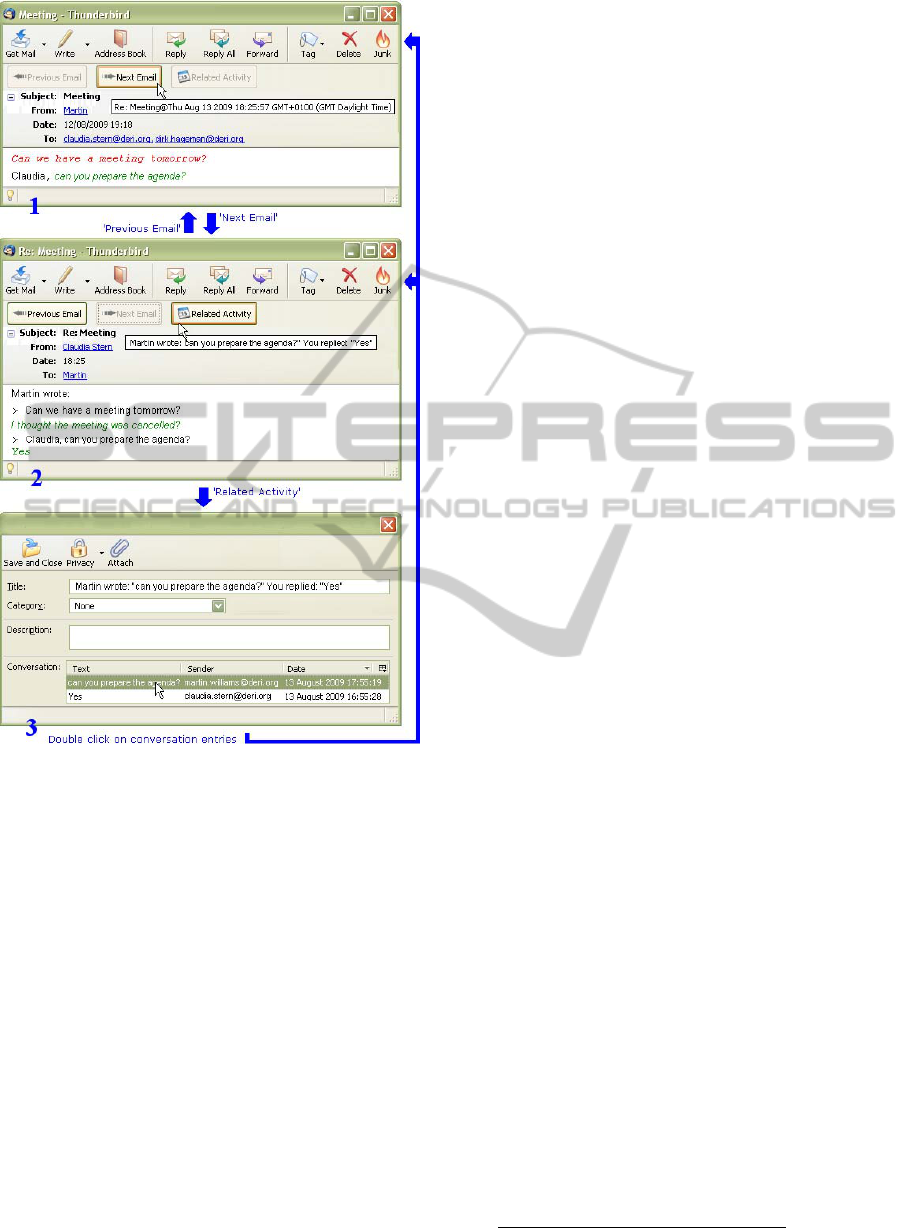

Figure 4: Linking Workflow Artefacts.

looking at messages in their email folders. The most

groundbreaking feature of Semanta is to provide a

novel workflow-based email view that is more akin

to the user's mental conceptualisation (Fig. 1). The

knowledge elicited and gathered by Semanta means

that the system is aware of all exchanged action

items, their position within a workflow as well as

their status. Semanta's semantic UI exploits this

knowledge to generate a view wherein users can

visualise these workflows, and also navigate to the

email message within which each individual action

item in the workflows is contained. Semanta’s

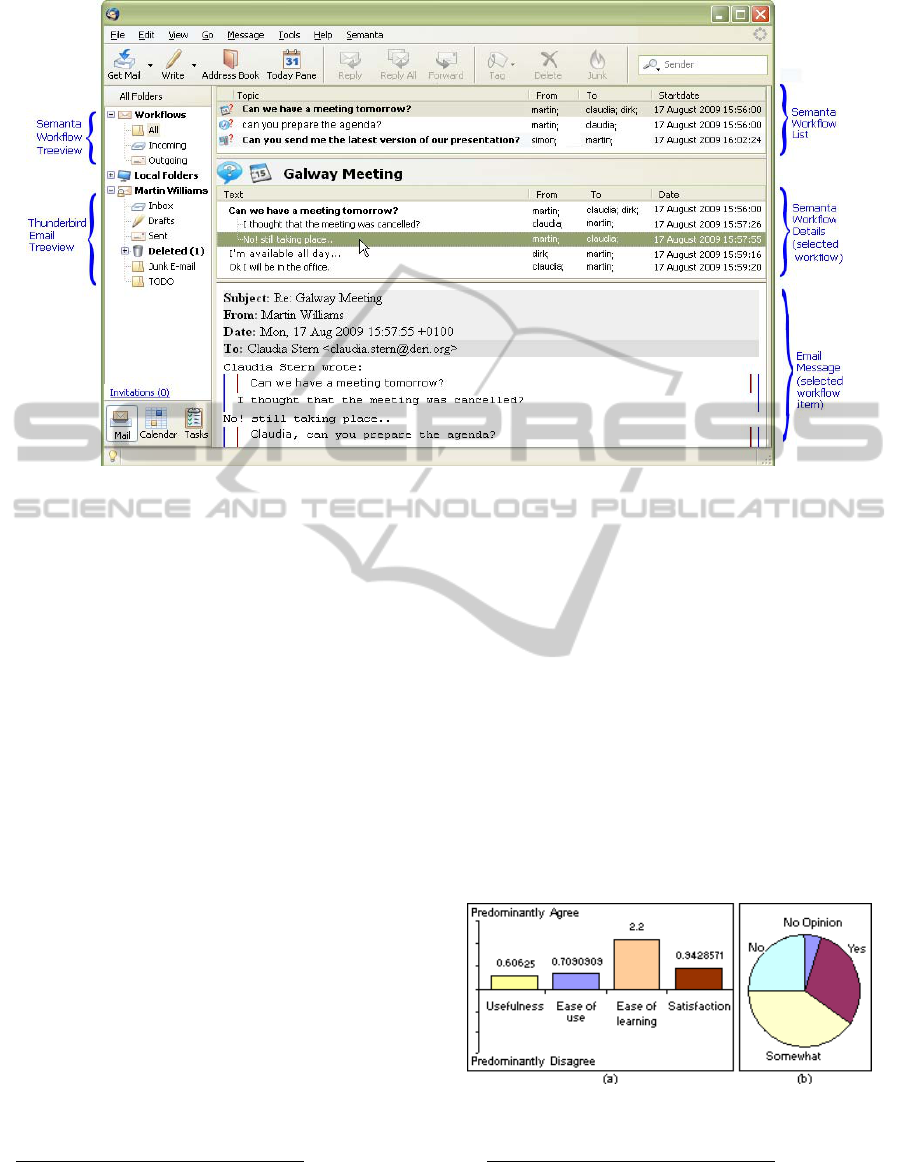

Workflow Treeview (Fig. 5) is available alongside

Thunderbird’s default email treeview on the left-

hand side. The treeview provides for three views, the

selection of which enables the UI components on the

right-hand side. These components offer a form of

visualisation which functions like faceted-search –

the user restricts the field of view to a particular

email, starting from a workflow. The main view

(‘All’) displays a list of all workflows that have

taken place or are still running/pending (displayed in

bold) in the Workflow List, ordered by start date.

When a workflow is selected its details are shown in

the Workflow Details below. This component shows

the sequence of individual action items in the

workflow. Finally when an action item is selected,

Semanta retrieves the email within which it has been

exchanged and displays it to the user in the Email

Message component below. The example shown in

Fig. 5 is more akin to Martin's view of the workflow

in Fig. 1. In fact, the workflow selected in the

workflow list originates from the Meeting Proposal

sent to Dirk and Claudia. The workflow details

below show that whereas Dirk provided his

availability right away (4th action item), Claudia

asked for further information before providing hers.

This sub-workflow is represented by the two

indented action items – the information request (2nd

item), followed by an information delivery (3rd

item). The email within which this action item was

exchanged (in Martin's Outbox folder) is displayed

in the email message view below. The workflow is

still marked as pending in the workflow list because

although Martin has received the feedback from both

the other two meeting participants, he has yet to

announce the meeting at that stage. Alongside the

main view, the workflow treeview provides two

other specific views. The Incoming view shows all

incoming action items (e.g. requests, assignments,

suggestions) which remain pending. In this case,

rather than displaying a list of workflows, Semanta

displays a list of pending action items, shown in the

context of their workflow. The user can then directly

resume the workflow by reacting to the pending

items. Alternatively, the Outgoing view shows all

outgoing action items (e.g. requests) for which the

user is still awaiting a reply.

After viewing these items the user can decide

whether to send a reminder urging the

correspondents to reply (and resume the stalled

workflow).

7 EVALUATION

Our evaluation methodology follows the guidelines

outlined in (Gediga, 2001). All material used for the

evaluation, including the full results, is available

online

. The process consisted of a Formative stage

– where the initial system prototype was improved

http://www.smile.deri.ie/projects/semanta/evaluation/

SUPPORTING DIGITAL COLLABORATIVE WORK THROUGH SEMANTIC TECHNOLOGY

Figure 5: Screencast showing Semanta’s workflow-based email visualisation. The user navigates from an initial action item

(top right) to the ensuing workflow (middle right) and finally a specific email (bottom right).

following a controlled study; and a Summative stage

– where users tried the improved prototype in their

actual day-to-day email work. Given its platform

independency, this stage was based on Semanta’s

Thunderbird add-on. The results of the formative

stage were published in (Scerri, 2009). In this paper

we will report the findings of the second evaluation

stage. The purpose of the summative evaluation was

to compare Semanta with an alternative – the

standard Thunderbird with no add-ons. As most of

Semanta’s features can only be appreciated when

exchanging email between Semanta users, our

hypothesis – that the use of Semanta improves the

email experience over the use of a standard Email

Client; needed to be tested within such groups. Thus

the evaluation involved a total of 18 users,

collaborating in subgroups of between 2 and 6

people. The users consisted mostly of Computer

Science researchers within three universities

(including our own) where English is used as the

first language; but also included a few industrial

partners with whom they collaborate. The evaluators

were introduced to the evaluation via a web page

and supported by a detailed user manual

. They

were instructed to use Semanta for 10 days, at the

end of which they sent their automatically-generated

http://www.smile.deri.ie/projects/semanta/semantaevaluat

ion2009

http://www.smile.deri.ie/projects/semanta/usermanualthu

nderbird

usage statistics. On a per-person average, 40.42

action items in 29.29 semantic emails were

exchanged in 11.83 days. An average 6.57 incoming

and 9.29 outgoing action items remained pending at

the end of the evaluation. Semanta also assisted the

users with handling an average of 3.29 email-

generated tasks and 2.14 events. The evaluation

included a questionnaire

, starting with a

reproduction of the standard USE questionnaire

measuring the usability of the system across four

dimensions: usefulness, user satisfaction, ease of

learning, ease of use. Results of this part of the

questionnaire are averaged in Fig. 6a.

The next part of the questionnaire tried to

quantify the performance of Semanta over the

Figure 6: Main results of the evaluation.

http://www.surveymonkey.com/s.aspx?sm=hwJLbdf_2b

ZdyUL6hXw4dhiQ_3d_3d

http://www.stcsig.org/usability/newsletter/0110_measuri

ng_with_use.html

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

Table 1: Main results of hypothesis testing.

Null Hypothesis H

Mean

T-test Outcome

T.B. Semanta

: No change in time required to write email 0 -0.75 -3.000 Rejected

: Annotation process doesn't effect email writing experience 0 -0.08

-0.173

Accepted

H3: Flexibility of email replies is not effected 0 -0.85 -3.091 Rejected

H4: Difficulty of keeping track of pending received action items is unchanged 0 2 11.015 Rejected

H5: Difficulty of keeping track of pending sent action items is unchanged 0 2 11.832 Rejected

H6: No effect on the mental visualisation of email workflows 0 2 6.36 Rejected

standard Thunderbird. Questions were based on a 7-

point Likert scale, ranging from -3 (Predominantly

worse) to 3 (Predominantly better), with 0 signifying

no perceived changed (thus the ratings for

Thunderbird are zero by default). A one-sample t-

test (two-tailed, 99% confidence interval) was then

performed to interpret the ratings. Here we only

provide the highlights, the full results being

available via the evaluation page. The first result

(Table 1 - H1) rejects the hypothesis that the same

amount of time is required to write email with

Semanta. This is expected due to the annotation

reviewing stage. However, the users feel that this

stage does not harm the email writing process, and

H2 is (H2). Optional comments in the questionnaire

suggest that although some see it as an annoyance,

others like the idea of annotating email if it helps

with getting things done. H3 was rejected, shows

that the flexibility of email replies was somewhat

jeopardised by Semanta. In fact, in an additional best

and worst feature fields in the questionnaire, the

email reply interface got the highest number of

negative votes. H4-H5 were rejected in Semanta’s

favour, concluding that keeping track of both

incoming and outgoing action items is significantly

easier with Semanta. Finally the hypothesis that

Semanta does not help the user with visualising

email workflows (H6) is also rejected, implying that

workflow-based view of email was successful in this

regard. Additional results confirmed that the users

appreciate Semanta’s ability to link tasks and events

to the email threads wherein they were generated

and the possibility to traverse independent email

messages in a thread. This was expected, given that

the standard Thunderbird lacks these features.

The final part of the questionnaire posed the

following bottom-line question: “Are Semanta's

functionalities worth the effort to review automatic

annotations or manually create them?”. The results,

shown in Fig. 6b seem to suggest that whereas the

majority of user felt that the time sacrificed

reviewing email annotations was worth the

subsequent email support to an extent or another,

around 25% of the evaluators seemed to think

otherwise. This can perhaps be summed up by the

following comment provided by one user: “leaving

aside the fact that Semanta is a research prototype,

for a new email tool to be accepted by a broad set of

users as beneficial, it will need to provide benefits

that are at multiple orders of the additional cost that

it imposes on users”.

8 RELATED WORK

As there have been numerous attempts at supporting

computer collaborative work, we will here also stick

to the email use case, providing a number of

approaches that are most relative to the work

presented in this paper. One of the most well known

initiatives in this area was IBM’s ReMail (Rohall,

2004) – a reinvented email prototype focusing on

email visualisation, calendar entry discoveries and

user attention management. In contrast, we

seamlessly integrated our technology into the

existing technical landscape, using existing transport

technology; while hiding complex workflow models

and semantics beneath intuitive GUI extensions to

existing email clients. Other initiatives have focused

on improving the user’s email experience by

targeting specific email tasks and features e.g. reply

prediction, attachment reminders, automatic

foldering and recipient prediction (Dabbish, 2005)

(Dredze, 2008a) (Dredze, 2008b) (Segal, 1999). We

consider these solutions to be a patching-up exercise

to the underlying problem, i.e. the lack of support

for email workflows. In contrast, the

comprehensiveness of our approach allows for the

indirect provision of most of these features.

Speech Act Theory was applied to email

communication a couple of times, in particular to

ease the management of email-generated tasks

(Corston-Oliver, 2004) (Khoussainov, 2005) and for

email classification (Carvalho, 2005) (Goldstein,

2006) (Khosravi, 1999). The speech act model itself

is based on an earlier one provided by Carvalho et.

al. (Carvalho, 2005), which considered a speech act

SUPPORTING DIGITAL COLLABORATIVE WORK THROUGH SEMANTIC TECHNOLOGY

as the pair (verb, noun), e.g. (Request-Task). In

particular, we extended this model to also refer to

the speech act subject. The human inter-annotator

agreement experiment mentioned earlier was also

applied to this model. The results conclude that our

model is more intuitive for the classification of

email action items. The research conducted by

Carvalho et. al. also computed transition diagrams

for sequential speech acts, for the prediction of

successive acts. In (Singh, 1998), the author

investigated the condition of satisfaction for

individual speech acts. In our research, we extend

these conditions of satisfaction to workflows.

Apart from speech act theory, our work is also

directly inspired by the research contributions of

Semantic Email Processes. In fact Dowell et. al.

(McDowell, 2003) first used the term ‘semantic

email’ to refer to an email message consisting of a

structured query (or an update to the query) coupled

with a corresponding explanatory text. Their

approach was based on the provision of a broad class

of semantic email processes that represent

commonly occurring workflows within email (e.g.

collecting RSVPs, coordinating group meetings).

Implemented within Mangrove the system provided

templates which exposed structured knowledge

about these scenarios to both humans and machines.

The ultimate goal was to support the user with

common email-related tasks such as collecting

information from a group of people, handling event

information, etc. Although we believe that the option

of fixed templates taken in (McDowell, 2003) is in

some cases useful, our approach is more oriented

towards the handling of ad-hoc email workflows.

9 CONCLUSIONS

In this paper we demonstrated how semantic

technology can enable automated support for digital

collaborative work, focusing on the email use case.

In this context, our approach has been to identify

and place patterns of email communication into a

structured form, such that machines can support the

user with email workflow management. In turn, this

knowledge is employed to reduce the

epistemological gap between the way users conceive

collaborative workflows and the fragmented way in

which these are currently ‘displayed’ in the

respective digital working environment.

The concept has been implemented and showcased

via Semanta: a user-supportive email extension for

popular email clients. If the average email user is

sacrifices minimal extra time to review the

automatic action item annotations when writing new

email, Semanta in return:

• is aware of the existence and status of

(otherwise implicit) email action items within

• is able to support the user with reviewing

incoming action items and the semi-automatic

provision of replies

• detects tasks and events generated within email

messages, and provides contextual information

and links from both directions

• provides an alternative workflow-based email

visualisation that is more akin to what the users

conceive conceptually when carrying out their

email tasks

• provides ancillary features such as linking email

within the same thread and file attachment

reminders, as well as social semantic desktop

integration;

Following the results summative evaluation of

Semanta, we are happy with the acceptance of our

tool but acknowledge that in order for Semanta to

jump over the research fence into the real world, the

extra cost imposed on the user needs to be further

reduced. The latest evaluation has outlined further

room for improvements. We intend to extend the

text classification grammars to enable the

recognition of more information, e.g. matching

person names in text to the user’s email contacts,

recognition of dates and times related to upcoming

events or task deadlines, etc. We are also

investigating the use of ML techniques to improve

both precision and recall of the automatic

annotation. GUI-wise, we are considering the

suggestions received to improve the least attractive

features. Semanta will be extended to work also

when the corresponding users are not using

Semanta, so that non-semantic email can still be

mined for action items. Finally, the workflow views

will be extended to incorporate any resulting

events/tasks. The status of tasks can then also be

dynamically updated when the responsible

participant(s) update it as such.

The lessons learnt from Semanta can, to a large

extent, be projected onto general approaches that

employ semantic technology to provide support for

digital collaborative work. Our experience

demonstrates that although semantic applications are

indeed able to provide the envisioned additional

support to the collaborative knowledge worker, this

support comes at a cost. The extent of this cost is

controversial. For the email use case, whereas some

people were more than willing to spend a little more

extra time reviewing and adjusting email action item

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

100

annotations in view of the rewarding support

provided, others considered it as yet another email

chore.

ACKNOWLEDGEMENTS

The work presented in this paper was supported (in

part) by the Lion project supported by Science

Foundation Ireland under Grant No.

SFI/02/CE1/I131.

REFERENCES

Carvalho, V., Cohen, W., 2005. On the collective

classification of email speech acts. In Proc. SIGIR-

2005. 345—352.

Corston-Oliver, S., Ringger, E., Gamon, M., Campbell, R.,

2004. Task-focused summarization of email. In Proc.

Text Summarization Branches Out workshop ACL

2004.

Dabbish, L., Kraut, R., Fussell, S., Kiesler, S., 2005.

Understanding email use: predicting action on a

message. In Proc. SIGCHI conference on Human

factors in computing systems.

Dredze, M., Wallach, H., Puller, D., Brooks, T., Carroll,

J., Magarick, J., Blitzer, J., Pereira, F., 2008a.

Intelligent Email: Aiding Users with AI. In Proc.

AAAI 2008.

Dredze, M., Wallach, H., Puller, D., Pereira, F., 2008b.

Generating summary keywords for emails using

topics. In Proc. 13th international conference on

Intelligent user interfaces. New York, NY, USA.

Gediga, G., Hamborg, K., 2001. Evaluation of Software

Systems. Encyclopedia of Computer Science and

Technology. Vol. 45, 166—192.

Goldstein, J., Sabin, R.E., 2006. Using Speech Acts to

Categorize Email and Identify Email Genres. In Proc.

System Sciences, HICSS2006.

Groza, T., Handschuh, S., Moeller, K., Grimnes, G.,

Sauermann, S., Minack, E., Mesnage, C., Jazayeri, M.,

Reif, G., Gudjonsdottir, R., 2007. The NEPOMUK

Project - On the way to the Social Semantic Desktop.

In: 3rd International Conference on Semantic

Technologies (ISEMANTICS 2007), Graz, Austria

McDowell, L., Etzioni, O., Gribble, S., Halevey, A., Levy,

H., Pentney, W., Verma, D., Vlasseva, S., 2003.

Evolving the Semantic Web with Mangrove. UW Tech

Report.

Khosravi, H., Wilks, Y., 1999. Routing email

automatically by purpose not topic. Natural Language

Engineering, Vol. 5, 237–250.

Khoussainov, R., Kushmerick, N., 2005. Email task

management: An iterative relational learning

approach. In Proc. Conference on Email and Anti-

Spam.

Rohall, S.L., Gruen, D., Moody, P., Wattenberg, M.,

Stern, M., Kerr, B., Stachel, B., Dave, K., Armes,

R.,Wilcox, E., 2004. ReMail: a reinvented email

prototype. In proc. CHI '04 Extended abstracts on

Human factors in computing systems.

Scerri, S., Davis, B., Handschuh, S., Hauswirth, M., 2009.

Semanta – Semantic Email made easy. In Proc.

European Semantic Web Conference 2009. Crete,

Greece.

Scerri, S., Gossen, G., Davis, B., Handschuh, S., 2010:

Classifying Action Items for Semantic Email. In proc.

International conference of Language Resources

and Evaluation.

Scerri, S., Handschuh, S., Decker, S., 2008a. Semantic

Email as a Communication Medium for the Social

Semantic Desktop. In Proc. European Semantic Web

Conference 2008. Tenerife, Spain.

Scerri, S., Mencke, M., Davis, B., Handschuh, S., 2008b.

Evaluating the Ontology underlying sMail – the

Conceptual Framework for Semantic Email

Communication. In proc. 7

International conference

of Language Resources and Evaluation. Marrakech,

Morocco.

Searle, J., 1969. Speech Acts. Cambridge University Press.

Segal, R.B., Kephart, J.O., 1999. MailCat: an intelligent

assistant for organizing e-mail. In Proc.3rd annual

conference on Autonomous Agents. New York, NY,

USA.

Singh, M., 1998. A Semantics for Speech Acts. Annals of

Mathematics and Artificial Intelligence. Vol. 8, 47—

71.

Voorhoeve, M., Van der Aalst, W., 1997. Ad-hoc

workflow: problems and solutions. In proc. 8

International Workshop on Database and Expert

Systems Applications (DEXA07).

Whittaker, S., Bellotti, V., Gwizdka, J., 2007. Email and

PIM: Problems and Possibilities. In Proc.

Communications of the ACM CACM07.

SUPPORTING DIGITAL COLLABORATIVE WORK THROUGH SEMANTIC TECHNOLOGY

101
