CONCURRENCY CONUNDRUMS

An Ontological Solution?

Celina Gibbs and Yvonne Coady

University of Victoria, Victoria, Canada

Keywords:

Concurrency, Pedagogy, Software comprehension.

Abstract:

The arrival of a new era of programming, where developers must consider the subtitles of concurrency inherent

in modern many-core architectures, calls for a revamping ranging from fundamental pedagogical processes to

software development tools. The problem here is twofold: (1) corresponding real-world scenarios, commonly

leveraged in pedagogical practices, contain implicit relationships that are signiﬁcantly harder to explicitly

anticipate in complex code-bases, and (2) the growing plethora of parallel programming language mechanisms

collectively blur and distort the common core entities and relationships involved.

As a possible solution, this paper proposes a general ontology for reasoning through concurrency conundrums

at both high and low levels. The entities and relationships are originally established based on real-world

scenarios presented to a group of grade seven students. The ontology is further developed, and implicit rela-

tionships revealed, based on an analysis student observations. The ontology is further developed and implicit

relationships revealed. The goal of this work is form a basis for cognitive support that will map equally well

to both generalized real-world scenarios and detailed code in different programming languages.

1 INTRODUCTION

Current trajectories suggest that future hardware plat-

forms will house thousands of cores. NVIDIA’s Tesla

960 cores for less than $10,000, demonstrates the re-

ality of this situation (Nvidia, 2008). Millions of

cores are even available, such as IBM’s project Kit-

tyHawk (Appavoo et al., 2008).

Parallelism introduces critical issues such as re-

source utilization and contention which had largely

been factored out of mainstream development prac-

tices for high-level applications executing in a se-

quential environment. Programmers are now faced

with the daunting task of rethinking and relearning

what efﬁcient programming is. This situation calls for

researchers to rethink pedagogical practices and pro-

gramming tools.

In this paper we propose the use of a common on-

tology that maps to parallel problems both at a high

level of abstraction for pedagogical support, and at

the level of lines of code for program comprehension

tools. This approach is intended to demonstrate the

subtle complexities of concurrency in real world sce-

narios, creating a conceptual model of parallelism that

translates to the comprehension of parallel software.

We derive the entities of the ontology from both abs-

tract problem-based pedagogy and an understanding

of parallel programming models to ensure an ontol-

ogy that aligns with both levels of representation. In

this uniﬁed form, the mapping of the ontology to ei-

ther an abstract scenario or a code base supports both

comprehension as well as the ability to compare the

implications of concurrency in different contexts.

This paper develops and assesses the ontology as

follows. Section 2 draws from experiments with ed-

ucational based activities revolving around real-life

parallelism. Results from these case studies form the

top level of our proposed ontology: computation and

communication. Section 3 details the signiﬁcant over-

lap in this coarse grained entity classiﬁcation, and

demonstrates that deepening the ontology not only

clariﬁes the overlap, but supports the emergence of

another top level entity: coordination. Finally, we

provide a full mapping of this resulting ontology onto

the pedagogical activities in Section 4 with conclu-

sions in Section 5.

2 PEDAGOGICAL ANALYSIS

In order to establish a common ontology that applies

at the level of common experiences and at the level

305

Gibbs C. and Coady Y..

CONCURRENCY CONUNDRUMS - An Ontological Solution?.

DOI: 10.5220/0003104203050310

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 305-310

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

of implementation, we begin with an analysis at the

more abstract level of activities. The following sub-

sections provide the details for the analysis of three

activities presented to a group of grade seven students

in an attempt to introduce key concepts about concur-

rency (Gunion, 2009). The activities used real-world

and storyline style scenarios to relate to students, in-

cluding: (1) two people washing a set of dishes, (2)

two people and two movie ticket queues and, (3) an al-

tered version of the classic pedagogical, concurrency

scenario of the dining philosophers.

Each scenario allows a range of concurrency to

be introduced within the possible solutions for com-

pleting the activity. Different strategies for solving

the problem introduce different levels of complexity

in terms of executing a solution, but the core activ-

ity remains the same. We refer to the general notion

of ‘tasks’ associated with each activity as computa-

tion. With the introduction of multiple students able

to participate within each activity, some level of com-

munication is required between individuals.

The following subsections speciﬁcally investigate

the ways in which computation and communication

play out within the solution space deﬁned by the stu-

dents for each of these three scenarios, and some of

the associated consequences encountered when con-

currency is introduced.

2.1 Dishwashing Scenario

The dishwashing scenario is proposed as a stack of

dirty dishes that need to be cleaned, dried and put

away by two people. Though the students proposed a

variety of solutions for distributing the work, the core

computation remained the same, with differing levels

of communication in each scenario.

Computation. Washing a dish, drying a dish and

putting a dish away, for all of the dishes in the stack,

was immediately identiﬁed by all students core ele-

ments of computation in this scenario. These small

distinct pieces of computation, or sub-tasks, combine

to make up the larger complete task.

Communication. The exact communication be-

tween participants in this scenario becomes solution

dependant, but in general students identiﬁed a visual

communication mechanism that would occur between

participants as one person handed off a dish to the

next person. While these ‘hand off’ points varied, the

idea that one individual must complete their portion

of the ‘computation’ before the next could take that

dish dictated a partial ordering of sub-tasks.

Concept Overlap - Computation/Communication.

Though the students seemed to immediately recog-

nize elements of computation versus communication,

they are tightly coupled. In fact, the act of complet-

ing one computation is a form of communication to a

partner in this work.

2.2 Movie Ticket Scenario

The movie scenario was posed as a problem of two

friends wishing to purchase tickets for a popular

movie at a theatre with two long queues. This was a

slightly concocted problem in which communication

was limited by lack of visual contact between queues.

Students had to come up with solutions that involved

sticking together or splitting up, and dealing with the

consequences of each.

Computation. The computation in this scenario is

simply the act of purchasing a ticket. Depending on

the solution, multiple tickets can be bought by one

person or a single ticket by each person.

Communication. In cases where students decided

the quickest way to get tickets was to split up, they

soon realized the associated consequence of possibly

buying too many tickets. This race condition, coupled

with the non-deterministic processing of the respec-

tive lines, required them to consider creative ways to

communicate beyond subtle visual cues.

Concept Overlap - Computation/Communication.

The overlap between computation and communica-

tion in this scenario is solution dependant. In the case

of students making use of the two ticket queues, com-

putation can performed across the two ticket booths

but introduces the need for communication. In the

case of the students staying together in one queue,

communication is not necessary, but the concurrency

is sacriﬁced.

2.3 Knights & Forks Scenario

This scenario was altered from its original context of

philosophers and described as ﬁve knights sitting at

a round-table with a single fork between each. A

knight required acquisition of two forks in order to

eat, if they were not eating they were thinking inde-

pendently. Students were asked to come up with solu-

tions to manage the forks shared between the knights.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

306

Computation. The computation in this scenario

can be identiﬁed as the actions of eating and thinking-

though attempting to acquire a fork is arguably a sub-

task, it was not considered to be a ﬁrst-class compu-

tation.

Communication. In this case, the communication

is aided by the visual cue of a fork being available for

use by a knight wishing to transition from thinking to

eating. This communication between one participant

attempting to acquire a fork with two adjacent partic-

ipants is required to allow a knight to eat.

Concept Overlap - Computation/Communication.

As was the case with the dishwashing scenario, visual

cues (such as an adjacent knight releasing or acquir-

ing a resource) dictated an ordering such that the end

of one sub-task could trigger the beginning of another,

though this was not a precondition for the sub-task.

In this activity the consequences of concurrency

that are particularly problematic came to the fore-

front. Students encountered issues of race condi-

tions, deadlock and starvation through role playing,

and came up with multiple strategies for managing the

shared resource to facilitate each participants’ ability

to eat. Each of these strategies required some form

of communication between participants based on the

computation (eating, thinking) patterns.

2.4 Summary

These pedagogical activities served to help us identify

common ways in which these students thought about

problems associated with concurrency. In each case,

students immediately identiﬁed tasks/sub-tasks, and

coupled these with the often implicit communication

mechanisms, including visual cues. Table 1 highlights

this breakdown for each activity.

Table 1: Linking real-world examples to computation

(CMPT) and communication (COMM) core entities.

Entity

Scenario: Scenario: Scenario:

Dishwashing Movie Knights &

(DW) Theatre (MT) Forks (KF)

CMPT

wash, dry, purchase eat,

put away a ticket think

COMM

visual, absent, visual,

event driven problematic mutual

exclusion

3 DEFINING THE ONTOLOGY

The preliminary case study described in Section 2

supports the need for a more ﬁne-grained classiﬁca-

tion, to clean up the overlap or intersection between

entities as much as possible. We want to retain the

high-level conceptual model of computation and com-

munication, as they were useful as a start.

However, to become more precise, we believe

a ﬁner-granularity representation is best achieved

through a hierarchical structure provided by an on-

tology. Further, we hope to derive an ontology that

would apply interchangeably to both activities and

code and in the future, to other representations of

parallel solutions such as patterns. Here we propose

a more ﬁne-grained breakdown of computation and

communication based on insights from parallel pro-

gramming research combined with observations out-

lined in Section 2.

3.1 Identifying Entities

In this ﬁrst stage of deriving the ontology, we use a

combination of related work and concrete evidence

from the activities to identify key entities involved.

3.1.1 Computation

In terms of pure computation in a solution to a par-

allelizeable problem, from our observations we have

identiﬁed two ﬁner-grained key entities: task and se-

quential. The task encompasses the actual computa-

tion performed in parallel, or its direct invocation, ver-

sus the sequential portion, some might consider the

limiting factor in Amdahl’s law (Amdahl, 2000).

This task entity aligns with the parallel program-

ming model originally identiﬁed in embedded ap-

plications (Shah et al., 2003) and high-performance

computing (Pancake and Bergmark, 1990), in which

one of the critical steps in parallelism is ‘the division

of the application into parallel tasks’. This division

of tasks is also how the students naturally developed

solutions at the more abstract level of activities such

as the dishwashing and movie ticket scenarios.

The sequential portions of codebases vary sub-

stantially in terms of the degree of implicit/explicit

resource provisioning in the parallel setup. The stu-

dent solutions to the parallel activities also differed

in terms of what would be considered the sequential

portion depending on the decisions in terms of par-

allelism and guaranteed tradeoffs. For example, the

decision of whether or not to split across lines at the

movie theatre severely impacts the identiﬁcation and

articulation of the sequential portion of the solution.

CONCURRENCY CONUNDRUMS - An Ontological Solution?

307

3.1.2 Communication

In the case of pure data parallelism, in which no

inter-worker communication involved pure commu-

nication, is primarily through some form of shared

memory or shared state. In these situations a good

distribution of data and some control over data access

highlights the importance of two ﬁner-grained key en-

tities: data distribution and synchronization.

Data can be distributed through shared memory or

placement of the data within a worker’s local mem-

ory space, whereas synchronization mechanisms tend

to communicate through shared state. This ﬁner-

grained breakdown of communication aligns with the

following characteristics of parallel support mecha-

nisms from (Asanovic et al., 2006): ‘distribution of

data to memory elements’ and ‘inter-task synchro-

nization’.

While the activities given to the students were not

examples of pure data parallelism, the same issues of

data distribution and synchronization came into play

in the problems and solutions. The dishwashing sce-

nario being more of a dataﬂow concurrency used the

shared buffer to communicate when a dish was ready

for the next task. This concept of a shared buffer or a

shared fork as in the Knights and Forks activity intro-

duce tasks that require synchronization around a re-

source as well as distribution of data. With out the

shared state it was not possible to introduce this same

issue of synchronization in the movie ticket scenario

which was a good example of task parallelism with

access to data distributed across the two queues.

3.1.3 Minimizing the Overlap

While we can somewhat logically parcel out the enti-

ties within pure computation and communication in

both the activities as sequential, task, synchroniza-

tion and data distribution, these four entities do not

encompass everything involved in a parallel solution.

Our case study identiﬁed an overlap that lies in the in-

tersection of computation and communication, specif-

ically identifying an implicit coordination between

these two high level entities. From these observations

we identify two entities corresponding to this setup

required in a solution as task coordination and data

coordination.

While the task and data distribution are very dis-

tinct entities, task coordination and data coordination

are more tightly coupled, both involving a provision-

ing of resources:

• Task coordination handles resource provisioning

primarily for computation, but it must also be

communicated to tasks.

• Data coordination handles resource provision-

ing primarily for communication, associated with

computation.

These activities demonstrated that there was very

little conscious coordination proposed by the stu-

dents, but as discussed above the overall system con-

tained combinations of computation/communication

based elements that introduced implicit coordination.

It was observed in (Gunion, 2009) that coordination

emerges as the agreed upon protocol in the suggested

solutions within the activities. These protocols can ei-

ther be coordinating access to shared resources (data

coordination) or coordinating the execution of sepa-

rate tasks (task coordination).

Figure 1 illustrates this overlap and begins to de-

velop our ontology for representing these necessary

characteristics of parallel applications.

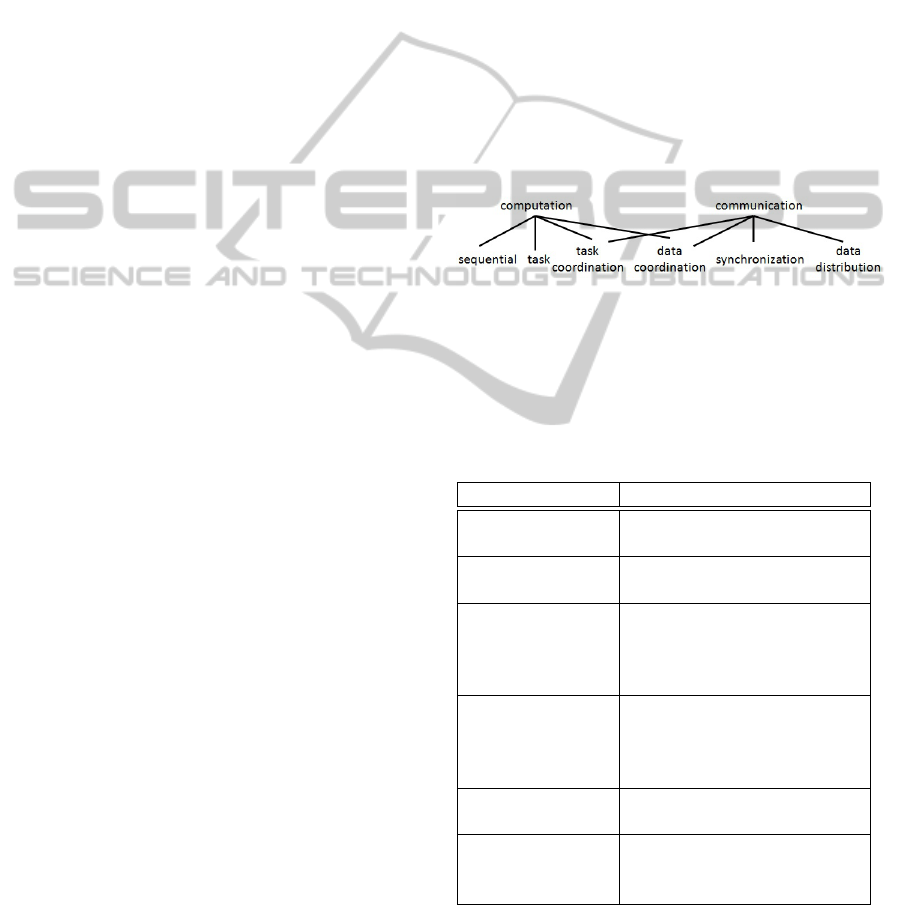

Figure 1: Relationships between computation and commu-

nication entities.

Table 2 provides a summary of how each of these

six entities could map to a language independent im-

plementation.

Table 2: Mapping ﬁne-grained entities to implementation.

Entity Implementation Description

sequential computation

(SEQ) coordination of computation

task direct computation

(TSK) computation invocation

resource allocation

task coordination wrapper functions

(TC) arguments and context

queue management

memory allocation

data coordination intermediate buffer creation

(DC) partition function invocation

partition size management

synchronization synchronization primitives

(SYN) barriers

data distribution

data copying

(DD)

partition function

data assignment

3.2 Revealing Relationships

These results begin to identify the magnitude of coor-

dination necessary in something as simple as the setup

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

308

stage in a parallel application. Yet, considering each

task on its own—coordination often does not appear

to be explicit.

In fact, given the ﬁner-granularity of entities pro-

vided in Table 2, we can now re-categorize task coor-

dination, data coordination, and synchronization ex-

plicitly to be associated with a new higher-level en-

tity: coordination. Here we argue that, though task

coordination can be cleanly reassigned to this higher-

level, both synchronization and data distribution still

contribute to communication as well, resulting in the

hierarchy in Figure 2.

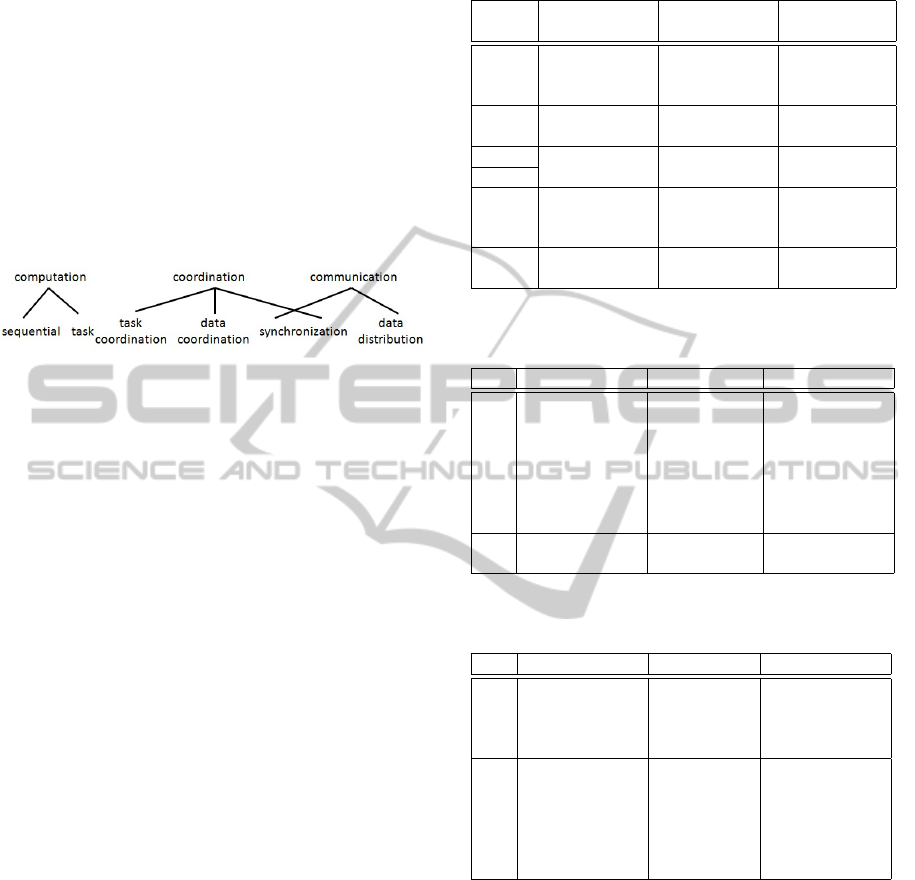

Figure 2: Extended ontology.

This extended ontology of varying granularity

supports not only the comprehension of ﬁne-grained

entities in isolation, but also provides a holistic view

of entity relationships. The key characteristic of co-

ordination entities is their representation of relation-

ships between other entities. These tiers in the ontol-

ogy provide perspectives that can work in synergy to

eventually support the linking of low-level implemen-

tation details to high-level abstractions and patterns.

4 FULL ONTOLOGY MAPPING

In this section we reﬂect back on the details of the ed-

ucational activities to consider the applicability of the

ﬁner-grained mapping proposed in Section 3. Table 3

provides a mapping of the ontology proposed in Sec-

tion 3 onto the educational activities. The mapping

in this table is limited to the assignment of sequen-

tial, task, synchronization and data distribution to the

problem description whereas task and data coordina-

tion are solution speciﬁc.

Tables 4, 5 and 6 provide a mapping of task

and data coordination to three different solutions for

each problem suggested by the students. These ta-

bles highlight the differences between the solutions

proposed by students participating in the activities

describe above. For example, in the movie theatre

scenario, the increased level of task coordination re-

quired for a distribution across multiple ticket booth

becomes evident.

This relationship between the distribution of data

and the amount of coordination required to distribute

and manage access to it is visible across all three ac-

tivities. In the dishwashing scenario, solutions DW 1

Table 3: Full ontology mapping onto activities.

Entity

Scenario Scenario Scenario

MT DW KF

SEQ

wait in line wash, dry, each knight

and purchase put away one takes a turn

a ticket dish at a time eating

TSK

purchase wash, dry eat, think

a ticket put away

see Table 4 see Table 5 see Table 6

SYN

not wash, dry access to a

synchronized put away fork between

two knights

ticket booths sink, rack, between

counter knights

Table 4: Solution speciﬁc ontology mappings for movie

ticket scenario.

MT 1 MT 2 MT 3

each person both go in each person

assigned a line, one queue, assigned a line,

ﬁrst to front no purchase one

purchases two coordination, ticket each,

tickets and one task meet when

communicates complete

when complete

ticket access ticket access ticket access

across 2 booths only 1 booth across 2 booths

Table 5: Solution speciﬁc ontology mappings for dishwash-

ing scenario.

DW 1 DW 2 DW 3

one washes, one washes, both wash,

one dries one dries, dry and

and both both dry and put away

put away put away

buffer to hold buffer to buffer to hold

a washed dish hold washed washed dishes

(dryer access) dishes(dryer (shared access)

buffer to hold access) clean dishes

clean dishes (shared access)

(shared access)

and DW 2 assign individual tasks to a single person

where possible, limiting the amount of shared access

to a buffer and therefore requiring less coordination.

Similarly, in the Knights and Forks activity, the solu-

tions that eliminate sharing as much as possible (KF

2 and KF 3), require less coordination of resources.

The level of complexity of coordination does although

have implications in terms of the amount of paral-

lelism possible. This relationship between the coordi-

nation and parallelism is visible when considering the

coordination in the context of the other entities: se-

quential, task, data distribution and synchronization.

In order to achieve a minimal effort in terms of coor-

dination a tradeoff is made at the level of the task and

CONCURRENCY CONUNDRUMS - An Ontological Solution?

309

Table 6: Solution speciﬁc ontology mappings for Knights

& Forks scenario.

KF 1 KF 2 KF 3

coordinate a choose who to no

schedule of: get rid of and coordination

2 people eating coordinate a each person

and 3 people schedule of: has a set

thinking 2 people eating of forks

and 2 thinking

fork between fork between no

two knights two knights coordination

(shared access) (shared access) each person

has a set

of forks

data distribution.

For example, in the movie theatre scenario, the

task was to wait in line to purchase a ticket while the

data was distributed across two booths. The simplest

solution in terms of coordination was to make use of

only one line up but in looking at the sequential entity

for this scenario it is clear that this would sequential-

ize the solution.

Similarly, with the Knights and Forks scenario,

minimal coordination was required in the solutions

where a knight was removed or the individual knights

took turns eating. Again, the relationship between the

task and data distribution entities that is dictated by

this minimal coordination can be identiﬁed by look-

ing at the entities in Table 3. In this case we see that

the task is to eat and think and by giving up one of

the knights in fact computational power is being sac-

riﬁced. Again, if each night takes a turn eating this

a sequential solution as listed in the top row of the

Knights and Forks scenario of Table 3.

5 CONCLUSIONS

Currently we face the precarious situation where par-

allelism is challenging because developers lack a

means of exploring possible internal dynamics and

causal relationships that tend to be problematic in

these code bases. Our study shows that many impor-

tant relationships are actually concealed or implicit.

This is particularly true in real-world scenarios, of-

ten used in pedagogical practices when introducing

these concepts. Abstractions and mechanisms that

hide these relationships as opposed to accentuating

them maybe in fact do more harm than good in fu-

ture code bases.

Though parallelism itself is not a new challenge,

the current state of ﬂux for applications and the de-

gree to which they need to be transformed is rel-

atively new and somewhat alarming (Sutter, 2005).

The daunting task of efﬁcient programming for highly

parallel systems is currently receiving much atten-

tion from several perspectives within computer sci-

ence (Asanovic et al., 2006). This offers an opportu-

nity for researchers to rethink programming models,

system software, and hardware architectures from the

ground up.

This paper proposes an ontology that would map

to the general conceptual entities of a solution to a

parallel problem. The entity identiﬁcation, based on

a top-down analysis of conceptual activities was cor-

roborated through consideration of parallel research

and existing mechanisms. The application of the on-

tology onto solutions at the level of activities demon-

strates its support for reasoning about and comparing

solutions in an aim to convey the tradeoffs within a

parallel solution space.

Future work requires a more exhaustive list of

these relationships with advice from experts in par-

allel application development. We also look to ontol-

ogy experts to help us better deﬁne the ontology in

order to take full advantage of reasoning engines and

cognitive support.

REFERENCES

Amdahl, G. M. (2000). Validity of the single processor ap-

proach to achieving large scale computing capabili-

ties. Readings in computer architecture, pages 79–81.

Appavoo, J., Uhlig, V., and Waterland, A. (2008). Building

a Global-Scale Computer. SIGOPS Operating System

Review, 42(1):77–84.

Asanovic, K., Bodik, R., Catanzaro, B. C., Gebis, J. J.,

Husbands, P., Keutzer, K., Patterson, D. A., Plishker,

W. L., Shalf, J., Williams, S. W., and Yelick, K. A.

(2006). The Landscape of Parallel Computing Re-

search: A View from Berkeley. Technical Report

UCB/EECS-2006-183, EECS Department, University

of California, Berkeley.

Gunion, K. (2009). FUNdamentals of CS: Designing

and Evaluating Computer Science Activities for Kids.

Master’s thesis, Department of Computer Science,

University of Victoria.

Nvidia (2008). The Nvidia Tesla Supercomputer.

http://www.nvidia.com/object/personal supercompu

ting.html.

Pancake, C. M. and Bergmark, D. (1990). Do parallel lan-

guages respond to the needs of scientiﬁc program-

mers? Computer, 23:13–23.

Shah, N., Plishker, W., and Keutzer, K. (2003). NP-Click:

A Programming Model for the Intel IXP1200. In 2nd

Workshop on Network Processors (NP-2) at the 9th

International Symposium on High Performance Com-

puter Architecture (HPCA-9), Anaheim, CA.

Sutter, H. (2005). The Free Lunch Is Over: A Fundamental

Turn Toward Concurrency in Software. Dr. Dobb’s

Journal, 30(3).

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

310
