NETWORK LAYER BASED SECURE ROUTING PROTOCOL

FOR WIRELESS AD HOC SENSOR NETWORKS IN URBAN

ENVIRONMENTS

Sanjay K. Dhurandher

, Mohammad S. Obaidat

, Deepank Gupta

, Nidhi Gupta

and Anupriya Asthana

Division of Information Technology, Netaji Subhas Institute of Technology, University of Delhi, New Delhi, India

Department of Computer Science & Software Engineering, Monmouth University, NJ, U.S.A.

Keywords: Routing protocols, Security, Wireless sensor networks.

Abstract: Security is essential in wireless sensor networks as they are being used in urban environments, life saving

disaster management and rescue operations. Any serious attack at the routing layer can cause serious

damages. Although a lot of security measures have been proposed for application and transport layer, we

have found that there is not enough research geared towards securing the network at the routing layer. In

this paper, we propose a novel solution for securing against external as well as internal attacks. The protocol

maintains a working network by using redundant multiple paths despite attacks at one route. It also

identifies and removes the malicious nodes from the system. Since the system is totally distributed and does

not require a central server as required in some of the other protocols, there is no single point of failure. We

also keep in mind the limited computing resources and network bandwidth of the wireless sensor nodes.

Finally the paper quantifies the protocol's effectiveness against some of the existing secure routing protocols

namely QDV and SNEP using simulation studies.

1 INTRODUCTION

Wireless Sensor Networks (WSNs) (Mainwaring et

al., 2006) are among the popular emerging

technologies that open a wide perspective for future

applications in ubiquitous computing and ambient

intelligence. Wireless sensor nodes form a dense,

large scale network and are expected to function

unattended. Their hardware limitations have led to the

design of new protocols at the lower communication

levels, such as physical, MAC (Demirkol et al., 2006)

and routing. WSNs can be thought of as an extension

to MANETs since special sensor nodes are included

into the wireless network to give further utilities or

increase the services given by it. Sensor nodes are

stations which sense variables about the physical

world around them. Generic nodes in the network

sense network characteristics whereas sensor nodes

sense changes in the environment in which they exist.

Ensuring security is critical in any WSN. If any

sensor node is hacked or information about various

environment variables fails to reach the desired

controllers, the consequences can be dire. Although

sensor networks share many characteristics with

wireless ad hoc networks, one of the major

differences is the energy and computational resources

available at sensor nodes. Therefore, any security

protocol for WSNs must keep in mind, the relatively

constrained energy and computational resources in

mind. With this criterion in mind, we find that many

existing protocols fail to fit in WSNs.

Routing protocols proposed for WSNs cope well

with the dynamically changing topology but many of

them have no mechanisms to defend against

malicious attacks. We are convinced that security

problems cannot be considered separately and must

be taken into account for the specification of all the

functionalities of the network. Since, research on

protocols is still going on, there is no single standard

routing protocol. Therefore, we aim to capture the

common security threats and try to provide a secure

existing routing protocol in WSNs.

In most of the routing protocols, routers exchange

information based on the topology of the network in

K. Dhurandher S., S. Obaidat M., Gupta D., Gupta N. and Asthana A. (2010).

NETWORK LAYER BASED SECURE ROUTING PROTOCOL FOR WIRELESS AD HOC SENSOR NETWORKS IN URBAN ENVIRONMENTS.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 23-28

DOI: 10.5220/0003105100230028

 SciTePress

order to establish routes between nodes. Such

information could become a target for malicious

adversaries who intend to bring the network down.

There are two sources of threats to routing protocols.

The first comes from external attackers. By injecting

erroneous routing information, replaying old routing

information, or distorting routing information, an

attacker can successfully partition a network or

introduce excessive traffic load into the network by

causing retransmission and inefficient routing. There

are two ways of ensuring security: either by

encrypting the data or by identification and removal

of malicious node from the network. The first

approach using public-key algorithms such as the

Diffie Hellman (Perrig et al., 2001) is not suitable for

a wireless sensor network in which nodes have

limited computing resources. Using such an algorithm

will mean a large amount of computation power being

used to encrypt and decrypt every message making

the network slow.

The second and more severe kind of threat comes

from the compromised nodes, which might advertise

incorrect routing information to other nodes.

Detection of such incorrect information is difficult.

Merely requiring routing information to be signed by

each node would not work, because compromised

nodes are able to generate valid signatures using their

private keys. To defend against the first kind of

threats, nodes can protect routing information in the

same way they protect data traffic, i.e., through the

use of cryptographic schemes [3, 4] such as digital

signature. However, this defense is ineffective against

attacks from compromised servers. Worse yet, as we

have argued, we cannot neglect the possibility of

nodes being compromised in an ad hoc network.

Detection of compromised nodes through routing

information is also difficult in an ad hoc network

because of its dynamically changing topology: when a

piece of routing information is found invalid, the

information could be generated by a compromised

node, or, it could have become invalid as a result of

topology changes. It is difficult to distinguish

between the two cases. On the other hand, we can

exploit certain properties of ad hoc networks to

achieve secure routing. Note that routing protocols for

ad hoc networks must handle outdated routing

information to accommodate the dynamically

changing topology. False routing information

generated by compromised nodes could, to some

extent, be considered outdated information. As long

as there are sufficiently many non-malicious nodes,

the routing protocol should be able to find routes that

go around these compromised nodes. Such capability

of the routing protocols usually relies on the inherent

redundancies‚ multiple, possibly disjoint, routes

between nodes in ad hoc networks.

With the above premise in mind; we propose a

solution to work around malicious nodes and also to

detect and remove the malicious nodes when found

from the trusted population (other nodes to which a

node transmits data). The solution to this has been

proposed in this paper which is an extension of the

proposed energy efficient protocol in (Sanjay et al.,

2010). We have named this protocol as Dynamic

Energy Efficient and Secure Routing (DEESR)

protocol. This can easily be extended to other cluster

based routing protocols. The distributed algorithm

applied in this protocol does not require excessive

computation resources. Also, there is no extra

network cost involved with this protocol. The paper

goes on to compare the proposed DEESR solution

with some of the earlier proposed secure routing

protocols using simulation techniques. The paper has

been divided as follows. Section 2 discusses existing

methods of achieving secure routing by discussing

some of the well known secure routing protocols.

Section 3 describes the terms and terminologies used

throughout the paper. In section 4, we provide a

detailed explanation of the proposed DEESR

protocol. Simulation results comparing DEESR

protocol with the existing approaches are presented in

Section 5. Lastly, Section 6 summarizes our finding

and provides insights into the future works.

2 PREVIOUS WORKS

There are various security based protocols (Perrig et

al., 2001), (Sanjay et al., 2009), (Yi et al., 2001),

(Karlof et al., 2004) for ad hoc networks. Yi (Yi et al.,

2001) have discussed in their paper that if the routing

protocol is compromised by changing the messages in

the transit, then no security at higher layers can help.

To address this problem they have proposed Security

Aware Ad-hoc Routing (SAR). It makes sure that data

is routed through a secure route composed of trusted

nodes and the security of the information in the

routing protocol. Apart from this, security has been

implemented at link layer in TinySec protocol given

in (Karlof et al., 2004).

SPINS (Perrig et al., 2001) was proposed keeping

in mind the resource limitations. This protocol

encrypts a message differently each time. SPINS

comprises of two building blocks, SNEP and μ-

TESLA. SNEP protocol was designed for stationary

networks and assumed that the base station is trusted.

It also assumed an access point for the other nodes in

the network. The μ-TESLA protocol is based on key

WINSYS 2010 - International Conference on Wireless Information Networks and Systems

chain generation, in which a key is generated from the

next key, in addition to the application of a function

and the last key is generated once in a time-interval.

But the encryption approach still requires storage of

public and private keys. Also, the transmission of

digital signatures consumes more energy. Though, it

ensures data authentication and prevents other nodes

from modifying and reinserting packets into the

network, it does not prevent them from overhearing

the data-packets.

Another security routing protocol, QDV (Sanjay

et al., 2009) is based on quality of the route taken by

the packets to be transmitted between nodes in the

network. The route taken, by the packet, is governed

by different parameters based on the quality of

service and quality of security and also the future

benefits in the transmission.

This protocol (QDV) designed for securing the

wireless sensor networks and is based on Ant colony

optimization (ACO) (Dorigo and Stuetzle, 2004). It

uses quality-of- service (QoS) and reputation of the

node to find out the trust of the neighbor node. Thus,

by monitoring these two parameters the protocol is

able to detect and disable the malicious nodes from

gaining access and participating in the network.

Though it takes into account the malicious activity of

packet drop and reinsertion, it does not secure the data

in the data packet. Also it is not energy efficient for a

resource constrained environment.

3 TERMS AND NOTATIONS

The DEESR protocol has been designed so that a

sensor ad hoc network can be set up for mobile

devices securely and in an energy efficient manner.

To facilitate this, certain parameters have been

focused upon. These parameters are then used to

reach to a routing decision. The following subsections

present the terms and parameters used in the protocol

as it is necessary to understand them before

proceeding.

Population

Every node in the network has a set of nodes which

are in its transmission range and with which it decides

it can communicate securely. This set of nodes with

which a node communicates with is called the

population of that node. Only the nodes satisfying a

certain criteria are included in the population of a

node. In this protocol, as security is of prime

importance, the parameter used for narrowing down a

node's population is the Dynamic Trust Factor (DTF).

To limit the database requirements and to

minimize network traffic for population maintenance,

a node maintains a population restricted up to a

maximum population size. The population size is

dependent on the computing resources and network

bandwidth of a node.

Dynamic Trust Factor (DTF)

This is given by the ratio of the sum of the packets

received and generated subtracted by the number of

packets transmitted to the sum of the packets received

and generated. Thus, DTF gives the ratio of the

number of packets dropped to the total number of

packets received and generated. In DEESR protocol a

particular node is trusted if its packet dropping ratio is

less. Thus, trust is inversely proportional to the

number of packets dropped. We do not consider or

handle the situation where the packet is tampered

with at the next-hop before retransmission. This value

is also extracted from the routing table. Equation (1)

shwon below represents how the DTF is calculated:

δ = ( p

+ p

- p

) / ( p

+ p

) (1)

Where:

δ denotes the Dynamic Trust Factor (DTF)

Pr = number of packets received by that node

= number of packets generated by that node

= number of packets dropped by that node

Dynamic Trust Factor (DTF) is given by the ratio

of the packets transmitted by a node to the total

number of packets received and generated at that

particular node. Subtracting the number of

packets dropped (p

) from the sum of the number

of packets received (p

) and packets generated

results in the number of packets transmitted.

Similarly the sum of p

and p

results in the total

number of packets at a particular node. At the

source and the destination nodes, the packets for

which the node is the source/destination are not

counted in the DTF calculation, which provide

security against active attack, specifically,

malicious packet injection.

4 PROTOCOL

AND EXPERIMENT

In this section, the functioning of the proposed

protocol has been explained. There are four major

parts of the protocol: route initiation, population

maintenance, updating of next-hops and route-error

respectively. The route initiation and data packet

NETWORK LAYER BASED SECURE ROUTING PROTOCOL FOR WIRELESS AD HOC SENSOR NETWORKS IN

URBAN ENVIRONMENTS

transmission are not explained in major detail in this

section. Most of the focus is on population

maintenance and updating of next-hops.

Route Initiation

Let us consider a scenario in which a node A acts as a

source and requires sending data to the destination

node E according to the topology shown in Figure 1.

A broadcasts the route-request packet. This packet is

received by, say, node B which updates the

information about A in its routing table and

broadcasts the packet again. Similarly, this goes on

till the packet reaches the destination node E with the

information of the previous node. Since E is the

destination node, it initiates a route-reply packet and

sends it to all the previous nodes from which it has

received the request since there maybe more than one

route between the source and destination. The first

hop in the reply route updates the information of the

destination node and again replaces that information

with its own information and unicasts the packet back

to previous nodes in the route. When the reply packet

finally reaches the source node, it makes an entry in

its routing table for the routes.

In Figure 1, let us assume that a malicious node F

injects packets into the network disguising itself as a

trustworthy node, say, node A. Since F is not the

actual source, so the disguised packet will be tracked

down and the DTF will be calculated which will

indicate its untrustworthiness. Hence, DEESR

protocol will be able to isolate such a node from the

network.

Attack during route initiation

Figure 1: Illustration of how a malicious node F is detected

in the system.

Population Maintenance

The number of nodes in the population of a particular

node is not equal to the number of routing table

entries, but equal to the number of distinct next-hops

in the routing table. This is because, there might be a

single node which is the next-hop for two

destinations, which results in two routing table

entries, but only one distinct node in the population.

At some point, the members in the population may

increase beyond the population size. At this juncture,

the node has to eliminate certain nodes from its

population, which it does by evaluating the DTF of

the nodes present in the routing table and keeping the

nodes with the maximum DTF out of the nodes

present.

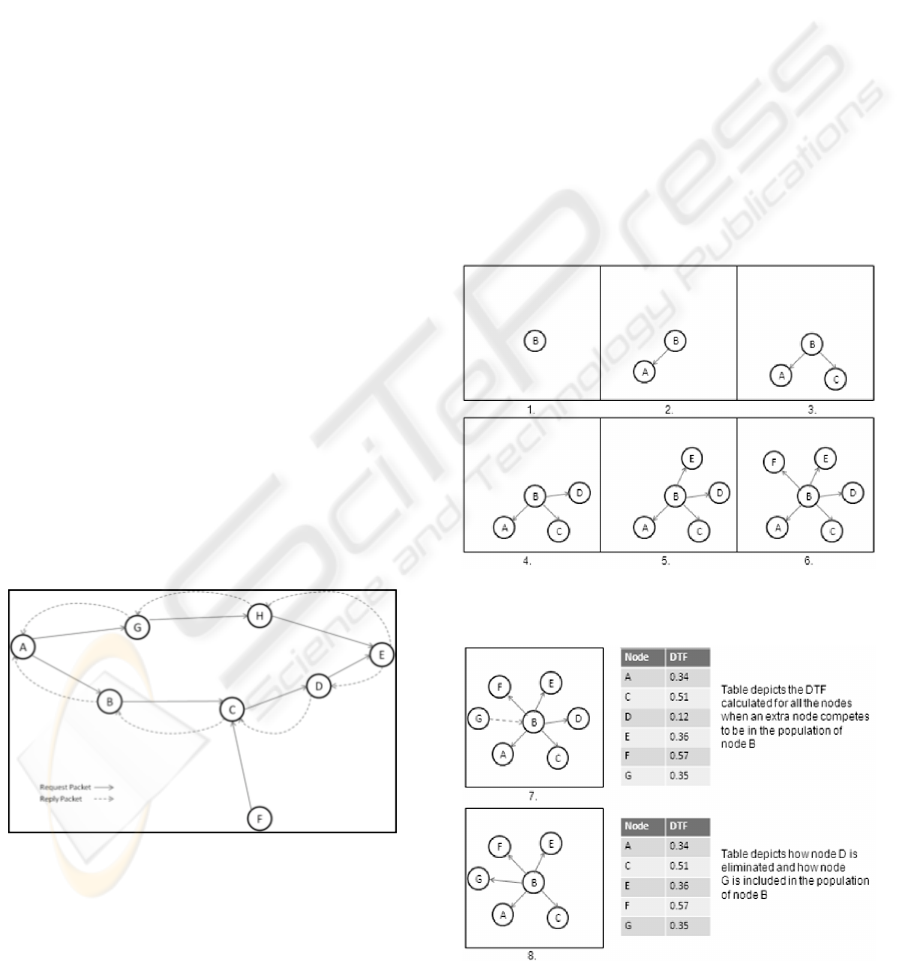

Let us illustrate this with the help of an example

where the Population size is 5. In Figure 2, frame 1

shows the scenario when node B enters into the

network and has no nodes in its population. Slowly,

as it needs to communicate more, it starts finding

more nodes as next-hops to include in its population.

This is depicted in frames 2,3,4,5 and 6 of Figure 2.

Node B does not check for any parameter before

taking a node into its population till the population

size is reached.

Figure 2: Shows how other nodes get included into

population of node B till Population Size is reached.

Figure 3: Shows the scenario after an extra node competes

to be included into node B's population.

WINSYS 2010 - International Conference on Wireless Information Networks and Systems

Now in Figure 3, see frame 7 on top of figure,

node G is also discovered by node B, but it already

has the maximum number of members in its

population, but does not know if node G should be

included or not. To resolve this, it calculates the DTF

of all the nodes in its population along with the DTF

for node G. After calculation, node B finds that the

node D has the minimum DTF and thus decides to

eliminate node D and give membership to node G in

its population; thus, maintaining its population size.

Updating of Next-Hops

Route maintenance is required to minimize the

occurrences of route errors. In this subroutine, when a

node receives a reply packet for a destination, it

checks in its routing table if the current next-hop is

the same as the previously stored next hop.

An updating subroutine is also used in the

protocol for updating the nodes in the population of a

certain node about the activity of that node. An

UPDATE packet is created and transmitted to the

next-hop nodes in the routing table of a node

whenever there is a change in its characteristic

parameters namely: packets generated, packets

received and packets forwarded. This is uni-cast to

only those nodes which feature as a next-hop in its

routing table. It is also to be noted here, that the node

sending the UPDATE packet does not send it to that

entry in the routing table which it used as a next-hop

for data transmission. This is beneficial since all the

other nodes will have updated information regarding

the node and hence a fresh value of the DTF. In this

process, it is to be noted that there is no reply for the

UPDATE packet in order to prevent the unnecessary

usage of battery power of a node.

To prevent the network from getting flooded with

update packets and also to reduce the energy

consumption at the sending and receiving nodes of

these packets, the update packets are sent after

specific intervals rather than after every data packet.

This interval is dictated by the amount of change in

battery power left, number of packets transmitted,

packets received and packets generated.

Route Error

This subroutine is invoked when a route existing in

the routing table turns out to be broken. Once a source

node needs to send data to a destination node, it looks

up its routing table. If a route exists then, the packet is

forwarded to the next-hop for the given destination.

Similarly, the packet is forwarded till it reaches the

destination. In case, the route found in the routing

table is outdated or broken, this subroutine starts,

where, the route-error packet traces its path back to

the source, which removes the entry from its routing

table and starts forward the route discovery procedure

(Sanjay et al., 2010). While the route-error packet is

going back to the source node from the node where

the broken path was discovered, all the intermediate

nodes also delete the entry for the specific destination

from their routing tables.

5 SIMULATION ANALYSIS

AND RESULTS

The simulation experiments conducted were

evaluated using the Global Mobile Information

System Simulator (GloMoSim version 2.03) (Bajaj et

al., 1997). It has been designed using the parallel

discrete-event simulation capability provided by

PARSEC (Bagrodia et al., 1998). PARSEC is a C-

based simulation language, developed by the Parallel

Computing Laboratory at UCLA. It can also be used

as a parallel programming language. GloMoSim

currently supports protocols for a purely wireless

network. In this section, we shall be comparing the

DEESR protocol with the SNEP and the QDV

protocols to gauge the security aspect of the DEESR

protocol. A comparative study is done on the basis of

their time of detection of malicious nodes and the

number of malicious nodes detected out of the total

malicious nodes present.

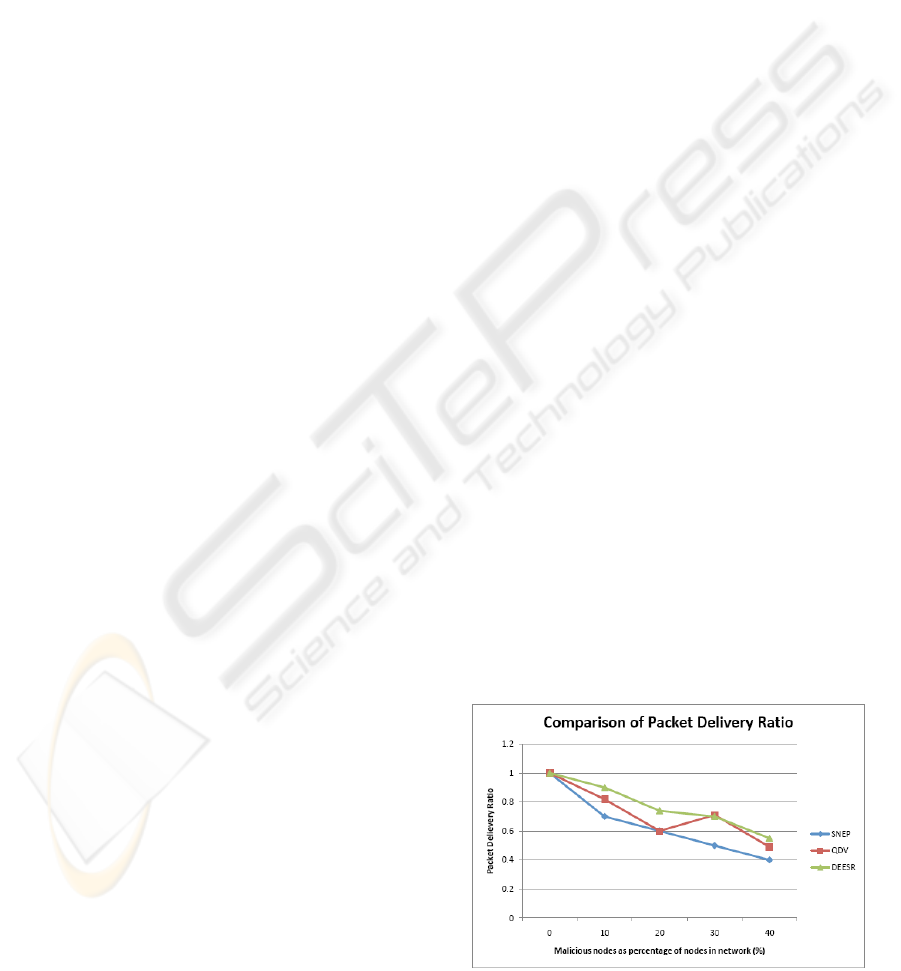

Figure 4 shows the effect of malicious nodes on

the packet delivery ratio in the network. In Figure 4,

the x-axis represents the percentage of malicious

nodes in the network. The y-axis represents the packet

delivery ratio for the three protocols. As can be seen

from the Figure, the packet delivery ratio of DEESR

protocol is considerably better than both the QDV

protocol and the SNEP protocol. But, in general, with

the increase in the percentage of malicious nodes, the

Figure 4: Comparison of Packet Drop ratio against two

secure protocols.

NETWORK LAYER BASED SECURE ROUTING PROTOCOL FOR WIRELESS AD HOC SENSOR NETWORKS IN

URBAN ENVIRONMENTS

packet delivery ratios drop significantly in the

network; dropping to as low as 0.6 in the case of

SNEP.

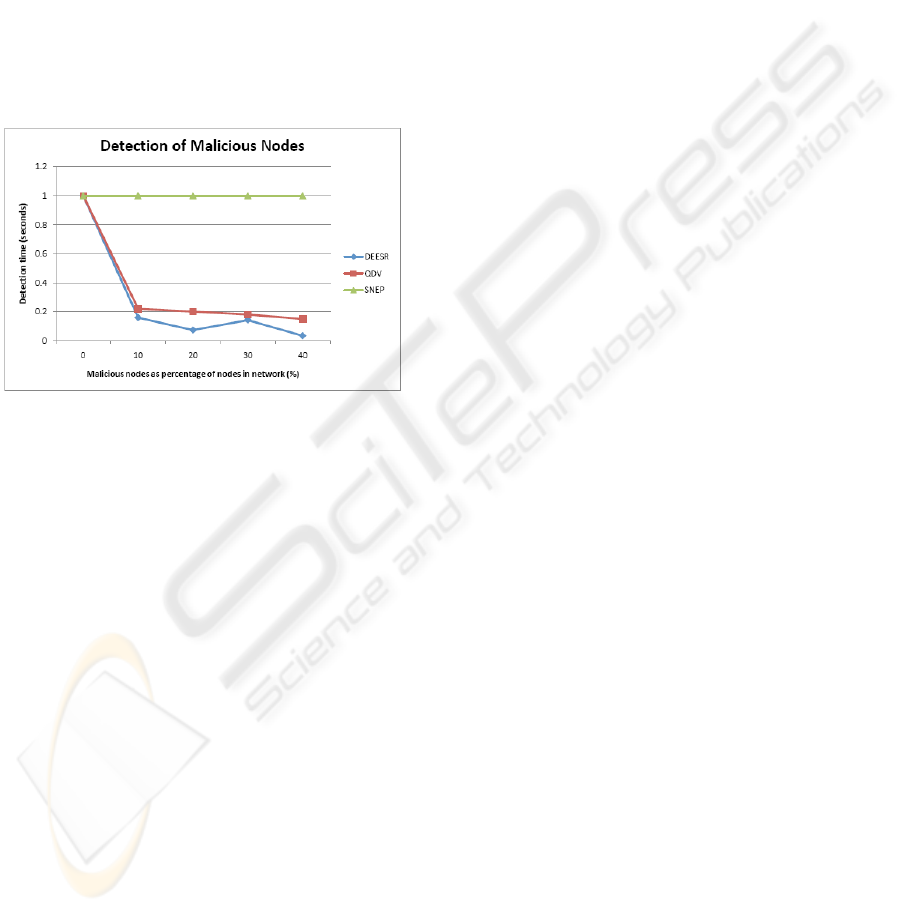

In Figure 5, we compare the detection times of the

three protocols while varying the percentage of

malicious nodes in the network. Thus, here also the x-

axis represents the percentage of malicious nodes in

the network. The y-axis represents the time taken to

detect the malicious nodes in the network. It is clear

from the Figure that the time taken for detection of

the malicious nodes is minimum for DEESR protocol

in all the instances. For both QDV and DEESR

protocols, the amount of time taken to detect

malicious nodes keeps decreasing when the

percentage of malicious nodes keeps increasing.

Figure 5: Comparison of time taken to detect malicious

nodes in the network.

6 CONCLUSIONS

In this paper, we have discussed the two types of

security threats viz. attacks by an external attacker

and attacks through a compromised node. Then we

discussed an approach towards secure routing which

involves automatic detection and removal of

malicious nodes in the system to keep the system

secure while making sure that the network keeps

operating despite the attacks. With extensive

simulation studies, we believe that the protocol is safe

for communication in different scenarios, generally

delivering better results in terms of the packet

delivery percentage and detection of malicious nodes

over the QDV and the SNEP security based protocols.

Thus, the protocol can provide reasonable amounts of

services while keeping a good level of security. Since

security is a dynamic field and there might be new

ways of attacking being discovered every-day, the

task does not end with this protocol itself. Future

work involves adapting the protocol to major routing

protocols and testing the protocol in a real

implementation environment.

REFERENCES

Alan Mainwaring, David Culler, Joseph Polastre, Robert

Szewczyk, “Wireless sensor networks for habitat

monitoring”, in Proceedings of the 1

ACM

international workshop on Wireless Sensor Networks

& Applications, Atlanta, Georgia, pp. 88-97, 2002.

Ilker Demirkol, Cem Ersoy, and Fatih Alagöz, “MAC

Protocols for Wireless Sensor Networks: A Survey”,

IEEE Communications Magazine, Vol. 44, Issue 4, pp.

115-121, 2006

Adrian Perrig, Robert Szewczyk, J. D. Tygar, Victor Wen

and David E. Culle, “SPINS: Security Protocols for

Sensor Networks”, in Proceedings of 7

Annual

International Conference on Mobile Computing and

Networking, pp. 189-199, Rome, Italy, July 2001.

Sanjay K. Dhurandher, S. Misra, M. S. Obaidat and N.

Gupta, “An Ant Colony Optimization Approach for

Reputation and Quality-of-Service-Based Security in

Wireless Sensor Networks”, Security and

Communication Networks, John Wiley & Sons,

Volume 2, Issue 2, pp. 215-224, March/April 2009.

Sanjay K. Dhurandher, Mohammad S. Obaidat, Deepank

Gupta, Nidhi Gupta, Anupriya Asthana, “A Dynamic

Energy Efficient Routing Protocol for Wireless Ad Hoc

Sensor Networks in Urban Environments”, submitted

to IEEE Globecom 2010.

S. Yi, P. Naldurg, and R. Kravets, “Security-aware routing

protocol for wireless ad hoc networks,” in Proceedings

of the 2nd ACM International Symposium on Mobile

Ad Hoc Networking & Computing, pp 299-302, Long

Beach, CA, USA, October 2001.

Chris Karlof, Naveen Sastry, David Wagner, “TinySec: A

Link Layer Security Architecture for Wireless Sensor

Networks”, in Proceedings of the 2

International

Conference on Embedded Networked Sensor Systems,

SenSys 2004, Baltimore, MD, USA, pp. 162-175,

November 3-5, 2004.

M. Dorigo and T. Stuetzle, Ant Colony Optimization,

Prentice Hall, 2004.

L. Bajaj, M. Takai, R. Ahuja, K. Tang, R. Bagrodia, and

M. Gerla. “GlomoSim: A Scalable Network Simulation

Environment”. Technical Report CSD Technical

Report, 990027, UCLA, 1997.

Bagrodia R., Meyer R., Takai M., Chen Y., Zeng X.,

Martin J., Song H.Y. “PARSEC: a parallel simulation

environment for complex systems” IEEE Computer,

Vol. 31, No. 10, pp. 77-85, 1998.

WINSYS 2010 - International Conference on Wireless Information Networks and Systems
