A METHOD FOR INTEROPERABILITY BETWEEN

STRUCTURED DATA SOURCES USING SEMANTIC ANALYSIS

David L. Brock and Jyotsna Venkataramanan

Massachusetts Institute of Technology, 77 Massachusetts Avenue, Cambridge, U.S.A.

Keywords: Interoperability, Knowledge representation, Schema, Semantics, Structure data, XML.

Abstract: The vocabulary and hierarchical organization of heterogeneous XML schemas were examined using

semantic analysis and the correspondence between disparate data elements estimated. A prototype

implementation was developed, and a number of large, real-world schemas automatically analyzed.

1 INTRODUCTION

The Extensible Markup Language has become the

standard for exchanging structured information over

the Internet. Industry and government have been

steadily building and deploying network centric

solutions using XML as the communication

standard. Many hundreds – if not thousands – of

XML-based languages have been developed and

encoded as XML schema. This, however, is the

essence of the problem. While these languages cover

a wide range of applications and domains, the

generality and flexibility of the Extensible Markup

Language has made the integration and exchange of

data between domain specific implementations very

challenging.

The disparity of representation has made the task

of combining data from multiple structured sources

difficult, error-prone and expensive. This paper

presents a new approach to structured data

interoperability by processing disparate XML data

representations to an encompassing generic model.

By examining this underlying knowledge model we

built a correspondence between schemas and

facilitated comparison and interoperability.

2 BACKGROUND

Interoperability of structured data has been research

academically and developed commercially.

However, most of these solutions are mainly manual

and while it is tedious to manually compare and

match across disparate schemas, automated solutions

have proven difficult to develop (Lakshmanan and

Sadri, 2003).

Previous research into data integration and

schema matching has led to a number of different

approaches. Most of these solutions involve a global

schema that, similar to our solution, integrates

different data sources to one universal model. As an

example, the NIEM (National Information Exchange

Model) developed by the United States government

integrates schema from a vast variety of sources

(NIEM, 2010)

A global schema however, differs from our

solution in that it is not an abstraction and merely,

melds many different data sources. The

disadvantage, however, is that without a governing

abstraction, such as the one proposed here, global

schemas are manually tedious, unwieldy, difficult to

manage and hard to expand.

Another approach is to start with a small core

and to incrementally add domain specific data

models. Dublin Core implemented in XML, for

example, provides a small set of semantic elements

to describe and catalog information resources

(Powell and Johnston, 2010) and Electronic

Business XML (ebXML), and its derivatives, were

built on multiple layers from a common core (Kotok,

2001). Another United States government standard,

the Universal Core (UCore), describes a small set of

essential data along with the provision for domain

specific enhancements (UCore, 2010).

The difficulty with this approach is the

compatibility between multiple disparate extensions.

These integration problems, in fact, mirror the

difficulty in structure data interoperability in

general.

234

Brock D. and Venkataramanan J..

A METHOD FOR INTEROPERABILITY BETWEEN STRUCTURED DATA SOURCES USING SEMANTIC ANALYSIS.

DOI: 10.5220/0003105402340239

In Proceedings of the International Conference on Knowledge Management and Information Sharing (KMIS-2010), pages 234-239

ISBN: 978-989-8425-30-0

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

There are commercial solutions available that

facilitate the integration of XML sources. The XML

Schema Mapper, for example, from Stylus Studio

provides a visual development environment to

quickly generate element-to-element schema

mappings (Stylus Studio, 2010). The IBM schema

mapping management system, Clio, derives likely

mappings by analyzing the schemas and the

underlying data using a Naïve-Bayes-based

matching algorithm (Fagin, 2009). However these

solutions lack an encompassing abstraction and

sometimes do not combine semantic understanding

with their matches. This is a disadvantage that

requires manual input from a knowledgeable user to

correct.

If we could automate this process of mapping the

schema to semantically sound concept abstractions,

the applications that can be produced will be faster,

more efficient and more fully comprehensive.

3 CONTENT MODEL

Despite their differences, nearly all XML documents

store information hierarchically and use element and

attribute names derived from human language. So it

should be possible to discover the intended meaning

of an XML schema using semantic analysis, so that

the XML documents on which they are based may

be understood and integrated.

Our approach to an abstraction was to transform

disparate representations into a neutral format using

a common data structure and a shared vocabulary.

Relying on the hierarchical nature of XML the

generic content model consisted of a hierarchical

organization with well-defined parent-child

relations. And to enforce this structure we developed

and implemented a common vocabulary. The

hierarchical model and the dictionary are the two

elements of a generic model, which forms the basis

for the integration of different schema.

3.1 Data Model

XML languages are composed of a nested structure

of tags (W3C, 2008) and therefore a hierarchy is an

obvious choice for a basic data model. In lieu of tags

XML can also be represented as a hierarchy of

concepts. The model defines ontologically the

expected relationships between a parent and child

tag.

A concept represents one discrete idea behind the

tags. To simplify this hierarchy and make it easier to

process we have restricted these concepts to be a

single word or a compound phrase.

The parent-child relationship in the data model

maps almost directly to the relationship between tags

within the XML hierarchy. Within the data model

hierarchy the parent-child relationship can be one of

three kinds:

 ‘type-of’ relationship – The parent concept is a

generalization of the child node

 ‘part-of’ relationship – The child is a subset of

the parent.

 ‘has-a’ relationship – The child is an attribute of

the parents’.

This information can be derived from the

structure of the XML tags and used to constructing a

generic, hierarchy representation of the data.

3.2 Common Vocabulary

In order to harmonize disparate data representations,

a common set of terms was required. This set of

terms served as a ‘target’ vocabulary into which

proprietary terminology could be mapped.

Furthermore, this vocabulary contained

unambiguous definitions, so that any particular entry

would have one and only one meaning.

Our first dictionary, originally derived from

WordNet, was modified by assigning numeric

extensions to unique definitions (WordNet, 2010).

With over 200,000 entries, the dictionary provided a

comprehensive base for semantically representing

schema elements.

A number of issues, however, emerged from this

initial implementation. Firstly, the dictionary entries

were not organized by frequency or domain of use.

Thus common words mingled with domain specific

terms. Secondly, noun phrases, such as ‘Asian

country’ could not participate in the ontological

hierarchies. Finally, we could not easily

accommodate the many proprietary and domain

Colo

Red

Green

<Color>

<Red>

<Green

...

<Car>

<Headlight

...

Bumpe

Headligh

<Name>

Name

Salary

A METHOD FOR INTEROPERABILITY BETWEEN STRUCTURED DATA SOURCES USING SEMANTIC

ANALYSIS

235

specific dictionaries.

Therefore, we developed a new dictionary

organized by usage frequency subsets and domain of

use. Words were gleaned from various sources

including children’s literature and Simple English

articles for the core vocabulary, news articles and

Wikipedia entries for common terms and domain

specific terms from engineering, science and

governmental sources.

Ontological relationships in this dictionary

included connections both within and across

vocabulary subsets. In the example shown in Fig. 1,

the words frog and animal were located within

the same subset, and were linked by a simple typeof

relation. Another subset containing an expanded

vocabulary included the word amphibian, which

was linked the words in the first subset. Finally, a

domain specific vocabulary, in this case scientific

classification terminology, linked terms both within

and across subsets using typeof, partof and

attributeof.

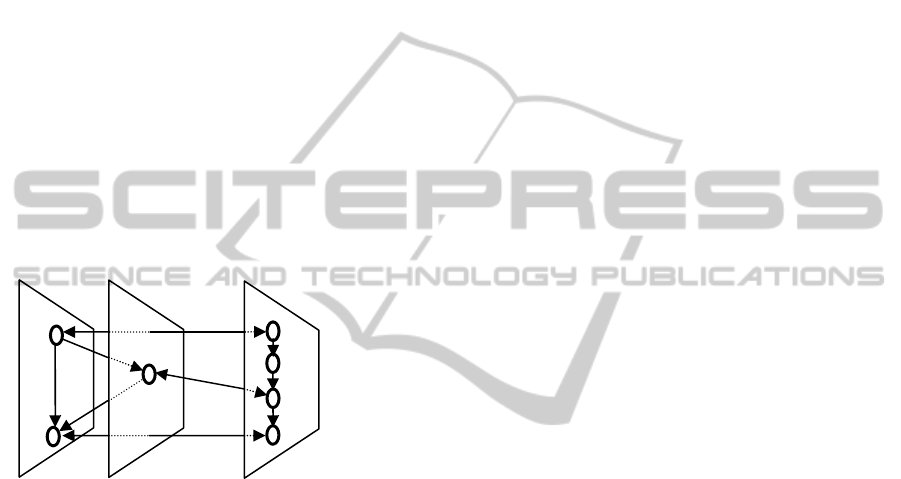

Figure 1: The common dictionary segregated words into

varying levels of complexity as well as different usage

domains. Ontological relations linked words across

multiple word sets.

4 SCHEMA MAPPING

XML schemas from different sources typically have

different data models, structures, vocabularies and

formats. The model defined in Section 3 transforms

disparate xml schemas into a generic model that tries

to appease these differences. To reduce the complex

structure of XML schema to this form we

implemented an approach to translate tag names into

words or word phrases formed from the shared

vocabulary. Then, we simplified the schema using

reduction and normalization techniques. And finally,

we compared the resulting schema and identified

regions of overlapping data representations.

4.1 Tokenization

Naming conventions within XML documents run a

full gamut from single words to complex phrases

composed of words, acronyms, abbreviations and

prepositions, as shown in Figure 2. The first phase in

schema interoperation was to decompose tag names

into discrete tokens.

In order to accomplish this task, we first

‘dereference’ the XML schema. XML Schema often

import subsets of vocabulary from other schema to

be used in conjunction with natively developed

terms. This heterogeneous mix of phrases provides

the basis for data representation.

Tag names assume a variety of forms, again

shown in Figure 2. Capital and camel case notation

is often used in conjunction with underscore

formats, and all of these employing various

combinations of words, acronyms, abbreviations and

prepositions.

The basic tokenization algorithm is quite simple.

We tokenized based on underscore characters (if

any) and case transitions. In practice, however,

tokenization rules are not strictly followed by

schema designers. Thus we were therefore required

to validate tokens against concept maps, which are

discussed in the next section.

AFCT_EQPT_CODE_TYPE

SSN

HasDestinationOf

IVrate

Figure 2: Schema tags cover a wide range of formats from

simple words to complex phrases containing words,

acronyms, abbreviations and prepositions.

4.2 Concept Mapping

Once tokens from the schema were determined, they

were mapped to terms in the common dictionary.

We executed this mapping in multiple phases.

Initially, we specify the domain from which the

schema originates, such as ‘medical’, ‘business’,

‘governmental’, etc. Future algorithms may

automatically derive context from the token corpus.

Secondly, schema tokens were matched if they

were identical to words in the common dictionary

assuming the same context. If a match was not

found, we attempt to match against know

abbreviations. In practice, this is a common method

for generating tokens for an XML tag name. If

neither a word nor abbreviation were found,

common acronyms from the appropriate domain

were tested.

Level 1

Level 2

Scientific

frog

amphibian

aruna

amphibia

chordata

animalia

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

236

If a match still was not found, our algorithm

extracts the tag documentation (if any) and

generated permutations of character strings formed

from key words within the text. Specifically, we

formed string combinations using words, syllables,

syllables with vowels removed and first letters.

Many schemas in fact used such methods for tag

name generations.

If all the above techniques failed to assign a

token to one or more words in the common

dictionary, the system reverted to manual

intervention. In practice few such words were

encountered.

Figure 3: XML tag names were tokenized and mapped to

words or phrases from the common dictionary by

matching words, abbreviations, acronyms or synthetic

strings formed from word fragments.

4.3 Tag Phrases

After converting tags to a normalized form we can

start to fold it into the concept model we defined by

utilizing the dictionary. In the model proposed, the

hierarchy was composed of simple or compound

words. However most XML tags consist of word

phrases, such as

<AccidentSeverityCode>,

which represented a hierarchy of concepts

Accident

Severity

The above example was easy to place in a hierarchy

since

severity is an attribute of the accident. The

word ‘code’ in this instance implied the data value

was an enumeration. In the context of the concept

hierarchy this was not relevant, but in the translation

of data value will be critical.

Some tag phrases described relationships. For

example

described the relationship between an agent and an

event. The model shown below illustrates the

difficulty in automatic conversion.

Type

Agent

Event

Automating the creation of a hierarchy had

particular challenges. Many words were irrelevant

and were eliminated. Extraneous words were

identified and removed while maintaining the

integrity of the concept hierarchy as in (Heflin and

Hendler, 2000). In our implementation, any tokens

not critical to the semantic description of the data

were eliminated.

Schemas typically provided different levels of

resolution. In the example below, <loc> implied

‘latitude’ and ‘longitude,’ but were not explicitly

stated in the schema

Location

Latitude42.35909

Longitude‐71.09341

Our current implementation did not examine

instance data together with the schema analysis.

Such an approach could correlation through the

normalization of information resolution. One of

challenges in automatically constructing the

hierarchy was the properly ordering the concepts

from the word phrase. Parent-child relationships

were defined as one of three types ‘type-of’, ‘part-

of’ and ‘has-a’. Thus once the words in the tag were

separated and redundancies eliminated, the word

order was determined by testing sequences against

the proposed parent-child relations and by

comparing to the stored word associations in the

dictionary the correct hierarchical relationships can

be validated.

4.4 Schema Reduction

Once the schema elements were mapped to phrases

using terms from the common dictionary, we

performed a number of additional steps to reduce

schema variability.

First, we normalized elements and attributes. In

XML schema, the use of elements and attributes is

somewhat arbitrary and many designers choose one

over the other to describe identical data. For

example, an event location described by two

AFCT_EQPT_CODE_TYPE

aircraft equipment code type

SSN

social_security_number

HasDestinationOf

has destination of

IVrate

intravenous rate

A METHOD FOR INTEROPERABILITY BETWEEN STRUCTURED DATA SOURCES USING SEMANTIC

ANALYSIS

237

different schemas was encoded as follows

<position lat=”42.36”

lng=”-71.09”

time=”2010-06-04T14:15” />

<event>

<point>

</point>

</event>

Without definitive rules on the use of elements

versus attributes, we converted all attributes to

subordinate elements of the parent tag.

Second, synonymous terms were mapped to a

single ‘class’ word representing a particular

synonym set. For example, point, location

and position were mapped to the single term

position.

Third, prepositional phrases, such as

LocatedAt, HasDestinationOf, and

EmployedBy were converted to either single

words or simple noun phrases, such as position,

destination, and employer.

Finally, generic terms, such as data or

information, were simply removed. The resulting

simplification provided the basis for schema

comparison described in the next section.

4.5 Schema Comparison

Once the tag names were converted and the structure

simplified, as described above, the schemas were

reconstructed using only terms from the common

dictionary. The provided the foundation for

comparison and data translation. Using the original

examples discussed in Section 4.4, they are both

transformed to identical structures as shown below.

<event>

</position>

</event>

Our objective was to find common data

representations among the disparate schema using

our semantic analysis. As an upper bound, we first

considered correlations between any two elements

from the XML schemas. For example, ‘name’ from

a first schema matched ‘name’ from a second, even

though they may refer to different entities. In the

following, the first instance ‘name’ refers to a vessel

while in the second the pilot of a vessel

<pilot>

<name>John Smith</name>

<pilot>

</vessel>

For our upper bound, we also considered

matches valid if they occurred inside tag phrases.

For example, aircraft identification from

one schema matched identification from

another. Even with these generous assumptions,

there was surprising little overlap among the various

schemas tested.

As a lower bound on schema correlation, we

considered a valid ‘match’ only if an element name

and every predecessor in the element hierarchy

matched. Using these two extremes, we bounded

the extent of possible overlap and identified areas of

correlation.

5 IMPLEMENTATION

To test the approach presented in the last section, we

designed and built an automatic schema comparison

tool. The desktop application and visual interface,

shown in Figure 5, allowed the user to select two

XML schemas – one in each panel. The tool

automatically applied the techniques described in

this paper and produced a quantitative measure of

the upper and lower bounds of possible correlation,

and identified elements of potential correspondence.

The tool allowed the user to view each step in the

process and manually intervene, if desired, to adjust

the mappings assigned by the algorithm. The

changes were recorded and then used in subsequent

executions of the program.

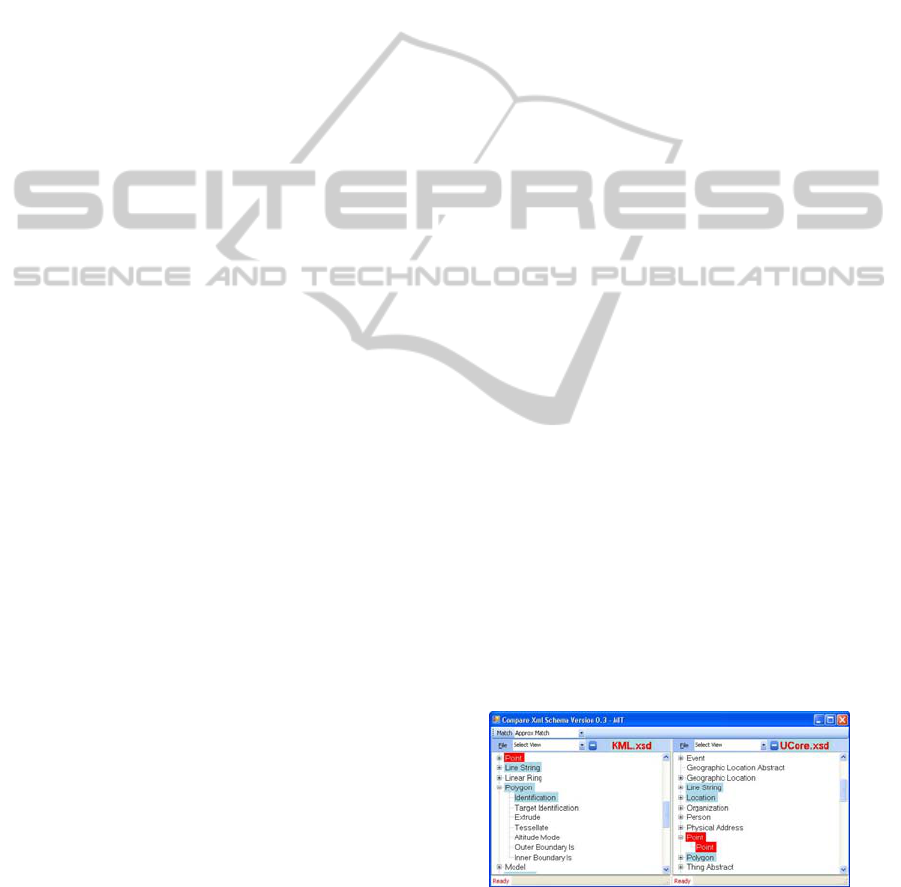

Figure 4: An automatic schema comparison tool was

developed based on the schema normalization techniques

described in this paper. The application read one or more

XML schema files and generated comparison statistics and

indicated areas of overlapping description.

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

238

6 RESULTS AND DISCUSSION

We tested the schema comparison tool on a number

of governmental and commercial schemas including

the Universal Core (UCore), a governmental schema

for sharing digital content, Cursor on Target (CoT) a

simple schema for recording geospatial positions,

National Information Exchange Model (NIEM),

Keyhole Markup Language (KML), Geographic

Markup Language (GML) and many others.

Applying the analysis described in the previous

section, the schema comparison tool identified

matching elements within pairs of input schema.

Considering only semantic correspondence

irrespective of hierarchical position, a large quantity

of prospective matches would be expected.

Relatively few matching elements, however,

were actually identified, even though the schemas

describe ostensibly similar data. As shown in Figure

6, the quantities represent the percent of data

elements from the schema in the left-hand column

contained in the schema on the top-row.

UCI CoT UCore KML

UCI

5 2 2

CoT 22

5 7

UCore 9 6

KML 13 9 7

Figure 5: The percentage of overlap between disparate

schemas was surprisingly small. While the general

assumption was schema from similar domains only

requires transformed between representations, these results

suggest that related schema represent different views of

similar data.

Examining the corresponding elements, at least

four types of matches were identified. Firstly

identical elements from identically imported schema

produced obvious matches. Secondly, generic

element names, such as id, type or name were

common among disparate schema. Thirdly, generic

high-level complex types, such as unit,

organization or address were present in

different schema. Finally, simple types including

latitude, organization or last_name

were found across multiple schemas.

The key result is the identification of high-level

and data value elements that represent ‘bridge’ or

‘nexus’ points between disparate data sources. In

other words, these elements provide the means to

link dissimilar data.

7 CONCLUSIONS

The techniques developed here attempted to

transform multiple, disparate XML sources into a

common concept representation while retaining the

underlying information. Through this process it

became clear that schema from similar domains

encoded different aspects of the same data. The

future objective should therefore be the assimilation

disparate data into a comprehensive knowledge

representation that connect these different realms of

data through their sparse ‘touch’ points. Based on

this research, our current effort is the development

of such a knowledge representation that accrues

information from many disparate sources and

provides tools for data manipulation, storage and

presentation.

REFERENCES

Lakshmanan, L. V., Sadri, F., 2003. Interoperability on

XML Data. In Proceedings of the 2

International

Semantic Web Conference (ICSW ’03).

Rahn, E., Bernstein, P. A., 2001. A Survey of Approaches

to Automatic Schema Matching. Very Large Database

(VLDB., 10(4):334-350.

National Information Exchange Modelhttp://www.niem.

gov/, Accessed June 2010.

Powell, A. and Johnston, P., Guidelines for implementing

Dublin Core in XML.

http://dublincore.org/documents/dc-xml-guidelines/Access

ed June 2010.

Kotok, A, et al., ebXML: The New Global Standard for

Doing Business on the Internet, Sams 1

edition, 2001.

UCore|Universal Core 2.0 http://www.ucore.gov,

Accessed June 2010.

Stylus Studio, XML Schema Mapper http://www.stylus

studio.com/xsd_to_xsd.html, Accessed June 2010.

Fagin, R., et al., Clio: Schema Mapping Creation and Data

Exchange, appearing in Conceptual Modeling:

Foundations and Applications, Springer 2009.

W3C, 2008, Extensible Markup Language (XML).

http://www.w3.org/TR/REC-xml/.

WordNet http://wordnet.princeton.edu/, Accessed June

2010.

Heflin, J., Hendler, J., 2000. Semantic Interoperability on

the Web. In Proc.of Extreme Markup Languages.

Graphic Communications association, 2000, pp.111-

120.

A METHOD FOR INTEROPERABILITY BETWEEN STRUCTURED DATA SOURCES USING SEMANTIC

ANALYSIS

239
