KNOWLEDGE-BASED MINING OF PATTERNS

AND STRUCTURE OF SYMBOLIC MUSIC FILES

Frank Seifert

Department of Computer Science, University of Technology, Str. d. Nationen 62, 09107 Chemnitz, Germany

Keywords: Mining Music Data, Song Detection, Pattern Recognition, Knowledge-Based Music Modelling.

Abstract: To date, there are no systems that can identify symbolic music in a generic way. That is, it should be

possible to associate the countless potential occurrences of a certain song with at least one generic

description. The contribution of this paper is twofold: First, we sketch a generic model for music

representation. Second, we develop a framework that correlates free symbolic piano performances with such

a knowledge base. Based on detected pattern instances, the framework generates hypotheses for higher-level

structures and evaluates them continuously. Thus, one or more hypotheses about the identity of such a

music performance should be delivered and serve as a starting point for further processing stages. Finally,

the framework is tested on a database of symbolic piano music.

1 INTRODUCTION

Imagine you visit a hotel lounge with a piano-player

playing. If you know the performed song in general,

you will probably recognize it, although you may

have never heard the song that way before.

Commonly, such musicians play by ear, that is,

without any score. Thus, an interpretation of the

very same song often differs substantially from one

performance to another. How can we identify such

music automatically? First, we want to give an

overview about related works and how they may fit

to our aim:

So-called audio fingerprinting systems, e.g.

(Mohri, 2007), represent a large corpus of recent

music identification research. These systems abstract

from the technical realization of the very same song

by reducing the representation to salient acoustical

properties. However, music recognition is restricted

to already recorded and preprocessed songs. Even

slight alterations such as common deviations of live

performances are not detected.

More recently, audio fingerprinting is

generalized by proposals, which attempt to correlate

a musical score with possible recordings, e.g.

(Montecchio, 2009). This research is usually

denoted as music synchronization. These approaches

are strongly tied to the score representation. Mainly,

this holds only for classical music, which is often

interpreted newly based on only one existing score.

Due to this dependence, higher musical deviations or

structural modifications are not possible with these

systems.

Some proposals attempt to derive the structure of

a musical piece by finding self-similar segments,

e.g. (Bello, 2009). However, similar music segments

can show a wide range of modifications in a variety

of musical parameters, such as instrumentation,

tempo, dynamics, ornamentation, musical patterns,

and even recording conditions. These approaches are

based on a marginalization of those changes. Thus,

they work only best for musical parts that do not

change too much, such as in classical music.

Another problem is the extraction of high-level

features to describe musical content adequately. One

approach that is based on high-level features uses

chroma indexing for music identification (Miotto,

2008). However, using only one feature is not

sufficient to describe the many facets of musical

changes.

The key idea of this paper is to combine both

ideas of music synchronization and structural

analysis for music identification. Both concepts have

to be extended in order to handle those facets of

music that are usually altered when played by a bar

pianist, such as structural modifications, which

cover arbitrary repetitions of certain parts like

refrains, removal of parts like strophes, addition of

free intros, intermezzi, or endings. Parts of music

can even be combined with different partial or even

full musical entities. Such medleys are played very

358

Seifert F..

KNOWLEDGE-BASED MINING OF PATTERNS AND STRUCTURE OF SYMBOLIC MUSIC FILES .

DOI: 10.5220/0003118103580363

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 358-363

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

often at piano bars. But most challenging are

alterations of musical content: The same piece of

music can be played at different styles, e.g. bossa,

swing, or even as a waltz, which usually results in

considerable rhythmic changes. Music can be

reharmonized to make it sound more interesting. For

the same reason, parts of music are often transposed.

Finally, even melody can be changed more or less

by alteration, addition or removal of tones.

2 GENERIC REPRESENTATION

Based on inherent musical knowledge a bar pianist

knows how to play and how to accompany a melody

in a certain style. To simulate the other way around

we have to model music in a generic way that allows

for a high degree of variability. Basis of our model

is an elementary music description - the so-called

lead sheet. A lead sheet contains the melody of a

musical piece and defines harmonic context through

abstract chord symbols. A skilled pianist knows,

how to elaborate this information and present the

music in a certain style, for instance as samba. We

decompose such a representation into a sequence of

patterns with musical meaning, so-called motifs. An

very simple example for the well-known spiritual

“When the saints go marching in” is given in Figure

Figure 1: Patterns of ”When the saints”.

The second pattern is a repetition of the first one.

General rules for identifying patterns involve expert

knowledge in the musical domain and are beyond

the scope of this paper. For computational

approaches see (Pearce, 2008).

Adjacent notes are difference-coded in time and

space, because pattern can be transposed or

stretched in time.

2.1 Structural Coding

The serialization of patterns within a structure is

done by delta-coding again. This time we use the

difference between the first notes of adjacent

patterns in space and time. Applied on “When the

saints” we get the following structure s

: {p

<0, 1.0> p

<4, 2.125> p

<0, 2.0> p

}

The first value after each pattern represents the

spatial difference in semitones, the second value

denotes the time difference. This note-length-

notation codes a quarter note as 0.25, an eighth as

0.125 and 2.125 means two wholes plus an eighth.

Structure s

describes only the melodic content of

“When the saints”. Within our model, an entire

piece of music is represented by a special template.

Such a template is usually associated with one or

more melodic structures, a harmony representation

and additional parameters.

Applied on “When the saints” we get a generic

template t

for that song, which consists of the

melodic structure s

and a non-detailed chords

representation c

. Model components are best

illustrated by a tree-like representation. Edges are

marked by delta-shifts in time and space.

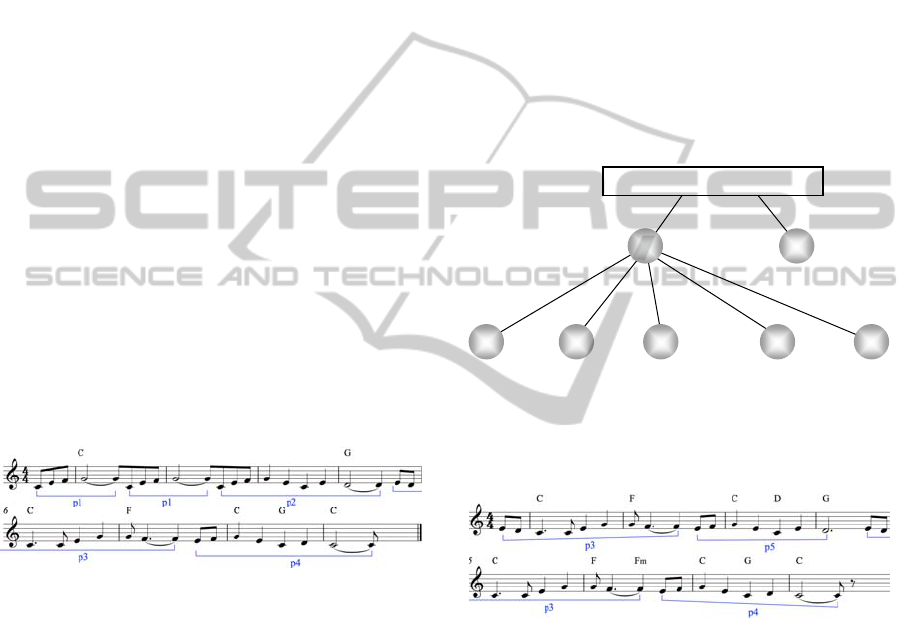

Figure 2: Generic template of ”When the saints”.

The melodic content of Figure 1 is usually

associated with “When the saints”. Actually, this is

only the refrain. The strophe is shown in Figure 3:

Figure 3: Strophe and patterns ”When the saints”.

This strophe could be modeled as structure s

: {p

<0, 2.0> p

}

As you can see, components p

and p

are reused

again. Now, we can create another structure s

which consists of s

and s

. Then, we create a new

template t

, which integrates s

and a new harmony

structure c

. The resulting template t

is depicted in

simplified form in Figure 4. Finally, we have got

two generic representations of the song, with and

without strophe. This should reflect real world

scenarios, where both representations can be valid.

By marking structural edges with a meaning tag

(not visualized), we can express common musical

meaning of structures, such as “refrain”.

(title: When the saints)

4, 2.125

(title: When the saints)

0, 1.0

1.0 4

2.125

0, 2.0

KNOWLEDGE-BASED MINING OF PATTERNS AND STRUCTURE OF SYMBOLIC MUSIC FILES

359

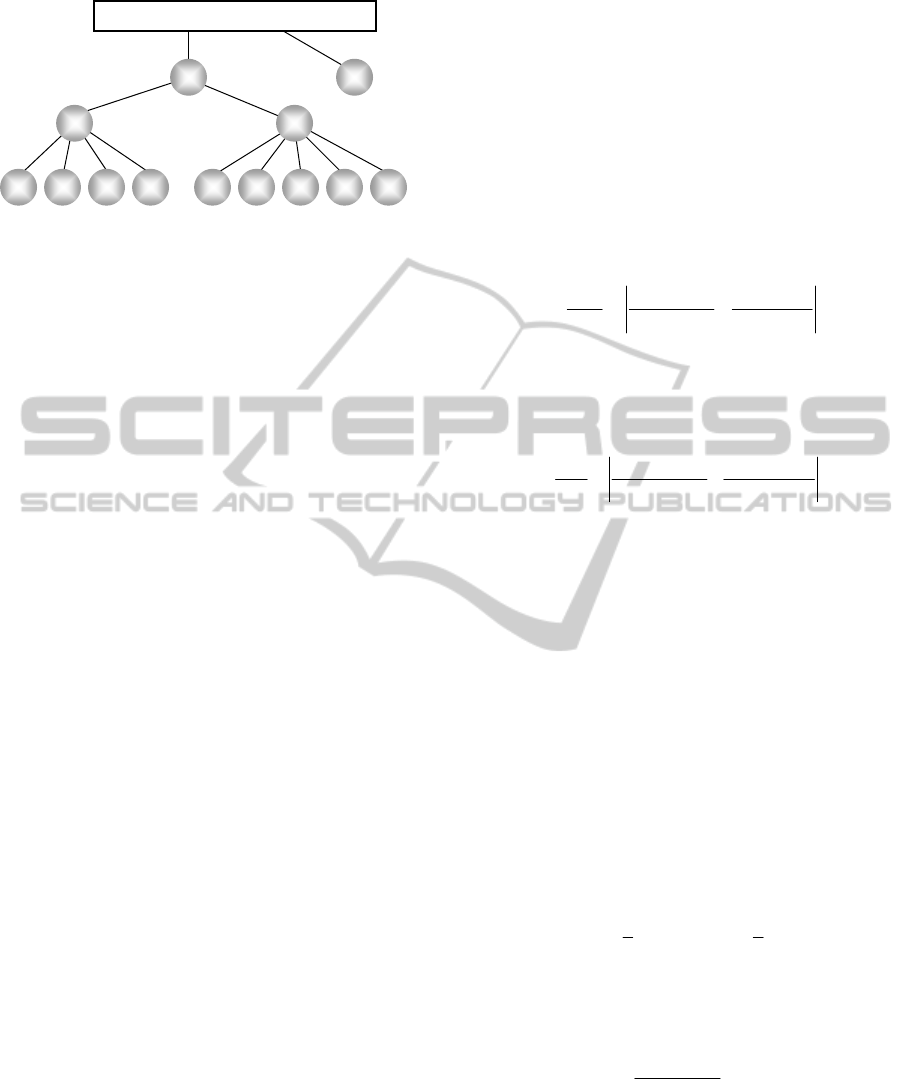

Figure 4: Template of “When the saints“ with strophe.

3 RECOGNITION

Modeling music by a hierarchy of structures, which

represents a sequence of generic music patterns at

the lowest level, is the foundation of the music

identification framework. If we want to identify an

arbitrary song, we have to correlate it with a

corresponding generic music template. Primarily,

this process consists of two steps: First, we have to

identify all existing pattern instances. Second, we

have to structure these pattern instances and

hierarchize the determined structure instances

recursively. During this step repetitions of structure

instances should be automatically detected and

handled adequately. Ideally, after finishing step two

an instance should be correlated with a top-level

structure and therefore, can be associated with a

generic music template. Let us examine these steps

in more detail:

3.1 Recognition of Pattern Instances

For each tone of a music file we match each pattern

of our database and try to find all occurrences of that

pattern within a search-range. This range is

determined by the estimated beat of the

corresponding region plus a defined tolerance range.

Although there are some heuristics for most likely

melody placements, it is necessary to consider each

occurrence of a pattern at this step. If our brain

knows a certain pattern, it does not have to be very

salient to recognize it (Dowling, 1986). Of course,

this step will usually result in a vast amount of false

hits.

During the pattern recognition process, which is

purely bottom-up, we cannot decide, whether a

detected pattern instance is really perceived.

Unfortunately, the denser a sound mixture is, the

more patterns will be detected and most of them will

be irrelevant. However, we can use some heuristics

and rate a pattern instance by perceptual salience

and similarity with the pattern template. Some

essential criteria are presented as follows:

Patterns can be stretched or expanded in time. To

compensate for the varying length we normalize a

pattern instance with its length. Then, we evaluate

both absolute positions of tones within a pattern

instance and relations of adjacent tones.

Let p be a detected pattern instance (a sequence

of tones) and P the corresponding pattern template,

and P

are the i-th tone of p and P, n is the number

of pattern tones.

time

and

time

are timestamps of p

and P

. The rating of positions r

pos

is defined as

(1)

Each rating is normalized within range [0, 1]. A

value 1 means the best possible rating. Analogously,

we get the rating of relations r

rel

by evaluating the

relation of time differences between adjacent notes:

(2)

Both ratings can only be evaluated while n > 2.

How salient is a pattern instance compared with

simultaneous events? On the one hand, we check,

whether the events of a pattern instance are more

salient than simultaneous events and on the other

hand, we assess the spatial position of a pattern

instance. Very often, a melodic pattern forms the top

voice. Generally, it should be isolated from

surrounding events to become perceived dominantly.

That is, top or lowest voice is separated better than a

middle voice, but harmonic simultaneous events

contribute more evidence for such a hypothesis.

Let t denote a sequence of tones in same time range

of p, t

is the j-th tone of t; m is number of tones in t.

For t and p t)p=



has to be valid.

vel

and

vel

are the

velocity values of p

and t

. Rating of salience r

sal

defined as

Let top be the number of tones in p, which form the

top voice and low the number of components of the

lowest voice. Rating of place r

place

is then defined as

(3)

With this definition, the upper voice is better

rated than the lower voice and the highest rating is

only possible with monophonic pattern instances.

An important criterium for assessing the bottom-up

quality of a pattern instance is the number of events

place

2top + low

rel

= max 1−

n − 2

time

−

time

i−1

time

i−1

−

time

i−2

−

time

−

time

i−1

time

i−1

−

time

i− 2

i=2

n−1

∑

⎛

⎝

⎜

⎞

⎠

⎟

pos

= max 1−

n − 2

time

−

time

−

time

−

time

−

time

−

time

i=2

n−1

∑

⎛

⎝

⎜

⎞

⎠

⎟

sal

= max min log

vel

i=1

∑

⎛

⎝

⎜

⎞

⎠

⎟

− log

vel

i=1

∑

⎛

⎝

⎜

⎞

⎠

⎟

⎛

⎝

⎜

⎞

⎠

⎟

⎛

⎝

⎜

⎞

⎠

⎟

(title: When the saints with strophe)

0, 1.0

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

360

num

events

that interfere with the perception of the

ideal template of an instance. That is for two

adjacent tones, how many perceivable events are

positioned around an imaginary line between both

tones. Due to space constraints the algorithm is not

detailed here. We suppose this number as given and

define the corresponding rating r

events

as follows:

(4)

These single ratings are individually weighted and

combined as the pattern instance rating r

(5)

Concluding this step, we have got a set of potential

pattern instances, which are rated according to the

likeliness of being perceived. Nevertheless, patterns

that show a worse rating than competing ones, could

be perceived due to context. This decision can be

made at the next stage at the earliest.

3.2 Predicting Higher-level Structures

For a homogeneous definability patterns respective

pattern instances are considered structures and

structure instances of level 0 by now.

For each detected structure instance, we know, in

which higher-level constructs it is contained. Thus,

we try to find evidence for these higher-level

structures by attempting to detect instances of all

remaining components. Within this step, we get

more or less complete sequences of structure

instances that belong to a hypothesized structure.

Again, we have to rate these sequences of

components regarding completeness, perceptual

salience and similarity with the predicted structure.

Structural integrity is characterized by the

relative onset and the length of components within a

structure. Again, we compare sequences of detected

component instances with the predicted structure.

Let s be a predicted structure instance and S the

corresponding structure. Then, s

and S

denote the i-

th component of s respective S, |s| is the number of

detected components in s and |S| the number of

component structures in S.

time

and

time

are the

timestamps of s

and S

; b denotes the b-th

component s

, which is the foundation for

hypothesis formation. Onset rating r

onset

compares

the relative start times of components between

instance and template. Roughly, it corresponds to

pos

. This time, however, component instances may

not be complete. For missing components, bounds

are extrapolated on basis of s

. Otherwise, they are

ignored and not evaluated:

(6)

The length rating r

len

compares the relative

lengths of components. Components may have a

correct onset but last too short or too long. This

measure differentiates the onset rating further. To

streamline the formula, we define

and

(7)

The transposition rating r

trans

evaluates the spatial

coherence of detected components. Due to being

gestalts, a component can be transposed. Usually,

transpositions of a whole tone or a semi tone

happen. With many popular songs, the final strophe

or refrain is transposed one tone up to create more

tension. Besides, many endings repeat final patterns

several times while transposing them up and down.

We define the deviation regarding the relative

transposition of components as

The transposition rating r

trans

is then defined as

(8)

We have to combine these distance measures to

evaluate the overall validity of a predicted structure.

This rating can not be better than the average rating

of its components. Therefore, we have to weight the

total structural rating r

with the average rating of

each individual component rating r

(9)

If r

exceeds a given limit, we can instantiate a

structure hypothesis. If a component does not exist

we instantiate it nevertheless and mark it as

onset

+ r

len

+ r

trans

()

i=1

∑

trans

1.0

tone

Δs

= 0

0.6

tone

Δs

≡ 0mod12

0.2

tone

Δs

< 3

0.0 else

⎧

⎨

⎪

⎩

⎪

i=1

∑

len

= max 1 −

time

Δs

time

Δs

−

time

ΔS

time

ΔS

i=1

∑

⎛

⎝

⎜

⎞

⎠

⎟

time

ΔS =

time

−

time

Δs =

time

−

time

onset

= max 1−

time

−

time

−

time

−

time

−

time

−

time

i=1

∑

⎛

⎝

⎜

⎞

⎠

⎟

pos

+ w

rel

+ w

sal

+ w

place

pos

+ w

rel

+ w

sal

+ w

place

events

= max 1.0 −

num

events

⎛

⎝

⎞

⎠

tone

Δs

tone

−

tone

(

)

−

tone

−

tone

()

KNOWLEDGE-BASED MINING OF PATTERNS AND STRUCTURE OF SYMBOLIC MUSIC FILES

361

“hypothesized”. In further processing stages such

segments can be examined deeper and

multidimensional similarity can be computed.

3.3 Handling Repetitions

An important aspect of music is repetition. The

entire piece of music can be repeated as a whole.

However, more challenging are arbitrary repetitions

of partial structures such as refrains, or even parts at

a smaller scale. Our model defines a parameter for

the general repeatability of a structure. Structures

with a meaning such as “strophe” or “refrain” are

automatically assigned to a probability value of 1.

For structures without a special meaning, this value

can be in the range of 0 to 1. Structures at the lowest

level, i.e. patterns should usually have a repetition

probability of 0.

If this probability value is greater than 0 for a

detected instance, we have to collect possible

instances of the same structure, which may follow

within a defined tolerance range. If we find one or

more repetitions of a component, we create a virtual

instance that integrates those components. Virtual

repetition instances are evaluated like a non-

repeating component. Thus, if musical structures are

played more than actually intended, this situation

will be automatically resolved by now.

For each of the resulting structure instances, we

repeat this process and predict of the next level, try

to find evidence for their components, rate them, and

finally instantiate or reject them. That is, we repeat

steps 3.2 and 3.3 until the highest level of the

template database is reached. Ideally, this process

should finally result in one or more sequential

structure instances, which cover the entire music.

4 RESULTS & CONCLUSIONS

At the moment, our template database contains 150

songs, most of them jazz standards, the remaining

are folk songs, christmas carols, pop and rock songs.

For these songs, we collected 352 midi-files of piano

performances. The midi-files have been either

picked up from the Internet or were specifically

recorded by some persons, who work either as music

lecturers or play at piano bars occasionally. Besides

song selection, no restrictions were made. The music

contributors should play given songs the “usual

way”, which means that normal listeners should be

able to recognize the song. However, free

improvisations of a theme were possible and

performed frequently, indeed. Let us demonstrate

the performance of our framework with some

examples:

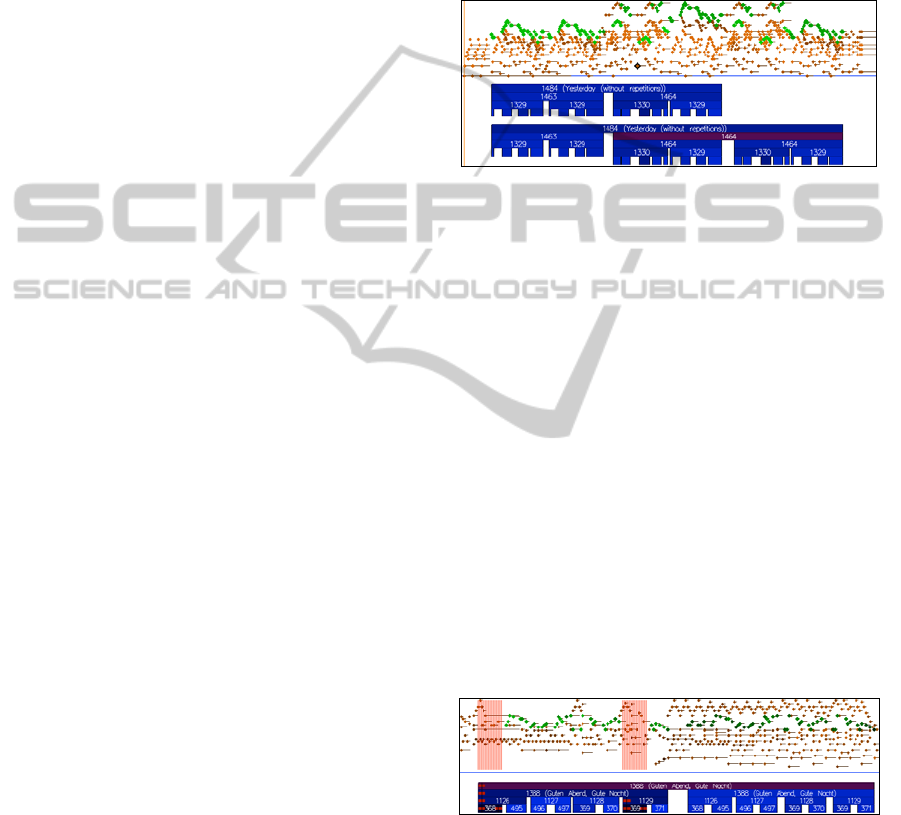

Figure 5 shows the results of recognizing an

instance of “Yesterday” by The Beatles. Depicted

are top-level structure instances and their

components recursively. The corresponding melody

notes are highlighted by green dots. The specific

rating of structure instances is visualized by color

intensity.

Figure 5: Recognition of “Yesterday“.

In this particular case, all patterns could be detected

and meaningfully structured. The uncorrelated

regions at the begin and at the end correspond to a

free introduction and a free ending. Two special

features should be highlighted: First, our template of

“Yesterday” is modeled in form AABA, which is

detected in the upper instance 1484. However,

within the midi-file the last BA section is repeated,

which results in the form AABABA. The framework

automatically detects a repetition of substructure

1464 and derives an additional instance 1484 of

“Yesterday” with a repeated refrain. Second, within

the refrain, the pianist sometimes transposes melodic

parts one octave up or down. Without the model-

inherent decomposition of a melody into structures

of elementary patterns this refrain had not been

detected at all.

Figure 6 shows an instance of the lullaby “Guten

Abend, gut’ Nacht” by Johannes Brahms, which

after free introduction is played twice:

Figure 6: Recognition of a Brahms’ lullaby.

Again, our framework automatically detects the

repetition and creates an additional integrating

instance. However, more interesting are the hatched

regions, which correspond to pattern instances 368

and 369 respectively. For these patterns, no direct

evidence could be found. Thus, they are

hypothesized based on context. Our framework

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

362

provides these regions and additional information,

such as predicted bounds or beat positions to further

processing stages. In the second pass of the lullaby,

the melody is located between upper and lower tones

and is not easy to recognize for human listeners. The

framework detects this structure even without the

need of creating hypotheses for any parts.

How can we evaluate the overall performance of

our hypothesis generator? Due to the high degree of

possible musical alterations, an adequate evaluation

is no easy task. How can we rate improvisations?

How should we rate missing repetitions of an

already detected structure? How can medleys of

refrains or partially detected structures be evaluated?

We decided to consider only those regions of a

music file, for which sequential structures should be

found ideally. Then, we count the number of really

detected structures, which have to be normalized by

a weight regarding its duration within an instance.

Additionally, each predicted or detected structure

has to be examined regarding correct bounds.

Finally, we get a percentage of correct coverage.

This coverage-measure shows some advantages:

Parts of music, which cannot be detected inherently,

such as free intros, intermezzi, improvisations, or

endings do not affect the rating. If a repetitive or

composed structure cannot be correlated entirely but

one or more of its higher-level components are

detected, that structure will not be rejected. That is,

each example from Figures 6 and 7 would get

coverage of 1.0, which means that all detectable

sections have been recognized correctly. Of course,

each covered region gets an additional similarity

rating as illustrated in Section 3.2.

To automatize the evaluation of our midi-file

collection, we manually identified all contained

templates or high-level structures and their ranges.

This information has been added as metadata to the

database. For all 352 test files we got an average

coverage of 0.55. This result is characterized by a

high deviation. A lot of music had coverage of 1.0

but many files showed no coverage at all:

Table 1: Coverage of test files.

Kind of coverage

Number

of songs

Percent

age

Average

coverage

Full coverage 119 34 % 1.0

Partial coverage 143 41 % 0.52

No coverage 90 25 % 0.0

Total 352 100 % 0.55

Due to the high degree of melody-alteration

especially jazz piano music showed a bad

performance. At the moment, our predictive

algorithms are based on exact pattern matching

techniques. Therefore, the groundwork for

successful creation of hypotheses was insufficient in

some cases. For most of these unrecognized files, we

could manually adjust some accuracy parameters

and increase the recall at the expense of precision.

To get more results, the overall need of

computation time and memory grows exponentially

in most cases. It would be pointless to broaden the

search at this development stage. The quality of the

structure prediction will most likely improve if

hypothesized components could be evaluated by

future similarity processing stages. At this time we

parameterized our system by optimizing the tradeoff

between computation time and recall while getting

precision as high as possible. Indeed, for top-level

prediction, precision equals one for the entire

database.

Further work should complete the framework

conceptually first. That is, integrating similarity

measures for chords, chord progressions and

melodic alterations into the framework. Next, to

improve pattern recognition, recent matching

techniques should be extended to “fuzzy” matching.

Using a more contour-oriented representation of

melody would compensate slight variations such as

altered or missing tones, e.g. playing a motif in

minor instead of major. Finally, by implementing

symbolic extraction algorithms, the framework

should be able to guide even an audio identification

process.

REFERENCES

Bello, J. P., 2009. Grouping Recorded Music By

Structural Similarity. In Proceedings of ISMIR,

Kobe, Japan.

Dowling, W. J., Harwood, D. L., 1986. Music Cognition,

Academic Press.

Miotto, R., Orio, N., 2008. A Music Identification System

Based on Chroma Indexing and Statistical Modeling.

In Proceedings of ISMIR, Philadelphia, USA.

Mohri, M., Moreno, P., Weinstein, E., 2007. Robust

Music Identification, Detection, and Analysis. In

Proceedings of ISMIR, Vienna, Austria.

Montecchio, N., Orio, N., 2009. A Discrete Filter Bank

Approach to Audio to Score Matching for Polyphonic

Music. In Proceedings of ISMIR, Kobe, Japan.

Pearce, M. T., Müllensiefen, D., Wiggins, G. A., 2008. A

Comparison of Statistical and Rule-Based Models of

Melodic Segmentation. In Proceedings of ISMIR,

Philadelphia, USA.

KNOWLEDGE-BASED MINING OF PATTERNS AND STRUCTURE OF SYMBOLIC MUSIC FILES

363
