UNATTENDED HOME DELIVERY SYSTEM BASED

ON PKI TRUST MODEL IN URBAN AREAS

Bian Wenliang

School of Economic and Management, Beijing Jiaotong University, Beijing, China

Nie Xuyun

School of Computer Science and Engineering, University of Electronic Science and Technology of China

Chengdu, China

Keywords: Physical distribution, Unattended reception, PKI.

Abstract: The unattended reception not only provides a convenient and alternative choice for family customers’

reception, but also effectively improves the efficiency of physical distribution of enterprises. However, the

system security of such a novel logistics model has hardly attracted people's attention. In this paper, we

focus on the physical distribution for urban households’ grocery, and construct a safe and trusted unattended

home delivery system box based on Public Key Infrastructure (PKI) and its trust model. In order to promote

its practical application in the process of modern logistics management, we also propose a series of

recommendations.

1 PREFACE

Unattended reception model has been adopted in

many countries where there’s a developed logistics

industry, such as America and Finland. It’s also a

good supplementary means for general attended

reception model in home delivery. Moreover, in our

fast-paced modern life in a big city, this model

evidently has more convenience and efficiency

compared with the attended reception one.

Nowadays, the increasing security risks spur

consumers’ growing awareness for safety of their

lives and properties. As in the case of unattended

states, customers can only passively accept the

goods, the probability of safety problems to occur is

significantly increasing. These risks may include

delivered goods and receiving device being stolen,

unknown materials being put in your device

deliberately, and so on. Especially, in densely

populated urban areas where people has some

centralized delivery demands, post-office-box-like

cargo receiving device can no longer meet people’s

need in receiving security. With the development of

B2C e-commerce, the superiority of unattended

reception model in the home delivery has drawn us

an increasing attention. But how to design a safe

home delivery system easily accepted both by

customer and business? It’s a problem in the context

of urban home grocery purchasing. In this paper, we

are trying to solve it.

2 LITERATURE REVIEW

With the B2C e-commerce development, such a

situation has often taken place in which customer

has no time to accept the delivery at home.

Generally, the goods can be parked in the customer's

neighborhood, and adjacent cargo collection points

(such as a self pick-up point, collection of the post

office, shops or kiosks, etc.) instead. Considering

efficiency and safety, unattended receiving system

has emerged (Hale, 2006). According to the

difference in basic devices, this system can be

divided into receiver box (Reception Box) model

and delivery boxes (Delivery Box) model (Punakivi,

Yrjölä and Holmström, 2001). A reception box is a

customer-specific locked reception box installed in

the customer’s yard or garage, and it is usually

refrigerated. Another type of reception box is a

Xuyun N. and Wenliang B.

UNATTENDED HOME DELIVERY SYSTEM BASED ON PKI TRUST MODEL IN URBAN AREAS.

DOI: 10.5220/0003268000030008

In Proceedings of the Twelfth International Conference on Informatics and Semiotics in Organisations (ICISO 2010), page

ISBN: 978-989-8425-26-3

reception locker, which consists of several reception

boxes and can be installed, for example, in car parks

or railway stations.

To address the above unattended receiving issue,

many efforts have been made. Although a certain

amount of initial investment, Punakivi et al. have

demonstrated that when a company faced a stable

demand or a development of a large number of

customers who purchased goods repeatedly the

unattended reception model based on the reception

box is very appropriate (Punakivi, Yrjölä and

Holmström, 2001). Home deliveries with customer

specific reception boxes allow 44 to 53 % cost

savings and shared reception boxes even 55 to 66%

cost savings compared to the attended reception with

2 hours delivery window (Punakivi, 2003). Delivery

box is an insulated secured box equipped with a

docking mechanism. Goods, together with the

delivery box were left at the dock location and fixed,

and then the empty containers that customers dump

for goods will be collected in the course of the next

delivery, or after some time. Each customer requires

only a little investment, which will make it possible

for company to expand rapidly and operate flexibly.

However, the disadvantage is that the collection of

empty containers will bring an additional cost and

affect the entire family delivery system efficiency.

Kallio (Kallio, Kemppainen, Tarkkala and Tinnilä,

2000), Kämäräinen (Kämäräinen, Saranen and

Holmström, 2001), Punakivi (Punakivi and Saranen,

2001) et al., with some applications such as

simulation and mathematical model, compare with a

variety of family delivery program to study the

efficiency and impact toward unattended reception

in the home delivery process. In addition, the

existing studies mostly concentrate in the Nordic

areas with a sparsely population, such as Finland.

Punakivi et al. recommend that a further research on

unattended reception pattern in densely populated

urban areas is needed (Punakivi, Yrjölä and

Holmström, 2001).

The existing researches on the unattended

reception model lead to maintain a high operational

efficiency without sacrificing service levels. These

have provided a guarantee for the development of

the grocery retail industry, especially for the

associated online retail industry. However, these

distribution patterns have their limitations. For

instance, with the receive box model it requires

additional investment on the customers end. So it

doesn’t meet the demand of physical distribution for

the suburban customers. The delivery box model

need to recycle empty containers frequently to

reduce the delivery efficiency. This doesn’t satisfy

the concentrated requirements of physical

distribution in urban center. How can we take the

advantages of both models into full account in the

practical application is worth studying. Moreover,

according to the analysis of our all knowledge and

retrieved literature, existing studies on this issue

with family security consideration are rarely

addressed. An analysis of system safety is also

hardly found in most researches, except that

McKinnon et al. explored general security issues on

the unattended reception model (

McKinnon and

Tallam, 2003)

. However, we know that more and

more people are concerned about the safety of their

lives and property, so the relative research must be

put on the agenda in logistics areas.

Publics Key Infrastructure (such as X.509-based

schemes (Kent, 1993)) has been used in so many

fields. Essentially, it’s a useful tool to indicate and

manage the relationship of trust. Moreover, this trust

model can also be embedded in the framework of

some applications, such as P2P (Peer to Peer)

sharing and e-commerce (Fang, 2007; Kambourakis,

Rouskas and Gritzalis, 2004).

3 SYSTEM DESIGN

3.1 Idea for System Construction

We take into account all enterprise physical

distribution efficiency, customer demand and system

security, and then establish a unified unattended

home delivery system in urban areas. In fact, the

benefit of reception-box-based system applied in a

concentrated demand area will arrived at a scale

economies effect with an increasing of requirement,

while the facilities of a delivery-box-based system

applied in a scattered demand area will be able to

share among different customer’s families.

Therefore, in the course of application, two kinds of

physical distribution patterns should be coordinated

and combined based on the characteristics of urban

areas in our country. Specifically, according to the

differences of urban households living conditions we

propose an unattended home delivery system with a

necessary security thinking, which consists of three

types of unattended delivery models.

i. In response to the communities with

concentrated requirement and high-density

living condition, we design a community-

specific reception box model for them;

ii. For urban households in lower-density living

condition, we design a home reception box

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

model for them;

iii. And for households in peri-urban areas, we

design a delivery box model for them.

These three types of models should make

adequate adjustment in order to assort with the

economic development and living condition of

different cities. In respect to security of the system,

the PKI technology is used to guarantee the

securities of accessing, communicating and

authorizing with mutual trust.

3.2 System Composition

In this paper, the unattended home delivery system

based on PKI trust model consists of the Trusted

Center, reception facilities, communication

equipment, household customers and shipping

companies.

The Trusted Center is an authoritative third-party

digital certification management center operated by

a neutral institution, or government department, also

it is the core of PKI system. The Trusted Center can

ensure that a specific digital certification is the

authorized person. In the application of data security

and e-commerce it is used to confirm the true

identity of each participant when the information is

changed. Essentially, the Trusted Center is a

Certification Authority (CA), which is responsible

for issuing certificates, authenticating certificates,

and managing a provided certificate.

There are three kinds of reception facilities. A

reception box is a customer-specific locked

reception box installed in the customer’s yard or

garage. Another type of reception facility is a

reception locker, which consists of several reception

boxes and can be installed, for example, in car parks

or railway stations. The third option is a delivery

box, which is an insulated secured box equipped

with a docking mechanism. These reception

facilities are free or lower cost for customers.

Moreover, some facilities must have a certain

computing and storage capacities (such as the hash

function computing, digital certificate storage), and

be able to maintain a stable communication with the

Trusted Center.

Communications equipment is accessorial part of

the system which is used to keep the date transfer in

security. It includes communication terminals for

customers’ command input and information

reception, business users (by computer, PDA or cell

phone), and the network connection facilities.

Household customers and shipping companies

are the system users. A shipping company may be a

manufacturer, retailer or logistics company. Among

them, shipping companies consist of some trusted

delivery companies with credible certification and

some casual delivery companies without credible

certification.

3.3 System Process

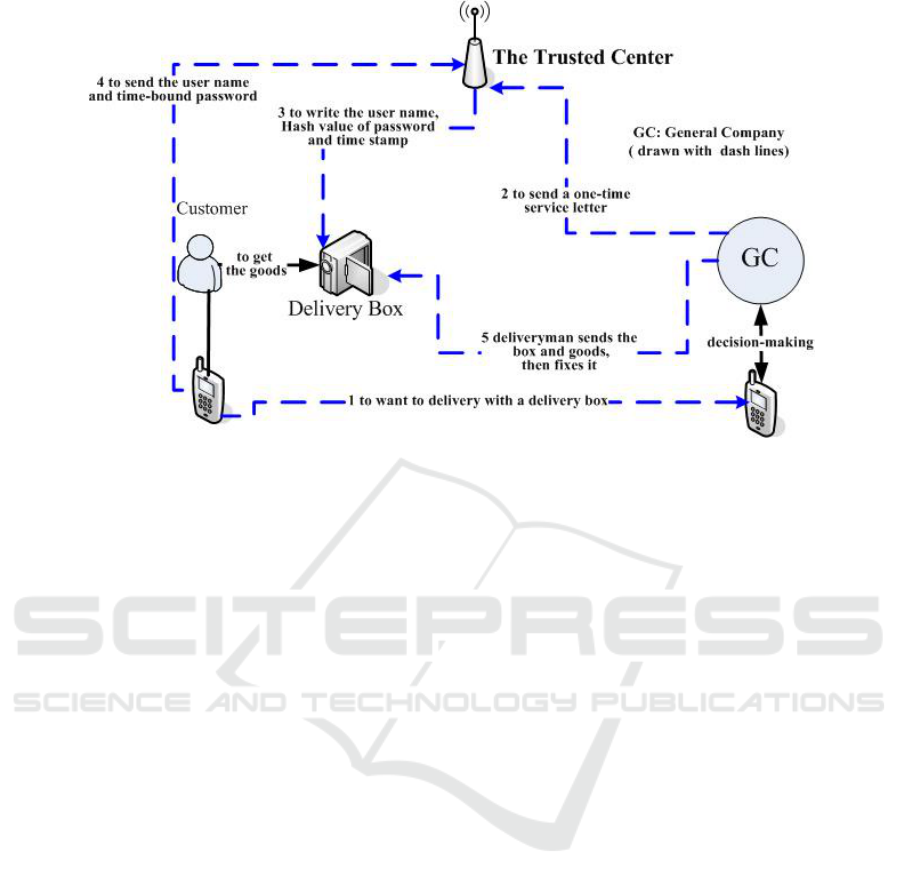

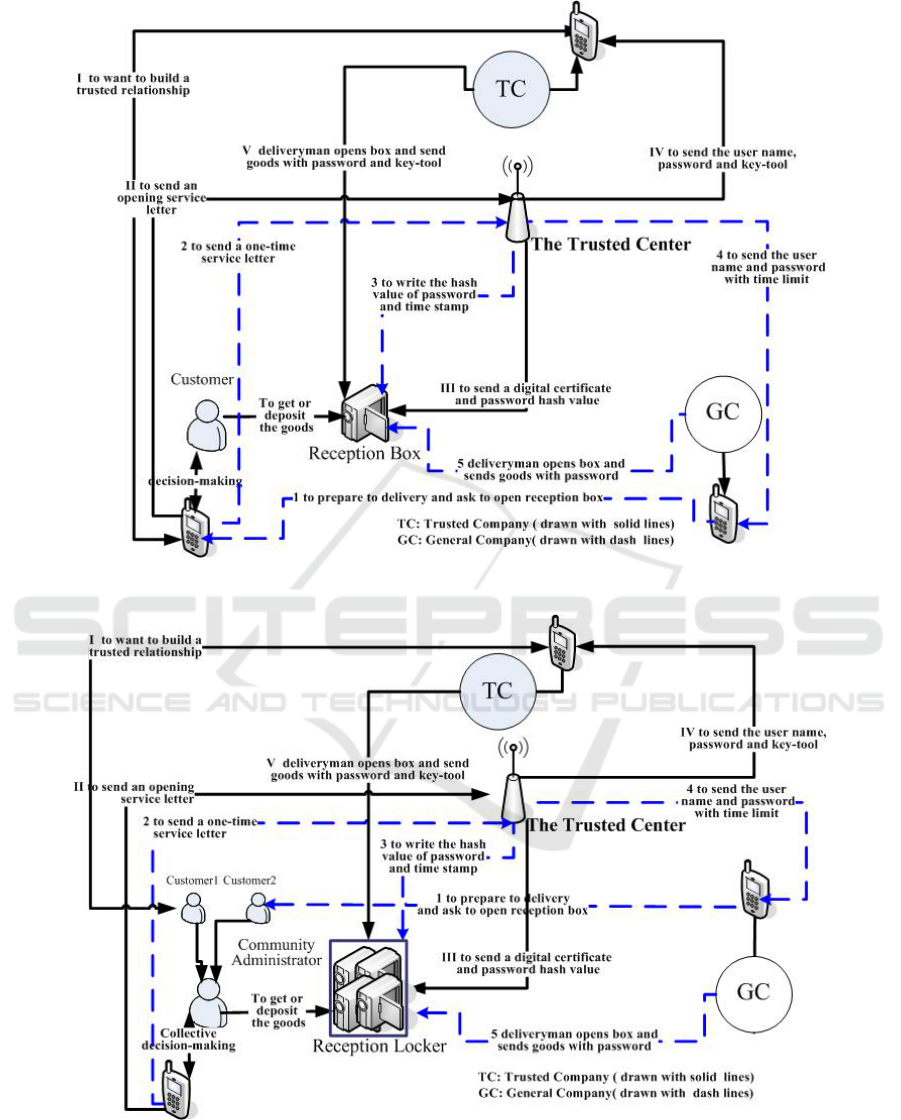

We here demonstrate the operational process of the

unattended home delivery system. To simplify and

clarify, we separate it into five kinds of operations

and depict them respectively in Figure1-3.

(1) Establishment of a trusted relationship: The

company and customer set a long-term opening

service letter after a consultation between the

enterprise and customer. Then one authorized by the

Trusted Center should digitally sign the letter to

initiate an opening application. The Trusted Center

authenticates the application with the public key for

the authorized customer or company. When the

authentication is passed, the Trusted Center will

provide digital certificates and a key-tool (such as

USB-Key, or radiofrequency card) for the applicant,

where the digital certificate stores a public key, as

well as the key-tool stores a private key. In order to

realize a short-term delivery for some household

customer, company and customer set a one-time

service letter with a time stamp after an oral

agreement. Then one authorized by the Trusted

Center should digitally sign the letter to initiate a

temporary application. The Trusted Center

authenticates the application with the public key for

the authorized customer or company. When the

authentication is passed, the Trusted Center will

provide authorized one a time-limited password, and

write the hash values of password and time stamp

into the reception facilities memory.

(2) Delivery process under reception box model:

In the course of delivery by authorized company, the

delivery person first enters the user name and

password (manually or automatically), then the

terminal of reception box checks the password with

hash function by comparing the value listed in the

terminal memory. If it is correct, the delivery person

will be prompted to insert the key-tool. When the

key-tool is inserted, the terminal of reception box

reads user’s private key. Then the system generates a

random number, and signs this random number with

the private key. Next, the system uses the public key

in digital certificate of the trusted company stored in

terminal to authenticate the signature. If the

authentication is passed, the door opens and delivery

is available. However, the delivery of a general

company (non-trusted) is relatively simple. First, the

delivery person inputs the user name and password

UNATTENDED HOME DELIVERY SYSTEM BASED ON PKI TRUST MODEL IN URBAN AREAS

Figure 1: The process of the reception box model in detail.

Figure 2: The process of the reception locker model in detail.

obtained temporarily, the terminal of reception box

checks the password with hash function whose result

is compared with the value listed in the terminal

memory. If the value is just in the list and system

time does not exceed the time limit, the door opens

and delivery is available.

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

Figure 3: The process of the delivery box model in detail.

(3) The delivery process under delivery box model:

Through the Trusted Center the authorized company

sends a user name and time-bound password to the

customer who needs a delivery. Then it writes the

users’ names and hash values of their password into

the terminal of delivery box. Finally, the goods

together with delivery box and it’s sent to

customer’s home in a specify location.

(4) Pick up process: This process should be

finished by the customers. Near their house, the

terminal system of reception facilities stores a list of

user names and password hash values issued by the

Trusted Center, even the user's digital certificate.

Under the delivery box model, as the household user

first enters a user name and password, the terminal

computes a hash operation of the password, and

compares its hash value with the corresponding

values in the stored list. If the comparison is OK and

the prescribed time constraint is satisfied, user can

open the box. Under the reception box model, except

the above operations, users need to insert a key-tool.

Then the terminal reads the user's private key and as

sign a new generated random number. And it

provides an authenticate signature. When passed, the

door opens and the reception is available.

(5) Pick up management in a community: There

is no essential difference between a community user

and a general customer in respect of application and

delivery. But as far as the pick up process is

concerned, the community user slightly differs from

the latter. First, we need to arrange a person as a

reception locker manager, a unified “customer”

facing a number of delivery companies. The users in

a community apply to open reception locker with

their own user password and the community

manager controls a common key for whole

customers. This community manager can be a part-

time job, and he or she also can apply for opening

the locker authorized by the Trusted Center in order

to deal with the expired unclaimed goods.

A two-factor trust authentication is adopted in

this system process, which supports a local safety

feedback and a remote trust transfer among the

Trusted Center and all kinds of users. Though some

additional tasks are added to users, this system helps

us to avoid the intervention by unknown companies

and the passive reception from unknown items.

Additionally, it takes into account the confidentiality

of information communication and customer

family's security.

4 ABOUT IMPLEMENTATION

The establishment of unattended home delivery

system is a systems engineering, so the

implementation of relevant technique and

management will directly affect the success of whole

system. Here, three following proposals are put

forward by us in system implementation phase to

improve the entire efficiency.

Proposal for construction and operation: First of

all, we should confirm the main body for

construction and management. There must be an

authoritative and neutral third party responsible for

UNATTENDED HOME DELIVERY SYSTEM BASED ON PKI TRUST MODEL IN URBAN AREAS

the facilities pre-investment and network

construction for entire system, which should be in

charge of the centralized management of a trusted

certification. It is pivotal to ensure social benefits of

the system. Second, in the operational process, the

integration within the building of this system, our

society credit system and online payment system is

needed, which ensures a good exogenous

environment for implementation.

Recommendation for business development:

Because the system requires that the customer must

have a basic on-line operational capability, we

recommend that the system operation can integrate

with the construction of intelligent community,

intelligent building, and so on. As a first step, to

establish a benchmark, a demonstration base can be

set in high-end communities initially. Gradually, it

can extend to other similar areas. At the same time,

the system needs not only good information sharing

between the various delivery models under the

coordination of the Trusted Center, but also a

seamless information interface linked with the

traditional on-site reception model.

Proposal for business extension: Many additional

and value-added business can be explored using the

advantages of resources and security of this system.

For example, customers can also safely transfer their

own goods through the located household reception

boxes. In detail, a reception box can contain some

temporary inventory which will be expected to send

to other people. Just following a simple trusted

authority it can be taken by the other one in the case

of unattended situation. Additionally, the reception

boxes concentrated in a region can be centralized

and managed by a similar community-based means

with more secure and intelligent.

5 CONCLUSIONS AND FUTURE

RESEARCH

In this paper, we propose an unattended home

delivery system to meet the physical distribution

needs of different urban regions and their

requirement of home security. As well as a useful

complement to the traditional on-site delivery

system. In this system, a variety of delivery

equipment is the carrier for system operation and the

mature PKI technology is the basis. This study

focuses on the basic ideas proposal of the system

construction and the technical feasibility, the

economic feasibility analysis and detailed methods

for the implementation still need some further study.

We also did not mention the alternatives to

passwords (such as biometric methods of

authentication), that provide a better form of

underpinning paradigm for our solution in future.

ACKNOWLEDGEMENTS

We are especially grateful to the National Soft

Science Research Program (Grant No.

2008GXQ6B135). Finally, we wish to thank two

anonymous reviewers whose careful reading and

thoughtful comments led to many improvements in

the paper.

REFERENCES

Hale J. J., 2006. Secure unattended delivery system. US

Patent (NO. 10/347,742). App. 11/530,368

Punakivi M, Yrjölä H, Holmström J, 2001. Solving the

last mile issue: reception box or delivery box?

International Journal of Physical Distribution &

Logistics Management, 31(6): 427 – 439.

Punakivi M., 2003. Comparing Alternative Home

Delivery Models for E-Grocery Business, Doctoral

Dissertation, Department of Industrial Engineering

and Management, Helsinki University of Technology,

Finland.

Kallio J., Kemppainen K., Tarkkala M., Tinnilä M., 2000.

New distribution models for electronic grocery stores,

LTT-Research Oy Publications, Helsinki.

Kämäräinen V, Saranen J, Holmström J, 2001. The

reception box impact on home delivery efficiency in

the e-grocery business. International Journal of Retail

& Distribution Management, 31(6): 414 – 426.

Punakivi, M., Saranen, J. 2001. Identifying the success

factors in e-grocery home delivery. International

Journal of Retail & Distribution Management, 29

(4):156-163.

McKinnon A.C., Tallam D. 2003. Unattended delivery to

the home: an assessment of the security implications.

International Journal of Retail & Distribution

Management, 31(1): 30-41.

Kent S. T. 1993. Internet privacy enhanced mail.

Communications of the ACM, 36(8):48-60.

Fang D. 2007. Security Framework of E-Commerce Based

on PKI. Ship Electronic Engineering, 04

Kambourakis G., Rouskas A., Gritzalis S., 2004.

Performance evaluation of public key-based

authentication in future mobile communication

systems, EURASIP Journal on Wireless

Communications and Networking. 1:184-197.

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations
