RESOLVING ARTIFACT DESCRIPTION AMBIGUITIES

DURING SOFTWARE DESIGN USING SEMIOTIC

AGENT MODELLING

Daniel Gross and Eric Yu

Faculty of Information, University of Toronto, 140 St. George Street, Toronto, Canada

Keywords: Semiotic Agents, Software Design, Design Modelling, Software Architecture.

Abstract: For software designers to effectively collaborate, they must share an understanding of how software design

artifacts contribute to the execution of software processes (the artifact’s operational meaning). However,

during design, artifact descriptions often lack sufficient detail to unequivocally establish operational

meaning. This is because during design, artifact descriptions are initially usually first-cut, and are then

successively refined to include additional design details, until the operational meaning of artifacts can be

unequivocally demonstrated. Ensuring shared meaning in larger projects is particularly difficult because of

the plethora of interrelated artifacts designers deal with, and because the design details in descriptions of

different artifacts can vary greatly. In this paper we argue that a semiotic meaning analysis supports

clarifying the operational meaning of artifacts during software design, and can help in identifying whether

and in what way artifact descriptions must be further elaborated. We further argue that clarifying the

operational meaning of artifacts is closely intertwined with design decision-making. Adapting an existing

semiotic agent modelling approach, we propose an approach to capturing the evolving operational meaning

of artifacts during software design and decision processes, and illustrate the approach with examples taken

from a large design project at an insurance company.

1 INTRODUCTION

To collaborate during software system development,

designers must discuss software designs. To support

effective and efficient design discussions, software

designers use specialized terminology and/or

conceptual models (e.g., (Gamma et al., 1995,

Fowler and Scott, 2000)). The assumption is that

these terms and models efficiently and

unequivocally communicate design information

amongst designers, and help prevent

misunderstandings. But does this assumption hold?

Consider the following excerpt from a design

discussion reported by an enterprise architect at an

insurance company. The enterprise architect is

responsible for the overall enterprise architecture of

enterprise systems, whereas a number of designers

are responsible for the design of individual system

components. The enterprise architect asks that a

consumer component designer utilizes an

asynchronous messaging approach to sending

insurance policy data from a consumer to a provider,

while the consumer component designer argues for a

synchronous messaging approach. Consumer,

provider and messaging are terms taken from the

service-oriented architecture (SOA) design style

(Erl, 2007, Josuttis, 2007). Broadly speaking, SOA

is a distributed system design approach, whereby

consumers request, through a messaging

infrastructure, computational services from, usually

remote, service providers (Erl, 2007, Josuttis, 2007).

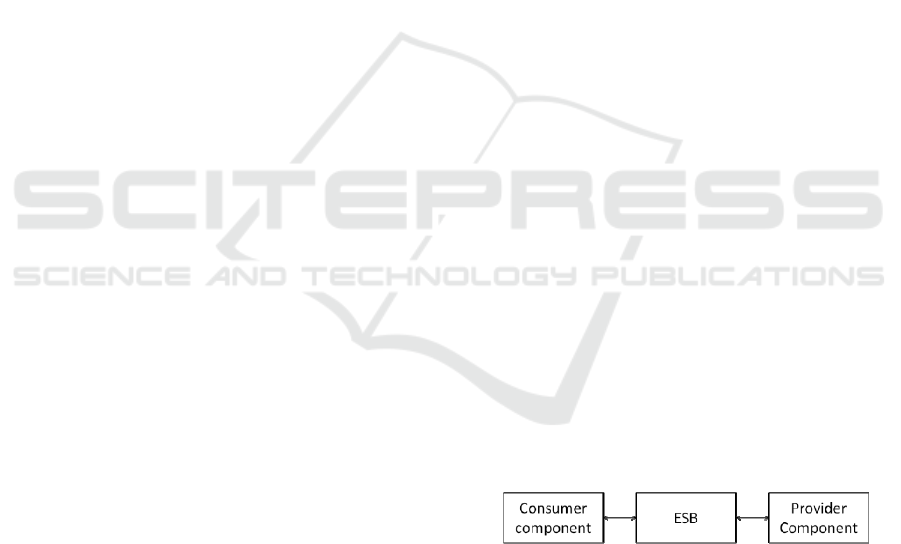

Figure 1: High level service-oriented architecture in

Business Enterprises.

Figure 1 depicts a simplified schematic

illustration of how SOA is usually applied in

business enterprises. The figure shows consumer and

provider components, as well as a messaging

infrastructure component, often called an enterprise

service bus (ESB). Components are shown using

rectangles. The double sided arrows between

components refer to sending and receiving messages

between components. We assume the enterprise

Yu E. and Gross D.

RESOLVING ARTIFACT DESCRIPTION AMBIGUITIES DURING SOFTWARE DESIGN USING SEMIOTIC AGENT MODELLING.

DOI: 10.5220/0003270200770086

In Proceedings of the Twelfth International Conference on Informatics and Semiotics in Organisations (ICISO 2010), page

ISBN: 978-989-8425-26-3

architect and system designers have a good

understanding of these SOA concepts, including

synchronous and asynchronous messaging, before

embarking on this project.

The consumer designer prefers to directly request

a necessary service from a specific provider, and to

deal with an immediate response from the provider.

This results in a synchronous style of messaging.

From the consumer designer point of view, this is

the simplest design which accomplishes the

requirements. The enterprise architect explains that

requesting a service directly from a provider harms

future extensibility of the consumer component. This

is because it limits the consumer to that specific

provider to process its service requests. If, in the

future, other providers need to process the

consumer’s service request, the need would

necessitate changes in the consumer component. The

enterprise architect therefore advocates

asynchronous messaging, which would result in a

loosely coupled design. In contrast the consumer

designer’s approach would be referred to as point-to-

point integration, which results in tight coupling.

Reflecting on this example, we make the

following observations:

(1) The terms “synchronous messaging” and

“asynchronous messaging” compactly refer to the

use of a number of design artifacts, which

respectively implement different approaches for

integrating enterprise systems.

(2) The collective software behaviour of these

artifacts is the intended “operational” meaning that

the enterprise architect implies when using these

terms during the design discussion.

(3) For a system designer to clearly

understand the meaning that the enterprise architect

attributes to these terms there must be agreement on

the operational meaning.

(4) The design discussion between the

enterprise architect and the system designers occurs

at a particular level of abstraction. This influences

the kind and number of artifacts that are chosen

during the discussion that describes operational

meaning.

(5) To achieve effective communication, the

enterprise architect and system designer may need to

understand each other’s design situation,

particularly, the different demands that each of them

faces and these demands may well be in conflict. A

design situation includes objectives, constraints,

solution alternative, artifacts, evaluations, and the

like.

We now review these observations in more

detail, and explain why the use of specialized

terminology and/or notation is usually not sufficient

to support unequivocal understanding among

designers during design discussions.

Consider the first three observations. A

specialized term, such as “synchronous messaging”,

translates in the enterprise architect’s mind into a

number of artifacts that collectively exhibit some

software system behaviour. Usually, such a

translation is not mechanically derivable, but

involves interpretation and decision making. For

example, the enterprise architect explains that during

synchronous messaging the consumer knows and

makes use of the physical address of the provider to

send a service request to the provider. However, as

we will demonstrate, the term synchronous

messaging allows for an alternative operational

meaning, and does not necessarily involve such a

physical point-to-point integration. During the

design discussion the consumer designer may have

this other alternative operational meaning in mind.

Shared operational meaning of the terms

synchronous and asynchronous messaging is thus

problematic.

Consider now the fourth observation – levels of

abstraction. The meaning attributed by the enterprise

architect to the point-to-point integration style

involves artifacts at a particular level of abstraction.

For example, the enterprise architect may have

thought of the address artifact of a second system as

a physical address, such as a static IP address, that

unequivocally identifies a first and a second system

in a network. Alternatively, the enterprise architect

may indeed have considered a logical address

artifact that allows for some routing decisions within

the ESB, thereby “loosening” the operational

meaning of point-to-point integration style, but still

objecting to this approach. Clarifying the level of

abstraction at which a design discussion takes place

is thus crucial for understanding operational

meaning and for clarifying design intents.

Finally, consider the fifth observation. During a

design discussion both the enterprise architect and

the system designers are actively involved in the

design of enterprise systems, but from different

vantage points. The system designer is responsible

for the design and goal achievement of a single

system, while the enterprise architect is responsible

for enterprise-wide goals. This includes also dealing

with single systems, however from a systemic point

of view, such as in relation to other systems. Each

designer therefore comes to the design situation with

different objectives in mind, which can conflict, and

different design intents may lead designers to

interpret design approaches quite differently.

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

In this example, the design intent of the

enterprise architect to avoid a point-to-point

integration style relates to the additional

development effort needed to support a service

request from the consumer to be processed in the

future by additional providers. This intent leads the

enterprise architect to focus on ensuring that the

provider address is not directly known to the

consumer component when sending the service

request message. However, suppose the consumer

designers thinks that a main concern of the

enterprise architect is, instead, to avoid the

(symbolic) inclusion of the provider service

interfaces within the consumer code, since this can

create a costly syntactic and semantic dependence

between a provider and its consumer components,

when the provider’s interface is changed in the

future (interface has a broad meaning, including

knowledge of a messaging protocol between a

consumer and provider, and which can greatly vary

for synchronous messaging). The operational (and

structural) meaning that the consumer designer then

attributes to the point-to-point integration term,

would then focus on artifacts embodying interface

knowledge within the consumer, rather than on a

physical or logical provider address. Knowing each

other’s design demands may thus help clarify what

artifacts and behaviours are involved in the

operational meaning of terms.

The core problem we identify is the need to

clarify what designers mean when they use

specialized terminology during discussions or in

conceptual models, while acknowledging that

meaning is constructed from interpreting the

operational meaning of existing artifacts in the

design space (e.g., consumer, provider, etc.), and

from interpreting operational meaning of new

artifacts the designers envision included in the

design space (e.g., consumers’ and providers’

messaging routines). Searching for an appropriate

theoretical approach to capturing and analyzing

meaning of design artifacts during design leads us to

consider semiotics in general, and the semiotic agent

modelling approach developed by Stamper, Liu and

colleagues for dealing with meaning during

information system requirements and design (Liu,

2000, Stamper, 1973, Stamper, 2006, Stamper et al.,

2003, Liu et al., 2001) in particular. More

specifically, we adopt Stamper’s actualism ontology

that accepts as assumption that knowing depends on

a knowing (semiotic) agent, and that knowledge

depends on the actions afforded by the agents

perception (Stamper, 2006, Michaels and Carello,

1981, Gibson, 1977). We further adopt Stamper’s

ontological dependence schemas which applies these

philosophical notions in the form of a semantic

analysis approach using semiotic agents (Liu, 2000,

Stamper, 2006).

We extend ontological dependence schemas to

software design. We define a new logical

relationship between semiotic agents (a “modifies”

link), that supports defining new agents by

extending existing agents and their ontological

dependence schema; we distinguish between regular

semiotic agents, and symbolic semiotic agents which

refer to “symbol processing” (computational)

artifacts designed by semiotic agents; we specialize

affordances (the “things” and “actions” agents

perceive and do) to distinguish between substantive

(design application domain specific) and symbolic

affordances (such as software operations). Finally,

we support linking ontological dependence schemas

to agent and goal-oriented analysis models that

support capturing and reasoning about intents and

decision making in development organizations

(Gross and Yu, 2001a, Gross and Yu, 2001b, Gross

and Yu, 2010, Yu, 1994a). This last contribution is

however only briefly discussed and not illustrated in

this paper. Note that the term “agent” appears in

semiotic work (semiotic agent) as well in our work

on intentional modelling and analysis in

organizations (intentional agent). These agents have

different meanings and application, and we briefly

discuss these in the discussion section.

The next section illustrates our proposed

approach through a semiotic analysis of the design

discussion between the enterprise architect and the

designer of the software component. Section 3

discusses our approach and related work, while

section 4 concludes and points to future work.

2 SEMIOTIC AGENT MODELING

OF AN ARCHITECTURAL

DECISION

2.1 Semiotic Agent Modelling of Terms

Affordance is a central concept during semiotic

agent modelling. Generally speaking, one “thing” or

concept affords another, if the first helps the second

in some way. For example, an ink pen affords

writing. Gibson elaborates that affordance must be

understood in relation to an agent, or more precisely,

the perceptive capability of the agent (Gibson, 1977,

Michaels and Carello, 1981). It is the writer who can

RESOLVING ARTIFACT DESCRIPTION AMBIGUITIES DURING SOFTWARE DESIGN USING SEMIOTIC

AGENT MODELLING

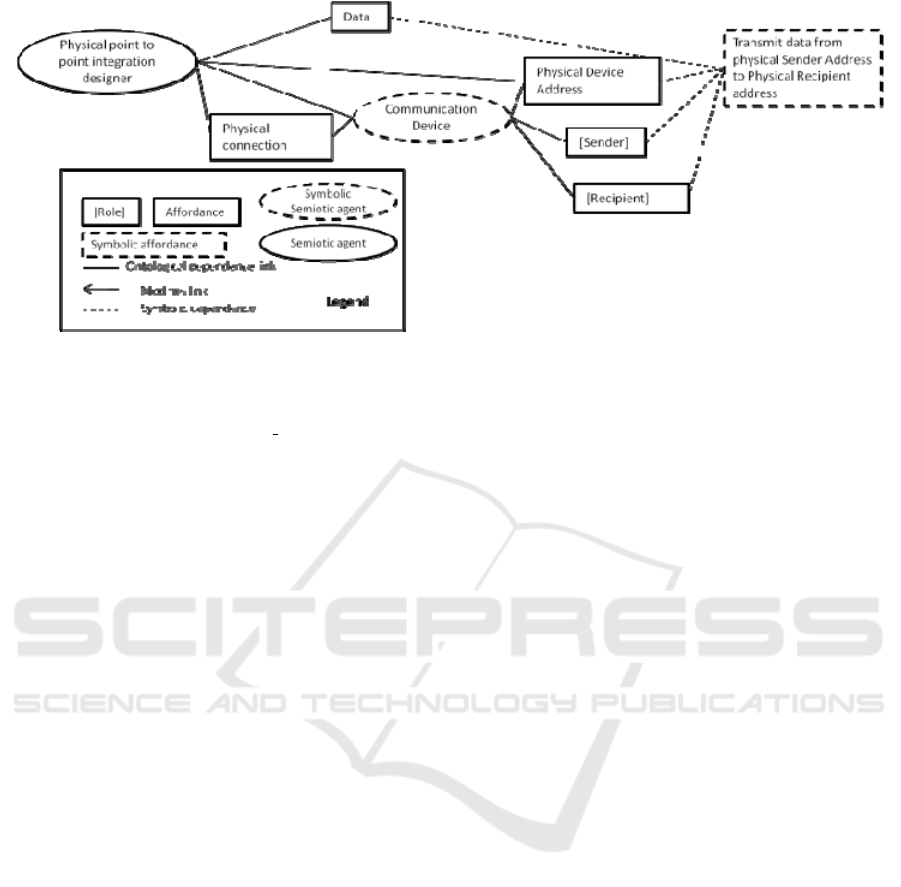

Figure

2: Semiotic analysis of point-to-point integration style.

perceive the affordance, and thus can understand the

meaning of an ink pen for writing.

Stated differently,

the meaning of the concept “ink pen” is operational

(“for writing”), and is a perceived affordance, and its

perceptibility is dependent on the writer’s writing

capability. In short, perceived affordance is

perceived operational meaning. A person who

cannot write, nor has seen writing before, would not

perceive the pen’s affordance for writing, and thus

fail to understand the ink pen’s meaning (that it is

for writing). An agent’s ability to perceive

affordances are “preconditioned” by what the agent

is in principle capable of sensing and doing, and by

learned experiences of past encountered affordances

in the agents living environment. In Gibson’s theory

of affordance, the relationship between environment

and perceptive capacity of an agent is interrelated,

the living environment of an agent affords the

evolution of capabilities in the agent, and the agent’s

evolved capabilities afford perceived affordances in

the environment. According to Gibson, it is possible

that some objects that have no perceivable

affordances to an agent, would not be perceived, and

thus do not exist for that agent.

Stamper’s ontological dependence schema

captures such ontological necessity between

affordances. For instance, that “person stumbling”

can only exist if “person running” or “person

walking” first exists; without these affordances

“stumbling” is not perceivable by person, and hence

does not exist. A semiotic agent analysis of the term

“physical point-to-point integration” attempts to

identify, and capture in the form of an ontological

dependence schema, affordances that are necessary

for a software system designer to perceive actions or

operations relevant to “physical point-to-point

integration”, such as the physical point-to-point

transmission of data, and the designing of a

physically point-to-point integrated consumer

component. Note, that we distinguish between

“action” directly performed by the agent and

“operation” performed by a software system.

In our proposed approach a semiotic agent

indicates a design capability and perceptive vantage

point of a designer. For example, by naming a

semiotic agent “Physical point-to-point integration

designer” we indicate a designer’s capability of

perceiving all affordances necessary for defining or

performing any or all actions or operations afforded

by a physical point-to-point integration. The name of

a semiotic agent captures a modelling intent to

explore and delineate the name’s meaning, by

identifying the indicated affordances. For instance,

the adjective “physical” in the above semiotic

agent’s name focuses the meaning analysis to

physical affordances, while limiting the scope of the

analysis to exclude the capability of perceiving a

“logical point address”, and anything this concept

affords, which is left for a different semiotic agent to

perceive.

In our proposed approach semiotic agents are

therefore a structuring mechanism for software

system design terminology in terms of afforded

design capabilities and actions, which parallels how

design responsibilities are identified and allocated

amongst designers in development organizations.

2.2 Semiotic Agent Analysis of

Point-to-point Integration

Figure 2 illustrates the result of a semiotic agent

analysis of physical point-to-point integration. The

semiotic agent model is read from left to right.

Elements more to the left afford elements more to

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

the right. Elements are linked via ontological

dependence links. Captured on the far left using a

solid ellipse is the semiotic agent “Physical point-to-

point integration designer”. The semiotic agent

represents a human designer who is capable of

designing a physical point-to-point integration. The

agent is therefore capable of perceiving the

affordances for any or all automated operations as

well as relevant designer actions applicable to a

physical point-to-point integration.

Figure 2 illustrates one key operation: “Transmit

data from a physical Sender address to a Physical

Recipient address”. This automated operation is

captured on the far right using a dashed rectangle

indicating a symbolic affordance -- a software

operation. Since it’s a symbolic operation, it refers

to its dependee affordances using symbols; therefore

the affordances it directly depends on are linked via

symbolic ontological dependence links (dotted

lines). Note that as a result of semiotic analysis the

label of this operation is more precise than the one

we used before (“physical point-to-point

transmission of data”), including additional terms

derived from its preceding affordances.

“Data” and “Physical connection” are

affordances (captured as sold rectangles) that help

define the automated operation. Figure 2 further

shows that a “Physical connection” affords the

“Communication device”. The “Communication

device” is from the perspective of the semiotic agent

perceived as a symbolic semiotic agent – an agent

that performs automated symbolic operations. In

other words it’s a computational device that

processes software code. The symbolic nature of this

agent is indicated by an ellipse with dashed lines.

Having a “communication device” affords a

“Sender” and a “Receiver” role for the

Communication Device, as well as a “Physical

Device Address.”

The ontological dependence schema in figure 2

indicates that all these affordances are necessary for

defining the “Transmit data from a physical sender

address to a physical recipient address” operation.

Removing any affordance included in the schema

should make defining the operations impossible. If

this is not the case, then the semantic agent schema

is incorrect and needs to be revised.

2.3 A Fuller Semiotic Agent Analysis of

Discussed Terms

In the introduction we mentioned the Enterprise

Architect’s preference for asynchronous messaging,

because it involves loose coupling and avoids point-

to-point integration, while the consumer component

designer prefers synchronous messaging, since

point-to-point integration has some properties of

advantage to him (e.g. simplicity). In this section we

present a fuller semiotic agent analysis of these

terms, and illustrate that the exact operational

meaning of synchronous and asynchronous

messaging is in fact independent of the operation

meaning of point-to-point or loosely coupled

integration.

This analysis reveals that the architect and the

consumer designer seem to conflate “orthogonal”

operational meanings when discussing synchronous

and asynchronous messaging in terms of point-to-

point and loosely coupled integration. It is, for

instance, possible to transmit messages

asynchronously and point-to-point, and it is possible

to offer loose coupling and synchronous messaging.

Conflating operational meaning may involve

implicit, and unintended, design decision making.

Semiotic agent modelling helps ensure that such

conflations and related decisions are made visible

and amendable to analysis, and not made

unintentionally, which in turn helps avoid

misunderstandings.

Figure 3 shows how ontological dependencies of

“higher level” terms, are selectively composed from

ontological dependence schemas of “lower level”

terms. For example, to construct the operational

meaning for the higher level term “Logical loosely

coupled integration”, we define and link the semiotic

agent “Logical loosely coupled integration

designer”, via a “modifies link” to the lower level

“Physical point-to-point integration designer” agent,

we defined earlier. This indicates that everything the

Physical point-to-point integration designer

perceives is also perceived by a Logical loosely

coupled integration designer. The Logical loosely

coupled integration designer however perceives

more, and can perceive affordances relevant to a

logical integration, such as, to perceive the notion of

a “Logical device address”. The “Logical device

address”, together with the “Sender” and “Receiver”

roles (of the Communication device), affords

defining the operation “Transmit data from logical

sender address to logical recipient address” and

“Translate logical device address to one or more

physical device addresses” (the latter is afforded by

including the “Physical device address” affordance

also). Without specifically restricting the meaning of

the logical device address (by placing it in context of

additional gents and affordances), it can be

interpreted quite generally, allowing for different

kinds of loose coupling. Figure 3 further illustrates

RESOLVING ARTIFACT DESCRIPTION AMBIGUITIES DURING SOFTWARE DESIGN USING SEMIOTIC

AGENT MODELLING

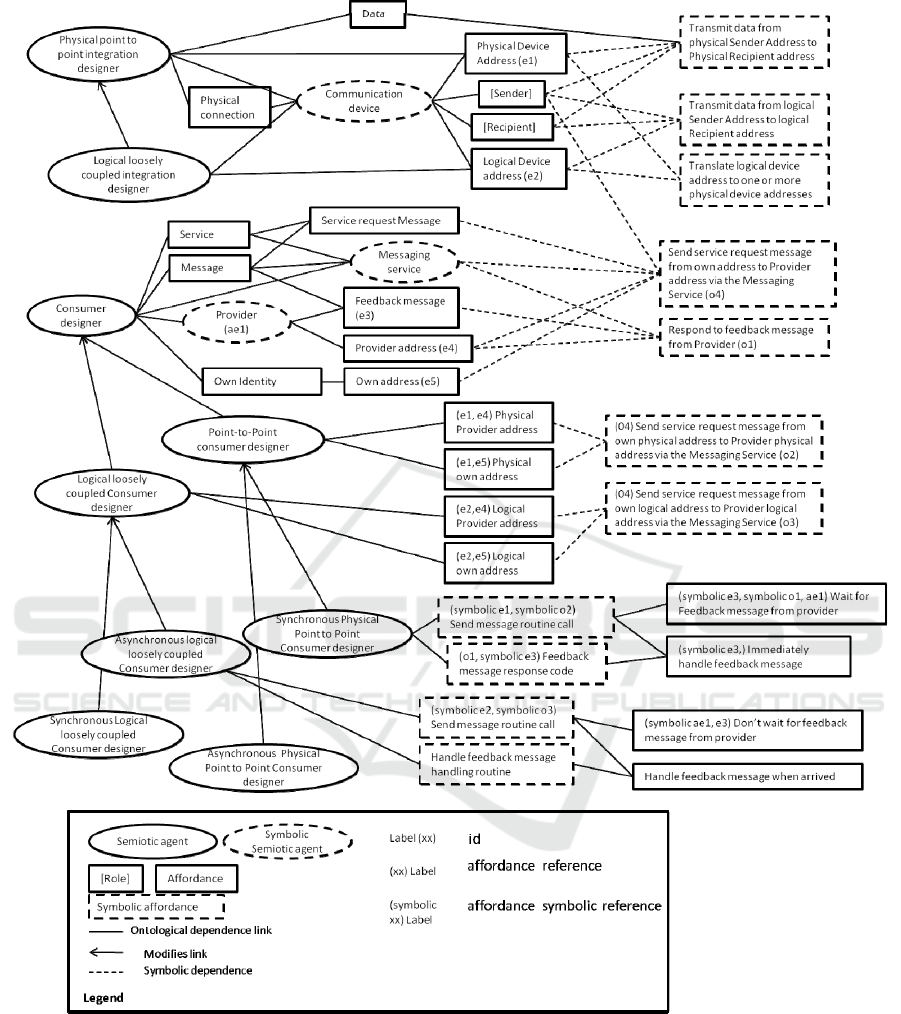

Figure 3: Fuller semiotic agent analysis.

the ontological dependences for the SOA term

“Consumer”. The “Consumer designer” agent

perceives “Service”, “Message”, “Provider”, and

“Own identity”. Selections of these in turn afford

perceiving “Service request message”, “Messaging

service”, “Feedback message”, “Provider address”

and “own address”. Finally, with these affordances

defined the operations “Send service request

message from own address to provider address via

the Messaging Service” and “Respond to feedback

message from Provider” are defined. Note that to

reduce link clutter in the diagram, we capture some

ontological dependence links by a simple

identification and referencing scheme. A bracketed

identifier, such as (e1), appended to a label uniquely

identifies a model elements, while a bracketed

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

identifier prefixed to a label indicates an ontological

dependence link on the element referenced. For

example, the affordance “Logical Device address

(e2)” is uniquely identified by the identifier “e2”.

The affordance “(e2, e4) Logical Provider address”

indicates that the logical provider address is

ontologically dependent on “Logical device address

(e2)”, and “Logical provider address (e4)”.

Including “symbol” in a prefixed bracketed

identifier indicates a symbolic ontological

dependence link.

After defining the semiotic agents and respective

ontological dependence schema for “physical point-

to-point integration”, “Logical loosely coupled

integration designer”, and “consumer”, we construct

higher level semiotic agents. The “Physical point-to-

point Consumer designer” agent is a modification of

the “Consumer designer” agent, and defines the

terms “Physical Provider address”, “Physical own

address” and the operation “Send service request

message from own physical address to Provider

physical address via the Messaging service”. We

similarly define the “Logical loosely coupled

consumer designer” agent.

Stepping up another level we modify these

agents to define two synchronous and two

asynchronous messaging related semiotic agents, the

synchronous physical point-to-point consumer

designer, the asynchronous physical point-to-point

consumer designer, and synchronous logical loosely

coupled consumer designer and finally, the

asynchronous logical loosely coupled consumer

designer. The ontological dependence schema for

synchronous messaging indicates that with respect to

the consumer designer, synchronous messaging is

defined by a designer action (captured by a solid

rectangle) embodied in the manner software code is

strung together so that when executed the consumer

waits for a feedback message from the provider, and

then immediate handles the feedback message.

A careful analysis of the ontological

dependences of these designer actions indicates that

they are afforded by any consumer agent (and

selected consumer’s affordances), including all

agents that modify the consumer agent (the

modification link, acts with this respect like an ISA

relationship in object-oriented analysis (Fowler and

Scott, 2000)). Synchronousity is thus applicable to

Physical point-to-point consumer designers and to

logical loosely coupled consumer designers. This is

also the case for Asynchronousity. To establish this,

we trace back the affordances of the designer action

and note the semiotic agents whose affordances are

required. We also perform a “factoring” analysis, a

type of analysis afforded by the “modifies”

relationship we introduced, to identify for some

affordances lower level affordances that can be

“factored out”, to leave only higher level affordance

in the ontological dependence chain.

For example, tracing back from the “Wait for

feedback message from provider” designer action of

the “Synchronous Physical Point-to-point Consumer

designer” agent, we find that it is afforded by

“Feedback Message”, “Response to feedback

message from Provider”, “Provider”, “Feedback

message response code”, “Send message routine

call”, “Send service request message from own

physical address to Provider physical address via the

Messaging Service”, “Message”, “Service”,

“Physical Provider address”, “Physical own

address”, “Provider address”, “Own address “,

“Physical Device Address”, “Communication

Device” and “Physical Connection”.

If we trace back from the “Don’t wait for

feedback message from provider” we find that

affordances found differ only with respect to the

following alternatives: “Logical Provider Address”

vs. “Physical Provider Address” and “Logical own

address” vs. “Physical own address”. If these

different preceding affordances are not relevant with

respect to the affordances factoring analyzed (the

wait and not wait for feedback message from

provider operation), then the differences can be

factored out and subsumed into a relevant higher

level affordance such as “Provider Address” and

“Own address”, which then also removes all lower

level dependent affordances. This leaves a common

higher level “thread” of dependent affordances,

which in our case, are link to the consumer designer

semiotic agent only. Factoring analysis also helps in

identifying restructuring opportunities of agent

models to making them more concise by

introducing, moving, redefining and and/or relinking

affordances.

The semiotic agent model in figure 3 therefore

reveals that whether a consumer is involved in a

direct point-to-point integration and uses a provider

physical address, or whether it is loosely coupled

using a logical or symbolic address, has no bearing

on the operational meaning of synchronous and

asynchronous messaging. Equipped with such a

semiotic agent analysis, architects and designers can

clarify what exact operational meaning they have in

mind during design discussion, and make explicit

what level of abstraction they assume

unproblematic, which facilitates architectural design

and reasoning, and helps avoid misunderstandings

and unintended design decisions.

RESOLVING ARTIFACT DESCRIPTION AMBIGUITIES DURING SOFTWARE DESIGN USING SEMIOTIC

AGENT MODELLING

3 DISCUSSION AND RELATED

WORK

Misunderstandings and ensuing decision errors

during architectural design carry a cost. While it is

difficult to provide an empirical answer to what the

cost is, mainly due to the difficulty in collecting

relevant data in industry to study these costs

(Westland, 2002), there is empirical research

available that does provide some indications.

Westland for instance found that errors that require

significant system redesign generate significant

costs, and that unresolved errors become

exponentially more costly with each phase in which

they are left unresolved (Westland, 2002). It is

therefore clear that architectural design errors can

become very costly. They do require significant

system redesign to correct, and do occur at early

phases during software development. It thus appears

justified to perform a semiotic analysis during

architectural design to reduce misunderstandings

amongst designers and developers.

A key question, however, during semiotic agent

analysis is how much analysis to perform. How

many levels of semiotic agents to explore and how

fine grained to develop the affordance dependence

structures. Ultimately, we believe that the answer to

these questions is subjective, and it is up-to the

designers involved in semiotic agent analysis to

decide when they feel operational meaning has

sufficiently been clarified. However, the semiotic

agent concept provides a useful focal point to guide

designers, while making these subjective decisions.

Using semiotic agents the question “how much

semiotic analysis” is transformed to the question: to

what extent to rely on the experience and know-how

of a designer (captured as a semiotic agent) to

interpret the meaning of terms, and whether it

matters that the agent may invoke different

interpretations.

For example, in figure 3 the “Consumer

designer” agent perceives a “Service” affordance.

However, what is the exact meaning of a “Service”?

We have chosen not to analyze that further, and rely

on the consumer designer’s knowledge and skills to

interpret the meaning for us. This choice is further

strengthened by our judgment that with respect to

analyzing the operational meaning of synchronous

and asynchronous messaging, the exact operational

meaning of a “Service” is inconsequential. It is of

course possible that our judgment is incorrect,

however, semiotic analysis affords these kinds of

judgment questions and guides when and for what

agents and terms to ask them.

Stamper suggests constructing dependence

schemas using strict rules, such as that every

affordance, apart from the root, depends for its

existence on at most two antecedent affordances

(Stamper and Ades, 2004). A schema complying

with these rules is called in canonical form, which,

based on empirical observations, helps expose errors

and reduce semantic confusion. The diagrams in this

paper are not in canonical form. As we gain more

experience with this notation the utility of the

canonical form will also become better understood.

The proposed approach should be seen as

complementing other design approaches. For

example to support terminology use during UML

modelling and analysis (Fowler and Scott, 2000).

Future work will also look at integrating this

approach with an architectural design reasoning and

analysis approach (Gross and Yu, 2010).

Besides operational meaning we also distinguish

between the structural and intentional meaning of

artifacts. Structural meaning relates to a physical or

conceptual structure an artifact contributes to. For

example, a “Service” offered by a provider affords a

“Service Interface”, which is a structuring concept in

software architecture, and which is, in turn,

symbolically referred to by a consumer. The

enterprise architect could have the distribution of the

providers interface structure to consumer

components in mind when discussing point-to-point

integration. However, ultimately, every structural

meaning leads to operational meaning, such as

“what does a service interface, or symbolic reference

to an interface afford to do?” The structural meaning

of an artifact may be a convenient intermediate

concept when capturing artifact meaning.

The intentional meaning of an artifact refers to a

higher level purpose of the artifact’s operational and

structural meaning. For instance, intentionally,

asynchronous messaging affords systems that are

scalable and easier to extend. Scalability and ease of

extension are the intentions that justify the decision

to adopt asynchronous messaging. Ultimately,

however, also intentional meaning leads to designer

actions. The intentional meaning of an artifact offers

a bridge between the semiotic agent work and our

prior work on intentional agents and decision

making (Yu, 1994b, Gross and Yu, 2010).

For example, the semiotic analysis in figure 3

illustrates the operational meaning of synchronous

and asynchronous messaging and shows that either

one is possible when adopting point-to-point

integration or more loosely coupled integrations.

However, which of these should, say, a consumer

designer choose, and how should a consumer

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

designer justify his/her choice. These questions lead

us to the intentional meaning of artifacts, and

intentional modelling and analysis of the artifact in

terms of intentional agents in organizations (Yu,

1994b, Gross and Yu, 2010). The exact relationship

between intentional agents, who reason about design

intents and decision making, and semiotic agents,

who perceive operational meaning, needs more

research.

As outlined in the preface, the contribution of

this work is in applying and extending Stamper and

Liu’s approach to modelling and specifying meaning

during information system development. Little work

was done in applying semiotic agent modelling to

architectural design. Luo and Liu applied semiotic

agent analysis for Information Systems Architecture

Design (Luo and Liu, 2009). Their work focuses on

using semiotic agents to capturing organizational

requirements in preparation for architectural design,

rather than offering an approach for a semiotic

analyze of architecture artifacts.

Nobel et. al. present a semiotic analysis of object

oriented design patterns (Nobel et al., 2006). While

their work specifically deals with design patterns,

which are artifacts relevant to architectural design,

their work uses a more general semiotic framework

based on Saussure’s binary model of a sign, and

Peirce three part relationship. While these allows

deriving useful insights into the meaning and

relationships amongst design patterns, the analysis is

too coarse-grained to provide insights into the

operational meaning of design patterns, and artifacts

comprising patterns. Our work, which uses an

extended version of Stamper’s semiotic agent

analysis as its underlying analysis framework, offers

finer grained analysis of the operational meaning of

artifacts.

Berry et. al. have studied ambiguity in natural

language requirements (Berry et al., 2003).

However, while enumerating many didactic

examples of ambiguity, and providing informal

writing guidelines how to reduce ambiguity during

requirements drafting, no analysis method is offered

to help clarify meaning to avoid ambiguity.

4 CONCLUSIONS AND FUTURE

WORK

In this paper we offered a semiotic agent modelling

approach to dealing with ambiguity during

architectural design. The proposed approach extends

Stamper’s and Liu’s work on Semiotic agents and

ontological dependence schema’s to apply to

software design. The proposed approach uses the

notion of affordance to helps clarify the operational

meaning of technical design vocabulary used during

free form discussion, captured in documents or

included in conceptual models.

Future work will focus on further integrating the

semiotic modelling approach into our work on

representing, capturing and analyzing designers and

stakeholder’s intents and decision making in

development organizations. Such integration

promises advantages for semiotic analysis, in that it

makes decision making during operational meaning

construction visible and amendable to intentional

analysis, and it promises advantages to the

modelling and analysis of decision making processes

in organizations, in that it helps clarify the

terminology used and referred to in intentional

models. Future work will also focus on further

exploring the semantic of the “modifies” link

between semiotic agents, and in particular, how to

support “polymorphic” affordance definitions that

selectively override respective affordances in the

“parent” semiotic agent, which supports simplifying

agent models.

Finally, since new terminology is introduced as

design unfolds, the relationship between semiotic

agent creation, to capture meaning of evolving and

new terminology, and responsibility creation and

assignment during intentional agent modelling needs

to be further explored.

Another line of future work is the inclusion of

norm analysis and a denotational language to capture

architectural rules and guidelines that architects

specify in development organizations. Perhaps some

activities such as “Wait for feedback from provider”

in figure 3 are better captured as norms rather than

affordances. Also, a request such as “use

asynchronous messaging” may be captured using

norms defined over an ontological dependence

schema. This future work would also focus on how

to incorporate norms into intention agent modelling

and analysis.

Finally, future work will also focus on modelling

and analysis tools to support designers in capturing,

reusing, applying, presenting, analysing and

disseminating semiotic agent models during

architectural design and change.

RESOLVING ARTIFACT DESCRIPTION AMBIGUITIES DURING SOFTWARE DESIGN USING SEMIOTIC

AGENT MODELLING

REFERENCES

Berry, D., Kamsties, E. & Kriekger, M. (2003). From

Contract Drafting to Software Specification:

Linguistic Sources of Ambiguity. School of Computer

Science, University of Waterloo.

Erl, T. (2007). SOA Principles of Service Design (The

Prentice Hall Service-Oriented Computing Series from

Thomas Erl).

Fowler, M. & Scott, K. (2000). UML distilled: a brief

guide to the standard object modeling language,

Reading, Mass., Addison Wesley.

Gamma, E., Helm, R., Johnson, R. & Vlissides, J. (1995).

Design patterns: elements of reusable object-oriented

software, Reading: Mass., Addison-Wesley.

Gibson, J. J. (1977). The Theory of Affordances. IN

SHAW, R. E. & BRANSFORD, J. (Eds.) Perceiving,

Acting, and Knowing. Hillsdale, N.J., Lawrence

Erlbaum Associates.

Gross, D. & Yu, E. (2001a). Evolving System

Architecture to Meet Changing Business Goals: An

Agent and Goal-Oriented Approach. Proceedings of

the Fifth IEEE International Symposium on

Requirements Engineering. IEEE Computer Society.

Gross, D. & Yu, E. (2001b). From Non-Functional

Requirements To Design Through Patterns.

Requirements Engineering, 6, 18-36.

Gross, D. & Yu, E. (2010). Supporting the evolution of

software architectures in development organizations

using intentional agents. Fourth International i*

Workshop - istar 2010.

Josuttis, N. M. (2007). SOA in Practice - The Art of

Distributed System Design, O'Reilly.

Liu, K. (2000). Semiotics in Information Systems

Engineering, Cambridge University Press.

Liu, K., Sun, L., Dix, A. & Narasipuram, M. (2001).

Norm-based agency for designing collaborative

information systems. Information Systems Journal, 11,

229-247.

Luo, A. & Liu, K. (2009). Using Organizational Semiotics

Methods for Information Systems Architecture

Design. The 11th International Conference on

Informatics and Semiotics in Organizations. Beijing,

China.

Michaels, C. F. & Carello, C. (1981). Direct Perception,

Englewood Cliffs, New Jersey 07632, Prentice-Hall,

Inc.

Nobel, J., Biddle, R. & Tempero, E. (2006). Patterns as

Signs: A Semiotics of Object-Oriented Design

Patterns. An International Journal on Communication,

Information Technology and Work, 2, 3-40.

Stamper, R. (1973). Information in Business and

Administrative Systems, Oxford, Blackwell.

Stamper, R. (2006). Exploring the semantics of

communication acts. Proceedings of the tenth

international conference on the language action

perspective. Kiruna: Linköping University.

Stamper, R. & Ades, Y. (2004). Semantic Normal Form

and System Quality. Proceedings IEEE Conference on

Requirements Engineering, Kyoto.

Stamper, R., Liu, K., Sun, L., Tan, S., Shah, H., Sharp, B.

& Dong, D. (2003). Semiotic Methods for Enterprise

Design and IT Applications. Staffordshire University,

Reading University.

Westland, J. C. (2002). The cost of errors in software

development: evidence from industry. The Journal of

Systems and Software, 62, 1-9.

Yu, E. (1994a). Modeling Strategic Relationships for

Process Re-Engineering. Department of Computer

Science. University of Toronto.

Yu, E. (1994b). Understanding "Why" in Software Process

Modelling, Analysis, and Design. Proceedings of 16th

International Conference on Software Engineering.

IEEE Computer Society Press.

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations
