ELECTRICAL RELIABILITY OF Cu/Sn MICRO-BUMP IN

WAFER LEVEL PACKAGING FOR BioMEMS DEVICES

Myeong-Hyeok Jeong, Jae-Won Kim, Byung-Hyun Kwak, Young-Bae Park

School of Materials Science & Engineering, Andong National University, Andong, 760-749, Korea

Byoung-Joon Kim, Young-Chang Joo

Department of Materials Science & Engineering, Seoul National University, Seoul, 151-744, Korea

Keywords: Cu/Sn micro-bump, Electromigration, Wafer Level Packaging, BioMEMS Devices.

Abstract: The electrical reliability of Cu/Sn micro-bump in wafer level packaging for advanced BioMEMS devices

applications were systematically investigated during current stressing condition. After bump bonding,

and

intermetallic phases were observed, and Cu

Sn formed and grew at Cu pillar/Cu

interface with increasing annealing and current stressing time. The kinetics of intermetallic compound

growth changed when all Sn in Cu/Sn micro-bump was exhausted. The complete consumption time of Sn

phase in electromigration condition was faster than that in annealing condition. Under current stressing

condition, intermetallic compound growth was significantly enhanced by current stressing where the growth

rate follows a linear relationship with stressing time.

1 INTRODUCTION

Through-Si-via technology using flip-chip solder

bump has recently been investigated in high

performance wafer level packaging for advanced

BioMEMS device packaging (Chiang, Lee, Lee, and

Chen, 2006). This technology assists in the

achievement of high performance and

miniaturization because the chip and the substrate

are directly connected to solder bumps. As the

integration of devices increased, the size of solder

bump in wafer level packaging became smaller with

fine pitch. And increase of current density due to

miniaturization of solder bump size with fine pitch

causes serious reliability issues of wafer level

packaging for advanced BioMEMS applications.

The solder bumps become spherical to minimize the

surface energy during reflow process (Rao, Tay,

Kripseph, Lim, and Yoon, 2004). Bump bridging is

caused by the shape of solder in miniaturized

electronics. It is limited to applications with a fine

pitch below 100 um. Therefore, a new shape for the

bump structure is necessary to address this limitation.

Cu/Sn micro-bumps are known to be one of the most

promising candidates for the fine pitch

interconnection materials in wafer level packaging

because they do not cause bump bridging between

adjacent bumps and uniform current distribution

(Son, Jung, Park, and Paik, 2008). Electrical

reliability issues can also be solved with this

structure because Cu pillars have superior electric

conductivity. At the interface between Cu and solder,

Cu6Sn5 and Cu3Sn are formed by the reaction of Cu

and Sn, and Kirkendall void is grown (Tu, Mayer,

Feldman, 1992). Additionally, the high

concentration of Sn in Pb-free solder induces more

excessive growth of intermetallic compounds

(IMCs) than eutectic SnPb solder (Lee, Zhang,

Wong, Tan, and Hadikusuma, 2006). IMCs growth

and Kirkendall void formation are important

reliability issues of wafer level packaging for

advanced BioMEMS devices because IMCs is brittle

and has higher resistivity than solder or Cu, which

results from the difference in the intrinsic

diffusivities of Cu and Sn, in solder joints severely

deteriorate the mechanical strength of the joints. The

mechanical reliability of solder joints is sensitive to

the solder reaction and the microstructure of the

solder. Therefore, to ensure the bonding reliability of

wafer level packaging for advanced BioMEMS

devices, a deep understanding of the IMC growth

between Cu and solder is necessary. Many

researchers have studied IMCs formation and the

growth between Cu and solder in solder bumps and

thin film structures (Chao, Chae, Zhang, Lu, Im, and

Ho, 2007); but the IMCs growth behaviours in

311

Jeong M., Kim J., Kwak B., Park Y., Kim B. and Joo Y..

ELECTRICAL RELIABILITY OF Cu/Sn MICRO-BUMP IN WAFER LEVEL PACKAGING FOR BioMEMS DEVICES.

DOI: 10.5220/0003122603110314

In Proceedings of the International Conference on Biomedical Electronics and Devices (BIODEVICES-2011), pages 311-314

ISBN: 978-989-8425-37-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Cu/Sn micro-bumps have not been studied

systematically. Moreover, under electric current

stressing, the IMCs growth is accelerated by the

influence of by the electron wind force (Tu, Mayer,

and Feldman, 1992, Lee, Zhang, Wong, Tan, and

Hadikusuma, 2006, Chao, Chae, Zhang, Lu, Im, and

Ho, 2007). Because the current density of Cu/Sn

micro-bump is high due to its small size, it is

important to understand this behaviour. In this paper,

the IMCs growth behaviours in Cu/Sn micro-bumps

during simple annealing and under current stress

condition was studied systematically using in-situ

scanning electron microscope (SEM) observations.

IMC growth behaviour of the same sample could be

observed in detail by in-situ method which enables

us to observe IMCs growth as a function of time in

Cu/Sn micro-bumps.

2 EXPERIMENT

The schematic and SEM image of the Cu/Sn micro-

bump were shown in Fig. 1. The pad on the Si chip

was sputtered with a 2-μm-thick Al film. An Al line

provided the electrical path on the Si chip side. A Cu

pillar and pure Sn were formed with thicknesses of

40 μm and 1 μm, respectively, on the Al pad using

an electroplating process. The thickness and

diameter of the Cu/Sn micro-bump were 40 μm and

80 μm, respectively. Pure Sn solders at both the chip

and chip were directly interconnected during the

bonding process. The bonding was followed by a

reflow process with the peak reflow temperature

fixed at 280℃. The bonding time and load were 7 s

and 35 N, respectively. Just after bonding, all

samples have similar Sn thicknesses between 1.5 μm

and 2 μm. The samples were cross-sectioned with

sandpaper after the reflow. To investigate the

interfacial microstructure evolution and IMC growth

in Cu/Sn micro-bump, in-situ annealing tests were

performed via SEM at temperatures of 125℃. And,

electromigration test from effect of temperature

during current stressing were performed condition

with current density of 3.6×10

A/cm

at 125℃. The

temperature of the sample was kept at 125℃ by

attaching thermo-couple on Si chip. IMC growth

was observed at every 20~40 hours. IMC growths at

applying various current densities were observed by

in-situ as well. The evolution of each interfacial

microstructure and the IMC growth of Cu/Sn micro-

bumps were analyzed using SEM in back-scattered

electron (BSE) mode and energy-dispersive x-ray

spectroscopy (EDS). IMC thickness was measured

from the IMC layers at both the chip and substrate

sides. The Cu-Sn IMC thickness was quantified with

an image analyzer where the IMC thickness was

defined by dividing the area of the IMC by the

interface length.

(a)

(b)

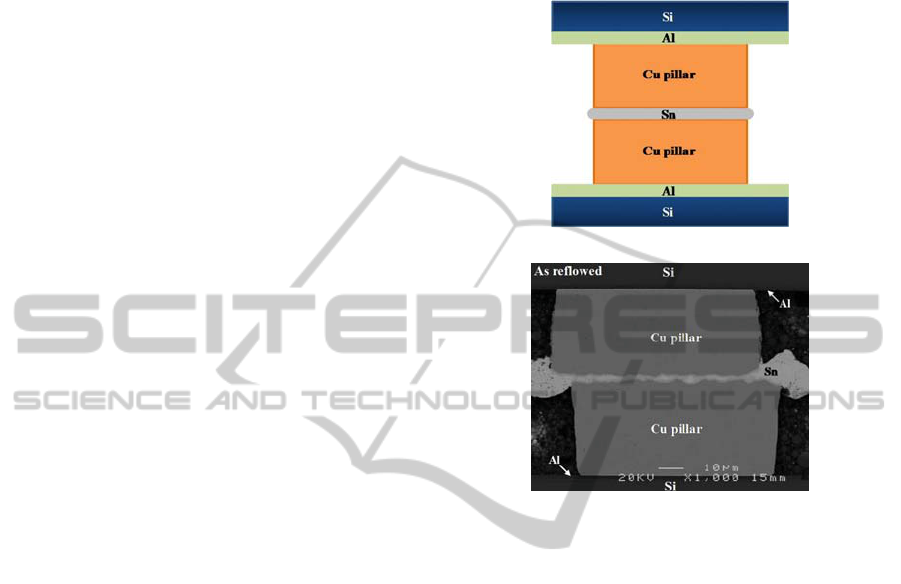

Figure 1: (a) Schematic diagram and (b) SEM image of

Cu/Sn micro-bump structure.

3 RESULTS AND DISCUSSION

3.1 Interfacial Reaction Characteristics

during Annealing

To observe the evolution of the interfacial

microstructure and the growth of Cu-Sn IMCs on

Cu/Sn micro-bumps with annealing temperature and

time, BSE images were taken of cross-sectioned

Cu/Sn micro-bump annealed at 125℃, as shown in

Fig. 2. The SEM and EDS results suggest that only

was observed at the Cu pillar/Sn interfaces,

and micro-voids exist in the Sn phase after reflow.

The micro-voids seem to originate from the flip-chip

bonding process, and they arise from the defects in

the samples. Kirkendall voids were observed at the

Cu pillar/Cu

Sn interface as well as within the

Sn layer. It has been reported that the Kirkendall

void formation mechanism is ascribed to the

different diffusivities of Cu and Sn (Tu, Mayer, and

Feldman, 1992).

Sn formed and grew at the Cu

pillar/Cu

interface with increasing annealing

BIODEVICES 2011 - International Conference on Biomedical Electronics and Devices

312

time. It has been reported that the Cu

and Cu

phases are generally formed at the Cu/Sn interface

during the reaction between Cu and Sn. Cu

Sn layer

on both interfaces have grown up with the similar

thicknesses. The Sn phase was not observed at the

Cu/Sn micro-bump interface after 60 h at 125. Fig. 3

shows the thickness of the IMCs as a function of the

square root of the annealing time at 125°C. The

growth of the IMC followed a linear relationship

with the square root of the annealing time. This

implies that the growth of the total IMC was

controlled by a diffusion mechanism. To understand

the variation of IMC growth slopes at 125℃, the

IMC thicknesses of the Cu

and Cu

Sn phases as

a function of the square root of the annealing time at

125℃. The Cu

and Cu

Sn phases linearly

increased together before 60 h at 125℃, and then the

phase rapidly decreased from initial at 125°C.

The Cu

Sn growth rate was also faster than the

growth rate compared with the Cu-Sn

reaction system of a conventional solder bump

structure, which is a Cu-limited system. This seems

to arise from the Cu/Sn micro-bump structure, which

is a Sn-limited system.

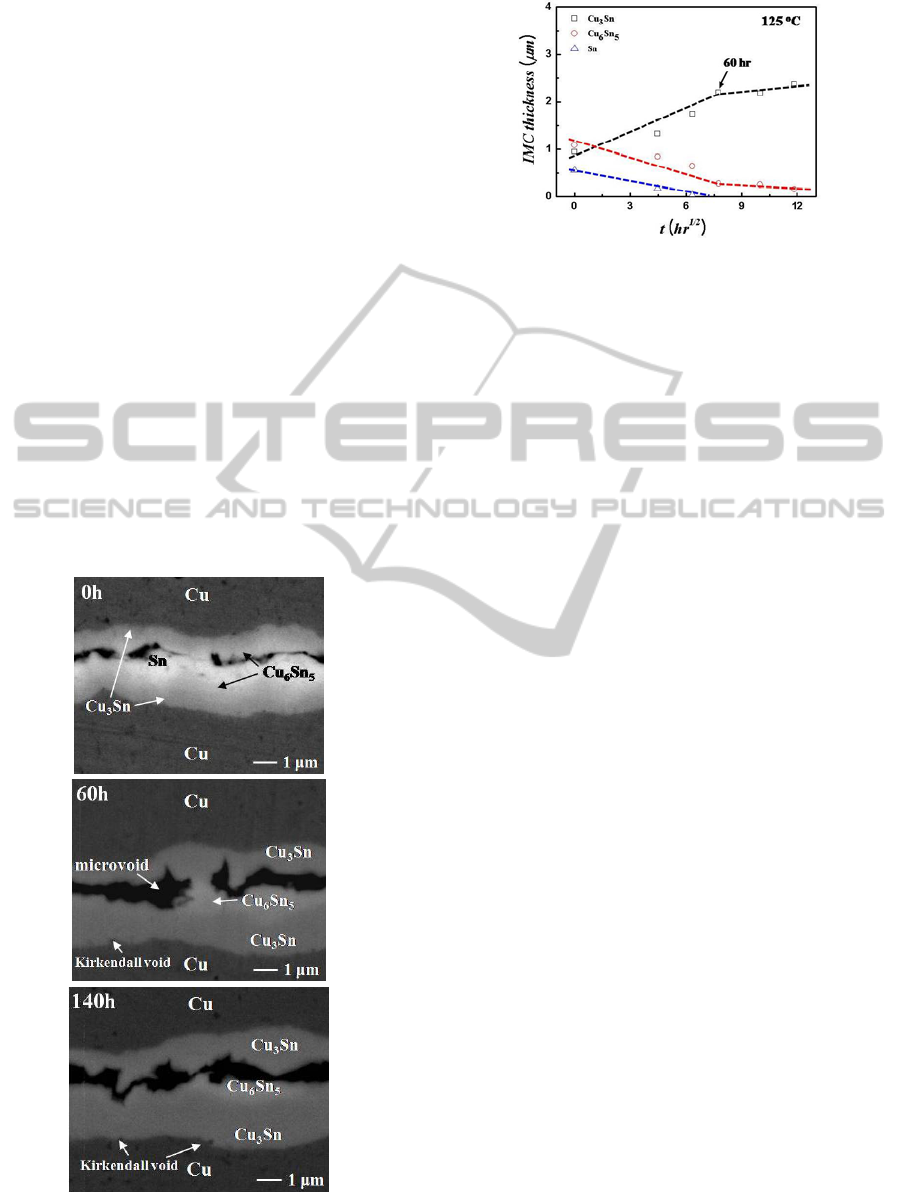

Figure 2: BSE micrographs of the enlarged cross-

sectioned Cu/Sn micro-bump during annealing at 125°C.

Figure 3: Intermetallic compound layer thickness with

annealing time at 125°C.

3.2 Interfacial Reaction Characteristics

during Electric Current Stressing

Electromigration test was performed with current

density of 3.6×10

A/cm

at 125℃. In order to

obtain the growth kinetics of IMCs in Cu/Sn micro-

bump, in-situ BSE images were taken from cross-

sectioned Cu/Sn micro-bump during current

stressing as shown in Fig. 4. The microstructural

observation results suggest that only Cu

was

observed at the Cu pillar/Sn interfaces and a few

micro-voids exist in the Sn phase just after reflow.

During current stressing, Cu

Sn phase grows at

Cu/Cu

interfaces and pure Sn phase disappears

after 40 h where the electron wind force seems to

enhance the IMC formation reaction between Cu and

Sn (Lee, Zhang, Wong, Tan, and Hadikusuma, 2006,

Chao, Chae, Zhang, Lu, Im, and Ho, 2007). Higher

temperature enhances the interfacial reaction which

leads to earlier consumption of pure Sn phase.

Therefore, the temperature as well as the electric

current accelerates the IMC reaction rate between

Cu and Sn. Figure 5 shows the IMC growth behavior

over current stressing time. It is noticeable that the

IMC thickness increases linearly with stressing. This

is closely related to different reaction kinetics of

electromigration compared to pure annealing. We

believe that there are competitions between diffusion

inside IMCs and chemical reaction at Cu/Sn

interface. After characteristic stressing time, the

IMC growth slope has sharply decreased, which can

be seen clearly from magnified BSE images in Fig.

4. Different bump structure and material systems

might lead to different reaction limiting systems.

4 CONCLUSIONS

The IMCs growths behaviors and electrical

reliability of Cu/Sn micro-bump in wafer level

ELECTRICAL RELIABILITY OF Cu/Sn MICRO-BUMP IN WAFER LEVEL PACKAGING FOR BioMEMS DEVICES

313

packaging for advanced BioMEMS devices

applications were systematically investigated by in-

situ SEM observation method. During current

stressing condition, IMC thickness increased linearly

with stressing time. It was observed that Cu

growth rate was larger than that of Cu

, which is

opposite result observed in conventional solder

bump. After the complete Sn exhaustion in the bump,

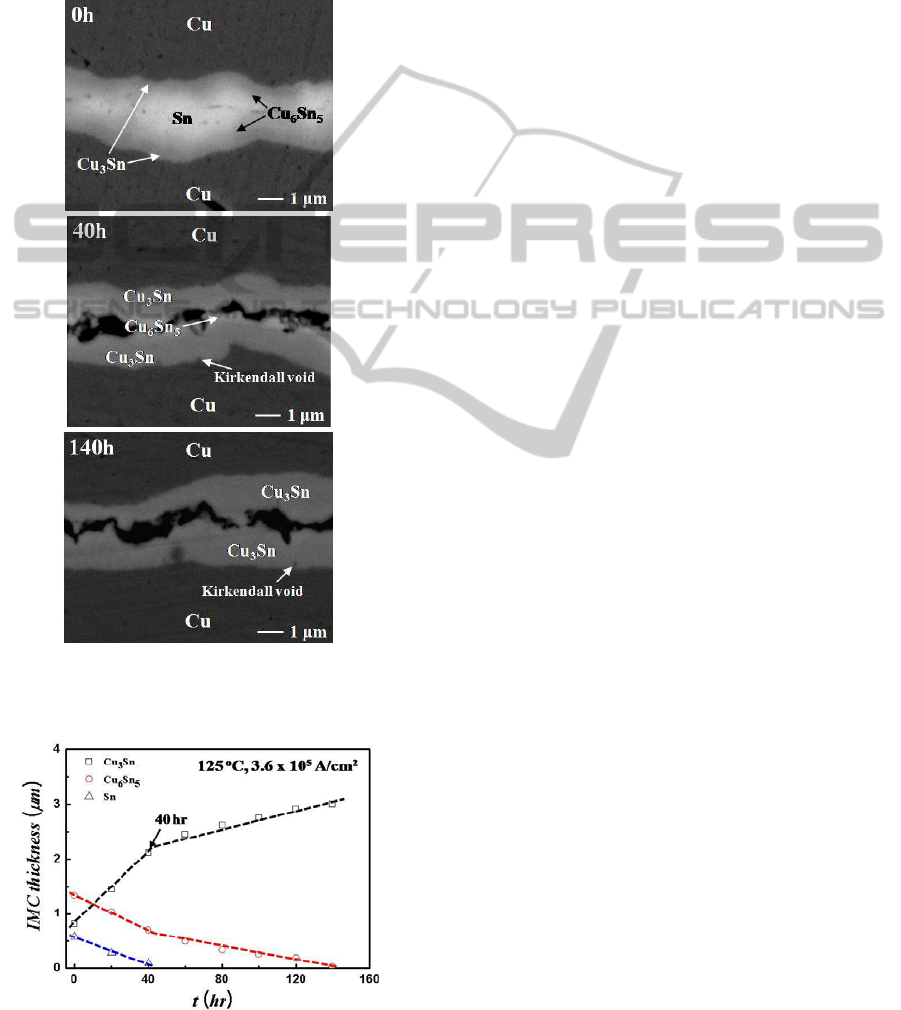

Figure 4: BSE micrographs of the cross-sectioned Cu/Sn

micro-bump during current stressing at 3.6×10

A/cm

and

125°C.

Figure 5: Intermetallic compound layer thickness with

current stressing time at 125°C and 3.6×10

A/cm

thickness became to decrease and Cu

grew faster. When current applied in Cu/Sn micro-

bump, IMC grew faster than annealing condition,

and the transition time of IMC growth was shortened,

and the transition time showed inverse proportional

to current density. Electrical Lifetime should be

correlated to this microstructural evolution during

current stressing.

ACKNOWLEDGEMENTS

This work was supported by joint research project of

Korea research council for industrial science and

technology of Korea Ministry of Knowledge

Economy.

The authors would like to thank Mr.

Kiwook Lee and Jaedong Kim at Amkor

Technology Korea Inc. for valuable sample

preparations and fruitful discussions.

REFERENCES

Chiang, K. N., Lee, C. C., Lee, C. C., and Chen, K. M.,

2006, Applied Physics Letters, vol. 88, pp. 072102_1-

Rao, V. S., Tay, A. A. O., Kripseph, V., Lim, C. T., and

Yoon, S. W., 2004, in Proceedings of the 6th

Electronics Packing Technology Conference,

Singapore, Dec., pp. 444-449.

Son, H. Y., Jung, G. J., Park, B. J., and Paik, K. W., 2008,

Journal of Electronic Materials, vol. 37, pp. 1832-

1842.

Tu, K. N., Mayer, J. W., and Feldman, L. C., 1992, New

York: Macmillan, pp. 324.

Lee, T. K., Zhang, S., Wong, C. C., Tan, A. C., and

Hadikusuma, D., 2006, Thin Solid Films, vol. 504, pp.

441-445.

Chao, B., Chae, S. H., Zhang, X., Lu, K. H., Im, J., and Ho,

P. S., 2007, Acta Metallurgica et Materialia., vol. 55,

pp. 2805-2814.

BIODEVICES 2011 - International Conference on Biomedical Electronics and Devices

314
