EFFECTIVE AND ACCELERATED INFORMATIVE FRAME

FILTERING IN COLONOSCOPY VIDEOS USING GRAPHICS

PROCESSING UNIT

Venkata Praveen Karri*, JungHwan Oh

Department of Computer Science and Engineering, University of North Texas, Denton, TX 76203, U.S.A.

Wallapak Tavanapong, Johnny Wong

Computer Science Department, Iowa State University, Ames, IA 50011, U.S.A.

Piet C. de Groen

College of Medicine, Mayo Clinic, Rochester, MN 55905, U.S.A.

Keywords: Colonoscopy, CUDA, GPU, CPU multi-threading, Informative frame filtering.

Abstract: Colonoscopy is an endoscopic technique that allows a physician to inspect the mucosa of the human colon.

It has contributed to a marked decline in the number of colorectal cancer related deaths. However, recent

data suggest that there is a significant (4-12%) miss-rate for the detection of even large polyps and cancers.

To address this, we have investigated automated post-procedure and real-time quality measurements by

analyzing colonoscopy videos. One of the fundamental steps is separating informative frames from non-

informative frames, a process called Informative Frame Filtering (IFF). Non-informative frames comprise

out-of-focus frames and frames lacking typical features of the colon. We introduce a new IFF algorithm in

this paper, which is much more accurate than our previous one. Also, we exploit the many-core GPU

(Graphics Processing Unit) to create an IFF software module for High Performance Computing (HPC).

Code optimizations embedded in the many-core GPU resulted in a 40-fold acceleration compared to CPU-

only implementation for our IFF software module.

1 INTRODUCTION

Colonoscopy is an endoscopic technique that allows

a physician to inspect the mucosa of the human

colon. It has contributed to a marked decline in the

number of colorectal cancer related deaths

[American Cancer Society, 2008]. However, recent

data suggest that there is a significant (4-12%) miss-

rate for the detection of even large polyps and

cancers [Johnson, D., et al. 2007, Pabby, A., et al.

2005]. To address this, we have been investigating

two approaches. One is to measure post-procedure

quality automatically by analyzing colonoscopy

videos captured during colonoscopy. The other is to

inform the endoscopist of possible sub-optimal

inspection immediately during colonoscopy in order

to improve the quality of the actual procedure being

performed. To provide this immediate feedback, we

need to achieve real-time analysis of colonoscopy

videos.

A fundamental step of the above two approaches

is to distinguish non-informative frames from

informative ones. An informative frame in a

colonoscopy video can be broadly defined as a

frame which is useful for convenient naked-eye

analysis of the colon (Figure 1). A non-informative

frame has the opposite definition (Figure 2). In

general, non-informative frames can be considered

out-of-focus frames. Our intention is not to increase

the sharpness of these frames (which is commonly

known as 'auto-focusing technique'), but to just filter

them out.

Informative and non-informative frames can be

loosely termed as clear and blurry frames

respectively. But, these loose definitions are not

sufficient for proper frame filtering in colonoscopy

video. In a colonoscopy context, the definition of

119

Karri V., Oh J., Tavanapong W., Wong J. and de Groen P..

EFFECTIVE AND ACCELERATED INFORMATIVE FRAME FILTERING IN COLONOSCOPY VIDEOS USING GRAPHICS PROCESSING UNIT.

DOI: 10.5220/0003123401190124

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2011), pages 119-124

ISBN: 978-989-8425-35-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

informative and non-informative frames is slightly

different from the conventional definition of clear

and blurry images. We presume that a typical

informative frame in colonoscopy is primarily

characterized by curvaceously (circular or semi-

circular) connected vivid lines (not just any lines

like horizontal, vertical or broken lines), because

that is the typical content of an informative colon

frame (Figure 1(d)). Curvaceous connectivity means

more connectivity in diagonal and circular

directions. Our intention is to retain frames which

satisfy this definition and to filter out the rest. The

best way to completely realize this definition is

firstly to detect the presence of such vivid lines, and

secondly to measure the amount of curvaceous

connectivity they possess. Then, with the help of a

carefully chosen threshold, we identify frames which

exhibit more curvaceous connectivity and classify

them as informative, and vice-versa. In this paper,

we propose a highly accurate algorithm for this

informative frame filtering (IFF).

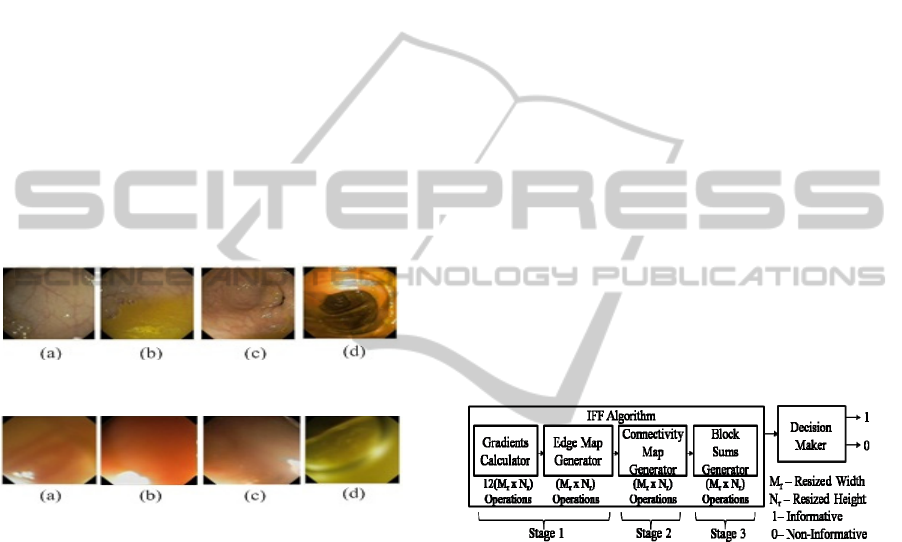

Figure 1: Examples of Informative Frames.

Figure 2: Examples of Non Informative Frames.

As already mentioned, IFF is a fundamental step

for generating quality measurement of colonoscopy

video for both post-processing and real-time. To

provide automated quality measurement in real-time

for colonscopy videos which are captured at 30 fps

(frames per second), we have only around 33 ms

(milliseconds) window to process each frame and

generate quality metrics if all 30 frames are need to

be processed. There are several steps to generate

quality metrics. For a good real-time system, we

ensure that all these steps are completed in that 33ms

time inteval. Therefore, the primary design

consideration of IFF software module is to consume

as less time as possible (below 33 ms), and to leave

the more remaining time for other steps to execute.

The major contributions of this paper can be

summarized as follows: Our previous edge-based

algorithm [Oh, J., et al. 2007] is inaccurate due to

lack of consideration of the deeper meaning of

informative colon frames. We propose a new edge-

based algorithm with higher accuracy compared to

the previous one. IFF is the first among many other

steps in automated colonoscopy quality

measurement. Based on our new algorithm, we

propose a software solution using GPU to evaluate

frame quality under real-time constraints.

2 PROPOSED IFF ALGORITHM

We describe three major requirements for effective

IFF based on our new definition of informative

frame (Section 1) below.

The first requirement is to produce an edge map

which shows connectivity only when there is

"information", and does not show any hints of

connectivity when there is no "information". The

second requirement is to estimate the amount of

connectivity possessed by an edge map, and the third

requirement is to quantify the percentage of

connected pixels. Based on a threshold for the

percentage, we make the final decision whether a

frame is informative or not. Both the second and the

third requirements could not be satisfied using our

previous edge-based technique. We design our new

algorithm by dividing it into three stages based on

these three requirements (Figure 3).

Figure 3: New IFF Algorithm Scheme.

2.1 Stage-1: Generating Edge Map

To satisfy the first requirement, we need an edge

detector which can detect connected edge pixels if

there is any real information. Based on our

experiences, low-sensitivity edge detector is better

for this. So, the fundamental rule of thumb for edge-

based IFF is to use low-sensitive parameters for

edge detection. Despite of low-sensitivity, Canny

edge detector generates vivid lines for non-

informative frames, which may be misinterpreted as

information. We found Sobel edge detector [Canny,

J., 1986] with low-sensitive parameters can be better

than Canny edge detector.

With Sobel edge detector as the choice, we

generate the edge map as follows. If p is a pixel

point at the location (x, y) in a gray scale image, and

q is a pixel point at the same location (x, y) in its

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

120

binary edge map, then their values are represented

by f(p) and e(q), respectively. The relationship

between them is defined by the equation: e(q) =

T[f(p)], where T is Sobel operator. The Sobel

operator could be separated into x-direction and y-

direction operators. If the two Sobel operators are

applied to a pixel position, the resulting gradient

could be defined as ∇f = (Gx, Gy). The magnitude of

the gradient is defined as

║∇f ║ = [G

+ G

]

1/2

(1)

The range of ║∇f║ varies. To standardize the edge

detection criteria, we approximate this value to a

value between 0 and 1. Hence, if ‘ε’ is defined as a

threshold for Sobel edge detector, the binary edge

map at pixel ‘q’ is given by,

e (q) = 0, if 0 ≤ ║∇f║ ≤ ε, otherwise, e (q) = 1

(2)

To ensure that the low-sensitivity rule of thumb

is satisfied, we chose the threshold value for Sobel

edge detector, ‘ε’ as 0.33.

2.2 Stage-2: Generating

Connectivity Map

In this stage, first, we generate a connectivity map to

estimate the amount of connectivity from an edge

map generated in Stage 1. An edge pixel’s

connectivity, C

x,y

can be described as the amount of

connectivity it possesses with its neighbouring edge

pixels in a 8-connected neighbourhood (Figure 4(a)).

According to the definition of an informative frame

in Section 1, colon frames are considered more

informative (or connected) if there are more

diagonal connections in their edge map. If we give

the same weight to both adjacent (vertical and

horizontal) and diagonal connections, it will not

properly quantify the amount of connectivity for the

IFF. Hence, we give diagonal connection twice the

weight of an adjacent connection.

Second, the connectivity at ‘q’ in edge map is

calculated based on its connection to only four of its

neighbouring pixels (immediate right, immediate

bottom, immediate diagonal left, immediate diagonal

right), and these are shown with red arrows in Figure

4(c)). This is done to avoid redundancy (redundancy

is marked with light green arrows in Figure 4(c)) in

the calculation of cumulative connectivity when

traversing from top left to bottom right corners of

the image. For easier computation of connectivity, a

non-redundant connectivity mask is designed

(Figure 4(b)). In an 8-connected neighbourhood, the

connectivity at pixel 'q', is given by,

= (

) * e (q). (3)

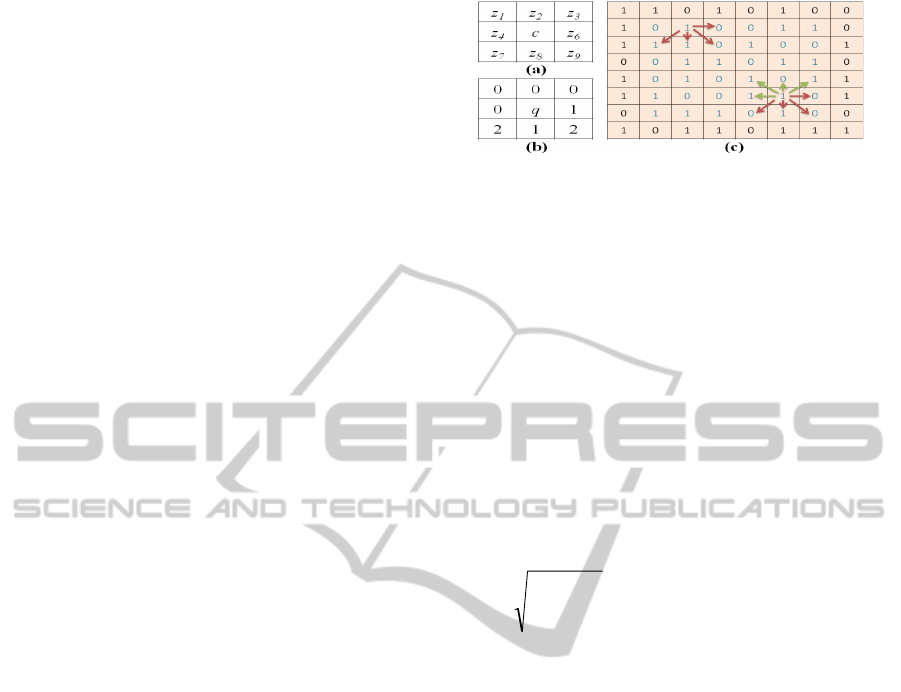

Figure 4: (a) 8-connected neighbourhood with 0 ≤ {z

… z

} ≤ 255 if c=p and 0 ≤ { z

, z

… z

} ≤ 1 if c=q; (b)

Non-redundant connectivity mask; (c) Explanation of

redundancy during connectivity calculation in an edge

map.

2.3 Stage-3: Quantifying the

Informative Portion of a Frame

To quantify the information, the connectivity map is

divided into a number of blocks, and checked for the

number of blocks which have sufficient connectivity

(or information). The image is resized to (M

, N

such that the height and width are multiples of block

size m x m. So, with a block size of m x m pixels, the

total number of blocks will be, µ = (M

x N

)/(m x

m). The total connectivity of a block, B

, is given by,

∑

−−

1,1

, where i = 1, 2, 3…. µ.

(4)

If ‘€’ is defined as the block connectivity

threshold, then a block is considered as non-

informative if B

≤ €. Assume that a connectivity

map has β number of informative blocks. If we

define α as the ratio of informative blocks over total

blocks, and ф as a threshold for informative block

ratio, then α = β/µ; a frame is considered informative

if α ≥ ф. After careful experimental analyses on

many frames, the chosen set of parameters is: m =

64, ε = 0.33, € = 5, ф = 0.3. The new algorithm’s

accuracy results are discussed in Section 5.2.

From Figure 3, the computational cost of IFF

algorithm can be 15(M

x N

) since Stage 1 has

13(M

x N

), Stage 2 has (M

x N

), and Stage 3 has

x N

), which are all numerically intensive

sequential iterations. We mitigate these costs by

using the many-core GPU (Graphics Processing

Unit).

3 GPU ARCHITECTURE

For a GPU, the ‘EVGA 01G-P3-1280-RX GeForce

GTX 280 1GB 512-bit GDDR3 PCI Express 2.0 x16

HDCP Ready SLI Support Video Card’ was used.

This graphics card has 1 GB global memory and 256

EFFECTIVE AND ACCELERATED INFORMATIVE FRAME FILTERING IN COLONOSCOPY VIDEOS USING

GRAPHICS PROCESSING UNIT

121

KB L1 texture cache. From hardware standpoint, the

card is viewed as a combination of 10

Texture/Thread Processing Clusters (TPCs). Each

TPC holds 24 KB L2 texture cache, and evenly

distributes it across three Streaming Multi-

processors (SMs). Each SM has 8 scalar processors

(SPs), 16 KB of shared memory, and 32 KB register

file which is evenly partitioned amongst resident

threads when the device is used for computing. From

programming standpoint, we use the NVIDIA®

CUDA™ (Compute Unified Device Architecture)

programming model [NVIDIA CUDA Programming

Guide 3.0-beta1, 2009] to run this device in

computing mode with CUDA Compute Capability

1.2. CUDA views the device as a pool of threads

and calls it a Grid.

4 IFF ALGORITHM ON GPU

In this section we are implementing the IFF

algorithm discussed in Section 2 on a GPU using

CUDA. We use three types of memories for our

algorithm - Global, Texture and Shared memories.

In Global memory, its size is large (i.e., 1GB as

mentioned in Section 3), but it has more latency

(means less speed) compared to other GPU

memories. When the CUDA threads access data in

global memory with an offset, the speed is further

reduced [CUDA Programming Best Practices Guide

3.0-beta1, 2009] since the data is stored in a linear

pattern (Figure 5(b)). In our GPU implementation,

therefore, global memory is limited to only those

CUDA kernels in which memory access with an

offset is not present.

In Texture memory, data is stored in a two-

dimensional pattern (Figure 5(a)). So, when CUDA

threads need to access data with an offset, texture

memory is preferred to global memory for better

speed because it is cached and offset access will be

performed in a symmetric 2-D pattern (Figure 5(a))

rather than linear 1-D pattern as in global memory

(Figure 5(b)). In Shared Memory, the data is stored

on the chip (i.e., the Streaming Multiprocessor

(SM)) in linear pattern. It is faster than global

memory because it is an on-chip memory, but it has

a limited space of 16KB per SM (Section 3). It is

used when the number of threads operating on a data

keeps changing or when threads access the same

data again and again in a loop while performing a

particular operation in a CUDA kernel.

Throughout the GPU implementation, we set the

number of CUDA threads in x-direction as 16 and y-

direction as 8, making it a total of 128 threads per

CUDA thread block. With this background, we

present the GPU implementation of each stage of

IFF algorithm next.

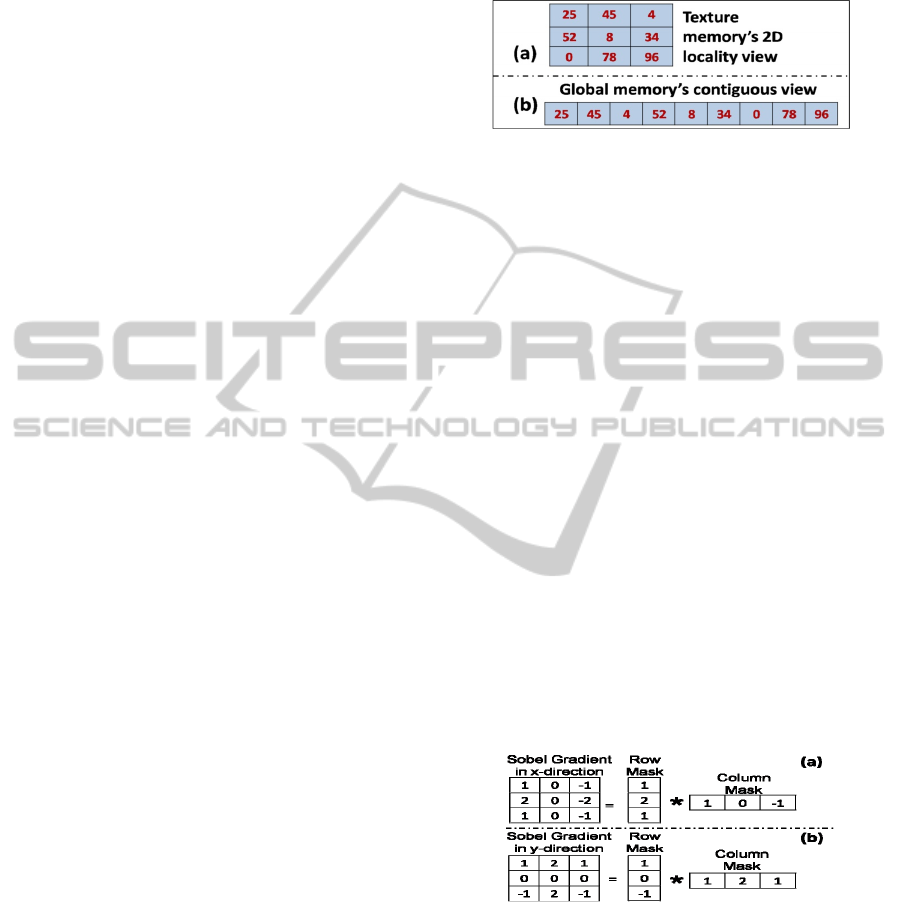

Figure 5: (a) 2-D Locality View of Texture Memory; (b)

Linear or 1-D view of Global Memory.

4.1 GPU Implementation of Stage 1

The input of Stage 1 is a gray scale frame, and the

output is a binary edge map comprising 0's and 1's.

The gray scale image data is copied to global

memory of the GPU. According to Section 2, we

first need the Sobel component gradients in x- and y-

directions. Then, based on Equations (1) and (2), we

evaluate the actual gradient to output an edge map.

We divide the GPU implementation into three steps

here. In Step 1, we calculate the Sobel gradient in x-

direction using separable Sobel masks. An original

Sobel mask has 3x3 dimensions, and it is separable

into 3x1 and 1x3 masks whose product will give us

back the original 3x3 mask (Figure 6(a) and 6(b)).

We call these masks as row mask and column mask

for convenience. We apply row mask to the gray

scale image first and then we apply the column mask

to that result in order to obtain the final Sobel

gradient component in x-direction. We use separable

filters because the offset required to access data is

less and this helps in improving the execution time

of the program.

Figure 6: (a) Separable Masks for Sobel gradient in x-

direction; (b) Separable Masks for Sobel gradient in y-

direction.

In Step 2, we calculate Sobel gradient in y-

direction using another set of separable Sobel masks

in exactly the same way explained before for Sobel

gradient in x-direction. Since texture memory is

read-only, we store the gradients in the global

memory. In Step 3, we compute the edge map based

on Equations (1) and (2). Here, we do not need

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

122

texture memory because threads do not access data

with an offset. So, we perform computations of

Equations (1) and (2) using GPU registers and store

the final edge map in global memory. Due to the fact

that we used CUDA threads and blocks with 100%

device occupancy, we will obtain a good speed

despite using global memory here.

4.2 GPU Implementation of Stage 2

The input of Stage 2 is the edge map obtained from

Stage 1. The output is a connectivity map which is

obtained by applying the connectivity mask shown

in Figure 4(b) and Equation (3). As we see in Figure

4(b), connectivity mask is not separable like a Sobel

mask. So, we access the edge map which resides in

global memory via texture memory, then perform

the computations of Equation (3) using registers.

The result (connectivity map) is stored back in

global memory. We do not use shared memory in

either Stage 1 or Stage 2, and limit our calculations

to texture memory because the masks applied in

both stages are of size 3x3 pixels, which is small.

4.3 GPU Implementation of Stage 3

The input of Stage 3 is a connectivity map from

Stage 2. The output is the block sums obtained by

performing computations on the connectivity map

based on Equation (4). In Section 2.3, we choose the

block size as 64 x 64. According to Equation (4), we

are supposed to calculate the square root of sum of

values of all 64 x 64 pixels (i.e., a total of 4096

pixels) for each block in the connectivity map. We

divide this stage into two steps. Initially, the

connectivity map resides in the global memory. We

use 128 threads per CUDA block to perform the sum

of 4096 pixels as follows. In Step 1, we first assign

each thread in a CUDA block to add 4096/128 = 32

pixels in global memory, and store the results in

shared memory. In other words, we have 128

parallel partial sum computations using global

memory. We do not use share memory in this step

because we will loose the 100% device occupancy

and eventually loose speed if we load 4096 pixels

into the shared memory directly just to perform a

simple addition. So, now we have 128 elements in

shared memory for each CUDA block.

In Step 2, we use parallel summation in shared

memory [CUDA Technical Training, 2008]. We

reduce the number of threads to 64 such that each

thread adds two consecutive pixel values and stores

it back in shared memory. Now, we have 64 values

in shared memory. We reduce the number of threads

to 32 and perform the same operation again. This

process is repeated until we get the final sum of

4096 pixels. We perform Step 2 using shared

memory because the number of threads performing

summation is varied at every level of summation,

and these threads repeatedly access same locations.

Utilizing shared memory is more effective than

using global memory in this case. Finally, we obtain

the block sums of each block, and we perform a

square root operation on each block sum (according

to Equation (4)) in shared memory, then transfer the

block sums back to global memory.

Next, we calculate the number of blocks which

are informative based on a threshold and decide

whether a frame is informative (see Section 2.3) on

CPU. This is a trivial operation and does not require

GPU power.

5 EXPERIMENTS AND RESULTS

For our experiments, we used a machine having an

Intel Quad Core CPU @ 3.0 GHz with 3 GB RAM

and an NVIDIA GTX 280 card with 1 GB GDDR3.

For execution time acceleration, we compared our

GPU implementation with CPU-only

implementation. We used C language for CPU-only

implementation. For effectiveness, we compare our

new IFF algorithm with our previous one [Oh, J., et

al. 2007].

5.1 Acceleration

We present a comparative analysis of GPU and CPU

versions of the IFF algorithm on different frame

types (Table 1). We chose six different video input

sources with different frame resolutions, and fed

them to our CPU and GPU IFF algorithm versions.

Each algorithm is run over more than a 100 frames

of every video type. Table 1 shows the average

processing times taken by the CPU/GPU IFF

algorithms to process a single frame belonging to

each of these video inputs.

From Table 1, with the increase in the frame

size, the CPU processing time increases rapidly. On

the other hand, the GPU processing time increases

minimally. When programmed with CUDA for

numerical data intensive operations, the results are

also a testimony of the instruction throughput and

memory throughput achieved by the kernels we

designed for our GPU algorithm. For the highest

resolution frame we tested (HD 1080), we achieved

up to 40x speed- up using our new GPU IFF

algorithm. The commonly used video capture

EFFECTIVE AND ACCELERATED INFORMATIVE FRAME FILTERING IN COLONOSCOPY VIDEOS USING

GRAPHICS PROCESSING UNIT

123

resolution standard currently is DVD, but we are

expecting HD videos to replace the DVD format

soon.

Table 1: IFF Software Module Results for a single frame

from different video inputs.

Video Type Frame Size GPU (ms) CPU (ms) Speed Up

VGA 640 x 480 6.73 85.76 12.74

DVD 720 x 480 8.0 94.46 11.81

HD 576 720 x 576 9.53 121.99 12.8

XGA 1024 x 768 12.7 236.29 18.61

HD 720 1280 x 720 11.58 268.81 23.22

HD1080 1920x 1080 14.88 595.12 40.0

5.2 Effectiveness

We use typical four quality metrics (Precision,

Sensitivity, Specificity and Accuracy) shown to

evaluate the performance of the new and the

previous algorithms. The ground truths of the

informative and the non-informative frames were

verified by the domain expert. Table 2 shows the

average values for 10 colonoscopy videos. Table 2

shows that our new algorithm discussed in this paper

(IFF#2) outperforms our previous algorithm [Oh, J.,

et al. 2007] (IFF#1) in all four metrics. IFF#2

provided around 97.6% of accuracy – meaning 7%

increase compared to our previous one – IFF#1

which offers only 90.6 accuracy for this data set. We

tested more than 100 videos, and found that our new

algorithm has around 96% overall accuracy.

Table 2: Comparison of Previous (IFF#1) and New

(IFF#2) algorithms on over 100 videos.

Metrics IFF#1 IFF#2

Precision 89.1% 97.0%

Sensitivity 88.3% 97.9%

Specificity 92.1% 97.0%

Accuracy 90.6% 97.6%

6 CONCLUSIONS

In this paper, we discussed a new IFF algorithm

which is around 15% more accurate compared to our

previous algorithm. Through a proper understanding

of the meaning of an informative frame, we

introduced a new definition to an informative colon

frame. The computing constraints which reside

within the algorithm have been mitigated with our

IFF software module which consumes 8 ms

(Table 1) out of the total real-time constraint – 33

ms (Section 1), and provides 25 ms credit for other

steps of automated colonoscopy quality

measurement to complete. In comparison to CPU,

our GPU algorithm is 40 times faster for a HD 1080

video. Our future work will be focused on

combining multiple GPUs together to further

accelerate colonoscopy video analysis.

ACKNOWLEDGEMENTS

This work is partially supported by NSF STTR-

Grant No. 0740596, 0956847, National Institute of

Diabetes and Digestive and Kidney Diseases

(NIDDK DK083745) and the Mayo Clinic. Any

opinions, findings, conclusions, or recommendations

expressed in this paper are those of authors. They do

not necessarily reflect the views of the funding

agencies. Johnny Wong, Wallapak Tavanapong and

JungHwan Oh hold positions at EndoMetric

Corporation, Ames, IA 50014, U.S.A, a for profit

company that markets endoscopy-related software.

Johnny Wong, Wallapak Tavanapong, JungHwan

Oh, Piet de Groen, and Mayo Clinic own stocks in

EndoMetric. Piet de Groen, Johnny Wong, Wallapak

Tavanapong, and JungHwan Oh have received

royalty payments from EndoMetric.

REFERENCES

American Cancer Society, 2008. “Colorectal Cancer Facts

and Figures” http://www.cancer.org/docroot/

STT/content/STT_1x_Cancer_Facts_and_Figures_200

8.asp.

Johnson, D., Fletcher, J., MacCarty, R., et al. 2007.

“Effect of slice thickness and primary 2D versus 3D

virtual dissection on colorectal lesion detection at CT

colonography in 452 asymptomatic adults”, American

Journal of Roentgenology, 189(3):672-80.

Pabby, A., Schoen, R., Weissfeld, J., Burt, R., Kikendall,

J., Lance, P., Lanza, E., Schatzkin, A., 2005.

“Analysis of colorectal cancer occurrence during

surveillance colonoscopy in the dietary prevention

trial". Gastrointestinal Endoscopy, 61(3): p.385-391.

Oh, J., Hwang, S., Lee, J., Tavanapong, W., de Groen, P.,

Wong, J., 2007. “Informative Frame Classification for

Endoscopy Video”. J. Medical Image Analysis,

11(2):110-27.

Canny, J., 1986. “A Computational Approach to Edge

Detection". IEEE Trans. Pattern Analysis and

Machine Intelligence, 8:679-698.

NVIDIA CUDA Programming Guide 3.0-beta1, 2009.

www.nvidia.com.

CUDA Programming Best Practices Guide 3.0-beta1,

2009. www.nvidia.com.

CUDA Technical Training, 2008. Vol. I: Introduction to

CUDA Programming, www.nvidia.com.

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

124
