MORPHOLOGICAL ANALYSIS OF 3D PROTEINS STRUCTURE

Virginio Cantoni, Riccardo Gatti and Luca Lombardi

University of Pavia, Dept. of Computer Engineering and Systems Science, Via Ferrata 1, Pavia, Italy

Keywords: Structural biology, Protein structure analysis, Protein-ligand interaction, Surface segmentation.

Abstract: The study of the 3D structure of proteins supports the investigation of their functions and represents an

initial step towards protein based drug design. The goal of this paper is to define a technique, based on the

geometrical and topological structure of protein surfaces, for the detection and the analysis of sites of

possible protein-protein and protein-ligand interactions. In particular, the aims is to identify concave and

convex regions which constitute ‘pockets’ and ‘protuberance’ that can make up the interactions ‘active

sites’. A segmentation process is applied to the solvent-excluded-surface (SES) through a sequence of

propagation steps applied to the region between the protein convex-hull and the SES: the first phase

generates the pockets (and tunnels) set, meanwhile the second (backwards) produces the protrusions set.

1 INTRODUCTION

In the last decade much work has been done on the

detection and analysis of binding sites of proteins

through bioinformatics tools. This is a preliminary,

but important step that can reduced consistently the

cost, in time and resources, of the subsequent

experimental validation phase, which is applied only

to the resulting subset loci. It is worth to point out

that the effective identification of active sites is

instrumental for structure-based drug development

and design.

The various approaches proposed up-to-now are

characterized by the solution of two subproblems:

the protein representation and the matching

strategies. Among the techniques that have been

proposed up to now, we can quote: the geometric

hashing of triangles of points on the SES and their

associated physico-chemical properties (Laskowski,

1995); a representation of the SES in terms of

spherical harmonic coefficients (Glaser, 2006); a

collection of spin-images (Glaser, 2006) (Bock,

2007); a ‘context shapes’ representation (Binkowski,

2003); a set of vertices of the triangulated solvent-

accessible surface (SAS) (Shulman, 2004).

Recently, a few packages for the process of

detecting and characterizing candidate active sites

are supplied on the web. The most known packages,

in chronological sequence, are here shortly

described.

The first POCKET (Levitt, 1992) has been

developed in the early ‘90. The protein is mapped

onto a 3D grid, and a grid point belongs to the

protein if it is within 3 Å from an atom nucleus. The

pockets consist of the set of grid points, in the

solvent area for which a scanning along the x, y, or

z-axes presents a sequence protein-solvent-protein.

More recently LIGSITE (Huang, 2006) extends

POCKET by scanning also along the four cubic

diagonals (in fact, the POCKET’s classification is

dependent on the angle between the reference

system and the protein). The solvent points that

present a number of protein-solvent-protein events

greater than a given threshold are classified as

candidate active sites.

In the late ’90 CAST (Liang, 1998) (updated

with CASTp (Binkowski, 2003) in the early ’00),

based on 3D computational geometry, has been

proposed. In this approach the protein is represented

by a set of 3D tetrahedra having the vertices on the

nucleus positions and is analyzed through convex-

hull, alpha shapes and discrete flow theory. A

tetrahedron having at least a facet crossing the

solvent region is designated as ‘empty tetrahedron’.

Empty tetrahedra sharing a common triangle are

grouped so ‘flowing’ towards neighbouring larger

tetrahedra which act as sink. A pocket, which is a

potential binding site, is a collection of empty

tetrahedra. Pockets volume, mouth opening area and

circumference are easily evaluated on this structure.

Cantoni V., Gatti R. and Lombardi L..

MORPHOLOGICAL ANALYSIS OF 3D PROTEINS STRUCTURE.

DOI: 10.5220/0003127000150021

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2011), pages 15-21

ISBN: 978-989-8425-36-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

PASS (Brady, 2000), introduced in the early ’00,

is based on a purely geometrical method consisting

in a sequence of steps: i) the protein surface, on the

side of the solvent, is completely covered by probe

spheres each one not contained in any others; ii)

each probe is associated with a “burial” value, which

corresponds to the number of atoms contained

within a concentric sphere of radius 8 Å; iii) the

probes with a “burial” value lower than a predefined

threshold are eliminated; iv) the previous three steps

are iterated (with step one applied only to surface’s

patches covered by the probes) until the regime,

where no new buried probe can be added; v) a probe

weight, which is dependent on the number of the

neighbouring spheres and the extent to which they

are buried, is assigned; vi) a shortlist of active site

points (ASPs), ranked by the probe weight, is

identified through the central probes that contain

many spheres with high burial count.

Finally SURFNET-ConSurf (Glaser, 2006) is

based on a pocket-surface representation which

combines geometrical features together with an

evolutionary parameter based on the degree of

conservation of the amino acids involved. Initially,

through SURFNET (Laskowski, 1995), the clefts are

detected by placing a sphere between all pairs of

atoms such that the sphere just touches each atom of

the pair, then this sphere is progressively reduced in

size up to no further intersections with other atoms

are present. The resulting sphere is retained only if

its radius is greater than a minimum size predefined.

Moreover, the regions that do not present highly

conserved residues, as defined by the ConSurf-HSSP

database (Glaser, 2005), are removed, thus reshaping

the cleft volumes. The remaining clefts are candidate

active sites (in particular the largest ones).

In this paper we present a new method for two

segmentations of the SES with the aim of identifying

respectively the concavities that can host a ligand or

a protrusion of another protein and the protuberances

that can match the inlet of others proteins. The paper

is organized as follows: in section two we describe a

new technique that, starting from the protein

enlarged convex hull, propagates up to the SES to

identify concave active sites; in section three a

second backward propagation algorithm that detect

the protuberances, starting from the peaks of the

previous propagation is introduced. In section four a

few practical cases and some comparisons are given.

Section five contains the conclusion and our near

future subsequent activities.

2 LOOKING FOR POCKETS AND

TUNNELS

The first half of this procedure has been already

introduced in (Cantoni, 10a). This segmentation is

based on a propagation process (a Distance

Transform (DT)) applied to the volume obtained

subtracting the molecule to its Convex Hull (CH).

Before presenting this process, here a few

preliminary definitions and statements are given.

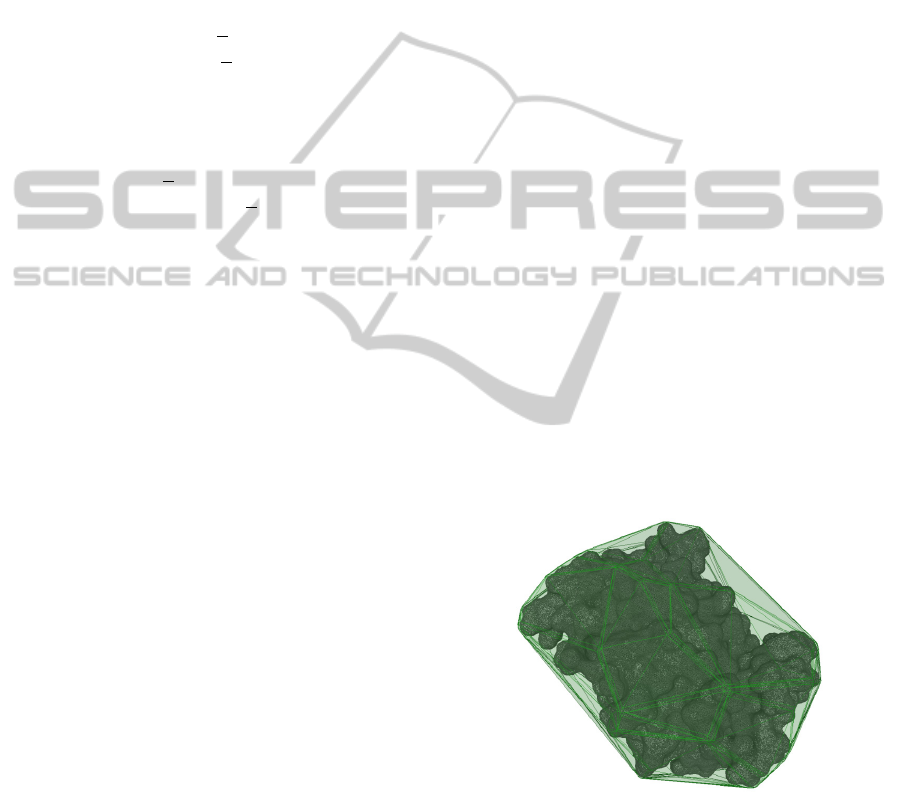

The CH of a molecule is the smallest convex

polyhedron that contains the molecule points. In R

the CH is constituted by a set of facets, that are

triangles, and a set of ridges (boundary elements)

that are edges. A practical O(n log n) algorithm for

general dimensions CH computing is Quickhull

(Barber, 1996), that uses less memory space and

executes faster than most of the other algorithms.

The protein and the CH are defined in a cubic

grid V of dimension L x M x N voxels. Note that the

grid is extended one voxel beyond the minimum and

maximum coordinate of the SES in each orthogonal

direction (in this way both SES and CH borders are

always inside the V border). The voxel resolution

adopted is 0.25 Å, so as to be small enough to ensure

that, with the used radii in biomolecules atoms, any

concave depression or convex protrusion is

represented by at least one voxel.

Let us call R the region between the CH and the

SES (the concavity volume (Borgefors, 1996), that

is:

R= CH∩SES



(1)

Let us call B

the set of the border voxels of

CH, that is:



=CH−[CH∎K]

(2)

where ∎ represent the erosion operator of

mathematical morphology (Serra, 82) and K the

discrete unitarian sphere (in the discrete space, in 26

connectivity, a 3x3x3 cube!). Within the region R

the following propagation is applied:



=

1iϵB



0ℎ

A = B

;

N = (A ⊕ K)∩R;

E = N – A;

while E ≠ ∅ do

∀e ∈ E: 



= min

∈



(





+



)

A = N;

N = (A ⊕ K)∩R;

E = N – A;

done

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

where:

A represents the increasing set of voxels

contained in R; E corresponds to the recruited

set of near neighbors of A contained in R (i.e.

the voxels reached by the last propagation step);

ii. min

∈



(





+



)

represents the minimum

value among the distances 



in the near

neighbors belonging to D already defined,

incremented by the displacement 



between

the locations (e, n): that is, if e and n have a

common face 



=1; if e and n have a

common edge 



√

2; if e and n have a

common vertex 



√

3. In three dimensions,

the total number of the near neighbor elements

of p is 26: six of them that share one face and

have distance equal to 1 from the voxel p,

twelve neighbors that share only an edge and

are at distance

√

, and eight that share only a

vertex and are at distance

√

always from voxel

p. At each iteration, new voxels, inside R, are

reached by the propagation process and the

value they take is determined by the minimum

of the neighbor distances (from the CH)

increased by the relative voxels distance; this in

order to simulate an isotropic propagation

process and the digital distance evaluation.

iii. E = ∅ corresponds to the regime condition: no

other changes are given and the connected

component of R, adjacent to the border B

completely covered.

The values in D represent the distance of each

voxel of A from B

and A corresponds to the

connected component of R adjacent to the border.

Having A, it is possible to easily identify and

eventually remove the cavities C, that are the

volumes completely enclosed in the macromolecule

C = CH - A - M

(3)

In order to identify the different pockets and

tunnels the volume A must be partitioned into a set

of disjoint segments P

SES

={P

, … , P

where N is the number of inlets. The partition must

satisfy the following condition:

∩ P

= ∅, i ≠ j

(4)

∪ ·· · ∪ P

= A

(5)

As can be easily realized, starting from the total

set of convex hull facets, several waves are

generated and propagation proceeds up to the

complete coverage of the volume A: the connected

component of R adjacent to the border. During the

propagation phase two sets of salient points are

identified: local tops LT and wave convergence WC

points.

The LT set is exploited for the segmentation

process. The cardinality of LT corresponds to N

max

the maximum number of segments/inlets that can be

considered. The effective number of segments, that

determines obviously the number and the

morphology of pockets and tunnels, is found out on

the basis of two heuristic parameters: i) the

minimum travel depth value of the local tops TD

;

ii) an evaluation of the near tops pivoting effects

PEs. The threshold TD

is introduced because the

surface’s irregularities and the digitalization process

produce small irrelevant spurious cavities. Two

thresholds are introduced on the basis of PEs taking

into account morphological aspects insight important

cavities: the nearness of others, more significant,

local tops (τ

) and the relative values of the local-top

travel-distance (τ

). A detailed description of this

first phase is given in (Cantoni, 10a).

The second phase is completely new. Let us

assume that a pocket has at least the volume of a

water molecule. Under this assumption we will

identify the useful portion of A by:

B=A∎S



(6)

Where ∎ represent the erosion operator and S



the minimum sphere that contains a water molecule.

The set of voxel E

given in (7) constitutes the fine

grains with a too strong concavity (figure 2):



=A−B

(7)

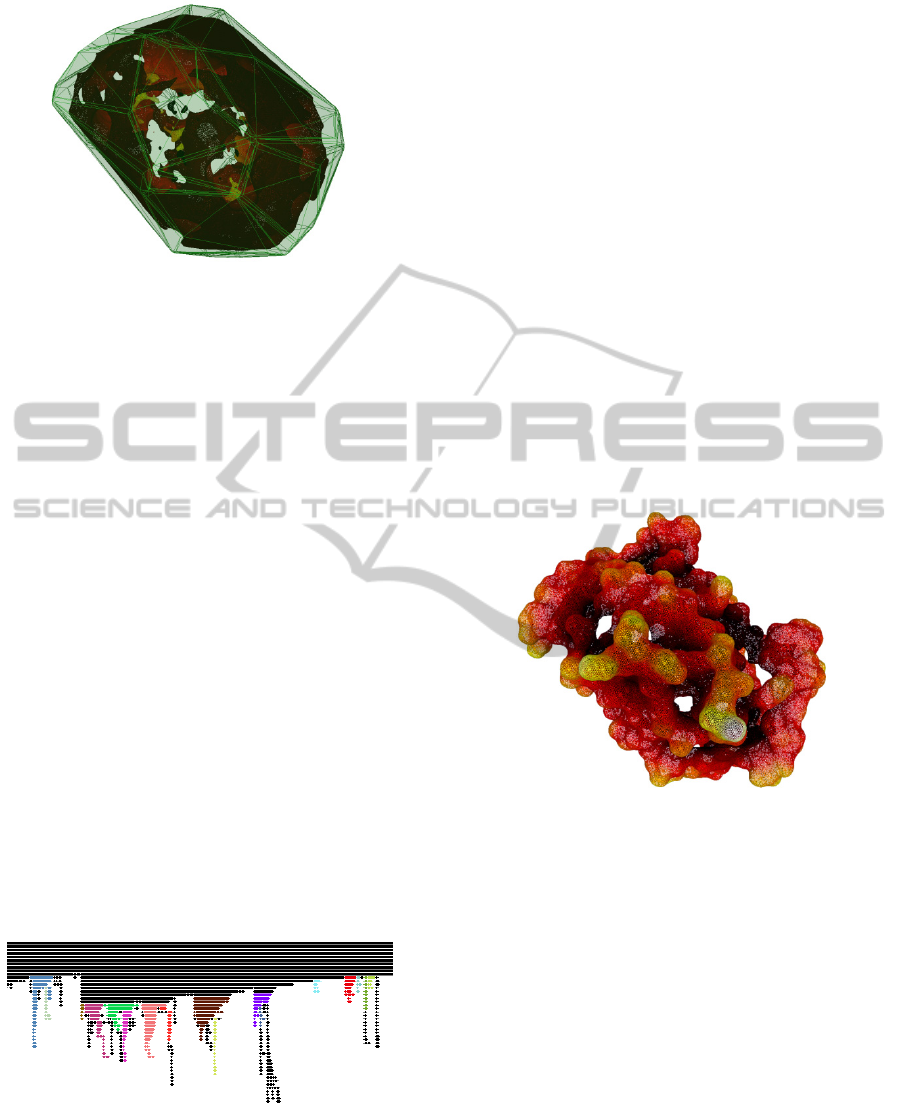

Figure 1: SES of PDB ID 1MK5 and its extended CH.

The results achieved in this phase are shown in

figure 1. In general, the set LT is contained in the set

EA. Using as seed-points the set LT, a back-

propagation toward Bch is performed. At each step

the new connected voxels having the same distance

(de) are joined to the seed set ST. A candidate

MORPHOLOGICAL ANALYSIS OF 3D PROTEINS STRUCTURE

Figure 2: the set E

of PDB ID 1MK5.

pocket is established active when ST maintains at

each step at least a new voxel belonging to B.

During the propagation towards Bch , if the new

joined set of voxels is completely contained in EA a

bottleneck has been reached and the seed set ST in

progress is anymore active.

i) When two or more seed sets converge there are

three possible cases: all the convergent sets are

active: in this case a new active set is generated

on the basis of the union of the new entry

voxels;

ii) among the convergent sets there is at least one

active set: this set continues the propagation (if

there is more than one active set it is first

applied the case i) recursively) including the

convergent new entry voxels of the connected

not active set(s);

iii) all the convergent sets are not active: this

means that some fine grains are joining

together, and a new propagation seed

composed by the union of the entry voxels is

established if this union achieves a volume at

least equal to the water molecule.

In figure 3 it is shown for the protein 1MK5 a 2D

sketch representing the final result of this process.

Figure 3: A portion of the 2D sketch achieved by applying

the pocket search algorithm on the protein 1MK5. The

vertical clusters that are not associated to any pockets are

black, meanwhile the ones representing pockets are

colored.

3 LOOKING FOR

PROTUBERANCES

The objective here is to segment the SES to

underline the protuberances. There is a duality

relationship between this process and the previous

one: pockets are SES segments mainly concave,

meanwhile protuberances are mainly convex. Let us

assume that protuberances we are looking for have a

known maximum section area contained in a circle

of radius r. Under this assumption we will identify a

basis volume F by:

F = SES ■ S

(8)

where ■ represents the erosion operator (Serra,

1982) and S



the sphere of radius r.

Let us call S

the external surface of F. The set of

voxel G given in (9) constitutes the working volume

(figure 4) for our analysis by:

G = SES - F

(9)

Figure 4: volume G for PDB ID 1MK5 for a sphere Sr of

radius 2.4 Å.

Within the region G in a similar way of the previous

pocket search, the following propagation is applied:



=

1iϵS

0ℎ

N = (A ⊕ K)∩G;

E = N – A;

while E ≠ ∅ do

∀e ∈ E: 



= min

∈



(





+



)

A = N;

N = (A ⊕ K)∩G;

E = N – A;

Done

where: A represents the increasing set of voxels

contained in G; E corresponds to the recruited set of

near neighbors of A contained in G (i.e. the voxels

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

reached by the last propagation step); the values in D

represent the distance of each voxel of A from S



Starting from the S



′s voxels (to which a

common label is assigned), a new recursive scanning

phase within G is applied, going toward SES. At

each step, the new entry voxels are segmented in

connected sets. When there is a one-to-one

correspondence between a new segment set and a set

of the previous step, its label is extended to the new

segment. When a previous set is split in two or more

segment sets a new label is generated for each one of

them.

As in the propagation process for the search of

pockets, during the propagation phase, two sets of

salient points are identified: local tops LT and wave

convergence WC points. Both these salient points

are important for the docking analysis. A 2D sketch

representing the final result is shown in figure 5.

Figure 5: A portion of the 2D sketch achieved by applying

the protuberances search algorithm on the protein 1MK5.

The vertical clusters that are not associated to any pockets

are black, meanwhile the ones representing pockets are

colored. Note that different vertical clusters have the same

color when they are joined to the same protuberance.

4 EXPERIMENTS

AND COMPARISONS

As an example, the proposed technique has been

applied to the Apostreptavidin Wildtype Core-

Streptavidin with Biotin structure (PDB ID: 1MK5).

The analysis has been done with a resolution of 0.25

A°, which entails a van der Waals radius of more

than five voxels to the smallest represented atoms.

The SES is obtained from the van der Waals surface,

after the execution of a closure operator, using a

sphere with radius of 1.4 A°, approximately 6 voxels

(corresponding to the conventional size of a water

molecule), as structural element.

For what concerns the pockets detection the three

parameters have been set as follows: the minimum

travel depth of the local tops to TD

= 5 voxels; the

nearness of others, more significant, local tops to τ

150 voxels and the relative values of the local-top

travel-distance to τ

= 2000 voxels. Moreover, the

radius of the water molecule has been set to 6

voxels.

In figure 6 it is shown the final result of the

segmentation process of the protein 1MK5 for the

detection of pockets and tunnels. Note that among

the 25 pockets that have been detected, 2 have a

volume greater than 80 water molecules and have a

travel depth of 26 voxels and mouth aperture of

8.343 and 30.547 respectively.

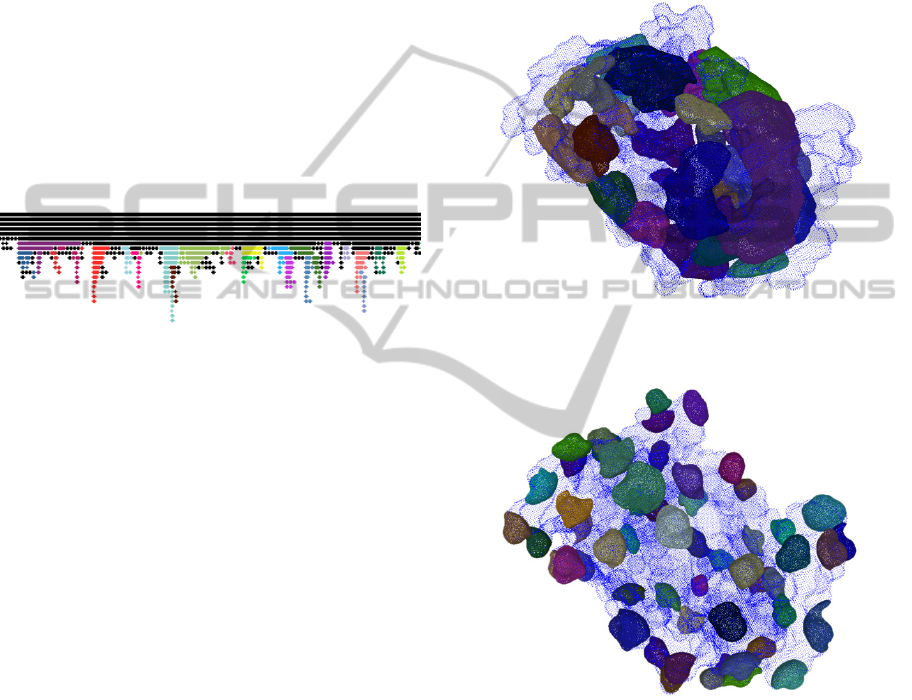

Figure 6: Final result of the segmentation process of PDB

ID 1MK5 for the detection of pockets.

Figure 7: Final result of the segmentation process of PDB

ID 1MK5 for the detection of protuberances.

Figure 7 shows the final result of the

segmentation process of the protein 1MK5 for the

detection of protuberances. The parameter r

representing the maximum section area has been set

to 800 voxels. Note that among the 41 protuberances

that have been detected 9 have a volume greater than

7 water molecules, and a base aperture of 22.968,

8.236, 16.000, 9.287, 8.444, 9.008, 7.469, 11.148,

9.684 voxels respectively.

All the packages quoted in this paper’s

introduction are related to just pockets and tunnels

MORPHOLOGICAL ANALYSIS OF 3D PROTEINS STRUCTURE

detection, at the authors knowledge there are not

packages specialized for segmenting the SES on the

basis of protuberances. Among the quoted packages

the only one that was available and directly

applicable has been CASTp. We compared the

results obtained with this package to our one. The

number of pocket selected has been 29 and 25

respectively for CASTp and our own. Let us first

point out that all the main pockets of the quoted

protein (the bigger and deeper ones) are detected in

both cases. Moreover, for the main pockets, almost

the same set atoms at the border of the SES

delimiting the pockets. Nevertheless, in general the

number of these atoms is higher in our solution (up

to 20% in a few cases) and seems to cover in a

complete way the pocket concavity. An example of

this case is given in figure 8.

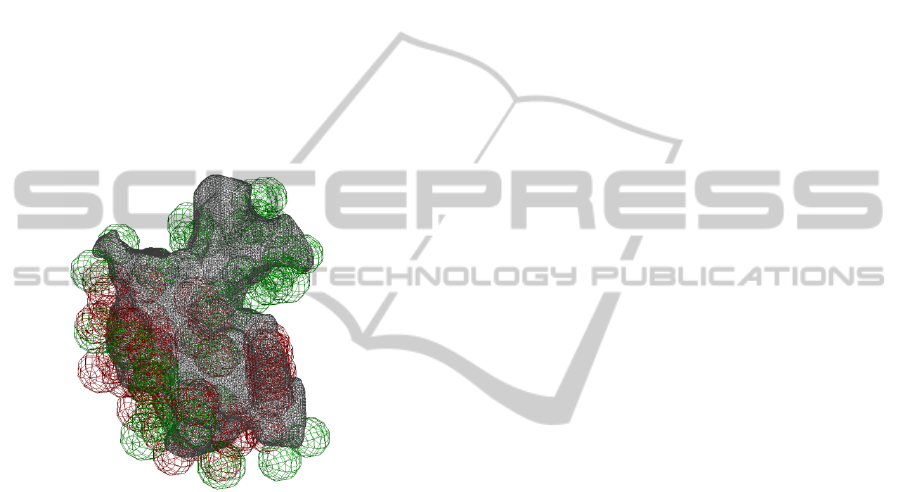

Figure 8: Wireframe of the main binding site of PDB ID

1MK5. In red atoms detected by CASTp. Our software

detects both the red and green atoms.

The results differ more for what concerns the

smallest pockets. This is due to the thresholds to

accept the concavity with a short travel depth as a

possible active site. We have two thresholds on the

basis of the travel depth and of a minimum

concavity volume. Generally speaking CASTp

accept more small concavities as pockets, but

sometimes there are cases in which our volume

constraint is satisfied and the concavity is not

accepted by CASTp. This must not be a critical

issues because (Liang, 1998) the binding sites are

usually the pockets having the greatest volume.

While CASTp includes empty volume internal to the

protein, in our approach these are identified but not

classified as pockets.

Referring to computational performance, our

algorithm runs on an Intel Q6600 Processor with 4

GB of Ram. The analysis of pockets and

protuberances on 1MK5 protein as been done in 58

seconds starting from the PDB ﬁle (this include the

operations of creating the 3D matrix, the Convex

Hull, all mathematical morphology operations, the

triangulation of the voxels surface of each

pocket/protuberance with a marching cube/mesh

smoothing algorithm and so on). In fact besides the

segmentation process for each detected segment

(pocket or protuberance) a rich parameter set is

computed to guide the analysis of possible match,

such as volume, surface to volume ratio, mouth

(base) aperture, travel depth, and many others (a full

list is given in (Cantoni, 10b). It is important to note

that all the algorithms presented in this paper are

already thought to be simply implemented into

parallel architectures.

5 CONCLUSIONS

In this paper we present a new approach for the

segmentation of SES of proteins in order to support

the search of dual active sites (i.e. pockets and

protuberances) that can be morphologically arranged

together. This is a preliminary step for important

structural biology application. The results achieved

look very promising and in comparison to others

solutions presented in literature it seems to add

something not only from the computational point of

view. Now we have started an extensive

experimentation phase to validate our solution from

the best practice point of view.

REFERENCES

Barber, C. B., Dobkin, D. P., and Huhdanpaa H., 1996.

The Quickhull Algorithm for Convex Hull. ACM

Transactions on Mathematical Software, Vol. 22(4):

469–483.

Binkowski, A. T., Naghibzadeh, S., and Liang, J., 2003.

Castp: Computed atlas of surface topography of

proteins. Nucl. Acids Res.,31(13): 3352- 3355.

Bock, M. E., Garutti C., Guerra C., 2007. Effective

labeling of molecular surface points for cavity

detection and location of putative binding sites. Proc.

of CSB, San Diego, Vol. 6: 263-744.

Borgefors, G. and Sanniti di Baja, G., 1996. Analyzing

Nonconvex 2D and 3D Patterns. Computer Vision and

image Understanding, 63(1): 145– 157.

Brady, G. P., Stouten, P. F. W., 2000. Fast prediction and

visualization of protein binding pockets with PASS. J

Comput-Aided Mol Des, 14: 383–401.

Cantoni, V., Gatti, R., Lombardi, L., 2010. Segmentation

of SES for Protein Structure Analysis. In Proceedings

of the 1st International Conference on Bioinformatics.

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

BIOSTEC 2010: 83–89 (a).

Cantoni, V., Gatti, R., Lombardi, L., 2010. Proteins

Pockets Analysis and Description. In Proceedings of

the 1st International Conference on Bioinformatics.

BIOSTEC 2010: 211–216 (b).

Glaser, F., Rosenberg, Y., Kessel, A., Pupko, T. and

Bental, N., 2005. The consurf-hssp database: the

mapping of evolutionary conservation among

homologs onto pdb structures. Proteins, 58(3): 610-

617.

Glaser, F., Morris, R. J., Najmanovich, R. J., Laskowski,

R. A. and Thornton, J. M., 2006. A Method for

Localizing Ligand Binding Pockets in Protein

Structures. PROTEINS: Structure, Function, and

Bioinformatics, 62: 479-488.

Huang, B., Schroeder, M., 2006. LIGSITEcsc: predicting

ligand binding sites using the Connolly surface and

degree of conservation. BMC Structural Biology, 6:19.

Laskowski, R. A., 1995. Surfnet: a program for visualizing

molecular surfaces, cavities and intermolecular

interactions. J Mol Graph, 13(5), 323-30.

Levitt, D. G. and Banaszak, L. J., 1992. Pocket: a

computer graphics method for identifying and

displaying protein cavities and their surrounding

amino acids. J Mol Graph, 10(4): 229–234.

Liang, J., Edelsbrunner, H. and Woodward, C., 1998.

Anatomy of protein pockets and cavities: measurement

of binding site geometry and implications for ligand

design. Protein Sci, 7(9): 1884- 1897.

Serra, J., 1982. Image analysis and mathematical

morphology. Academic Press.

Shulman-Peleg, A., Nussinov, R. and Wolfson, H., 2004.

Recognition of Functional Sites in Protein Structures.

J. Mol. Biol., 339: 607–633.

MORPHOLOGICAL ANALYSIS OF 3D PROTEINS STRUCTURE
