A MOBILE APPLICATION ACCESSING PATIENTS’ HEALTH

RECORDS THROUGH A REST API

How REST-Style Architecture can Help Speed up the Development of Mobile

Health Care Applications

Francois Andry, Lin Wan and Daren Nicholson

Axolotl Corp., 160 West Santa Clara Street, San Jose, CA 95113, U.S.A.

Keywords: Mobile Application, Health Records, RHIO, Lab Results, HL7, REST API, Web Services, JAX-RS,

Security.

Abstract: Mobile devices offer new ways for users to access health care data and services in a secure and user-friendly

environment. These new applications must be easy to create, deploy, test and maintain, and they must rely

on a scalable and easily integrated infrastructure. In this paper we present the motivations and technical

choices for creating a REST API integrated with a mobile application (iPhone/iPad) that offer physicians,

access to their patients’ health records via a community, regional or state Health Information Exchange

(HIE). We describe the architecture of the system, including how we address security and privacy concerns,

the REST API operations and HL7 subset data format used for lab results and observations. We also explain

why the early use of unit tests and integration tests were essential to the success of the project.

1 INTRODUCTION

In the ambulatory health care environment,

providers spend the majority of their time in an

examination room with patients. Although some

clinics have installed personal computers in the

exam room for use at the point of care, many

physician practices have yet to do so or have no such

intention. Reasons for not installing PCs in the exam

room include (among others) lack of space, security

concerns, and cost. Often, clinics have PCs installed

outside of the exam room to be used for encounter

documentation or health history research (i.e.,

reviewing the patient's health records). This physical

setup is often satisfactory for providers to complete

their documentation needs. Providers often scratch

rough notes on paper during an encounter, then

dictate or type their notes after the visit has ended.

The absence of computers in the exam room,

however, is a disadvantage for research activities.

Frequently, after listening to the patient's verbal

health history, a provider wishes to read past

records. If those records are in an electronic format,

it is optimal to access those records at the point of

care (i.e., in the exam room) (Shiffman et al., 1999).

Thus, computer devices that are smaller and more

mobile than a PC (e.g., smart phones, PDAs, tablets)

would be the optimal hardware choice to access

these electronic records (Sammon et al., 2006;

Kumar et al., 2009). Given that many physicians

carry smart phones, such mobile devices would be

the ultimate tools to look up patient records

(Watson, 2006).

Over the years, our group has developed

advanced Clinical Networking™ solutions for

hospitals, RHIOs and state-wide health information

exchanges (HIE). We have created a backend

infrastructure accessible for integration as software-

as-a-service (SaaS), most of them relying on Simple

Object Access Protocol (SOAP) APIs. One of the

issues we have encountered when creating an

architecture for mobile application was the type of

API to use between backend servers and the new

mobile clients.

In this paper, we explain the challenges (Pabllo

et al., 2008) faced when creating a new high

performance API accessible by mobile health care

applications for physicians and medical personnel.

We describe the technical choices that we have

made to simplify and to speed up the development,

management, extension and maintainability of the

features involved in such applications and the

associated service layer.

Andry F., Wan L. and Nicholson D..

A MOBILE APPLICATION ACCESSING PATIENTS’ HEALTH RECORDS THROUGH A REST API - How REST-Style Architecture can Help Speed up

the Development of Mobile Health Care Applications.

DOI: 10.5220/0003129600270032

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2011), pages 27-32

ISBN: 978-989-8425-34-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 MOBILE APPLICATION

The initial mobile application that we built on top of

Elysium Virtual Health Record (VHR)

infrastructure, only displays lab results. Other types

of data (vital signs, radiology and transcribed

reports, medications, etc.), which are currently

accessible via a web-based application, will be

offered at a later time. The usage scenario for the

mobile application is as follows:

1. Physician logs in using her/his credentials.

2. After successfully logging in, the physician

is presented with a list of patients that

he/she has explicit consent to view. In

addition, there is also a search box that will

allow the physician to manually search for

patients.

3. The physician chooses the patient of

interest on the patient list (or search

results).

4. Once the patient is selected, the physician

sees a list of available lab results for that

patient.

5. The physician selects a lab result of interest

by tapping it. This opens the lab result and

displays all of its details in a detail screen,

with the option of going back to the

previous screen to retrieve another lab

result.

2.1 Security Concerns

In order to minimize security risks and to comply

with HIPAA security regulations, we chose not to

store any patient, login or password data on the

mobile device preventing non-authorized users from

gaining any access to a patient’s personal health

information (PHI).

Access to the patients’ health records are provided

after the user (typically a doctor) enters his or her

are sent to the server via an application

programming interface (API). After authentication is

successful, the server sends back a security token

that the client must reuse for each subsequent

request to the server API. Initially all users

(physicians) have the same access control to the data

as long as the patients have given consent to specific

physician practices. As a result, the authorization

function is very simple.

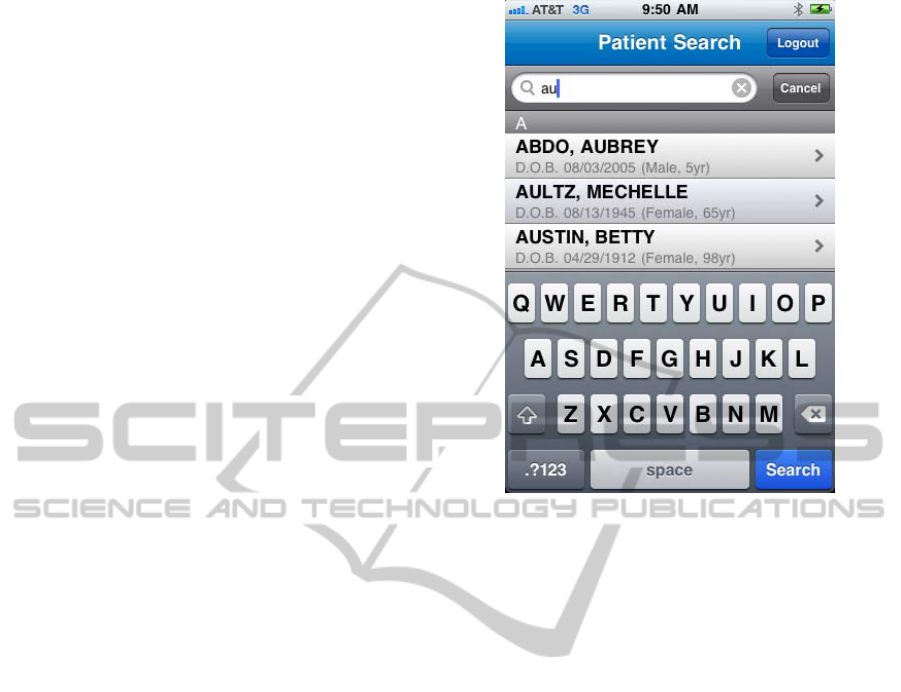

Figure 1: Patient search (iPhone application).

2.2 Client Platforms

The initial platforms chosen to deploy our mobile

applications are the iPhone and iPad. Additional

platforms (Google Android OS, Motion BlackBerry,

Windows Mobile OS) are planned for future

releases.

Building, deploying and maintaining stand-alone

applications for mobile platforms is different from

building browser-based web applications. Each

platform has its own design, development and

deployment process and tools.

Since the development of client applications on

different mobile platforms requires more time than

creating web applications for a handful of browsers,

it is important to minimize the complexity of the

integration with the back-end services and to try to

decouple the development and maintenance of the

client- and server-side components.

3 BACKEND INFRASTRUCTURE

For over 15 years, Axolotl (now part of Ingenix) has

developed and offered web-based applications to

access patient records. Until recently, these web-

application components were either tightly coupled

with the backend data sources or were accessing

data through Simple Object Access Protocol (SOAP)

based web services. In health care, SOAP is often

HEALTHINF 2011 - International Conference on Health Informatics

the top choice when it comes to web services. The

advantages of SOAP are:

 Type checking (via WSDL files)

 Availability of development tools

 Suitability for securely transferring large

numbers of data

Even though it was tempting to reuse the existing

SOAP APIs to leverage the existing infrastructure

and avoid new development on the server side, we

decided to create a more appropriate architecture

that would be easier to integrate and extend as more

types of data are added to the mobile health care

applications.

4 VHR REST API

The Representational State Transfer (REST)

architecture (Fielding 2000) is an alternative to

SOAP and offers certain characteristics that were

relevant to our use case:

 Lightweight and easy to build

 Extensible

 Scalable

 Easy to debug (human readable results)

SOAP based Web Services offer no separation of

concern, since the supported programming model

does not separate network centric operations from

local operations (Landre, Wesenberg, 2007). On the

other hand with REST APIs, the separation of

concern is clear. All resources are accessible using

the same protocol (HTTP). Also with SOAP,

interoperability problems can occur when native

types are present in the interface, whereas REST is

simpler as it completely constrains the set of

operations (Pautasso et al., 2008).

4.1 API Design and Development

With REST we are able to dynamically build unique

URLs to represent remote health records objects as

needed. The mobile application sends HTTP

requests over Secure Sockets Layer (SSL) to obtain

a JavaScript Object Notation (JSON) of patient

demographic info (DOB, name, etc) or health

records. JSON was chosen because, as a compact

data format, it offers better performance compared

to the complexity of an XML representation. In

addition to this, requests coming back from the

REST API are compressed using GZIP, which

further improves the performance between the server

and the client.

The API has been built using JBOSS JAX-RS

RestEasy library, which leverages Java annotations,

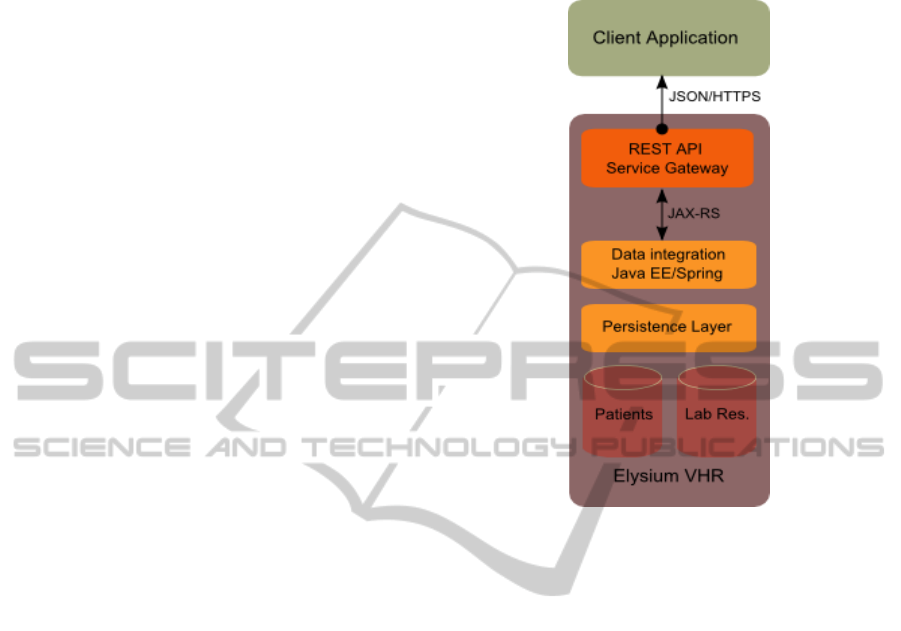

Figure 2: Integrated Mobile/REST API architecture.

making the definition of the resource mapping easy

to do in a very declarative manner. We use the

Jackson JSON/Java library to marshal and

unmarshal java objects into JSON format. The

integration of the API layer with the backend data

source, as well as other services such as

configuration, is done using the Java Spring

framework.

To define the API dependencies, modules, libraries

and to build the web archive artefact (war), we use

Apache Maven 2. Throughout the development

cycle, we have used a continuous integration process

with unit tests (JUnit).

The overall project has been managed through an

agile/SCRUM process, with iterative, incremental

development sprints, each lasting three weeks.

4.2 API Operations

With REST, the identification of the resources (user,

patient, lab results, etc.) is straightforward. There is

no need for the client to create complex request

envelopes to query the server.

The initial features of the mobile client is to access

the health record in a read-only mode; no data is

created or modified. As a result, most of the

operations use GET HTTP methods, with some

A MOBILE APPLICATION ACCESSING PATIENTS' HEALTH RECORDS THROUGH A REST API - How

REST-Style Architecture can Help Speed up the Development of Mobile Health Care Applications

restrictions for certain operations, where parts of the

PHI may be sent by the user back to the server. To

be compliant with HIPAA security regulations, a

POST method is used and the sensitive information

(e.g., a query on a patient name) is passed in the

body of the request as a JSON object over an SSL

connection.

Table 1: Health Record API operations examples.

POST /users/tokens authentication

for a user

GET /users/{user-id}/patients retrieve patients

GET or POST

/users/{user-id}/patients/{patient-id}

profile of a

specific patient

GET

/users/{user-id}/patients/{patient-id}/lab-

results

lab-results of a

patient

All request and response headers have a content type

“application/json,” which means that complex

queries and responses are in the form of JSON

arrays or JSON objects. In addition to this, the

requests coming from the client need to provide the

security token provided initially by the server as a

cookie in the request header.

Because the REST API is stateless, queries for large

amounts of data which require more than one

request - have to provide a limit (maximum) for the

number of resource items and an offset where to

start the query to avoid returning the same set of

data. These are defined as string parameters or

posted queries.

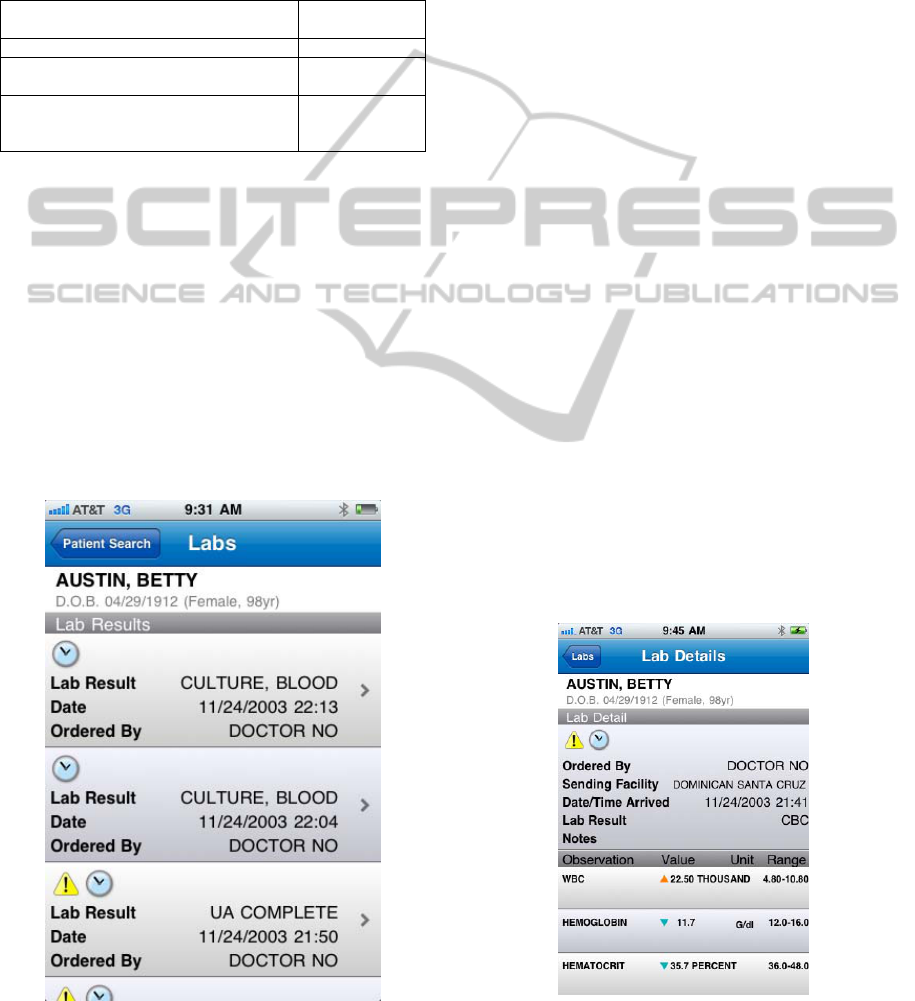

Figure 3: VHR patient’s lab results summary (iPhone).

Example of a JSON query object for patients:

{"query":

{"family":"...",

"max":N,

"offset":M}

}

Example of a JSON response object for patients:

{"patients":

{"list":[list of patients],

"count":X,

"offset":Y,

"remain":Z}

}

Heath Record data can be very complex. For

example in our data source, data is often stored as

HL7v2 fields. The REST API uses an HL7v2 to

HL7v3 transformation library to access Java

canonical representation of the observations and

unmarshal these plain Java objects (POJO) into an

HL7v3 JSON representation of the observation.

Example of a JSON response object for lab results:

{"lab-results":

{"list":

[{"lab-result":

{"entry":"...",

"facility":"...",

"normalcy":"...",

"orderedBy":"...",

"status":"...",

"subject":"...",

"urgency":"..."}},

{"lab-result":

{"date":"...",

...}}, ...],

"count":{count},

"offset":{offset},

"remain":{remain}}

Figure 4: VHR patient’s lab results details (iPhone).

HEALTHINF 2011 - International Conference on Health Informatics

HL7 V3 Lab result entry (JSON format):

{"entry":{

"organizer":{

"code":{"displayName":"..."}},

"components":[

{"component":{...}},

{"component":{...}},...],

"notes":[...]}}}

HL7 V3 Lab result component (JSON format):

{"component":{

"observation":{

"code":{"displayName":"..."},

"effectiveTime":{"value":"<ISO-8601>"},

"value":...,

"interpretationCode":{"code":"..."},

"referenceRange":{

"observationRange":{...}},

"notes":[...]}}}

5 INTEGRATION AND TESTS

The REST API is very easy to test using HTTP

requests from simple command tools such as cURL

or a web browser. Early in the project we were able

to create and deploy, in a few days, a full working

prototype of the API that was producing mocked-up

resources so that mobile clients were able to retrieve

sample data in the same fashion as the final API

production version.

During development we used a very small

footprint embedded java web server (TJWS) that

was running JUnit integration tests every time we

were compiling the project. As a result, the REST

API was always operational and ready to be

deployed as a war file to the staging server when

necessary.

On the client side, the very simple host, port and

base URL configuration is necessary to switch

between a staging and production server, which

makes development, testing and deploying

extremely easy.

The first version of our mobile health record will

be available late 2010 as a pilot program for a small

group of physicians participating in the New York

Rochester Regional Health Information

Organization (Rochester RHIO). It has already been

tested by the technical services of the New York

Rochester RHIO and we have incorporated changes

in the iPhone interface and REST API format to

support the variability of real world lab results

(which sometimes can be either incomplete or

contain badly formatted HL7 data sets).

Initially only the records of patients who have

provided consent will be accessible by the mobile

application. This represents, in Summer 2010

290,000 patients from more than 140 practices.

6 CONCLUSIONS

In this paper, we have presented the advantages of

using a REST architecture for designing a

lightweight and scalable API that is extremely easy

to build, integrate, test, extend and maintain. We

were able to create a working API prototype in a

matter of days and a full functioning set of

sophisticated health record web services accessible

by our mobile client application in few weeks.

In the next few months, we will be able to gather

user feedback from a large group of users

(physicians and nurses) and statistics about usage

that will be very valuable to improve the

performance of our health record REST API and the

user experience of the mobile application. Also the

audit of server logs for the REST API and the use of

data mining tools will be valuable to see

performance bottlenecks and usage trends.

Furthermore not only are REST APIs are

particularly suitable for fast and loosely-coupled

solution integration such as mobile applications, but

can also be used in health care for portal and mash-

up applications as well.

ACKNOWLEDGEMENTS

We are very grateful to Ted Kremer, Gloria

Hitchcock and LaRon Rowe from the Rochester

RHIO who have initiated this project and for their

early feedback on the prototype. Our appreciation to

David Stanfill and Nick Fisser and their team from

Remedy Systems who helped us develop the iPhone

mobile client. We would like to acknowledge the

supervision and guidance provided by Anand Shroff.

Thank you also to Terena Chinn-Fujii, Igor Kosoy,

Greg Kuhnen, Ravi Luthra, Brian Schott, Neal

Schultz, Nick Radov, Nicole Spencer, Dennis

Stratford, Sean Smith, Tom Wilson, Eileen Xie,

Oleg Zakharov and the Axolotl development team

for their technical contributions, comments and

support throughout this project.

A MOBILE APPLICATION ACCESSING PATIENTS' HEALTH RECORDS THROUGH A REST API - How

REST-Style Architecture can Help Speed up the Development of Mobile Health Care Applications

REFERENCES

Fielding R., 2000, Architectural Styles and the Design of

Network-based Software Architectures. Doctoral

dissertation, University of California, Irvine.

Fielding R., Taylor R., 2002,. Principled Design of the

Modern Web Architecture, in TOIT 2002: ACM

Transactions on Internet Technology, pp. 115–150.

HIPAA, The Health Insurance Portability and

Accountability Act of 1996 (HIPAA) Privacy and

Security Rules. http://www.hhs.gov/ocr/privacy/.

Kumar et al., 2009, ELMR: Lightweight Mobile Health

Records: A Study of Access Control. In SIGMOD '09:

Proceedings of the 35th SIGMOD international

conference on Management of data.

Landre E., Wesenberg H., 2007: Rest versus soap: as

architectural style for web services. In 5th

International OOPSLA Workshop on SOA & Web

services Best Practices, 2007.

Luo J., 2008. Mobile computing in healthcare: the dreams

and wishes of cliniciansm, In HealthNet '08:

Proceedings of the 2nd International Workshop on

Systems and Networking Support for Health Care and

Assisted Living Environments.

Pabllo C., Soto R., Campos J., 2008. Mobile Medication

Administration System: Application and Architecture.

In EATIS '08: Proceedings of the 2008 Euro American

Conference on Telematics and Information Systems.

Pautasso C., Zimmermann O., Leymann F., 2008.

RESTful Web Services vs. Big Web Services: Making

the Right Architectural Decision. In WWW2008: 17th

International World Wide Web Conference, Beijing,

China.

Sammon et al., 2006, MACCS: Enabling Communications

for Mobile Workers within Healthcare Environments.

In MobileHCI '06: Proceedings of the 8th conference

on Human-computer interaction with mobile devices

and services

Shiffman et al., 1999, Pen-Based, Mobile Decision

Support in Healthcare. In SIGBIO Newsletter, Volume

19 Issue 2.

Watson M., 2006, Mobile Healthcare Applications: A

Study of Access Control. In Proceedings of the 2006

International Conference on Privacy, Security and

Trust.

HEALTHINF 2011 - International Conference on Health Informatics
