PARTIALLY-CONTROLLED MARKOV DECISION PROCESSES
FOR COLLISION AVOIDANCE SYSTEMS
∗
Mykel J. Kochenderfer and James P. Chryssanthacopoulos
Lincoln Laboratory, Massachusetts Institute of Technology, 244 Wood Street, Lexington, MA, U.S.A.
Keywords:
Markov decision processes, Dynamic programming, Collision avoidance.
Abstract:
Deciding when and how to avoid collision in stochastic environments requires accounting for the likelihood
and relative costs of future sequences of outcomes in response to different sequences of actions. Prior work has
investigated formulating the problem as a Markov decision process, discretizing the state space, and solving
for the optimal strategy using dynamic programming. Experiments have shown that such an approach can be
very effective, but scaling to higher-dimensional problems can be challenging due to the exponential growth of
the discrete state space. This paper presents an approach that can greatly reduce the complexity of computing
the optimal strategy in problems where only some of the dimensions of the problem are controllable. The
approach is demonstrated on an airborne collision avoidance problem where the system must recommend
maneuvers to an imperfect pilot.
1 INTRODUCTION
Manually constructing a robust collision avoidance
system, whether it be for an autonomous or human-
controlled vehicle, is challenging because the future
effects of the system cannot be known exactly. Due
to their safety-critical nature, collision avoidance sys-
tems must maintain a high degree of reliability while
minimizing unnecessary path deviation. Recent work
has investigated formulating the problem of colli-
sion avoidance as a Markov decision process (MDP)
and solving for the optimal strategy using dynamic
programming (DP) (Kochenderfer and Chryssantha-
copoulos, 2010; Kochenderfer et al., 2010a; Temizer
et al., 2010). One limitation of this approach is that
the computation and memory requirements grow ex-
ponentially with the dimensionality of the state space.
Hence, these studies focused on MDP formulations
that capture only a subset of the relevant state vari-
ables at the expense of impaired performance.
This paper presents a new approach for signif-
icantly reducing the computation and memory re-
quirements for partially-controlled collision avoid-
∗
This work is sponsored by the Federal Aviation Admin-
istration under Air Force Contract #FA8721-05-C-0002.
Opinions, interpretations, conclusions, and recommenda-
tions are those of the authors and are not necessarily en-
dorsed by the United States Government.
ance problems. The approach involves decomposing
the problem into two separate subproblems, one con-
trolled and one uncontrolled, that can be solved inde-
pendently offline using dynamic programming. Dur-
ing execution, the results from the offline computation
are combined to determine the approximately optimal
action from the current state.
The approach is demonstrated on an airborne col-
lision avoidance system that recommends vertical ma-
neuvers to an imperfect pilot. Although the pilot may
maneuver horizontally, it is assumed that the collision
avoidance system does not influence the horizontal
motion. The problem is naturally represented using
seven state variables, which is impractical to solve
with a reasonable level of discretization. By carefully
decomposing the problem into two lower-dimensional
problems, a solution can be obtained quickly and
stored in primary physical memory. The performance
of the optimized system is compared in simulation
against the Traffic Alert and Collision Avoidance Sys-
tem (TCAS), which is currently mandated worldwide
on all large transport aircraft (RTCA, 2008).
The next section briefly summarizes related work
on collision avoidance. Section 3 reviews Markov
decision processes. Section 4 describes the solu-
tion method and outlines the required assumptions.
Section 5 applies the method to an airborne colli-
sion avoidance problem. Section 6 evaluates the suc-
61
J. Kochenderfer M. and P. Chryssanthacopoulos J..
PARTIALLY-CONTROLLED MARKOV DECISION PROCESSES FOR COLLISION AVOIDANCE SYSTEMS.
DOI: 10.5220/0003135800610070
In Proceedings of the 3rd International Conference on Agents and Artificial Intelligence (ICAART-2011), pages 61-70
ISBN: 978-989-8425-40-9
Copyright
c
 2011 SCITEPRESS (Science and Technology Publications, Lda.)

cess of the method in simulation and presents results
that show that the method significantly outperforms
TCAS. Section 7 concludes and outlines further work.
2 RELATED WORK
A common technique for collision avoidance in au-
tonomous and semi-autonomous vehicles is to define
conflict zones for each obstacle and then use a deter-
ministic model, such as linear extrapolation, to pre-
dict whether a conflict will occur (Bilimoria, 2000;
Dowek et al., 2001; Chamlou, 2009). If a conflict
is anticipated, the collision avoidance system selects
the maneuver that provides the minimal path devia-
tion while preventing the conflict. Such an approach
requires very little computation and can prevent col-
lision much of the time, but it lacks robustness be-
cause the deterministic model ignores the stochastic
nature of the environment. Although one may mit-
igate collision risk to some extent by artificially en-
larging the conflict zones to accommodate uncertainty
in the future behavior of the vehicles, this approach
frequently results in unnecessary path deviation. The
TCAS collision avoidance logic adopts an approach
along these lines but incorporates a large collection of
hand-crafted, heuristic rules to enhance robustness to
unexpected behavior.
Several other approaches to collision avoidance
can be found in the literature that do not use a prob-
abilistic model of vehicle behavior, including poten-
tial field methods (Khatib and Maitre, 1978; Duong
and Zeghal, 1997; Eby and Kelly, 1999) and rapidly-
expanding random trees (LaValle, 1998; Kuwata
et al., 2008; Saunders et al., 2009). However, avoid-
ing collision with a high degree of reliability while
keeping the rate of path deviation low requires the use
of a probabilistic model that accounts for future state
uncertainty. Several methods have been suggested
that involve using a probabilistic model to estimate
the probability of conflict and to choose the maneu-
ver that keeps the probability of conflict below some
set threshold (Yang and Kuchar, 1997; Carpenter and
Kuchar, 1997; Kochenderfer et al., 2010a). One limi-
tation of these threshold-based approaches is that they
do not model the effects of delaying the avoidance
maneuver. In many cases, it can be beneficial to see
how the encounter develops before committing to a
particular maneuver. The dynamic programming ap-
proach pursued in this work, in contrast, takes into ac-
count every possible future sequence of actions taken
by the collision avoidance system and their outcomes
when making a decision.
3 MARKOV DECISION
PROCESSES
An MDP is defined by a transition function T and
cost function C. The probability of transitioning from
state s to state s
0
after executing action a is given by
T (s,a,s
0
). The immediate cost when executing action
a from state s is given by C(s,a). In this paper, the
state space S and action space A are assumed to be
finite (Puterman, 1994; Bertsekas, 2005).
A policy is a function π that maps states to actions.
The expected sum of immediate costs when following
a policy π for K steps starting from state s is denoted
J
π
K
(s) and is often called the cost-to-go function. The
optimal solution to an MDP with a receding horizon
of K is a policy π
∗
K
that minimizes the cost to go from
every state.
One way to compute π
∗
K
is to first compute J
∗
K
,
the cost-to-go function for the optimal policy, using a
dynamic programming algorithm known as value iter-
ation. The function J
∗
0
(s) is set to zero for all states s.
If the state space includes terminal states with imme-
diate cost C(s), then J
∗
0
(s) = C(s) for those terminal
states. The function J
∗
k
(s) is computed from J
∗
k−1
as
follows:
J
∗
k
(s) = min
a
"
C(s, a) +
∑
s
0
T (s,a, s
0
)J
∗
k−1
(s
0
)
#
. (1)
The iteration continues until horizon K.
The expected cost to go when executing a from s
and then continuing with an optimal policy for K − 1
steps is given by
J
∗
K
(s,a) = C(s,a) +
∑
s
0
T (s,a, s
0
)J
∗
K−1
(s
0
). (2)
An optimal policy may be obtained directly from
J
∗
K
(s,a):
π
∗
K
(s) = argmin
a
J
∗
K
(s,a). (3)
If the state space contains continuous variables,
which is common for collision avoidance problems,
the state space can be discretized using a multi-
dimensional grid or simplex scheme (Davies, 1997).
The transition function T (x, a,x
0
) in continuous space
can be translated into a discrete transition function
T (s,a, s
0
) using a variety of sampling and interpo-
lation methods (Kochenderfer et al., 2010a). Once
the state space, transition function, and cost function
have been discretized, J
∗
(s,a) may be computed for
each discrete state s and action a. For a continuous
state x and action a, J
∗
(x,a) may be approximated us-
ing, for example, multilinear interpolation. The best
action to execute from continuous state x is simply
argmin
a
J
∗
(x,a).
ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence
62

Discretizing the full state space can result in a large
number of discrete states, exponential in the number
of dimensions, which makes computing J
∗
infeasible
for many problems. This “curse of dimensionality”
(Bellman, 1961) has led to a variety of different ap-
proximation methods (Powell, 2007).
4 PARTIAL CONTROL
This paper explores a new solution technique for
partially-controlled MDPs that is applicable to cer-
tain collision avoidance problems. It may be ap-
plied to interception-seeking or goal-oriented prob-
lems as well by incorporating negative costs. So long
as the problem satisfies a set of assumptions, this so-
lution method will provide a finite-horizon solution.
The approach involves independently solving a con-
trolled subproblem and an uncontrolled subproblem
and combining the results online to identify the ap-
proximately optimal action.
4.1 Assumptions
It is assumed that the state is represented by a set
of variables, some controlled and some uncontrolled.
The state space of the controlled variables is denoted
S
c
, and the state space of the uncontrolled variables
is denoted S
u
. The state of the controlled variables
at time t is denoted s
c
(t), and the state of the uncon-
trolled variables at time t is denoted s
u
(t). The so-
lution technique may be applied when the following
three assumptions hold:
1. The state s
u
(t + 1) depends only upon s
u
(t). The
probability of transitioning from s
u
to s
0
u
is given
by T (s
u
,s
0
u
).
2. The episode terminates when s
u
∈ G ⊂ S
u
with im-
mediate cost C(s
c
).
3. In nonterminal states, the immediate cost c(t + 1)
depends only upon s
c
(t) and a(t). If the controlled
state is s
c
and action a is executed, the immediate
cost is denoted C(s
c
,a).

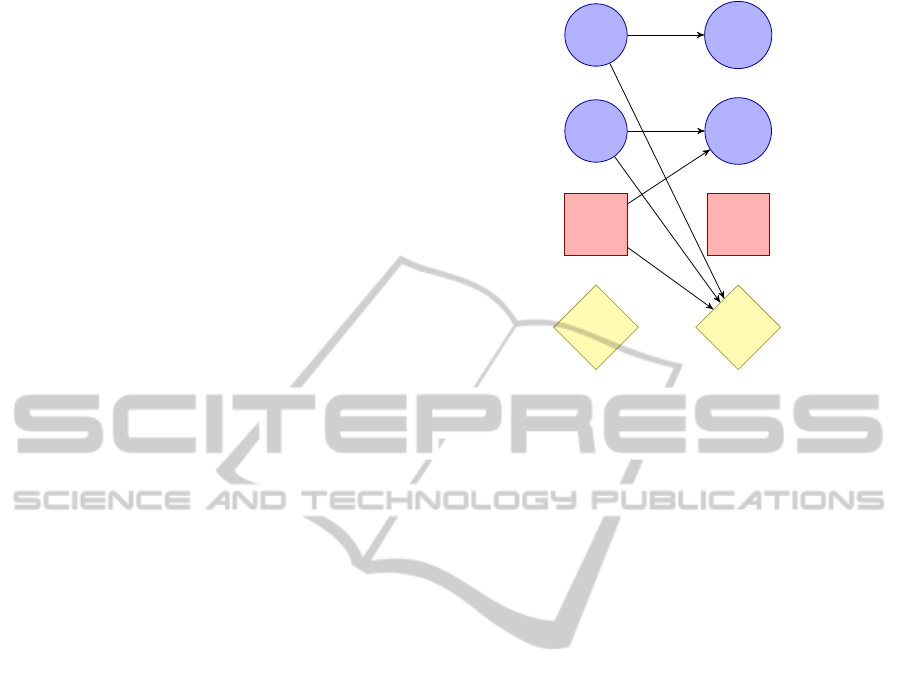

Figure 1 shows the influence diagram for this model.
4.2 Controlled Subproblem
Solving the controlled subproblem involves comput-
ing the optimal policy for the controlled variables un-
der the assumption that the time until s
u
enters G, de-
noted τ, is known. In an airborne collision avoidance
context, τ may be the number of steps until another
aircraft comes within 500 ft horizontally. Of course,
τ cannot be determined exactly from s
u
(t) because it
s
u
(t) s
u
(t + 1)
s
c
(t) s
c
(t + 1)
a(t) a(t + 1)
c(t) c(t + 1)
Figure 1: Influence diagram illustrating partial control in a
Markov decision process.
depends upon an event that occurs in the future, but
this will be addressed by the uncontrolled subproblem
(Section 4.3).
The cost to go from s
c
given τ is denoted J
τ
(s
c
).
The series J
0
,. .. ,J
K
is computed recursively, starting
with J
0
(s
c
) = C(s
c
) and iterating as follows:
J
k
(s
c
) = min
a
"
C(s
c
,a) +
∑
s
0
c
T (s
c
,a, s
0
c
)J
k−1
(s
0
c
)
#
.
(4)
The expected cost to go from s
c
when executing a
for one step and then following the optimal policy is
given by
J
k
(s
c
,a) = C(s
c
,a) +
∑
s
0
c
T (s
c
,a, s
0
c
)J
k−1
(s
0
c
). (5)
The K-step expected cost to go when τ > K is de-
noted J
¯
K
. It is computed by initializing J
0
(s
c
) = 0 for
all states and iterating equation 4 to horizon K. The
series J
0
,. .. ,J
K
,J
¯
K
is saved in a table in memory, re-
quiring O(K|A||S
c
|) entries.
4.3 Uncontrolled Subproblem
Solving the uncontrolled subproblem involves using
the probabilistic model of the uncontrolled dynam-
ics to infer a distribution over τ for each uncontrolled
state s
u
. This distribution is referred to as the entry
time distribution because it represents the distribution
over the time for s
u
to enter G. The probability that
s
u
enters G in τ steps is denoted D
τ
(s
u
) and may be
computed using dynamic programming. The proba-
bility that τ = 0 is given by
D
0
(s
u
) =

1 if s
u
∈ G,
0 otherwise.
(6)
PARTIALLY-CONTROLLED MARKOV DECISION PROCESSES FOR COLLISION AVOIDANCE SYSTEMS
63

The probability that τ = k, for k > 0, is computed from
D
k−1
as follows:
D
k
(s
u
) =

0 if s
u
∈ G,
∑
s
0
u
T (s
u
,s
0
u
)D
k−1
(s
0
u
) otherwise.
(7)
Depending on s
u
, there may be some probability that
s
u
does not enter G within K steps. This probabil-
ity is denoted D
¯
K
(s
u
) and may be computed from
D
0
,. .. ,D
K
:
D
¯
K
(s
u
) = 1 −
K
∑
k=0
D
k
(s
u
). (8)
The sequence D
0
,. .. ,D
K
,D
¯
K
is stored in a table with
O(K|S
u
|) entries. Multilinear interpolation of the dis-
tributions may be used to determine D
τ
(x
u
) at an ar-
bitrary continuous state x
u
.
4.4 Online Solution
After J
0
,. .. ,J
K
,J
¯
K
and D
0
,. .. ,D
K
,D
¯
K
have been
computed offline, they are used together online to de-
termine the approximately optimal action to execute
from the current state. For any discrete state s in the
original state space, J
∗
K
(s,a) may be computed as fol-
lows:
J
∗
K
(s,a) = D
¯
K
(s
u
)J
¯
K
(s
c
,a) +
K
∑
k=0
D
k
(s
u
)J
k
(s
c
,a), (9)
where s
u
is the discrete uncontrolled state and s
c
is
the discrete controlled state associated with s. Com-
bining the controlled and uncontrolled solutions on-
line in this way requires time linear in the size of the
horizon. Multilinear interpolation can be used to es-
timate J
∗
K
(x,a) for an arbitrary state x, and from this
the optimal action may be obtained.
The memory requirements for directly storing
J
∗
K
(s,a) is O(|A||S
c
||S
u
|). However, the method pre-
sented in this section allows the solution to be repre-
sented using O(K|A||S
c
| + K|S
u
|) storage, which can
be a tremendous savings when |S
c
| and |S
u
| are large.
For the collision avoidance problem discussed in the
next section, this method allows the cost table to be
stored in 500 MB instead of over 1 TB. The offline
computational savings are even more significant.
An alternative to using dynamic programming for
computing the entry time distribution offline is to use
Monte Carlo to estimate the entry time distribution
online. A Monte Carlo approach does not require the
uncontrolled variables to be discretized and does not
require D
0
,. .. ,D
K
,D
¯
K
to be stored in memory. How-
ever, using Monte Carlo increases the amount of com-
putation required online. In addition, for problems
where the conflict region is small, the number of sam-
ples required to produce an adequate distribution may
be large. Importance sampling and other sampling
methods may be used to help improve the quality of
the estimates of the entry time distribution (Chryssan-
thacopoulos et al., 2010).
5 AIRBORNE COLLISION
AVOIDANCE SYSTEM
This section demonstrates the approach suggested in
the previous section on an MDP representing an air-
borne collision avoidance problem. In this problem,
the collision avoidance system issues resolution ad-
visories to pilots who then adjust their vertical rate
to avoid coming within 500 ft horizontally and 100 ft
vertically of an intruding aircraft. This section con-
siders a simplified version of the collision avoidance
problem in which one aircraft equipped with a col-
lision avoidance system, called the own aircraft, en-
counters only one other unequipped aircraft, called
the intruder aircraft. The remainder of the section
outlines the assumptions and decomposes the prob-
lem into controlled and uncontrolled subproblems.
5.1 Assumptions
In this problem, s
c
represents the state of the verti-
cal motion variables, and s
u
represents the state of
the horizontal motion variables. This problem defines
coming within 500 ft horizontally and 100 ft vertically
of an intruder as a conflict. This definition matches
the near mid-air collision (NMAC) definition used in
prior TCAS studies (RTCA, 2005).
The first assumption in Section 4.1 requires that
s
u
(t + 1) depend only upon s
u
(t). In this collision
avoidance problem, it is assumed that pilots randomly
maneuver horizontally, and that the advisories issued
by the collision avoidance system do not influence the
horizontal motion.
The second assumption requires the episode to ter-
minate when s
u
enters G. In this problem, G is the set
of states where there is a horizontal conflict, defined
to be when an intruder comes within 500 ft horizon-
tally. The immediate cost when this occurs is given
by C(s
c
), which is one when the intruder is within
100 ft vertically and zero otherwise. In simulation, the
episode does not terminate when s
u
enters G, since
entering G does not necessarily imply that there has
been a conflict (e.g., the two aircraft may have safely
missed each other by 1000 ft vertically). However, it
is generally sufficient to plan up to the moment where
s
u
enters G because adequate separation at that mo-
ment usually indicates that the encounter is resolved.
ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence
64

The third assumption requires that for states where
s
u
6∈ G the immediate cost function depends on the
controlled state variables and the action. As outlined
in Section 5.2.3, the nonterminal cost function only
depends on the advisory state and the advisory being
issued.
5.2 Controlled Subproblem
The controlled subproblem, formulated as an MDP,
is defined by the available actions, the dynamics, and
the cost function. The dynamics are determined by
the pilot response model and aircraft dynamic model.
The cost function takes into account both safety and
operational considerations. In addition to describing
these components of the MDP, this section discusses
the resulting optimal policy.
5.2.1 Resolution Advisories
The airborne collision avoidance system may choose
to issue one of two different initial advisories: climb
at least 1500 ft/min or descend at least 1500 ft/min.
Following the initial advisory, the system may choose
to either terminate, reverse, or strengthen the advi-
sory. An advisory that has been reversed requires a
vertical rate of 1500 ft/min in the opposite direction
of the original advisory. An advisory that has been
strengthened requires a vertical rate of 2500 ft/min in
the direction of the original advisory. After an advi-
sory has been strengthened, it can then be weakened
to reduce the required vertical rate to 1500 ft/min in
the direction of the original advisory.
5.2.2 Dynamic Model
The state is represented using four variables:
• h: altitude of the intruder relative to the own air-
craft,
•
˙
h
0
: vertical rate of the own aircraft,
•
˙
h
1
: vertical rate of the intruder aircraft, and
• s
RA
: the state of the resolution advisory.
The discrete variable s
RA
contains the necessary in-
formation to model the pilot response, which includes
the active advisory and the time to execution by the
pilot. Five seconds are required for the pilot to begin
responding to an initial advisory. The pilot then ap-
plies a 1/4 g acceleration to comply with the advisory.
Subsequent advisories are followed with a 1/3 g accel-
eration after a three second delay. When an advisory
is not active, the pilot applies an acceleration selected
at every step from a zero-mean Gaussian with 3 ft/s
2
standard deviation. At each step, the intruder pilot
independently applies a random acceleration from a
zero-mean Gaussian with 3 ft/s
2
standard deviation.
The continuous state variables are discretized ac-
cording to the scheme in Table 1. The discrete
state transition probabilities were computed using
sigma-point sampling and multilinear interpolation
(Kochenderfer et al., 2010a). This discretization
scheme produces a discrete model with 213 thousand
discrete states.
Table 1: Controlled Variable Discretization.
Variable Grid Edges
h −1000, −900,. . ., 1000 ft
˙
h
0
−2500,−2250,. .. , 2500 ft/min
˙
h
1
−2500,−2250,. .. , 2500 ft/min
5.2.3 Cost Function
An effective collision avoidance system must satisfy
a number of competing objectives, including maxi-
mizing safety and minimizing the rate of unnecessary
alerts and path deviation. These objectives are en-
coded in the cost function. In addition to incurring
a cost for conflict, it may be desirable to incur a cost
for other events such as alerting or strengthening the
advisory. The costs of various events are summarized
in Table 2. A small negative cost is awarded at every
time step the system is not alerting to provide some
incentive to discontinue alerting after the encounter
has been resolved.
Table 2: Event Costs.
Conflict Alert Strengthening Reversal Clear of Conflict
1 0.001 0.009 0.01 −1 · 10
−4
5.2.4 Optimal Policy
The optimal cost-to-go tables J
0
,. .. ,J
K
,J
¯
K
were com-
puted offline in less than two minutes on a single
3 GHz Intel Xeon core using a horizon of K = 39
steps. Storing only the values for the valid state-action
pairs requires 263 MB using a 64-bit floating point

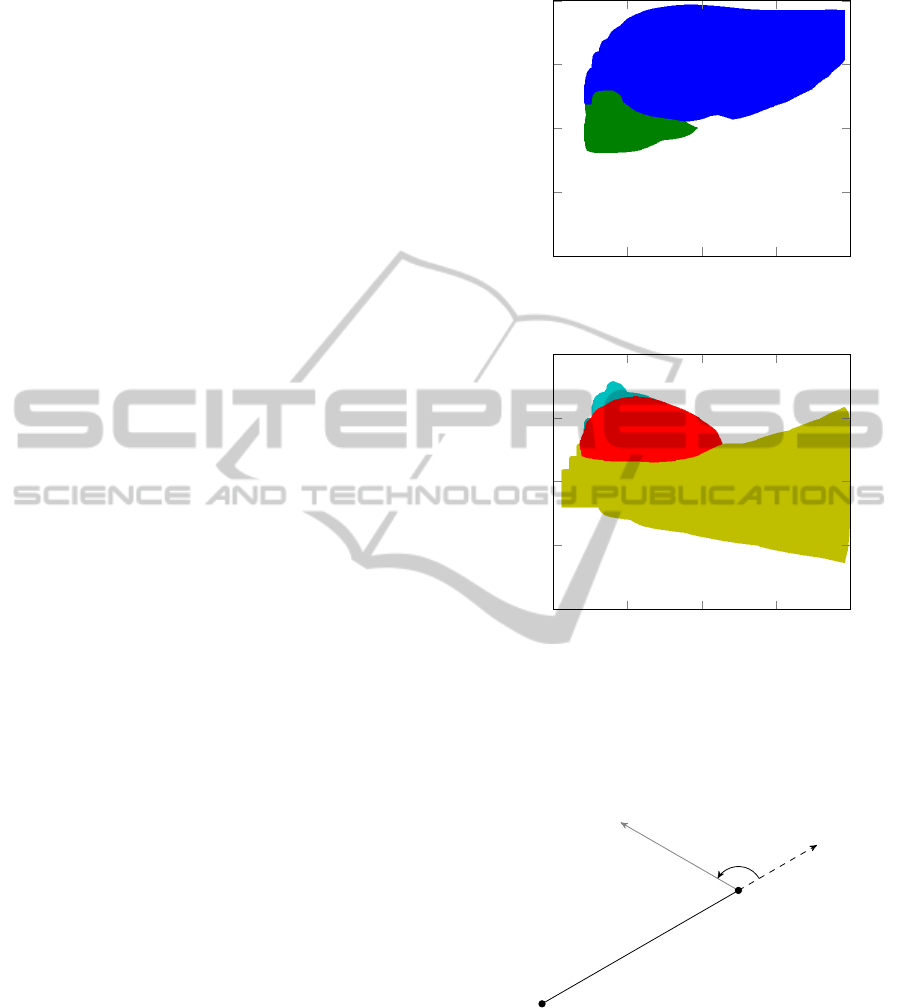

representation. Figure 2 shows plots of the optimal
policy through different slices of the state space where
the own aircraft is initially climbing at 1500 ft/min
and the intruder is level.
Figure 2(a) shows the policy when an alert has
not been issued. The blue region indicates where the
logic will issue a descend advisory, and the green re-
gion indicates where the logic will issue a climb advi-
sory. The optimal policy will sometimes issue a climb
even when the intruder is above. This occurs when
PARTIALLY-CONTROLLED MARKOV DECISION PROCESSES FOR COLLISION AVOIDANCE SYSTEMS
65

the aircraft are closely separated in altitude and little
time remains until potential conflict. Because the own
aircraft is already climbing, there is insufficient time
to accelerate downward to avoid conflict. Climbing
above the intruder is more effective. Another notable
feature of the plot is that no advisory is issued when
τ ≤ 5 s. Because an advisory has no effect until five
seconds after it is issued in this model, alerting less
than five seconds prior to conflict is no more effective
than not alerting.
In Figure 2(b), a strengthened climb advisory was
issued two seconds previously. Should the logic con-
tinue issuing the strengthened climb advisory, the pi-
lot will begin climbing to 2500 ft/min in one second.
The white region indicates where the logic will dis-
continue the advisory. The advisory is typically dis-
continued when the vertical separation is large and
there is much time until conflict. The gold region
indicates where the logic will continue to issue the
strengthened advisory. In the red region, the logic
will reverse the climb to a descend when the intruder
is above the own aircraft and maintaining the climb
might induce conflict. In the teal region of the plot,
the logic will weaken the advisory when the intruder
is far enough above the own aircraft that reversing the
advisory is unnecessary.
5.3 Uncontrolled Subproblem
The uncontrolled subproblem involves estimating the
distribution over τ (i.e., the time until the aircraft are
separated less than 500 ft horizontally) given the cur-
rent state. This section describes the horizontal dy-
namics and three methods for estimating the entry
time distribution.
5.3.1 Dynamic Model
The aircraft move in the horizontal plane in re-
sponse to independent random accelerations gener-
ated from a zero-mean Gaussian with a standard de-
viation of 3 ft/s
2
. The motion can be described by a
three-dimensional model, instead of the typical four-
dimensional (relative positions and velocities) model,
due to rotational symmetry in the dynamics. The three
state variables are as follows:
• r: horizontal range to the intruder,
• r
v
: relative horizontal speed, and
• θ
v
: difference in the direction of the relative hori-
zontal velocity and the bearing of the intruder.
These variables are illustrated in Figure 3.
Climb
Descend
No advisory
0 10 20 30 40
−1000
−500
0
500
1000
τ (s)
h (ft)
(a) s
RA
= “no advisory”
Continue strengthened climb
Reverse
Weaken
Discontinue advisory
0 10 20 30 40
−1000
−500
0
500
1000
τ (s)
h (ft)
(b) s
RA
= “increase climb in one second”
Figure 2: Optimal action plots for
˙
h
0
= 1500 ft/min,
˙
h
1
=
0 ft/min.
r
v
Relative
velocity vector
r
Own
Intruder
θ
v
Figure 3: Three-variable model of horizontal dynamics.
5.3.2 Dynamic Programming Entry Time
Distribution
The entry time distribution can be estimated offline
using dynamic programming as discussed in Sec-
tion 4.3. The state space was discretized using the
scheme in Table 3, resulting in 730 thousand dis-
ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence
66

crete states. The offline computation required 92 sec-
onds on a single 3 GHz Intel Xeon core. Storing
D
0
,. .. ,D
39
in memory using a 64-bit floating point
representation requires 222 MB.
Table 3: Uncontrolled Variable Discretization.
Variable Grid Edges
r 0,50,. .. , 1000,1500, .. . ,40000 ft
r
v
0,10,. .. , 1000 ft/s
θ
v
−180
◦
,−175
◦
,.. ., 180
◦
5.3.3 Monte Carlo Entry Time Distribution
Monte Carlo estimation can be used online to estimate
the entry time distribution as explained at the end of
Section 4.3. The experiments in this paper use 100
Monte Carlo samples to estimate τ.
5.3.4 Simple Entry Time Distribution
A point estimate of τ can be obtained online as fol-
lows. The range rate is given by
˙r = r
v
cos(θ
v
). (10)
If the aircraft are converging in range, then τ can be
approximated by r/|˙r|. Otherwise, τ is set beyond the
horizon.
6 RESULTS
This section evaluates the performance of the col-
lision avoidance system using simulated encounters
and compares it against the current version of TCAS,
Version 7.1.
6.1 Encounter Initialization
Encounters are initialized in the horizontal plane by
randomly and independently generating the initial
ground speeds of both aircraft, s
0
and s
1
, from a
uniform distribution between 100 and 500 ft/s. The
horizontal range between the aircraft is initialized to
r = t
target
(s
0
+s
1
)+u
r
, where u
r
is a zero-mean Gaus-
sian with 500 ft standard deviation. The parameter
t
target
, nominally set to 40 s, controls how long until
the aircraft come into conflict.
The bearing of the intruder aircraft with respect
to the own aircraft, χ, is sampled from a zero-mean
Gaussian distribution with a standard deviation of 2
◦
.
The heading of the intruder with respect to the head-
ing of the own aircraft, β, is sampled from a Gaussian
distribution with a mean of 180
◦
and a standard devi-
ation of 2
◦
. When β = 180
◦
, the intruder is heading
directly toward the own aircraft.
The initial vertical rates
˙
h
0
and
˙
h
1
are drawn
independently from a uniform distribution spanning
−1000 and 1000 ft/min. The initial altitude of the
own aircraft, h
0
, is set to 43,000 ft. The initial altitude
of the intruder is h
0
+t
target
(
˙
h
0
−
˙
h
1
) +u
h
, where u
h
is
a zero-mean Gaussian with 25 ft standard deviation.

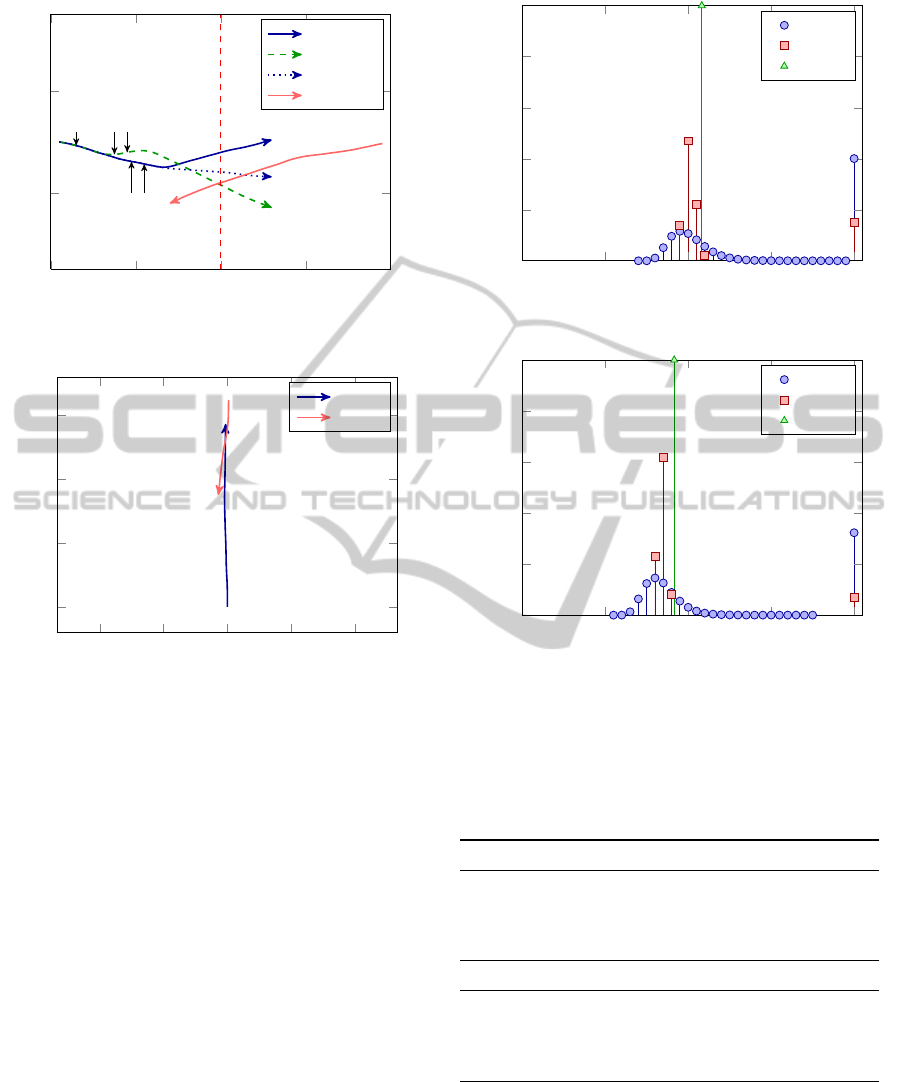

6.2 Example Encounter
Figure 4 shows an example encounter comparing the
behavior of the system using the DP entry time dis-
tribution against the TCAS logic. Figure 5 shows
the entry time distribution computed using the three
methods of Section 5.3 at the points in time when the
system issues alerts.
Seventeen seconds into the encounter, the DP
logic issues a descend to pass below the intruder. The
expected cost to go for issuing a descend advisory
is approximately 0.00928, lower than the expected
cost to go for issuing a climb advisory (0.0113) or
for not issuing an advisory (0.00972). The DP entry
time distribution at this time has a conditional mean
E[τ | τ < 40s] of approximately 12.01 s, and a con-
siderable portion of the probability mass (∼40%) is
assigned to τ ≥ 40 s. The Monte Carlo entry time dis-
tribution, in comparison, has less support but a com-
parable conditional mean of 17.12 s. Only 15% of
the probability mass is concentrated on τ ≥ 40 s. The
point estimate of τ using the simple method is 21.65 s.
After the descend advisory is issued, the intruder
begins to increase its descent, causing the DP logic
to reverse the descend to a climb 20 seconds into the
encounter. The pilot begins the climb maneuver three
seconds later. Once the aircraft are safely separated,
the DP logic discontinues the advisory at t = 31 s.
The minimum horizontal separation is 342 ft, at which
time the vertical separation is 595 ft. No conflict oc-
curs.
TCAS initially issues a climb advisory four sec-
onds into the encounter because it anticipates, using
straight-line projection, that by climbing it can safely
pass above the intruder. Nine seconds later, when the
own aircraft is executing its climb advisory, TCAS re-
verses the climb to a descend because it projects that
maintaining the climb will not provide the required
separation. TCAS strengthens the advisory three sec-
onds later, but fails to resolve the conflict. The air-
craft miss each other by 342 ft horizontally and 44 ft
vertically. Although the TCAS logic alerts earlier and
more often, the DP logic still outperforms it in this
example encounter.
PARTIALLY-CONTROLLED MARKOV DECISION PROCESSES FOR COLLISION AVOIDANCE SYSTEMS
67

Climb Descend Increase descent
Descend
Climb
−40 −20 0 20 40
4.2
4.4
·10
4
Time (s)
Altitude (ft)
DP logic
TCAS logic
No logic
Intruder
(a) Vertical profile.
−1
−0.5
0
0.5
1
·10
4
0
0.5
1
1.5
·10
4
East (ft)
North (ft)
Own
Intruder
(b) Horizontal profile.
Figure 4: Example encounter comparing the system with
the DP entry time distribution against TCAS.
6.3 Performance Evaluation
Table 4 summarizes the results of simulating the DP
logic and the TCAS logic on one million encounters
generated by the model of Section 5. The table sum-
marizes the number of conflicts, alerts, strengthen-
ings, and reversals.
As the table shows, the DP logic can provide a
much lower conflict rate while significantly reducing
the alert rate. The Monte Carlo entry time distribu-
tion results in a greater number of conflicts, but it
alerts less frequently than the other methods. Increas-
ing the number of samples used generally improves
performance but increases online computation time.
The DP logic using the simple point estimate of τ re-
solves all but one conflict while rarely reversing or
strengthening the advisory, but alerts more frequently
than Monte Carlo.
0 10 20 30 ≥ 40
0
0.2
0.4
0.6
0.8
1
τ (s)
Probability
DP
MC
Simple
(a) t = 17 s.
0 10 20 30 ≥ 40
0
0.2
0.4
0.6
0.8
1
τ (s)
Probability
DP
MC
Simple
(b) t = 20 s.
Figure 5: Entry time distribution computed using dynamic
programming (DP), Monte Carlo (MC), and the simple
(Simple) methods at the two alerting points of the DP logic
in the example encounter of Figure 4.
Table 4: Performance Evaluation.
DP Logic (DP Entry) DP Logic (MC Entry)
Conflicts 2 11
Alerts 540,113 400,457
Strengthenings 39,549 37,975
Reversals 1242 747
DP Logic (Simple Entry) TCAS Logic
Conflicts 1 101
Alerts 939,745 994,640
Strengthenings 26,485 45,969
Reversals 129 193,582

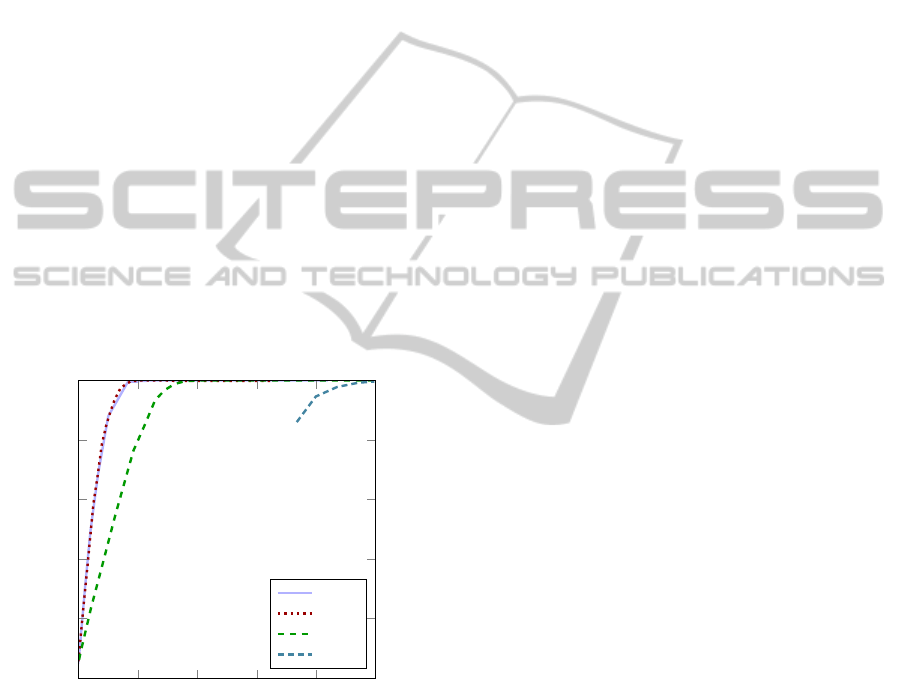

6.4 Safety Curve
The results of Section 6.3 considered the performance
of the system optimized using the fixed event costs of
Table 2. Figure 6 shows the safety curves for the DP
logic and TCAS when different parameters are varied.
ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence
68

The DP logic safety curves were produced by
varying the cost of alerting from zero to one while
keeping the other event costs fixed. Separate curves
were produced for the three methods for estimating
the entry time distribution. The upper-right region of
the plot corresponds to costs of alerting near zero and
the lower-left region corresponds to costs near one.
The safety curve for TCAS was generated by vary-
ing the sensitivity level of TCAS. The sensitivity level
of TCAS is a system parameter of the logic that in-
creases with altitude. At higher sensitivity levels,
TCAS will generally alert earlier and more aggres-
sively to prevent conflict.
The safety curves show that the DP logic can ex-
ceed or meet the level of safety provided by TCAS
while alerting far less frequently. The safety curves
can aid in choosing an appropriate value for the cost
of alerting that satisfies a required safety threshold.
Figure 6 also reveals that the DP and Monte Carlo
methods for estimating τ offer similar performance
and that they both outperform the simple method, es-
pecially when the cost of alerting is high and the logic
can only alert sparingly to prevent conflict. In the
upper-right region of the plot, the three methods are
nearly indistinguishable.
0 0.2 0.4
0.6
0.8 1
0.95
0.96
0.97
0.98
0.99
1
Pr(alert)
Pr(safe)
DP
MC
Simple
TCAS
Figure 6: Safety curves. Each point on the curves was esti-
mated from 10,000 simulations.
7 CONCLUSIONS AND FURTHER
WORK
This paper presented a method for solving large
MDPs that satisfy certain assumptions by decompos-
ing the problem into controlled and uncontrolled sub-
problems that can be solved independently offline and
recombined online. The method was applied to air-
borne collision avoidance and was compared against
TCAS, a system that was under development for sev-
eral decades and has a proven safety record.
The experiments demonstrate that the collision
avoidance logic that results from solving the MDP
using the method presented in this paper reduces the
risk of collision by a factor of 50 while issuing fewer
alerts than TCAS in the simulated encounters. The
system reverses less than 1% of the time that TCAS
reverses, and the system strengthens less frequently
as well. It should be emphasized that further simula-
tion studies using more realistic encounter models are
required to quantify the expected performance of the
DP logic (Kochenderfer et al., 2010b).
Real collision avoidance systems have imperfect
sensors, which results in state uncertainty. TCAS cur-
rently relies on radar beacon surveillance, which re-
sults in somewhat significant uncertainty in the in-
truder bearing. When state uncertainty is signifi-
cant, the uncertainty must be taken into account when
choosing actions. With a sensor model, the prob-
lem may be transformed into a partially-observable
Markov decision process (POMDP) and solved ap-
proximately using various methods (Smith and Sim-
mons, 2005; Kurniawati et al., 2008).
ACKNOWLEDGEMENTS
This work is the result of research sponsored by the
TCAS Program Office at the Federal Aviation Admin-
istration. The authors appreciate the support provided
by the TCAS Program Manager, Neal Suchy. This
work has benefited from discussions with Leslie Kael-
bling and Tomas Lozano-Perez from the MIT Com-
puter Science and Artificial Intelligence Laboratory.
REFERENCES
Bellman, R. E. (1961). Adaptive control processes: A
guided tour. Princeton University Press.
Bertsekas, D. P. (2005). Dynamic Programming and Opti-
mal Control, volume 1. Athena Scientific, Belmont,
Mass., 3rd edition.
Bilimoria, K. D. (2000). A geometric optimization ap-
proach to aircraft conflict resolution. In AIAA Guid-
ance, Navigation, and Control Conference and Ex-
hibit, Denver, Colo.
Carpenter, B. D. and Kuchar, J. K. (1997). Probability-
based collision alerting logic for closely-spaced paral-
lel approach. In AIAA 35th Aerospace Sciences Meet-
ing, Reno, NV.
PARTIALLY-CONTROLLED MARKOV DECISION PROCESSES FOR COLLISION AVOIDANCE SYSTEMS
69

Chamlou, R. (2009). Future airborne collision avoidance—
design principles, analysis plan and algorithm devel-
opment. In Digital Avionics Systems Conference.
Chryssanthacopoulos, J. P., Kochenderfer, M. J., and
Williams, R. E. (2010). Improved Monte Carlo sam-
pling for conflict probability estimation. In AIAA
Non-Deterministic Approaches Conference, Orlando,
Florida.
Davies, S. (1997). Multidimensional triangulation and in-
terpolation for reinforcement learning. In Mozer,
M. C., Jordan, M. I., and Petsche, T., editors, Ad-
vances in Neural Information Processing Systems,
volume 9, pages 1005–1011. MIT Press, Cambridge,
Mass.
Dowek, G., Geser, A., and Mu
˜
noz, C. (2001). Tactical con-
flict detection and resolution in a 3-D airspace. In 4th
USA/Europe Air Traffic Management R&D Seminar,
Santa Fe, New Mexico.
Duong, V. N. and Zeghal, K. (1997). Conflict resolution
advisory for autonomous airborne separation in low-
density airspace. In IEEE Conference on Decision and
Control, volume 3, pages 2429–2434.
Eby, M. S. and Kelly, W. E. (1999). Free flight separa-
tion assurance using distributed algorithms. In IEEE
Aerospace Conference, volume 2, pages 429–441.
Khatib, O. and Maitre, J.-F. L. (1978). Dynamic control
of manipulators operating in a complex environment.
In Symposium on Theory and Practice of Robots and
Manipulators, pages 267–282, Udine, Italy. Elsevier.
Kochenderfer, M. J. and Chryssanthacopoulos, J. P. (2010).
A decision-theoretic approach to developing robust
collision avoidance logic. In IEEE International
Conference on Intelligent Transportation Systems,
Madeira Island, Portugal.
Kochenderfer, M. J., Chryssanthacopoulos, J. P., Kaelbling,
L. P., and Lozano-Perez, T. (2010a). Model-based
optimization of airborne collision avoidance logic.
Project Report ATC-360, Massachusetts Institute of
Technology, Lincoln Laboratory.
Kochenderfer, M. J., Edwards, M. W. M., Espindle, L. P.,
Kuchar, J. K., and Griffith, J. D. (2010b). Airspace en-
counter models for estimating collision risk. Journal
of Guidance, Control, and Dynamics, 33(2):487–499.
Kurniawati, H., Hsu, D., and Lee, W. (2008). SARSOP: Ef-
ficient point-based POMDP planning by approximat-
ing optimally reachable belief spaces. In Robotics:
Science and Systems.
Kuwata, Y., Fiore, G. A., Teo, J., Frazzoli, E., and How, J. P.
(2008). Motion planning for urban driving using RRT.
In IEEE/RSJ International Conference on Intelligent
Robots and Systems, pages 1681–1686.
LaValle, S. M. (1998). Rapidly-exploring random trees: A
new tool for path planning. Technical Report 98-11,
Computer Science Department, Iowa State University.
Powell, W. B. (2007). Approximate Dynamic Program-
ming: Solving the Curses of Dimensionality. Wiley,
Hoboken, NJ.
Puterman, M. L. (1994). Markov Decision Processes: Dis-
crete Stochastic Dynamic Programming. Wiley series
in probability and mathematical statistics. Wiley, New
York.
RTCA (2005). Safety analysis of proposed change to TCAS
RA reversal logic, DO-298. RTCA, Inc., Washington,
D.C.
RTCA (2008). Minimum operational performance stan-
dards for Traffic Alert and Collision Avoidance Sys-
tem II (TCAS II), DO-185b. RTCA, Inc., Washington,
D.C.
Saunders, J., Beard, R., and Byrne, J. (2009). Vision-based
reactive multiple obstacle avoidance for micro air ve-
hicles. In American Control Conference, pages 5253–
5258.
Smith, T. and Simmons, R. G. (2005). Point-based POMDP
algorithms: Improved analysis and implementation.
In Uncertainty in Artificial Intelligence.
Temizer, S., Kochenderfer, M. J., Kaelbling, L. P., Lozano-
P
´
erez, T., and Kuchar, J. K. (2010). Collision avoid-
ance for unmanned aircraft using Markov decision
processes. In AIAA Guidance, Navigation, and Con-
trol Conference, Toronto, Canada.
Yang, L. C. and Kuchar, J. K. (1997). Prototype conflict
alerting system for free flight. Journal of Guidance,
Control, and Dynamics, 20(4):768–773.
ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence
70
