INTELLIGENT PHONOCARDIOGRAM ANALYSIS AND

REPRESENTATION TOOL

J. P. Ramos, P. Carvalho, R. P. Paiva, L. Vale and J. Henriques

Department of Informatics Engineering, University of Coimbra, P

olo II, Coimbra, Portugal

Keywords:

Phonocardiogram analysis, eHealth, Intelligent stethoscope.

Abstract:

Cardiac auscultation is a highly sensitive, speciﬁc, cost effective and comfortable diagnosis technique for

many cardiovascular diseases. Unfortunately, it is observed that the art of auscultation is mastered by an in-

creasingly lower number of medical professionals. This paper presents a Matlab tool to support physicians in

performing auscultation. This application enables real time signal acquisition using off-the-shelf sensors and

performs several automatic annotation functions of heart sounds, such as noise contamination detection, seg-

mentation into S1, S2 and S3, S2-split detection, murmur detection and classiﬁcation, systolic time intervals

measurement, contractility and stroke volume. These are related to the most pertinent clinical applications of

this signal. Moreover, it can also be used for auscultation training.

1 INTRODUCTION

Cardiovascular diseases (CVD) are a major health

problem in Europe, causing 42% of all deaths in the

European Union (EU). On top of that, CVD is es-

timated to cost the EU economy 192 billion a year.

Moreover, 54% of that cost can be accounted for by

the expenses of an inpatient hospital care for people

who have CVD and another 28% to drugs (Allender

et al., 2008).

To prevent such high costs in health care, a mea-

sure that can be pursued, aside from fostering a

healthy lifestyle, is to prevent and control CVDs at

an early stage. Moreover, more than just use any di-

agnostic tool available, such as an echocardiography,

which leads often to unnecessary and inefﬁcient use

of resources, one ought to seek sources of diagno-

sis that can equally make an accurate referral decision

and, at the same time, be less expensive (Shub, 2003).

The heart sounds have been carefully studied and

related to physiological events within the heart (Wa-

trous, 2006). Either by the presence of a speciﬁc heart

sound or its acoustic properties, one is able to infer

important diagnostic analysis. Characteristics such as

timing, relative intensity and frequency, form the ba-

sis of auscultatory and phonocardiographic diagnosis

of CVDs.

However, cardiac auscultation has its disadvan-

tages. First and foremost, by having their dominant

frequencies below the threshold of hearing, the heart

sounds are barely audible; secondly, auscultation is

dependent on the physicians’ judgement, therefore the

diagnosis is subjective; last but not least, studies have

shown that medical schools have been disregarding

the teaching of auscultation (Mangione et al., 1993),

and that cardiac examination skills may decline over

the years mostly due to a lack of continuous training

(Lam et al., 2005; Vukanovic-Criley et al., 2006).

To overcome these difﬁculties, computer-aided

auscultation attempts to assist a general practitioner

in judging an appropriate referral. By means of sig-

nal processing techniques, algorithms have been de-

veloped for elementary processing function, such as

heart sound segmentation and murmur classiﬁcation,

and more recently for systolic time measurements, i.e.

the pre-ejection period (PEP) and the left ventricle

ejection time (LVET), and cardiac function indexes

such as cardiac output, stroke volume and contractil-

ity. Although several frameworks can be found in the

literature that tackle the former (Rajan et al., 1998;

Kudriavtsev et al., 2007), none of the aforementioned

tackle the latter processing functions.

Some applications can be found in the literature.

In (Reed et al., 2009) a software application is pre-

sented that displays graphical representations of heart

sound signals and manage existing acquisitions, but

still lacks the ability to make acquisitions - recordings

are uploaded to the application - and identify heart

sound components or other information from phono-

cardiograms (PCGs), as this is currently being made

186

P. Ramos J., Carvalho P., P. Paiva R., Vale L. and Henriques J..

INTELLIGENT PHONOCARDIOGRAM ANALYSIS AND REPRESENTATION TOOL.

DOI: 10.5220/0003137401860192

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2011), pages 186-192

ISBN: 978-989-8425-34-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

by cardiologists that listen to and describe the sounds.

A commercially available service is brieﬂy described

in (Watrous, 2006). Although this has more features

than the previous one, the processing module only

provides information regarding segmentation results

and murmur identiﬁcation, lacking information such

as systolic time measurements and cardiac functions

assesment, which also provide rich information to a

more accurate decision by the physician.

In this paper we introduce an intelligent stetho-

scope (ﬁg. 2) implemented with an off the shelf sen-

sor and a Matlab tool for the acquisition, analysis,

management and visualisation of cardiac signals. We

will mainly focus in the last three features of the ap-

plication (see ﬁgure 1), whereas a more detailed de-

scription of the processing module can be found in

(Carvalho et al., 2011). The goals behind this tool are

to provide not only detailed information on the heart’s

function to a physician in his/her diagnostic referral,

but also a learning tool or a skill trainer to any medical

trainee.

The paper is organised as follows: in Section 2,

the signal acquisition toolbox is described. Section 3

presents the data management module and section 4

delineates the user interface layer of the application.

Finally, conclusions and future work are discussed in

section 5.

Figure 1: Layer Architecture of the application.

2 SIGNAL ACQUISITION

TOOLBOX

The cardiac signal acquisition process plays an im-

portant role in this solution. It might not only be nec-

essary to acquire heart-sound signals but also ECG

signals in order to feed the processing layers with the

necessary data to assess a patient cardiac condition.

Furthermore, the need to integrate off-the-shelf or al-

ready available cardiac signal sensors is of absolute

importance, since the platform adoption on behalf of

the physicians depends heavily on its ability to make

use of already available equipment.

2.1 Sensor Middleware

Given the signal acquisition needs, we decided to

adopt an already available sensor middleware solution

(Brito et al., 2010) that was developed inside our re-

search group.

The main features supplied by this component are:

(i) off-the-shelf heterogeneous sensor integration; (ii)

ease of deployment, since we only have a single soft-

ware component; (iii) data relaying capabilities be-

tween middleware instances; (iv) service access trans-

parency; (v) integration of data processing routines,

such as diagnosis support algorithms; (vi) sensor dis-

covery, registry and admission features as well as

communication Quality of Service (QoS) capabilities,

such as management of communication channels per-

sistency.

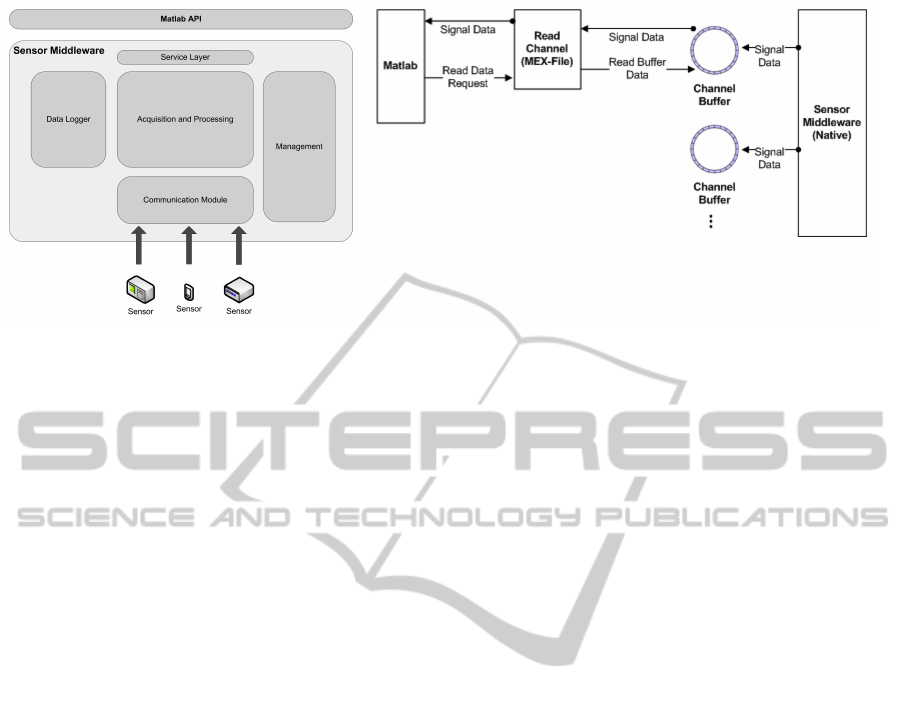

Depicted on ﬁgure 3 we can see a simpliﬁed di-

agram of the Signal acquisition toolbox architecture.

This includes the native sensor middleware as well as

a Matlab API.

Under the native sensor middleware, the integra-

tion of an arbitrary number of off-the-shelf devices

is accomplished with the deﬁnition of Data-Source

and Data-Sink abstractions in the various layers of

the middleware. The data provided by the sensors is

made available to the upper layers through the use of a

service-oriented approach where a consumer can sub-

scribe and unsubscribe any given number of services

published in the middleware component. The service

subscription process requires that the consumer pro-

vides a Data-Sink to where the data will be relayed

as soon as they become available. Another function-

ality relies on the ability to associate data process-

ing schemes to available services and providing them

seamlessly to the consumer. In this way, one can ac-

cess non-existent raw sensor data through the process-

ing of existing services, i.e. given the unavailability

of ECG quality evaluation mechanisms or Heart Rate

(HR) estimation and the existence of an ECG service

it is possible to determine this missing parameter and

publish it as a service for consumption.

Data logging capabilities are also present. A con-

sumer can specify the services that should be stored.

Access to the stored data can be made by subscrib-

ing to the services published by the data logger on the

middleware service layer.

Also, given the component modularity it is pos-

sible to expand its communication capabilities since

the middleware adopts communication protocol plug-

in mechanisms. In this way, this component presents

itself as a highly expandable and ﬂexible solution al-

lowing for the integration of an arbitrary number of

communication protocols.

INTELLIGENT PHONOCARDIOGRAM ANALYSIS AND REPRESENTATION TOOL

187

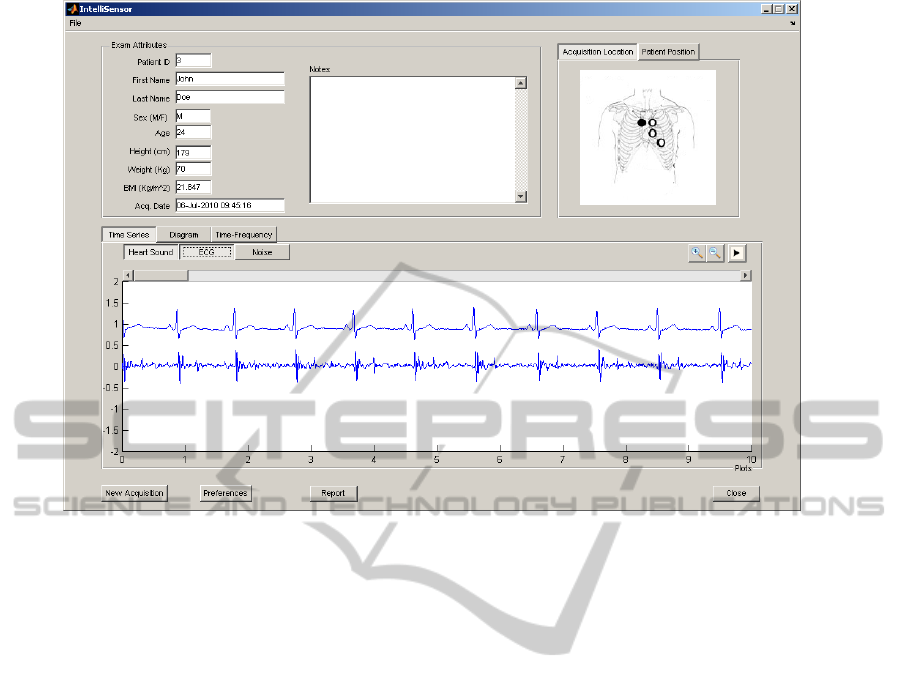

Figure 2: Main Window of the application where the user can ﬁnd (i) patient information, (ii) relevant auscultation information

and (iii) graphical representations of cardiac signals.

As of now, it already provides support for TCP/IP,

UDP/IP, Bluetooth and 802.15.4 with several data ex-

change protocols, but it might also integrate the IEEE

11073 protocol in order to support medical device

systems, enabling the middleware to act as a dis-

tributed signal aggregator in a x73 network.

One of the drivers implemented was a generic au-

dio driver that acts as a Data-Source. This driver is

perfectly suited to acquire Heart-Sound signals from

available audio devices and is able to handle multi-

channel acquisition of audio up to 44100Hz.

2.2 Matlab Interface Solution

Having addressed the signal acquisition needs with

the adopted sensor middleware, which was developed

in C++ (and since the tool depicted in this paper fo-

cuses a Matlab environment), the integration of the

acquisition component was required. For this task

several integration techniques supported by Matlab

were considered.

First, the deﬁnition of a Java API that could be

accessed directly by Matlab on one side and a JNI in-

terface to access the middleware native code on the

other was a possibility. However this would intro-

duce some overhead since the data would have to be

translated from C++ to Java and from Java to Matlab.

Another problem with this approach relies on the fact

that Matlab requires the use of a speciﬁc version of

Java Virtual Machine (JVM) so future compatibility

could be an issue.

Another approach focused on the use of Matlab

Executables (MEX). This technique allows that dy-

namically linked subroutines produced from C, C++

and Fortran can be called from within Matlab. This

brings evident advantages compared with the Java ap-

proach since we will only need to deﬁne one API sim-

plifying the implementation process but also reducing

the data translation overhead. Moreover, in terms of

future compatibility as well as retro-compatibility we

would no longer need to worry about third-party soft-

ware since the MEX integration technique was cre-

ated by Mathworks itself and has had a long-lasting

support throughout Matlab releases.

So, as for this integration task, the MEX approach

was implemented.

As we stated above, the MEX approach re-

quires the deﬁnition of dynamically linked subrou-

tines (DLL). Additionally, each DLL is restricted to

only one routine. Thus, in order to provide a func-

tional API, the deﬁnition of several DLLs that ac-

cess a singleton instance of the native middleware was

needed. Also, the inability to deﬁne callback rou-

tines to push acquired data to the Matlab environment

forced us to specify an intermediate data buffering

layer. As a result, the process of subscription of a cer-

HEALTHINF 2011 - International Conference on Health Informatics

188

Figure 3: The left picture depicts the sensor middleware and Matlab interface architecture. The right picture shows the Matlab

access to read channel MEX routine.

tain service through this interface triggers the creation

of a ring buffer for temporary service data storage. In

order to access the subscribed service data a polling

approach is necessary. To this end, a read channel

MEX routine must be called from within Matlab (Fig.

3) that retrieves the data temporarily stored.

Further functionalities are made available at

the Matlab API level, such as the connec-

tion/disconnection as well as the detection of

available devices, service subscription management,

namely subscribe/unsubscribe routines as well as the

listing of subscribed and non-subscribed services.

Also the ability to retrieve status information on a

given subscription such as the service signal fre-

quency or the number of available temporary stored

samples are provided. Service log management rou-

tines are also present.

3 DATA MANAGEMENT

3.1 Persistent Storage

In order to keep record of past acquisitions, a persis-

tent storage must be present along with the applica-

tion. The database structure can be very simple if

one takes into account some assumptions to be true.

The assumptions are related to patient information

like age, weight, body mass index (BMI), etc., that

even though they are dynamic and change over time,

their variation is not going to be relevant. Besides the

patient information, the database also saves data from

collected acquisitions, such as the signals acquired

and their processing results, and from any pathologies

that may be found in the acquisition.

The database engine system chosen to provide

persistent storage was SQLite (SQLite, 2010). The

motivations behind this decision are that this engine

is open-source, small and quite reliable. Moreover,

it is only a single ﬁle which makes the backups op-

eration easier and the ability to accept binary large

objects (BLOBs) was mandatory.

This engine is, nonetheless, implemented in C++

and an interface between SQLite and Matlab was nec-

essary. Rather than building our own interface, we

have decided to use the one found in (mksqlite, 2010).

This interface is able to perform almost every SQL

command but lacks the ability to transfer BLOBs.

Concerning this issue, we have adapted the original

interface to accept BLOBs.

3.2 Import/Export

Another property of the data management module is

the faculty to import and export patient’s records. The

format used to carry the information is XML (eXten-

sible Markup Language) and Matlab already provides

means to parse such documents. A patient record con-

sists of not only personal information but also all the

acquisitions’ data collected and all the pathologies

information found in every single acquisition. Fig-

ure 4 provides a small extract of the respective XSD.

Among other characteristics, a XSD ﬁle gives a basic

overview of the ﬁnal XML structure.

This feature enables the transfer between comput-

ers with the application so that, for instance, relevant

cases can be shared for training.

4 USER INTERFACE

The Graphical User Interface (GUI) works as the

”middleman” between the user and the rest of the ap-

plication modules. The GUI allows the user to:

INTELLIGENT PHONOCARDIOGRAM ANALYSIS AND REPRESENTATION TOOL

189

<?xml version="1.0" encoding="UTF-8"?>

<xs:schema

xmlns:xs="http://www.w3.org/2001/XMLSchema"

elementFormDefault="qualified">

(...)

<xs:element name="acquisition">

<xs:complexType>

<xs:sequence>

<xs:element ref="date"/>

<xs:element ref="location"/>

<xs:element ref="position"/>

<xs:element ref="notes"/>

<xs:element ref="prim_sound"/>

<xs:element ref="ref_sound"/>

<xs:element ref="ecg"/>

<xs:element ref="noise"/>

(...)

</xs:sequence>

<xs:attribute name="id" use="required"

type="xs:integer"/>

</xs:complexType>

</xs:element>

(...)

<xs:element name="prim_sound">

<xs:complexType>

<xs:sequence>

<xs:element ref="fs"/>

<xs:element ref="data"/>

</xs:sequence>

</xs:complexType>

</xs:element>

(...)

<xs:element name="data">

<xs:complexType>

<xs:sequence>

<xs:element

maxOccurs="unbounded" ref="sample"/>

</xs:sequence>

</xs:complexType>

</xs:element>

(...)

</xs:schema>

Figure 4: XSD schema extract for acquisition data.

• manage patient data (new patient record; save ac-

quisition, etc);

• make new acquisitions from a digital stethoscope

or load sound clips from a database or from an-

other application;

• conﬁgure processing operations to be performed;

• visualise the acquired signals;

• examine the results returned from the processing

module;

4.1 Signal Representation

Rather than viewing raw, unprocessed plots of PCG

signals which are complex to interpret, a simpler

graphical representation is favoured in order to rep-

resent the PCG. This representation (see ﬁgure 5)

seems to be acknowledged not only in the eHealth

ﬁeld (Jiang and Choi, 2006; Tovar-Corona and Torry,

1997; Reed et al., 2009) but also in traditional medi-

cal ﬁeld (Shaver et al., 1990; Karnath and Thornton,

2002).

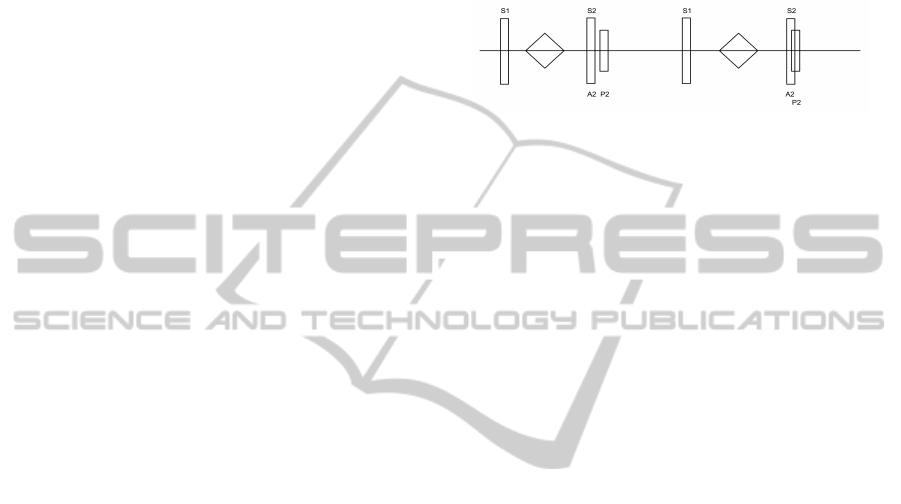

Figure 5: Diagram representation of the heart sound signal.

With this representation, heart sound components

found during segmentation are graphically displayed

with their estimated start and end times, reducing the

burden that a physician would have to cope when vi-

sualising a PCG. The graphical representation scheme

adopted in this work is the one suggested by (Reed

et al., 2009; Shaver et al., 1990).

4.2 Acquisition Window

Using the aforementioned signal acquisition toolbox,

and along with a digital stethoscope, one is able to ac-

quire new signals. Beforehand, the user may provide

information such as the patient position and where the

auscultation will take place (see ﬁgure 6), by choos-

ing from a preset of possible options. These are rel-

evant since different heart sound components can be

best heard in speciﬁc positions/locations.

As soon as the acquisition ends, the signals ac-

quired are transferred to the signal processing tool-

box. By default there is an already deﬁned analysis

workﬂow. Nevertheless, the user can select and pa-

rameterize a subset of processing algorithms in ad-

vance.

4.3 Report Window

After the cardiac signal is processed, the physician

has several ways to examine the acquisition and its

resulting computation values.

In the main window (ﬁgure 2) the physician (i)

can auscultate the heart sound signal, (ii) examine ei-

ther the raw cardiac signal or its respective diagram

representation and (iii) ﬁnd the processing values an-

notated beat by beat.

Moreover, there is also a report (ﬁgure 7) which

summarises the complete acquisition in a single win-

dow. The report displays (i) patient information, (ii)

acquisition information and its processing results with

HEALTHINF 2011 - International Conference on Health Informatics

190

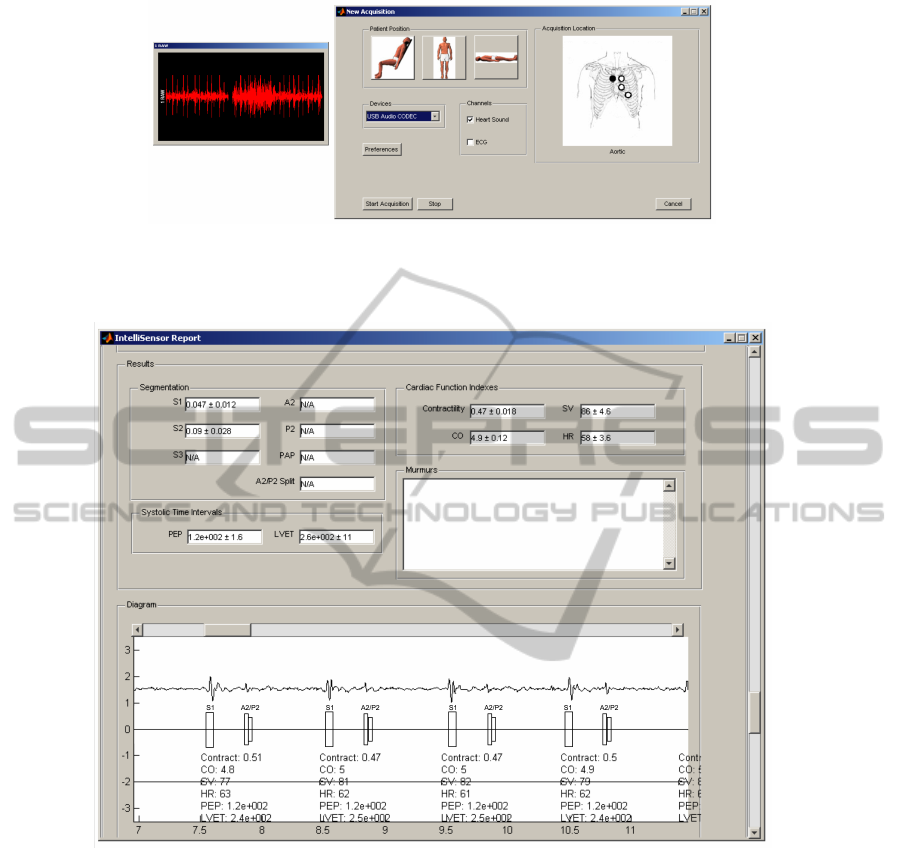

Figure 6: Real-Time visual representation of heart sound signal acquisition, is depicted on the left ﬁgure. The right ﬁgure is

the acquisition window. The user can select the (i) auscultation location, (ii) patient position, (iii) channels to acquire and (iv)

the processing workﬂow.

Figure 7: Report Window. Summarises an acquisition in a single window, giving both patient and auscultation information

and also, the computation results.

their mean values and respective standard deviation,

and (iii) the plot of the cardiac signal with its annota-

tions, providing an overview of the exam.

5 CONCLUSIONS AND FUTURE

WORK

Fewer and fewer physicians master the art of car-

diac auscultation. In this paper we propose a Mat-

lab tool to support physicians in performing ausculta-

tion. This application enables real time signal acqui-

sition using off-the-shelf sensors and performs sev-

eral automatic annotation functions of heart sounds,

such as noise contamination detection, segmentation

into S1, S2 and S3, S2-split detection, murmur de-

tection and classiﬁcation, systolic time intervals mea-

surement, contractility and stroke volume.

Although other clinical applications exist in the

literature, they lack some important features like more

complex signal processing modules that help support-

ing the physicians decision. The proposed user inter-

face enables the physician to evaluate the auscultation

exam in several options: the physician can view the

raw signal as well as its beat-by-beat annotated ver-

sion. The later applies the graphical representation

suggested by (Reed et al., 2009). Finally, a report

functionality has been incorporated that presents an

INTELLIGENT PHONOCARDIOGRAM ANALYSIS AND REPRESENTATION TOOL

191

overall overview of the exam using numerical aver-

age values.

As future work, we expect to deploy the applica-

tion in a clinical environment for a pilot study in or-

der to evaluate its effectiveness in decision support in

daily clinical practice as well as a learning tool to im-

prove auscultation proﬁciency.

ACKNOWLEDGEMENTS

This work was supported in part by SoundForLife

(PTDC/EIA/68620/2006; FCOMP-01-0124-FEDER-

007243) ﬁnanced by the Portuguese Foundation for

Science and Technology.

REFERENCES

Allender, S., Scarborough, P., Peto, V., and Rayner, M.

(2008). European cardiovascular disease statistics.

British Heart Foundation Health Promotion.

Brito, M., Vale, L., Carvalho, P., and Henriques, J. (2010).

A sensor middleware for integration of heterogeneous

medical devices. In Engineering in Medicine and

Biology Society, 2010. EMBC 2010. Annual Interna-

tional Conference of the IEEE.

Carvalho, P., Paiva, R. P., Kumar, D., Ramos, J. P., Santos,

S., and Henriques, J. (2011). A framework for acous-

tic cardiac signal analysis. BioStec: BioSignals 2011

(accepted).

Jiang, Z. and Choi, S. (2006). A cardiac sound characteris-

tic waveform method for in-home heart disorder mon-

itoring with electric stethoscope. Expert Systems with

Applications, 31(2):286 – 298.

Karnath, B. and Thornton, W. (2002). Auscultation of the

heart. Hospital Physician, pages 39–43.

Kudriavtsev, V., Polyshchuk, V., and Roy, D. (2007). Heart

energy signature spectrogram for cardiovascular diag-

nosis. BioMedical Engineering OnLine, 6(1):16.

Lam, M. Z. C., Lee, T. J., Boey, P. Y., Ng, W. F., Hey, H. W.,

Ho, K. Y., and Cheong, P. Y. (2005). Factors inﬂu-

encing cardiac auscultation proﬁciency in physician

trainees. Singapore Med J, 46(1):11–4.

Mangione, S., Nieman, L. Z., Gracely, E., and Kaye, D.

(1993). The Teaching and Practice of Cardiac Aus-

cultation during Internal Medicine and Cardiology

Training: A Nationwide Survey. Annals of Internal

Medicine, 119(1):47–54.

mksqlite (2010). http://mksqlite.berlios.de/mksqlite eng.html/.

Rajan, S., Doraiswami, R., Stevenson, R., and Watrous,

R. (1998). Wavelet based bank of correlators ap-

proach for phonocardiogram signal classiﬁcation. In

Time-Frequency and Time-Scale Analysis, 1998. Pro-

ceedings of the IEEE-SP International Symposium on,

pages 77 –80.

Reed, N., Nie, Y., and Mahnke, C. (2009). A portable

graphical representation tool for phonocardiograms.

In Engineering in Medicine and Biology Society,

2009. EMBC 2009. Annual International Conference

of the IEEE, pages 3111 –3114.

Shaver, J. A., Leonard, J. J., and Leon, D. F. (1990). Aus-

cultation of the Heart - Examination of the Heart, vol-

ume 4. American Heart Association.

Shub, C. (2003). Echocardiography or auscultation? how

to evaluate systolic murmurs. Can Fam Physician,

49:163–7.

SQLite (2010). http://www.sqlite.org/.

Tovar-Corona, B. and Torry, J. (1997). Graphical represen-

tation of heart sounds and murmurs. In Computers in

Cardiology 1997, pages 101–104.

Vukanovic-Criley, J. M., Criley, S., Warde, C. M., Boker,

J. R., Guevara-Matheus, L., Churchill, W. H., Nelson,

W. P., and Criley, J. M. (2006). Competency in car-

diac examination skills in medical students, trainees,

physicians, and faculty: a multicenter study. Arch In-

tern Med, 166(6):610–6.

Watrous, R. L. (2006). Computer-aided auscultation of the

heart: from anatomy and physiology to diagnostic de-

cision support. Conf Proc IEEE Eng Med Biol Soc,

1:140–3.

HEALTHINF 2011 - International Conference on Health Informatics

192
