AN INTEGRATED MULTI-CHANNEL SYSTEM FOR

BIOMEDICAL SIGNAL ACQUISITION

Jakob M. Tomasik, Wjatscheslaw Galjan, Kristian M. Hafkemeyer

Dietmar Schroeder and Wolfgang H. Krautschneider

Institute of Nanoelectronics, Hamburg University of Technology, Eissendorfer Str. 38

D-21073 Hamburg, Hamburg, Germany

Keywords: Biomedical signals, SoC, Low-power, Low-noise, Configurable, CMRR-calibration, DC-suppression.

Abstract: A CMOS configurable system-on-chip (SoC) for biomedical signal acquisition is described. The SoC is

composed of 10 channels, each channel including a programmable analog front-end (AFE) and a 20 bit

analog-to-digital converter (ADC). The digitized signals are read out via a high-speed serial communication

bus. The AFE includes a common-mode rejection ratio (CMRR) calibration circuitry resulting in a CMRR

of more than 80 dB and an active DC-suppression circuitry giving the DC-coupled instrumentation

amplifier the possibility to tolerate DC-offsets of up to ±1 V for a power supply voltage of 3.3 V. In low-

noise mode the AFE achieves an input referred noise of less than 50 nVrms for EEG application (0.5-70 Hz)

and the power consumption of a channel including AFE and ADC is less than 5 mW in low-power mode. A

prototype has been fabricated in a 0.35 µm CMOS process.

1 INTRODUCTION

The integration of biomedical signal acquisition

systems in CMOS technology allows not only a

reduction of costs for traditional medical devices,

but also facilitates portable long-term applications or

implantable solutions. As part of an integrated

solution, designs of a complete analog front-end

(AFE) have been reported (Martins et al., 1998; Ng

and Chan, 2005; Yazicioglu, 2007). In addition,

Desel et al. (1996) and Fuchs et al. (2002) describe

system-on-chip (SoC) implementations including

also analog-to-digital conversion (ADC) and digital

IO interfacing.

To cover the wide range of biomedical signals

the system should be adaptable to their

characteristics. The flexibility of a system means to

provide an optimal setting of the overall system with

respect to the signal type and system application. In

this context, the AFE is the prime candidate for

configurability. Two complementary application

examples illustrate this: For portable long-term

monitoring of electrocardiogram (ECG) signals the

system’s power consumption plays an essential role

whereas noise constraints are rather relaxed (Martin

et al., 2000; Galjan et al., 2008). In contrast to this,

for extremely sensitive evoked potential (EP)

recordings (Scheer et al., 2006), low-noise amplifi-

cation of the signal is crucial at the expense of rather

high power consumption. Including these two

extreme settings, a configurable biomedical signal

acquisition system should be adaptable to a variety

of signal types. Table 1 shows the associated signal

characteristics based on (Bronzino, 2000; Webster,

1998).

Table 1: Characteristics of biomedical signals.

Signal

Type*

Signal Bandwidth Signal Amplitude

ECG 0.05 Hz–250 Hz 5 µVpp – 8 mVpp

EEG 0.05 Hz – 70 Hz 2 µVpp – 200 µVpp

EMG 0.01 Hz – 5 kHz 50 µVpp – 10 mVpp

EP 0.1 Hz – 3 kHz 20 nVpp – 20 µVpp

ECG: electrocardiogram, EEG: electroencephalogram,

EMG: electromyogram, EP: evoked potentials.

Two additional requirements are inherently

typical for biomedical signal acquisition systems: A

high common-mode rejection ratio (CMRR) (in

particular at 50/60 Hz) and large electrode DC-offset

handling capability. The need for a high CMRR

results from power line interferences inducing a

common mode voltage present at the amplifier’s

Tomasik J., Galjan W., Hafkemeyer K., Schroeder D. and Krautschneider W..

AN INTEGRATED MULTI-CHANNEL SYSTEM FOR BIOMEDICAL SIGNAL ACQUISITION.

DOI: 10.5220/0003137600360045

In Proceedings of the International Conference on Biomedical Electronics and Devices (BIODEVICES-2011), pages 36-45

ISBN: 978-989-8425-37-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

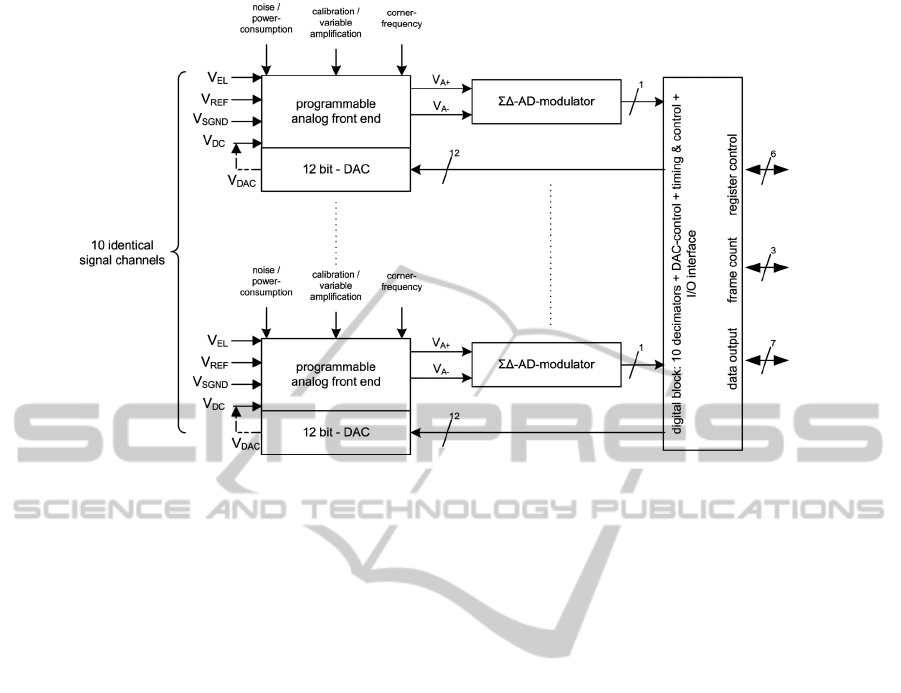

Figure 1: Block diagram of the system-on-chip.

input (Webster, 1998). Large DC-offsets (i.e.

hundreds of millivolts) may arise from the electrode-

skin interface (Webster, 1998) and require counter

measures to prevent saturation of the instrumen-

tation amplifier (IA). Finally, a biomedical SoC

should provide a digital interface for simple

configuration of the system and a high speed data

output for read out of the acquired biomedical

signals.

In this work we present a configurable SoC for

biomedical signal acquisition including CMRR-

calibration and DC-offset suppression. A first

approach for the SoC has been described in (Van

Helleputte et al., 2008) and first simulation results of

this system have been presented in (Hafkemeyer et

al., 2007). This paper is organized as follows:

Section 2 gives an overview of the system. In

Section 3 we describe the analog front-end, in

Section 4 the analog-to-digital converter is pre-

sented, and in Section 5 the digital IO interface is

described. In Section 6 we present the measurement

results and discussion and conclusion are finally

contained in Section 7.

2 SYSTEM OVERVIEW

The block diagram of the SoC is presented in

Figure 1. The main components of this SoC are 10

identical channels and a digital block. Each channel

includes an AFE, a ΣΔ-modulator and a 12-bit

digital-to-analog converter (DAC) for DC-offset

suppression of the associated channel. The AFE’s

inputs are the electrode input (V

), the reference

signal (V

REF

), signal ground (V

SGND

) and DC-

suppression voltage (V

). Whereas V

, V

REF

and

SGND

are familiar IA inputs, the V

input is used

to suppress the input DC-offset voltage and is driven

by the DAC output (V

DAC

Subsequent to the AFE the ΣΔ-modulator

generates a 1-bit stream which is decimated to

perform the analog-to-digital conversion. The digital

block contains 10 decimation filters for this purpose.

Additional functions of the digital block include the

control of the DAC, timing and SoC’s sub blocks.

Finally, the digital block enables communication to

and from the chip. This comprises setting the

internal registers (register control), reading out the

measured data (data output) and synchronizing the

measured data if several chips are used on the same

bus (frame count).

3 ANALOG FRONT-END

A block diagram of the programmable analog front-

end is given in Figure 2a. The IA amplifies the

applied signal with a constant factor of 4. The signal

is fed into the postamplifier directly or via an

external high-pass filter.

The postamplifier’s gain is configurable with

amplification factors of 5, 20, 40 and 80 resulting in

the desired channel gain factors of 20, 80, 160 and

320. Following the postamp a low-pass filter acts as

AN INTEGRATED MULTI-CHANNEL SYSTEM FOR BIOMEDICAL SIGNAL ACQUISITION

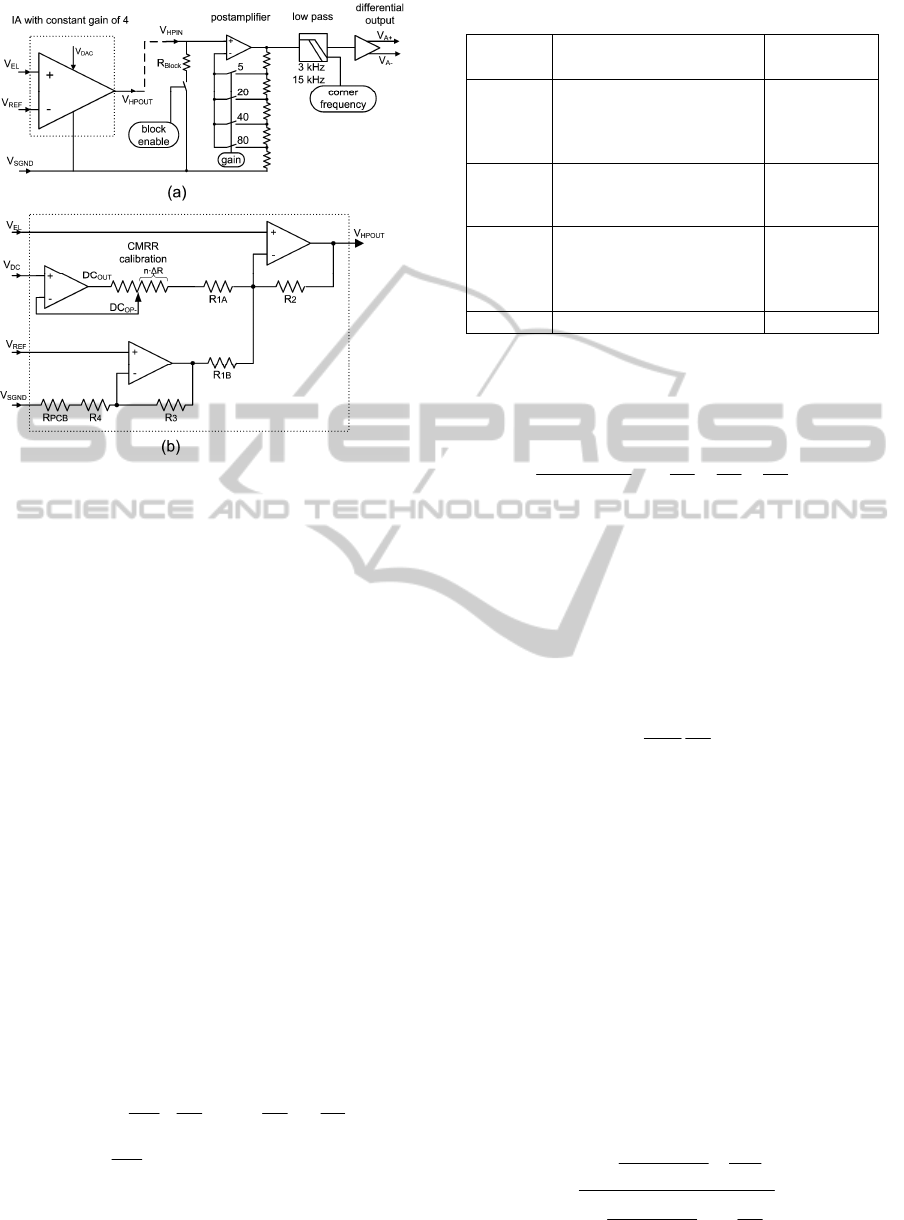

Figure 2: (a) Structure of the programmable analog

front-end, (b) detailed view of the IA.

an anti-aliasing filter for the ADC. The low-pass

corner frequency can be set to be either 3 kHz (ECG,

EEG) or 15 kHz (EMG, EP). Finally, the single-

ended signal is converted to a differential one as

required by the subsequent ΣΔ-modulator. The

design specifications for the AFE are given in

Table 2.

3.1 Instrumentation Amplifier with

CMRR-calibration

The IA used as a preamplifier in the AFE is

implemented by using a modified 2-opamp IA

architecture and is presented in Figure 2b. The

modification is composed of a third opamp for

subtracting any DC-offset using the DAC generated

voltage V

. The additional circuitry also incorpo-

rates a digitally controlled tunable resistor for

CMRR-calibration, the resistor’s step size is denoted

as ΔR. For modeling parasitic PCB or bond wire

resistances at the signal ground input V

SGND

resistor R

PCB

has been added in Fig 2b. The IA’s

transfer function with respect to V

SGND

is given by:

. and with

PCBAA

REF

HPOUT

RRRRnRR

+=Δ⋅+=

−

⎟

⎠

⎞

⎜

⎝

⎛

+−

⎟

⎠

⎞

⎜

⎝

⎛

++=

4411

(1)

A differential gain G between V

and V

REF

obtained from (1) by setting the values for R

, R

Table 2: Design specifications for the analog front-end.

Parameter Conditions/Remarks Value

Signal

input

range

Ext. programmable ± 5 mV

± 20 mV

± 40 mV

± 80 mV

Offset

comp.

range

0.01 Hz – 5 kHz ± 1000 mV

@ VDD = 3.3

Total

input

referred

noise

0.05 Hz – 250 Hz (ECG)

0.05 Hz – 70 Hz (EEG)

0.01 Hz – 5 kHz (EMG)

0.1 Hz – 3 kHz (EP)

< 4.7 µVpp

< 1.0 µVpp

< 6.0 µVpp

< 2.2 µVpp

CMRR @ 50 Hz > 80 dB

and R

(neglecting R

PCB

and assuming R

= R

1A*

and V

= 0 V) such that the terms in front of

and V

REF

have both the same value G. In this

case the gain G is equal to

HPOUT

−+=

−

REF

(2)

In the presented circuit a gain value of G = 4 has

been obtained by using resistor values of R

= 1 kΩ,

= 1.5 kΩ, R

= 1 kΩ and R

= 600 Ω.

If any DC-offset is present at the input, the

aforementioned voltage V

scaled by a factor

is subtracted from the IA’s output voltage

HPOUT

. The result of this action is a cancellation of

DC-offsets up to a value of

2 R

dcmaxEL

(3)

Using above values for R

, R

and G and a power

supply voltage V

of 3.3 V, a maximal DC-offset

of V

EL,dcmax

= ± 619 mV is obtained. In conjunction

with the external high pass filter and a postamplifer

gain of 80 the specified offset compensation range

of ± 1000 mV is reached.

The CMRR calibration compensates for any

mismatch in the resistors R

to R

and wiring

parasitics R

PCB

. The calibration circuit has been

located in the high-resistive feedback loop of the

DC-offset compensation opamp to minimize non-

idealities. By changing the tap-point in the feedback

path of the DC-offset compensation opamp a value

of nΔR is added to the resistor R

. The CMRR of

the IA becomes



⎟

⎠

⎞

⎜

⎝

⎛

Δ±

RnR

CMRR

(4)

BIODEVICES 2011 - International Conference on Biomedical Electronics and Devices

It should be taken into account that a variation of

also affects the differential gain G. Therefore

resistor values should be chosen such that the gain

error between channels does not exceed 1%. A

CMRR value of more than 80 dB (including R

PCB

) is

achieved by using a step size ΔR < 0.26 Ω and n =

64 steps. Using a driven right leg system (Winter,

1983) for patient grounding the overall CMRR is

increased by approx. 40 dB resulting in a system

CMRR of 120 dB.

The configurability of the IA regarding

noise/power- consumption is realized using the

programmable operational amplifier described in

(Bronskowski and Schroeder, 2006). These opamps

use chopper modulation to reduce 1/f-noise and can

be programmed in a wide range between ultra low-

noise (2 nV/√Hz) and low-power consumption

(140 µW).

3.2 Postamplifier and External

Highpass Filter

The postamplifier is composed of the same

programmable opamp as the IA. It is used in a non-

inverting configuration having four gain settings (5,

20, 40 and 80). These are realized by a resistor chain

having four taps. Connecting one of the taps to the

opamp’s inverting input using a CMOS switch sets

the appropriate gain factor. Care has to be taken

regarding the accuracy of the resistors to fulfill the

specified gain error between channels (<1%).

Chopper modulation of the opamp is also needed in

the postamplifier due to the low preamplifiers’s gain

factor of 4 for low-noise applications.

The optional external passive high pass filter can

be placed between the V

HPOUT

output pin of the IA

and the postamplifier’s input pin V

HPIN

(dashed line

in Figure 2a). Using external components for the

high pass filter (i.e. capacitor and resistor) eases the

implementation of the large time constants needed.

A drawback of the large time constant arises if

events like external stimulation or movements of the

electrodes induce a noticeable shift in the DC-

potential of the external capacitor: the time for

restoring the system back to equilibrium is

determined by the time constant of the high pass

filter, i.e. in range of seconds. To overcome this

problem an additional switch has been placed to

discharge the capacitor over the relative small

resistor R

Block

. The signal to close the switch (“block

enable” in Figure 2a) can be set via the serial

configuration port.

3.3 Low-pass Filter and Symmetry

Stage

The ΣΔ-analog-to-digital conversion requires an

anti-aliasing filter preceding the ΣΔ-modulator. In

contrast to Nyquist-rate ADCs the anti-aliasing

filter’s cut-off frequencies are rather easy to

implement with oversampling ADCs, where the

relative low bandwidths of the biomedical signals

would lead to large time constants and hence require

external components. The anti-aliasing filter is

implemented as a second-order low-pass filter using

an opamp in a Sallen&Key configuration (Allen and

Holberg, 2002). To choose the cut-off frequency, the

maximum signal frequency, the oversampling ratio

and the needed signal attenuation have to be

considered. Choosing an attenuation of more than

40 dB at half of the oversampling frequency and an

oversampling ratio of 256, cut-off frequencies of 3

kHz for ECG/EEG and 15 kHz for EMG/EP ensure

proper anti-aliasing functionality. The cut-off

frequency can be configured externally via the serial

configuration port.

Following the low-pass filter a symmetry stage

converts the single-ended signal (V

A+

) into a

differential one using an opamp to obtain the

inverted signal (V

A-

). These signals are fed into the

succeeding ΣΔ-modulator. Additional care has to be

taken to keep these signals stable at the modulators

input because of its switching operation (Maxim

Integrated Products, 2000). Therefore, an integrated

low-path RC-filter with R = 5 kΩ and C = 2.5 pF has

been inserted between the symmetry stage outputs

and the ΣΔ-modulator inputs.

4 ADC

Analog-to-digital conversion for each channel is

accomplished by a 2

-order ΣΔ-modulator and a

decimation filter. The default oversampling ratio

(OSR) of the ΣΔ-modulator is 256, the OSR can be

changed using the serial configuration port to a

value of OSR = 256 ± 128 (in steps of 1). The sam-

pling rate at the modulator’s input is derived from

the 12.8 MHz main clock using on-chip division by

(n + 1). Like the OSR, n can be set by programming

and has a value range from n = 0 to n = 255. For

example, using an oversampling ratio of 256 and

setting n to 0 or 249 data rates (DR) of 50 kHz and

200 Hz can be achieved, respectively.

AN INTEGRATED MULTI-CHANNEL SYSTEM FOR BIOMEDICAL SIGNAL ACQUISITION

4.1 Sigma-Delta Modulator

The 2

-order ΣΔ-modulator is implemented as a

discrete time 1-bit modulator. The circuit topology

of the switched-capacitor ΣΔ-modulator is derived

from (Medeiro et al., 1997) and a modified version

also used in the present topology has already been

used in (Fuchs et al., 2002). The sizing of the actual

capacitors used for the switched capacitor

integrators results in signal-transfer and noise-

transfer functions (STF and NTF) (Fuchs, 2004):



7148

)(

+−

zSTF

(5)

and



7148

8168

)(

+−

zNTF

(6)

The required effective number of bits (ENOB) of

the ΣΔ-modulator is depending on the signal type:

For EEG approx. 16 bits or a dynamic range (DR) of

98 dB are required whereas for ECG 12 bits or a

dynamic range of 74 dB is sufficient.

4.2 Decimation Filter

Decimation and low-pass filtering of the

modulator’s output signal is accomplished using a

comb filter having a sinc

(f) frequency response.

The implemented filter uses decomposition and

modulo arithmetic to minimize the system size

(Dijkstra et al., 1988). The decimation filters block

diagram is shown in Figure 3. The input signal x(n)

at oversampling frequency is first integrated by a 3

order IIR filter. Next, decimation by a factor M is

carried out to obtain the final data rate. Finally, a 3

order FIR differentiator generates the output of the

decimation filter.

Figure 3: Block diagram of the decimator.

5 DIGITAL SYSTEM CONTROL

AND INTERFACE

The communication to external components like a

DSP or FPGA is realized by two independent serial

ports. Therefore, the data and control paths are

strongly separated. Figure 4 shows an overview of

the signal and control flows. Serial configuration

port receives the control data and applies it to the

sub-blocks even for the high speed dataport, setting

up the data rate and the format of the transmission.

For testing purposes of the digital data transmission

the input of the decimator filters can be switched to

the on-chip signal generators. These generators are

based on the principle of digital resonators and are

capable of generating precise sine waves (Lu and

Roberts, 1994).

Figure 4: Digital system control and interface.

5.1 DC-suppression Feedback Circuit

Offset suppression of each electrode is realized by

an additional input of the AFE. If this feature is not

needed (e.g. for ECG application) this input can be

connected to the virtual ground node. For appli-

cations with very small amplitudes (e.g. EEG) the

electrode offset should be removed allowing the

required high amplification factor of the data path.

In this case, as shown in (1), the on-chip DACs are

used to generate the subtracting voltage.

The input of the DACs can be switched between a

value which is written into the configuration register

by the serial control port or the output of the on-chip

digital integrator. This integrator sums up the bit-

stream generated by the modulator and is config-

urable by the serial configuration port for different

time constants. To avoid noise of the high resistive

output node (100 kΩ) of the connected DAC and to

smooth the nonlinearities caused by value changing

of the DAC, a capacitor in the range between 1 µF

and 10 µF should be added between the V

DAC

output

and signal ground.

For the implementation of the DAC a R-2R

architecture (Allen and Holberg, 2002) was chosen

and is depicted in Figure 5, where the inputs D

-D

are connected to a 12-bit register. This DAC occu-

pies an area of 0.5 mm² and consumes only 33 µA.

Figure 5: R-2R architecture of implemented 12-bit DAC.

BIODEVICES 2011 - International Conference on Biomedical Electronics and Devices

5.2 Serial Configuration Port

The serial communication for setting up the system

is realized by a synchronous bidirectional interface

and is shown in Figure 6. The access to one of the

hundred 8-bit registers is decoupled from other on-

chip components and can be done asynchronously to

the conversion clock and to the clock of the high

speed serial dataport. Depending on the external

interconnects the maximum bus speed can be used

up to 100 kHz. This allows continuously to set up

the DACs for offset cancellation and the external 16

General Purpose Outputs (GPOs) for controlling the

possible external components during operation.



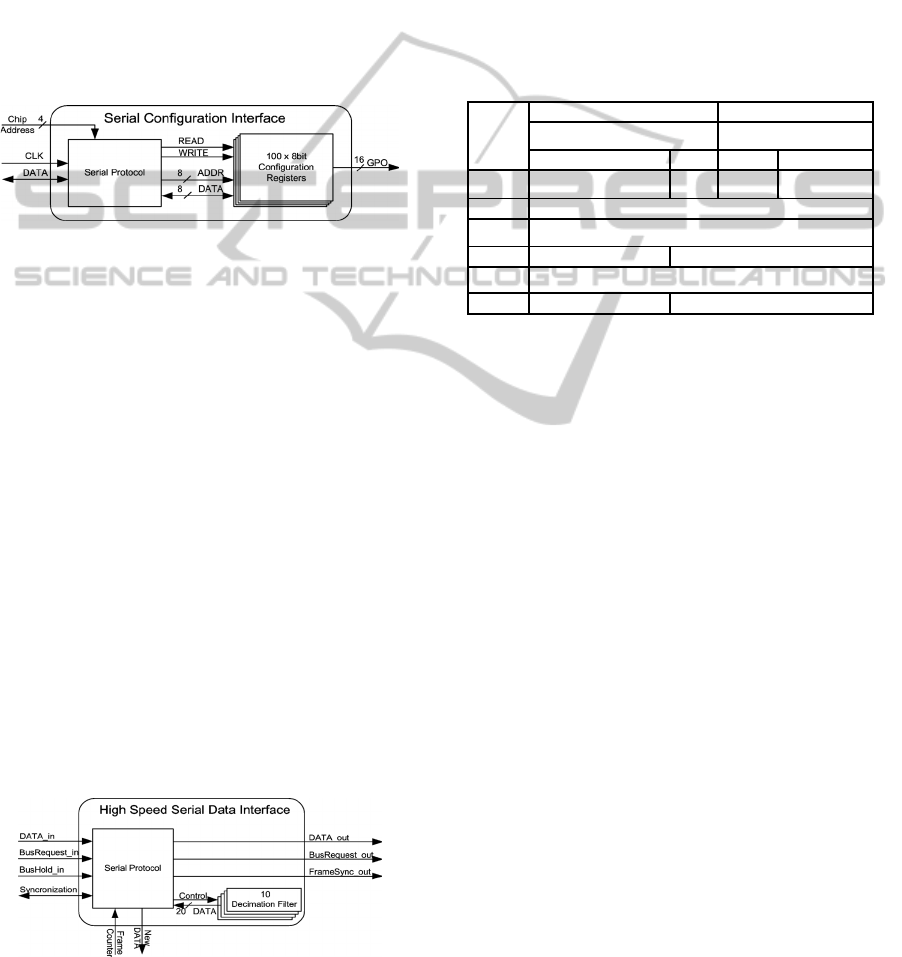

Figure 6: Block diagram of the serial configuration port.

5.3 High Speed Serial Dataport

The data from the SoC are read out by the high

speed serial dataport which is synchronous to an

applied clock signal, Figure 7 shows its block dia-

gram. The receiver is synchronized to a new data

packet by the framesync signal. The rising edge of

this signal determines the new transmission, there-

fore, after a delay of one bit, the second bit is taken

as valid data. Busrequest and bushold signals

implement the handshake protocol allowing daisy

chaining of 16 SoCs, this number is determined by

the 4-bit chip address.

The serial data from one SoC includes a 22 x 16-

bit wide packet which is sent for each sampled value

of 10 channels. For a maximum data rate of 50k

packets per second a minimum clock transmission

frequency of 352 x 50k = 17.6 MHz is needed.

Hence, using the SoC in daisy chained application

the maximum operating frequency of this high speed

port is specified to 53 MHz to allow the data trans-

mission of 3 SoCs.



Figure 7: Block diagram of the high-speed serial dataport.

Table 3 shows the implemented protocol for one

data packet. The 1st word contains the start marker

FF9h and the chip address which is set by external

digital 4-bit port. The 2nd transmitted word is the

frame counter value. The 3rd word consists of the

upper 16-bit data of the first channel. The 4th data

word (bit 15..12) consists of the 4 lower data bits of

the first channel (channel <0>) and the actual DAC

value for the same channel. The following 18 words

are in the same scheme as for the first channel (3rd

and 4th words).

Table 3: Implemented protocol for the high speed

data-port.

16 bit

words

MSB LSB

nibble nibble

high low high low

Word1 Fh Fh 9h chip address

Word2 framecounter

Word3 upper 16 bits of ch. <0> data

Word4 lower 4 bits of data DAC value for ch. <0>

Word5 upper 16 bits of ch. <1> data

Word6 lower 4 bits of data DAC value for ch. <1>

6 RESULTS

A prototype of the SoC has been realized in a

0.35 µm CMOS process with a supply voltage of

3.3 V. To prevent coupling effects between digital

and analog blocks, care has been taken to separate

these parts in the layout. The power supply is

likewise separated; additional on-chip stabilizing-

capacitors are used for blocking off switching

activities on the supply rails. These capacitors,

which have been realized as poly-capacitors and

Metal-Insulator-Metal (MIM) capacitors, also allow

to fulfill the needed layer density specified by the

foundry. Additional efforts have been taken to

minimize resistive parasitics of the interconnects,

this applies in particular to the supply rails and the

connections to signal ground (V

SGND

A special approach was taken for the chopper

clock lines: To minimize coupling effects to the

analog parts due to high frequency switching

operation each chopper clock path has been placed

between two paths tied to ground.

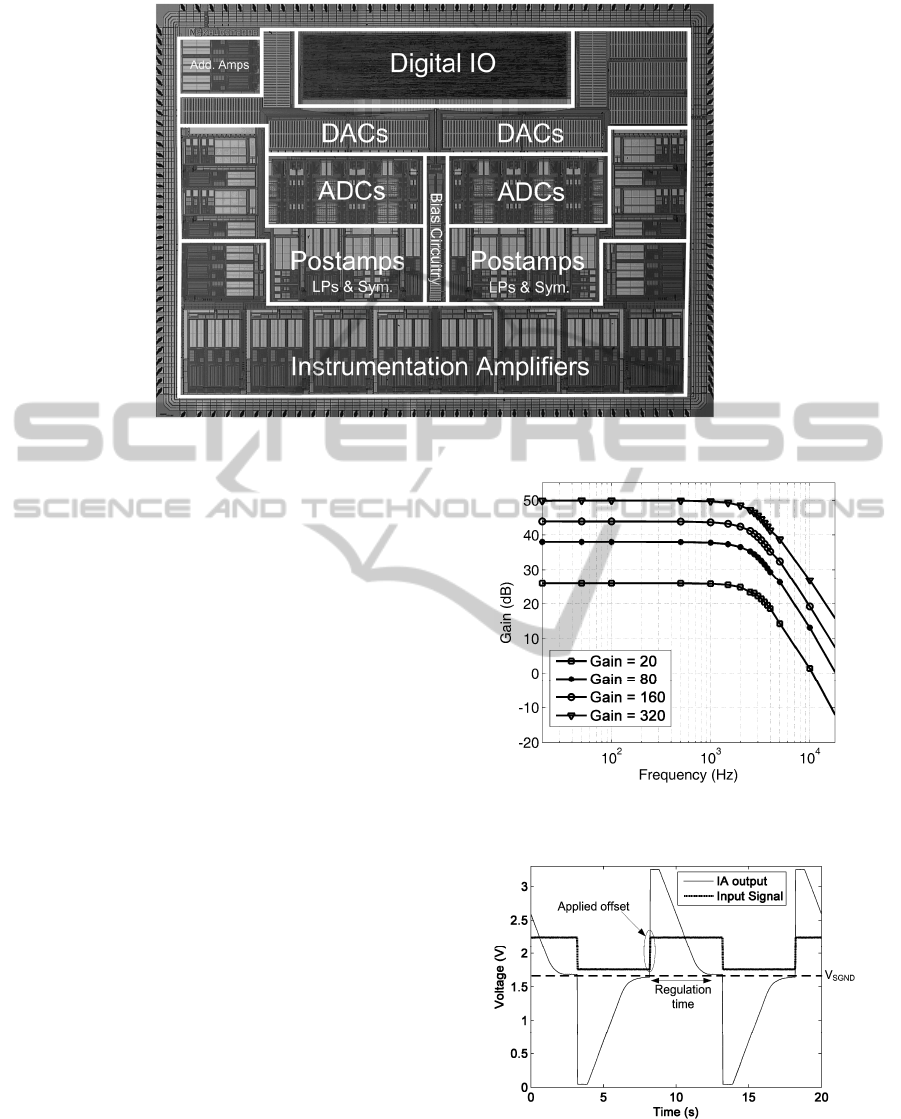

A microphotograph of the fabricated SoC

prototype is shown in Figure 8. The SoC occupies an

area of 47 mm² and the number of pins is 144.

AN INTEGRATED MULTI-CHANNEL SYSTEM FOR BIOMEDICAL SIGNAL ACQUISITION

Figure 8: Microphotograph of the system-on-chip.

6.1 Analog Channel and CMRR

Calibration

The measured overall gains (20, 80, 160 and 320) of

analog channels for a bandwidth of 3 kHz are shown

in Figure 9, therein the external high-pass filter is

shorted and the DC-suppression is disabled. The

input referred offset of the channels (with enabled

chopper modulation) is less than 34 µV and 12 µV

for the low-power and low-noise mode, respectively.

The DC-suppression circuit has been tested by

applying a 500 mV

square-wave to the input of the

IA. This signal and the output of the IA are shown in

Figure 10. The time constant of the on-chip digital

integrator has been set to approximately one second.

The IA saturates after the rising or falling edges of

the square wave. Due to regulation of the activated

DC-suppression, the offset voltage is subtracted

from the channel resulting in an offset free output at

signal ground (V

SGND

= 1.65 V).

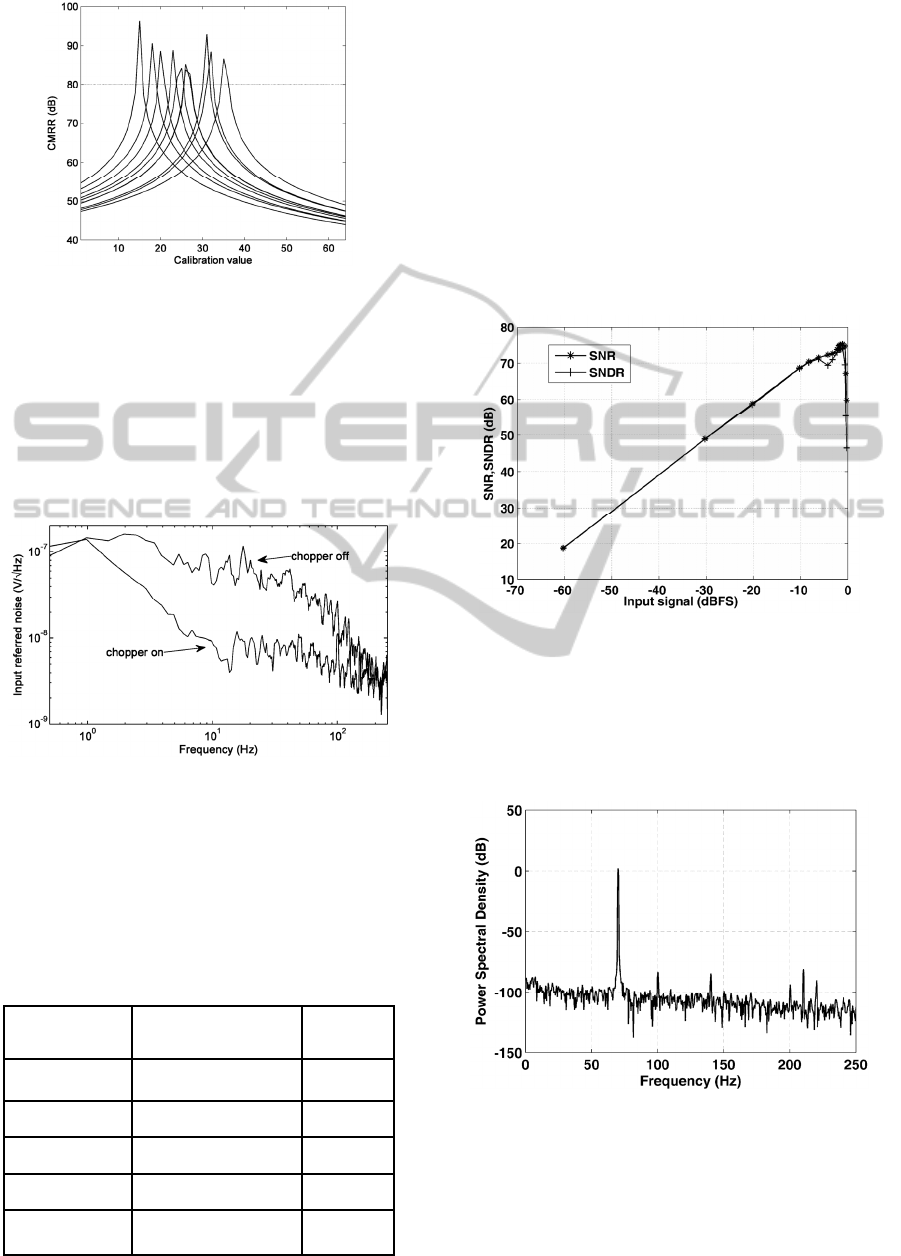

The CMRR calibration of all 10 channels is shown

in Figure 11. The sweep of the implemented 64

calibration steps results in a channel CMRR of more

than the specified 80 dB at 50 Hz for at least one

calibration value.

Figure 9: Measured gain and bandwidth of an analog

channel. Markers indicate measured data points.

Figure 10: Example of the DC-suppression using a

square-wave input, the IA output settles back to signal

ground after the regulation time.

BIODEVICES 2011 - International Conference on Biomedical Electronics and Devices

Figure 11: CMRR @ 50 Hz calibration of 10 channels.

6.2 Noise and Power

The total input referred noise has been measured

including the full channel, i.e. the AFE, ΣΔ-

modulator and decimation filter. Figure 12 shows

the influence of the chopper modulation for an ECG

application and Table 4 summarizes the noise

performance of the SoC.

Figure 12: Input referred noise density for ECG bandwidth

with chopper modulation on and off.

The power consumption of the SoC varies

between 28.7 mW in low-power mode and

209.8 mW in low-noise mode for data rates of

500 Hz and 50 kHz, respectively.

Table 4: Measured total input referred noise at ADC

output.

Integration

Bandwidth

(Signal Type)

Conditions/Remarks

Value

µVpp

0.05 Hz – 250 Hz

(ECG)

Low-power, chopper

enabled

1.13 – 1.74

Low-power, chopper

disabled

3.1 – 3.6

0.05 Hz – 70 Hz

(EEG)

Low-noise,

chopper enabled

< 0.68

0.01 Hz – 5 kHz

(EMG)

Low-noise,

chopper enabled

< 3.9

0.1 Hz – 3 kHz

(EP)

Low-noise,

chopper enabled

< 3.2

6.3 ADC

The ADC has been measured by applying a signal to

the input of the channel. Figure 13 displays the

measured signal to noise (SNR) and signal to noise

and distortion ratio (SNDR) versus input signal, and

Figure 14 the measured output spectrum for a 70 Hz

input signal with disabled chopper modulation for a

data rate of 500 Hz and OSR = 256.

The measured peak SNDR for this setup is 75 dB

which corresponds to an ENOB of 12.17 bits. An

ENOB of more than 15.2 bits has been measured for

the EEG bandwidth (0.05 Hz – 70 Hz ).

Figure 13: Measured SNR and SNDR versus input signal

for a 70 Hz sine input and ECG bandwidth of 250 Hz .

6.4 Digital IO

The digital communication ports are tested by the

setup shown in Figure 15. A C++ program running

Figure

14: Measured output spectrum for 70 Hz sine input

for the ECG bandwidth of 250 Hz.

on a PC communicates through the USB-interface

with a Field Programmable Gate Array (FPGA)

chip. The software loaded into the FPGA

AN INTEGRATED MULTI-CHANNEL SYSTEM FOR BIOMEDICAL SIGNAL ACQUISITION

implements the protocols for both serial ports of the

SoC. The configuration port is tested by writing to

all 100 registers with subsequent read-out of the

written content and shows no missing data for a

communication frequency of up to 100 kHz. The

high speed serial bus was used for reading out of all

channel measurements presented in this section and

is operating properly for frequencies up to 55 MHz.

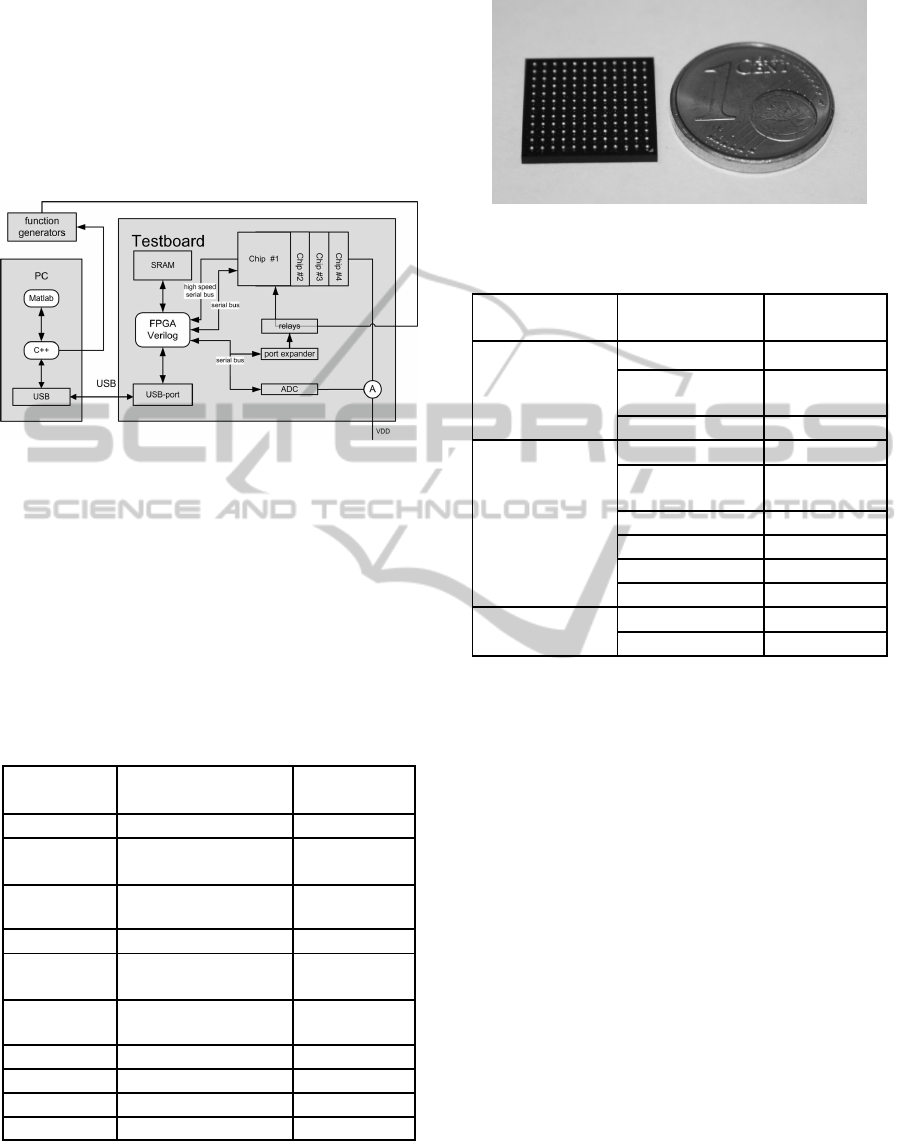

Figure

15: Test setup for the digital communication.

6.5 Summary

Using modern packaging technology the SoC is

encapsulated in a lead free Ball Grid Array (BGA)

having a size of 13 mm x 13 mm. Figure 16 shows a

size comparison of the packaged SoC to a eurocent

coin. The characteristics and a configuration

overview of the realized biomedical SoC are

summarized in Table 5 and 6, respectively.

Table 5: Main characteristics of the biomedical SoC.

Parameter Conditions/Remarks Value

Supply voltage 3.3 V

Current

consumption

Low-power – Low-noise 8.7 mA – 63.6

Total input

referred noise

ECG

EEG

< 1.74 µVpp

< 0.88 µVpp

CMRR @ 50/60 Hz > 80 dB

Input common

mode range

= V

Ref

± 1 V

Offset comp.

range

High-pass & DC-

suppression

± 1 V

Crosstalk Between channels < - 60 dB

Die area 47 mm²

Pin number 144

Package size BGA 13 mm x 13 mm

Figure 16: Photo of the SoC in a BGA package.

Table 6: SoC configuration overview.

Functional Block

Parameter

Range/ Value

Timing

Master clock divider 1 - 8

Sample rate

reduction

1 - 256

Decimation rate 128 - 383

Analog Front-End

(AFE)

(adjustable per

channel)

Power down on / off

Gain 20 / 80 / 160 /

320

Bandwidth 3 kHz / 15 kHz

Chopper modulation on / off

Bias current × 1 - 16

CMRR calibration 64 steps

ADC (adjustable per

channel)

Bias current × 1 - 8

Data format signed / unsigned

7 DISCUSSION

AND CONCLUSIONS

An integrated ten channel biomedical signal

acquisition system-on-chip has been presented. Each

channel of the SoC includes an analog front-end that

is programmable with respect to noise and power

and an ΣΔ-analog-to-digital converter. In addition,

the system includes both a CMRR calibration and a

DC-suppression circuitry. The latter extends the

input-referred DC-suppression range to a remarkable

value of up to ± 1 V which largely exceeds the input

offset range of other integrated circuit solutions. The

SoCs digital interface is realized by means of a serial

configuration port and a high-speed data output port.

The implemented system-on-chip is not only

suitable for multi-electrode applications, where a

small system size is mandatory, but also for mobile

long-term biomedical signal acquisition.

For example:

• A 100 electrode EEG system can be realized on

a PCB area of less than 6 cm x 6 cm, consuming

only approx. 1000 mW.

BIODEVICES 2011 - International Conference on Biomedical Electronics and Devices

• A 9 channel ECG system would occupy only

few cm² and consuming less than 50 mW. This

would allow using only two standard AA batteries

for an application time of more than one week

(Galjan et al., 2008).

The presented SoC has been successfully employed

in experimental heart rate variability tests of resting

and stress test ECG recordings. At present,

biomedical signal recording systems that employ the

SoC are being developed and evaluated.

ACKNOWLEDGEMENTS

The authors would wish to acknowledge Natus

(formerly Schwarzer) Corporation, Munich, for their

support and very fruitful discussions. The authors

would also like to thank Sven Vogel for his

contributions to the design and Fabian Wagner for

support with the measurements.

REFERENCES

Martins, R., Selberherr, S., and Vaz, F. A., (1998). A

CMOS IC for portable EEG acquisition systems. IEEE

Trans. Instrum. Meas., 47(5), 1191-1196.

Ng, K. A., and Chan, P. K., (2005). A CMOS analog

front-end IC for portable EEG/ECG monitoring. IEEE

Trans. Circuits Syst. I, Reg. Papers, 52(11), 2335-

2346.

Yazicioglu, R. F., Merken, P., Puers, R., and Van Hoof,

C., (2007). 60 µW 60 nV/√Hz readout front-end for

portable biopotential acquisition systems. IEEE J.

Solid-State Circuits, 42(5), 1100-1110.

Desel, T., Reichel, T., Rudischhauser, S., and Hauer, H.,

(1996). A CMOS nine channel ECG measurement IC.

2nd International Conference ASIC.

Fuchs, B., Vogel, S., and Schroeder, D. (2002). Universal

application-specific integrated circuit for bioelectric

data acquisition. Medical Engineering and Physics 24,

695-701.

Martin, T., Jovanov, E., and Raskovic, D., (2000). Issues

in wearable computing for medical monitoring

applications: a case study of a wearable ECG

monitoring device. The Fourth International

Symposium on Wearable Computers, 43-49.

Galjan, W., Naydenova, D., Tomasik, J. M., Schroeder,

D., and Krautschneider, W. H., (2008). A portable

SoC-based ECG-system for 24h x 7d operating time.

In Proceedings of IEEE Biocas 2008, Baltimore, USA,

85-88.

Scheer, H. J., Sander, and T., Trahms, L., (2006). The

influence of amplifier, interface and biological noise

on signal quality in high-resolution EEG recordings.

Physiol. Meas., 27, 109-117.

Bronzino, J. D., (2000). The biomedical engineering

handbook. 2nd ed. CRC Press.

Webster, J. G., (1998). Medical instrumentation:

application and design. 3rd ed. Wiley & Sons, New

York.

Van Helleputte, N., Tomasik, J. M., Galjan, W., Mora-

Sanchez, A., Schroeder, D., Krautschneider, W. H.,

and Puers, R., (2008). A flexible system-on-chip

(SoC) for biomedical signal acquisition and

processing. Sens. Actuators A: Phys., vol. 142, Issue 1,

361-368.

Winter, B. B., and Webster, J. G., (1983). Driven-right-leg

circuit design. IEEE Trans. Biomed. Eng., 30, pp. 62-

66.

Bronskowski, C. and Schroeder, D. (2006). An ultra low-

noise operational amplifier with programmable noise-

power trade-off. In Proceedings 32nd ESSCIRC 2006,

Montreux, Switzerland, 368-371.

Allen, P. E, and Holberg, D. R., (2002). CMOS Analog

Circuit Design. Oxford University Press.

Maxim Integrated Products, (2000). Choosing the

optimum buffer / ADC combination for your

application. Application Note 1094.

Medeiro, F., Pérez-Verdú, B., de la Rosa, J. M., and

Rodríguez-Vázquez, Á., (1997). Using CAD Tools for

Shortening the Design Cycle of High-Performance

ΣDM: A 16.4bit 9.6 kHz 1.71mW ΣDM in CMOS

0.7µm Technology. International Journal of Circuit

Theory and Applications, 25, 319-334.

Fuchs, B. (2004). Integrierte Sensorschaltungen zur EKG-

und EEG-Ableitung mit prädiktiver Signalver-

arbeitung. PhD thesis, Institute of Nanoelectronics,

Hamburg University of Technology, Shaker Verlag,

Aachen.

Dijkstra, E., Nys, O., Piguet, C., and Degrauwe, M.,

(1988). On the use of modulo arithmetic comb filters

in sigma delta modulators. In IEEE Proc. ICASSP88,

2001-2004.

Lu, A., and Roberts, G., (1994). A high-quality analog

oscillator using oversampling D/A conversion

techniques. IEEE Trans. Circuits Syst. II Analog Digit.

Signal Process. 41 (7), 437–444.

AN INTEGRATED MULTI-CHANNEL SYSTEM FOR BIOMEDICAL SIGNAL ACQUISITION
