EVALUATION OF A USER-ADAPTED SPOKEN LANGUAGE

DIALOGUE SYSTEM

Measuring the Relevance of the Contextual Information Sources

Juan Manuel Lucas-Cuesta, Fernando Fern´andez-Mart´ınez, G. Dragos Rada

Syaheerah L. Lutﬁ and Javier Ferreiros

Speech Technology Group, Universidad Polit´ecnica de Madrid, Madrid, Spain

Keywords:

Spoken language dialogue systems, User interfaces, Contextual information, User proﬁles, Natural language

processing, Real-user evaluation.

Abstract:

We present an evaluation of a spoken language dialogue system with a module for the management of user-

related information, stored as user preferences and privileges. The ﬂexibility of our dialogue management

approach, based on Bayesian Networks (BN), together with a contextual information module, which performs

different strategies for handling such information, allows us to include user information as a new level into the

Context Manager hierarchy. We propose a set of objective and subjective metrics to measure the relevance of

the different contextual information sources. The analysis of our evaluation scenarios shows that the relevance

of the short-term information (i.e. the system status) remains pretty stable throughout the dialogue, whereas

the dialogue history and the user proﬁle (i.e. the middle-term and the long-term information, respectively)

play a complementary role, evolving their usefulness as the dialogue evolves.

1 INTRODUCTION

The design of spoken dialogue systems that can adapt

to their users is today a common practice. The goal is

not only to modify the behaviour of a system to better

react to a particular speaker, but also to play a more

proactive role in the dialogue, anticipating the users’

desires, and proposing them speciﬁc actions that the

system foresees. Therefore it is important to accu-

rately model the speakers’ characteristics that are rel-

evant for the dialogue (Zukerman and Litman, 2001).

Several evaluation methodologies have been pro-

posed for measuring the relevance of a user model in

different research ﬁelds (Chin, 2001; Gena, 2005).

However, it is difﬁcult to ﬁnd performance ﬁgures

from real-world applications that can be extrapolated

to other systems or be worldwide accepted, as all of

them are directly related to an speciﬁc dialogue sys-

tem. Nonetheless, there is a general agreement on

“usability” as the most important performance ﬁgure

(Dybkjaer et al., 2004), even more than others widely

used like “naturalness” or “ﬂexibility”.

Different evaluation frameworks that can predict

user satisfaction from the analysis of objective met-

rics (Walker et al., 1997; M¨oller et al., 2007), as well

as several dialogue systems with the ability to change

the dialogue initiative or the conﬁrmation mecha-

nisms (Litman and Pan, 2002), have been currently

developed. However there are not any standard for

assessing spoken dialogue systems, despite different

de-facto standards are commonly used (Callejas and

L´opez-C´ozar, 2008). Furthermore, the deﬁnition of

metrics to compare the relevance of different contex-

tual information sources in a user-based speech sys-

tem is still under development.

We have developed a spoken dialogue system with

a user-related information manager as part of its con-

textual information knowledge. We have deﬁned sev-

eral metrics to assess the usefulness of the informa-

tion sources that the system takes into account for

solving dialogues, and the relevance of the user mod-

els when they are used to suggest hypotheses related

to the users’ preferences and privileges.

The rest of the paper is organized as follows. Sec-

tion 2 describes the baseline dialogue system and the

new user-related information manager. The initial as-

sessment of the system is presented in Section 3. Fi-

nally, Section 4 shows the main results of our work.

218

Manuel Lucas-Cuesta J., Fernández-Martínez F., Dragos Rada G., L. Lutﬁ S. and Ferreiros J..

EVALUATION OF A USER-ADAPTED SPOKEN LANGUAGE DIALOGUE SYSTEM - Measuring the Relevance of the Contextual Information Sources.

DOI: 10.5220/0003140302180223

In Proceedings of the 3rd International Conference on Agents and Artiﬁcial Intelligence (ICAART-2011), pages 218-223

ISBN: 978-989-8425-40-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 PROTOTYPE DESCRIPTION

We have developed a user-adapted spoken dialogue

system (SDS) for controlling different devices. We

haveevaluated the performance of the prototype when

controlling a Hi-Fi device.

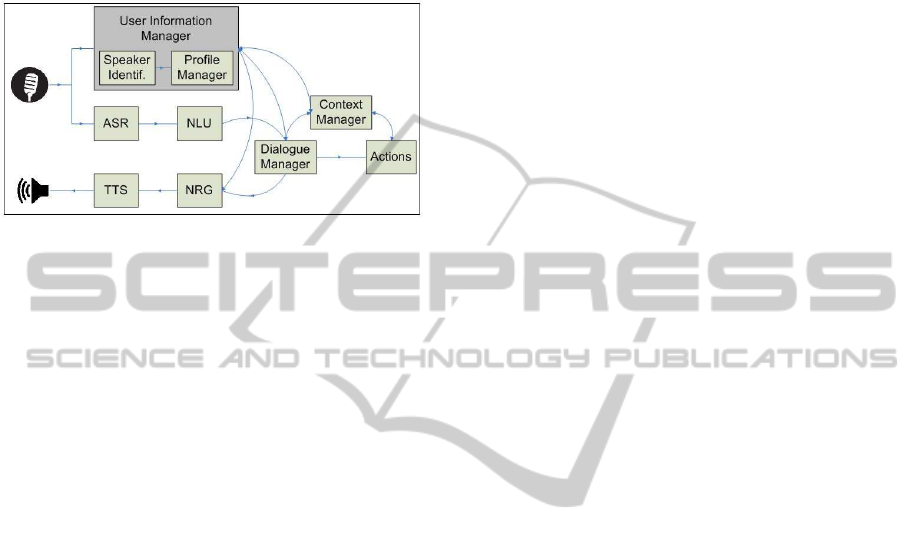

Figure 1: Block diagram of the spoken dialogue system.

Figure 1 shows a block diagram of our conversa-

tional interface. The system consists of an automatic

speech recognition module (ASR), which translates

the audio signal into a text hypothesis of what the user

has said; a language understanding module (NLU),

that extracts the semantics of the user’s utterance;

the dialogue manager (DM) (detailed in Section 2.1),

which makes use of the semantic information, to-

gether with the information gathered during previous

dialogues, to determine the actions over the system

that the user wants to fulﬁll, and to provide the user

with feedback regarding the current dialogue turn; the

context manager (CM), which holds the information

of the previousinteractions; an executionmodule, that

translates the actions to perform into IR commands;

the response generator module (NRG), which makes

use of the semantic information provided by the dia-

logue manager to generate a text output, and a text-to-

speech module (TTS), that synthesizes the message

to the user. To include user-related information, we

also need a speaker identiﬁcation module and a man-

ager of user information, stored as user proﬁles. We

group both modules into a User Information Manager

(UIM), that will be detailed in Section 2.2.

2.1 Dialogue Management and Dialogue

Context

The Dialogue Manager (DM) controls the dialogue

ﬂow using the information provided by the speaker,

parsed into dialogue concepts. We have developed

our DM following a probabilistic approach, based on

Bayesian Networks (BN), for inferring which actions

the user wishes to perform, and which concepts are

needed to fulﬁll those actions (Fern´andezet al., 2005).

We apply two inference mechanisms. The forward

inference makes use of the dialogue concepts referred

by the user, for inferring the dialogue goals, that is,

the actions the user wants to fulﬁll.

Using both concepts and goals, the DM applies

a backward inference to determine whether the given

concepts are enough to fulﬁll these goals. In this case,

the system will send the corresponding IR commands

to the Hi-Fi device. Otherwise, the system tries to

recover those missing concepts required to solve the

dialogue, using the Context Manager.

We have deﬁned 58 concepts, divided into param-

eters (16) to set up (e.g. the volume of the Hi-Fi de-

vice), values (20) that the different parameters can

take, and actions (22) to be performed (e.g. modify

the volume). We have also deﬁned 15 goals, accord-

ing to the available functionality of the Hi-Fi device.

The mission of the Context Manager (CM) con-

sists of solving any ambiguity that may arise in the

dialogue, using different contextual information han-

dling strategies throughout the dialogue. It consists

of three structures, which can be classiﬁed according

to the recentness of their contents. The system sta-

tus (the short-term one) stores the current values of

the Hi-Fi functionalities (CD track, volume, and so

on). The dialogue history (a middle-term memory)

contains the concepts referred by the user since the

beginning of the current interaction. A mechanism is

applied in such a way that its information is perma-

nently updated coherently to the current state of the

dialogue, while discarding information that becomes

too old. Finally, the user proﬁle (the long-term one),

detailed in Section 2.2, stores information of each

user since his or her ﬁrst interaction.

The CM works as follows. When the DM has to

recover a missing concept, it ﬁrst checks the system

status. If it contains such a concept, the system recov-

ers it and executes the appropriate action, ﬁnishing the

current dialogue. Otherwise, the DM checks the dia-

logue history. If the system is unable to retrieve any

concept from it, the DM further checks the user pro-

ﬁle, that may suggest one or several concepts based

on the user’s preferences. Finally, if the system is still

unable to retrieve a concept using any of the above

strategies, it will request the user to provide the miss-

ing concepts, initiating a new turn.

2.2 Proﬁle Management: Modeling

User Preferences and Privileges

We have developed a new module, the User Infor-

mation Manager, which adds user-related informa-

tion to the dialogue ﬂow. As can be seen in Fig-

ure 1, this module consists of a speaker identiﬁcation

module, and a Proﬁle Manager (PM), that updates the

EVALUATION OF A USER-ADAPTED SPOKEN LANGUAGE DIALOGUE SYSTEM - Measuring the Relevance of

the Contextual Information Sources

219

Table 1: Excerpt of dialogue with the contents stored in, and retrieved from (in boldface), dialogue history and user proﬁle.

Dialogue turn Dialogue History User Proﬁle

... ...

0 CD3: preference

User Switch the Hi-Fi on. CD3

System Turning Hi-Fi on. Playing track 1 of CD 3. Hi-Fi ON, CD 3, Track 1

U. Play next track. CD3, Track1

S. Playing track 2 of CD 3. Hi-Fi ON, CD 3, Track 2

U. Volume.

S. What do you want to do with the volume?

U. Raise it to ﬁve.

S. Volume 5 selected. Hi-Fi ON, CD 3, Track 2, Volume 5

information of the different speakers as the dialogue

evolves (Lucas-Cuesta et al., 2009).

A user proﬁle consists of two types of informa-

tion ﬁelds: static, used for information such as the

speaker’s name, gender, age, language, and so on, and

dynamic, used for information that changes during the

dialogue. The dynamic component is composed of

two different entities:

• Usage permissions, which allow to add restric-

tions to each user. For instance, a child may not

be allowed to listen to an adult-content radio tune.

• User preferences, representing the contents that

each user prefers to play (i.e. a given CD or ra-

dio tune).

User preferences are measured as the frequency

of references made by each user of each functional-

ity since the creation of his or her proﬁle. A given

functionality becomes a preference for the user when

the quotient between its counts and the counts of each

of the rest of functionalities exceeds a threshold. We

make this comparison among items that share the

same type of functionality (i.e. we compare the CD,

the tape, and the radio, at a level ‘preferred source’,

each CD unit at a level ‘preferred CD’, and so on.

Table 1 shows an example of how the Dialogue

Manager retrieves missing concepts using the contex-

tual information sources, and how the information is

stored in the user proﬁle. For example, prior to the

ﬁrst interaction presented in the table (i.e. ‘Switch the

Hi-Fi on’), the current user had previously interacted

with the system. The system thus had a proﬁle avail-

able at the beginning of the dialogue. If the proﬁle

stores a preference, the system can use it for antic-

ipating on an action over the Hi-Fi before the user

explicitly asks for it. In the example, as ‘CD 3’ is a

preference (over CD 2, for instance), the system starts

playing the ﬁrst track of CD 3.

During the next interaction, when the user wants

to play the next track (without any explicit reference

to neither a CD nor a track), the Dialogue Manager

can retrieve the required information for performing

the action by checking the dialogue history. This his-

tory contains ‘CD 3’ and ‘Track 1’ as the last values

the user asked for, so it uses them to infer that the user

wants to play the second track of the current CD.

Finally, if the user asks for any functionality that is

not yet stored in any contextual informationsource (as

is the case of the volume, in the example), the system

will start a new dialogue turn, asking the user for the

information it needs to fulﬁll the requested action.

Summarizing, the combined use of the different

information sources allows the Dialogue Manager to

improve its performance by conducting more efﬁcient

dialogues, reducing their number of turns, and reusing

any useful information the users provide during both

their recent and previous interactions.

3 INITIAL EVALUATION

A total of 9 speakers, 3 female and 6 male, with ages

between 24 and 28 years, were recruited. They were

classiﬁed as ‘novice’ (5) or ‘expert’ (4) according to

their previous experience in interacting with spoken

dialogue systems.

Despite the reduced number of evaluators, which

could imply a lack of signiﬁcance on the results of

the evaluation, our main goal was to deﬁne a set of

metrics regarding the relevance of each information

source, and to perform an initial assessment of the

performance of the full dialogue system.

We were interested in assessing the relevance of

each contextual information source, and the user sat-

isfaction regarding the suggestions our system makes.

The evaluation was divided into two scenarios

(Fern´andez et al., 2008) in which the evaluators con-

trolled the Hi-Fi device by means of speech. In both

scenarios the users were allowed to interact with the

SDS without any kind of restriction. Before starting

each scenario, the dialogue history and the system sta-

tus were initialized to an empty default state.

Prior to the ﬁrst scenario, evaluators were in-

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

220

formed about the available functionality (i.e. CD, ra-

dio, volume, and so on), and the contents of the Hi-Fi

media (i.e. rock, news, sports, and so on).

In the ﬁrst scenario, the proﬁle of each evaluator

was empty. The system updated it throughout the dia-

logue with the values referred by the user. The goal of

this scenario was to determine the relevance of each

information source when the user proﬁle does not ex-

ist during the ﬁrst interactions of a new speaker.

In the second scenario, the system made use of

the proﬁle created during the ﬁrst scenario. We mea-

sured the contribution of the proﬁle keeping its in-

formation when the system status and the dialogue

history were empty (i.e. at the beginning of the in-

teraction), and how the contribution of the different

information sources varies throughout the scenario.

Additionally, we considered the usage privileges. We

wanted to measure the relevance of each information

source when retrieving missing concepts, as well as

the reliability of the permission control.

Table 2: Average number of turns for each scenario (Nov.:

Novice, Exp.: Expert).

Scenario 1 Scenario 2

Nov. Exp. Nov. Exp.

Turns 80.0 62.5 59.4 53.5

The average number of turns for each scenario an

experience level can be seen in Table 2. We have an

average of 72.22 turns for the Scenario 1, and 56.78

for the second one, for each evaluator, so despite the

reduced number of speakers, the results will show the

trends of each of our metrics.

Finally, we asked the evaluators to ﬁll in a subjec-

tive survey to gather their opinions about the perfor-

mance of the system, making a special emphasis on

the preference suggestion mechanism and the appli-

cation of usage privileges.

3.1 Objective Evaluation

We have obtained several automatically-collected

metrics (Fern´andez et al., 2008). As we want to stress

the relevance of each information source could be at

different times throughout the interaction, we have

also deﬁned new metrics to assess the usefulness of

each of them. The relevant metrics regarding this use-

fulness (averaged with respect to the number of eval-

uators), shown in Table 3, are the following:

• % Context-dependent Turns (M1): percentage

of dialogue turns in which the Dialogue Manager

checks the CM for information.

• % System Requests (M2): percentage of dia-

logue turns in which the system requested infor-

mation to the user.

• % Concept Recovery Turns (M3): percentage

of context-dependent turns in which the Dialogue

Manager successfully retrieves a concept from the

CM.

• % Recovery Turns from the System Status

(M4): percentage of context-dependent turns in

which the system retrieves any concept from the

system status.

• % Recovery Turns from the Dialogue History

(M5): percentage of context-dependent turns in

which the system retrieves any concept from the

dialogue history.

• % Recovery Turns from the User Proﬁle (M6):

percentage of context-dependent turns in which

the system retrieves any concept from the user

proﬁle.

The sum of the three last metrics (M4 to M6) can

exceed 100%, because the three information sources

can be successfully checked in the same turn (i.e. dif-

ferent concepts can be simultaneously retrieved from

the different memories).

Table 3: Objective evaluation results (Nov.: Novice, Exp.:

Expert).

Expertise

Metrics Nov. Exp. ALL

M1 % Cont. dep. turns 52.6 47.1 50.19

M2 % Sys. req. 21.5 13.3 17.86

M3 % Concept rec. turns 96.0 95.6 95.85

M4 % Sys. status rec. turns 83.1 80.2 81.79

M5 % Dial. hist. rec. turns 23.1 27.8 25.16

M6 % User prof. rec. turns 12.6 16.9 14.52

About half the total of dialogue turns (50.19%,

M1) implies a query in the CM. Most of these turns

(95.85%, M3) correspond to retrieval of missing con-

cepts. This value shows the efﬁciency of our context

information handling strategy, which can improve the

naturality and ﬂexibility of our dialogue management

approach: using the CM, each time the system re-

trieves a concept, a new request to the user is avoided,

thus reducing the number of dialogue turns and allow-

ing speakers to perform actions in less interactions.

The less knowledge of ‘novice’ users can be seen

on the more turns they need to fulﬁll their goals (69.7

vs. 58 on average) and the higher percentage of

system requests (21.5% vs. 13.31%, M2), each of

which implies a new turn. The DM also tends to in-

crease context checkings with ‘novices’ (52.62% vs.

47.16%, M1), which could imply that ‘experts’ tend

to express their goals in a single, more complete turn.

EVALUATION OF A USER-ADAPTED SPOKEN LANGUAGE DIALOGUE SYSTEM - Measuring the Relevance of

the Contextual Information Sources

221

The most relevant information source for the

retrieval of missing concepts is the system status

(81.79% of turns), as we may expect, since it is the

information source ﬁrstly checked, consistently with

our design of the Context Manager and our checking

criterion. The dialogue history and the user proﬁle

have an apparently lesser usefulness, due to their up-

date mechanism and their request order (ﬁrst the dia-

logue history, then the proﬁle).

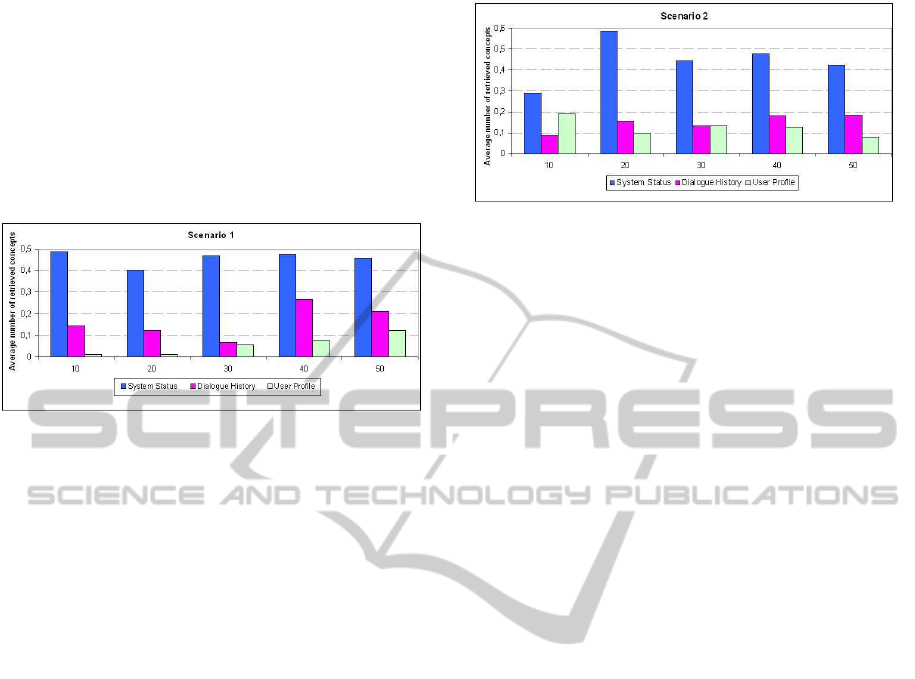

Figure 2: Scenario 1: number of retrieved concepts each 10

turns.

However, these percentages do not present an evo-

lution of the usefulness of each information source as

the dialogue evolves. In order to show this, we have

considered the number of dialogue concepts retrieved

from each information source as a new metric for as-

sessing the usefulness of the CM. Figures 2 and 3

show the evolution of the average number of concepts

retrievedfrom each source during Scenario 1 and Sce-

nario 2, respectively. Since there are too many turns

in which the system does not make use of the context

information (49.81%), we have averaged the number

of retrieved concepts using 10-turn windows.

The relevance of the system status is roughly con-

stant throughout the dialogue in both scenarios, be-

cause this is the information source the system ﬁrst

checks, and the one which stores the most recent in-

formation.

We want to stress the evolution of the usefulness

of the dialogue history and the user proﬁle. At the be-

ginning of Scenario 1 the user proﬁle is empty. There-

fore, its relevance is near zero until the interactions al-

low the system to suggest usage hypotheses (included

as retrieval of missing concepts). Figure 2 shows that

the system needs an average of 20 dialogue turns to

start proposing actions to the users, based upon their

preferences. On the other hand, when there are user

proﬁles at the beginning of the interaction (Figure 3),

the relevance of the user proﬁle is higher at the initial

dialogue turns, when the dialogue history is empty.

The relevance of the dialogue history has a simi-

lar behaviour in both scenarios, ﬁtting an increasing

trend of their usefulness as the dialogue evolves.

Figure 3: Scenario 2: number of retrieved concepts each 10

turns.

This behaviour relies on the update of both the his-

tory and the proﬁles with the concepts that the users

refer to during their interactions.

These results imply that both information sources

(dialogue history and user proﬁle) are complemen-

tary, and that both are interesting in order to make the

interaction with the system more efﬁcient and natural.

3.2 Subjective Evaluation

The results of the subjective evaluation are based on

a survey the evaluators were asked to ﬁll in after both

scenarios. They had to rate each question with a score

between 1 (strongly disagree) and 5 (strongly agree).

Table 4 shows the results of the questions related to

the User Information Manager.

As we can see, ‘novice’ users seem to have difﬁ-

culties to perceive the usefulness of the information

management strategies (i.e. Q1), despite the system

checks the Context Manager more often than when

interacting with ‘experts’, as the objective metrics

proved. Even so, ‘novices’ perceive that the system

can propose their preferences (Q3).

Additionally, despite the good rating of the overall

behaviour of the system (4.22, Q4), the ‘expert’ users

are less bound to use speech for controlling a Hi-Fi

device. This happens because their higher knowledge

of the possibilities and limitations of the system. Nev-

ertheless, their score is still above 3, which suggests

their positive opinion about the possibilities of using

speech control for these systems.

4 CONCLUSIONS

We have presented an evaluation of a user-adapted

spoken dialogue system. We include user models as

part of the Context Manager, applying usage priv-

ileges and suggesting actions from the user proﬁle

when the system searches the Context Manager to re-

trieve missing concepts, reducing the number of turns

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

222

Table 4: Subjective evaluation results (Nov.: Novice, Exp.: Expert).

Survey Nov. Exp. ALL

Q1 Was the system able to act coherently with its context? 3.6 4.5 4

Q2 Was the system easy to use? 4.2 4.25 4.22

Q3 Did the system suggest your preferred styles? 4.2 3.75 4

Q4 Global rate 4.2 4.25 4.22

Q5 Would you use this system instead of a remote control? 4.4 3.5 4

needed to fulﬁll actions.

Our system is able to propose usage suggestions

under certain hypotheses, thus giving an important

degree of proactiveness to the system. We are cur-

rently working on more ambitious schemes for better

exploiting user proﬁles.

Regarding the initial evaluation, we have deﬁned

several metrics to assess the usefulness of each infor-

mation source (system status, dialogue history, and

user proﬁle). The results show that the most relevant

source of information is the short-term one (the sys-

tem status). The dialogue history and the user pro-

ﬁle have a complementary behaviour,supporting each

other as the dialogues evolve. The subjective eval-

uation shows that the users perceive the information

manager as a useful element of the dialogue system,

as it can anticipate the actions required, and can apply

usage privileges.

Now we are applying smoothing strategies to im-

prove the decision of the speaker identiﬁcation mod-

ule included in the User Information Manager, using

dialogue-based information (a dialogue with incom-

plete actions, the time between successive turns, and

so on) in an effort to reduce identiﬁcation errors.

We are also deﬁning a new scenario in which sev-

eral speakers alternatively interact with the system.

We will measure the accuracy of the identiﬁcation

module, as well as the application of preferences and

privileges for different users.

ACKNOWLEDGEMENTS

This work has been partially supported by the

Spanish Ministry of Science and Innovation under

contracts TIN2008-06856-C05-05(SD-TEAM UPM)

and DPI2007-66846-C02-02 (ROBONAUTA), and

the Spanish Ministry of Education under the Program

of University Personnel Training (AP2007-00463).

REFERENCES

Callejas, Z. and L´opez-C´ozar, R. (2008). Relations between

de-facto criteria in the evaluation of a spoken dialogue

system. Speech Communication, 50:646–665.

Chin, D. (2001). Empirical Evaluation of User Models

and User-Adapted Systems. User Modeling and User-

Adapted Interaction, 11:181–194.

Dybkjaer, L., Bernsen, N., and Minker, W. (2004). Eval-

uation and usability of multimodal spoken language

dialogue systems. Speech Communication, 43:33–54.

Fern´andez, F., Bl´azquez, J., Ferreiros, J., Barra, R., Mac´ıas-

Guarasa, J., and Lucas-Cuesta, J. (2008). Evaluation

of a Spoken Dialogue System for Controlling a Hiﬁ

Audio System. In Proceedings of the IEEE Workshop

on Spoken Language Technology (SLT08), pages 137–

140.

Fern´andez, F., Ferreiros, J., Sama, V., Montero, J., San-

Segundo, R., and Mac´ıas-Guarasa, J. (2005). Speech

Interface for Controlling a Hi-Fi Audio System Based

on a Bayesian Belief Networks Approach for Dia-

log Modeling. In Proceedings of the 9th European

Conference on Speech Communication and Technol-

ogy (INTERSPEECH05), pages 3421–3424.

Gena, C. (2005). Methods and Techniques for the Evalua-

tion of User-Adaptive Systems. The Knowledge Engi-

neering Review, 20(1):1–37.

Litman, D. and Pan, S. (2002). Designing and Evaluating

an Adaptive Spoken Dialogue System. User Modeling

and User-Adapted Interaction, 12:111–137.

Lucas-Cuesta, J., Fern´andez, F., Salazar, J., Ferreiros, J.,

and San-Segundo, R. (2009). Managing Speaker Iden-

tity and User Proﬁles in a Spoken Dialogue System.

Sociedad Espa˜nola de Procesamiento de Lenguaje

Natural (SEPLN), 43:77–84. ISSN: 1135-5948.

M¨oller, S., Smeele, P., Boland, H., and Krebber, J. (2007).

Evaluating Spoken Dialogue Systems According to

De-Facto Standards: a Case Study. Computer, Speech

and Language, 21:26–53.

Walker, M., Litman, D., Kamm, C., and Abella, A. (1997).

PARADISE: A Framework for Evaluating Spoken Di-

alogue Agents. In Proceedings ACL/EACL, pages

271–280.

Zukerman, I. and Litman, D. (2001). Natural Language

Processing and User Modeling: Synergies and Limita-

tions. User Modeling and User-Adapted Interaction,

11:129–158.

EVALUATION OF A USER-ADAPTED SPOKEN LANGUAGE DIALOGUE SYSTEM - Measuring the Relevance of

the Contextual Information Sources

223
