UNREVEALING BIOLOGICAL PROCESS

WITH LINEAR ALGEBRA

Extracting Patterns from Noisy Data

Bráulio Roberto Gonçalves Marinho Couto

Centro Universitário de Belo Horizonte / UNI-BH, Av. Professor Mário Werneck 1685, Belo Horizonte, Brazil

Marcelo Matos Santoro

Departamento de Bioquímica e Imunologia, UFMG, Av. Antonio Carlos 6627, Belo Horizonte, Brazil

Marcos Augusto dos Santos

Departamento de Ciência da Computação, UFMG, Av. Antonio Carlos 6627, Belo Horizonte, Brazil

Keywords: Linear algebra, Data mining, Information retrieval, SVD.

Abstract: Extracting patterns from protein sequence data is one of the challenges of computational biology. Here we

use linear algebra to analyze sequences without the requirement of multiples alignments. In this study, the

singular value decomposition (SVD) of a sparse p-peptide frequency matrix (M) is used to detect and

extract signals from noisy protein data (M = USV

). The central matrix S is diagonal and contains the

singular values of M in decreasing order. Here we give sense to the biological significance of the SVD: the

singular value spectrum visualized as scree plots unreveals the main components, the process that exists

hidden in the database. This information can be used in many applications as clustering, gene expression

analysis, immune response pattern identification, characterization of protein molecular dynamics and

phylogenetic inference. The visualization of singular value spectrum from SVD analysis shows how many

processes can be hidden in database and can help biologists to detect and extract small signals from noisy

data.

1 INTRODUCTION

Many bioinformatics tools are designed to detect

patterns in protein or DNA sequences by using

statistically based sequence similarity methods. The

patterns detected can be associated with the function

or structural protein stability, can predict family

genes or can be used to describe the evolving

relationship of group sequences (Hunter, 1993).

Such bioinformatics predictions help experimental

determination simpler and more efficient (King et

al., 2001). However, to evaluate how two proteins

are similar is a complex issue. The standard methods

quantify the similarity between two proteins using

global or local alignments with their primary

sequences. The goal is to find the optimal alignment,

quantifying it by some metric. In this work, instead

of using alignment analysis, the approach applied is

based on linear algebra algorithms, similar to that

used in systems for information retrieval in large

textual databases and by Google™ web search

engine. The ideas and linear algebra methods

applied here are important in several areas of data

mining, pattern recognition (for example,

classification of hand-written digits), and PageRank

computations for web search engines (Eldén, 2006).

Our objective is to use singular value decomposition

– SVD (Berry et al., 1995) of a sparse tripeptide

frequency matrix to detect and extract signals from

noisy protein data. Such analysis, when done in

micro array gene expression data, associates the

number of the most significant singular values from

SVD with the gene groups and the cell-cycle

structure (Wall et al., 2003).

We will analyze the singular value spectrum to

visualize them and to unreveal the main

313

Roberto Gonçalves Marinho Couto B., Matos Santoro M. and Augusto dos Santos M..

UNREVEALING BIOLOGICAL PROCESS WITH LINEAR ALGEBRA - Extracting Patterns from Noisy Data.

DOI: 10.5220/0003164103130317

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2011), pages 313-317

ISBN: 978-989-8425-36-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

components, the number of process that exists

hidden in the database. More specifically, as an

application of SVD, we want to show that the

number of the most significant singular values is

associate with the number of protein families in a

sequence database. Such prediction can be used in

phylogenetic inference, data mining, clustering etc,

making experimental tests more efficient, and

avoiding randomly determination for possible

outcomes.

2 SYSTEM AND METHODS

Programs implemented for this analysis were written

in MATLAB (The Mathworks, 1996), using its

inbuilt functions (SVD, sparse matrix manipulation

subroutines etc). Four datasets were used in this

paper. The first evaluated database had 64 vertebrate

mitochondrial genomes composed of 832 proteins

from 13 known gene families (ATP6, ATP8, COX1,

COX2, COX3, CYTB, ND1, ND2, ND3, ND4,

ND4L, ND5 and ND6). This curated protein

database was downloaded from online information

by Stuart et al. paper (Stuart et al., 2002). The

second database was composed by sequences from

proteins retrieved from GenBank in 19/04/2006. It is

a random 100 sequences sample of each protein

type: globin, cytochrome, histone, cyclohydrolase,

pyrophosphatase, ferredoxin, keratin and collagen

and 200 other proteins, totalling 1,000 sequences

from ten different types of genes. The third database

was the file "pdb_seqres.txt.gz", located in

http://bioserv.rpbs.jussieu.fr/PDB/. This file has

121,556 redundant protein sequences from PDB

(Protein Data Bank), which was reduced to 37,561

non-identical sequences. From this file we recovered

all sequences related to six types of enzymes:

Ligase, Isomerase, Lyase, Hydrolase, Transferase

and Oxidoreductase, which totalled 10,915 proteins.

We also recovered a sample of 219 globins from the

PDB file that was used as another test set. Besides,

we extracted 86 sequences of haemoglobin alpha-

chain and a sample from the PDB file with all

sequences higher than 47 amino acids (31,906

proteins from several types of genes). Each of the

above sequence files was analyzed by MATLAB

subroutines that generate twelve tripeptide sparse

matrices as described by Stuart (Stuart et al., 2002)

and adapted by Couto (Couto et al., 2007).

All sequences were recoded as 3-peptide

frequency values using all possible overlapping

tripeptide window. With 20 amino-acids it is

generated a matrix M (8,000 x n), where n is the

number of proteins to be analyzed. After the

generation of the tripeptide frequency matrix (M),

the matrix itself is subjected to SVD (Deerwester et

al., 1990; Berry et al., 1995) and factorized as M =

USV

. Where U is the p x p orthogonal matrix

having the left singular vectors of M as its columns,

V is the n x n orthogonal matrix having the right

singular vectors of M as its columns, and S is the p x

n diagonal matrix with the singular values

≥ σ

≥

... ≥ σ

of M in order along its diagonal (r is the

rank of M or the number of linearly independent

columns or rows of M). These singular values are

directly related to independent characteristics within

the dataset. Actually, the largest values of (S)

provide the meaning of the peptides and proteins in

the matrix (M). On the other hand, the smaller

singular values identify less significant aspects and

the noisy inside the dataset (Eldén, 2006).

In this work our focus is only in the matrix (S)

and its diagonal values (s

) that make up the singular

value spectrum. The magnitude of any singular

value is indicative to its importance in explaining the

data (Wall et al., 2003). Then, the objective here is

to visualize the singular value spectrum as plots that

help biologists to discover the main components, the

process, and the groups hidden in the database. Two

graphs were built:

a) the scree plot, with 25 bigger singular

values for each database;

b) the cumulative relative variance (V

)

captured by the ith-singular value:

= 1 − (S

)

/∑

)

; S

= ith-singular

value; k = 1, 2, … n.

The visual examination of the scree plot looks

for a “gap” or an “elbow” that indicates how many

significant singular values exist in database. After

the “gap” there is no significant value. The second

graph helps to understand how much variance is

explained by each singular value. Despite the effort

for automatic analysis, graphic visual inspection still

is one of the most commonly used in practice for

dimensionality selection (Zhu and Ghodsi, 2006).

3 RESULTS

When there is only one specific type of protein in

database, as haemoglobin alpha-chain, the singular

value spectrum obtained shows a “big gap” after the

first eigenvalue (Figure 1). Such result is confirmed

by the second graph (Figure 2) that indicates more

than 90% variance is explained by the first singular

value, which is compatible with the database itself.

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

314

For the globin matrix (Figures 3 and 4) is more

difficult to define exactly where the “gap” or

“elbow” is, because there are more than one type

protein in database. However, the objective here is

not to be very precise, but sufficiently accurate to

help biologists in finding an interval with the

number of process or groups that exists hidden in the

database. Such predictions need validation by

experimental determination that becomes simpler. In

the globin database for example, is reasonable to

define between one and three groups that explains

about 60% of the variance in database (Figure 4).

After the third singular value there is stability in the

singular value spectrum (Figure 3).

For the database with 13 mitochondrial genes

(Figures 5 and 6) it is possible to define the number

of groups around 10: after this interval the singular

value spectrum stabilizes and there is between 50%

and 60% explained variance. When the GenBank

matrix is analyzed, with ten different types of genes,

it is necessary carefully combine both graphs.

Despite the fact that there is a “gap” after the sixth

singular value (Figure 7), the variance explained

until this point is only about 40% (Figure 8). The

interval between 10 and 15 singular values

corresponds to about 50% of relative variance and

the spectrum becomes flat.

The PDB database, with more then 31,000

proteins from several types of genes, presents a

singular value spectrum where is necessary more

than 20 eigenvalues to explain about 30% of

variance. There is an “elbow” between the second

and third singular value (Figure 9) that is insufficient

to explain most data (Figure 10). Similar result is

obtained with the PDB enzymes database that

apparently had only 6 types of proteins. The visual

analysis of the scree plot and cumulative variance

graph (Figures 11 and 12) suggest more than 25

groups hidden under the six enzymes denomination.

This is a clue, a possibility that should be analyzed

by another bioinformatics tool.

Table 1 summarizes the visualization of all

singular value spectrums for each database, plotted

in the Figures 1 to 12. The suggested numbers of

significant singular values for each dataset is

coherent, except the enzymes database, which seems

to be actually formed by several quite different

sequences. SVD analysis unreveals biological

motives associated with biological processes and

other biological properties in each dataset.

0 5 10 15 20 2

100

Singular value

Rank

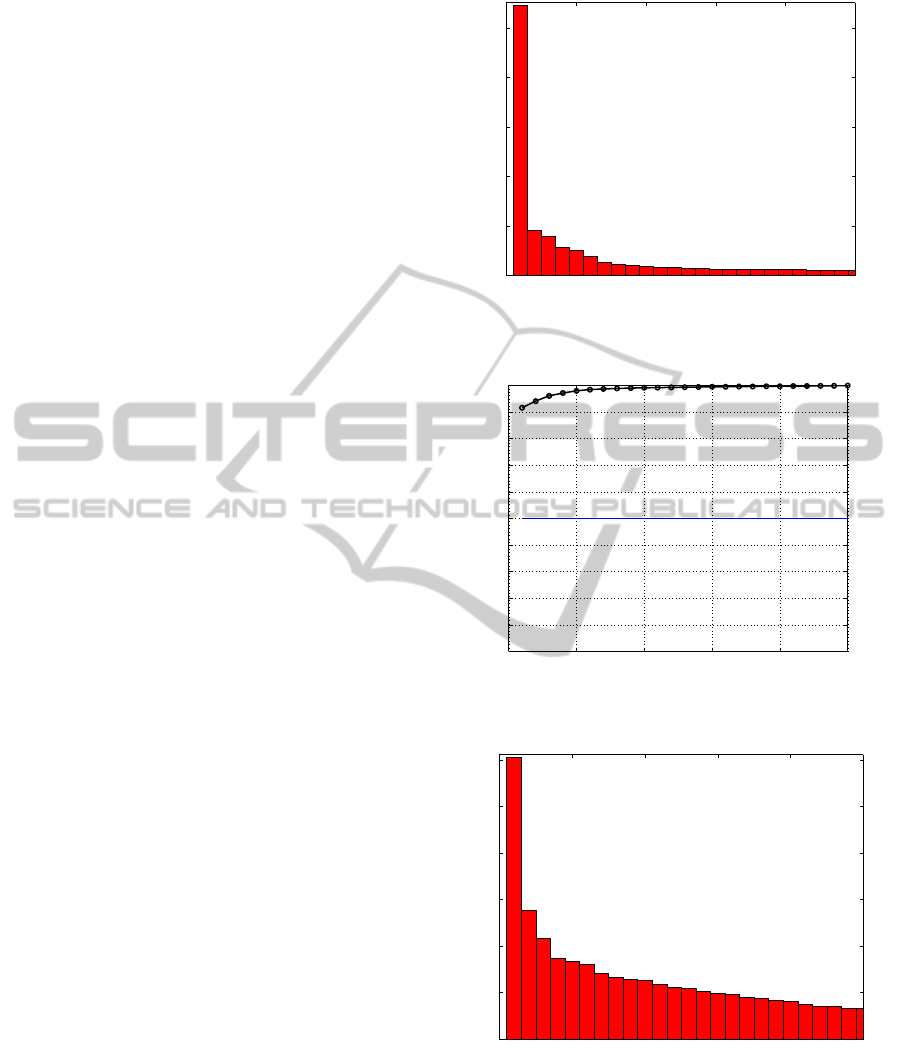

Figure 1: Scree plot showing singular values of

haemoglobin α-chain database.

0 5 10 15 20 25

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Singular value

Relative variance (cumulative value)

Figure 2: Cumulative relative variance of haemoglobin α-

chain database.

0 5 10 15 20 25

100

120

Singular value

Rank

Figure 3: Scree plot showing singular values of globin

database.

UNREVEALING BIOLOGICAL PROCESS WITH LINEAR ALGEBRA - Extracting Patterns from Noisy Data

315

0 5 10 15 20 25

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Singular value

Relative variance (cumulative value)

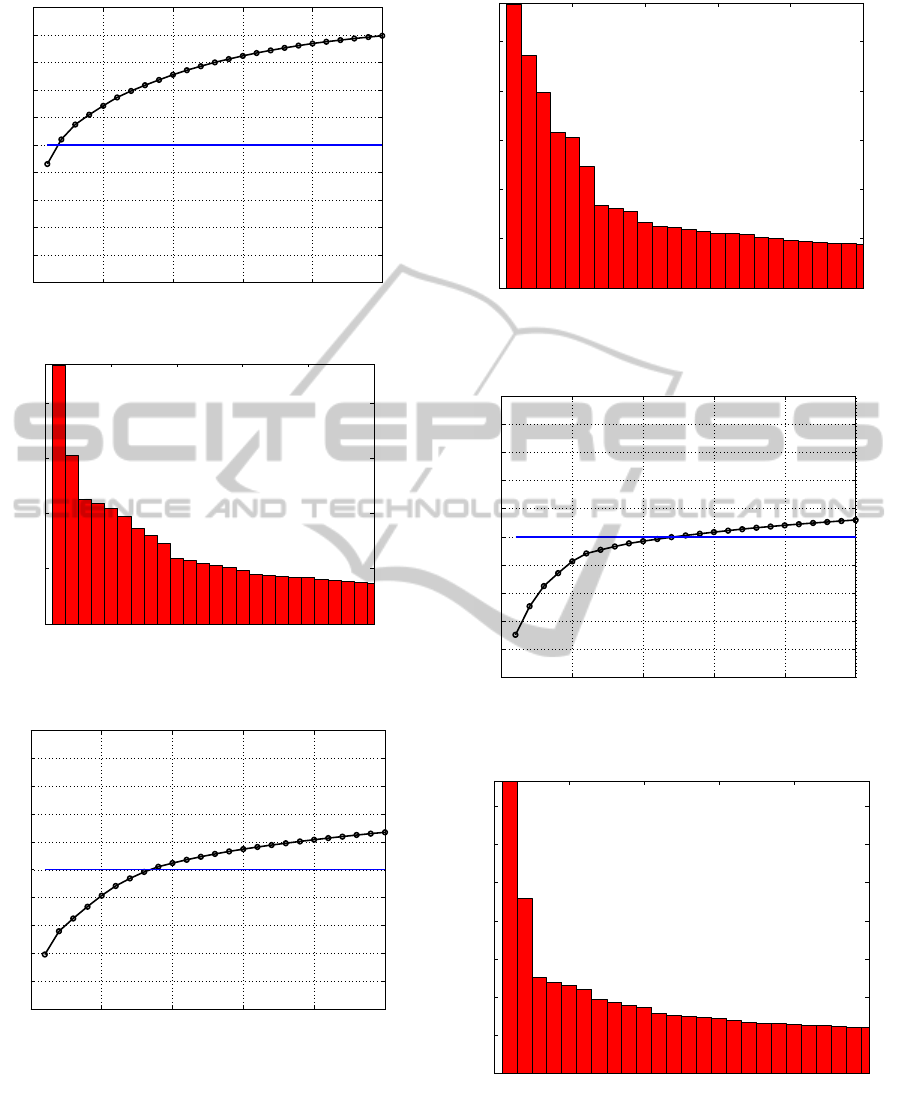

Figure 4: Cumulative relative variance of globin database.

0 5 10 15 20 2

100

150

200

Singular value

Rank

Figure 5: Scree plot showing singular values of

mitochondrial genes database.

0 5 10 15 20 25

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Singular value

Relative variance (cumulative value)

Figure 6: Cumulative relative variance of mitochondrial

genes database.

0 5 10 15 20 2

100

150

200

250

Singular value

Rank

Figure 7: Scree plot showing singular values of sample

genes from GenBank.

0 5 10 15 20 25

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Singular value

Relative variance (cumulative value)

Figure 8: Cumulative relative variance of sample genes

from GenBank.

0 5 10 15 20 2

100

200

300

400

500

600

700

Singular value

Rank

Figure 9: Scree plot showing singular values of random

PDB sequences dataset.

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

316

0 5 10 15 20 25

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Singular value

Relative variance (cumulative value)

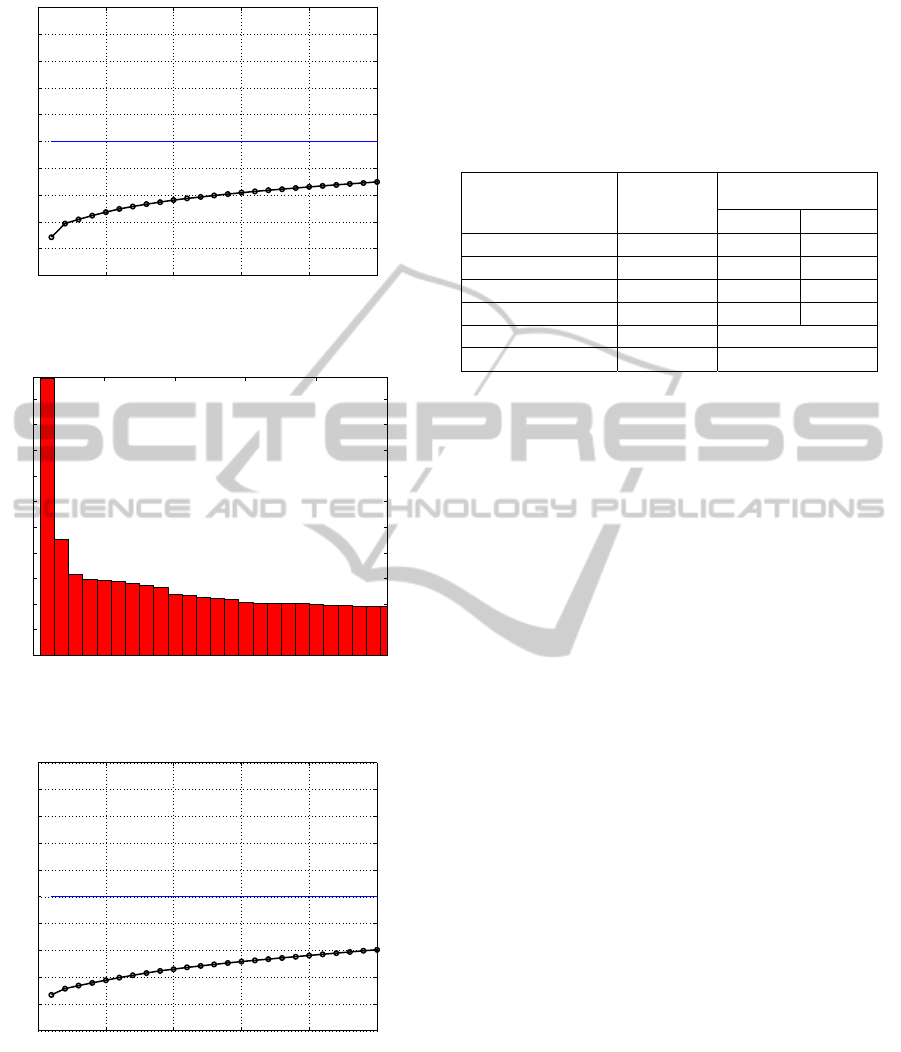

Figure 10: Cumulative relative variance of random PDB

sequences dataset.

0 5 10 15 20 2

100

150

200

250

300

350

400

450

500

Singular value

Rank

Figure 11: Scree plot showing singular values of PDB

enzymes database.

0 5 10 15 20 25

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Singular value

Relative variance (cumulative value)

Figure 12: Cumulative relative variance of PDB enzymes

dataset.

4 CONCLUSIONS

A biologist could ask: “What is the biological

significance of the SVD?” We answered this

question: the visualization of singular value

spectrum from SVD analysis shows how many

process can be hidden in database. The singular

value plot is a suggestion, a clue that helps biologists

to detect and extract small signals from noise data.

Table 1: Suggested number of significant singular values.

Dataset Predefined #

groups

Suggested number

singular values

Min Max

Haemoglobin α-chain

1 1 1

Globin

1 1 3

Mitochondrial genes

13 9 15

GenBank

10 10 15

PDB sequences

Several > 20

Enzymes

6 > 25

REFERENCES

Berry, M. W. et al., 1995. Using linear algebra for

intelligent information retrieval. SIAM Review, 37,

573-595.

Couto, B. R. G. M. et al., 2007. Application of latent

semantic indexing to evaluate the similarity of sets of

sequences without multiple alignments character-by-

character. GMR, 6(4), 983-999.

Deerwester, S. et al., 1990. Indexing by Latent Semantic

Analysis. Journal of the American Society for

Information Science, 41(6), 1-13.

Eldén, L., 2006. Numerical linear algebra in data mining.

Acta Numerica, 327-384.

Hunter, L., 1993. Artificial Intelligence and Molecular

Biology. American Association for Artificial

Intelligence, MIT Press, Cambridge.

King, R. D. et al., 2001. The utility of different

representations of protein sequence for predicting

functional class. Bioinformatics, 17(5): 445-454.

Stuart, G. W. et al., 2002. Integrated gene and species

phylogenies from unaligned whole genome protein

sequences. Bioinformatics, 18(1), 100-108.

The Mathworks, 1996. MATLAB: mathematical

computation, analysis, visualization, and algorithm

development (version 5.0). Natick, Massachusetts,

USA.

Wall, M. E. et al., 2003. Singular value decomposition

and principal component analysis. In: Berrar, D.P. et

al. (eds.), A practical approach to microarray data

analysis, Kluwer, Norwell, pp. 91-109.

Zhu, M. and Ghodsi, A, 2006. Automatic dimensionality

selection from the scree plot via the use of profile

likelihood. Computational Statistics and Data

Analysis, 51, 918-930.

UNREVEALING BIOLOGICAL PROCESS WITH LINEAR ALGEBRA - Extracting Patterns from Noisy Data

317
