GAST, A GENOMIC ALIGNMENT SEARCH TOOL

Kalle Karhu, Juho M¨akinen, Jussi Rautio, Jorma Tarhio

Department of Computer Science and Engineering, Aalto University, Espoo, Finland

Hugh Salamon

AbaSci, LLC, San Francisco, U.S.A.

Keywords:

Sequence alignment, Text algorithms, Indexing.

Abstract:

Alignment to a genomic sequence is a common task in modern bioinformatics. By improving the methods

used, signiﬁcant amount of time and resources can be saved. We have developed a new genomic alignment

search tool, called GAST, for sequences of at least 160 nt. GAST is many times faster than commonly used

alignment tools BLAT and Mega BLAST. As the sizes of query sequences and the database increase, the

advantage grows. This paper describes the principles of GAST and reports a comparison of GAST with BLAT

and Mega BLAST. The effects the query sequence length and the number of queries have on run times were

studied using the full human genome and the chromosome 1 of human genome separately. Additionally, the

error tolerance and behaviour of GAST when handling sequences with lower similarity to a database was

studied. Lastly, we compared the quality of exon mappings produced by the three tools and the genomic

mapping tool GMAP.

1 INTRODUCTION

Constructing an alignment of query sequences to a ge-

nomic sequence is a common task in modern bioin-

formatics. NCBI BLAST (NCBI, 2009) alone re-

ceives over 100,000 alignment queries a day. The

computational requirements of these searches amount

to a notable use of resources. Although sequence

alignment has been extensively studied, there remains

room for improvement in the speed of alignment and

the reliability of mapping query sequences with dif-

ferences from the database sequences. In this paper,

the terms query sequence, query, and pattern will be

used interchangeably to stand for the sequence the

user wishes to align or map to database text sequence

or sequences. Concerning the speed, two very popu-

lar alignment methods, Mega BLAST (Zhang et al.,

2000) and BLAT (Kent, 2002), stand out. Both are

similar to the BLAST basic local alignment search

tool (Altschul et al., 1990) in many ways.

Mega BLAST’s performance is increased by us-

ing a “greedy algorithm”, which starts three different

lines of further processing whenever an error is en-

countered. These three lines correspond to (i) han-

dling a mismatch, (ii) an insertion in the query, and

a deletion in the query. When a difference between

the query and the database occurs, one of the lines is

likely to continue running as the other two will termi-

nate immediately. With high similarity between the

query and the database, this method is computation-

ally very effective.

BLAT uses indexing of all suitably sized, non-

overlapping k-mers in the database. The index is used

in a search phase to connect these k-mers to the k-

mers of the query sequence. Lastly, an alignment is

done by extending the sites found in the search phase.

In this paper we present an alignment method

which is considerably faster than the aforementioned

methods Mega BLAST and BLAT. The phase struc-

ture of our method is similar to that of BLAT: index-

ing, searching, and alignment. However, the logic of

each phase in our tool is different from BLAT. The

indexing phase in our method collects all k-mers of

ﬁxed length following dinucleotides AC, which we

call AC-probes. Reasoning behind this kind of k-mer

selection, together with the choice of dinucleotide

AC out of all dinucleotides, is explained in Section

2.1. Information describing the approximate sites of

the occurrences of these AC-probes in the database

is saved. The search phase compares the AC-probes

Karhu K., Mäkinen J., Rautio J., Tarhio J. and Salamon H..

GAST, A GENOMIC ALIGNMENT SEARCH TOOL.

DOI: 10.5220/0003181400820090

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2011), pages 82-90

ISBN: 978-989-8425-36-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

found in the pattern to the ones in the database se-

quence. If enough AC-probes from the pattern are

found from a certain section of the database, this sec-

tion is selected for further processing. Finally, the

alignment phase further reﬁnes mapping. This phase

starts with the BG algorithm (Salmela et al., 2006),

which searches for candidates of alignment locations.

Our tool GAST (short for Genomic Alignment

Search Tool), yields results many times faster than

the aforementioned BLAT and Mega BLAST. As

the sizes of queries and the databases increase, our

method outperforms the aforementioned methods by

greater margins. Common tasks involving relatively

long patterns include mapping of cDNA and ex-

pressed sequence tags to genomes. Additionally

GAST has proved to be more tolerant to errors or

small differences between the database text and the

pattern, and thus was able to map such query pat-

terns faster and more reliably than BLAT and Mega

BLAST.

Originally GAST was made with sequences of

length 1000 nt and above in mind. Later on we dis-

covered that GAST is able to provide reliable results

with a lot shorter sequences too and the lower border

can be further on adjusted by changing some of the

parameter values. With this in mind, we compared

the quality of the exon mappings generated by GAST,

Mega BLAST and BLAT. Additionally, we compared

the results to a fourth tool, GMAP (Wu and Watan-

abe, 2005), designed speciﬁcally for cDNA mapping.

GMAP performs genomic mapping using rela-

tively long, 24 nt oligomers. This mapping requires

the usage of an index ﬁle, similarly to BLAT and

GAST. The results of the initial mapping are further

reﬁned using oligomer chaining and a speciﬁc type of

dynamic programming, called sandwich DP.

Another tool which is close to the mentioned tools

in performance is SSAHA (Ning et al., 2001). Ac-

cording to a comparison published in (Harper et al.,

2006), the quality of the results achieved by SSAHA

is on par with that of BLAT and Mega BLAST. We de-

cided it would not be necessary to include SSAHA in

our comparison, as there is no remarkable difference

in its performance compared to the other two tools.

2 METHODS

Our method can be divided into three different phases:

the creation of a block-addressingq-sample index, the

initial search phase, and lastly the alignment phase,

where the results of the initial search phase are pro-

cessed in a greater detail. The index phase is a prepro-

cessing step, which has to be done only once for each

genome or other collection of database sequences.

Initial search phase uses the index created to ﬁnd po-

tential sites with high probability of leading to a good

alignment. The alignment phase performs a more pre-

cise alignment between these sites and the patterns

provided. The workﬂow of our tool in these three

phases is illustrated in Figure 1. The nature of our

tool is relatively heuristic and there are many param-

eters and thresholds involved. These parameters and

choices behind their values are more thoroughly dis-

cussed in Section 2.4.

2.1 Block-addressing Q-sample Index

Our tool uses an index ﬁle to gain speed-up in the ini-

tial, approximate search. Essentially, this index struc-

ture combines q-sample ﬁltration (Sutinen and Tarhio,

1996) with block-addressing(Manber and Wu, 1994).

The workﬂow of our index structure, which is de-

scribed in this subsection, is also visualized in left

section of Figure 1.

The index structure is formed as follows. Given

database ﬁles containing the database sequences are

initially divided into blocks of given size b. The ﬁle-

names the blocks correspond to and the starting po-

sitions of the blocks in the ﬁles are saved in order to

access the sequences of each block. A unique block

ID number is given to each block to act as a key to

this information.

Following the division to blocks, the database se-

quences are scanned for occurrences of a certain din-

ucleotide, AC. These dinucleotide occurrences are ex-

panded to what we call AC-probes. This expansion is

done by taking the 10 nucleotides following the din-

ucleotides AC, resulting in 12-mers. The blockwise

locations of these probes are initially collected. Af-

ter all the blocks of the database sequences have been

scanned, the most frequently occurringAC-probes are

discarded. This censoring is done to reduce the num-

ber of blocks and probes to be processed. The portion

of AC-probes discarded is controlled by ACdisc pa-

rameter. The remaining AC-probes will be referred to

as approved AC-probes.

Resulting from these phases, the index holds a list

of block ID numbers for the collection of approved

AC-probes. Using this index structure, our tool can

rapidly retrieve blocks with occurrences of a given

AC-probe, or a collection of multiple AC-probes.

When creating such block-addressing index based

on oligomer positions, the oligomers used should

be infrequent enough to create distinction between

blocks. Longer oligomers are more infrequent, but re-

sult in larger and computationally heavier index struc-

tures, if occurrences of all oligomers of chosen length

GAST, A GENOMIC ALIGNMENT SEARCH TOOL

are indexed. Because of this tradeoff, it is advanta-

geous to have a way of choosing certain portion of

the longer oligomers, in order to cut down the size of

the index. Lastly, this portion of the oligomers should

be easily and rapidly detectable, when scanning the

database or the pattern. The AC-probe satisﬁes these

requirements and thus it was chosen to be the base

structure of our index. The choice of dinucleotide

AC out of all dinucleotides is supported by (Zhang

and Yang, 2005), (Zhang and Yang, 2008) and (Kar-

lin and Burge, 1995), showing a good combination of

low mean and low variance of incidence for the dinu-

cleotide AC in bacteria, archae and eukaryotes alike.

There is also another preprocessing step required

to be done once for each database ﬁle. This is the k-

mer encoding of the text, used by the alignment phase

of our tool. By default, we use the value of q = 7.

The encoded databases are saved in a particular binary

format instead of the ASCII format used in FASTA

ﬁles.

2.2 Initial Search

The initial search phase essentially compares AC-

probe proﬁles of database blocks, which were re-

trieved in the indexing phase, to the AC-probe pro-

ﬁles of patterns. As the output of this initial search,

our tool gives the blocks having high probability of

containing a hit for a pattern. Workﬂow of the initial

search is pictured in the mid section of Figure 1.

Going phase by phase, the initial search is done

as follows. First, the occurrences of AC-probes in the

query sequence are collected. Using these, the sum of

approved AC-probes matching between each pattern

and each block are calculated.

There are two separate threshold values control-

ling the selections of blocks for further processing.

Each block is required to contain at least a portion mp

of approved AC-probes found in the query. The sec-

ond threshold requires each block to contain at least

a portion rp of maximum amount of approved AC-

probes matching between a block and the query se-

quence. If two neighboring blocks do not overcome

the thresholds as solo, but do so when combined, they

are combined and handled as a single block.

If wished so by the user, the search can be stopped

here and the blocks which overcame the thresholds

will be reported with the amount of approved AC-

probes found from them. Otherwise, the search will

be further reﬁned in alignment phase.

2.3 Alignment

The last reﬁning phase in our tool is the alignment

phase. Essentially, the blocks from the search phase

are further reﬁned using an efﬁcient search algo-

rithm based on overlapping k-mers, the BG algo-

rithm (Salmela et al., 2006). The workﬂow of the

alignment phase is shown in the right section of the

Figure 1.

The BG algorithm is based on the BNDM algo-

rithm (Navarro and Rafﬁnot, 2000) for a single pat-

tern. The idea is to construct a generalized pattern that

represents a group of patterns. For example, the group

of patterns, acgt, aacc, and gttt can be represented

by the generalized pattern: [a,g][a,c,t][c,g,t][c,t]. The

BG algorithm ﬁnds the generalized pattern represent-

ing overlapping k-mers. If k = 2 in the example

above, the corresponding generalized pattern is given

by [ac,aa,gt][cg,ac,tt][gt,cc,tt]. Each occurrence of

the generalized pattern is a candidate for a real match.

BG works as a ﬁlter and the candidate matches are

checked by an exact method. In practice, the BG al-

gorithm is very efﬁcient (Salmela et al., 2006).

The overlappingk-mer patterns used by the BG al-

gorithm in our tool, which will be referred to as BG-

probes, are composed of 5 consecutive 7-mers taken

from the query sequences. The number of these BG-

probes taken from the query is chosen to be 0.6 times

the length of query sequence, and these BG-probes

are taken as evenly from the query as possible. This

BG-probe frequency has proven out to be suitable ac-

cording to our experiments.

The collection of database blocks resulting from

the initial search phase is scanned one block at a time

for occurrences of the BG-probes extracted from the

query sequence. This scanning uses the 7-mer en-

coded text.

When a BG-probe occurring in the query se-

quence is found from the database block, the positions

of the probe in the database block and query are saved

as a pair in a probe-hit list. After the scanning of the

database block is complete, the probe-hits are sorted

by difference values d

= pd

− pq

of each pair in as-

cending order. Here pd

is the position of i:th BG-

probe occurrence in the database block and pq

is the

position of the same BG-probe in the query sequence.

Following this sorting, the probe-hits are com-

bined in to what we call structured sets. If the d

of two consecutive probe-hits in the sorted list differ

by less than 10, these two probe-hits are put into the

same structured set. This maximum difference value

has worked well in our experiments.

After all the probe-hits have been assigned to a

structured set, the sets which have less than mt probe-

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

Database

sequences

Block size

Blocks

Collect

blockwise

AC-probe

locations

ACdisc:

discard

most

common

probes

Resulting

AC-index

structure

Using BG

algorithm,

BG-probes

within

blocks

k-mer

encoded

text

Query

sequences

Collect

AC-probes

from the

query

Sum

matching

AC-probes

in each

block

Threshold:

mp *

approved

AC-probes

in pattern

Threshold:

hits/block

≥ rp *

hits in

best block

Collection

of good

blocks

Obtain

BG-probes

from

pattern

Sort BG-

probes by

position

difference

value

Combine

probe-

hits to

structured

sets

Threshold:

# of pairs

in a set

≥ mt

Sort

probe-hits

in sets by

appearance

in query

Expand

hits, ap-

proximate

gaps

Report

sites, mis-

matches

+ gaps

as output

INDEX

INITIAL SEARCH ALIGNMENT

Figure 1: The workﬂow of the GAST tool. Left section describes the creation of block-addressing q-sample index, mid section

describes initial search phase, right section describes alignment phase. Parameters and thresholds in gray, rounded boxes.

hits are discarded, and the rest are sorted by the pq

value of each pair in ascending order. Resulting struc-

tured set correspondsto an aligned region between the

query sequence and the database block. The thresh-

old value mt can be speciﬁed by the user and it has an

effect on the minimum size of an alignment.

Lastly, the structured sets are expanded from both

ends as long as the nucleotides between the query

sequence and the database sequence match. If the

value of two consecutive probe-hits differ, corre-

sponding number of gaps are considered to exist be-

tween probe-hits. The placing of gaps resulting in

least mismatches is chosen.

Repeating these steps for all the structured sets,

blocks and queries, approximate alignments for each

of the queries are obtained. If desired, it is also pos-

sible to perform this search for the reverse comple-

ment of the given query sequence. As the output,

GAST reports the start and end sites of the alignment

in both the query and the database. The number of

mismatches and gaps is also reported. Additionally,

there is an option to output the actual approximated

alignment.

2.4 Parameters

There are ﬁve parameters used by GAST, which are

adjustable by the user. Four of these, the parameters

ACdisc, mp, rp, and mt act as threshold or cutoff val-

ues in different stages. The ﬁfth is the size of a block

in the index structure.

The block size b directly affects the size of the

index, therefore affecting the level of memory con-

sumption. A suitable value for the block size in our

experiments has been 500, 000 nucleotides. Larger

blocks result in smaller relative differences between

the number of AC-probes found in them and cause

larger areas of text to be passed on to the alignment

phase. A smaller block size results in larger number

of blocks, resulting in larger index ﬁles. It is not ad-

vised to set the block size to be smaller than the length

of the query sequence searched, as the query may be

then splitted between more than two blocks.

The ACdisc parameter controls the number of dif-

ferent AC-probes considered to be approved, mean-

ing that they will be used to compare the query se-

quence with the blocks of the text. The default value

GAST, A GENOMIC ALIGNMENT SEARCH TOOL

for ACdisc is 0.1, resulting in the most common tenth

of the AC-probes to be discarded. Lower ACdisc val-

ues will cause more common AC-probes to be taken

into account. As result, the average AC-probe will

cause less distinction between blocks, which is not

desirable. With higher values, a smaller amount of

AC-probes will be taken into account, causing less

approved AC-probes to be found from query, which

makes the initial search phase less tolerant to differ-

ences between the query and the text. Suitable values

in our experiments have been in the range [0.001, 0.1].

The parameter mp deﬁnes the minimum amount

of approved AC-probes a block has to have in com-

mon with the query sequence in order to be con-

sidered potential. The default value for mp is 0.1.

Lower mp values allow blocks that differ more from

the query sequence to be taken into account. Higher

mp values leave less room for differences between

the approved AC-probes of the block and the query

sequence. Together the parameters ACdisc and mp

have a major effect on run times, especially when

very low values are chosen. Combination of ACdisc

values of 0.003 or smaller and mp values of 0.05 or

smaller should be avoided, as this leads to increase

of run times by 40–100 orders of magnitude. If the

user wishes to take initially less promising blocks in

to the ﬁnal alignment stage, we suggest values ACdisc

= 0.01 and mp = 0.07 to be used. More such balanced

combinations are shown in Section 3.

As the ﬁnal cutoff affecting the initial search

phase, each block has to contain at least a portion rp

of maximum amount of approved AC-probes match-

ing between a single block and the query sequence,

in order to be considered potential. The default value

for rp is 0.8. As the occurrences of approved AC-

probes can be scattered to distant, non-related regions

within a block, values very close to 1 may lead to

situations where blocks resulting in more more sat-

isfactory alignments with the query are discarded. In

our experiments, rising the rp value above 0.8 has de-

creased the run times only by 10–20%, and we do not

advise to use values higher than this.

The alignment phase has one adjustable parameter

value mt, which is the minimum amount of probe-hits

a structured set has to have for it to be considered to

correspond to an alignment between the query and the

text sequence. The default value for mt is 60. This

parameter effectively deﬁnes the minimum length of

a constructed alignment. If user wants to take into

account very short alignments between the query se-

quence and the database text block, smaller values can

be used. In our experience, changing the value of mt

from 60 to 10 causes run time increase by slightly less

than 10%. However, if shorter alignments are not ex-

plicitly desired, the default value is recommended, as

smaller values will result in larger amount of short,

probably less interesting alignments to be output.

Additionally, there are few built-in choices re-

garding values, which affect the function of our tool.

One of these is the length of the AC-probes, which

was chosen to be 10 nucleotides in addition to the

dinucleotide AC. If the length of the probe is in-

creased, this increases the size of the index and re-

quires database sequence to have longer identical re-

gions with the query sequence. Shorter AC-probes

will occur more commonly, causing less distinction

between blocks.

Similar balancing is required for the length and

amount of k-mers included in a single BG-probe,

which is used by the BG algorithm in the alignment

phase. The q must be small enough for the size of the

k-mer encoded database text ﬁles to be manageable.

However it is beneﬁcial to have BG-probes, which

have a high probability of being unique in a block.

Our choices for the length of the AC-probes and BG-

probes are balanced compromises, which have proven

out to work well in our experiments.

3 RESULTS

Our algorithm was compared with the algorithms

Mega BLAST (Zhang et al., 2000) and BLAT (Kent,

2002). For GAST and Mega BLAST, searches were

made against a database consisting of the whole hu-

man genome received from the Ensembl genome

database (Hubbard, T. J. P. et al. , 2007). The release

in question was based on the NCBI 36 assembly of the

human genome. In the case of BLAT, the system used

for the runs lacked the memory to perform searches

against the whole human genome. Therefore, an-

other set of searches with BLAT, Mega BLAST, and

GAST were performed against the chromosome 1 of

the same genome. All the runs were performed on a

machine with 1GB DDRII SDRAM (667MHz) and an

Intel Core 2 Duo T5500 (1.66 GHz) processor, run-

ning Ubuntu 7.04. All the run times in this section

are times used by the program itself and any library

subroutines it calls. The tests were later repeated on

another machine with 6 GB of RAM in order to elim-

inate possible paging effects. No bias of this sort was

detected.

The AC-index described in the previous section

was created, using block size 500, 000, AC-probe

length 12 and ACdisc value 0.1. In addition, the

database ﬁles were encoded with 7-mers. These steps

were performed for the full genome and for the chro-

mosome 1 separately.

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

Table 1: The run times for the preparatory steps of algorithms BLAT, Mega BLAST and GAST and the sizes of the structures

created by these steps.

Preprocessing Database Time Size

GAST, index full genome 287.46 s 79.5 MB

GAST, encode full genome 351.87 s 5.7 GB

Mega BLAST, formatdb full genome 157.59 s 734.8 MB

BLAT, makeOoc full genome 108.57 s 165.7 kB

GAST, index chromosome 1 25.65 s 10.3 MB

GAST, encode chromosome 1 26.49 s 471.6 MB

Mega BLAST, formatdb chromosome 1 12.44 s 59.0 MB

BLAT, makeOoc chromosome 1 8.45 s 3.1 kB

Figure 2: The run times for algorithms BLAT, Mega

BLAST and GAST with variable pattern lengths. For each

length, the algorithms were run with 250 randomly selected

queries. Only the searches with patterns long enough to

produce reliable results were included in the comparison.

For Mega BLAST, the database was preprocessed

with the formatdb tool, using ﬁle type “nucleotide”,

parsing sequence IDs and creating indexes. Databases

including the full genome and the one including only

chromosome 1 were preprocessed separately. For

BLAT, an index structure was created by collecting

over occurring 11-mers from the chromosome 1, us-

ing the -makeOoc parameter with -repMatch=1024.

The run times for preprocessing and the sizes of the

created structures are listed in Table 1. BLAT is

fastest in the creation of its indexes and it also has the

smallest indexes of the three. GAST builds smaller

index structures than Mega BLAST, but takes longer

creating them. The k-mer encoding of the text, per-

formed by GAST, is the most time and space consum-

ing of all these preprocessing steps. It is noteworthy,

that all of these preprocessing steps are of such na-

ture that they have to be performed only once for each

genome or other collection of database text ﬁles.

Run times were studied as a function of the length

of a query and as a function of the number of queries

to be mapped. Searches studying the effect that the

length of query has on run time were executed with

lengths varying from 10 to 10000 nucleotides. For

each length, 250 exact query strings were randomly

picked from the ﬁrst chromosome. The algorithms

BLAT, Mega BLAST, and GAST were used to search

these queries in the ﬁrst chromosome. BLAT was

run using the created over occurring 11-mer ﬁle and

using fast DNA/DNA remapping, which causes the

search to not allow introns, improving the speed of

the search remarkably. Mega BLAST was run using

the query sequence length as the minimum score of a

hit to be reported, causing it to report exact matches

only. GAST was run using the default parameter val-

ues ACdisc = 0.1, mp = 0.1, rp = 0.8, and mt = 60.

The run times for the three algorithms searching the

patterns are shown in Figure 2. Mega BLAST found

queries of length of 40 and greater, BLAT, 80 or

greater, and GAST 160 or greater reliably enough to

produce reportable results. Searches with shorter pat-

terns than these were excluded from the comparison.

As can be seen in Figure 2, BLAT was the fastest

tool with very short patterns of length 160 and be-

low. With pattern lengths of 320 and above, GAST

was the fastest tool of the three. The run time de-

pendence on the number of queries to be mapped was

studied using lengths of 1000 and 5000 and number

of queries increasing from 1 to 5000. Sets of pat-

terns were chosen randomly from the whole genome

and from the ﬁrst chromosome separately. GAST

and Mega BLAST were run using the patterns chosen

from the whole genome and ﬁrst chromosome sep-

arately. Mega BLAST was run using parameters -s

1000 and -X 1, where -s is the minimum score to be

reported and -X is the X drop off value for gapped ex-

tension. GAST was run using the same parameters as

in the previous test. BLAT was run for the chromo-

some 1 sets, using the created over occurring 11-mer

ﬁle and fast DNA/DNA remapping. The results for

the whole genome are shown in Figure 3 and results

for the chromosome 1 are shown in Figure 4.

GAST, A GENOMIC ALIGNMENT SEARCH TOOL

Figure 3: The run times for algorithms Mega BLAST and

GAST searching a variable number of queries from the

whole genome of Homo sapiens. For each number of pat-

terns, there were two sets to be searched, one consisting of

patterns of length 1000 and the other consisting of patterns

of length 5000.

Figure 4: The run times for algorithms BLAT, Mega

BLAST and GAST searching a variable number of patterns

from the chromosome 1 of Homo sapiens. For each number

of query sequences, there were two sets to be searched, one

consisting of patterns of length 1000 and the other consist-

ing of patterns of length 5000.

The run times shown in Figures 3 and 4 increase

linearly as the number of patterns increase, as sus-

pected. The difference caused by the change of

database size is very notable. Comparing the average

run times for query sequence length of 1000, GAST

was 50 times faster than Mega BLAST on the full

genome, but only 18.3 times faster on the chromo-

some 1. For query sequence length of 5000, the cor-

responding numbers are 72.1 and 19.1.

The error tolerances of BLAT and Mega BLAST

were compared to the error tolerances of GAST, us-

ing various parameter values. 25 sets of 500 query se-

quences of length 5000 were randomly selected from

Figure 5: The amount of patterns BLAT, Mega BLAST and

GAST did not ﬁnd when searching with pattern sets with

error probabilities ranging from 0.01 to 0.25. For GAST,

the default parameters and three additional parameter sets

with mp = 0.07 and ACdisc = [0.01, 0.03, 0.003] were used.

the ﬁrst chromosome. Each of these sets had a ﬁxed

error probability, ranging from 0.01 to 0.25, where

an error probability e means that each nucleotide in a

pattern has a probability e to to be randomly mutated.

Each mutation had a probability 0.5 to be a substitu-

tion, 0.25 to be an insertion and 0.25 to be a deletion.

Each algorithm was run with all the sets sepa-

rately. Parameter values for BLAT were the same as

in the previous tests. Mega BLAST was run with the

default -s parameter value of 0, to get reports from

all hits. The parameter sets used with GAST, and the

number of patterns that were not found in the runs

can be seen in Figure 5. Pattern was considered to

be found if the algorithm reported a hit within the se-

quence length from the original pattern site.

As can be seen in Figure 5, Mega BLAST and

BLAT both started quickly losing approximate occur-

rences of patterns with error rate of 0.12 and above.

GAST started losing approximate occurrences of pat-

terns at the same rate with a higher error rate of 0.17

and above, when using default parameters. As the ﬁg-

ure shows, it is possible to further increase the error

tolerance of GAST by selecting smaller mp value of

0.07 and adjusting the ACdisc value gradually. The

run times are still relatively low with ACdisc values

0.03 and 0.01, as can be seen in the Table 2. As

ACdisc was further decreased to a value of 0.003, a

notable increase in run times occurred.

Table 2: Average GAST run times depending on parame-

ters. Sets of 500 patterns of length 5000 with error proba-

bilities varying from 0.01 to 0.25. The rp parameter values

were 0.8 for all sets.

mp 0.1 0.07 0.07 0.07

ACdisc 0.1 0.03 0.01 0.003

Avg. run time 7.94s 10.82s 15.33s 46.5s

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

Lastly, the run times and exon mapping quality

were studied for a set of 6721 cDNA sequences, cor-

responding to various transcripts originating from hu-

man chromosome 1. The sequences were retrieved

from the BioMart database (OICR and EBI, 2010) and

were 2000 nucleotides long on average. The starting

and ending positions of exons in the sequences were

also retrieved. All the three tools and the GMAP tool

were run to map these sequences to the human chro-

mosome 1.

Mega BLAST was run using an index created as

described before. The parameters were default apart

from using this index structure. GAST was run with

default parameters apart from the match threshold pa-

rameter mt, which was given values 60, 40, 20 and

10 in subsequent runs. BLAT was run with the same

parameters as before, but the fast DNA/DNA remap-

ping, which does not allow introns, was disabled for

this task. GMAP was run with -B paramater value of

2, meaning that both the text and the index made of it

were read to memory, and with parameter -A to cal-

culate alignment between the query and the database.

The run times for these runs are in the Table 3.

A quality measure Q

exon

for the exon mappings

produced was calculated for all the resulting map-

pings as follows:

exon

− (|m

− e

| + |m

− e

(1)

where L

is the exon length, m

and m

are the start

and end positions of the mapping, and e

and e

are

the start and end positions of the exon, respectively.

The score obtained from the mapping giving the high-

est score, out of the mappings of the cDNA in ques-

tion, is saved for each exon. For each run, averages of

scores Q

exon

were calculated for exon length ranges

of 0–5, 5–10, 10–20, 20–30, ..., 150–160. These av-

erages are in Figure 6.

The run times given in Table 3 show very remark-

able differences between the four tools, GAST being

the fastest. The notable increase of run time for BLAT

is most likely caused by disabling fast DNA/DNA

remapping. The quality of exon mappings produced

by BLAT and GMAP were highest out of all tools.

Mappingsproduced by GAST with mt = 10 and Mega

BLAST gained slightly lower quality scores, espe-

cially when mapping very short exons. With higher

mt values, GAST was not able to produce mappings

for shorter exons.

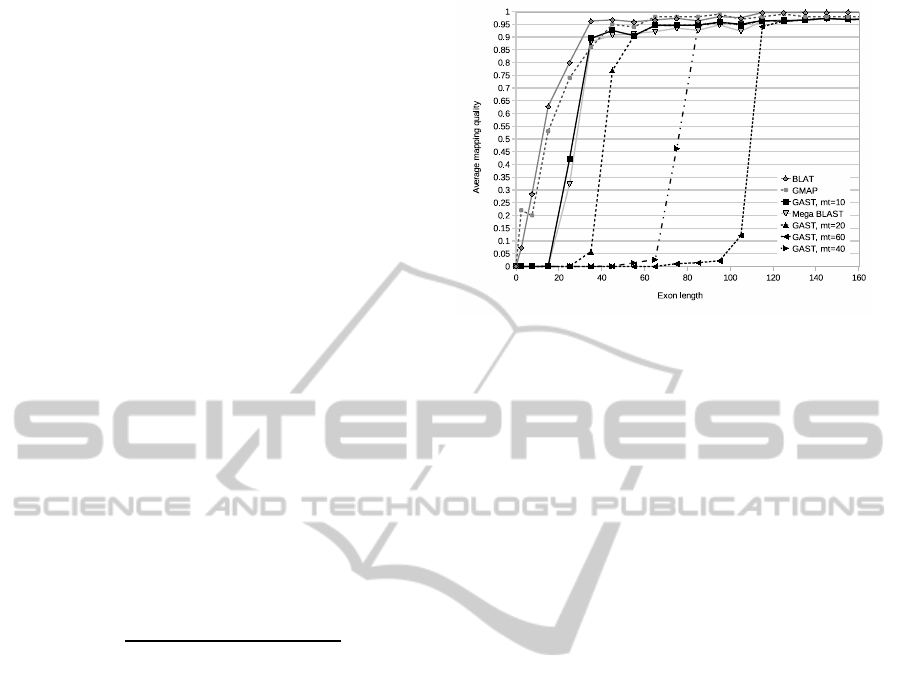

Figure 6: Average exon mapping quality as the function of

exon length for the tools GAST, BLAT, Mega BLAST, and

GMAP. The performance of GAST is shown with different

match threshold parameter values.

4 CONCLUDING REMARKS

According to our results, GAST is an efﬁcient and ac-

curate search tool for common genomic search prob-

lems. Concerning the speed, our algorithm performs

best with long sequences, large databases, and large

query sets. As the length of either the database or

the length of the pattern increases, the magnitudes of

differences between GAST, Mega BLAST, and BLAT

increases.

The drawbacks of such increases in efﬁciency are

the space and time requirements of the preprocessing

steps, namely the creation of the AC-index and the k-

mer encoding of the database ﬁles. However, as the

preprocessing steps are required to be done only once

for each genome, or other set of sequence ﬁles, the

authors see this as a relatively small problem. De-

pending on the sizes of the patterns and the database

ﬁles, GAST would pay back the computational re-

quirements of the preprocessing steps after a few hun-

dred search queries.

The usage of the AC-index causes requirements

for the lengths of the queries. According to our stud-

ies, it is best to use GAST for patterns of at least 200–

300 nts in length. However, in a long enough tran-

script or cDNA, the exons can be shorter than this, de-

pending on the chosen mt parameter. The mentioned

nucleotide requirement is just to make sure that there

are enough AC probes in the sequence for it to be ini-

tially mapped to the correct block.

With longer sequences of length 5000, GAST

has proven out to be more error tolerant than Mega

BLAST and BLAT, as can be seen in Figure 5. It is

also possible to further improve the error tolerance of

our search tool by tweaking the parameters ACdisc

GAST, A GENOMIC ALIGNMENT SEARCH TOOL

Table 3: The run times for the mapping of 6721 cDNA sequences on human chromosome 1, allowing introns. GASTXX

stands for a GAST run with XX for the parameter mt.

BLAT Mega BLAST GMAP GAST10 GAST20 GAST40 GAST60

286m 40.3s 45m 19.2s 14m 52.4s 1m 13.7s 1m 10.6s 1m 8.4s 1m 8.3s

and mp, while still retaining the speed advantage over

BLAT and Mega BLAST.

Additionally, the quality of the exon mapping pro-

duced by GAST is on par with that of Mega BLAST

and comparable to the mappings done by BLAT and

GMAP. However, the mapping was multiple orders of

magnitude faster with GAST.

In the future, we would like to compare more

genomic alignment and mapping tools with GAST.

The possibility of using statistical methods to derive

more optimal parameter values could also be exam-

ined. Studies with different dinucleotides and trinu-

cleotides forming the probes for the index could also

be done. Lastly, the compatibility of the output data

formats should be developed further on to allow eas-

ier pipelining of GAST with other methods, possibly

further reﬁning the areas initially suggested by GAST.

ACKNOWLEDGEMENTS

We thank Sami Khuri and anonymous referees for

comments that helped us to improve the presenta-

tion of this paper. The work was supported by the

Academy of Finland (grant 134287).

REFERENCES

Altschul, S. F., Gish, W., Miller, W., Myers, E. W., and

Lipman, D. J. (1990). Basic local alignment search

tool. Journal of Molecular Biology, 215(3):403–410.

Harper, C. A., Huang, C. C., Stryke, D., Kawamoto, M.,

Ferrin, T. E., and Babbitt, P. C. (2006). Comparison

of methods for genomic localization of gene trap se-

quences. BMC Genomics, 7:236.

Hubbard, T. J. P. et al. (2007). Ensembl 2007. Nucleid Acid

Res., 35:D610–D617.

Karlin, S. and Burge, C. (1995). Dinucleotide relative abun-

dance extremes: a genomic signature. Trends in Ge-

netics, 11(7):283–290.

Kent, W. J. (2002). BLAT - The BLAST-like alignment tool.

Genome Res., 12:656–664.

Manber, U. and Wu, S. (1994). GLIMPSE: A tool to

search through entire ﬁle systems. Proceedings of the

USENIX Winter Conference, pages 23–32.

Navarro, G. and Rafﬁnot, M. (2000). Fast and ﬂexible string

matching by combining bit-parallelism and sufﬁx au-

tomata. ACM Journal of Experimental Algorithms 5,

4:1–36.

NCBI (2009). www.ncbi.nlm.nih.gov/BLAST/ (cited Mar

24, 2009), BLAST: Basic Local Alignment Search

Tool (on-line).

Ning, Z., Cox, A. J., and Mullikin, J. C. (2001). SSAHA:

A Fast Search Method for Large DNA Databases.

Genome Res., 11:1725–1729.

OICR and EBI (2010). www.biomart.org (cited May 3,

2010), BioMart Project (on-line).

Salmela, L., Tarhio, J., and Kyt¨ojoki, J. (2006). Multi-

pattern string matching with q-grams. ACM Journal

of Experimental Algorithms, 11(1).

Sutinen, E. and Tarhio, J. (1996). Filtration with q-samples

in approximate string matching. In Proceedings of

the 7th Annual Symposium on Combinatorial Pattern

Matching (CPM ’96). Lecture Notes in Computer Sci-

ence, 1075:50–63.

Wu, T. D. and Watanabe, C. K. (2005). GMAP: a genomic

mapping and alignment program for mRNA and EST

sequences. Bioinformatics, 21(9):1859–1875.

Zhang, S.-H. and Yang, J.-H. (2005). Conservation versus

variation of dinucleotide frequencies across genomes:

Evolutionary implications. Genome Biology, 6, P12.

Zhang, S.-H. and Yang, J.-H. (2008). Characteris-

tics of oligonucleotide frequencies across genomes:

Conservation versus variation, strand symmetry,

and evolutionary implications. Nature Precedings,

hdl:10101/npre.2008.2146.1.

Zhang, Z., Schwartz, S., Wagner, L., and Miller, W. (2000).

A greedy algorithm for aligning DNA sequences.

Journal of Computational Biology, 7:203–214.

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms
