SOLVING NON BINARY CONSTRAINT SATISFACTION

PROBLEMS WITH DUAL BACKTRACKING ON HYPERTREE

DECOMPOSITION

Zineb Habbas, Kamal Amroun

LITA, University Paul-Verlaine of Metz, Metz, France

Department of Computer Sciences, University of Bejaia, Bejaia, Algeria

aniel Singer

LITA, University Paul-Verlaine of Metz, Metz, France

Keywords:

CSP, Dual backtracking, Forward-checking, Hypertree decomposition, Structural decomposition, Ordering

Heuristics.

Abstract:

Solving a CSP (Constraint Satisfaction Problem) is NP-Complete in general. However, there are various

classes of CSPs that can be solved in polynomial time. Some of them can be identiﬁed by analyzing their

structure. It is theoretically well established that a tree (or hypertree) structured CSP can be solved in a

backtrack-free way leading to tractability. Different methods exist for converting CSPs in a tree (or hypertree)

structured representation. Among these methods Hypertree Decomposition has been proved to be the most

general one for non-binary CSPs. Unfortunately, in spite of its good theoretical bound, the unique algorithm

for solving CSP from itshypertree structure is inefﬁcient in practice due to its memory explosion. To overcome

this problem, we propose in this paper a new approach exploiting a Generalized Hypertree Decomposition.

We present the so called HD

DBT algorithm (Dual BackTracking algorithm guided by an order induced by

a generalized Hypertree Decomposition). Different heuristics and implementations are presented showing its

practical interest.

1 INTRODUCTION

Many important real world problems can be formu-

lated as Constraint Satisfaction Problems (CSPs). The

most usual complete method for solving CSPs is

based on a backtracking search. This approach has an

exponential worst-case time complexity of O(m.d

)

for a CSP instance with m the number of constraints,

n the number of variables and d the largest size of

variable domains. Solving a CSP is NP-Complete

in general but there are various classes of CSPs that

can be solved in polynomial time. Freuder (Freuder,

1982) proved that a tree-structured CSP can be solved

efﬁciently and many efforts have been made to de-

ﬁne tree-like decomposition methods that lead to

tractability. Methods deriving from the Database area

have been successfully used to characterize some new

tractable classes (Jeavons et al., 1994; Gyssens et al.,

1994; Gottlob et al., 2000; Gottlob et al., 2005). Their

main common principle is to decompose the CSP into

a number of subproblems organized in a tree or an hy-

pertree structure. These subproblems are then solved

independently and the solutions are propagated in a

backtrack-free manner to solve the initial CSP as de-

scribed in (Dechter and Pearl, 1989). Numerous other

decomposition methods have been proposed, to cite

some of the most important ones: biconnected com-

ponents (Freuder, 1982), hinge decomposition com-

bined with tree clustering (Gyssens et al., 1994) and

spread-cut decomposition (David Cohen, 2005). A

more recent work (Greco and Scarcello, 2010) pro-

posed a deep study on different versions of structural

decompositions deriving from binary representations

of general (non-binary) CSPs. This study gives a the-

oretical comparison of structural decompositions on

binary representations with direct non-binary ones.

All these methods are characterized by their compu-

tational complexity in terms of the tree (resp. hyper-

tree) width they generate. Among them Gottlob et

al. (Gottlob et al., 2000) have shown the hypertree

146

Habbas Z., Amroun K. and Singer D..

SOLVING NON BINARY CONSTRAINT SATISFACTION PROBLEMS WITH DUAL BACKTRACKING ON HYPERTREE DECOMPOSITION.

DOI: 10.5220/0003184801460156

In Proceedings of the 3rd International Conference on Agents and Artiﬁcial Intelligence (ICAART-2011), pages 146-156

ISBN: 978-989-8425-40-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

decomposition dominates all the other structural de-

composition methods excepted the methods recently

introduced in (Grohe and Marx, 2006).

Most of works on structural decompositions are

purely theoretical to deﬁne new general tractable

classes. However, the main drawback of these ap-

proaches from a practical viewpoint is the memory

space explosion due to the expression of relations as-

sociated to constraints by tables and the storage of all

the solutions resulting from join operations as well.

The representation of relations by tables is adequate

for the Database processing using auxiliary memory

disks to save all the relations, but is not realistic for

solving a CSP which requires to save all the structure

in RAM. This is the main reason why the ﬁrst basic

algorithm (Gottlob et al., 2001) proposed in the liter-

ature to solve CSP with an hypertree is inefﬁcient in

practice. To use more efﬁciently the structural decom-

position in the search algorithm, the join and semi-

join operations have to be discarded. This idea has

been introduced by different researchers.

In (Pang and Goodwin, 1997; Pang and Goodwin,

2003) Pang et al. have proposed a w-CBDT algo-

rithm combining both merits of Constraint-Directed

Backtracking and structural decompositions, but the

authors do not consider optimal structural decom-

positions. Jegou et al. (J´egou and Terrioux, 2003)

have introduced the successfull method called BTD

(Backtracking with Tree Decomposition) which is an

enumerative search algorithm guided by some pre-

established order induced by a tree decomposition.

This paper goes forward in the same direction to solve

non-binary CSPs directly using efﬁciently hypertree

decomposition.

We propose an alternative approach to BTD called

HD DBT for Dual BackTracking algorithm guided

by an order induced by an Hypertree Decomposition.

The main idea of this approach is that search will be

guided for the choice of the partial solution by the hy-

pertree structure. HD DBT is more adapted to solve

non-binary CSPs represented as hypergraphs. Given

a CSP and its hypergraph representation, HD DBT

computes one Hypertree Decomposition and it looks

for a solution by using a dual backtracking search al-

gorithm. We propose and compare different heuristics

to achieve “the best” depth-ﬁrst traversal of the hyper-

tree decomposition wrt. CSP solving complexity. The

hypertree decomposition properties make the general-

isation of BTD to HD DBT non obvious. Informally,

HD DBT is guided by an order on the clusters of con-

straints and not on the clusters of variables while (as

BTD) the connectivity property concerns the clusters

of variables. MoreoverBTD is based on a tree decom-

position which is complete while HD DBT is based

on hypertree decomposition which is not. Thus be-

fore solving a CSP using an hypertree decomposition

we have to complete the resulting hypertree.

The paper is organized as follows: section 2 gives

the preliminary and necessary notions on CSP and

decomposition methods with a special focus on the

hypertree decomposition which is the most general

one. Section 3 presents the basic algorithm exploit-

ing an hypertree decomposition to solve CSPs. Sec-

tion 4 presents our new HD DBT approach. Sec-

tion 5 gives the ﬁrst experimental results of HD DBT

compared with the basic algorithm proposed in (Got-

tlob et al., 2001). Then we present an improved

HD DBT+FC implementation together with different

heuristics guiding the resolution. Finally, Section 6

gives a conclusion.

2 PRELIMINARIES

In this section we recall the basic deﬁnitions of con-

straint satisfaction problems, hypergraphs, hypertree

and generalized hypertree decompositions.

2.1 Constraint Satisfaction Problems

The notion of Constraint Satisfaction Problems (CSP)

was formally deﬁned by U. Montanari (Montanari,

1974).

Deﬁnition 1 (Constraint Satisfaction Problem). A

CSP is deﬁned as a triple P =< X, D,C > where :

X = {x

, x

, ..., x

} is a set of n variables.

D = {d

, d

, ..., d

} is a set of ﬁnite domains; each

variable x

takes its value in its domain d

C = {c

, c

, ..., c

} is a set of m constraints. Each

constraint c

is a pair (S(c

), R(c

)) where S(c

) ⊆ X,

is a subset of variables, called the scope of c

and

R(c

) ⊆

∏

∈S(c

)

is the constraint relation, that

speciﬁes the legal combinations of values.

A solution to a CSP is an assignment of values

to all the variables such that all the constraints

are satisﬁed. Solving a CSP means to ﬁnd a so-

lution if it exists. Binary CSPs are those deﬁned

where each constraint involves only two variables

∀i ∈ 1. . . m : |S(c

)| = 2.

In order to study the structural properties of a

CSP, we need to present the following deﬁnitions.

For more detailed descriptions see eg. (Dechter,

2003), (Gottlob et al., 2001) and (Gottlob et al.,

2002).

SOLVING NON BINARY CONSTRAINT SATISFACTION PROBLEMS WITH DUAL BACKTRACKING ON

HYPERTREE DECOMPOSITION

147

Deﬁnition 2 (Hypergraph). A hypergraph is a struc-

ture H =< V, E > that consists of a set of vertices

V and a set of hyperedges E where each hyperedge

h ∈ E is a subset of vertices of V. The hyperedges

differ from edges of graphs in that they may connect

more than two vertices.

The structure of a CSP P=< X, D,C > is entierely

captured by its associated hypergraph H =< V, E >

where the set of vertices V is the set of variables X

and the set of hyperedges E corresponds to the set of

constraints C. For any subset of hyperedges K ⊆ E

let be vars(K) =

e∈K

e the set of the variables

occuring in the edges of K. For any subset L ⊆ V

let be edgevars(L) = vars({e|e ∈ E, e ∩ L 6=

0}) the

set of all variables occuring in any edge intersecting L.

Deﬁnition 3 (Hypertree). Let H =< V, E > be a

hypergraph. A hypertree for hypergraph H is a triple

< T, χ, λ > where T = (N, B) (the sets of nodes and

branche-edges) is a rooted tree and χ and λ are two

labelling functions on nodes of T. The functions χ

and λ map each node p ∈ N on two sets χ(p) ⊆ V

and λ(p) ⊆ E.

A tree is a pair < T, χ > where T = (N, B) is a

rooted tree and χ is a labelling function as previously

deﬁned. T

denotes the subtree of T rooted at node p.

Deﬁnition 4 (Hypertree decomposition). A hypertree

decomposition of a hypergraph H =< V, E >, is a hy-

pertree < T, χ, λ > which satisﬁes the following con-

ditions:

1. For each (hyper)edge h ∈ E, there exists p ∈ N

such that vars(h) ⊆ χ(p). We say that p covers h.

2. For each vertex v ∈ V, the set {p ∈ N|v ∈ χ(p)}

induces a (connected) subtree of T.

3. For each node p ∈ N,χ(p) ⊆ vars(λ(p)).

4. For each node p ∈ N, vars(λ(p))

χ(T

) ⊆ χ(p)

The width of a hypertree decomposition

< T,χ, λ > is max

p∈N

|λ(p)|. The hypertree-

width htw(H ) of a hypergraph H is the minimum

width over all its possible hypertree decompositions.

Deﬁnition 5 (Generalized hypertree decomposition).

A generalized hypertree decomposition is a hypertree

which satisﬁes the ﬁrst three conditions of the hyper-

tree decomposition (see Deﬁnition 4).

The width of a generalized hypertree decompo-

sition < T, χ, λ > is max

p∈N

|λ(p)|. The generalized

a b c

d e

f g h

j k

An hypergraph H

Its Hypertree Decomposition

htw = 2

{k, j, l}, {c6}

{a, b, c}, {c1}

{f, g, h}, {c4}

{g, i, k}, {c5}

{a, d, f, e, c, h}, {c2, c3}

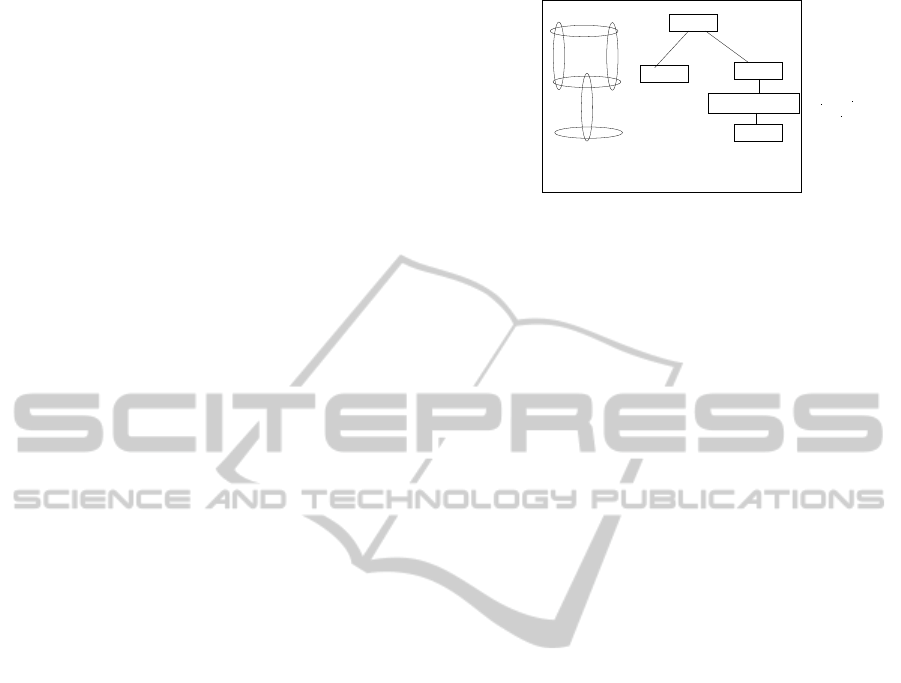

Figure 1: A hypergraph and one of its hypertree decompo-

sition.

hypertree-width ghw(H ) of a hypergraph H is the

minimum width over all its possible generalized

hypertree decompositions.

Deﬁnition 6. A hyperedge h of a hypergraph

H =< V, E > is strongly covered in HD =< T, χ, λ >

if there exists p ∈ N such that all the vertices in h are

contained in χ(p) and h ∈ λ(p).

Deﬁnition 7. A hypertree decomposition < T, χ, λ >

of a hypergraph H =< V, E > is a complete hypertree

decomposition if every hyperedge h of H =< V, E >

is strongly covered in HD =< T, χ, λ >.

2.2 Computing an Hypertree

Decomposition

In this section we brieﬂy present the two main ap-

proaches proposed in the literature to compute hy-

pertree decompositions: the exact methods and the

heuristics ones.

2.2.1 Exact Methods

Given a hypergraph H =< V, E >, exact algorithms

aim at ﬁnding a hypertree decomposition with width

w less than or equal to a constant k, if such a de-

composition exists. The ﬁrst exact algorithm named

opt-k-decomp for the generation of an optimal hy-

pertree decomposition is due to Gottlob et al. (Got-

tlob et al., 1999). This algorithm builds a hyper-

tree decomposition in two steps: it ﬁnds if a hyper-

graph H =< V, E > has a hypertree decomposition

HD =< T, χ, λ > with width less than or equal to a

constant k. If it is the case it ﬁnds a hypertree decom-

position of smallest possible width. The algorithm

opt-k-decomp runs in O(m

) where m is the num-

ber of hyperedges, V is the number of vertices and k

is a constant.

Among the number of improvements to opt-

k-decomp we can cite Red-k-decomp (Harvey and

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

148

Ghose, 2003) and the Subbarayan and Anderson al-

gorithm (Sathiamoorthy and Andersen, 2007) which

is a backtracking version of opt-k-decomp. How-

ever these exact methods have an important drawback

which is the huge amount of memory space needed

and the bad running time resulting in inefﬁciency in

practice for large instances. To overcome these lim-

itations some heuristics have been proposed to com-

pute hypertree decompositions.

2.2.2 Heuristics

Heuristics aim at ﬁnding a hypertree decomposition

with the smallest possible width (tree-width) but with-

out any theoretical guaranty to succeed. There are

several heuristics to compute a hypertree decomposi-

tion. Korimort (Korimort, 2003) proposed one heuris-

tics based on the vertices connectivity of the given hy-

pergraph. Samer (Samer, 2005) explored the use of

branch decomposition for constructing hypertree de-

compositions. Dermaku et al. (Dermaku et al., 2005)

proposed the following heuristics: BE (Bucket Elim-

ination), DBE (Dual Bucket Elimination) and Hyper-

graph partitioning. Musliu and Schafhauser (Musliu

and Schafhauser, 2005) explored the use of genetic al-

gorithms for generalized hypertree decompositions.

We outline the two successful BE and DBE heuristics

for generating hypertree decompositions.

The Bucket Elimination (BE) Heuristics

(Dechter, 1999) was successfully used to compute

a tree decomposition of a given graph (or a primal

graph of a hypergraph). BE has been extended by

Dermaku et al. (Dermaku et al., 2005) to compute

a hypertree decomposition or more precisely a

generalized hypertree decomposition. The simple

idea behind this extension derives from the fact that

a generalized hypertree decomposition satisﬁes the

properties of a tree decomposition. Consequently, for

computing a generalized hypertree decomposition,

BE proceeds as follows. First, it builds a tree

decomposition using (basic) BE. Then, it creates

the λ − labels for each node of this tree in order to

satisfy the third condition of generalized hypertree

decomposition according to the Deﬁnition 5. This is

done greedily by attempting to cover the variables

of each node by hyperedges. In practice the BE

heuristics requires a good vertices ordering to be

efﬁcient.

The Dual Bucket Elimination (DBE) Heuris-

tics was proposed by Dermaku et al. (Dermaku et al.,

2005). DBE simply applies the BE heuristics on the

dual graph of the hypergraph. The idea behind using

the dual graph structure instead of the primal graph

is that BE minimizes the χ − labels while the width

of a hypertree decomposition is determined by the

λ − labels. This is exactly what is done when apply-

ing BE to the dual graph of the hypergraph.

3 SOLVING CSP USING AN

HYPERTREE

DECOMPOSITION

To solve any CSP using a generalized hypertree de-

composition, the ﬁrst step consists in computing the

generalized hypertree decomposition either with an

exact or with an heuristic method. The next step trans-

forms the generalized hypertree decomposition into

a complete one in order to cover each constraint by

at least one node of the hypertree. Consequently the

complete generalized hypertree decomposition may

be seen as a join tree of an equivalent (wrt. its so-

lutions) acyclic CSP. Each node of the join tree repre-

sents a subproblem of the new acyclic CSP. The third

step of the resolution is described in algorithm 1 due

to Gottlob et al. (Gottlob et al., 2001). In algorithm 1,

each subproblem is solved independently and it can

be done by a parallel algorithm. The Acyclic solving

algorithm is used for ﬁnding a complete consistent so-

lution of the initial CSP.

Algoritm 1: Gottlob Algorithm (Gottlob et al., 2001).

Input: a complete generalized hypertree

decomposition < T, χ, λ > associated to a

given CSP.

Output: a solution A of the CSP if it is satisﬁable

begin

σ = {n

, n

, . . . , n

} a node ordering with n

the

root of the hypertree and each node precedes all

its sons in σ;

foreach p a node in σ do

= (⊲⊳

∈λ(p)

)[χ(p)] ;

end

for i = m to 2 do

Let v

the father of v

in σ ;

= R

∝ R

;

end

for i = 2 to m do

Build a solution A by choosing a tuple R

compatible with all the previous assignments

end

return A ;

end

Although this algorithm is theoretically interest-

ing, its practical interest has unfortunately not yet

been proved. The main drawback of this algorithm

is its space complexity. Indeed a lot of memory is

needed to save the intermediate results of join and

SOLVING NON BINARY CONSTRAINT SATISFACTION PROBLEMS WITH DUAL BACKTRACKING ON

HYPERTREE DECOMPOSITION

149

semi-join operations. Saving all the intermediate re-

sults is useful only when we are looking for all the

solutions. Therefore if we look for a single solution,

this approach proves to be inefﬁcient and much mem-

ory consuming. In this case, an enumerative approach

should be more appropriate. To take into account

both the advantages of decomposition methods and

enumerative search techniques J´egou et al. proposed

in (J´egou and Terrioux, 2003) an original and success-

ful method called BTD (BackTrack algorithm guided

by an order induced from a Tree Decomposition). In

this work we propose a new approach deriving from

the BTD idea to use a generalized hypertree decom-

position. The new algorithm called HD DBT (Dual

Backtracking Algorithm guided by an order induced

from a Hypertree Decomposition) is detailed in next

Section.

4 THE NEW METHOD HD DBT

4.1 Informal Presentation

We mentioned in the previous section the main draw-

back of the basic algorithm proposed by Gottlob et

al. (Gottlob et al., 2001) for solving CSP using an

hypertree decomposition. The memory space explo-

sion due to the join operations (on partial solutions)

are unnecessary when only one solution is required.

In this work, we propose a new approach for solv-

ing CSP exploiting the properties of Generalized hy-

pertree decomposition together with the advantages

of the enumerative search algorithms. Our approach

called HD DBT for Dual BackTrack using a Gener-

alized Hypertree Decomposition, is an enumerative

search algorithm guided by a partial order on the clus-

ters of constraints derived from the Generalized hy-

pertree decomposition. HD DBT is called “Dual” be-

cause it works directly on tuples in the relations. In

other words, HD DBT looks for a solution by assign-

ing simultaneously a set of variables instead of one

single variable like in the classical algorithms. The

assignment of this set of variables represents a par-

tial solution of the whole problem and corresponds

to a solution of one node of the hypertree. A so-

lution of the CSP by HD DBT can be expressed as

(⊲⊳

i=1...N

)[x

. . . x

] where the symbol ⊲⊳ corre-

sponds to the join operator, n is the number of vari-

ables of the CSP, N is the number of nodes of the hy-

pertree and s

is a solution of a given node N

. Clearly,

the performance of HD DBT is highly dependent on

the number of nodes and on the order in which the

nodes are explored, particularly the choice of the ﬁrst

root node.

4.2 Formal Presentation of HD DBT

The HD DBT approach is formally described by al-

gorithm 2. It considers as input a complete hypertree

decomposition according to Deﬁnition 7 and it con-

sists of the following steps:

Algoritm 2: Generic Procedure HD DBT.

Input: a complete hypertree decomposition

H D =< T, χ, λ > associated to a given CSP.

Output: a solution A of the CSP if it is satisﬁable

begin

Choose Root ( H D , root ) ;

σ ←− Induced Order ( H D , root ) ;

cn ←− root

while cn 6=

0 do

consistent ←− FALSE ;

while ¬ consistent do

cs ← Resolution ( λ (cn), χ(cn));

if Compatible(cs,sol(father(cn)) then

A ← A ∪ {x

← v

: ∀x

∈ χ(cn)};

consistent ← TRUE ;

end

if ¬ consistent then

A ← A − {x

← v

: ∀x

∈ χ(cn)} ;

cn ← father(cn) ;

end

else

cn ← succ(cn) ;

end

return A ;

end

Step1 (Choice of the Root): the choice of the root

made by the procedure Choose Root is crucial

for the performance of HD DBT. As the resulting

hypertree decomposition of a CSP is not a rooted

tree, any node could be choosen as root. The

hypertree decomposition quality depends both on

the choice of the root and on the induced nodes

ordering to be visited. In section 5 we present

different heuristics for choosing the root.

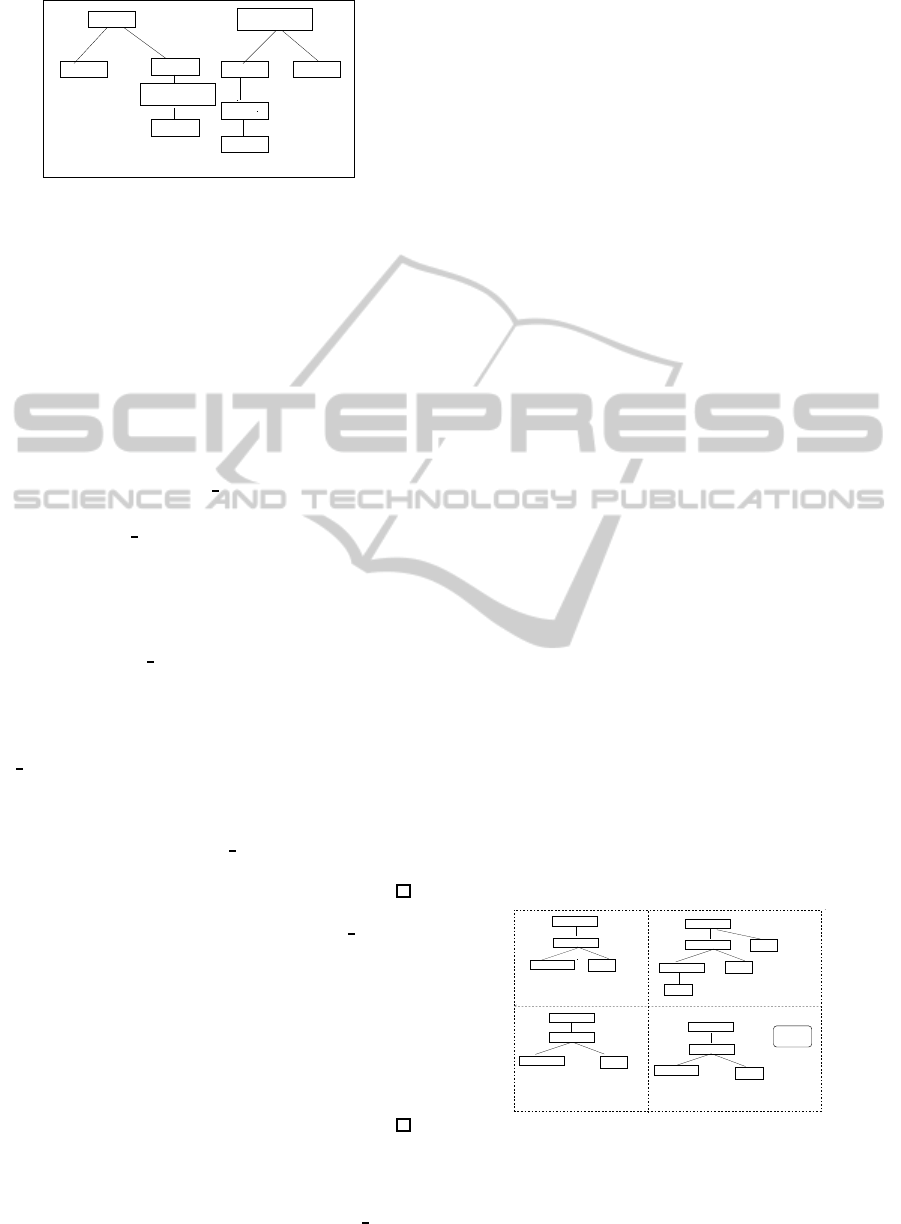

Figure 2 shows two different hypertree decompo-

sitions (nodes orderings) of the same hypergraph

given in Figure 1 induced by different choices of

the root. The left one is the hypertree given by

the BE heuristic with node n

as root and the the

right one considers arbitrarily the node n

as root.

Step2 (The Nodes Order): the choice of the root

node induces a partial ordering σ on the other

nodes. This ordering built from the hypertree

decomposition and the root using the proce-

dure Induced Order respects the connectivity

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

150

{g, i, k}, {c5}

{k, j, l}, {c6}

{f, g, h}, {c4}

{a, d, f, c, e, h}, {c2, c3}

{a, b, c}, {c1}

{k, j, l}, {c6}

Figure 2: Two different hypertree decompositions (nodes

orderings) for a same hypergraph.

property of the hypertree decomposition (Def-

inition 4). For both hypertree decompositions

given by Figure 2, we can associate the following

depth-ﬁrst orderings: σ

= n

for the

left and σ

= n

for the right hypertrees.

Step3 (Looking for One Solution): this step is

an enumerative search algorithm guided by the

ordering σ. For each current node cn with label

(λ(cn), χ(cn)) in σ, HD DBT looks for a partial

solution by calling the procedure Resolution.

The basic HD DBT algorithm is the generic one

using the generic BackTrack algorithm for the

resolution but it can be easily generalized to FC,

MAC, etc.

Proposition 1. HD DBT is correct, complete and it

terminates .

The proof is straightforward.

Proposition 2. The worst time complexity of

HD DBT is in O(|r|

w×N

) where r is the size of the

largest relation, w is the hypertree width and N is the

number of nodes in σ.

Proof. In the worst case HD DBT visits all the N

nodes of the tree and at each node it checks in worst

case O(|r|

) tuples.

Proposition 3. The space complexity of HD DBT is

in O(N) where N is the number of nodes of the hyper-

tree.

Proof. Let t be the size of the largest scope, w the

width of the hypertree decomposition and N the num-

ber of the nodes of the hypertree. Then we have to

save in the worst case the number t∗w∗N values lead-

ing to a linear complexity wrt. N.

4.3 How to Complete HTD

As already mentioned in the description of HD DBT,

the resulting hypertree decomposition obtained by

BE or any other method is not necessarily com-

plete. Before solving the CSP, the ﬁrst step con-

sists in completing the hypertree. In (Gottlob et al.,

2001), Gottlob et al. proposed a procedure to com-

plete one hypertree decomposition by adding for each

not strongly covered constraint c

a new node with la-

bel {c

}, {var(c

)} as a son of a node n

verifying the

condition var(c

) ⊆ χ(n

). The idea behind this pro-

cedure is to not increase the hypertree width while the

number of nodes of the hypertree obviously increases.

We experimented another way to complete the hyper-

tree decomposition. Instead of adding a new node, we

add the constraint c

not strongly covered in the λ of

the node n

satisfying the condition var(c

) ⊆ χ(n

This makes the hypertree width increases, while the

number of nodes of the hypertree remains the same.

Let be a CSP deﬁned as the following set of con-

straints C = {c

, c

} . Figure 3(a)

shows one of its hypertree decompositions. The vari-

ables are deliberately omitted here because they are

not useful for this example. This hypertree decompo-

sition is not complete because the constraints c

and

are not strongly covered. Figure 3(b) corresponds

to its completion by using the procedure of Gottlob.

Two new nodes n

and n

are created for strongly

covering the constraints c

and c

respectively. Fig-

ure 3(c) illustrates its completion by using our proce-

dure. No new node has been created but the nodes n

and n

are modiﬁed. In the node n

we add the con-

straint c

to its λ and in the node n

we add the con-

straint c

to its λ. We have obviously assumed that the

variables of the non strongly covered constraints c

and c

are present in the χ(n

) and χ(n

) respectively.

Figure 3(d) is another way to treat the non-covered

constraints. As we can observe, we keep the incom-

plete hypertree decomposition in one hand and in an-

other hand we consider a cluster of all non-covered

constraints. This third idea has not been explored in

this work.

{c4, c7}

n3.

{c1, c2}

{c2, c3}

{c5, c6} {c8}

{c1, c2, c4}

{c2, c3}

{c5, c6, c7}

{c8}

{c1, c2}

{c2, c3}

{c4}

{c8}

{c5, c6}

{c7}

{c1, c2, c4}

{c2, c3}

{c8}

{c5, c6, c7}

b) Complete HTD 1(Gottlbob)

c) Complete HTD 2

a) HTD

d) Complete HTD 3

Figure 3: Different ways to complete a hypertree decompo-

sition HTD.

SOLVING NON BINARY CONSTRAINT SATISFACTION PROBLEMS WITH DUAL BACKTRACKING ON

HYPERTREE DECOMPOSITION

151

5 EXPERIMENTAL RESULTS

In this section, we present and analyze some of the ex-

periments we perform to validate our approach from

a practical point of view.

5.1 The Experimental Considerations

We implemented the different versions of our ap-

proach using C++ language. The experiments were

performed on a 1,7 GHZ PC with 2 GO of RAM run-

ning under Linux Fedora. Our tests have been ex-

ecuted on benchmarks downloaded from the follow-

ing URL Benchmarks site

. We used the BE heuris-

tics (Dermaku et al., 2005) to compute the general-

ized hypertree decomposition of any CSP. BE is well

known to be the best one giving a nearly optimal gen-

eralized hypertree decomposition within a reasonable

CPU time. In the sequel, we experiment and compare

our approach in different ways:

• subsection 5.2 compares HD DBT with the basic

and unique resolution Algorithm 1 due to Gottlob

et al. (Gottlob et al., 2001) using an hypertree de-

composition (see Section 3).

• In subsection 5.3, we compare HD DBT with

(HD DBT + FC) algorithm which is the Forward

Checking version of HD DBT, in order to mea-

sure the gain offered by the ﬁltering operations.

• In subsection 5.4, we study the behavior of differ-

ent heuristics for choosing the root.

• In subsection 5.5, we study different heuristics for

choosing the next son node to be visited.

• Finally in subsection 5.6, we compare HD DBT

with BTD (J´egou and Terrioux, 2003).

In all the experiments, the resolution time includes the

time for building the generalized hypertree decompo-

sition using the BE heuristic.

5.2 Comparing HD DBT with Gottlob

et al. 2001 Algorithm

Table 1 presents the results of HD DBT compared

with the ﬁrst proposed algorithm to solve CSP using

an hypertree decomposition. HD DBT outperforms

the basic approach of Gottlob (Gottlob et al., 2001)

for all the considered benchmarks (excepted hanoi−

6− ext). The row Got. corresponds to the CPU time

obtained with Gottlob algorithm. Unfortunately the

naive preliminary version of our approach was also

limited when large instances of CSP were considered.

http://www.cril.univ-artois.fr/lecoutre/research/

benchmarks

Table 1: HD DBT vs. Gottlob approach.

Problem Size Time (in seconds)

|V| |E| HD DBT Got.

Renault1 101 134 2 3

series− 6 − ext 11 30 0,04 2,18

series− 7 − ext 12 41 0,1 /

domino− 100− 100− ext 100 100 0,12 2,59

domino− 100− 200− ext 100 100 0,30 18,37

domino− 100− 300− ext 100 100 0,4211 60

hanoi− 5− ext 30 29 0,55 0,88

hanoi− 6− ext 62 61 120 14

hanoi− 7− ext 126 125 58 59

Langf ord 8 32 0,20 2,52

geom− 30a − 4− ext 30 81 0,1 0,1

pigeons− 7 − ext 7 21 2 26

5.3 Comparing HD DBT with HD DBT

+ FC

To improve the HD DBT approach, we implemented

the algorithm called ( HD DBT + FC). As the clas-

sical FC algorithm does, this algorithm consists in

adding a ﬁltering step at each node of the hypertree.

When we are cheking a tuple t, solution of a given

subproblem at node i, for each descendant node j of

i we remove from each relation R

corresponding to

a constraint C

(where C

∈ λ( j)) the tuples inconsis-

tent with t. This ﬁltering step is crucial thanks to the

connectivity property of the hypertree decomposition.

Table 2 shows the gain obtained by (HD DBT +

FC) over HD DBT. Clearly the ﬁltering always im-

proves considerably HD DBT. Moreover HD DBT +

FC can ﬁnd a solution when HD DBT fails. Thus in

the following experiments we will consider only this

improved version.

Table 2: HD DBT vs. HD DBT + FC.

Problems Size Time(s)

|V| |E| HD DBT HD DBT + FC

series− 6 − ext 11 30 1,54 0,09

series− 7 − ext 12 41 2,02 0,08

domino− 100− 100− ext 100 100 0,20 0,125

domino− 100− 200− ext 100 100 5,90 0,24

domino− 100− 300− ext 100 100 12,77 0,35

langf ord − 2− 4− ext 8 32 0,54 0,03

geom− 30a − 4− ext 30 81 > 20 0,03

pigeons− 7 − ext 7 21 > 20 4,34

haystacks − 06− ext 36 96 > 20 3,33

Renault1 101 134 3,40 3,38

Renault2 101 113 / 8,87

Renault − Modified −6 111 147 / 32,07

Renault − Modified −24 111 159 / 21,25

Renault − Modified −30 111 154 / 24,28

Renault − Modified −33 111 154 / 25,42

Renault − Modified −47 108 149 / 19,64

Notice here that we implemented two methods to

complete the hypertree decomposition (the Gottlob

approach and our method). Not surprinsingly, we ob-

served that our approach of completion is better than

Gottlob’s one when we consider the HD DBT algo-

rithm (without ﬁltering), but when we used (HD DBT

+FC) the two approaches of completion are equiva-

lent.

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

152

5.4 Heuristics to Choose the Root Node

To improve further the performance of HD DBT we

introduce different heuristics based on the way the

nodes of the hypertree are explored. The nodes are

traversed in a depth-ﬁrst order from one given root.

But the choice of the root is not unique, and a ratio-

nal choice of the root may considerably improve the

overall performance of the resolution. For choosing

the root node, the three following methods may be

distinguished: structural, semantic and hybrid heuris-

tics.

Structural Heuristics depend on the size of the

clusters at each node. We will consider the fol-

lowing structural heuristics:

• LC (Largest Cluster): the node with the largest

number of constraints.

• SC (Smallest Cluster): the node with the small-

est number of constraints.

• LNS (Largest Number of Sons): the node with

the largest number of sons.

• LS (Largest Separator): the node with the

largest separator with one of its sons.

Semantic Heuristics exploit the data properties (the

size of relations, the density of nodes, the hard-

ness of constraints ...). Here we consider that we

have already computed the number of solutions of

any node i denoted by Nbsol(i). This step is not

expensive thanks to the small number of variables

at each node. We will consider the following se-

mantic heuristics:

• MCN (Most Constrained Node): the node with

the smallest number of solutions.

• LCN (Least Constrained Node): the node with

the largest number of solutions.

• HN (Hardest Node): the “hardest node”.

Hardness of a node corresponds to

Nbsol

NbMax

where Nbsol is the exact number of solutions

and NbMax is the number of possible tuples

of a node (cartesian product of the variables

domains).

Hybrid Heuristics combine in different ways struc-

tural and semantic heuristics eg. HN & LNS , LG

& HN , HN & LC heuristics.

Table 3 shows the results for the different struc-

tural heuristics for the choice of the root. Recall this

choice induces an order σ on the nodes and the row

BE corresponds to the order induced by BE. We re-

mark that the best orders (for the hardest problems of

the test) are the one returned by BE and SC.

Table 3: Comparing different structural orders.

Problems Order

BE LC SC LNS LS

series− 6 − ext 0,09 0,07 0,43 0,07 0,12

series− 7 − ext 0,08 3,48 3,18 3,5 0,96

domino− 100− 100− ext 0,125 0,14 0,49 0,13 0,22

domino− 100− 200− ext 0,24 0,23 0,27 0,23 0,28

domino− 100− 300− ext 0,35 0,36 0,69 0,34 0,51

Langf ord 0,03 0,31 0,91 8,73 1,02

geom− 30a − 4− ext 0,03 0,03 5 0,23 1,02

pigeons− 7 − ext 4,34 4,19 3,5 12 4,23

haystacks − 06− ext 3,33 3,35 3,33 3,22 3,21

Renault1 3,38 3,02 4,41 3,03 3,31

Renault2 8,87 9,02 8,88 / /

Renault − Modified −6 32,07 / 36,09 / /

Renault − Modified −24 21,25 / 18,32 / /

Renault − Modified −30 24,28 / 22,05 / /

Renault − Modified −33 25,42 / 26,01 / /

Renault − Modified −47 19,64 / 21,02 / /

Table 4 shows the results for the different semantic

heuristics for the choice of the root. We remark that

the better choice is given by the MCN heuristic.

Table 4: Comparing different semantic orders.

Problems Size Orders

|V| |E| MCN LCS HN

series− 6 − ext 11 30 0,10 0,38 0,43

series− 7 − ext 12 41 0,55 3,48 0,13

domino− 100− 100− ext 100 100 0,12 0,70 0,49

domino− 100− 200− ext 100 100 0,23 2,32 0,76

domino− 100− 300− ext 100 100 0,36 5,14 0,75

Langf ord 8 32 0,14 0,36 0,09

geom− 30a − 4− ext 30 81 7 1,23 0,03

pigeons− 7 − ext 7 21 11 4,23 4,2

haystacks − 06

−

xt 36 96 6,96 3,32 3,31

Renault1 101 134 3,03 3,02 3,04

Renault2 101 113 7,90 8,36 8,34

Renault −Modi fied − 6 111 147 22,07 / /

Renault −Modi fied − 24 111 159 19,04 / /

Renault −Modi fied − 30 111 154 28,02 / /

Renault −Modi fied − 33 111 154 27,03 / /

Renault −Modi fied − 47 108 149 12,02 / /

Finally, we combine the best structural heuristic

with the best semantic one resulting in BE with MCN

hybrid heuristic. The results are given in Table 5

showing that execution times are always better with

an hybridation of heuristics.

5.5 Heuristics for Choosing Son Nodes

In this section, we experiment different heuristics to

choose the best successor node (function Succ of Al-

gorithm 2) to be solved from the sons of the current

node. We suppose here the root has been already cho-

sen and heuristics have only the choice for the ﬁrst

son, and it may be considered statically or dynami-

cally.

• Static Choice: the ﬁrst son to be chosen is the

one with the largest hypertree-width.

• Dynamic Choice: since the best strategy from the

static viewpoint is the one with the minimum of

number of tuples in its relations, we evaluate here

the impact of choosing the next son with the min-

imum number of tuples dynamically. Thus to be

SOLVING NON BINARY CONSTRAINT SATISFACTION PROBLEMS WITH DUAL BACKTRACKING ON

HYPERTREE DECOMPOSITION

153

Table 5: Combining structural and semantic heuristics.

Problems Size Method

|V| |E| BE & MCN

series − 6− ext 11 30 0,07

series − 7− ext 12 41 0,06

domino− 100− 100− ext 100 100 0,10

domino− 100− 200− ext 100 100 0,20

domino− 100− 300− ext 100 100 0,30

Langford 8 32 0,04

geom− 30a− 4− ext 30 81 0,04

pigeons− 7− ext 7 21 3,34

haystacks − 06− ext 36 96 2,59

Renault1 101 134 3,38

Renault2 101 113 8,87

Renault − Modified −6 111 147 22,07

Renault − Modified −24 111 159 15,2

Renault − Modified −30 111 154 18,28

Renault − Modified −33 111 154 19,42

Renault − Modified −47 108 149 16,64

consistent with this general strategy we adopt the

same heuristic for choosing the root.

Table 6 gives the results obtained with a static

choice of the successor node and Table 7 gives the

results obtained with a dynamic choice. We observe

here that dynamic choice are better thant the static

one.

Table 6: Static choice of the sons.

Problems Time(s)

BE LC SC LNS LS

series− 6 − ext 0,09 0,07 0,06 0,07 1,01

series− 7 − ext 0,10 12,48 3,18 11,50 9,80

domino− 100− 100− ext 0,12 0,14 0,49 0,132 0,09

domino− 100− 200− ext 0,24 0,23 0,27 0,23 0,27

domino− 100− 300− ext 0,35 0,36 0,69 0,34 0,34

haystacks6 3,33 3,35 4,01 3,22 3,29

Langf ord2 − 4 0,03 0,51 0,05 9,73 1,02

geom− 30a − 4− ext 0,03 0,125 5 0,15 0,19

pigeons− 7 − ext 2,54 4,46 3,5 9,71 5,22

Renault1 3,26 3,63 3,35 3,25 3,32

Renault2 8,71 20 9,25 7,39 > 30

Renault − Modified −6 21 18,07 / / /

Renault − Modified −24 17,09 15,2 / / /

Renault − Modified −30 22,11 28,02 / / /

Renault − Modified −33 24,12 27,03 / / /

Renault − Modified −47 13,01 12,02 / / /

5.6 Comparing with the BTD

Algorithm (J

egou et al., 2009)

This section compares our results with the one ob-

tained by BTD for some benchmarks of the Modi-

ﬁed Renault family in Table 8. Due to the fact that

two different machines are used to experiment BTD

and HD DBT (PC Pentium IV 3,4 Ghz for BTD, lap-

top HP Compact 6720 s, 1,7 Ghz for HD DBT) the

reported computational times in the row HD DBT

are normalized according to two benchmarks (Spe, ;

GeB, ). According to these benchmarks, the pentium

IV is 4,5 times faster than the HP Compact 6720s.

Table 7: Dynamic choice of the sons.

Problems Size Method

|V| |E| Dynamic MCN

series − 6− ext 11 30 0,1

series − 7− ext 12 41 0,86

domino− 100− 100− ext 100 100 0,10

domino− 100− 200− ext 100 100 0,20

domino− 100− 300− ext 100 100 0,30

Langford 8 32 0,9

geom− 30a− 4− ext 30 81 1,04

pigeons− 7− ext 7 21 4,34

haystacks − 06− ext 36 96 3,59

Renault1 101 134 3,38

Renault2 101 113 8,87

Renault − Modified −6 111 147 13,07

Renault − Modified −24 111 159 13,2

Renault − Modified −30 111 154 17,28

Renault − Modified −33 111 154 15,42

Renault − Modified −47 108 149 14,64

The reported results for BTD are the best ones found

in (J´egou et al., 2009) and HD DBT present nearly

comparable results. But we have to mention this last

test is not very signiﬁcative since the detailed imple-

mentation of our approach could be much improved

by using more adequate data structures and general

implementation optimization techniques such the one

used in BTD which is more mature. Notice that the

enumerative algorithms to solve CSP suffer to solve

the modiﬁed renault family of benchmarks

because

these problems are much structured. Notice that the

symbol / in the table 8 means that we have no result

for the considered instance in (J´egou et al., 2009).

Table 8: BTD HMIN(HD) vs. HD DBT.

Problems Size Time(s)

|V| |E| HD DBT BTD HMIN(HD)

Renault − Modified −4 111 147 16 /

Renault − Modified −6 111 147 4,5 2,70

Renault − Modified −9 111 147 10 /

Renault − Modified −13 111 149 13 /

Renault − Modified −17 111 149 22 3.41

Renault − Modified −24 111 159 3, 7 7,67

Renault − Modified −30 111 154 7, 2 8,25

Renault − Modified −33 111 154 6, 5 /

Renault − Modified −42 108 149 7 2,50

Renault − Modified −47 108 149 3 80,25

6 CONCLUSIONS

In this paper we have presented HD DBT a new al-

gorithm exploiting Hypertree Decomposition to solve

non-binary Constraint Satisfaction Problems. This

algorithm clearly improves the ﬁrst and basic Algo-

rithm 1 due to Gottlob et al. (Gottlob et al., 2001).

http://www.cril.univ-artois.fr/lecoutre/research/

benchmarks

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

154

This last one suffers from the memory explosion

problem and it is consequently inefﬁcient face to large

instances of CSP. Even if HD DBT improves the ba-

sic approach, it is also limited to small structured in-

stances. To improve HD DBT we propose its For-

ward Checking version (HD DBT+FC) which clearly

improves the previous one as FC does for BT. More-

over we proposed and compared several strategies to

achieve the best depth-ﬁrst traversal of the Hypertree

Decomposition. These strategies concern the choice

of the root, that is the ﬁrst node and the order between

the sons of a given node to be visited by the algorithm.

The experimental results show that:

• the best choice of the root corresponds to the hard-

est node, meaning the node which mimizes the ra-

tio between the number of solutions and the max-

imal number of solutions;

• the best way to visit the sons of a given node cor-

responds to the dynamic heuristic based on the re-

maining tuples in their associated relations;

• combining the best heuristic for choosing the root

with a dynamic heuristic for choosing the next son

of a given node leads to appreciable results.

Finally we compare our approach with the BTD algo-

rithm (J´egou et al., 2009). From a theoretical point

of view the two approaches are similar in the sense

they are both enumerative algorithms exploiting some

structural decomposition. Our approach differs by

exploring in a dual manner an hypertree decompo-

sition instead of a tree decomposition. We compare

our HD DBT with the best BTD version on different

benchmarks showing HD DBT and BTD have com-

parable performance. To conclude notice that our ap-

proach can gained over with several improved data

structures and different technical optimizations that

we have not yet implemented.

As main perspectives, it would be interesting to ap-

ply HD DBT approach to other structural decompo-

sition methods and to improve the structural decom-

position by taking into account semantic properties of

the CSPs.

REFERENCES

GeekBench benchmarks. http://www.primatelabs.ca/

geekbenchs.

Standard Performance evaluation Corporation (SPEC).

http://www.spec.org.

David Cohen, Peter Jeavons, M. G. (2005). A uniﬁed the-

ory of structural tractability for constraint satisfaction

problems. In Proceedings of IJCAI ’ 05.

Dechter, R. (1999). unifying framework for reasoning. Ar-

tiﬁcial Intelligence, 113.

Dechter, R. (2003). Constraint Processing. Morgan Kauf-

mann.

Dechter, R. and Pearl, J. (1989). Tree clustering for con-

straint networks. Artiﬁcial Intelligence, 38:353–366.

Dermaku, A., Ganzow, T., Gottlob, G., McMahan, B., Mus-

liu, N., and Samer, M. (2005). Heuristic methods for

hypertree decompositions. Technical report, DBAI-R.

Freuder, E. C. (1982). A sufﬁcient condition for backtrack-

free search. Journal of the Association for Computing

Machinery, 29:24–32.

Gottlob, G., Crohe, M., and Musliu, N. (2005). Hyper-

tree decomposition: structure, algorithms and applica-

tions. In Proceeding of 31 st International workshop

WG, Metz.

Gottlob, G., Leone, N., and Scarcello, F. (1999). On

tractable queries and constraints. In Proceedings of

DEXA’99.

Gottlob, G., Leone, N., and Scarcello, F. (2000). A compar-

ison of structural csp decomposition methods. Artiﬁ-

cial Intelligence, 124:243–282.

Gottlob, G., Leone, N., and Scarcello, F. (2001). Hypertree

decompositions: A survey. In Proceedings of MFCS

’01, pages 37–57.

Gottlob, G., Leone, N., and Scarcello, F. (2002). Robbers,

marshals and guards : Theoretic and logical character-

izations of hypertree width. Journal of the ACM.

Greco, G. and Scarcello, F. (2010). On the power of

structural decompositions of graph-based representa-

tions of constraint problems. Artiﬁcial Intelligence,

174:382–409.

Grohe, M. and Marx, D. (2006). Constraint solving via frac-

tional edge covers. ACM 2006, C-30(2):101–106.

Gyssens, M., Jeavons, P. G., and Cohen, D. A. (1994).

Decomposing constraint satisfaction problems using

database techniques. Artiﬁcial Intelligence, 66:57–89.

Harvey, P. and Ghose, A. (2003). Reducing redundancy in

the hypertree decomposition scheme. In Proceeding

of ICTAI’03, pages 548–555, Montreal.

Jeavons, P. G., A, C. D., and Gyssens, M. (1994). A struc-

tural decomposition for hypergraphs. Contemporary

Mathematics, 178:161–177.

J´egou, P., Ndiaye, S. N., and Terrioux, C. (2009). Com-

bined strategies for decomposition-based methods for

solving csps. In Proceedings of the 21st IEEE Interna-

tional Conference on Tools with Artiﬁcial Intelligence

(ICTAI 2009), pages 184–192.

J´egou, P. and Terrioux, C. (2003). Hybrid backtrack-

ing bounded by tree-decomposition of constraint net-

works. Artiﬁcial Intelligence,, 146:43–75.

Korimort, T. (2003). Heuristic hypertree decomposition.

AURORA TR 2003-18.

Montanari, U. (1974). Networks of constraints: Fundamen-

tal properties and applications to pictures processing.

Information Sciences, 7:95–132.

Musliu, N. and Schafhauser, W. (2005). Genetic algorithms

for generalized hypertree decompositions. European

Journal of Industrial Engineering, 1(3):317–340.

SOLVING NON BINARY CONSTRAINT SATISFACTION PROBLEMS WITH DUAL BACKTRACKING ON

HYPERTREE DECOMPOSITION

155

Pang, W. and Goodwin, S. D. (1997). Constraint-directed

backtracking. In 1Oth Australian Joint Conference on

AI, pages 47–56, Perth, Western Australia.

Pang, W. and Goodwin, S. D. (2003). A graph based back-

tracking algorithm for solving general csps. In Lec-

ture Notes in Computer Sciences of AI 2003, pages

114–128, Halifax.

Samer, M. (2005). Hypertree-decomposition via branch-

decomposition. In Proceedings of the 19th interna-

tional joint conference on Artiﬁcial intelligence, pages

1535–1536, Edinburgh, Scotland.

Sathiamoorthy, S. and Andersen, H. R. (2007). Backtrack-

ing procedures for hypertree, hyperspread and con-

nected hypertree decomposition of csps. In Proceed-

ings of the IJCAI-07.

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

156
