PULSE-TYPE NEURO DEVICES WITH TWO TIME WINDOWS

IN STDP AND ITS APPLICATION TO THE MEMORY OF

TEMPORAL SEQUENCES PATTERNS

Katsutoshi Saeki, Shingo Watanabe

College of Science and Technology, Nihon University, Funabashi-shi, Chiba, Japan

Toshiharu Morita, Yoshifumi Sekine

College of Science and Technology, Nihon University, Funabashi-shi, Chiba, Japan

Keywords: Neural Network, Pulse-Type, STDP, Synaptic Weight, Neuro Device, Memory.

Abstract: Since neural networks have superior information processing functions, many investigators have attemptted

to model biological neurons and neural networks. A number of recent studies of neural networks have been

conducted with the purpose of applying engineering to the brain. Especially, neuro devices have been

created that focus on how learning is achieved. Here, we focus on spike timing dependent synaptic

plasticity (STDP) and construct pulse-type neuro devices with STDP. In this paper, we focus on two time

windows in STDP, and we propose a synaptic weight generation circuit which indicates an asymmetric or a

symmetric time window by changing voltages in the proposed circuit. As a result, we show that a pulse-

type neuro device with two time windows in STDP stores temporal sequence output voltage patterns which

conform to the temporal sequence input current patterns for memory.

1 INTRODUCTION

The classical Hebbian learning rule (Hebb 1949) is

believed to play an important role in synaptic

plasticity of neural networks in the brain. This rule

uses mean spike firing correlations between pre- and

postsynaptic neurons to drive learning. Recently, the

form of synaptic plasticity dependent on the order

and time interval of pre- and postsynaptic spikes

(STDP: spike timing dependent synaptic plasticity

(Bi and Poo, 1998) was observed in the hippocampus

and cerebral cortex (Patrick and Curtis, 2002, Sakai

and Yoshizawa, 2003). In general, STDP manifests

itself as a potentiation of a synapse if the presynaptic

spike precedes the postsynaptic spike, and as a

depression if the presynaptic spike follows the

postsynaptic spike (an asymmetric time window). In

addition, it has been reported that the depression

caused when the presynaptic spike precedes the

postsynaptic spike (a symmetric time window)

depends on the influence of an inhibitory neuron

(Tsukada, Aihara, Kobayashi and Shimazaki, 2005).

Furthermore, it has been reported that recall of two

states (autoassociative and heteroassociative) using

the two time windows in the mathematical model

(Samura, Hattori and Ishizaki, 2008) exist.

On the other hand, hardware neuron models with

STDP have been proposed based on the results of

physiological experiments (Tanaka, Morie and

Aihara, 2009 - Schemmel, Grubl, Meier and Mueller,

2006). Especially, the latest research has the purpose

of being applied to engineering. For example, using

analog circuits, associative memory(Tanaka, Morie

and Aihara, 2009), vision model(Zhijun, Murray,

Worgotter, Cameron and Boonsobhak, 2006),

adaptive neuromorphic olfaction chip(Koickal,

Hamilton, Tan, Covington, Gardner and Pearce,

2007), effect of process mismatch(Cameron, Murray

and Boonsobhak, 2007) and floating gate learning

array with STDP(Pankaala, Laiho and Hasler, 2009)

is suggested. Or again, using digital circuits,

navigation robot(Arena, Fortuna, Frasca, Patane and

Sala, 2007) and auditory system based on

FPGA(Cassidy, Denham, Kanold and Andreou,

2007) is shown. Furthermore, mixed signal circuits

with STDP (Schemmel, Grubl, Meier and Mueller,

2006) are proposed. However, these models require

426

Saeki K., Watanabe S., Morita T. and Sekine Y..

PULSE-TYPE NEURO DEVICES WITH TWO TIME WINDOWS IN STDP AND ITS APPLICATION TO THE MEMORY OF TEMPORAL SEQUENCES

PATTERNS.

DOI: 10.5220/0003288004260431

In Proceedings of the International Conference on Biomedical Electronics and Devices (BIODEVICES-2011), pages 426-431

ISBN: 978-989-8425-37-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

either complex cell body circuits or large scale

circuits. Moreover, most of circuits use only one time

window in STDP, or use several circuits with two

time windows in STDP, respectively.

We previously proposed a simple cell body

circuit of a pulse-type hardware neuron model (P-

HNM) using CMOS that approximately simulates

pulse signals as the means of information

transmission in the brain (Sekine, Sumiyama, Saeki

and Aihara, 2001, Saeki, Sekine, and Aihara, 1999).

And so, we proposed an asymmetric type of STDP

hardware model. Moreover, we studied the

robustness of this circuit. As a result, we showed that

it was able to make IC implementation (Saeki,

Hayashi and Sekine, 2006, Saeki, Hayashi and

Sekine, 2008, Shimizu, Saeki and Sekine, 2009)

In this paper, we use simple cell body pulse-type

neuro devices, and we propose a synaptic weight

generation circuit with two time windows in STDP.

As to its application, we study the storage of

temporal sequence patterns.

2 PULSE-TYPE NEURO DEVICES

WITH STDP

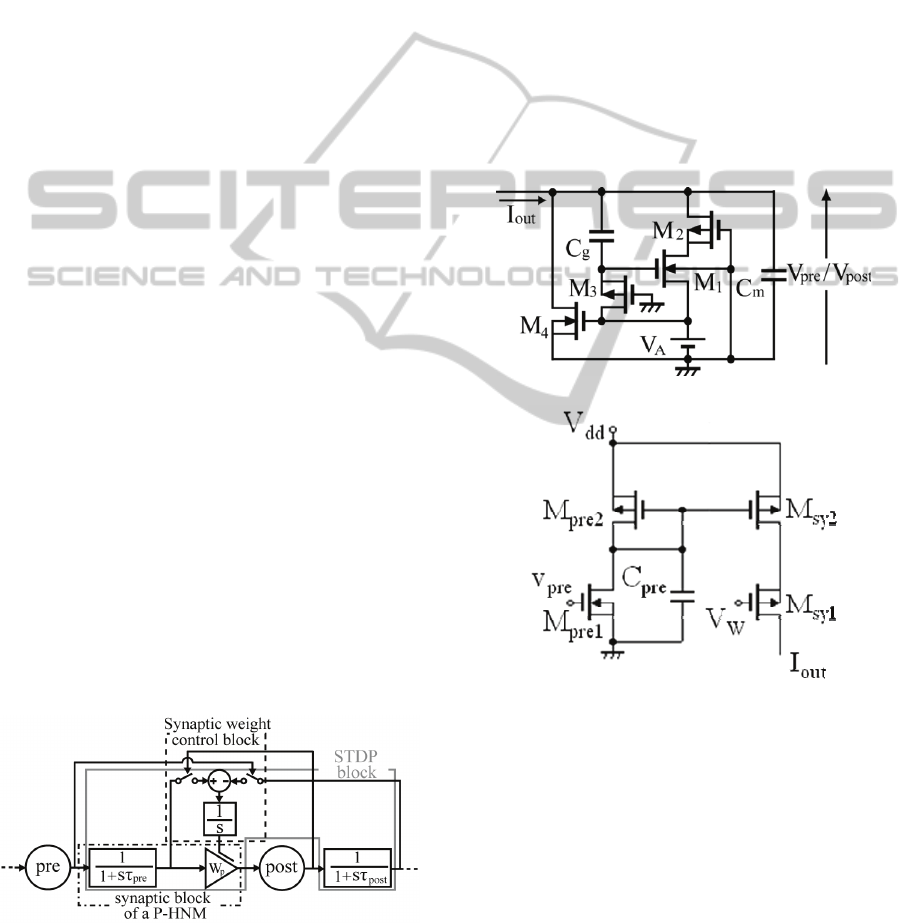

An STDP block diagram is shown in Fig. 1. This

block diagram has cell body blocks and an STDP

block. When pulses are inputted to each temporal

summation block, output pulses from each temporal

summation block have first-order delays and are

transmitted to the subsequent blocks. When the post-

synaptic cell generates the pulses, the synaptic

weight W

between pre- and post-synaptic cells is

reinforced based on the output amplitude of the

temporal summation block with the pre-synaptic

cell. On the other hand, when the pre-synaptic cell

generates the pulses, W

is suppressed based on the

output amplitude of the temporal summation block

with the post-synaptic cell.

Figure 1: STDP block diagram.

2.1 Circuits of Pulse-Type Neuro

Devices

A pulse-type neuro device is shown in Fig. 2. The

pulse-type neuro device consists of a cell body

circuit and a synaptic circuit. Figure (a) shows the

cell body circuit. When I

out

is inputted to the cell

body circuit, output pulses are generated. This

circuit has a threshold and a refractory period

characteristic. Figure (b) shows the synaptic circuit.

When pulses are inputted to the input terminal V

pre

of the synaptic circuit from the pre-synaptic cell, I

out

is generated. The current I

out

changes according to

. Therefore, the synaptic weight between the pre-

and post-synaptic cells can be controlled by V

Spatial summation circuits can also be constructed

when a series circuit of M

sy1

and M

sy2

is connected

in parallel.

(a) Cell body circuit

(b) Synaptic circuit

Figure 2: Pulse-type neuro device.

2.2 Synaptic Weight Generation

Circuit

It is reported that the two time windows in STDP

depends on the influence of an inhibitory neuron

(Tsukada, Aihara, Kobayashi and Shimazaki, 2005).

Focusing on this biological report, we investigated

the synaptic weight generation circuit that is able to

change two time windows by changing voltages.

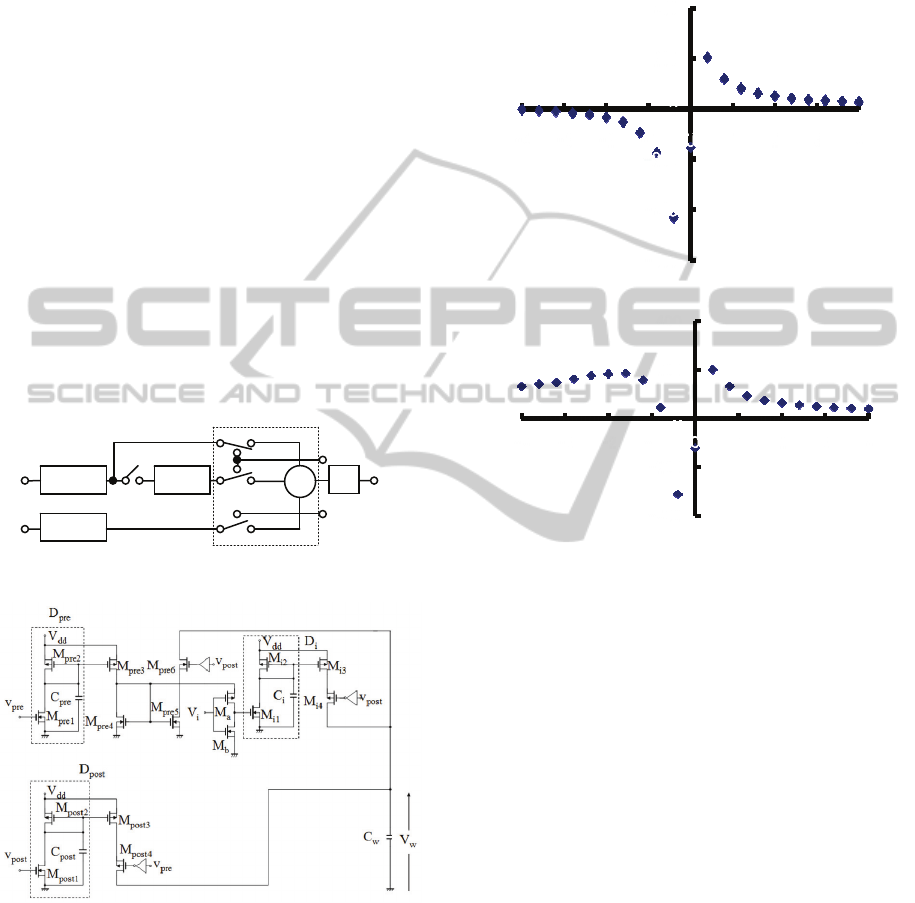

Figure 3 shows the details of the synaptic weight

control block in Fig. 1. This circuit consists in part

PULSE-TYPE NEURO DEVICES WITH TWO TIME WINDOWS IN STDP AND ITS APPLICATION TO THE

MEMORY OF TEMPORAL SEQUENCES PATTERNS

427

of five blocks; three temporal summation blocks

pre

, D

post

and D

) including first-order-delay

elements, a sampling block and an integral block.

Switch S

is assumed depending on stimuli of

inhibitory neuron. v

pre

and v

post

display output

voltages of pre-synaptic cell and post-synaptic cell,

respectively. The voltage V

is the output voltage of

this circuit and is the parameter that controls the

synaptic weight between the pre- and post-synaptic

cells.

The synaptic weight generation circuit is shown

in Fig. 4. This proposed circuit shows that the two

time windows depend on the V

. C

represents the

integral block. Mpre

, Mpost

and M

are sampling

blocks. D

pre

, D

post

and D

have first-order delay

elements. Furthermore, M

pre2

to M

pre3

, M

pre4

to M

pre5

post2

to M

post3

, M

to M

are constructed by current

mirror connection. V

is inputted to the input

terminal of the MOS switch consist of M

and M

. If

is threshold voltage or over, D

is not used. On the

other hand, if V

is threshold voltage or under, D

used. That is to say, it is able to control first-order-

delay elements.

Figure 3: Syanptic weight control block.

Figure 4: Synaptic weight generation circuit.

A function of V

in the synaptic weight

generation circuit is shown in Fig. 5. The horizontal

axis is the time interval Δt, which is the time of the

pre-synaptic pulse minus the time of the post-

synaptic pulse, and the vertical axis is the amount of

voltage change ΔV

. Figure (a) displays an

asymmetric time window, when V

is 3[V] in

proposed synaptic weight generation circuit. Figure

(b) displays a symmetric time window, when V

-3[V] in proposed synaptic weight generation circuit.

Therefore, it is shown that two time windows in

STDP are obtained by changing voltage V

(b) Symmetric time window.

Figure 5: Characteristics of V

in the synaptic weight.

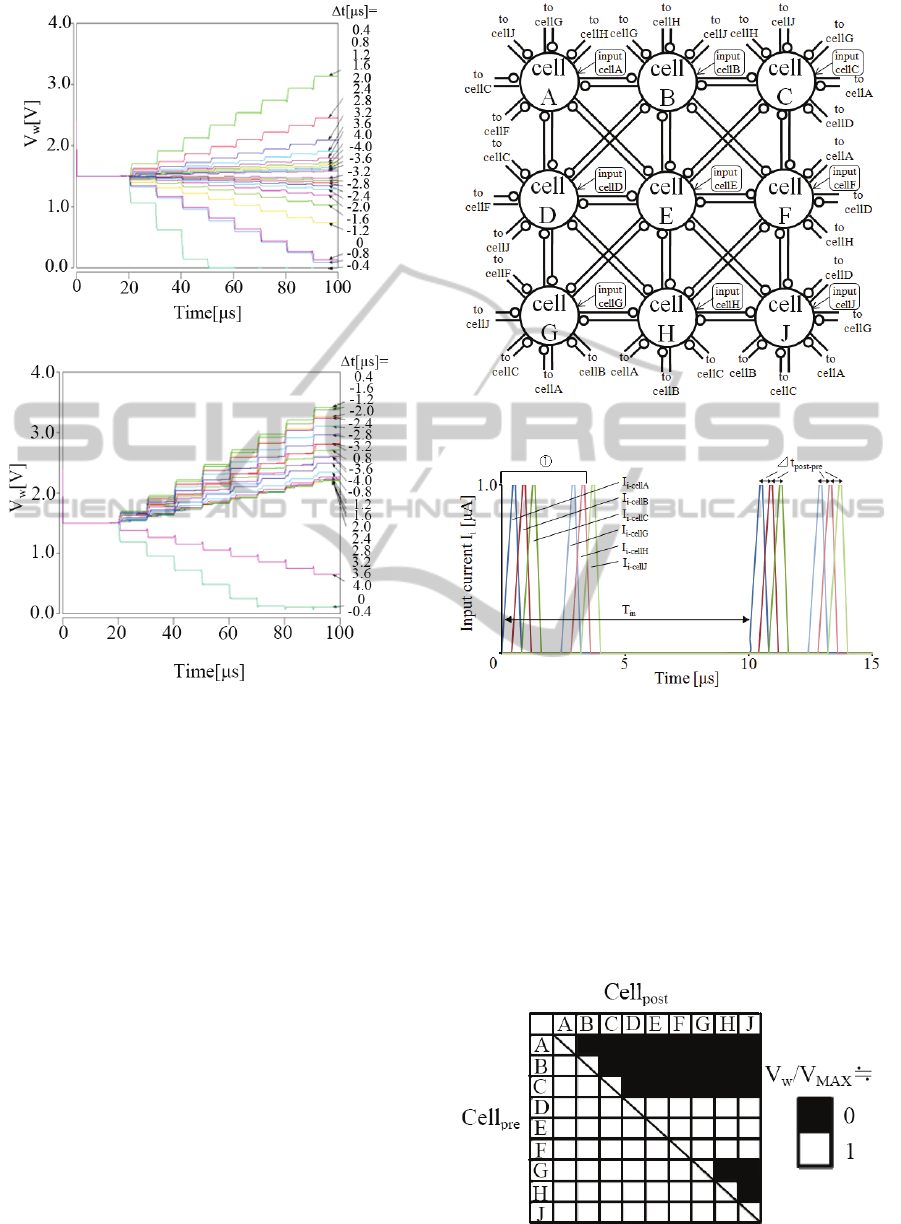

Figure 6 shows the simulation result for the

synaptic weight changes by the STDP function. (a)

and (b) show the asymmetric and the symmetric

time window type, respectively. Δt is the parameter.

3 MEMORY OF TEMPORAL

SEQUENCES PATTERNS

Figure 7 shows a construction of a hardware STDP

model. It shows a Hopfield-type network which is

the interactive connection for all neuron models. In

this figure, cell A ~ J are cell body models, the open

circles indicate STDP synapses. Input cells A ~ J

show the input stimulus current. If we assume that

cell A = cell

pre

and cell B = cell

post

, the synaptic

weight displayed will be W

A, B

(cell A to cell B) and

B,A

(cell B to cell A). Furthermore, W

A, B

and W

B, A

are changed depending on the output pulse timing

from cell A and cell B. That is to say, temporal

-4

3 4 -1

-2

-3

200

400

200

-400

Δt[μs]

ΔV

[

1/s

1/(1+sτ

pre

)

1/(1+sτ

post

)

1/(1+sτ

)

pre

post

pre

post

Sampling block

Integral block

-4

-1

-2

-3

1 2 3

-600

400

200

-400

-200

ΔV

[mV]

Δt

[μ

]

(a) Asymmetric time window.

BIODEVICES 2011 - International Conference on Biomedical Electronics and Devices

428

(a) Time transition in asymmetric time window.

(b) Time transition in symmetric time window.

Figure 6: Time transition in synaptic weight.

sequence patterns are stored by using synaptic

weight, which is dependent on the differential pulse

timing. In this examination, we use the nine pulse-

type neuro devices with STDP cells A ~ J.

Figure 8 shows an example of the current

patterns of the temporal sequence pulses for ①

which are input to cell

pre

and cell

post

. The horizontal

axis corresponds to time, while the vertical axis

shows the input current for each pulse-type neuro

device. Here, Δt is the interval, which is the time

difference between the post-synaptic and pre-

synaptic pulses, and T

is the period of the pulse

current. So, Δt = 0.4 μs and T

= 10 μs are used as

an example. Here, there is no input for the pulse

current when we assume that cell D, E, and F have

no input. The current patterns of the temporal

sequence pulses after input are shown as ①.

Figure 9 shows a distribution of synaptic-

weight. The horizontal axis corresponds to the cell

pre

while the vertical axis shows the cell

post

. This result

shows when V

is 3[V] and -3[V] in the proposed

Figure 7: Construction of hardware STDP model.

Figure 8: Example of current patterns of temporal

sequence pulses.

synaptic weight generation circuit. V

MAX

represent output voltage V

of the synaptic weight

generation circuit that is normalized with V

MAX

). The black squares mean that W

pre,post

is strong

when V

MAX

approaches 0.0. On the other hand,

the white squares mean that W

pre,post

is weak when

MAX

approaches 1.0. That is to say, it is shown

that the synaptic weight changes depending on the

input current patterns of temporal sequence pulses.

Figure 9: Distribution of synaptic-weight.

PULSE-TYPE NEURO DEVICES WITH TWO TIME WINDOWS IN STDP AND ITS APPLICATION TO THE

MEMORY OF TEMPORAL SEQUENCES PATTERNS

429

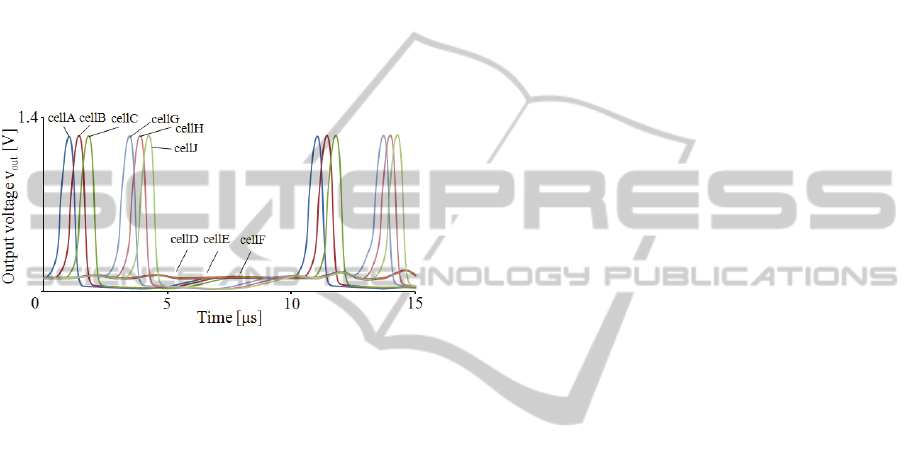

Figure 10 shows an example of the order of the

pulses that the pulse-type neuro device uses at each

cell output. The horizontal axis corresponds to time,

while the vertical axis shows the output voltage of

each pulse-type neuro device. This result shows that

the order of the output pulses that the pulse-type

neuro device with two time windows in STDP uses

for each cell output is dependent on each of the

synaptic weights shown in Fig. 9. This is similar to

the order of the current patterns of the temporal

sequence pulses in ①. Therefore, we showed that

the pulse-type neuro device with STDP stores the

temporal sequence output voltage patterns which

obey the temporal sequence input current patterns.

Figure 10: Output waveforms of pulse-type neuro device

with STDP.

4 CONCLUSIONS

For purpose of constructing brain-type information

processing systems, we constructed neuro devices

with learning functions.

In this paper, we focus on two time windows in

STDP, and we propose a synaptic weight generation

circuit which indicates an asymmetric or a

symmetric time window by changing voltages in the

proposed circuit.

As a result, we show that a pulse-type neuro

device with two time windows in STDP stores

temporal sequence output voltage patterns which

conform to the temporal sequence input current

patterns for memory, because synaptic weight

changes depending on the input current patterns of

temporal sequence pulses. From this result, it is

shown that there is every possibility of constructing

an associative memory device which includes

autoassociative and heteroassociative memory using

the two time windows.

In the future, we will study the recall of two the

states (autoassociative and heteroassociative) of

temporal sequence patterns using a pulse-type neuro

device with two time windows in STDP.

ACKNOWLEDGEMENTS

This work has been supported in part by MEXT

Grant-in-Aid #21560367. Furthermore, this work

has been supported in part by VLSI Design and

Education Center (VDEC), the University of Tokyo

in collaboration with Cadence Design Systems, Inc.

REFERENCES

Hebb, D. O, 1949. “The organization of behavior, A

Neuropsychological Theory”, New York.

Bi G-q., Poo M-m., 1998. “Synaptic modifications in

cultured hippocampal neurons, Dependent on spike

timing, synaptic strength, and postsynaptic Cell Type”,

J. Neurosci.

Patrick D. R., Curtis C. B., 2002. “Spike Timingdependent

synaptic plasticity in biological systems”, Bio.Cybern.

Nishiyama M., Hong K., Mikoshiba K., Poo M-m., &

Kato K., 2000. “Calcium stores regulate the polarity

and input specificity of synaptic modification”,

Nature.

Sakai Y., and Yoshizawa S., 2003. “Mechanisms of

synaptic competition and regulation in spike-time-

dependent synaptic plasticity rules”, IEICE Technical

Report.

Tsukada M., Aihara T., Kobayashi Y., Shimazaki H., 2005.

“Spatial analysis of spike-timing-dependent LTP and

LTD in the CA1 area of hippocampal slices using

optional imaging”, Hippocampus.

Samura T., Hattori M. and Ishizaki S., 2008. “Sequence

disambiguation and pattern completion by

cooperation between autoassociative and

heteroassociative memories of functionally divided

hippocampal CA3”, Neurocomputing.

Tanaka M., Morie T. and Aihara K., 2009. “A CMOS

Spiking Neural Network Circuit with

Symmetric/Asymmetric STDP Function”, IEICE

Trans.

Zhijun A., Murray A., Worgotter F. Cameron K. and

Boonsobhak V., 2006. “A neuromorphic depth-from-

motion vision model with STDP adaptation”, IEEE

Trans. on Neural Networks.

Koickal T., Hamilton A., Tan S., Covington J., Gardner J.

and Pearce T., 2007. “Analog VLSI Circuit

Implementation of an Adaptive Neuromorphic

Olfaction Chip”, IEEE Trnas. on Circuits and Systems

Cameron K., Murray A. and Boonsobhak A., 2007.

“Minimizing the effect of process mismatch in a

neuromorphic system using spike-timing-dependent

adaptation”, IEEE Trans. on Neural Networks.

Pankaala M., Laiho M. and Hasler P., 2009. “Compact

floating-gate learning array with STDP”,

IJCNN2009.

Arena P., Fortuna L., Frasca M., Patane L. and Sala C.,

2007. “Integrating high-level sensor features via

BIODEVICES 2011 - International Conference on Biomedical Electronics and Devices

430

STDP for bio-inspired navigation”, IEEE

ISCAS20007.

Cassidy A., Denham S., Kanold P. and Andreou A., 2007.

“FPGA Based Silicon Spiking Neural Array”,

BIOCAS 2007.

Schemmel J., Grubl A., Meier K. and Mueller E., 2006.

“Implementing Synaptic Plasticity in a VLSI Spiking

Neural Network Model”, IJCNN2006.

Belhadj B., Tomas J., Malot O., N’kaoua G., Bornat Y.

and Renaud S., 2008. “FPGA-based architecture for

real-time syanaptic plasticity computation”,

ICECS2008.

Sekine Y., Sumiyama M., Saeki, K. and Aihara K., 2001.

“ A Λ-Type Neuron Model using Enhancement-Mode

MOSFETs”, IEICE Trans.

Saeki K., Sekine Y. and Aihara K., 1999,“A Study on a

Pulse-type Hardware Neuron Model using CMOS,”

International Symposium on Nonlinear Theory and Its

Applications (NOLTA99).

Saeki K., Hayashi Y. and Sekine Y., 2006. “Extraction of

Phase Information Buried in Fluctuation of a Pulse-

type Hardware Neuron Model Using STDP”, 2006

International Joint Conference on Neural Networks

(IJCNN2006).

Saeki K., Hayashi Y. and Sekine Y., 2007. “ Noise

Tolerance of a Pulse-type Hardware Neural Network

with STDP Synapses - Thermal Noise and Extraction

of Phase Difference Information -”, Proc. IEEJ

International Analog VLSI Workshop.

Saeki K., Hayashi Y. and Sekine Y., 2008. “Pulse-Type

Neuro Devices With Spike Timing Dependent

Synaptic Plasticity”, Bio Devices2008.

Shimizu R., Saeki K. and Sekine Y., 2009. “A Pulse-Type

Hardware Neural Network with STDP for Memory of

Temporal Sequences Patterns”, Proc. IEEJ (C).

PULSE-TYPE NEURO DEVICES WITH TWO TIME WINDOWS IN STDP AND ITS APPLICATION TO THE

MEMORY OF TEMPORAL SEQUENCES PATTERNS

431
