TOWARD REUSABILITY IN WEB MODELING

Using QVT Relations

Ali Fatolahi, Stéphane S. Somé and Timothy C. Lethbridge

School of Information Technology and Engineeing, University of Ottawa, 800 King Edward, K1N 6N5, Ottawa, Canada

Keywords: MDD, QVT, Web, Reusability, Meta-model.

Abstract: In this paper, a model-driven approach for web development is presented. The approach contains two

important elements that serve reusability: an abstract model and a set of transformations. Transformations

act as the chaining feature of model-driven development (MDD); that is transformations add to the value of

models by transforming them to those of the desired type. As a standard for developing transformations,

QVT relations are used in this paper to specify mappings from a high-level model to an abstract model of

web-based applications. This model is abstract since it does not rely on any specific web platform but on the

common features of web applications. Having this model and its corresponding transformations, model-

driven web development for specific platforms becomes faster and more reusable.

1 INTRODUCTION

Models form the value of model-driven development

(MDD) methods. Transformations add to the value

of MDD by processing raw models and by creating

more detailed ones that could be used for the

development of actual applications. We aim at

maximizing the level of value re-use as well as

minimizing the length of transformations that create

value or add to it. Thus, we present an abstract

model of web applications that is reusable for

several web platforms as well as a set of QVT

relations to transform requirements to the abstract

web models.

We have added an intermediate level termed

Abstract PSM (APSM) to the three conventional

levels of MDA, i.e. CIM, PIM and PSM. The

APSM, an intermediate between the PIM and PSM

in the context of Web applications, is concerned

with models specified with respect to common

features of different web platforms. The APSM is

platform-specific in the sense that it describes

features specific to the abstract web platform; it is

also abstract since it does not contain details of

specific web platforms but only their shared

features. Two sets of transformations are needed

from PIM to PSM: one to map PIM to APSM and

the second one to map APSM to PSM.

An important aspect of our work is the usage of

QVT relations as a means of formalizing model-

driven transformations. In this paper, we present an

approach based on QVT relations to be used for the

generation of APSM models. Hence, the PIM-to-

APSM part of the transformations could be re-used

for all applications. Only the QVT relations required

for generating a specific PSM from the APSM need

to be supplied. Since the APSM is semantically

closer to PSMs, this latter part is easier to develop in

comparison to the conventional PIM-to-PSM

transformations.

The importance of web applications as well as

the ever-increasing volatility of web technologies

postulates the need to benefit from models that have

been created for previous projects. In order to

achieve this, one needs either web models that are

adaptable with virtually any platform or automated

transformations that enable transforming models of

different platforms to each other. In this paper, we

use a combination of the two.

The APSM, which is used as the abstract web

model in this paper, is a reusable model because it

can be used to describe models of web applications

regardless of their platforms. Hence for example, the

APSM of a web application once deployed using a

.Net-based technology could be reused to create the

same application using a GWT-based framework as

well.

Also, the transformations that map the APSM to

specific platforms come in handy here. These

facilitate model reuse by relieving the developer

383

Fatolahi A., S. Somé S. and C. Lethbridge T..

TOWARD REUSABILITY IN WEB MODELING - Using QVT Relations.

DOI: 10.5220/0003290703830386

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 383-386

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

from low-level tasks required to create the platform-

specific designs. At the ultimate case, with a

completely automated process, the task of

reproducing the same application for different

platforms using different technologies becomes a

matter of changing the automated code generation

module that targets the new platform.

2 META-MODEL

FOR ABSTRACT WEB

According to Figure 1, an application has several use

cases, a number of these use cases may be startup

use cases. User interfaces may be defined for every

application. For web-based applications, it is

necessary to recognize different views for different

users; this is realized using the association of actors

and user interfaces. States may be associated with

presentations; this results in a presentation state. A

presentation is a special UI Composite, which means

it could contain other UI Components. UI

Composites are translated to pages, forms, tables or

panels depending on the specific platform the APSM

will be mapped to. UI Components may be

associated to each other through a FieldOperation.

This allows client-side operations to be defined. A

UI component is associated with a data composite in

order to model the data support required. Data

composites are composed of data entities. A data

composite can also participate in an association with

another data composite, where one data composite is

used as the basis of selecting data from another one.

For example, when selecting a country affects the

list of available provinces such association would be

created.

Every data composite is supplied with a service

class, which manages the flow of information to and

from the data composite. An attribute crudNature is

added to the class Operation in order to determine

the type of service operation and is used for code

generation. Also, in order to model the call structure

from controller operations to service ones, an

association is added from the class Operation to

itself. A special UI composite, OperationTrigger, is

used to represent the information submitted to the

server side, for example, as part of a web form.

Transitions may carry events. Events can be

either signal or call events. Signal events represent

the events fired by UI Components such as

Operation Triggers, i.e. submit buttons. Call events

are rather called by controllers to handle the logic of

the application. These, often, call a data service.

In order to be able to move between platforms, a

web model must be able to specify Web 2.0

applications as well. The model is capable of

supporting Web 2.0 applications at an abstract level.

A presentation state may be composed of several

presentation units, which allows independent update

of different sub-units within the same presentation

unit. Also content-oriented UI elements may accept

feedback, where the feedback is itself a content-

oriented UI element. This enables an interactive

content as required by Web 2.0. Also, by having

content-oriented UI elements attached to items

found for every search event, the whole content

becomes searchable.

Figure 1: A Meta-model for Abstract Web Applications.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

384

In order to achieve reusability using model-

driven transformations, it is critical to have

transformations that could be traced forward and

backward through elements that map platforms to

each other. According to Cichetti and Di Ruscio

(2008), most of the existing web models do not

adequately support this because they lose track of

changes by relying on name-based associations. Our

meta-model avoids name-based associations by

creating concrete associations such as the one

between UIComponent and DataComposite, which

provides the same type of support as suggested by

Cichetti and Di Ruscio (2008) in terms of an

association from DataCompositionWLink and

CompositionWElement.

Despite the popularity of the existing web

models, as shown in Table 1, none of the existing

models meets all the requirements of a reusable

model in the context of a model-driven approach.

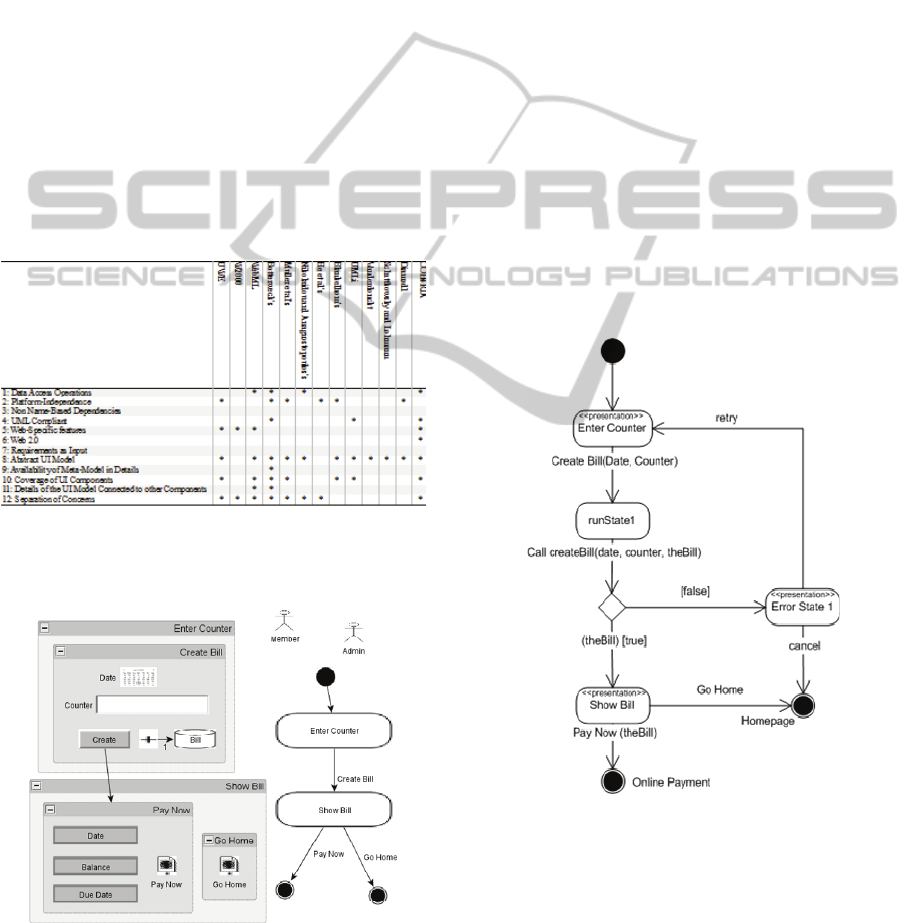

Table 1: Comparative Study of the Existing Web Models.

3 AN EXAMPLE

Figure 2: A Sample Input Model.

Figure 2 shows a sample input model. The figure

shows that two actors, Member and Admin may

access this process. This is related to a billing use

case. The User enters a counter number and requests

a bill. The system calculates and shows a bill

providing an option of instant payment or to return.

The group boxes at the left show the corresponding

presentations of every state. There could be more

than one presentation unit per page. The presentation

model of the state, Enter Counter is only composed

of one entry form that adds a new entry to the data

unit Bill. The state, Show Bill is related to a page

composed of two units. First unit shows the

information of the recent bill based on the created

bill in previous step. The second unit is simply a link

to home page.

The state Enter Counter is translated to a

presentation state, which leads to another state

through signal event Create Bill with two parameters

Date and Counter. The state runState1 is only

inserted to enable the activation of the call event on

the outgoing transition that calls the operation

required to create the bill. In case this is successful,

the object theBill, which carries the newly created

bill, is sent along the transition that ends at the final

state Online Payment.

Figure 3: The APSM Mapping of figure 2.

Figure 4 presents the classes required to support

the input model. The data composite BillComposite

is composed of only one class, BillEntity. The

attributes of BillEntity are selected so that there is

one attribute per UI component in Figure 3. The

class BillService handles the CRUD operations. The

controller BillingController needs an operation to

TOWARD REUSABILITY IN WEB MODELING - Using QVT Relations

385

handle the creation of a bill. This operation is

basically required to create an empty BillComposite

object, to call the corresponding service and to

transfer this object to the next state as required for

payment.



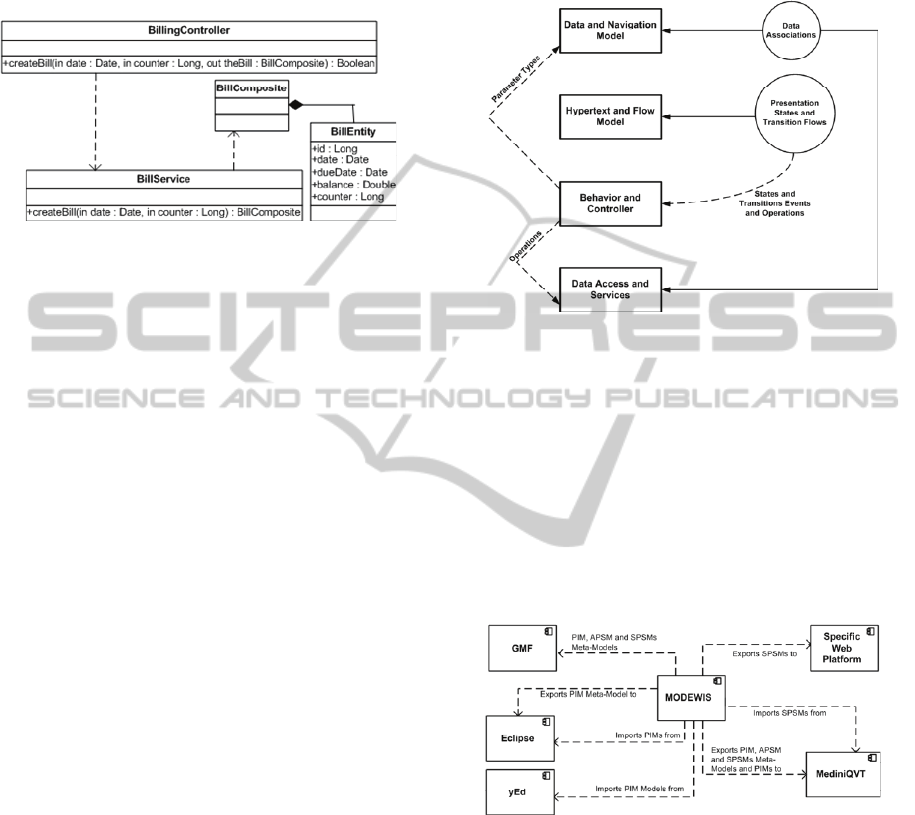

Figure 4: The APSM Classes of Billing.

4 MAPPINGS

Figure 5 presents a summary of the information used

from the PIM as well as those created at the APSM

level. According to Figure 8:

 Data objects and navigations through data

objects are created based on data associations found

within the UI model.

 The contents and the structure of web pages are

determined by the contents of the presentation states

and transition flows.

 Transitions and states from the input model are

also used to create events and operations used for the

generation of the behaviour and controllers of the

application.

 The generated behaviour and controllers are used

in turn to build the data access services in

combination with data associations from

presentation states. It is also used to map parameters

to attributes within the data model.

The following transformations were implemented:

1- PIM-to-APSM: This set maps the input model

such as the one in Figures 2 to the APSM model

such as the one of Figures 3-4.

2- APSM-to-AndroMDA: This mapping creates a

fully detailed AndroMDA model, which may be

transformed to code using AndroMDA .

3- APSM-to-WebML: The target in this mapping is

a specific configuration of the WebML-based tool,

WebRatio.

4- APSM-to-GWT: maps the APSM to a platform,

based on Google Web Toolkit. This allows us to

evaluate the Web 2.0 modeling capabilities of the

abstract meta-model.

Although it is possible to use the approach without

the PIM-APSM transformations, this set helps

bringing reusability to an even more abstract level

that is reuse at the level of requirements model.

Figure 5: Summary of the transformations.

5 IMPLEMENTATION

The implemented approach is named MODEWIS,

which stands for MOdel-driven DEvelopment of

Web Information Systems. Figure 6 shows how the

MODEWIS interacts with other components in this

implementation. Several case-studies, tools and

transformations are developed in the context of

MODEWIS (2010).

Figure 6: The Architecture of MODEWIS.

REFERENCES

AndroMDA, www.andromda.org, 15-02-2007.

Cicchetti, A. Di Ruscio, D. Decoupling Web Application

Concerns through Weaving Operations. In: Science of

Computer Program-ming 70(1) 2008. pp. 62-86.

Google Web Toolkit, Google Code,

code.google.com/webtoolkit/, June 2010.

MODEWIS, modewis.blogspot.com/, 12-1-2010.

WebML, www.webml.org, May 5, 2008.

WebRatio, www.webratio.com, 6-5-2008.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

386
