ECG-BASED CONTINUOUS AUTHENTICATION SYSTEM

USING ADAPTIVE STRING MATCHING

David Pereira Coutinho

Instituto Superior de Engenharia de Lisboa, Instituto de Telecomunicac¸˜oes and Instituto Superior T´ecnico, Lisboa, Portugal

Ana L. N. Fred, M´ario A. T. Figueiredo

Instituto de Telecomunicac¸˜oes and Instituto Superior T´ecnico, Lisboa, Portugal

Keywords:

Biometrics, ECG, String matching, LZ77, Data compression.

Abstract:

Conventional access control systems are typically based on a single time instant authentication. However,

for high-security environments, continuous user veriﬁcation is needed in order to robustly prevent fraudulent

or unauthorized access. The electrocardiogram (ECG) is an emerging biometric modality with the follow-

ing characteristics: (i) it does not require liveliness veriﬁcation, (ii) there is strong evidence that it contains

sufﬁcient discriminative information to allow the identiﬁcation of individuals from a large population, (iii) it

allows continuous user veriﬁcation. Recently, a string matching approach for ECG-based biometrics, using

the Ziv-Merhav (ZM) cross parsing, was proposed. Building on previous work, and exploiting tools from data

compression, this paper goes one step further, proposing a method for ECG-based continuous authentication.

An adaptive way of using the ZM cross parsing is introduced. The use of the Lloyd-Max quantization is also

introduced to improve the results with the string matching approach for ECG-based biometrics. Results on

one-lead ECG real data are presented, acquired during a concentration task, from 19 healthy individuals.

1 INTRODUCTION

The problem of user veriﬁcation has concentrated

much effort of the research community in the last

few years. This has resulted in many approaches

for personal authentication based on biometric fea-

tures. Conventional access control systems are typ-

ically based on a single time instant authentication.

But the demand for robustly preventing fraudulent

or unauthorized access to systems led us to another

problem. How to guarantee that the initially authen-

ticated person is the same that is using the system?

This problem is addressed by continuous user veriﬁ-

cation, where biometric authentication (veriﬁcation)

(Jain et al., 2007) is useful, and several studies on

this topic have been published (Monrose and Rubin,

2000)(Sim et al., 2007)(Niinuma and Jain, 2010).

The electrocardiogram (ECG) is an emerging bio-

metric measure which exploits a physiological feature

that exists on every human. There is strong evidence

that the ECG is sufﬁciently discriminative to identify

individuals within a large population. The ECG al-

lows intrinsic liveliness veriﬁcation, personal identi-

ﬁcation and authentication (Biel et al., 2001) (Chiu

et al., 2008) (Pereira Coutinho et al., 2010b), and dif-

ferent stress or emotion states detection (Medina and

Fred, 2010). Furthermore the ECG is a behavioral

biometric trait that can be used with other biometric

measures (Ross et al., 2006), as a complementary fea-

ture, for fusion in a multimodal biometric authenti-

cation system (Boulgouris et al., 2009, Ch. 18) and

for continuous authentication where biological signa-

tures are continuously monitored (easily done by us-

ing new signal acquisition technologies like the Vital

Jacket (Cunha et al., 2007), (Leonov, 2009)) in order

to guarantee the identity of the operator throughout

the whole process (Damousis et al., 2008).

Recently, a string matching approach for ECG-

based biometrics using the Ziv-Merhav (ZM) cross

parsing was proposed (Pereira Coutinho et al.,

2010a). Built on previous work and exploring prin-

ciples from data compression, in this paper we go one

step further, proposing a method for ECG-based con-

tinuous authentication. We introduce the use of ZM

cross parsing with adaptive models, in a way similar

to what is used by dictionary-basedtext data compres-

sion algorithms, such as the LZ77 (Ziv and Lempel,

1977). The use of the Lloyd-Max quantization is also

354

Pereira Coutinho D., L. N. Fred A. and A. T. Figueiredo M..

ECG-BASED CONTINUOUS AUTHENTICATION SYSTEM USING ADAPTIVE STRING MATCHING.

DOI: 10.5220/0003292003540359

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2011), pages 354-359

ISBN: 978-989-8425-35-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

proposed to improve the results with the string match-

ing approach for ECG-based biometrics. Results on

one-lead ECG real data are presented, acquired dur-

ing a concentration task, from 19 healthy individuals.

This paper is organized as follows: Sec. 2 makes

a brief review of the related works on ECG-based bio-

metrics systems and provides some details about a

recently proposed string matching approach. Sec. 3

discusses how to improve the efﬁcacy of the string

matching approach and describes the proposed con-

tinuous authenticationmethod, detailing the use of the

ZM cross parsing with adaptive models. Sec. 4 dis-

cusses and shows the experimental results. Finally,

Sec. 5 ﬁnalizes the paper drawing the main conclu-

sions.

2 RELATED WORKS ON

ECG-BASED BIOMETRICS

Two question arise concerning the design of an ECG-

based biometric system: How to store an ECG sam-

ple in a biometric database? How to match one ECG

sample with database samples?

Biel et al. (Biel et al., 2001) were the ﬁrst to

answer these questions, by proposing the extraction

of ﬁducial features, which are used for database

storage and classiﬁcation (see Figure 1).

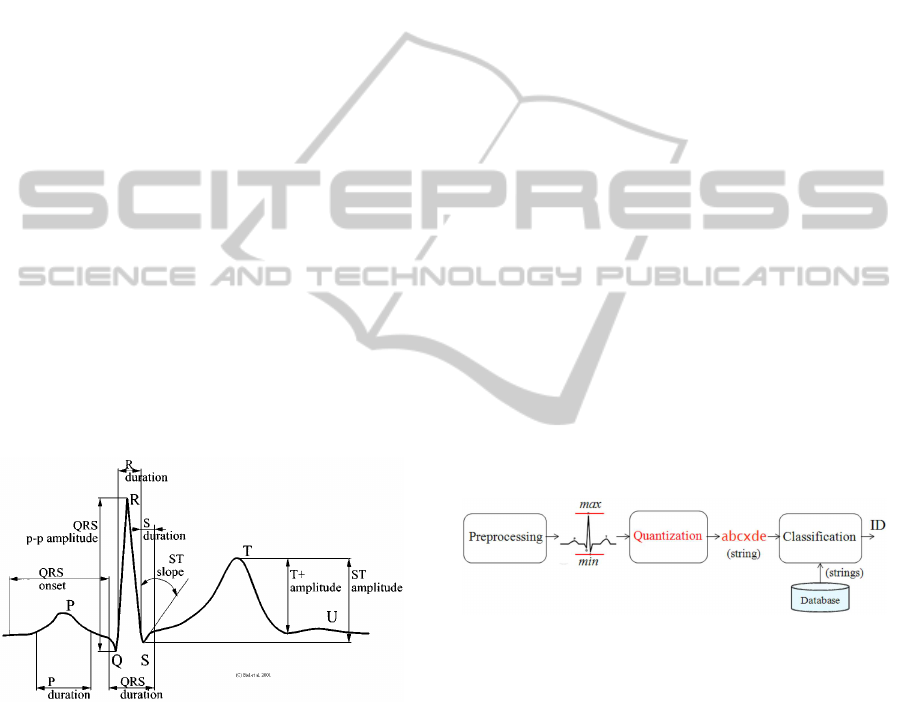

Figure 1: Elements of a typical ECG waveform and features

used by Biel et al. for classiﬁcation.

2.1 Fiducial versus Non-ﬁducial

Approaches

In a broad sense, one can say there are two different

approaches in the literature concerning feature extrac-

tion from ECG: ﬁducial and non-ﬁducial.

Fiducial methods use points of interest within a

single heartbeat waveform, such as local maxima or

minima; that is, they use references to allow the def-

inition of features like latency times and amplitudes,

as shown in Figure 1. Many other examples can be

found in the literature.

Non-ﬁducial techniques aim at extracting discrim-

inative information from the ECG waveform without

having to extract ﬁducia. A global pattern from sev-

eral heartbeat waveforms may be used as a feature;

typically, wavelet or DCT coefﬁcients have been used

as features.

Some methods combine these two different

approaches or are partially ﬁducial (Wang et al.,

2008) (e.g., they use only the R peak as a reference

for segmentation of the heartbeat waveforms). Ta-

ble 1 summarizes several approaches found in the

literature; for more details on each method, see the

corresponding publication.

2.2 String Matching Approach

A new non-ﬁducial approach was recently proposed

(Pereira Coutinho et al., 2010a). It is a simple

approach where the ﬁrst step is to convert ECG

samples into sequences of symbols (strings) from

an alphabet, using 8 bit uniform quantization (256

symbols). Although information is lost due the

quantization process, enough discriminative infor-

mation is preserved (as shown by the experiments).

Identiﬁcation or authentication is based on a 1-NN

(nearest neighbor) classiﬁer, using the string similar-

ity measure described next. An application example

on person identiﬁcation is depicted in Figure 2.

Figure 2: Identiﬁcation block diagram overview. The ac-

quired ECG signals are preprocessed in order to remove

noise, segmented, quantized between its maximum and

minimum value, resulting in a string. Test samples clas-

siﬁcation is based on string matching with database stored

strings.

2.2.1 String Similarity Measure

The string similarity measure used in (Pereira

Coutinho et al., 2010a) is based on Ziv-Merhav cross

parsing (ZMCP) (Ziv and Merhav, 1993). Ziv and

Merhav introduced an empirical divergence between

two sequences z and x based on two LZ-type parsing

algorithms: the incremental LZ parsing (LZ78) which

is a self parsing procedure of a sequence (let the self

parsing length of a given a sequence z be denoted by

c(z)) and the cross parsing (LZ78 parsing variation)

ECG-BASED CONTINUOUS AUTHENTICATION SYSTEM USING ADAPTIVE STRING MATCHING

355

Table 1: Comparison of related works with string matching approach. The accuracy (Accur.) values shown are the reported

results for person identiﬁcation.

Ref. Feature Method Subjs. Accur.

(Biel et al., 2001) Fiducial PCA 20 100%

(Shen et al., 2002) Fiducial Templ. matching+DBNN 20 100%

(Israel et al., 2005) Fiducial LDA 29 98 %

(Silva et al., 2007) Fiducial FSE 26 99.97%

(Chan et al., 2008) Non-ﬁducial Wavelet Distance 50 95%

(Wang et al., 2008) Non-ﬁducial AC/DCT+KNN 13 97.8%

(Pereira Coutinho et al., 2010a) Non-ﬁducial ZM Cross Parsing+1NN 19 100%

which is a sequential parsing of a sequence with re-

spect to another sequence (let us denote by c(z|x) the

sequential parsing length of a sequence z given a se-

quence x).

For example, as shown in Figure 2, the 1-NN

based identiﬁcation of a test sample z in one of a set

of K classes, given the subject models x

per class k,

is then simply

k(z) = argmin

k∈{1,...,K}

c(z|x

The ZMCP implementation consists on a static

dictionary pre-loaded with a sequence x (model),

where only the look ahead buffer (LAB) slides over

the input sequence z while making the cross parsing

(for details see (Pereira Coutinho and Figueiredo,

2005)).

3 PROPOSED STRING

MATCHING APPROACH

Our work is built on the basic ideas from (Pereira

Coutinho et al., 2010b) proposing the major enhance-

ments described as follows.

3.1 User-tuned Quantization

In the string matching approach, a user tuned au-

thentication scheme was proposed (Pereira Coutinho

et al., 2010b). After preprocessing the ECG ac-

quired samples, the system uses uniform quantiza-

tion to transform the samples into a string. In order

to make the system more user-tuned, one can learn a

quantizer for each user. That can simply be done us-

ing non-uniform quantization, namely the Lloyd-Max

quantization (LMQ).

Our proposal is that, after the enrollment process,

a Lloyd-Max quantizer be built for each user, and

the selected ECG acquired samples be encoded with

the associated user-tuned quantizer, and stored in the

database, to be used as a model. During the authen-

tication process the selected ECG acquired samples

are also encoded with the Lloyd-Max quantizer asso-

ciated to the subject that the user claims to be, and

then compared with the same subject’s stored model.

3.2 Continuous Authentication Method

The method that we propose is built on the string

matching approach that was brieﬂy described in Sec-

tion 2.2. The classiﬁcation stage remains the same,

using the ZMCP as the string similarity measure. The

major and signiﬁcant change is in the way user’s mod-

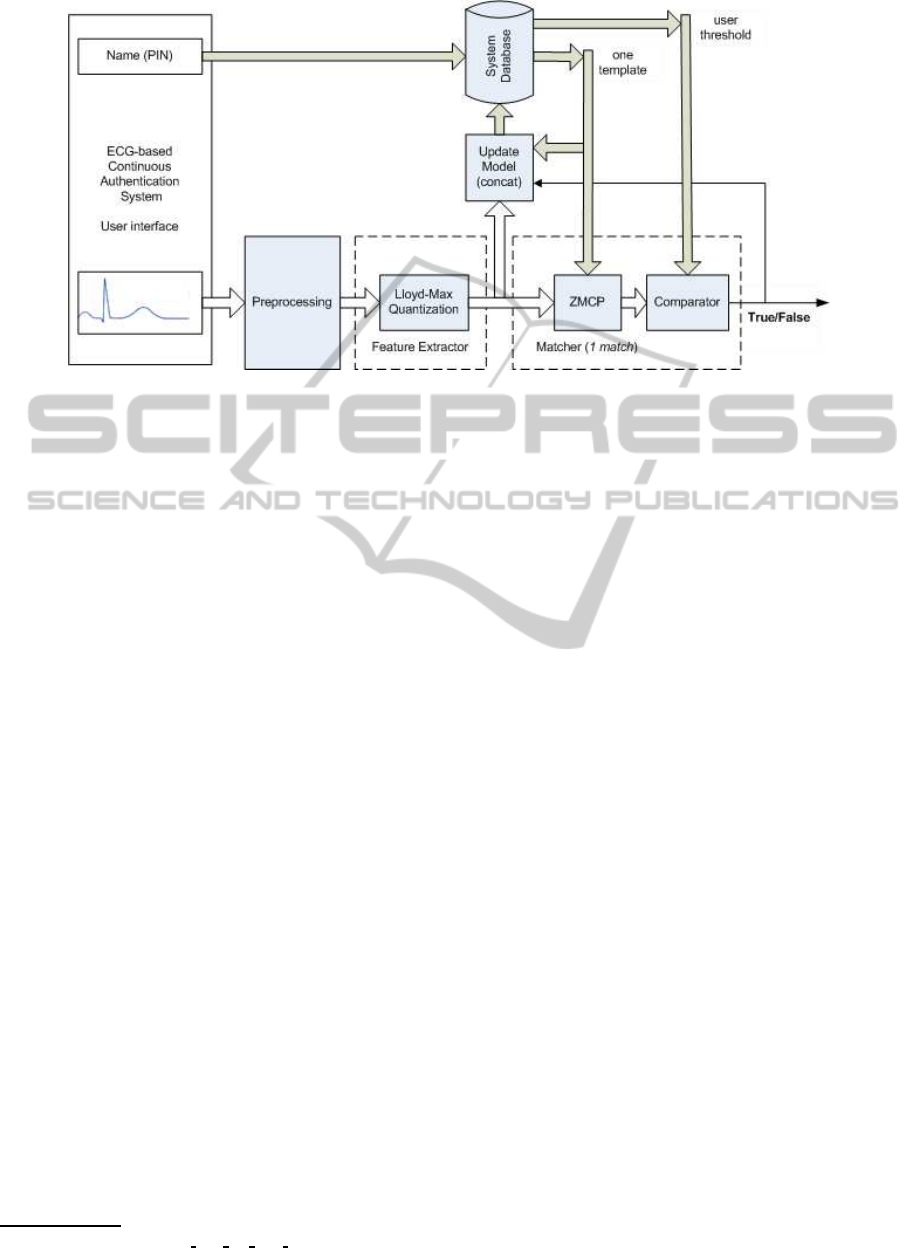

els are handled. An overview of the proposed system

block diagram is depicted in Figure 3.

As in the original work, during the enrollment pro-

cess the system must learn for each user both the user

model and the user threshold. This is the crucial data

that will be retrieved from the system database during

the whole continuous authentication process. Then,

unlike the original work, we propose that every time

that the system makes a positive authentication, the

system database must be updated with that test sample

that led to the positive decision. This adaptive mode

of managing user models will enable the system to

learn during the authentication process.

Updating the model to store in the system database

will result from a simple string concatenation opera-

tion. We stress the simplicity of this model updat-

ing mode because it is not a time consuming opera-

tion, which is an important feature concerning real-

time systems. Due to user’s models size limitations, a

strategy like FIFO (First In First Out), or other crite-

ria, must be adopted when updating these models.

Notice that acquiring ECG signals for continuous

authentication will require speciﬁc devices that allow

continuous monitoring of the operator throughout the

whole process. An example of such devices would be

a wearable device like the Vital Jacket (Cunha et al.,

2007).

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

356

Figure 3: Proposed continuous authentication system block diagram overview. Notice that the system database is updated

only if user authentication result is true.

4 EXPERIMENTS

4.1 Data Collection

The ECG waveform dataset used was acquired using

one lead, in the context of the Himotion project

. The

dataset contains ECG recordings from 19 subjects ac-

quired during a concentration task on a computer, de-

signed for an average completion time of 10 minutes.

All the acquired ECG signals were normalized and

band-pass ﬁltered (2–30Hz) in order to remove noise.

Each heartbeat waveform was sequentially segmented

from the full recording and then all the obtained wave-

forms were aligned by their R peaks. From the re-

sulting collection of ECG heartbeat waveforms, the

mean wave for groups of 10 consecutive waveforms

(without overlap) was computed. Each of these mean

waveforms is what it is called a single heartbeat in

(Pereira Coutinho et al., 2010b). Notice that an intra-

class study (Medina and Fred, 2010) with the dataset,

in the context of the exploration of electrophysiologi-

cal signals for emotional states detection, showed the

existence of differentiated states in the data that rep-

resent the ECG signal of a subject.

4.2 Experimental Results

The experimental results were obtained with a strat-

egy of leave-one-out cross validation over 50 runs.

The samples for the model and for the test sample

were chosen randomly from all the acquired single

heartbeats waveforms for each user.

https://www.it.pt/auto temp web page preview.asp?id=305

We evaluated user authentication using non-uniform

quantization and Table 2 shows the comparison re-

sults of authentication experiments over the same

dataset. The results show that Lloyd-Max (rather

than uniform) quantization and user-adjusted thresh-

olds clearly improve the performance of the original

string matching approach.

The proposed continuous authentication method

was evaluated. Table 2 shows the results for the

continuous authentication experiments over the same

dataset. Test results show that the introduced adap-

tive capability, that is using ZMCP with adaptive user

models, improve also the performance of the original

system.

5 CONCLUSIONS

In this paper, the presented work is built on the basic

ideas from (Pereira Coutinho et al., 2010b). Two ma-

jor enhancements on the string matching approach for

ECG-based biometrics was proposed. One was the

use of non-uniform quantization, namely the Lloyd-

Max quantization, when converting an ECG acquired

sample into a string. The other was to allow system

database update during the continuous authentication

process. This adaptive mode depends on a simply

string concatenation operation, which is not a time

consuming operation, an important feature regarding

real-time system.

Experiments carried out on a dataset with 19

healthy subjects, for whom the existence of differen-

tiated states in the ECG data of a subject has been

ECG-BASED CONTINUOUS AUTHENTICATION SYSTEM USING ADAPTIVE STRING MATCHING

357

Table 2: Comparison of authentication related work results over the same dataset.

Reference Feature EER

(Oliveira and Fred, 2009) Fiducial (1-NN classiﬁer) 8.0 %

(Gamboa, 2008) Fiducial (user-tuned) 1.7 %

(Pereira Coutinho et al., 2010b) Non-ﬁducial (uniform quantiz., user-tuned) 1.1 %

Proposed authentication method Non-ﬁducial (LLoyd-Max quantiz., user-tuned) 0.37 %

Proposed cont. authentication methodNon-ﬁducial (LLoyd-Max quantiz., user-tuned, adaptive models)0.36 %

shown (Medina and Fred, 2010). Results showed that

our method improve the performance of the original

system, enabling an average EER (equal error rate)

of 0.37 % on authentication and 0.36 % on continuos

authentication.

Future work will include tests with other datasets

for further evaluation of our method, particularly with

datasets that have longer ECG samples. This allow a

more accurate performance evaluation in the case of

continuous authentication. The size of the HiMotion

project samples was quite small and this was a draw-

back in the present work. The user threshold tunning

process is another problem that must be addressed in

future studies because an adaptive learning strategy is

needed.

ACKNOWLEDGEMENTS

We acknowledge the following ﬁnancial support: In-

stituto Superior de Engenharia de Lisboa (ISEL),

the FET programme, within the EU FP7, under

the SIMBAD project (contract 213250); Fundac¸˜ao

para a Ciˆencia e Tecnologia (FCT), under grants

PTDC/EEA-TEL/72572/2006 and QREN 3475.

REFERENCES

Biel, L., Pettersson, O., Philipson, L., and Wide, P. (2001).

ECG analysis – a new approach in human identiﬁca-

tion. IEEE Transactions on Instrumentation and Mea-

surement, 50(3):808–812.

Boulgouris, N. V., Plataniotis, K. N., and (Editors), E.

(2009). Biometrics: Theory, Methods, and Applica-

tions. Wiley-IEEE Press.

Chan, A., Hamdy, M., Badre, A., and Badee, V. (2008).

Wavelet distance measure for person identiﬁcation us-

ing electrocardiograms. Instrumentation and Mea-

surement, IEEE Transactions on, 57(2):248–253.

Chiu, C.-C., Chuang, C.-M., and Hsu, C.-Y. (2008). A

novel personal identity veriﬁcation approach using a

discrete wavelet transform of the ECG signal. In

MUE ’08: Proceedings of the 2008 International Con-

ference on Multimedia and Ubiquitous Engineering,

pages 201–206, Washington, DC, USA. IEEE Com-

puter Society.

Cunha, J., Cunha, B., Xavier, W., Ferreira, N., and Pereira,

A. (2007). Vital-jacket: A wearable wireless vital

signs monitor for patients mobility. In Proceedings

of the Avantex Symposium.

Damousis, I. G., Tzovaras, D., and Bekiaris, E. (2008).

Unobtrusive multimodal biometric authentication: the

humabio project concept. EURASIP J. Adv. Signal

Process, 2008:1–11.

Gamboa, H. (2008). Multi-Modal Behavioral Biometrics

Based on HCI and Electrophysiology. PhD thesis,

Instituto Superior T´ecnico, Universidade T´ecnica de

Lisboa, Lisboa, Portugal.

Israel, S. A., Irvine, J. M., Cheng, A., Wiederhold, M. D.,

and Wiederhold, B. K. (2005). ECG to identify indi-

viduals. Pattern Recognition, 38(1):133–142.

Jain, A. K., Flynn, P., and Ross, A. A. (2007). Handbook of

Biometrics. Springer-Verlag New York, Inc., Secau-

cus, NJ, USA.

Leonov, V. (2009). Wireless body-powered electrocardiog-

raphy shirt. In Proceedings of the Smart Systems Inte-

gration European Conference.

Medina, L. A. S. and Fred, A. L. N. (2010). Genetic al-

gorithm for clustering temporal data - application to

the detection of stress from ecg signals. In Proc 2nd

International Conference on Agents and Artiﬁcial In-

telligence (ICAART), pages 135–142.

Monrose, F. and Rubin, A. D. (2000). Keystroke dynamics

as a biometric for authentication.

Niinuma, K. and Jain, A. K. (2010). Continuous user

authentication using temporal information. In Proc.

SPIE, Vol. 7667, 76670L.

Oliveira, C. and Fred, A. L. N. (2009). ECG-based authen-

tication: Bayesian vs. nearest neighbour classiﬁers. In

Proc International Conf. on Bio-inspired Systems and

Signal Processing - Biosignals - INSTICC, Porto, Por-

tugal.

Pereira Coutinho, D. and Figueiredo, M. (2005). Informa-

tion theoretic text classiﬁcation using the Ziv-Merhav

method. 2nd Iberian Conference on Pattern Recogni-

tion and Image Analysis – IbPRIA’2005.

Pereira Coutinho, D., Fred, A. L. N., and Figueiredo, M.

(2010a). One lead ecg-based personal identiﬁcation

using ziv-merhav cross parsing. In Proceedings of the

20th International Conference on Pattern Recognition

(ICPR), Istanbul, Turkey.

Pereira Coutinho, D., Fred, A. L. N., and Figueiredo, M.

(2010b). Personal identiﬁcation and authentication

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

358

based on one-lead ecg using ziv-merhav cross pars-

ing. In Proceedings of the 10th International Work-

shop on Pattern Recognition in Information Systems

(PRIS), Funchal, Portugal.

Ross, A. A., Nandakumar, K., and Jain, A. K. (2006). Hand-

book of Multibiometrics (International Series on Bio-

metrics). Springer-Verlag New York, Inc., Secaucus,

NJ, USA.

Shen, T., Tompkins, W. J., and Hu, Y. H. (October 2002).

One-lead ECG for identity veriﬁcation. Proc. of

the 2nd Joint Conf. of the IEEE Eng. in Medicine

and Biology Soc. and the 24th Annual Conf. and

the Annual Fall Meeting of the Biomedical Eng. Soc.

(EMBS/BMES ’02), 1:62–63.

Silva, H., Gamboa, H., and Fred, A. (2007). One lead

ECG based personal identiﬁcation with feature sub-

space ensembles. In MLDM ’07: Proceedings of

the 5th international conference on Machine Learn-

ing and Data Mining in Pattern Recognition, pages

770–783, Berlin, Heidelberg. Springer-Verlag.

Sim, T., Zhang, S., Janakiraman, R., and Kumar, S. (2007).

Continuous veriﬁcation using multimodal biometrics.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 29:687–700.

Wang, Y., Agraﬁoti, F., Hatzinakos, D., and Plataniotis,

K. N. (2008). Analysis of human electrocardiogram

for biometric recognition. EURASIP J. Adv. Signal

Process, 2008:19.

Ziv, J. and Lempel, A. (1977). A universal algorithm for

sequential data compression. IEEE Transactions on

Information Theory, 23(3):337–343.

Ziv, J. and Merhav, N. (1993). A measure of relative en-

tropy between individual sequences with application

to universal classiﬁcation. IEEE Transactions on In-

formation Theory, 39:1270–1279.

ECG-BASED CONTINUOUS AUTHENTICATION SYSTEM USING ADAPTIVE STRING MATCHING

359
