ICT ENHANCED LEARNING EXPERIENCE FOR AN

INTRODUCTORY OBJECT ORIENTED PROGRAMMING COURSE

A Case Study

Olivier Camp and Richard Woodward

GRI, ESEO, Angers, France

Keywords:

Teaching, Learning, Object oriented programming, Java, Unit testing, Plagiarism detection, Computer-aided

assessment.

Abstract:

Anyone used to teaching programming is aware of the difﬁculties that are behind this discipline. This, of

course, is also true for students who ﬁnd programming very hard to learn. These difﬁculties are of many

orders: the teaching of the theoretical aspects of the language, the elaboration of adapted and relevant practical

labworks, the constant ﬁght against plagiarism (either between learners in the same class, from work done by

learners in previous years or from the Internet) and ﬁnally the accurate assessment of the students’ programs.

This paper presents a case study in which an online tool was used during a beginner’s course on “Object

Oriented Programming in Java” to help counter balance these difﬁculties. The tool we present here, not

only supports the students by giving them constant feedback on their work and on its adequacy with what is

expected, but also helps the instructors in charge of the course in following the students’ progression, detecting

potential cases of plagiarism and assessing the practical work done by the students. This tool was developped

using simple Java APIs and opensource applications, and was made available to the learners through the

course’s page on the school’s Moodle e-campus.

1 INTRODUCTION

Learning programming is one of the ﬁrst steps a stu-

dent wishing to study computer science has to face.

However, it is a very difﬁcult task (so difﬁcult that

it is claimed that it takes as long as 10 years for a

novice programmer to become an expert program-

mer (Winslow, 1996)) and teachers regularly need

to redesign their courses to try and make the learn-

ing process easier and more efﬁcient. Many stud-

ies have revealed some of the reasons that make pro-

gramming such a difﬁcult subject to learn (and con-

sequently to teach) and what are the main difﬁculties

faced by novice students when learning programming

(de Raadt et al., 2004; Garner et al., 2005; Lahti-

nen et al., 2005; Milne and Rowe, 2002; Robins

et al., 2003). Several articles have discussed issues

related to this topic (Pears et al., 2007) and tried to

determine the languages and programming paradigms

that are most suitable for such introductory program-

ming courses (K

olling, 1999; Mannila and de Raadt,

2006), the types of pedagogical activities that are

most adapted (

Asr

un Matth

ıasd

ottir, 2006; Dijkstra,

1989) and the tools and environments that can help

support the students during the learning process (Al-

Imamy et al., 2006) or help the teachers during the as-

sessment of the students’ work (Mutka, 2005; Gerdes

et al., 2010).

In this article we focus on one of the aspects listed

above: the use of a tool to support the students and

the teachers during the course. More precisely, we

present the practical application of the “Test and As-

sessment Tool Suite” a set of software tools designed,

both, for students and teachers during the lab work

associated with an “Object Oriented Programming in

Java” course. On the one hand, our tool provides the

students with constant feedback on their work and in-

forms them of whether or not the programs they are

writing conform to what is expected. It also helps the

students in building an archive of the work they have

done at the end of a practical session so that it can be

handed in and marked. On the other hand, the tool

automatically assesses the students’ works and veri-

ﬁes that the work handed in by a student is, indeed,

personal work and not plagiarism of another student’s

work.

We begin, in Section 2, by describing the context

of the case study: the design of the course and of

Camp O. and Woodward R..

ICT ENHANCED LEARNING EXPERIENCE FOR AN INTRODUCTORY OBJECT ORIENTED PROGRAMMING COURSE - A Case Study.

DOI: 10.5220/0003297000160025

In Proceedings of the 3rd International Conference on Computer Supported Education (CSEDU-2011), pages 16-25

ISBN: 978-989-8425-50-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

its various activities, the level and the number of stu-

dents and the way the various activities are organised.

Section 3 focuses on the individual tools in the suite;

how the suite is used, both, by the students for feed-

back and by the teacher for automatic assessment and

plagiarism detection. This section also presents some

implementation details of the tool suite. Section 4 dis-

cusses the beneﬁts and drawbacks of the tool and how

it inﬂuenced the students’ work. In Section 5 we con-

clude and present future directions of work to improve

the tool.

2 CONTEXT

This case study is relative to an “Object Oriented

Programming in Java” course taught to students in

their third year of Bachelor degree studies in ESEO, a

French graduate school of engineering in the ﬁelds of

electronics, computer science, networks and telecom-

munications.

The ﬁrst two years of studies at ESEO, referred

to as the “preparatory cycle”, are mainly dedicated to

fundamental scientiﬁc disciplines - i.e., mathematics

and physics. During each of their ﬁrst two years of

studies, approximately 50 hours of the mathematics

course is dedicated to a, mainly practical, introduction

to C programming. The students thus reach their third

year of study with a basic programming knowledge.

During the ﬁrst semester of the third year, our stu-

dents follow a 30 hours course on “data structures and

algorithms”. This course consists of 15 hours of lec-

tures and an equal amount of time is devoted to practi-

cal sessions. In order not to confuse the students with

a new language and syntax, a simpliﬁed dialect of the

C programming language is used to illustrate the dif-

ferent aspects presented during the lectures and to put

them in practice during the practical sessions.

The “Object Oriented Programming in Java”

course starts at the beginning of the spring semester

and runs in parallel with an introductory course on

the UML language. The objectives of the course are

manifold:

1. Introduce the students to the fundamental prin-

ciples of object oriented programming (classes,

inheritance, instanciation and message passing):

UML class diagrams together with a pseudo ob-

ject oriented language are used to illustrate these

principles.

2. Teach the core of the Java language: an explana-

tion of the way the fundamental principles are im-

plemented in Java is followed by a presentation

of some of the important classes of the Java API

(exceptions, streams, Swing/awt and threads).

3. Show the students, through a guided practical ex-

ample, how the object oriented paradigm can be

put in action to develop a graphic application and

introduce them by example to design patterns.

4. Show the students that, through the course, they

have acquired enough competency to develop a

practical project of their own and give them the

opportunity to practice their skills and discover,

by themselves, new aspects of object oriented pro-

gramming in Java.

The course has a total audience of 180 students and

approximately 70 hours over a total period of 16

weeks are allocated to it. This time is divided into

three clear parts: the ﬁrst 6 weeks are for lectures, the-

oretical tutorial classes and practical tutorial classes,

during the following 5 weeks the students are guided

in the individual development of a real application and

for the last 5 weeks they develop a personnal project

in pairs.

The teacher in charge of the course has 15 years

experience in teaching object oriented programming

mainly in Java, but also with object-oriented Lisp di-

alects and Smalltalk, to various audiences, both in the

academic and professional contexts. For the tutorial

sessions and the practical aspects of the course he is

assisted by another teacher with over 5 years experi-

ence in the teaching of computer science and involved

in various aspects of the computer science curriculum.

He is the developer of the tool suite discussed in this

paper. Two PhD students are also involved in the tu-

toring of the practical activities and the tutorial classes

related to this course.

2.1 Lectures (17.5 Hours) and Tutorial

Classes (10 Hours)

This part of the course consists of 2-4 lectures and

1-2 tutorial classes a week. The lectures are rather

traditional and the number of students does not allow

for much interaction between the teacher and the stu-

dents. However, for the tutorial classes, the students

are divided in smaller groups of approximately 30 stu-

dents. Half of these classes (5 hours) concentrate on

theoretical (non-practical) aspects of the course and

are aimed at giving the students a ﬁrst experience with

the object oriented modelling of small problems and

to show them how these models can be translated into

Java. One of the objectives of these tutorial classes

is to help the students shift their mind-set from a pro-

cedural to an object-oriented view of the world. The

rest of the time (5 hours) is dedicated to practical tu-

torial classes and give the students an occasion to get

used to the practical aspects of Java and learn by ex-

ample the use of the compiler, the virtual machine,

ICT ENHANCED LEARNING EXPERIENCE FOR AN INTRODUCTORY OBJECT ORIENTED PROGRAMMING

COURSE - A Case Study

the API’s documentation. The results of the exercices

seen during the theoretical tutorial classes are used as

examples and put into practice during these sessions.

2.2 Practical Lab Sessions (20 Hours)

The practical lab sessions are held over 5 weeks, after

the students have gone through the lectures and the

tutorial classes. By that time, they have had a chance

to be introduced to the main aspects of object orienta-

tion and of the Java language, both at the theoretical

and practical levels. A total of 20 hours, held as 4

hour weekly sessions are dedicated to this part of the

course. During these sessions, the students are given

access to the written subject of the project. In its ﬁrst

parts, this document gives very detailed instructions

of the work to be done: creation of the package di-

rectories, explanations of the Java classes to be used

and written. As the students progress in the subject,

the explanations are much less detailed to encourage

the students to study the ofﬁcial Java API speciﬁca-

tion and to learn by themselves. All the classes the

students are asked to develop are illustrated by UML

class diagrams in order to get them used to the se-

mantics of these diagrams and to make them practice

their translation in Java. For this ﬁrst practical part

of the course, each student works individually and is

forbidden to use an integrated development environ-

ment. The aim of pushing the students to use such a

“command line” approach is to help them understand

the various steps involved in Java programming: com-

pilation of the source code, understanding of the error

messages and correction of compile time errors, in-

terpretation of the byte code, correction of run time

errors. We prefered to go through this manual ap-

proach rather than have them rely on a IDE such as

Eclipse or NetBeans. Indeed, we believe the capacity

of these IDEs to “automagically” correct compile er-

rors by adding missing import statements, methods or

constructors should only be used once the program-

mer has a ﬁrst idea of how these errors should be cor-

rected errors manually.

2.3 Practical Project Sessions

(20 Hours)

The last 5 weeks of the course is dedicated to the de-

velopment of a practical project. Weekly 4 hour ses-

sions are scheduled for this activity. The aim of the

practical project is to give the students an occasion

to broaden their knowledge on the Java programming

language through the development of an application

of their own. For this project, the students have the

choice between developing a totally new application

of their choice or of providing evolutions to the ap-

plication they developed over the previous 5 weeks

during the practical lab sessions. To give the students

a ﬁrst taste of team programming this work is done in

pairs and the students can use programming environ-

ments to support their developments.

This article concentrates on the practical lab ses-

sions presented in Section 2.2. More speciﬁcally it

presents an online tool suite that was developed for

this part of the course to help the students verify their

work and hand it in at the end of each session. The

tool suite is also for the teachers to detect blatant cases

of plagiarism, to follow the progression of their stu-

dents and to serve as a ﬁrst pass for marking the work

done.

3 THE TEST AND ASSESSMENT

TOOL SUITE

The tool suite discussed in this section is a set of 3

online software tools made available to the students

and teachers through the course’s page on the school’s

Moodle e-campus. During the practical lab work, the

students are asked to use two of them for: 1) checking

whether their work conforms to what is asked for in

the subject and 2) packaging their work so that it can

be handed in for marking through the course’s page

on the e-campus. A third tool is the teacher’s coun-

terpart for this software and serves for plagiarism de-

tection and as an aid for assessment. This section will

present these two sides of our tool suite and, in the

ﬁnal subsection, describe the technologies that were

used for its implementation.

3.1 Student Side of the Tool

3.1.1 The Test Centre

The aim of the practical sessions is for the students

to develop a graphical editor giving a user the capa-

bility to draw various shapes (rectangles, squares, el-

lipses, circles, lines, ...) using the mouse. The ap-

plication implements the Model-View-Controller pat-

tern and the graphic editor obtained should ressemble

the typical applications delivered with most operat-

ing systems. To guide their work, the students are

given a subject in which all the details are given con-

cerning what is expected from them. These details

include the names of the different packages that are

expected, the exact names of the public classes and

methods that are asked for and, of course, the spec-

iﬁcations of the methods to write. For instance, the

wording of the ﬁrst question, given in Figure 1, gives

CSEDU 2011 - 3rd International Conference on Computer Supported Education

3.1.1) Create the directories beanartist,

beanartist/model, beanartist/view and

beanartist/controller in which the Java classes

of the packages beanartist, beanartist.model,

beanartist.view and beanartist.controller will

be stored.

Figure 1: First question of the subject.

3.1.2) Deﬁne the classes:

1. beanartist.model.Rectangle, subclass of

java.awt.geom.Rectangle2D.Double

2. beanartist.model.Ellipse, subclass of

java.awt.geom.Ellipse2D.Double. as they

are represented in the class diagram in the

following ﬁgure.

beanartist.model

java.awt.geom

Rectangle

#DEFAULT_WIDTH: double

#DEFAULT_HEIGHT: double

#DEFAULT_X: double

#DEFAULT_Y: double

+Rectangle()

+Rectangle(x:double,y:double,width:double,height:double)

+Rectangle(pos:java.awt.geom.Point2D.Double,width:double,

height:double)

+toString(): String

+moveShapeTo(x:double,y:double): void

+getLineColour(): java.awt.Color

+setLineColour(colour:java.awt.Color): void

Rectangle2D.Double

Ellipse

#DEFAULT_WIDTH: double

#DEFAULT_HEIGHT: double

#DEFAULT_X: double

#DEFAULT_Y: double

+Ellipse()

+Ellipse(x:double,y:double,width:double,height:double)

+Ellipse(pos:java.awt.geom.Point2D.Double,width:double,

height:double)

+toString(): String

+moveShapeTo(x:double,y:double): void

+getLineColour(): java.awt.Color

+setLineColour(colour:java.awtColor): void

Ellipse2D.Double

Square

+Square()

+Square(x:double,y:double,size:double)

+Square(pos:java.awt.geom.Point2D.Double,

size:double)

Circle

+Circle()

+Circle(x:double,y:double,size:double)

+Circle(pos:java.awt.geom.Point2D.Double,

size:double)

The default constructors (with no arguments) should

create shapes (Rectangle or Ellipse) whose

width (respectively height) is given by the value

of the protected class constant DEFAULT WIDTH

(respectively DEFAULT HEIGHT). A default shape

should be placed at point (DEFAULT X, DEFAULT Y)

where DEFAULT X and DEFAULT Y are, also, class

constants. The toString() method of these two

classes will be written in the next question.

Figure 2: Asking for classes.

no freedom concerning the names of the packages to

be used for the application.

The same level of detail is given when the stu-

dents are asked to write a class. For example, Fig-

ure 2 shows the explanations given to help the student

write the ﬁrst two classes, Rectangle and Ellipse.

Together with these details, the subject also give ex-

planations concerning the software architecture im-

plemented and on the API classes to be used.

It is expected that the students respect all the de-

tails (class/method/attribute visibilities, names, im-

plementation of public methods and constructors) in

their code. However, they are totally free to write

all the private methods they wish to support their im-

plementation. Furthermore, all the functionalities de-

scribed in the subject are mandatory and should be

respected.

The subject is subdivided in three distinct sections

each corresponding to one of the facets of the MVC

approach - i.e.; the model section, the view section

and the controller section.

The ﬁrst tool in our suite, the “Test Centre”, comes

in handy after the completion of each of the subject’s

questions. The students are then asked to submit the

code they have written to the “Test Centre” to check

that what they have written conforms to what is ex-

pected. The tool is written in Java and can be executed

directly, using the Java Web Start technology, from

the course’s Moodle page on the school’s e-campus.

When run, the tool asks the student to point to the

directory that hosts the project’s top package. The

student is then invited to choose, in a list, the last

question that was completed and to run the tests (in

Figure 3 the user has just completed question 3.1.2

in the model section of the subject). When the tests

are executed, the student’s code is tested and its ad-

equacy with what is expected is veriﬁed. If the sub-

mitted work contains errors and does not verify the

speciﬁed functionnalities or if it does not contain the

required methods, attributes or constants, the user is

informed that some tests have failed.

Figure 3: Choosing the last question handled by the student.

The user can then ask to see the details of the fail-

ure in order to be guided for its correction.

In the example in Figure 4 the user is informed

that two tests have failed for question 3.1.2 (those

dedicated to the static structure of classes Rectangle

and Ellipse - we will see later in Section 3.3

that these tests are referred to as “existence tests”).

The student is also informed that the classes sub-

mitted for testing have the required functionalities

and have passed this category of tests. The student

can, on demand, have a detailed report on the fail-

ICT ENHANCED LEARNING EXPERIENCE FOR AN INTRODUCTORY OBJECT ORIENTED PROGRAMMING

COURSE - A Case Study

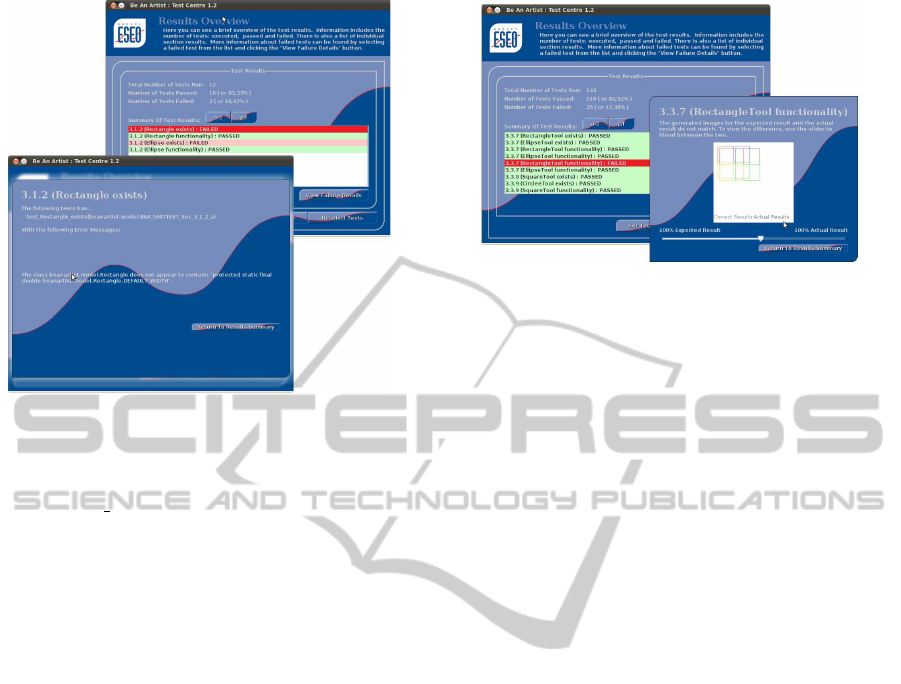

Figure 4: Overview and detailed view of the test results.

ure. In the example in Figure 4 the problem comes

from the inexistence of the protected class con-

stant DEFAULT WIDTH in class Rectangle; The stu-

dent should thus correct this oversight before going

any further in the subject and should only move on to

the next question in the subject once question 3.1.2

has been totally corrected.

The students are invited to follow such a test

driven iterative approach throughout the whole sub-

ject and, as explained above, they should run the “Test

Centre” to check their answers to each question of

the subject. In the examples presented previously, the

“Test Centre” is only used to verify very simple char-

acteristics of a class, constructor or method. However,

this type of test is possible for all types of function-

ality, and the “Test Centre” can verify graphic func-

tionalities, response of the application to user events

or other more complex speciﬁcation details. In the

case of a failure in a graphic functionality, the “Test

Centre” shows the result obtained by the application

under test and the expected result, in order to help

the student correct the problem. Figure 5 shows the

details given by the “Test Centre” in case of such a

graphic failure. In this view, both the expected result

and the actual result are shown to the student. Us-

ing the slider, the student can switch between the two

views to try to determine what is wrong with the pro-

gram’s result.

At the end of each session, the students should up-

load the current state of their application on the Moo-

dle e-campus. For this, and to ease the assessment

process, they are required to use the second tool on

the student side of the suite: the “Jar Creation Cen-

tre”.

Figure 5: Feedback given on failure of graphic functionnal-

ities.

3.1.2 The Jar Creation Centre

The “Jar Creation Centre” is the second tool for the

students. Its main aim is to take care of the pack-

aging of a student’s work before it can be uploaded

for evaluation on the e-campus. Just like it is the case

with the “Test Centre”, when the students submit their

work to this tool, they should: 1) point to the direc-

tory containing the root package of their application

and 2) select the item in the subject that was last com-

pleted. Once given this information, the “Jar Creation

Centre” starts by testing the submitted classes using

the “Test Centre” tool. After achieving this pass, the

“Jar Creation Centre” knows: the number of steps

achieved by the student, and for each of the subject’s

sections (model, view and controller): the total num-

ber of tests gone through by the submitted program

and the number of tests that failed. Once this has

been done, the student’s source ﬁles are added to the

archive and, ﬁnally, the information resulting from the

tests is included in the archive’s manifest.

Before exiting, the “Jar Creation Centre” informs

the student of the name of the archive and of where it

was stored on the local machine and copies this path

in the clipboard. The student then, just needs to up-

load it to the Moodle e-campus.

3.2 Teacher Side of the Tool

Once it has been uploaded on the course’s space on

the e-campus, the students’ works can be graded and

checked for plagiarism. To help the teacher in this

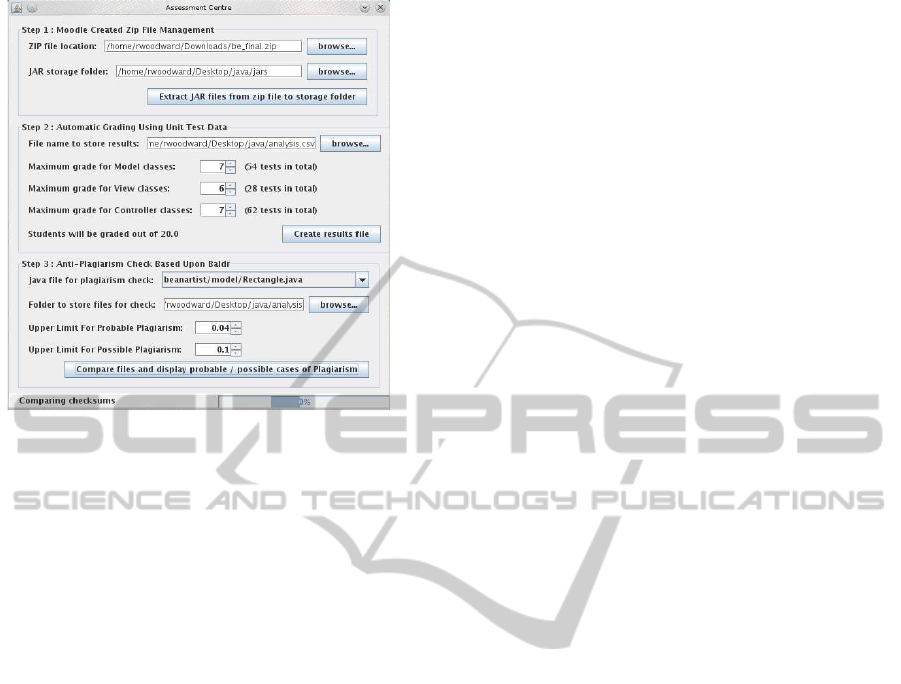

task a third tool was developed: the “Assessment Cen-

tre”. This tool takes a bundle (we chose to use a zip

archive because of their easy creation and retrieval

through the Moodle platform) of all the java archives

handed in by the students as input and processes them

in order to calculate an individual grade for each of

the student’s work and check whether there are no bla-

CSEDU 2011 - 3rd International Conference on Computer Supported Education

Figure 6: Using the “Assessment Center”.

tant cases of plagiarism between the students.

3.2.1 Conﬁguration of Storage Spaces

Figure 6 shows a screenshot of the “Assessment Cen-

tre”. In a ﬁrst step the teacher is asked to point to

the zip archive ﬁle containing all the work that was

handed in by the students and to give the directory

in which the system should extract all the jar ﬁles it

contains. Once this information has been given to the

system, the teacher can ask for the extraction of the

ﬁles in the storage directory and move on to the sec-

ond step of the “Assessment Centre” devoted to the

marking of the work.

3.2.2 Assessment

Before proceeding to the actual assessment of each

student’s program, the teacher should choose the

number of points that should be assigned to each of

the sections of the subject. In the example in Fig-

ure 6, 7 points are assigned to the Model part of the

subject, 6 points to View part and another 7 points are

for the Controller classes of the application. For this

second step, the teacher should also indicate the name

of the ﬁle in which the “Assessment Centre” should

store the detailed assessments for each student work;

in our case ﬁle analysis.csv.

The assessment phase is rather simple, since it

only uses the information added by the “Jar Creation

Centre” in the Java archive’s Manifest ﬁle. As stated

in Section 3.1.2, the Manifest ﬁle contains informa-

tion regarding the proportion of passed tests per sec-

tion. This information, together with the points as-

signed per section are sufﬁcient to calculate a grade

per section and thus a total grade for the work. In

this ﬁrst version, the calculation of the grade is some-

what basic, giving a grade that is directly proportional

to the number of successful tests. In future versions

of the “Test and Assessment Tool Suite”, rather than

assigning points to entire sections of the subject, we

have planned to let the teacher dispatch the points

with more precision on a per item basis.

The result provided by the “Test Centre”, takes the

form of a CSV ﬁle giving the grade obtained by each

student, the details of its calculation, the number of

ﬁles in the bundle handed in by each student and the

size of the bundle. For example, table 1 shows the

ﬁrst 10 lines of the “Assessment Centre’s” result ﬁle.

Each line reports the score (with a maximum of 20)

obtained by the student whose userid on the schools

network is given in the ﬁrst column. The details con-

cerning this global evaluation are given in the follow-

ing columns. For instance, columns 3, 4 and 5 give

the number of tests passed in the model (out of a total

of 54 tests), view (out of a total of 28 tests) and con-

troller (out of a total of 62 tests) sections of the subject

by the student. The last column is an indication of the

last item of the subject completed by the student. This

last information is used when the sudying the progres-

sion of a student’s work over the 5 weeks of the lab

work.

3.2.3 Plagiarism Detection

Finally the third step, is used to conﬁgure the plagia-

rism detection phase. The teacher should ﬁrst give

the name of the ﬁle to be checked (Rectangle.java

in our example), the working directory in which the

system should store the ﬁles (or classes) it checks and

two threshold values (between 0 and 1) indicating the

upper limits between “no plagiarism”, “probable pla-

giarism” and “possible plagiarism”; all pairs of ﬁles,

of the given name, are checked for plagiarism. We

will discuss in Section 3.3 the tool and the mechanism

used for this veriﬁcation.

3.3 Implementation

The implementation of the various applications in the

“Test and Assessment Tool Suite” is done in Java and

relies on opensource softwares and platforms for test-

ing and plagiarism detection. The deployment of the

various tools in the tool suite relies on the Java Web-

start technology; By using this technology, all the

tools can be run locally on the user’s machine and

do not stress the servers or the network. Moreover,

with this technology, we can ensure that the students

always execute the last and most up to date version of

the software. This facilitates maintenance and allows

ICT ENHANCED LEARNING EXPERIENCE FOR AN INTRODUCTORY OBJECT ORIENTED PROGRAMMING

COURSE - A Case Study

Table 1: Excerpt of an “Assessment Centre” result ﬁle.

userid score

model

tests

passed

view

tests

passed

controller

tests

passed

last

section

com-

pleted

beulepi 20.0 54 28 62 3.3.14

beaubeju 18.0 54 28 44 3.3.9

nogueral 11.7 54 22 0 3.2.4

bertinpi 13.0 54 28 0 3.3.1

diallo 13.1 54 28 1 3.3.1

razmkhre 7.0 54 0 0 3.1.10

crepinem 17.9 54 28 43 3.3.11

deberle 8.3 54 6 0 3.2.6

nivollpi 14.0 54 28 9 3.3.2

faligopa 11.5 52 22 0 3.2.4

for transparent evolutions of the “Test Centre” result-

ing from corrections or modiﬁcations of the subject.

3.3.1 Testing

The “Test Centre” relies on the Junit unit testing plat-

form. Every item of the subject is veriﬁed using a

number of Junit test cases. Each test case consists of

several assertions to check the criteria that should be

veriﬁed by the program under test. The “Test Centre”

counts a total of 151 tests and 565 assertions to test

the entire application. The test cases are subdivided

in two large categories: existences tests and function-

ality tests.

Existence tests rely on the Java reﬂection API.

They check whether the submitted classes respect the

static requirements. Existence of the required classes

is tested together with the proper declarations of their

public and protected members (constants, vari-

ables and methods).

Functionality tests fall in two subcategories: In-

put/output testing and graphical interface tests. In-

put/output tests are the simplests of these tests to im-

plement. They check that the results returned by the

tested methods are indeed what they should be when

they are given certain speciﬁc parameters. This cate-

gory of tests is also responsible for verifying that all

the required side effects expected by the execution of

a method occur.

The graphical interface tests are in charge of ver-

ifying the correct response of the application to spe-

ciﬁc user interactions. They are implemented in com-

paring the image obtained by the application under

test when events are artiﬁcially ﬁred and feeded to the

event loop with the expected image drawn directly in

a graphic context.

3.3.2 Plagiarism Detection

For the plagiarism detection step, the “Assessment

Centre” relies on Baldr, an opensource tool

that uses

measures of similarity distance between source code

to detect plagiarism amongst a, potentially, large col-

lection of source code. The Baldr software is written

in Java, it was thus naturally interfaced with the “As-

sessment Center” and its functionalities were quite

simply integrated in the tool.

In this version of the Assessment Centre”, the

teacher must choose which class needs to be checked

for plagiarism. For the chosen class, the system then

checks all of the students versions of this class for pla-

giarism, using Baldr.

For some parts of the subject, the classes and

methods requested are short and simple and false pos-

itives could be detected if solely the code were to be

tested. For those questions, it is the commented code

that should be submitted to plagiarism detection. If

the code is similar and the comments are also simi-

lar then there is suspicion of plagiarism. Other ques-

tions demand more sophisticated answers for which

the resulting code differs quite signiﬁcantly from one

student to another. For these questions and to prevent

students from just modifying the comments in plagia-

rised code it is the uncommented code that should be

checked for plagiarism. In order to allow for these

two types of comparisons, two versions of the code

are submitted to plagiarism detection: one complete

version including the comments and another version

from which all the comments have been removed by

the “Assessment Centre”. This can help the teacher

Baldr was developped by H. Wassner and can be down-

loaded from http://sourceforge.net/projects/baldr/ .

CSEDU 2011 - 3rd International Conference on Computer Supported Education

when trying to determine cases of plagiarism before

visually verifying the suspected programs.

4 DISCUSSION

The “Test and Assessment Tool Suite” was experi-

mented with 180 students dispatched in 3 groups of

60 students. Each of the groups were supervised by

three teachers. Discussions with the students regard-

ing the use of this tool showed that, on the whole, they

appreciated the tool and considered it of great help

when programming. One of the most cited reason

for such positive evaluation was the capacity for the

students to obtain an immediate feedback concerning

each step of their work. Such feedback gives them a

better understanding of the subject, both concerning

the translation of UML class diagrams to Java classes

and regarding the MVC architecture of the applica-

tion. It was also noted that both novice programmers

and students with prior experience in Java beneﬁtted

from the “Test Centre”. Novice students were mostly

guided by the tool’s functionality tests, when students

with more experience relied on it to get hints on the ar-

chitectural aspect of the application. This immediate

feedback also helps those students who wish to work

on their programs outside the timetabled practical ses-

sions in verifying, as they progress in the subject, the

adequacy of their work and its compliance with what

is expected.

Another positive point of the “Test Centre” lies in

its incremental testing policy. Since all the function-

alities are tested incrementally, there is little possibil-

ity that errors in the ﬁrst steps of the subject inﬂuence

further steps. This is of course helpful for the students

and helps them in writing software incrementally and

allows them to rely on existing and tested pieces of

software. It is also of great help for the supervisors

who, usually, do not have to go back to very early

stages of the subject to help a student ﬁnd a problem

in the code.

On the supervisor’s side, the “Assessment Centre”

makes it easy to obtain an immediate view of the pro-

gression of the whole class on a weekly basis, thus

helping the supervisors to target their interventions

for the following week.

Concerning the plagiarism detection capacity of

the “Assessment Centre”, the students were informed

of its use and of the tool that was used. By commu-

nicating widely on the use of such a tool, we noticed

that the students tended to help each other through

explanations rather than by using a much less peda-

gogical copy/paste solution.

The use of the tool suite also has certain draw-

backs compared to a more traditional approach in

which the students need to write the code to test their

programs. For instance, we noticed that some stu-

dents tended to not test their programs at all before

submitting it to the “Test Center”. It was not rare

to see students that had never executed their program

prior to submitting it to the “Test Centre” and, some

of the code submitted to the “Test Centre” looped in-

deﬁnitely or raised exceptions during execution. The

ﬁrst of these problems was simply solved by using

the timeout functionality inherent to Junit. However,

with the latter, the “Test Centre” was quite confused

and returned unexpected messages sometimes not re-

lated to the cause of the error. Similar problems arose

when a class did not compile or had not been com-

piled; the “Test Centre” did not detect the existence

of the source code and simply reported the fact that a

class was missing. These problems were only due to

an incomplete study of user behaviour. Innocently,

we thought that the students would follow a tradi-

tional code-compile-test approach before submitting

their work for veriﬁcation to the “Test Centre”. We

had not thought about them adopting a less traditional

code-compile-”Test Centre” approach or even less a

code-”Test Centre” cycle forgetting the compilation

step altogether.

Another problem we faced with the tool suite con-

cerned the fact that it was speciﬁcally tailored for the

subject. For this reason, modiﬁcations or corrections

in the subject were sometimes difﬁcult to integrate in

the “Test Centre”.

On the whole however, we feel this ﬁrst experi-

ence with the tool suite was very positive and def-

initely helped the students in their productivity. As

an example, a very similar subject was given, for the

same course, the previous year but was not supported

by such tools. This year, we noticed that, after 5

weeks, more students had managed to complete the

entire application than the previous year. Some of

them even managed to go through the entire subject

after as little as 3 weeks. Is this due to the use of

these tools or to more competent students? This has

not been measured and is thus not clear. However, af-

ter discussions with the students the impact of these

tools on the work done is undoubtedly positive.

5 CONCLUSIONS AND FUTURE

WORKS

In this paper we have presented our experience of an

ICT enhanced approach used for the practical aspects

of an object oriented programming course in Java. We

have described the different elements of a tool suite

ICT ENHANCED LEARNING EXPERIENCE FOR AN INTRODUCTORY OBJECT ORIENTED PROGRAMMING

COURSE - A Case Study

that helped both, the students and the teachers in their

work. The ﬁrst tool of the suite, the “Test Centre”,

helps the students in verifying, through a unit test

driven approach, that their work respects the subject’s

requirements. With the second tool of the suite, the

“Jar Creation Centre”, they can package their work,

together with information concerning it, in a format

that can easily be managed by the last tool in the

suite: the “Assessment Tool”. This last tool allows

the teachers of the course to follow each student’s

individual progression, to automatically assess their

works and to detect plagiarisms amongst the students’

works.

On the whole, the introduction of these tools in

our Java course was very much appreciated by the stu-

dents and helped them in their work. It was also of

great help for the teachers, since they could base their

assessments on the response of the student’s programs

to functional requirements stated in the subject.

Yet, we have pointed a number of limitations of

the approach and are working to overcome them. Our

ﬁrst objective is now to develop a more generic tool

that can easily be adapted (or parameterised) for a

given set of tests, a given subject, a speciﬁc assess-

ment scale and a sample solution. For this we are in-

vestigating a model driven approach in which, given

a set of models, a speciﬁc “Test and Assessment Cen-

tre” is generated from a generic speciﬁcation of the

tool suite, using an appropriate transformation (see

Figure 7).

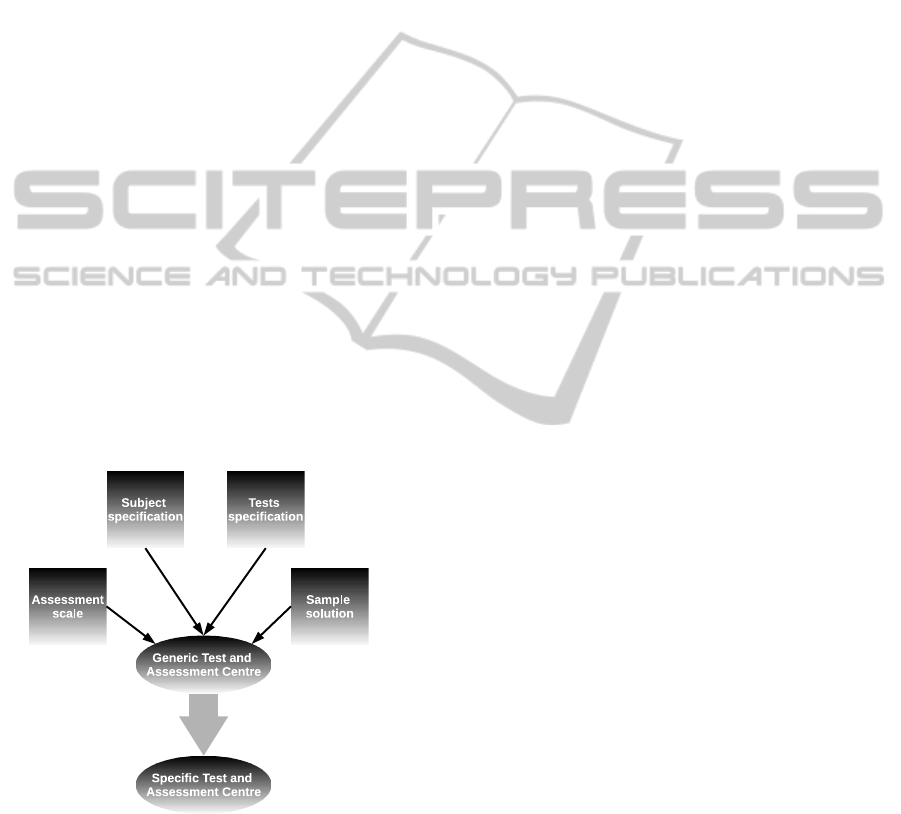

Figure 7: Generation of a speciﬁc Test and Assessment

Centre.

In order to prevent the students from submitting

code that still contains run time errors and raise ex-

ceptions, we will reﬁne the error messages returned

by the “Test Centre” and have three types of messages

those indicating that a test failed or passed and a third

message indicating that a test has failed because an

exception prevented its execution. In parallel to that,

to make it easier for the students, we are also think-

ing of merging both, the “Test Centre” and the “Jar

Creation Centre” into one single tool. With this new

approach, a Java archive is created everytime the tests

are run. We believe this will make things less confus-

ing for the students when having to decide which tool

to use. We are also planning on asking the students to

digitally sign the submitted work declaring it is their

own which will clarify matters when faced with cases

of plagiarism.

Furthermore, our exploitation of the results of the

Baldr plagiarism detection tool is very minimal, we

must ﬁnd a means for the detection to set the thresh-

olds that deﬁne probable and possible cases of pla-

giarism. These threshold will most probably have to

be speciﬁc to each class for the results to be realis-

tic, such dynamic assignment still needs to be studied.

Together with these reﬂections, we must also study

ways to intuitively display the detection results to the

teacher.

Another direction of work would be to study the

portage of our approach to other langages using the

appropriate Xunit framework as support. Such a

choice could then be included in our model driven

generation approach.

Moreover, and this is probably the most important

point, the subject of the practical assignment should

be very precise and still needs to be reﬁned.

Finally, we must study and quantify the impact of

the “Test Centre” on the students’ learning process. In

future runs of the course we are planning on setting up

intermediate tests and questionnaires as an attempt to

quantify this issue.

REFERENCES

Al-Imamy, S., Alizadeh, J., and Nour, M. A. (2006). On the

development of a programming teaching tool: The ef-

fect of teaching by templates on the learning process.

Journal of information Technology education, 5:271–

284.

Asr

un Matth

ıasd

ottir (2006). How to teach programming

languages to novice students? lecturing or not? In

Proceedings of the International Conference on Com-

puter Systems and Technologies (CompSysTech’06).

de Raadt, M., Watson, R., and Toleman, M. (2004). In-

troductory programming: what’s happening today and

will there be any students to teach tomorrow? In

ACE ’04: Proceedings of the sixth conference on Aus-

tralasian computing education, pages 277–282, Dar-

linghurst, Australia, Australia. Australian Computer

Society, Inc.

Dijkstra, E. (1989). On the cruelty of really teaching com-

CSEDU 2011 - 3rd International Conference on Computer Supported Education

puter science. Communications of the ACM, 32:1398–

1404.

Garner, S., Haden, P., and Robins, A. (2005). My program is

correct but it doesn’t run: a preliminary investigation

of novice programmers’ problems. In ACE ’05: Pro-

ceedings of the 7th Australasian conference on Com-

puting education, pages 173–180, Darlinghurst, Aus-

tralia, Australia. Australian Computer Society, Inc.

Gerdes, A., Jeuring, J. T., and Heeren, B. J. (2010). Using

strategies for assessment of programming exercises.

In Proceedings of the 41st ACM technical symposium

on Computer science education, SIGCSE 10, pages

441445, New York, NY, USA. ACM.

olling, M. (1999). The problem of teaching object-

oriented programming. Journal of Object-Oriented

Programming, 11(8):8–15.

Lahtinen, E., Ala-Mutka, K., and J

arvinen, H.-M. (2005).

A study of the difﬁculties of novice programmers.

SIGCSE Bulletin, 37(3):14–18.

Mannila, L. and de Raadt, M. (2006). An objective com-

parison of languages for teaching introductory pro-

gramming. In Baltic Sea ’06: Proceedings of the

6th Baltic Sea conference on Computing education re-

search, pages 32–37, New York, NY, USA. ACM.

Milne, I. and Rowe, G. (2002). Difﬁculties in learning and

teaching programming - views of students and tutors.

Education and Information Technologies, 7(1):55–66.

Mutka, K. A. (2005). A survey of automated assessment

approaches for programming assignments. Computer

science education, vol. 15:83–102.

Pears, A., Seidman, S., Malmi, L., Mannila, L., Adams, E.,

Bennedsen, J., Devlin, M., and Paterson, J. (2007).

A survey of literature on the teaching of introductory

programming. In ITiCSE-WGR ’07: Working group

reports on ITiCSE on Innovation and technology in

computer science education, volume 39, pages 204–

223, New York, NY, USA. ACM.

Robins, A., Rountree, J., and Rountree, N. (2003). Learning

and teaching programming: A review and discussion.

Computer Science Education, 13:137–172.

Winslow, L. E. (1996). Programming pedagogy—a psycho-

logical overview. SIGCSE Bull., 28(3):17–22.

ICT ENHANCED LEARNING EXPERIENCE FOR AN INTRODUCTORY OBJECT ORIENTED PROGRAMMING

COURSE - A Case Study
