FACE DETECTION ALGORITHM USING EMD

Application to Biometric Recognition System

Jordi Solé-Casals

Digital Technologies Group, University of Vic, Vic, Spain

Carlos M. Travieso-González, Marcos del Pozo and Jesús B. Alonso

Signals and Communications Department, Institute for Technological Development and Innovation

on Communications (IDETIC), University of Las Palmas de Gran Canaria, Las Palmas de GC., Spain

Keywords: Face detection, Empirical Mode Decomposition (EMD), Biometrics.

Abstract: In this work we present a new face detection algorithm for biometric recognition systems, based on

Empirical Mode Decomposition (EMD) that helps us to detect the central skin part of the face. After a

binarization and dilatation process, we get an approximation of the face location that is finally established

by adjusting an ellipse. Finally, a mask is created using the perimeter of this ellipse and applied to the

original image, giving as a result the detected face. Experiments show the performance of the method, with

a recognition rate of 97.60%.

1 INTRODUCTION

Face detector is an important step towards biometric

face recognition. If we have a person in an image

and we want to recognise it, the first step is to detect

the face in order to apply then a biometric system.

Of course, the most interesting possibility is to do it

automatically, without any manual step. This can be

a requirement in real time systems, or when we have

an important amount of pictures to analyze.

Different work has been done in this area. Some

references are showed in the next paragraphs.

In (Yongqiu et al., 2010) a combination of three

classifiers is used: skin color detector, AdaBoost

detector based on haar-Iike features, and eye-mouth

detector. A semi-serial architecture is designed to

combine the three detectors. They selected 103

pieces of color images including faces, and 100

pieces of color images of background from their

own database. Success rate was 85.5%.

The (Qiang-rong and Hua-lan, 2010) paper

proposes a novel face detection algorithms based on

combining skin color model, edge information and

features of human eyes in color image The size of

the database was 544 samples, reaching a

recognition rate up to 94.9%.

In (Venkatesh and Marcel, 2010) authors use an

additional classifier that predicts the bounding box

of a face within a local search area. Then a face/non-

face classifier is used to verify the presence or

absence of a face. The database is mixed from

CMU+MIT and Fleuret face databases, with a total

amount of 375 images. Authors have improved

between 15-30% in detection rate or speed when

compared to the standard scanning technique.

On the other hand in (You-jia and Jian-wei,

2010) authors propose a rotation invariant multi-

view color face detection method combining skin

color segmentation and multi-view AdaBoost

algorithm. The database is composed by 153 internet

images. Authors reached, with a simple background,

98.04% of recognition rate; and a smaller value of

82.35% with complex background.

In (Zhao et al., 2010) authors present a

combination of Contrast-limited Adaptive

Histogram Equalization (CLAHE) and multi-step

integral projection. The JAFFE database was used

and they obtained a recognition rate of 95.318%.

(Yihu et al., 2010) have designed a novel scheme

integrating skin color segmentation and facial

component localization to detect face. They have

used 214 PC camera images, and reached a 95.8% of

detection rate, and for 218 Web images, a 93.5% of

565

Solé-Casals J., Travieso-González C., del Pozo M. and Alonso J..

FACE DETECTION ALGORITHM USING EMD - Application to Biometric Recognition System.

DOI: 10.5220/0003297305650569

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (MPBS-2011), pages 565-569

ISBN: 978-989-8425-35-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

detection rate.

In (Zhang and Shi, 2008) authors introduce a

new nonlinear transformation method of the YCbCr

color skin space, which is the color segmentation of

the human face for regional analysis and extraction.

They implemented image rotation and template

matching. The database is composed by 400 images.

The success rate for Face Average Brightness was

92%.

Face detection method for the color image with

complex background is presented in (Xue-wu et al.,

2009), which is a mixed skin-color segmentation

model in both YCbCr and HIS color space

constructed. Authors used 95 pictures with different

brightness for testing. Result shows a success

detecting rate over 91.7%.

In our work, the proposed algorithm can be

summarized by the following block diagram (see

Figure 1):

On each image

()

tx we apply Empirical Mode

Decomposition (EMD) algorithm in order to

decompose the image to its Intrinsic Mode Functions

(IMFs). First 50% of the modes are combined

together in order to generate a new image

(

)

ty that

contains basically the different regions present into

the original image.

Afterwards, we apply a binarization process

followed by a dilatation, in order to emphasize the

central part of the skin of the face against all the

other parts of the image. The result is image

(

)

tz .

Finally, we detect the region of interest (ROI)

and we fit to it an ellipse in order to obtain face’s

borders (image

()

tw ) and generate a mask that

indicates which pixels belongs to the face (with

value equals to 1) and which not (with value equals

to 0).

The output image

(

)

ts is then generated by

applying this mask to the original image.

This paper is organized as follows: After this

introduction, EMD technique is presented in Section

2 with details on how to use it in our case; Section 3

is devoted to the image processing step, whereas

ROI procedure and boundary calculations are

explained in Section 4. Experiments and results are

shown in Section 5; and finally conclusions are

presented in Section 6.

2 EMPIRICAL MODE

DECOMPOSITION

The first block of the proposed method (see Figure

1) consists in applying the Empirical Mode

Decomposition (EMD) technique to the input


(

)

tx .

EMD is a relatively new data analysis method

that decomposes the signal into waveforms

modulated in both amplitude and frequency by

extracting all of the oscillatory modes embedded in

the signal.

EMD


Processing

ROI

detection

BBDD

(

)

y(t)

z(t)

w(t)

s(t)

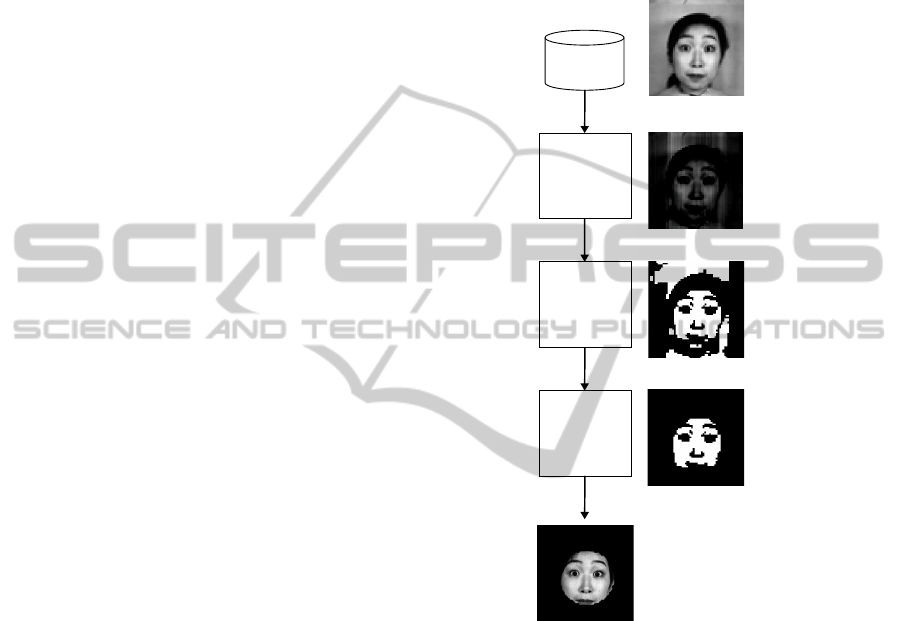

Figure 1: Block diagram of the proposed method.

2.1 Obtaining Intrinsic Mode

Functions

As explained in (N. Huang, et al., 1998), the

decomposition can be viewed as an expansion of the

data in terms of the so called Intrinsic Mode

Functions (IMF’s) that are the waveforms extracted

by EMD. Each IMF is symmetric and it is assumed

to yield a meaningful local frequency traces.

Different IMF’s do not exhibit the same frequency at

the same time. Then, these IMF’s, based on and

derived from the data, can serve as the basis of that

expansion which can be linear or nonlinear as

dictated by the data, and it is complete and almost

orthogonal.

The decomposition is an intuitive and adaptive

signal-dependent decomposition and does not

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

566

require any conditions about the stationarity and

linearity of the signal.

IMF in each cycle is defined by the zero

crossings. Every IMF involves only one mode of

oscillation, no complex riding waves are thus

allowed. Notice that the IMF is not limited to be a

narrow band signal, as it would be in traditional

Fourier or wavelets decomposition. In fact, it can be

both amplitude and frequency modulated at once,

and also non-stationary or non-linear.

The process of IMF extraction, from a signal

()

tx , known as sifting process (N. Huang, et al.,

1998)

, is based on the following steps:

1. Determine the local maxima and minima of the

analyzed signal

()

tx .

2. Generate the upper and lower signal envelopes

by connecting those local maxima and minima

respectively by the chosen interpolation method

(e.g., linear, spline, cubic spline, piece-wise

spline).

3. Determine the local mean

()

tm by averaging

the upper and lower signal envelopes.

4. Subtract the local mean from the data:

() () ()

tmtxth

−= .

5. Test if

()

is an IMF.

• If yes, stop the procedure. The first IMF

labelled as

()

is already obtained.

• If not, replace

(

)

tx with

()

and repeat

the procedure from step 1.

In order to obtain the second IMF, one applies

the sifting process to the residue

()

(

)

(

)

tctxtr

−= ,

obtained by subtracting the first IMF from

(

)

tx ; the

third IMF is in turn extracted from the residue

() () ()

tctrtr

212

−= and so on.

One stops extracting IMF’s when two

consecutive sifting results are close to identical.

Then, the empirical mode decomposition of the

signal

()

tx may be written as:

()

∑

rctx

(1)

Thus, we obtain a decomposition of the data into

n-empirical modes, and a residue,

r , which can be

either the mean trend or a constant.

2.2 Applying EMD Procedure

Decomposing the input image

()

tx whit EMD

procedure explained before will result in a

decomposition of the signal in a set of IMF’s plus a

residue, as shown in equation 1.

As the first modes capture high frequencies of

the signal, we will generate a new signal

()

ty (pre-

processed image) by taking into account only the

first 50% of the modes. This pre-processed image is

obtained by adding the considered mode:

()

∑

cty

(2)

3 IMAGE PROCESSING

The image processing block uses classical image

processing techniques that are necessary in order to

facilitate the detection of the Region Of Interest

(ROI) that will be detailed in the next section.

Using the image

(

)

ty obtained from EMD step,

we apply a binarization procedure in order to have

only two different values for the pixels.

Homogenous region of the face will basically be in

white color, while most of the rest of the image will

be in black color. Edges are easily detected after

binarization, as for example those due to eyes, nose,

mouth, hair, etc.

In order to group the possible unconnected

regions of the face, and taking into account that our

goal is to detect the position of the face into the

image, we apply a dilatation process with a rectangle

of size 1x2 as structural element. This step is very

useful as very often eyes, nose and mouth breaks the

face into different unconnected regions. The output

signal of this step will be black and white image

(

)

tz (see figure 1).

4 ROI DETECTION

The goal of this last block is to determine which part

of the image is the face and which part is not.

In order to implement the ROI detector, we label

all the connected regions of the image

()

tz and we

analyze the different obtained regions:

The biggest region is due to the background part

of the image, as in all the images the face is always

smaller than the rest of the pixels.

The second biggest region is habitually the

region that we are looking for, as the face (especially

due to the dilatation process) is an important part of

the image. But sometimes it may happen that the

frontal region (upper part), the neck (lower part), or

FACE DETECTION ALGORITHM USING EMD - Application to Biometric Recognition System

567

other parts of the image are larger than the region of

the face itself (central region).

In order to avoid a mistake selecting the ROI, we

propose the following procedure:

1. Sort of all the regions by the total number of

pixels that contains;

2. Select the second bigger region (the first one

is omitted as it corresponds to background);

3. Calculate the mass centre of the region;

4. If the mass centre is located near the centre

of the image, take this region as ROI and

stop the procedure;

5. If not, select the next important region and

go to point 3 until a ROI is detected.

Once we have a ROI, the next step is to fit an

ellipse that will define the portion of the image

considered as face and the rest of the image. In order

to calculate the axes and centre of the ellipse, we

obtain the coordinates of the minimum and

maximum of rows and columns of the ROI, which

will be used in order to calculate the centre and the

axes of the ellipse. Using them we get the borders of

the ellipse that fits the ROI (see

()

tw in Figure 1),

and we create a mask with the aim of extracting the

face of the image by an AND operation (pixel by

pixel) between the original image

()

tx and the

mask. The resultant image is the output of the signal,

labelled as

()

ts in Figure 1.

5 EXPERIMENTS

In order to test our algorithm we apply the proposed

method to the entire JAFFE database that contains

213 different images.

As our method is not based on any learning

paradigm, we just take (randomly) 5 images for

adjusting some few parameters of the method

(number of considered modes and threshold for

binarization process), keeping the rest of the images

(208) for testing it.

Figure 2: Up: original faces from JAFFE database. Down:

Correct face detection obtained using the proposed

method.

Figure 3: Up: original faces from JAFFE database. Down:

Bad face detection obtained using the proposed method.

Considering that the system works correctly if

eyes, nose and mouth falls into the detected face,

and works improperly if some (or all) of these

elements fall out of the ROI, we get 203 good

detections and 5 bad detections. Calculating the

quotient between good detections and total number

of available images (excluding the images used for

training process), we obtain a recognition rate of

97.60%.

In order to show different obtained results, we

present some of the correctly detected faces in figure

2, and incorrectly detected faces in figure 3.

As we can see in these figures, the method fails

sometimes and takes as face a wrong region. The

principal problem is due to the disconnected regions

that can appear after EMD. This is why this point

must be developed in more detail as is the key factor

in order to obtain good results.

On the other hand, different illumination or

background conditions may affect results. More

research must be done for these cases in order to get

a general face detector system.

We can compare our method versus the method

proposed in (Zhao et al., 2010) because in both cases

the same database (JAFFE database) is used. Our

proposal improves over 2% the detection face rate.

Therefore our method shows better proprieties

versus (Zhao et al., 2010) proposal.

6 CONCLUSIONS

The proposed method for face detection presented in

this work is based in EMD technique, and uses very

popular and simple image tools. Using EMD, the

central part of the skin on the face is easily

identified, and then a binarization and dilatation

process are applied in order to localize the face on

the image. Finally, an ellipse is fitted and a mask is

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

568

created to be used on the original image for

extracting the face.

Some of the aspects of the algorithm can be

explored in more detail. For example, the number of

considered modes (IMFs) is an important and critical

parameter. More experiments, with other databases,

must be done in order to determine the best number

of modes, in a way that this number is independent

of the image (database).

Also in this preliminary work we have not tested

other possible structural elements for the dilatation

step, but it is an interesting point to investigate in

future works, as the success of the results depends

on the capability of this step. If we can merge the

different parts of the face in a sole region, the

procedure works properly; but if the face is split in

many different parts, the systems fails and face is

not correctly detected.

On the other hand, we have not explored yet the

possibility of having more than one face in the

image, but this is another interesting point to

investigate in detail.

Finally, future work must be done in order to test

the procedure in other situations, as for example in

bad illumination conditions, dark or shadow places,

brilliant places, etc. Of course, these scenarios,

where illumination can be very different, are not

easy, but they are realistic and must be taken in

consideration for real world applications.

We are already conducting investigations

following these points, and preliminary results for

some cases are very promising.

ACKNOWLEDGEMENTS

This work has been partially supported by the

University of Vic under a mobility grant for Dr.

Jordi Solé-Casals, by “Cátedra Telefónica ULPGC

2009-10”, and by the Spanish Government under

funds from MCINN TEC2009-14123-C04-01.

REFERENCES

Huang N., Shen Z., Long S., Wu M., Shih H., Zheng Q.,

Yen N. C., Tung C., and Liu H., 1998. The empirical

mode decomposition and the Hilbert spectrum for

nonlinear and non-stationary time series analysis.

Proc. of the Royal Society A, vol. 454, no. 1971, pp.

903–995,

Qiang-rong J., Hua-lan, L., 2010. Robust human face

detection in complicated color images. The 2nd IEEE

International Conference on Information Management

and Engineering, pp.218-221

Venkatesh, B. S., Marcel, S., 2010. An alternative

scanning strategy to detect faces. IEEE International

Conference on Acoustics, Speech and Signal

Processing. pp. 2122-2125

Xue-wu, Z., Ling-yan, L., Dun-qin, D., Wei-liang, X.,

2009. A novel method of face detection based on

fusing YCbCr and HIS color space. IEEE

International Conference on Automation and

Logistics, pp.831-835

Yihu, Y., Daokui, Q., Fang, X., 2010. Face detection

method based on skin color segmentation and facial

component localization. 2nd International Asia

Conference on Informatics in Control, Automation and

Robotics, vol.1, pp.64-67

Yongqiu, T., Faling Y. Guohua, C., Shizhong, J.,

Zhanpeng H, 2010. Fast rotation invariant face

detection in color image using multi-classifier

combination method. International Conference on E-

Health Networking, Digital Ecosystems and

Technologies, pp.211-218

You-jia,F, Jian-wei, L. 2010. Rotation Invariant Multi-

View Color Face Detection Based on Skin Color and

Adaboost Algorithm. International Conference on

Biomedical Engineering and Computer Science, pp.1-

Zhang, Z., Shi, Y., 2008. Face Detection Method Based on

a New Nonlinear Transformation of Color Spaces.

Fifth International Conference on Fuzzy Systems and

Knowledge Discovery, 2008. vol.4, pp.34-38

Zhao, Y., Georganas, N. D., Petriu, E. M., 2010. Applying

Contrast-limited Adaptive Histogram Equalization and

integral projection for facial feature enhancement and

detection. Instrumentation and Measurement

Technology Conference, pp.861-866.

FACE DETECTION ALGORITHM USING EMD - Application to Biometric Recognition System

569
