TOWARDS AUTOMATIC BEHAVIOR ANALYSIS OF

LEARNERS IN A TECHNOLOGY-ENHANCED

LEARNING ENVIRONMENT

Noury Khayat, Michael Mock and Jörg Kindermann

Fraunhofer Institut IAIS, Schloß Birlinghoven, Sankt Augustin, Germany

Keywords: Agents, Analysis, Behaviour monitoring, Technology-Enhanced Learning Environment, Workflow.

Abstract: In the context of the European SCY project, a collaborative, learner-centric TEL environment is described.

Reference workflows and workflow executions are analyzed to extract meaningful behavioural attributes

automatically. The extracted patterns provide insights into learner behaviour.

1 INTRODUCTION

Technology-Enhanced Learning (TEL) Environ-

ments are systems designed to support learning and

teaching, based on the support of new emerging

technological achievements. An approach to achieve

such a TEL Environment is being done in the SCY

Project In SCY-Lab, the TEL environment produced

by the project, learners work on a given "mission",

like an experiment, a design task, etc., to reach the

intended goals in the learning process. A mission

can be any complex task or assignment with an

interdisciplinary scientific background, guided by a

general question (e.g.”How can we build a CO2-

neutral house?”, or “Development of a healthy menu

for the school canteen”). The fulfilment of a mission

requires a combination of individual and

collaborative contributions from the learners, using a

provided set of tools, services and resources.

Teachers expect specific results from learners

during and after mission execution in the form of a

text, an image, a design, a simulation model of a

physical system, etc. Those missions, represented as

workflows, are executed based on provided rules

and semantics. We call this a workflow model. Each

execution of the model is called a workflow

execution. We can summarize the building blocks of

a workflow model as follows: (1) Scenarios: Each

learning mission has one scenario object as an

encapsulated block, which represents all the tasks to

be executed, (2) Learning Activity The primitive

unit which represents the requested task to be

executed, (3) Learning Activity Space (LAS) (Ney

et al., 2009): Grouping objects, which contain other

objects on lower levels, like the learning activities.

(4) Emerging Learning Objects (ELOs): represent

the pedagogically relevant products of learner

performance during the learning process. (5) Tools:

components of the learning system used in creating,

manipulating or storing ELOs. (6) Action logs: all

interactions of the learners with the system when

executing a workflow. (7) Scaffolds: feedbacks or

hints provided to the learners.

SCY contains a high level of interactivity:

Interaction between learners is a key point in

improving their learning performance. Interaction of

learners with SCY technology is necessary to

produce the ELOs. In SCY, pedagogical agents (i.e.

autonomously active components of the learning

system) are used to analyze the interaction of the

learners with the technology. The agents send

scaffold to the learners automatically.The interaction

of the teacher with learners is necessary for

supervision. The interaction of teachers with the

SCY technology also is essential, since the teachers

have the responsibility of shaping the pedagogical

missions and monitoring the learners' executions.

Along those interactions, the learners leave

specific traces as action logs of the executed

workflows. Valuable insight about the execution is

therefore hidden in the actions logs. Manual

inspection is not possible because of the huge

amount of data. Automatic analysis is needed to

extract informations, which reveal behavioral

aspects, the learner has shown during the execution

of the mission. The teachers and pedagogical experts

187

Khayat N., Mock M. and Kindermann J..

TOWARDS AUTOMATIC BEHAVIOR ANALYSIS OF LEARNERS IN A TECHNOLOGY-ENHANCED LEARNING ENVIRONMENT.

DOI: 10.5220/0003299301870192

In Proceedings of the 3rd International Conference on Computer Supported Education (CSEDU-2011), pages 187-192

ISBN: 978-989-8425-49-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

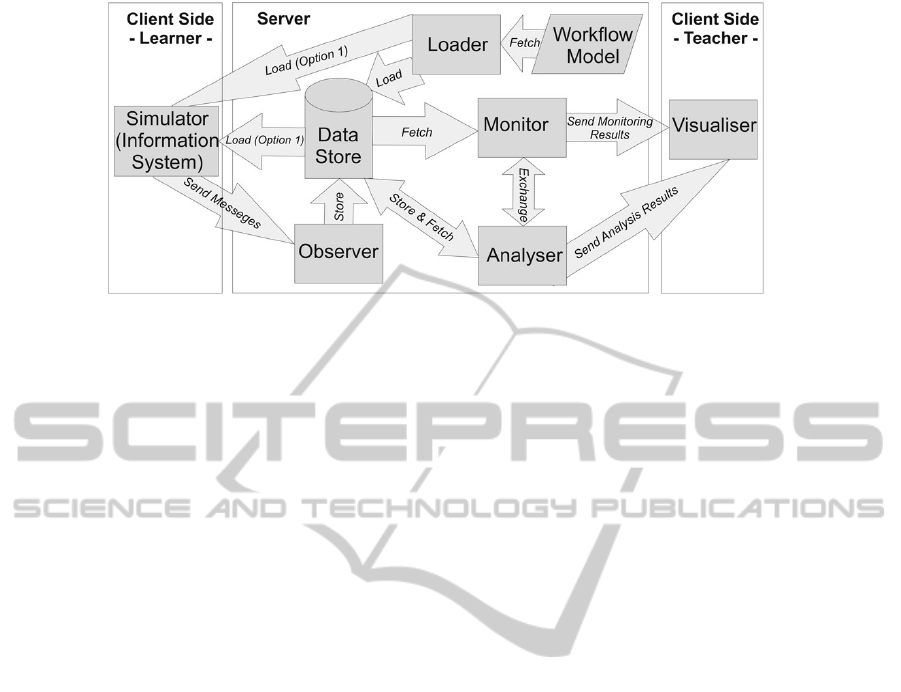

Figure 1: System architecture.

will thus be able to obtain answers to pedagogical

questions.

This paper features methods and techniques to

extract that information automatically from the

action logs. Meaningful patterns, potential outliers

and behavioral aspects are results of the extraction

process.

2 RELATED WORK

2.1 Learning Environments

The DORIS pedagogical agent for intelligent

tutoring system is an approach to follow learners’

interaction with the tutoring system, and guide them

during the learning process (dos Santos et al., 2002).

Those agents perceive related information about the

learners' interaction with the system, and make an

appropriate response based on that information.

DORIS agents take into consideration specific

perspectives during the monitoring process. Those

perspectives are restricted to starting and finishing

time of the interaction incidents between learners

and the system; pages visited by them and the

consumed duration in each of those pages.

In SCY, the learning missions are represented as

workflows, to be executed by learners in computer

systems. That allows providing a more specific plan

for the learners to follow (de Jong et al. 2010).

2.2 Behaviour Modelling

Behaviour modelling is a semantic abstraction of

some observed actions to fit a model, which caused

the generation of those actions. In (Bollen, Giemza,

Hoppe 2008) an architectural framework for

distributed collaborative learning environments with

agent support is described which features rule-based

state and action pattern analysis. (Akhras, John,

2002) discusses intelligent tutoring systems from a

constructivist perspective, which includes a domain

model, a teaching model, and a learner model,

therefore exceeding the SCY approach, which does

not include full user-modelling.

In (Zhou, Evens, 1999), manual experiments

have been done in the context of the CIRCSIM-

Tutor intelligent tutoring system, to define what a

learner model is, and how to divide the learner

model into components.

Another approach has been presented in

(Fernandez et al., 2009), where a methodology has

been developed as an alternative to discover human

behaviour patterns using automatic learning

methods. The approach reveals the execution of the

workflows which have been executed by converting

gathered sensor data to the form of a workflow.

3 SYSTEM ARCHITECTURE

An appropriate distributed client-server architecture

has been designed for the SCY system to make it

accesable from different places. The client, SCY-

Lab, is to be used by the learner or the teacher. The

back end is the SCY server which provides the

services for the learner and the teacher, and is

supports the analysis processes. Accordingly, we

have designed our system as a distributed system,

which contains three functional parts: an information

system at the client side, including a graphical user

interface (GUI) for the teacher and pedagogical

experts, and the monitoring and analysis system at

the server side.

As there was no complete running version of the

SCY system early in the project life-cycle, we had to

simulate the learner behavior and his execution of

the mission. The system is separated into several

CSEDU 2011 - 3rd International Conference on Computer Supported Education

188

modules, which communicate with each other, to

serve in monitoring a specific scenario. Figure 1

shows an overview of the modules of the system,

distributed on the appropriate architecture sides.

A standard working scenario of the system starts

at the loader, which loads the SCY workflow model

into the permanent data store as a reference, and also

into the simulator to be executed by the virtual

learners.

Once the model has been loaded into the data

store, the simulator can, but does not have to, use the

stored model directly without the need of reloading

it.. In the simulator, the simulated learners start

executing the workflow model, by using a workflow

engine, and firing meaningful events that describe

the current state of the execution. A generic observer

at the server side catches those events, filter them

based on configurable settings and stores them in a

dedicated permanent data store. This allows the

monitor and the analyzer to access execution data.

The results are directed to the visualiser.

In this way, we can easily integrate our

monitoring and analysis system into the SCY

System, relacing the simulation system by real

learners. The monitoring and analysis tools and

utilities would be represented as one service in the

main SCY server as a kind of Service Oriented

Architecture (SOA). More details about the SCY-

Lab architecture are available in (de Jong et al.

2010).

The Workflow Management Coalition (WfMC)

has defined a workflow management system

(WfMS) as "a system that defines, creates and

manages the execution of workflows". Therefore,

our system can be considered as a workflow

management system.

4 WORKFLOW ENRICHMENT

MODEL

Workflow models are provided to the system,

executed by the workflow engine in the simulator,

events are fired describing the states of the

execution, and analysis and monitoring is done on

the workflow execution. The common factor in all

those scenarios is that everything is done relatively

to the workflow model. Therefore the processing

results can be seen as extensions to the workflow

model. We call this "workflow model enrichment".

Substantially, the enrichment is done by interpreting

the outcomes of the executions relatively to the

workflow model, breaking them into smaller units,

transforming them and getting meaningful

information out of low-level data. These

functionalities are implemented in the analyzer

module. First we describe the processing of simple

events. Then, complex events as patterns of simple

events or workflow objects, are investigated. Finally,

our understanding of the processing results and

possible applications based on different

perspectives, are presented, resulting in the

"Behavior Modeling".

4.1 Simple Events Processing

Different states can be assigned to the different

workflow objects depending on their semantics

during the execution phase or afterwards. That can

happen either directly by an action of the learner or

as computation of a specific behavior issue.

States are triggered by events. The events can be

categorized by: (1) the types of workflow objects, on

which the events occurred, like: Activities, ELOs,

etc.; (2) the perspective of the access operations to

the workflow objects, like: reading, writing an

object, etc. (3) depending on the conditionality of

firing the events. There are unconditional types of

events, which will be fired independently of any

parameters, and conditional types of events, which

will be fired only if specific criteria have been met,

like a parameter value exceeding a threshold, etc.

4.2 Complex Events Processing

The cloud of simple events, makes the task more

diffcult to get a meaningful insight into the

executions of the workflows. Therefore we add a

higher level by combining various simple events to

form a complex event. Complex events can also be

organized in hierarchal structures, where a complex

event can contain other complex events. For

example, firing a complex event, related to the

whole mission, depends on the fired complex events

of the contained executable workflow objects. The

complex events are analysis units, which are used in

this work in two contexts: event patterns and

workflow patterns.

4.2.1 Event Patterns

Event patterns are sequences of simple events. An

example is an essential event pattern, which

expresses the visit concept of an executable

workflow object, and includes the simple events of

entering and leaving that object.

TOWARDS AUTOMATIC BEHAVIOR ANALYSIS OF LEARNERS IN A TECHNOLOGY-ENHANCED LEARNING

ENVIRONMENT

189

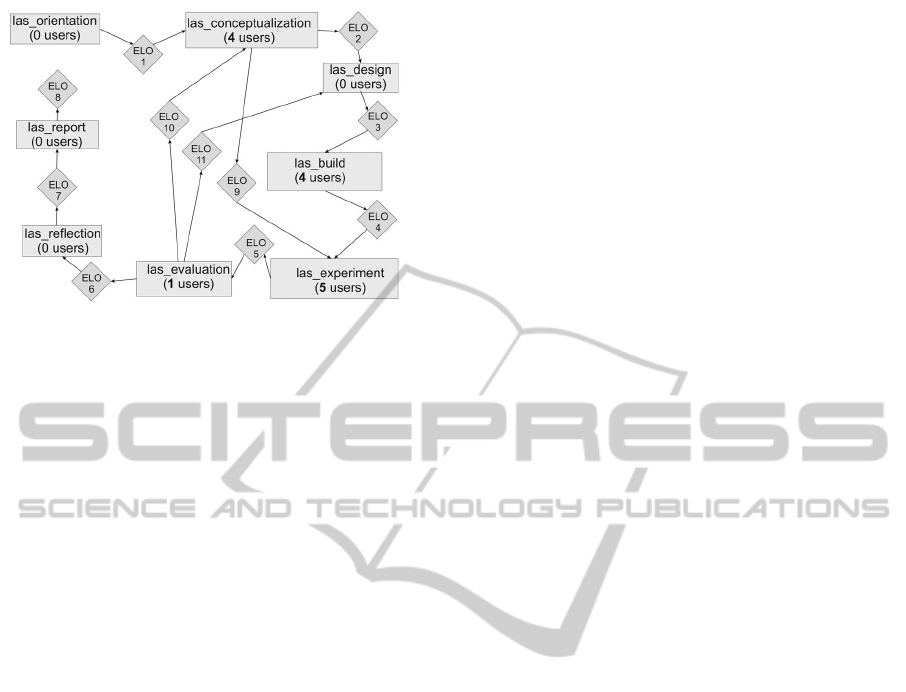

Figure 2: A sample output of the workflow visualiser.

Event patterns are also helpful in firing some

simple events, which would not be possible to detect

without their support. For example, the event of

exceeding the expected execution time for an

executable workflow object could be fired by

comparing the duration of the visit event pattern

with the reference value of the expected time of that

object.

Thus, sequences of specific event patterns could

result in producing a higher level pattern, which

reflects the structure of the executed workflow

objects. We call the higher level patterns workflow

patterns.

4.2.2 Workflow Patterns

Important approaches in the field of workflow

patterns are discussed in( Russell, et al. 2006) . For

SCY, specific workflow patterns have been

developed.

An example of workflow patterns is the loop, a

group of executable workflow objects, where the

execution is done in a sequential way, and can be

repeated. In SCY, we recognize two types of loops,

being inspired by ( Russell, et al. 2006) :

- Safe loop: This kind of loop has only one entry

and exit point. Once an iteration of a loop has

started, it is not possible to be interrupted by leaving

the loop from some exit point other than entry point.

This loop corresponds a structured loop in ( Russell,

et al. 2006) .

- Unsafe loop: This kind of loop has more than

one exit point, independently of the number of entry

points. Unlike in a safe loop, it is possible to leave

an iteration, without completing it to the same point

where it has started.

Workflow patterns cab be seen in SCY on two

levels: (1) as workflow models, where the patterns

are extracted automatically from workflow models,

and stored as references in the data store for later

use. (2) as workflow executions, where the patterns

are detected during the execution through the events,

and referred to as instances of the workflow patterns

on the workflow model level.

Loops are extracted from workflow models by

traversing the workflow, and building a tree of the

traversed workflow in a specific way, which reveals

the existence loops. It is an optimized version of the

algorithm of (Havlak, 1997), where the Havlak’s

algorithm does not remember the workflow objects

already traversed. The set of the workflow patterns

which the learner has followed to reach the goal can

be used to extract higher level behavioral aspects of

the execution.

4.2.3 Behaviour Modelling

The learner executes the workflow and creates his

own register of execution outcomes, which define

the level of quality according to constraints, rules

and hints. Modeling the behavior can be seen from

several perspectives.

(1) The time perspective: the workflow model

should contain all the information required by the

learners, including the expected time to be

consumed. It is possible to infer if the behavior of

the learner is accordant to the providedconstraints.

(2) The routing perspective is based on the paths

in the workflow, or the set of the workflow patterns,

which the learner has followed to reach the goal.

The workflow model should be provided with a

specified optimal path, which could be considered as

a reference for the learners.

Now we present the process of extracting the

attributes which represent the behavior of the

learner, the behavioral attributes. Our approach

depends on statistical computations of the

accumulated information and analysis results of the

workflow execution. From the time perspective, we

define two new concepts, the “time out” and “time

rest”, as follows:

(1) Time Out is the time the learner has

consumed in an executable workflow object, after

exceeding the expected consumption time. It is

always accompanied with an “exceeding time”

event.

(2) Time Rest is the time which the learner is still

allowed to consume in an executable workflow

object, at the moment of finishing that object. It is

always accompanied with a “finishing in time”

event.

Those concepts are applied to both the single

visits and all the visits; and the statistical

CSEDU 2011 - 3rd International Conference on Computer Supported Education

190

computations are calculated on both concepts

separately.

From the routing perspective, we depend on

aggregation meausrements of the executed workflow

objects, relations and patterns. The calculation those

routing measurements is based on two secondary

perspectives:

(1) Correctness is considered as a precision-

oriented concept. We distinguish between executed

workflow patterns which have been executed

according to the systematic or optimal behavior and

others. The former are consided to have a feature of

"correctness". Note that we assume “optimal”

workflow executions to be denoted explicitly by the

pedagogical expert when designing the SCY

learning workflow.

(2) Counting occurences of patterns: We

differentiate between the fact whether a specific

workflow pattern has been executed and the number

of executions. The former is called a “class”, the

latter an “instance” (in analogy to object-oriented

modeling). For example, the aggregation of a

specific workflow pattern which has been executed

N times, would generate the value 1 for the "class"

measure and the value N for the "instance" measure.

The extracted behavior attributes are abstracted into

concrete behavioral concepts:

- Correctness is an outcome of the behavior

modeling, which is obtained from the routing

behavioral attributes as seen from the

"correctness" perspective. It specifies how the

execution corresponds to an optimal behavior.

The different attributes of the correctness vector

have different meanings depending on the

patterns contributing to the attribute: loops,

sequences, etc.

- Repeatness is obtained from the routing

behavioral attributes as seen from the

"abstraction" perspective. It specifies how the

workflow objects are repeated in an execution.

- The time-related measure represents the

temporal behavior of the execution as obtained

by fetching the time attributes from the

extracted attributes.

- Loopness expresses how “loopy” the execution

is: the number of executed loop classes, loop

instances and correct. It is obtained by fetching

the loop-related attributes.

- Sequentiality expresses how sequential the

execution is. It is of minor importance than

loopness, since the semantics of sequences are

not as critical as loops; i.e. an infinite loop

would lead to failure, and that is not true for the

sequences.

- Conjunctionality expresses the behavior of

executing conjunctions as splits. This measure

gives an impression on the the transitivity of

workflow execution; i.e. how many redirections

the learner has taken during the execution.

- Disjunctionality expresses the behavior of

executing conjunctions as joins. This measure

has an opposite meaning of Conjunctionality.

Other combinations of the extracted attributes

could be evaluated, based on the required semantics

and purposes and by applying the appropriate

workflow patterns.

Table 1 is a part of the data table of low level

behavioral attributes. The learner U2 has not

finished the mission in time. It appears that he was

too "loopy" during the execution (number of

executed loop classes is 2; number of the correct

loop classes is 1). Similarly, the number of correct

loop instances is 2, whereas the number of executed

loop instances is 4. Similar to U2 are U4 and U5.

The difference is that U5 has executed more wrong

loop instances than U2 and U4, but that has not led

to worse than exceeding expected time.

Table 1: A low level behavioural attributes data table.

# of loops # loops correct finished

user class instance class instance in time

U1 2 2 2 2 yes

U2 2 4 1 2 no

U3 0 0 0 0 yes

U4 2 4 1 2 no

U5 2 6 1 2 no

An opposite example is U1. He has finished the

mission in time, executed loops from 2 loop classes,

and both are included in the optimal behavior.

Similar to U1 is U3. The is that U3 has not executed

loops at all, which has apparently led to finishing

also in time.

The discussed behavioral attributes show

potential explanations of the mission outcome.

Attributes from other workflow patterns have also

been investigated and implemented. The low-level

attributes can already a first insight, but they

primarily serve as input to further data-mining

analysis.

5 MONITORING AND ANALYSIS

TOOLS

Our monitoring and analysis methods and

techniques should be usable by the teachers and

TOWARDS AUTOMATIC BEHAVIOR ANALYSIS OF LEARNERS IN A TECHNOLOGY-ENHANCED LEARNING

ENVIRONMENT

191

pedagogical experts. Therefore a GUI is needed

which allows the teachers and pedagogical experts to

interact with the monitoring and analysis system, in

addition to the visualization techniques that deliver

the extracted knowledge insights. The visualization

tools are:

(1) The Logger exposes the details of the current

running processes and operations.

(2) The Workflow Visualiser revisualizes the

workflow model with up-to-date execution data.This

tool is useful to feedback the teachers with an online

overview of the current execution details in a visual

form (Figure 2). The number of current learners in

each workflow object is shown. The size of the

workflow object is relative to the number of

executing learners, to make the monitoring process

easier for the teacher.

(3) The User Follower is similar to the workflow

visualiser but concentrates on delivering

individualinformation about the execution for

specific learners, like statistical information and

behavioral attributes.

(4) The History Visualiser allows the teacher to

track the history of execution for each learner

visually on a time axis.

(5) The Query Builder allows to create a specific

high-level query on the stored data in the data store.

That is done by a GUI that is configurable to map a

parametriezed query to a low-level query that can be

executed directly at the data store side.

6 CONCLUSIONS

In this work, we have presented an approach to

monitor and analyse the execution of missions,

representd as workflows, in a TEL enviroenment

and an approach towards an automatic analysis of

the learners’ behaviors.

The developed system is able to load SCY workflow

models, to provide generic representations of the

semantics of those models. A generic data store has

been designed and developed to store those

representations. That property of generality enables

successful storing, monitoring and analysis of

workflow models of other environments than SCY,

in case of extending our system for other workflow

environments. As there was no running version of

SCY system at the moment of doing this work, a

simulator has been designed and developed to

simulate the execution of loaded and stored

workflows, to provide the required data for the

monitoring and analysis processes. Patterns in the

workflows models and executions have been

defined, extracted and used for monitoring and

analysis processes. Techniques to extract behavioral

attributes have been defined as an approach towards

modeling the behavior of a workflow executor

depending on time and routing perspectives at a

semantic level.

ACKNOWLEDGEMENTS

The fulfilment of this work has partially been

supported by the SCY project, www.scy-net.eu , a

EU- funded IP project, grant agreement number

212814, FP7.

REFERENCES

Akhrasi, F., N., Self, J., A., 2002. Beyond intelligent

tutoring systems: Situations, interactions, processes

and affordances. In: Instructional Science 30: 1–30

Bollen,L., Giemza, A., Hoppe, U.,2008. Flexible Analysis

of User Actions in Heterogeneous Distributed

Learning Environments. In: Proceedings of the

European Conference on Technology Enhanced

Learning., Maastricht

de Jong, T., et al. 2010. Learning by creating and

exchanging objects - the SCY experience. In: British

Journal of Educational Technology, 41, 909-921.

dos Santos, C., Frozza, R., Dhamer, A., Gaspary, L., 2002.

Doris| pedagogical agent in intelligent tutoring

systems. In: Intelligent Tutoring Systems, 91-104.

Fernandez, C., Lazaro, J., Benedi, J., 2009. Workflow

mining application to ambient intelligence behaviour

modelling. In: Universal Access in Human-Computer

Interaction. Intelligent and Ubiquitous Interaction

Environments., Springer

Havlak, P., Nesting of reducible and irreducible loops.

1997, in: ACM Transactions on Programming

Languages and Systems, Vol. 19.4, 557-567.

Lejeune, A., Ney M., Weinberger A., Pedaste M., Bollen

L., Hovardas T., Hoppe U., de Jong T., 2009. Learning

activity spaces: Towards flexibility in learning design.

In: Ninth IEEE international conference on advanced

learning technologies.

Russell, N., ter Hofstede, A., H., M., van der Aalst, W.,

M., P., Mulyar, N., 2006. Workflow control flow

patterns: A revised view. In: BPM Center Report

BPM0622 BPMcenter org

Zhou, Y., Evens, M., W., 1999. A practical student model

in an intelligent tutoring system. In: Proceedings of

the 11th IEEE international conference on tools with

artificial intelligence, 13-18.

CSEDU 2011 - 3rd International Conference on Computer Supported Education

192
