A VISUALIZATION BASED SIMULATOR

FOR SYN FLOOD ATTACKS

Tom Terry Jr., Huiming Yu, Ken Williams, Xiaohong Yuan

Department of Computer Science, North Carolina A&T State University, Greensboro, NC, U.S.A.

Bill Chu

Department of Software and Information Systems, University of North Carolina at Charlotte, Charlotte, NC, U.S.A.

Keywords: SYN flood, Visualization based, Network security, Education tool.

Abstract: In this paper we present a visualization based simulator to help students gain knowledge of SYN flood

attacks. The design principles of the simulator are user friendly, visualization based, and easy to install and

use. The animation simulator demonstrates normal network traffic, exhibits how a SYN flood attack occurs,

and shows how using a firewall might prevent SYN flood attacks. A set of short quizzes has been designed

to help students to understand the concepts. The visualization based simulator for SYN flood attacks has

been designed and implemented in the Department of Computer Science at North Carolina A&T State

University to enhance information assurance education. This simulator was used in COMP 620 Information,

Privacy and Security in the fall 2010 and received excellent results.

1 INTRODUCTION

In today’s society e-commerce and information

availability play a very important role in our lives.

People want around the clock access to information

and their favorite websites. If a company’s website

were to go down for one minute, it could result in

millions of dollars being lost. As technology

advances and availability increase, the internet

becomes more and more prone to different types of

attacks.

Denial of Service (DoS) is a serious attack that

can be categorized as two types; stopping a service

and resource exhaustion (IBM, Gao and Ansari,

2005). Stopping a service is the crashing of a system

or network. In most cases it requires intervention

from an administrator to reboot or power off the

system for the system to get back online. The second

type involves flooding the system or network with so

much information that the system cannot respond.

One of the more severe types of attacks would be a

SYN flood, which is simply a type of Denial of

Service (CERT

Advisory, 1996). SYN flood attacks

are used for a variety of reasons. A person could be

holding a grudge against a company and decide to try

to simply shut down its website. A hacker could be

trying to find a back door while administering a SYN

flood attack on a company’s website. Or even a

company’s competition could be trying to sabotage

them. One thing is for sure, the effects could be

costly.

We have taught various network attacks in

undergraduate and graduate classes for years.

According to students’ feedback some of them have

difficulty to fully understand how SYN flood works

based simply on textual presentation in classroom.

For these students a visualization based education

tool can help them to understand how packets are

transmitted among computers through a network,

how a SYN flood attack occurs and how SYN flood

attacks could be prevented. A Visualization Based

Simulator for SYN Flood Attacks (VSSFA) has been

designed and implemented in the Department of

Computer Science at North Carolina A&T State

University (NC A&T SU) to help students better

understand normal network traffic, SYN flood attacks

and prevention techniques. This simulator can be

used in network security, computer security and Web

security courses by instructors in classroom or by

students outside classroom.

In this paper, we discuss designs and

251

Terry Jr. T., Yu H., Williams K., Yuan X. and Chu B..

A VISUALIZATION BASED SIMULATOR FOR SYN FLOOD ATTACKS.

DOI: 10.5220/0003309502510255

In Proceedings of the International Conference on Imaging Theory and Applications and International Conference on Information Visualization Theory

and Applications (IVAPP-2011), pages 251-255

ISBN: 978-989-8425-46-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

implementation of the Visualization Based Simulator

for SYN Flood Attacks, and present our teaching

experience and lessons learned. In section 2 the

objectives will be discussed. How SYN flood works

will be described in section 3. The details of the

designs and implementation of the simulator will be

presented in section 4. In section 5 functions of the

simulator will be exhibited. In section 6 assessment

results will be given. The conclusions will be

presented in section 7.

2 OBJECTIVES

Network attacks are import topics of Information

Assurance and computer security. In order to help

students to effectively understand SYN flood attacks

and learn prevention techniques, a Visualization

Based Simulator for SYN Flood Attacks has been

developed. The objectives of this tool are to provide

students a visualization based simulator, a step by

step demonstration of SYN flood attacks and a better

understanding of SYN flood attack impact and

prevention. The VSSFA can be used in computer

security, network security, Web security, wireless

security courses by instructors in the classroom or by

students outside the classroom.

3 UNDERSTANDING SYN

FLOOD ATTACKS

A SYN flood attack is one type of Denial of Service.

The process of requesting a webpage is initiated by a

three-way handshake to establish a TCP connection.

First the client sends a request packet to establish a

connection to the server. Inside the connection

request packet the TCP SYN flag is set. Once the

server receives the initial request packet, it responds

to the source IP address of the packet it received by

sending back to the client a SYN-ACK request

packet. This packet has both the SYN and ACK TCP

flags set. Once the client receives the SYN-ACK

request packet, it will respond to the server by

sending back a packet with the ACK flag set. This

response is sometimes called a SYN-ACK-ACK

packet to distinguish it from a normal data

acknowledgement. When the server receives the

SYN-ACK-ACK packet a connection is established.

During a SYN flood attack the three-way handshake

is not completed. An attacker sends many SYN

packets as if opening many connections. These

connection request packets contain the SYN flag as

well as a spoofed source IP address. The server will

receive these packets and respond to the spoofed IP

addresses by sending SYN-ACK request packets. At

the same time the server stores each SYN packet

request in its TCP backlog queue. Each packet will

have a lifetime, possibly as long as three minutes.

The server will then wait for a SYN-ACK-ACK

packet, which it will never receive. Soon the TCP

backlog queue will become full creating a temporary

Denial of Service. All further incoming connection

request will be ignored. As soon as one packet’s

lifetime expires another new connection request can

be received.

4 DESIGNS

AND IMPLEMENTATION

The principle of the design of the visualization based

simulator is to be user friendly, visualization based,

and easy to install and use. Different colors are used

to mark various stages of network traffic (Scott). A

set of short quizzes were designed to help users

understand basic concepts. This simulator

demonstrates the process of normal network traffic,

how a SYN flood attack occurs and how a firewall

can partially prevent SYN flood attacks. This

visualization based simulator contains three

demonstrations. The first one is normal network

traffic, which displays how the TCP three way

handshake works. The second one is a SYN flood

attack, which displays what happens during SYN

flood attacks. Prevention method is the last

demonstration, which displays a firewall as a possible

prevention method to a SYN flood attack. This

simulator can be viewed from a web site as an applet,

using Macromedia Flash Player, which is available to

download for free from the internet. For the best

results, Internet explorer 7 or higher is recommended.

This simulator can be installed on a personal

computer and executed in standalone mode. Several

main considerations are described in the following

sections.

• Visualization based

Visualization has been used for years in computer

science to help students understand algorithms and

data structures. In this simulator visualization

techniques are used to let students view dynamic

normal network traffic, how a SYN flood attack

occurs, and how a firewall possibly prevents SYN

flood attacks. This simulator allows students to select

difference traffic views, to take corresponding

quizzes and to view the results.

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

252

• Consistency of Displays

An important consideration of the design is how long

students need to learn and use this tool. The

visualization based simulator demonstrates three

different network traffics. Consistency is the main

consideration. All traffic displays are in same format

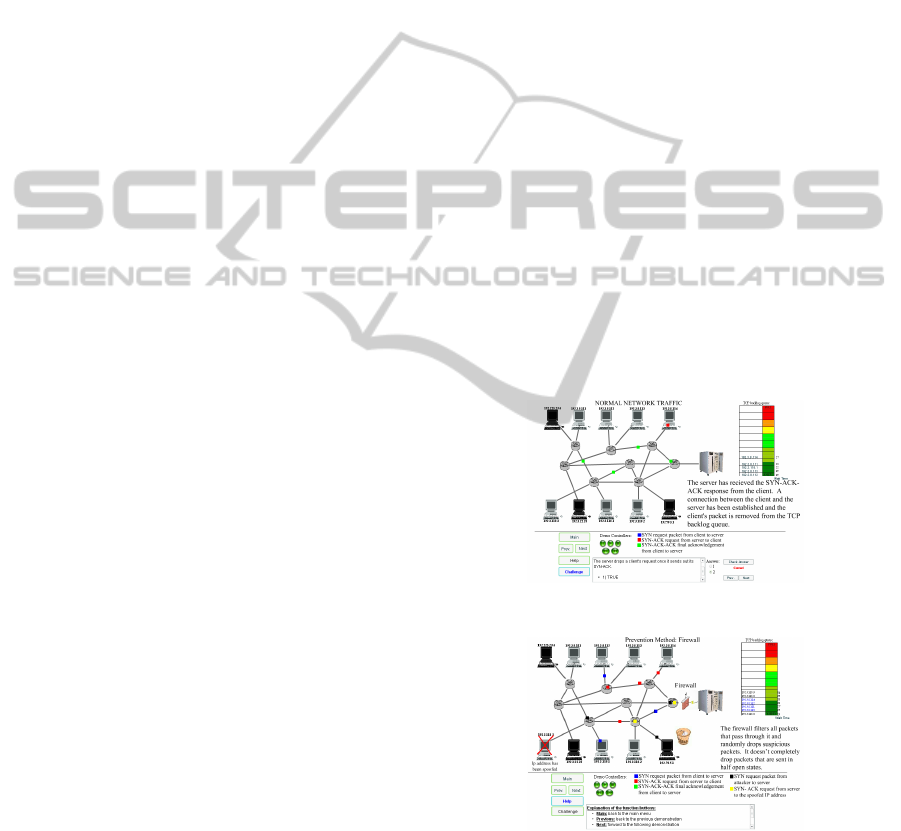

as shown in figure 1. The top part of the display area

contains ten computers, routers, a server and a TCP

backlog queue. The second part is the control area

that consists of five Demo Controllers and five

buttons (Main, Prev., Next, Help and Challenge). The

third part is the quiz area that contains questions,

select radio buttons and answers.

• Using Different Colors

Five colors are used to emphasize various stages of

network traffic. Blue represents SYN request packets

from a client to the server. Red means SYN-ACK

request packets from the server to clients. Green

represents the final acknowledgement SYN-ACK-

ACK packets from the client to the server. When

SYN flood attacks occur, black represents packets

that attackers send to the server, and yellow

represents SYN-ACK requests packets the server

sends to the spoofed IP address. Different colors are

also used for Trash bucket, firewall, backlog queue

and computers.

• Help Functions

The Help function is another major consideration in

the design. Each demonstration contains a help

button. The help button describes the functionality of

each button used in the demonstration. This was put

in place to ensure that users do not have to guess the

functions of each button before using it.

• Function Buttons

Each of the demonstrations also contains the

following ten function buttons: play, pause, stop,

rewind, fast-forward, Main, Prev., Next, Help, and

Challenge. The first five buttons are self explanatory.

The main button will allow a user to go back to the

main screen. The Prev. button, which stands for

previous, will take a user back to the previous

demonstration. The next button will take the user to

the next demonstration. As stated earlier the help

button describes the functionality of each button that

is used in the demonstration. The last button is the

challenge button. The challenge button offers users a

short quiz on the demonstration to test their

knowledge.

The Visualization Based Simulator for SYN

Flood Attacks was implemented using Macromedia

Flash. Flash is lightweight and works well with html.

Flash is also perfect for motion and animation. The

version of flash that was used for this simulation was

Macromedia Flash MX 2004 (Adobe). It is composed

of html and ActionScript 2.0, which is similar to

JavaScript.

5 FUNCTION OF

THE SIMULATOR

The visualization based simulator provides three

demonstrations and a set of quizzes. To start the

demonstration, a user will first access the homepage.

The homepage contains four links. These links are

Home, Introduction of SYN flood, SYN flood

animated demo, and Other links. Introduction of SYN

flood will give users a detailed description of what a

SYN flood attack is and how it works. The SYN

flood animated demo link connects to the actual

visualization based traffic demonstrations. The Other

links bring a user links to other Computer Science

Department simulation tools.

The main page is the first page of the actual

visualization based simulator. It provides four

different options. On the left side there are buttons:

Normal Network Traffic, SYN Flood Attack,

Prevention Method and HOME. Once a user clicks on

any button, except the home, a brief description of

that demonstration will appear in a window in the

middle of the screen along with a corresponding Start

Demo button, which will run the demonstration. The

default button is Normal Network Traffic. The home

button will take a user back to the website’s

homepage.

5.1 Normal Network Traffic

This demonstration exhibits how the TCP three-way

handshake occurs in normal network traffic. Details

are shown in figure 1. The simulation scenario

consists of ten computers. Three of them, shown in

black, represent attackers and will not be used for this

demonstration. This demonstration also includes a

server and a TCP backlog queue. The TCP backlog

queue is used to hold connection requests to the

server until it receives their final acknowledgement or

until their lifetime expires. First the client sends a

SYN packet request to the server. The packet color

will be BLUE. Once the server receives the packet, it

sends back to the client a SYN-ACK request packet.

The packet color changes to RED, and the client’s

request is stored on the TCP backlog queue. As soon

as the client receives the SYN-ACK request, it will

respond to the server with a SYN-ACK-ACK. The

packet color changes to GREEN as shown in figure 1.

The server will receive the client’s SYN-ACK-ACK

A VISUALIZATION BASED SIMULATOR FOR SYN FLOOD ATTACKS

253

and a connection to the server is established. The

client’s initial request is removed from the TCP

backlog queue. The process will continue in this same

manner each time a new request has arrived.

5.2 SYN Flood Attacks

The SYN flood attack demonstrates an incomplete

connection handshake. It exhibits of how an actual

SYN flood attack occurs and what happens during

that time period, as shown in figure 2. The

demonstration includes ten computers, one server,

and its TCP backlog queue. Three black computers

represent attackers. One computer, marked with a red

x, represents the IP address that has been spoofed.

The server is the targeted computer. The TCP

backlog queue stores all received SYN requests with

their IP addresses. The wait time is the lifetime of

each packet since it was received by the server, and

waits for a final acknowledgement from the client.

During the SYN flood attack, a combination of

attackers and normal computers begin to make

requests to establish a connection to the server.

Attackers will begin sending out a large number of

SYN packets, using a spoofed source IP address, to

make a request to connect to the server. The packet

color of the attacker’s SYN request packets is

BLACK as is shown in figure 2. Once the server

receives the request it will send out a SYN-ACK

request to the spoofed IP address and wait for its

response, which it will never receive. The packet

color changes to YELLOW. Each request will be

stored in the TCP backlog queue and will expire

when its wait time runs out. For this demo the wait

time is located next to each packets request on the

TCP backlog queue. At the same time the regular

computers will begin making requests to connect to

the server as well. Packet color for regular computers

is BLUE. The TCP backlog queue will become full

since it is trying to process requests faster than it can

handle them. At this time, for the demonstration, a

trash bucket and a lock will appear as shown in figure

2. The lock represents the TCP backlog queue is full

and no new SYN request can be accepted. The trash

bucket represents some of the packets being dropped.

It shows access being denied because the TCP

backlog queue is full. Once the wait time of each

packet, which is thirty-two seconds for this

demonstration, runs down, the SYN packet will be

removed from the TCP backlog queue. The new

arriving packets will be accepted.

5.3 Prevention Method

In the prevention method demonstration, a firewall is

placed in between the last router and the server as a

prevention method for the SYN flood attack. Details

are shown in figure 3. Firewalls are useful against

SYN flood attacks but they cannot completely stop

SYN flood attacks. Firewalls help to slow down SYN

flood attack, filter out packets that are sent in a half

open state and increase server efficiency. In this

demonstration the firewall only drops some of the

half open packets, which are sent from attackers, but

not all. The packets that are filtered out by the

firewall are dropped at random. This demonstration is

similar to the SYN flood attack. Attackers will begin

sending out a large number of SYN packets, using a

spoofed source IP address, to make a request to

connect to the server. The packet color of the

attacker’s SYN request packet is BLACK as shown

in figure 3. Once the server receives the request it

will send out a SYN-ACK request to the spoofed IP

address and wait for its response, which it will never

receive. The packet color changes to YELLOW.

Each request will be stored in the TCP backlog queue

and wait for the client’s response. These packets will

stay in the TCP backlog queue until its waiting time

expires. In this demonstration some attack request

packets will pass the firewall and some will not.

Figure 3 is a snapshot of attack packets have been

filtered out and dropped into the trash bucket.

Figure 1: Normal network traffic.

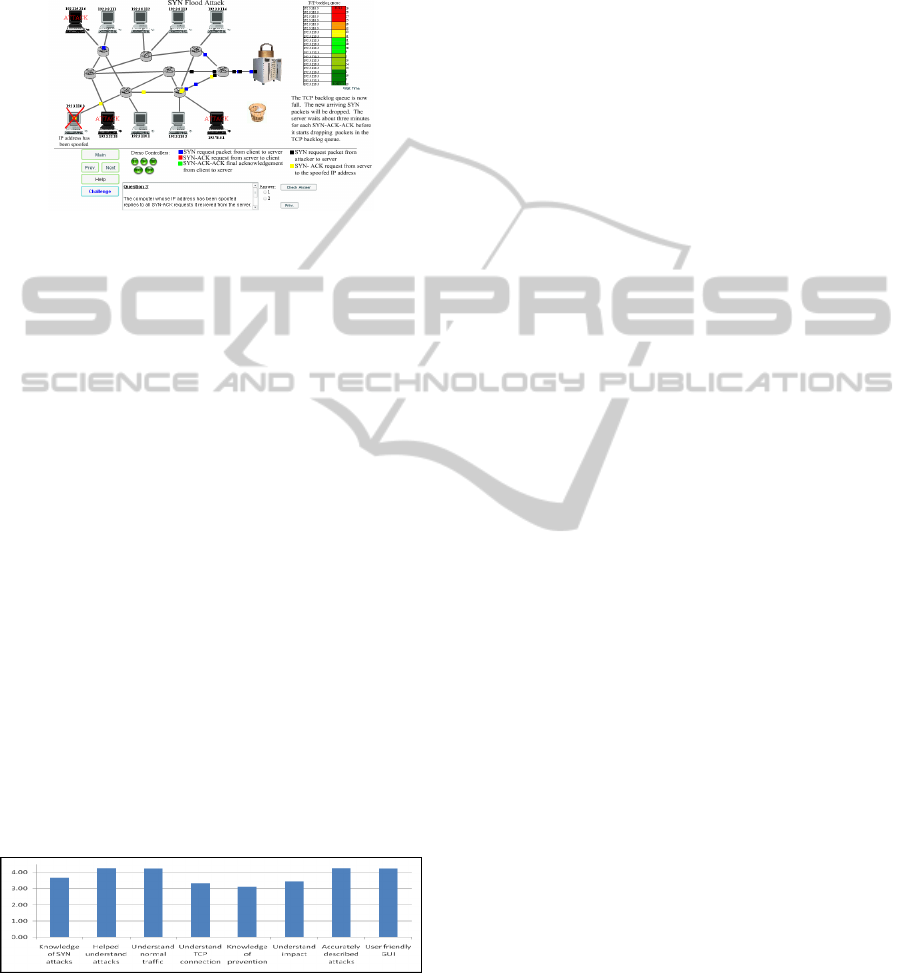

Figure 2: SYN flood attack-queue full.

5.4 Quizzes

A set of quizzes is designed to help students

understand the concepts. The quiz is composed of

three questions in each demonstration. They can be

multiple-choice or fill in the blank. Once a user

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

254

selects the answer to a challenge question, the user

has the option of checking the selected answer by

clicking on the Check Answer button or the user can

move to the next challenge question by clicking the

next button.

Figure 3: Prevention method: firewall.

6 ASSEMENT RESULTS

A survey was given to a class of first year graduate

students that used the SYN flood animated simulator.

This survey asked the students to assess how effective

they perceived the simulator was in explaining SYN

flood attacks. The results of the survey are shown

below in figure 4. All of the students indicated that

the SYN flood simulator helped them to understand

SYN flood attacks, helped them to understand normal

network traffic and accurately described a SYN flood

attack. These survey questions all received an average

response of 4.2 or better on a five point scale where

5.0 is a perfect score. The students also reported that

the graphic interface is user friendly with an average

response of 4.2. This was enforced by several

comments that reported that the user interface,

particularly the animation, improved the students

understanding of how the attack worked. The lowest

ranked survey question (with a score of 3.1 out of 5)

related to their knowledge of how to prevent SYN

flood attacks. While the SYN flood animator

addresses this issue, solutions to SYN flood attacks

can be complex.

Figure 4: Averages of assessment survey responses.

7 CONCLUSIONS

A Visualization Based Simulator for SYN Flood

Attacks has been designed and implemented to

visually educate the students on how a SYN flood

works, and to accurately depict and show how a SYN

flood attack occurs. It was noticed that students learn

well when they have a hands on tools that they can

use to visually see how different attacks work. This

visualization based simulator showed students three

scenarios: Normal Network Traffic, SYN Flood

Attack, and a Prevention Method. Overall one thing is

clear, firewalls help to slow down SYN flood attacks

but it does not completely prevent them.

The SYN flood simulator has been used in the

first year graduate class COMP 620 Information,

Privacy and Security in the fall 2010 and received

excellent results. Our experience shows that by using

this visualization Based education tool, the students

get hands-on experience and a deep understanding of

the concept of information assurance. More broadly,

this simulator can be used in computer science,

information management system, computer

engineering in any colleges and universities to help

students understand SYN flood concepts and get

hands-on experiences as part of information

assurance curricular activities.

ACKNOWLEDGEMENTS

This work was partially supported by National

Science Foundation under the award numbers DUE-

0723491and DUE-0830686.

REFERENCES

Adobe, Adobe Flash Support Center, Available at: <http://

www.adobe.com/support/flash> [Accessed 10 October

2010].

CERT

Advisory, CA-1996-21 TCP SYN flooding and IP

Spoofing Attacks, Aailable at: <http://www.cert.org/

advisories/CA-1996-21.html> [Access 10 January

2011]

IBM, Internet Security Systems, Available at: <http://

www.iss.net/security_center/advice/Exploits/TCP

YN_flood/default.htm> [Accessed 12 December 2010]

Gao, Z. and Ansari, N., May 2005, Tracing Cyber Attacks

from the Practical Perspective, IEEE Communications

Magazine, Vol. 43, Issue 5.

Scott A., User Interface Design Tips, Techniques, and

Principles, Available at: <http://www.ambysoft.com/

essays/userInterfaceDesign.html> [Accessed 10

October 2010].

A VISUALIZATION BASED SIMULATOR FOR SYN FLOOD ATTACKS

255
