NOSE TIP DETECTION AND TRACKING IN 3D VIDEO

SEQUENCES

Xiaoming Peng

1, 2

and Mohammed Bennamoun

School of Automation Engineering, University of Electronic Science and Technology of China

No. 4, Section 2, North Jianshe Road, Chengdu, Sichuan 610054, China

School of Computer Science and Software Engineering, The University of Western Australia

M002, 35 Stirling Highway, Crawley, WA 6009, Australia

Keywords: Facial point cloud data, Geometric computing, 3D video.

Abstract: Point cloud data processing is an important topic in geometric computing. One promising application of

point cloud data processing is 3D face recognition. With the recent developments of 3D scanning

technology, the emergence in the near future of 3D face recognition from 3D video sequences is eminent.

Face tracking is a necessary step before the recognition of a face. In this paper, we propose the integration

of a nose tip detection method into the process of tracking the face in a 3D video sequence. The nose tip

detection method which does not require training nor does it rely on any particular model, can deal with

both frontal and non-frontal poses, and is quite fast. Combined with the Iterative Closest Point (ICP)

algorithm and a Kalman filter, the nose-tip-detection-based method achieved robust tracking results on real

3D video sequences. We have also shown that it can be used to coarsely estimate the roll, yaw and pitch

angles of the face poses.

1 INTRODUCTION

Face recognition is an active research area in

biometrics with much of the work being performed

in the 2D domain. With the rapid development of

advanced range imaging devices, 3D face

recognition which uses facial point cloud data has

lately received a growing attention from researchers

and industries. Compared with 2D face recognition,

3D face recognition is less sensitive to illumination,

pose variations, facial expressions, and makeup

(Mian et al., 2007). Currently, most 3D face

recognition research is performed on still range

images (Queirolo et al., 2010; Pears et al., 2009;

Chang et al., 2006; Al-Osaimi et al., 2009; Lu and

Jain, 2008). Although these methods work very well

on neutral-expression and frontal faces, great

challenges are met when they deal with non-neutral-

expression and/or non-frontal faces (Queirolo et al.,

2010; Al-Osaimi et al., 2009; Lu and Jain, 2008).

One possible strategy for confronting such

challenges is to utilize temporal information. As has

been observed in 2D video-based face recognition,

since successive frames in a video sequence are

continuous in the temporal dimension, “such

continuity, coming from facial expression, geometric

continuity related to head and/or camera movement,

or photometric continuity related to changes in

illumination, provides an additional constraint for

modeling face appearance” (Zhou et al., 2009).

Although existing 3D video scanners, e.g.,

SwissRanger 3000/4000, are not comparable with

2D video cameras in terms of image resolution and

capture range, we can envision that with the

development of 3D scanning technology, high-

quality 3D video scanners will emerge in the near

future and can be used for 3D face recognition.

In order to recognize a face in a video sequence,

one needs to first locate the face in each frame of the

video sequence, which leads to the face tracking

problem. In this paper, we propose a nose-tip-

detection-based face tracking method which tracks

the face by tracking the nose tip in a 3D video

sequence. We argue that compared with other facial

features, such as inner or outer eye corners, the nose

tip is more robust to pose changes; it is also more

invariant to expression changes compared with

features on the cheeks or on the chin. The nose tip

detection method adopted in this paper, combined

with the Iterative Closest Point (ICP) algorithm and

Peng X. and Bennamoun M..

NOSE TIP DETECTION AND TRACKING IN 3D VIDEO SEQUENCES.

DOI: 10.5220/0003314900130022

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 13-22

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

a Kalman filter, helps to build a robust face tracking

method in that although the nose tip detection

method may sometimes fail, tracking can still go

ahead with the help of ICP.

The rest of the paper is organized as follows. In

Section 2, related work is reviewed. In Section 3, we

describe the proposed method in detail. Section 4

presents the experimental results of the proposed

method applied on real range image sequences.

Finally, in Section 5 we provide the conclusions and

discussions.

2 RELATED WORK

In 3D face recognition the nose region plays a very

important role particularly in face normalization,

pose correction, and nose region based matching.

More often, nose localization is achieved by

successfully detecting distinctive facial features (the

nose tip, nose ridge, eye corners, etc.) in face scans.

Most existing methods are 3D-based. They rely

on the direct detection of facial features from range

images. Some researchers (Malassiotis et al., 2005;

Colombo et al., 2006) use curvature analysis,

including the mean (H) and Gaussian (K) curvatures

classification (HK Classification) and the principal

curvatures to help confine the search scope of

particular facial features. The computation of the H

and K curvatures and the principal curvatures

involves estimating the second order derivatives of a

range image, which is error-prone because of the

noise in the image. In addition, these methods are

not pose invariant.

Xu et al. first use the “effective energy” defined

in their paper to filter out points in non-convex areas

(Xu et al., 2006). Because the effective energy

condition is very weak and many points in other

areas like the cheeks and chin also meet this

condition. A support vector machine (SVM) is then

trained using the means and variances of the

effective energy sets as input to further filter out the

non-nose tip points. However, the effective energy

set is not pose invariant, meaning that even for a

same point, the means and variances of the various

effective energy sets corresponding to various poses

could be different. Chew et al. also use the effective

energy condition to select nose tip candidates, but

circumvent the SVM-training stage by trying to find

the mouth-and-eyes regions in the input image,

which is not always easy. The nose tip detection

rates were moderate as reported in their paper—93%

and 68%—for frontal and non-frontal faces,

respectively (Chew et al., 2009). In Pears et al’s

method a nose tip candidate has to pass a four-level

filtering scheme at the 3D vertex level in order to be

identified (Pears et al., 2009). Their method is

computationally expensive (requires about one

minute on a AMD Athlon 64×2 Dual core 4200+

2.20 Ghz, 4 Gb RAM machine running MATLAB),

and cannot deal with pure profile facial views.

Anuar et al. propose to use point signature (Chua

and Jarvis, 1997) for nose tip representation (Anuar

et al., 2010). However, the point signature

representation is not pose-invariant. Bevilacqua et

al. propose to extend Generalized Hough Transform

(GHT) to nose tip detection in 3D facial data

(Bevilacqua et al., 2007). However, they assume that

the region around the nose tip can be modelled as a

series of spheres, an assumption not accurate.

In Breitenstein et al.’s method (Breitenstein et

al., 2008), for a pixel to be a nose candidate its

aggregated signature must have more local

directional maxima than a given threshhold and the

center of the set of the local directional maxima has

to be part of the pixel’s single signature. A nose tip

and the associated pose is validated by finding the

best match between the input range image and a set

of reference pose range images whose orientations

are close to that of the pose associated with the nose

tip candidate. The reference pose range images are

rendered by rotating a particular 3D head model

under many poses, which is not always available in

practice. More importantly, we argue that a

particular model generated from a quite limited

number of training data is unlikely to accurately

represent any input face.

In contrast to the majority of the literature on 3D

facial feature detection, only very few methods are

able to detect the nose tip from 2D face profiles. Lu

et al. assume that the nose tip has the largest z value

(called “directional maximum” in their paper) if

projected onto the corrected pose direction (Lu et al.,

2008). The major drawback of their method is that it

does not take the pitch into consideration. For this

reason, Yang et al.’s method is also likely to fail

because it relies on the directional maximum to

firstly gain some nose tip candidates (Yang et al.,

2009). Faltemier et al. propose to first get 37 profiles

by rotating a face scan around the y-axis from the

range of [0°, 180°] in a step size of 5°. Then for each

profile they search for the nose tip by translating two

nose profile models along the profile to search for

the points that best match the nose tips of the two

models, respectively (Faltemier et al., 2008). This

translation-based model matching is obviously scale

sensitive. In addition, just as in the case of 3D

model, the generalization of their model is limited.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

Right most

profiles

Face scan

Step 1: Rotate the

face scan by a range

of angles around the

y-axis

Min Group

Max Group

Step 2:

Generate the

left most

profiles

Left most

profiles

Step 2:

Generate the

right most

profiles

Nose tip

candidates

Step 3:

Detect nose

tip candidates

Step 4:

Extract cardinal

points

Cardinal

points

Step 5:

Calculate the cardinal

point fitness and the

spike fitness to identify

the nose tip

Nose tip

Figure 1: Pipeline of the nose tip detection algorithm.

We came up with a novel method for nose tip

detection across a wide range of face poses (Peng et

al., 2011). Compared with other existing nose tip

detection methods, our method has the following

three characteristics: First, it does not require any

training nor rely on any particular model. Therefore,

compared with training-based and model-based

methods, it has the advantage of being exempt from

laborious training and the pose limitations that are

associated with training. Second, it works equally

well for frontal and non-frontal poses, which is very

important in practice because the pose of the face

changes constantly in a sequence. Finally, it is

relatively fast, requiring only a few seconds to

process a facial range image of 100-200 pixels (in

both x and y dimensions) with a MATLAB

implementation.

Ren et al. propose a method for nose tip

detection and tracking in 2D image sequences (Ren

et al., 2007). In their method, the nose tip is detected

in the first frame using GentleBoost and then tracked

through the sequence using an improved Lucas-

Kanade optical flow method. To the best of our

knowledge, there is currently no publicly available

literature on 3D face tracking in range image

sequences.

3 NOSE TIP DETECTION

AND TRACKING

In this section, we first describe the nose tip

detection method followed by the nose-tip-detection-

based face tracking scheme.

3.1 Nose Tip Detection Algorithm

To make this paper self-contained, we briefly

describe below the main steps of the nose tip

detection algorithm. Details can be found in (Peng et

al., 2011). The input to the algorithm is assumed to

be a 3D face region coarsely located by some face

detection method. The reported parameters of the

algorithm have been adjusted based on a resolution

of 1mm/pixel. For a different resolution, these

parameters will have to be adjusted accordingly. The

pipeline of the algorithm is presented in Fig. 1

followed by its description.

The Nose tip Detection Algorithm

Input: one face scan containing

N 3D face points

with larger z-value points closer to the viewer.

Steps:

1. Rotate the Input Face Scan around the y-axis

by an angle

within the range of [-90°, 90°] in a

step size of 3°. Divide the 61 new point sets, each

consisting of the rotated points of the original input

face scan by a particular angle, into two groups

called the Min Group and the Max Group.

The Min Group consists of 30 point sets

corresponding to the rotations in the range of [-90°, -

3°] and the Max Group contains the remaining 31

point sets corresponding to the rotations in the range

of [0°, 90°]. Rotated around the y-axis by an angle

, a face point (, ,)

iii

xyz ( 1,2,...iN= ) in the

original input face scan takes the new 3D

coordinates

(, ,)

iii

xyz

ββ

cos 0 sin

010

sin 0 cos

ββ

⎛⎞

⎛⎞⎛⎞

⎜⎟

⎜⎟⎜⎟

⎜⎟

⎜⎟⎜⎟

⎜⎟

−

⎝⎠⎝⎠

⎝⎠

(1)

2. Generate the 2D left most and right most face

profiles from the Min Group and the Max Group.

For a point set that corresponds to rotation

(

1, 2,...,30j

) in the Min Group, its 2D left most

face profile

S is a 2D curve on the xy-plane

1,2,..., .

{1,2,..., }

{( , ) | {0,1,..., 1},

=min({ | ( , , ) })}

jjj j

jj j

jkkkNk

kiiikiiN

Sxy y R

xxxyyz

βββ β

∈

=∈−

(2)

where

N is the total number of 2D points in

NOSE TIP DETECTION AND TRACKING IN 3D VIDEO SEQUENCES

and

the number of rows of the face scan.

x is

rounded to its nearest integer value in the case that

it is non-integer. The 2D face profile

(

31,32,...,61j =

) for a point set in the Max Group

can be defined analogously.

3. Detect Nose Tip Candidates. To this end,

move the center of a circle of radius

r (We use

r = which works very well in the experiments.)

along each 2D face profile generated in step 2, and

count the numbers of the 180 points (which are

uniformly positioned along the perimeter of the

circle) that are “inside” and “outside” the face

profile when the circle’s center is moved to each

point on the face profile of interest (see figure 2).

Let

and n

−

denote, respectively, the numbers of

the 180 points inside and outside the face profile

when the circle’s center moves to a particular point

on the face profile. For a point on the face profile to

be a possible nose tip candidate, we require that

50Dn n

+−

=−≤−. This threshold is experimentally

obtained and works well in the experiments.

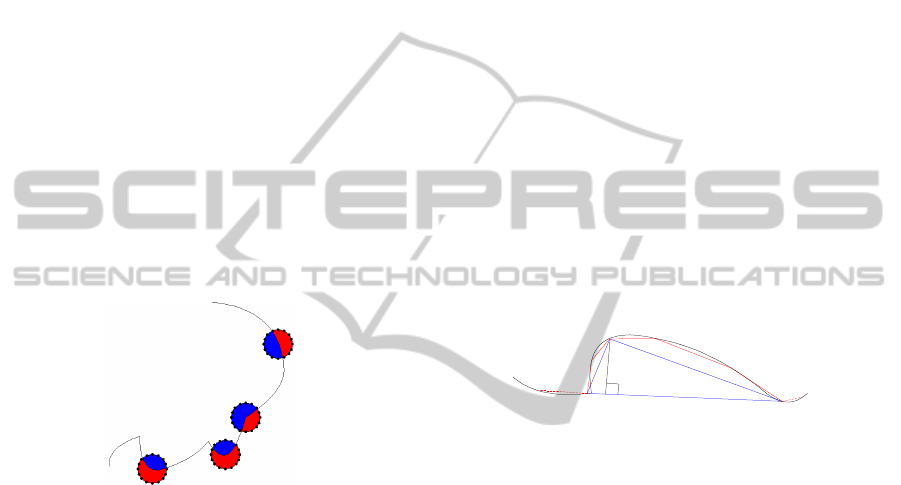

Figure 2: Nose tip detection on a Max Group face profile.

A circle’s center is moved along the face profile. At

different positions on the face profile the areas of the

circle enveloped “inside” the face profile (denoted by blue)

are different. Smaller areas are likely to correspond to the

nose tip. Actually,

and n

−

are counted instead of

computing the areas directly.

4. Extract cardinal points from the nose tip

candidates detected in step 3. Do the following: a)

Initialize a histogram with each entry of the

histogram corresponding to each y-coordinate value

of the 2D face profiles. For each point

(, )

[ 1, 2,..., ,

kN= where

N is the total number of

points in

S , refer to Eq. (2)] where a possible nose

tip candidate is detected, increase the entry

corresponding to

by one. Since the nose tip

candidates cluster into spikes in the histogram, we

only consider those points whose y-coordinates

correspond to the peak value of the related spike.

We call these points the “

cardinal points” in this

paper. We abandon all short spikes whose heights

are either less than 30% of the highest spike or less

than five to avoid false detections caused by noise.

5. Calculate two metrics, the

cardinal point

fitness

and the spike fitness described below to

identify the nose tip.

We observed that in a large number of cases the

nose shape in a face profile can be fitted using a

triangle. Thus, we use the cardinal point fitness to

measure the degree of similarity between a triangle

and a face profile segment corresponding to a nose

shape candidate. For this purpose, we fit the face

profile segment around a cardinal point S using

connected straight line segments. For a fit to be valid

we require that the connected straight line segments

must form a maximum convex polygon (see Fig. 3).

For example, the polygon (B2, B1, S, A1, A2, A3)

in Fig. 3 is valid and adding more points, such as B3

and A4, will violate the requirement. In our

implementation we use a line segment to

approximate a curve segment if all the points in the

curve segment are within distance

d of the line

segment. We empirically found that optimal values

for

d are two or three pixels.

SA1

Figure 3: The fitness of the cardinal point S is calculated

as 2 /

Spt

CF S S=− , where

S is the area of the polygon

(B2, B1, S, A1, A2, A3) and

is the area of the triangle

(B2, S, A3).

Obviously, a large

CF value indicates that the

nose shape candidate with

S as the nose tip is similar

to a triangle. Although a larger value of

CF means

that the face profile segment is closer to a triangle in

shape, it does not necessarily mean that the segment

represents a nose. Thus we introduce the definition

of a

valid cardinal point. A valid cardinal point

satisfies all three heuristic conditions below (called

the “

nose triangle conditions” in this paper): a) The

distance of the nose tip to the nose ridge must be

larger than that of the nose tip to the nose bottom. In

our implementation we require that the former is at

least 1.2 times larger than the latter. b) The distance

of the nose tip to the nose ridge must be within the

range of 20-60 pixels. This heuristic helps to

eliminate too large or too small triangle-like shapes

which are not likely to be nose shapes. c) The

altitude H perpendicular to the nose tip-nose bottom

side of the triangle must be larger than 5 pixels. This

heuristic helps to eliminate too flat triangle-like

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

shapes which are not likely to be nose shapes. Note

that the parameters in conditions b) and c) are

derived from observations of a large number of face

samples and are set according to the resolution of the

face scan (which is approximately 1mm/pixel).

Assume that there are

spikes to be

considered, then the spike fitness of the

m ’th

( 1,2,...,

mM= ) spike is

mm s m

SF c CF D=−

∑

(3)

where

c is the ratio of the height of this spike to

that of the highest spike,

CF is the fitness of a valid

cardinal point associated with this spike, and

the maximum dimension of the cluster formed by all

the valid cardinal points that contribute to the

summation in Eq. (3).

is computed as

(-0.6 )

200 , if 5

, otherwise

⎧

≤

⎪

⎨

⎪

⎩

(4)

We use an exponent term to penalize small

values. The spike that has the largest fitness value is

regarded as corresponding to the real nose tip

candidates cluster. The valid cardinal point in this

cluster with the highest altitude perpendicular to the

nose tip-nose bottom side of the nose shape triangle

is taken as the nose tip.

A MATLAB implementation of the above

algorithm takes 2-4 seconds to detect the nose tip in

an image of 121×121 pixels.

A by-product of the proposed method is that it

can be used to coarsely estimate the roll, yaw and

pitch angles of the face pose. Assume that the nose

tip is detected at face profile

S (

1,2,..., 61j =

which corresponds to an angle of

in the range [-

90°, 90°], then the yaw rotation is estimated by

(90 ), if 0

90 , if 0

Yaw

ββ

−°+ <

⎧

⎨

−≥

⎩

(5)

The pitch rotation can be estimated by

computing the angle between the y-axis of the

profile

S and the nose ridge-nose bottom line (the

line connecting A3 and B2 in Fig. 3).

Assume that the positions of the detected nose

ridge and nose bottom on the range image plane is

(, )

xy and ( , )

xy , respectively. Let the angle

between the vector [ , ]

rbr b

xxyy−− and the y-axis

of the range image plane be

, then the roll rotation

can be estimated using

, if

,otherwise

Roll

−>

⎧

⎨

⎩

(6)

Experimental results show that the proposed

method is robust to many scenarios that are

encountered in common face recognition

applications (e.g., surveillance). A high detection

rate of 99.43% was obtained on FRGC v2.0 data set

(Peng et al., 2011). The detection rate of our method

is comparable to that of a most recent nose tip

detection method (Pears et al., 2009) which achieves

99.6% detection rate on FRGC v2.0 data set.

However, the method in (Pears et al., 2009) is much

more computationally expensive (see Section 2

Related Work). A detailed complexity analysis of

the above nose tip detection method is also

presented in (Peng et al., 2011), which shows that

most of the computations involved are simple. Thus,

if implemented in hardware (such as a GPU

implementation), the proposed method should be

able to work in real time.

3.2 Nose-tip-Detection-based Face

Tracking

In order to efficiently track the nose tip of a face in

every frame of a 3D video sequence, it is required

that the nose tip detection algorithm in Section 3.1

has a very high detection rate (ideally 100%).

However, due to noise and missing data in the range

image, this perfect detection rate is hard to achieve.

In view of this, we combine our nose tip detection

algorithm with the ICP algorithm (Besl and McKay,

1992) and a linear Kalman filter in a novel tracking

scheme (shown in Fig. 4). Currently, our approach

deals with the case of only one face appearing in a

frame.

The ICP algorithm (Besl and McKay, 1992):

Given two data clouds, the ICP algorithm establishes

correspondence between each point of one data

cloud with the closest point of the other data cloud.

A transformation is then derived by minimizing the

sum of the squared distances between these

corresponding points. This transformation is applied

to align the two data clouds and a new set of

correspondences is established between their closest

points. The algorithm is repeated iteratively until the

sum of the squared distances between the points of

the two data clouds reaches a threshold or there is no

significant change between iterations.

NOSE TIP DETECTION AND TRACKING IN 3D VIDEO SEQUENCES

Kalman

Filtering Predict

Predicted nose

tip position

(x,y)

Crop a face

region centered

at (x,y) from

current frame

I_current

Nose tip

detection

Nose tip detected

Detected nose

tip position

(xd,yd)

dist([x,y],[xd,yd])<

ICP registration

between

I_current &

I_prev

New nose tip

position (x',y')

x'=xd

y'=yd

Crop a face

region centered

at (x',y') from

current frame

I_prev

t=t+1

Kalman

Filtering Update

Initialization

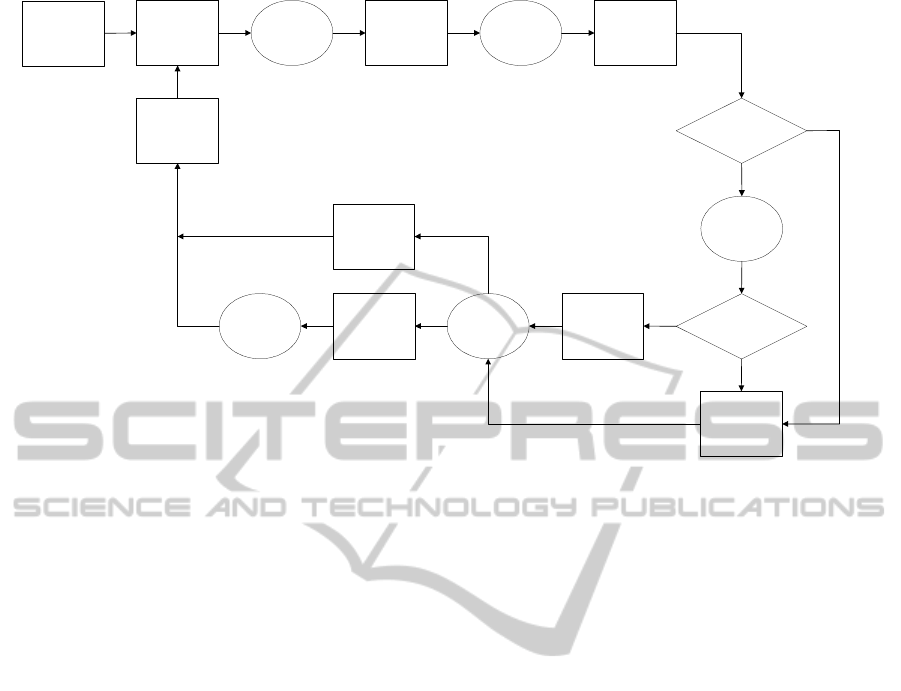

Figure 4: The nose-tip-detection-based face tracking scheme.

The linear Kalman filter: The linear Kalman

filter is an optimal solution to the state estimation

problem under the linear and Gaussian assumption.

It consists of two steps, the prediction step and the

update step. The advantage of the linear Kalman

filter is that it does not require keeping a history of

the states—only the previous state is needed to

estimate the next state.

One loop of this iterative tracking process works

as follows.

At iteration t , we first predict the position of the

nose tip ( , )xy in the current frame using Kalman

filtering prediction. Then the face region is cropped

at the current frame centered at ( , )xy; the result is

denoted as

current

. Subsequently, the nose tip

detection algorithm of Section 3.1 is applied on

current

. There are three possible cases for the

nose tip detection results. Case (a): the detected nose

tip position ( , )

xy is correct. According to the

trajectory continuity characteristic, the nose tip

positions in the immediately subsequent frames

should be close to each other in the trajectory. In our

implementation, we regard ( , )

xy as correct if it is

within distance TH of the predicted position ( , )xy.

Case (b): the detected nose tip position ( , )

xy is

far away from the predicted position ( , )xy due to

false detections (based on the assumption that there

is only one face). Case (c): no nose tip position is

detected. This is usually because the quality of the

image is so bad that there are not enough nose tip

candidates detected. For the latter two cases, we

current

with a face scan cropped from

the previous frame, denoted as

, using the

ICP algorithm (Besl and McKay, 1992). Given the

nose tip position in

and the rotation matrix

and translation vector obtained from the ICP

algorithm, the nose tip position ( ', ')xy in the

current frame can be easily obtained. For the first

case we simply set '

and '

yy= . We can

then use ( ', ')xy to update the Kalman filtering and

crop

at the current frame centered at

(', ')xy . The tracking process is thereafter

propagated to iteration 1t

We use the following linear Kalman filter in the

tracking scheme:

()()()()

() () () ()

Xt tXt t wt t

Yt HtXt vt

ΦΔ −Δ + −Δ

⎧

⎨

⎩

(7)

where ( )Xt and ( )Yt are the state and observation

vectors, respectively; ( )t

Δ and ( )

t are the state

1010

0101

()

0010

0001

⎡

⎤

⎢

⎥

⎢

⎥

ΦΔ =

⎢

⎥

⎢

⎥

⎣

⎦

1000

()

0100

⎡⎤

⎢⎥

⎣⎦

, and

= .

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

The prediction and update equations of the

Kalman filter are

() ( ) ( )

() ( ) ( ) ( ) ( )

Xt tXt t

Pt tPt t t Qt t

−

⎧

=Φ Δ −Δ

⎪

⎨

=Φ Δ −Δ Φ Δ + −Δ

⎪

⎩

(8)

and

() () ()[ () () () ()]

() [ () ()] ()

() () ()[ () () ()]

t P tH t HtP tH t Rt

Pt I KtHtPt

Xt Xt KtYt HtXt

−−−

−

−−

⎧

⎪

=−

⎨

⎪

=+ −

⎩

(9)

respectively. In Eqs. (8) and (9), “-” and “~”

represent the a priori and a posteriori estimations of

a random variable, respectively;

() (()())

Qt Ewtwt= and () (()())

t Evtvt= are

the covariance matrices of w and v , respectively.

In all our implementation ( )

t and

(0)P are

identity matrices

Id , and ( ) 3*Qt = Id . These three

parameters work well in the experiments.

When the nose tip detection algorithm fails, we

use the ICP algorithm to obtain the nose tip position

in the current frame. It may seem to the reader that

the ICP algorithm is more “reliable” than the nose

tip detection algorithm and one may wonder why we

do not just use ICP for the tracking scheme. The

main reason is that if we at every iterative step only

use ICP to register adjacent frames and propagate

the nose tip position from the previous frame to the

next frame, then at each step small registration errors

are generated and accumulated; when the

accumulation of the registration errors builds up as

the tracking proceeds, the nose tip position will

gradually drift away. This situation is similar to the

drift problem in template-based tracking in 2D

image sequences (Matthews et al., 2004).

4 EXPERIMENTAL RESULTS

The method was implemented in MATLAB R2007a

and ran on a desktop PC (3.2GHz Pentium CPU,

1GB RAM, Microsoft Windows XP Professional

OS). The data used in our experiments is from the

ETH Face Pose Range Image Data Set (Breitenstein

et al., 2008). Robust tracking results were obtained

on a dozen of 3D video sequences containing about

5000 frames in total. These sequences were recorded

using a range scanner at a frame rate of 28 fps. All

frames in the sequences are 640×480 pixels in size,

and contain only the head part of a subject. The head

pose range covers about

90° in the yaw and

45°

in the pitch. A face typically occupies about

150×200 pixels in a frame (approximately

1mm/pixel). The ground truth of the nose tips is also

available in the data set. Due to the space limit of

this paper, here we only present the tracking results

of three typical video sequences from the data set,

M16, M5 and M5g. When naming the video names,

the “M” denotes male subject, the “g” denotes that

the subject wears glasses, and the numbers are

assigned to distinguish different subjects.

Even though the spike noise has been removed

from the data beforehand, they generally exhibit a

poor quality. There are many holes in the data and

the boundaries of the faces are zigzagged. In

addition, in the data smaller z-value points are closer

to the viewer—contrary to our assumption that

larger z-value points are closer to the viewer.

Therefore, in order to apply the proposed method,

we first pre-processed the data in the following four

steps: First, we replaced the original z-values in each

frame by subtracting them from the largest valid z-

value. Second, we applied a morphological close

operation on the frame followed by a morphological

open operation. The aim of this step is to smooth the

boundaries of the face. The disk structuring elements

used for the close and open operations have radii of

7 and 2 pixels, respectively. Third, we filled in the

holes in the frame using the “imfill” MATLAB

command. Finally, we applied a 3×3 averaging filter

to the frame. This step helps to remove small spurs

on the face. Fig. 5 presents two data pre-processing

examples.

(a)

(b)

(c)

(d)

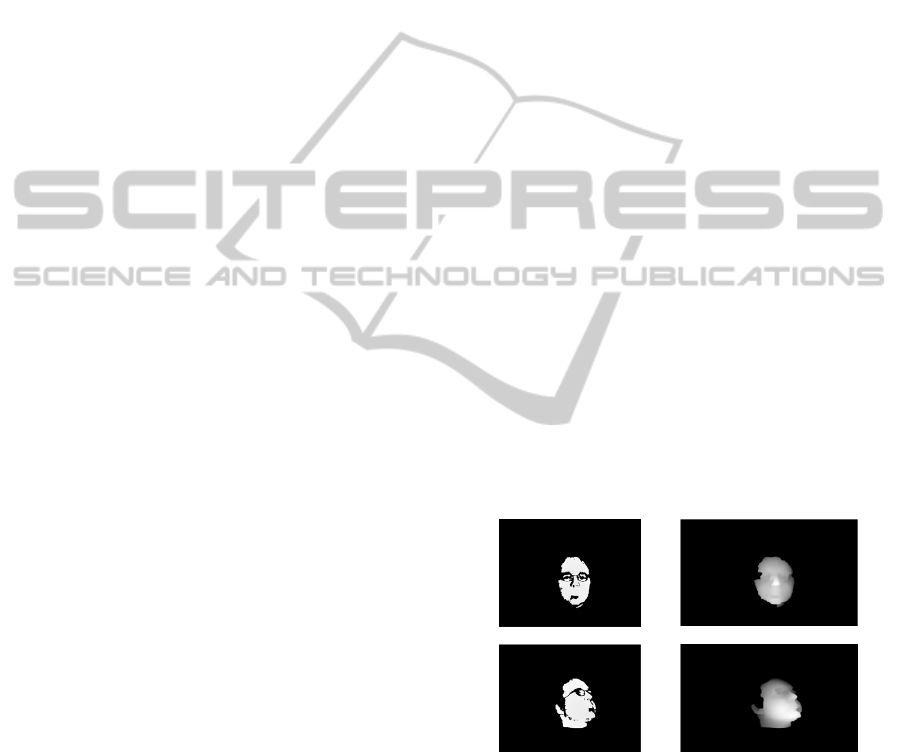

Figure 5: Two data pre-processing examples. (a) An

original face range data. (b) The result of pre-processing

(a). (c) Another original face range data. (d) The result of

pre-processing (c).

The parameters used for the tracking process is

as follows: the dimensions of

current

and

are 121×121 pixels, and TH is empirically

chosen based on visual inspection of the maximum

NOSE TIP DETECTION AND TRACKING IN 3D VIDEO SEQUENCES

(a)

(b)

(c)

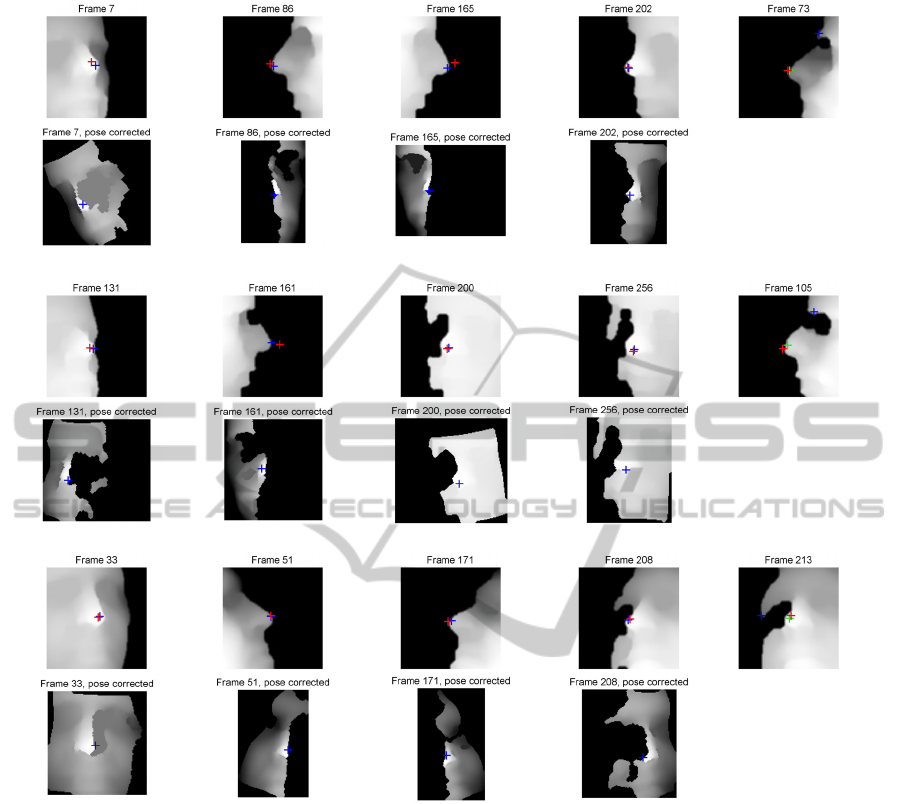

Figure 6: Tracking results obtained using our method. (a) The first row corresponds to M5 and the second row to corrected

poses from the estimated pose angles. (b) The first row corresponds to M5g and the second row to corrected poses from the

estimated pose angles. (c) The first row corresponds to M16 and the second row to corrected poses from the estimated pose

angles. Red crosses correspond to the ground truth (Breitenstein et al., 2008) of nose tip positions; blue crosses correspond

to the detected nose tips using the nose tip detection method in Section 3.1; green crosses correspond to the detected nose

tips using the ICP algorithm (figure best seen in color).

movement of the nose tip in adjacent frames.

However, in real applications TH should be chosen

otherwise, e.g., based on a number of training

sequences. To initialize the tracking process, an

initialization step is required. Since our nose tip

detection algorithm assumes that the input to the

algorithm is a facial region, we assume that the

initialization step can be accomplished using another

algorithm that is able to detect the face region from a

range image. For the sake of this paper, we manually

extract a window of 121×121 pixels from the first

frame centered on the ground truth nose tip and the

tracking thereafter begins. The tracking results along

with corrected face poses are presented in Fig. 6. For

each video we use two rows to show the results, one

row for the tracked nose tip and the other for the

corrected poses. The last column corresponding to

the first rows justifies our choice of ICP as a

complement to the nose tip detection method—in

these cases the ICP were activated when the nose tip

detection failed.

As shown in Fig. 6, despite detection failures in

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

Table 1: Description of the image sequences used in the

experiments and tracking results.

Sequence name M5 M5g M16

no. of frames 361 331 543

Ave. running time

(s)

2.78 2.77 3.05

Detection rate

)

98.34% 88.52% 99.82%

Error mean

(pixels)

4.49 3.81 2.56

Error std. deviation

(pixels)

2.00 1.93 1.68

Frame no. when

tracking failed by

using ICP only

8 14 37

The computation was carried out on a window of

121×121 pixels.

The detection rate is the ratio of the number of

frames in which the nose tip was successfully

detected out of the total number of frames in the

sequence.

Calculated only for the frames in which the nose tip

was successfully detected and in the case where

the ground truth (Breitenstein et al., 2008) is

correct.

some frames, all three sequences were successfully

tracked until the end. Note that in Fig. 6 some pose-

corrected faces have much less face points than

others. This is because these face poses are non-

frontal and a large portion of the faces was missing

due to occlusion. In Table 1 we also summarize the

average running time of our method to detect a nose

tip in one frame, the nose tip detection rates for each

sequence, and the average errors between the

detected results and the ground truth.

It can be seen from Table 1 that the detection rate

of the nose tip detection method deteriorated when

the subject had glasses on. This is because glasses

leave more zigzagged boundaries in a face scan.

Zigzagged boundaries generate more candidates in

the nose tip detection step and increase the chances

of false alarms and thus lead to lower detection rates.

We believe that better data pre-processing

techniques will further improve the results. One

interesting fact in Table 1 is that although the

detection rate of sequence M5g is the lowest

compared with the other two sequences, the tracking

accuracy for this sequence in terms of error mean

and error standard deviation is comparable to those

of the other two sequences. This fact partly

demonstrates the robustness of the proposed nose tip

detection algorithm to noise.

We observed in some frames that the ground

truth (Breitenstein et al., 2008) is visually far from

the real nose tip position. Consequently, two ways

have been used to judge whether our detection is

considered successful. If the visual inspection

reveals that the nose tip of the ground truth is

inaccurate, we rely on our visual inspection to

decide on whether the nose tip was accurately

detected. Otherwise, a detection result is considered

accurate if the detected nose tip is within 10 pixels

from the ground truth. Two examples are shown in

Fig. 7.

(a) (b)

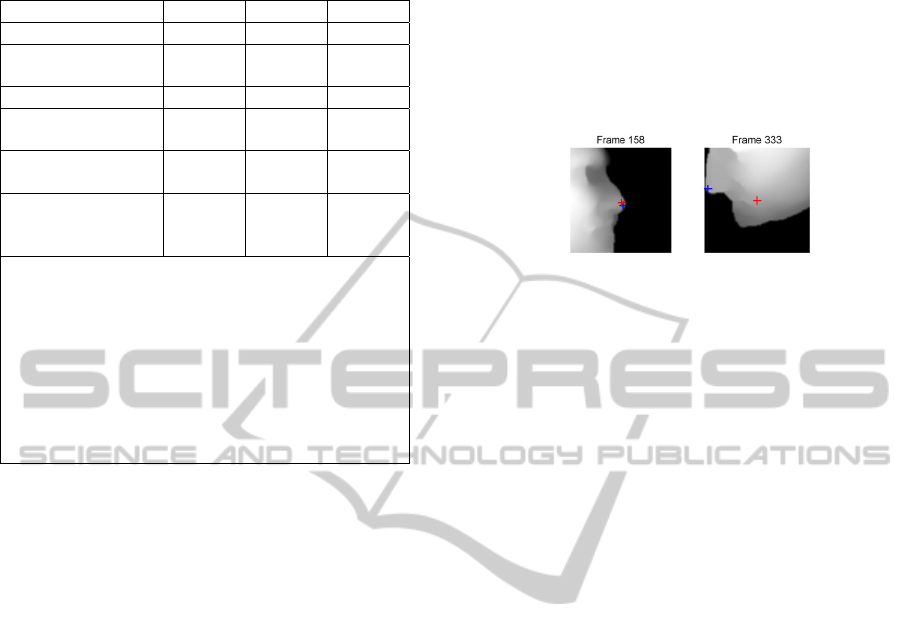

Figure 7: Two examples (from sequence F7g) where the

ground truth (Breitenstein et al., 2008) can be judged

accurate based on visual inspection. Red crosses

correspond to the ground truth (Breitenstein et al., 2008)

of nose tip positions, while blue crosses correspond to the

detected nose tips using the proposed method. Obviously,

the ground truth for the nose tip position in (b) is

inaccurate.

Since there is currently no publicly available

literature on 3D face tracking in range image

sequences, for the purpose of comparison we used

ICP only for tracking the three sequences. In these

experiments, when the tracked nose tip entirely

drifted away from the nose region, we judged the

tracking as having failed. The results are also

included in Table 1, which show that using ICP only

for tracking performed poorly.

5 CONCLUSIONS AND FUTURE

WORK

This paper addresses an important application of

point cloud data processing in 3D facial feature

detection and tracking. In particular, in this paper we

propose a nose-tip-detection-based face tracking

method which combines a nose tip detection method

with the Iterative Closest Point (ICP) algorithm and

a Kalman filter. The proposed approach tested on

real 3D sequences achieved promising tracking

results. We envision that our approach has two

potential real applications. One possible application

is for a non-contact interface for disabled users. In

this case, the user’s nose is used as a pointing device

in a human-computer interaction manner in 3D

space. The other possible application is for 3D

video-based face recognition for authentification or

surveillance purposes. In this case our method works

NOSE TIP DETECTION AND TRACKING IN 3D VIDEO SEQUENCES

as a prerequisite step before the recognition of a face

can happen.

However, there is still some substantial future

work that needs to be done. Some possible directions

are as follows:

Firstly, the proposed approach can fail in the

case where the nose tip detection method and the

ICP algorithm fail simultaneously. This could

happen when two consecutive views of a face are

both very noisy (which can lead to false alarms) and

change rapidly in pose/position. The ICP algorithm

may fail when the movement of the face between

two adjacent frames is large to the extent that the

ICP algorithm is unable to register the current and

previous frames correctly. Therefore, how to

improve the tracking scheme so that these two

components can better complement each other is one

direction of our future work.

Secondly, the pose correction in the proposed

approach is coarse. We believe that there is potential

to improve this step in the future.

Finally, currently our approach deals with the

case of only one person appearing in a frame. It

requires extending the approach to tracking multiple

faces simultaneously appearing in a frame and

dealing with appearing faces and disappearing faces.

This will be the third direction of our future work.

REFERENCES

Al-Osaimi, F., Bennamoun, M., Mian, A., 2009. An

expression deformation approach to non-rigid 3d face

recognition, International Journal of Computer Vision,

81: 302-316.

Anuar L. H., Mashohor S., Mokhtar M., and Wan Adnan

W.A. 2010. Nose tip region detection in 3D facial

model across large pose variation and facial

expression, IJCSI International Journal of Computer

Science Issues, 7(4): 1-9.

Besl, P. J., McKay, N. D., 1992. Reconstruction of Real-

World Objects via Simultaneous Registration and

Robust Combination of Multiple Range Image,. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 14(2), 239-256.

Bevilacqua V., Casorio P., and Mastronardi G. 2008.

Extending Hough Transform to a points’ cloud for 3D-

face nose-tip detection, Lecture Notes in Artificial

Intelligence, 5227: 1200-1209.

Breitenstein, M. D., Kuettel, D., Weise, T., VanGool L. J.,

Pfister, H., 2008. Real-timeface pose estimation from

single range images, In CVPR’08, pp.1-8.

Chang, K. I., Bowyer, K. W., Flynn, P. J., 2006. Multiple

nose region matching for 3D face recognition under

varying facial expression, IEEE Transactions on

Pattern Analysis and Machine Intelligence, 28(10):

1695-1700.

Chew W. J., Seng K. P., and Ang L. M. 2009. Nose tip

detection on a three-dimensional face range image

invariant to head pose, In IMCES 2009, pp. 858-862.

Chua C. S., and Jarvis R. 1997. Point signatures: a new

representation for 3D object recognition, International

Journal of Computer Vision, 25(1): 63-85.

Colombo A., Cusano C., and Schettini R. 2006. 3D face

detection using curvature analysis, Pattern

Recognition, 39(3): 444-455.

Faltemier T. C., Bowyer K. W., and Flynn P. J. 2008.

Rotated profile signatures for robust 3D feature

detection, In the 8

IEEE International Conference on

Automatic Face & Gesture Recognition, pp.1-7.

Lu, X., Jain, A. K., 2008. Deformation modeling for

robust 3d face matching, IEEE Transactions on

Pattern Analysis and Machine Intelligence, 30(8):

1346-1356.

Malassiotis, S. and Strintzis, M. G. 2005. Robust real-time

3D head pose estimation from range data, Pattern

Recognition, 38(8): 1153-1165.

Matthews, I., Ishikawa, T., Baker S., 2004. The template

update problem, IEEE Transactions on Pattern

Analysis and Machine Intelligence, 26: 810-815.

Mian, A. S., Bennamoun, M., Owens, R., 2007. An

efficient multimodal 2D-3D hybrid approach to

automatic face recognition, IEEE Transactions on

Pattern Analysis and Machine Intelligence, 29(11):

1927-1943.

Pears, N., Heseltine, T., Romero, M., 2009. From 3D

point clouds to pose-normalized depth map,

International Journal of Computer Vision, DOI

10.1007/s11263-009-0297-y.

Peng, X., Bennamoun, M., and Mian, A.S. 2011. A

training-free nose tip detection method from face

range images. Pattern Recognition, 44(3): 544-558.

Queirolo, C. C., Silva, L., Bellon, O. R. P., Segundo, M. P.,

2010. 3D face recognition using simulated annealing

and the surface interpenetration measure, IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 32(2): 206-219.

Ren X., Song J., Ying H., Zhu Y., and Qiu X. 2007.

Robust nose detection and tracking using GentleBoost

and improved Lucas-Kanade optical flow algorithms,

Lecture Notes in Computer Science, 4681: 1240-1246.

Xu C., Tan T., Wang Y., Quan L. 2006. Combining local

features for robust nose location in 3D facial data,

Pattern Recognition Letters, 27(13): 1487-1494.

Yang J., Liao Z., Li X., and Wu Z. 2009. A method for

robust nose tip location across pose variety in 3D face

data, In 2009 International Asia Conference on

Informatics in Control, Automation and Robotics, pp.

114-117.

Zhou, S. K., Chellappa, Aggarwal, R., G., 2009. Face

tracking and recognition from video, Book Chapter

from The Essential Guide to Video Processing, A.

Bovic (Ed.), Academic Press.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications
