EVENT DETECTION IN A SMART HOME ENVIRONMENT USING

VITERBI FILTERING AND GRAPH CUTS IN A 3D VOXEL

OCCUPANCY GRID

Martin Hofmann, Moritz Kaiser, Nico Lehment and Gerhard Rigoll

Institute for Human-Machine Communication, Technische Universit

at M

unchen, Arcisstr. 21, Munich, Germany

Keywords:

Event detection, Smart home, Voxel occupancy grid, Graph cuts, Viterbi tracking.

Abstract:

In this paper we present a system for detecting unusual events in smart home environments. A primary appli-

cation of this is to prolong independent living for elderly people at their homes. We show how to effectively

combine information from multiple heterogeneous sensors which are typically present in a smart home sce-

nario. Data fusion is done in a 3D voxel occupancy grid. Graph Cuts are used to accurately reconstruct people

in the scene. Additionally we present a joint multi object Viterbi tracking framework, which allows tracking

of all people, and simultaneously detecting critical events such as fallen persons.

1 INTRODUCTION

In recent years, automatic assistance and safety sys-

tems for supporting elderly people at their homes have

gained increasing research interest. Video cameras,

microphones and computer processing power have

become powerful and cheap enough to potentially al-

low for full time surveillance and assessment of the

home environment.

In order to prolong independent living at home,

specialized communication equipment has long been

utilized to allow a person to call for assistance when

needed. However, typically a person in need of help is

unable to call for help or press the alarm button him-

self. Thus it is desirable to have a surveillance system,

which automatically detects such a crucial condition

and calls for assistance in case of an accident.

In this paper we present a system which can au-

tomatically detect those events. For this purpose,

a smart home environment, equipped with multiple

multi-modal sensors is used. Our method is twofold:

First data from all available sensors is fused in a 3D

voxel occupancy grid, where we apply Graph Cuts to

accurately reconstruct the 3D scene. Our algorithm is

capable of fusing information from CCTV, thermal,

infrared, and PMD-range cameras.

Secondly, we apply a Viterbi tracking algorithm,

which not only tracks every person, but simultane-

ously detects whether they are standing, or have fallen

down. Depending on the tracking output and based on

meta data, the system is capable of detecting events

such as ”entering”, ”exiting”, ”sitting on the sofa” and

most importantly falling to the ﬂoor.

We begin with a review of related work. In Section

3, we present the 3D voxel occupancy grid and the re-

construction using Graph Cuts. Section 4 presents our

extension to the Viterbi Tracking algorithm for event

detection. Experiment on the PROMETHEUS dataset

(Ntalampiras et al., 2009) are shown in Section 5 and

we conclude in Section 6.

2 RELATED WORK

The systems currently deployed to elderly people are

non intelligent and require manual interaction. The

person has means of sending an emergency call, such

as a remote transponder, however in the event of an

accident the person has to be conscious and must be

able to press an emergency button.

There exists quite a number of automated systems

which use environmental sensors. For example (For-

oughi et al., 2008) uses Support Vector Machine clas-

siﬁcation on human silhouette shape changes. How-

ever their system requires a very speciﬁc camera setup

in front of a monochrome background, which is un-

natural for real world scenarios. In (Diraco et al.,

2010) a single Photonic Mixer Device is used to ﬁnd

the centroid of a person. Similarly in (Shoaib et al.,

2010) the authors classify on the foreground blobs ex-

tracted from a single camera with monochrome back-

ground.

242

Hofmann M., Kaiser M., Lehment N. and Rigoll G..

EVENT DETECTION IN A SMART HOME ENVIRONMENT USING VITERBI FILTERING AND GRAPH CUTS IN A 3D VOXEL OCCUPANCY GRID.

DOI: 10.5220/0003315402420247

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2011), pages 242-247

ISBN: 978-989-8425-47-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Thus most of the current approaches use data from

a limited number of visual sensors or need very spe-

ciﬁc camera setup. Our approach in contrast is capa-

ble of fusing data from a multitude of distributed and

heterogeneous sensors into one common scene recon-

struction. Tracking and event detection in this joint

observation space is much more robust and leads to

better results because the reasoning can be done in

3D space.

For 3D reconstruction we decided to use a 3D

voxel occupancy grid. 3D voxel occupancy dates

back the early 1980’s (Martin and Aggarwal, 1983).

This method uses silhouettes from multiple views

and projects them back into the voxel grid where the

shapes of the objects are inferred by intersection of

the back projected silhouettes. The method is there-

fore often also called shape-from-silhouette (Cheung

et al., 2003)(Cipolla and Blake, 1992).

However, the general shape-from-silhouette

method is very sensitive to noise and errors in the

generation of the silhouettes. For example, if a pixel

in the foreground silhouette from one view is falsely

detected as background, the resulting 3D structure

will typically have a hole. To avoid this, morpho-

logical operations (Serra, 1983) are often applied

to the silhouettes or the 3D volume to enhance the

quality. However, morphological operations typically

introduce deforming artifacts.

In order to avoid artifacts and to get a more precise

reconstruction, we use a soft fusion of the silhouettes

similar to (Snow et al., 2000). To this end, a global

energy function is deﬁned on the 3D voxel occu-

pancy grid. This energy function contains a data term,

which alone is equivalent to the standard shape-from-

silhouette method. Additionally, the energy contains

a smoothness term, which in essence allows to pad

holes without introducing artifacts.

As mentioned in the introduction, we use an ex-

tended state tracker to follow people and to ﬁnd out

if they are standing, sitting or fallen down. We use

an extension to the Viterbi tracking algorithm. This is

similar to (Fleuret et al., 2007). However, the main

difference is that we extend the state space to not

only include the (x

, y

) coordinates, but also a ﬂag

, which states whether the person is standing, or has

fallen down.

3 3D VOXEL OCCUPANCY GRID

In the following we present an approach for recon-

structing the 3-dimensional shapes of objects from

multiple multi-modal distributed camera sources. To

this end, the scene is quantized to a three dimensional

Sensor

input

Background

Segmentation

Silhouette

extensions

Fusion

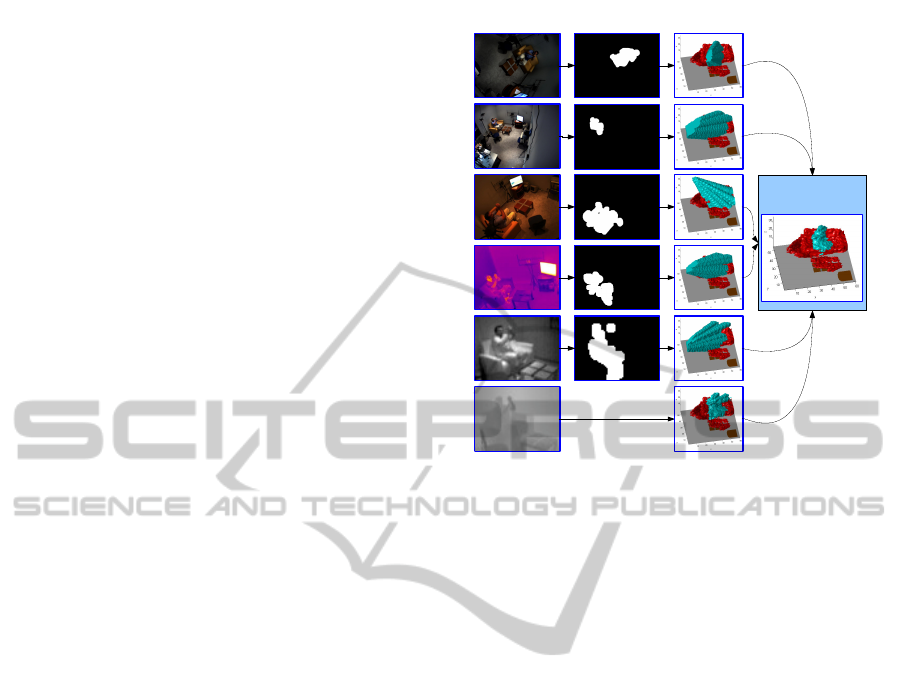

Figure 1: The 3D voxel occupancy grid is calculated as

follows: For each input sensor, foreground silhouettes are

generated using background subtraction. The visual hulls

of the foreground silhouettes are fused in the 3D space us-

ing either intersection of the visual hulls or graph cuts. The

range channel is a special case: Instead of using background

subtraction, the visual hull is generated using the range in-

formation.

voxel occupancy grid. The occupancy of each of the

voxels is determined by the joint observations of all

available sensors. The method is able to utilize het-

erogeneous sensors such as CCTV, thermal, infrared

and range sensors.

With this method it is possible to generate accu-

rate 3D detections, as well as an accurate reconstruc-

tion of the scene. All the processing is done in 3D

and therefore allows reasoning in a 3D environment

as opposed to just ﬂat 2D camera images. The pro-

posed method is especially applicable to short range

environments just like the smart home indoor scenar-

ios.

We show two methods for fusing data: One is by

intersection of the visual hulls. The other uses graph

cuts (Boykov et al., 2001). The later gives much better

results.

3.1 Deﬁnition and Sensor Projection

The reconstruction of the scene is done in a 3-

dimensional occupancy grid V , with a neighborhood

system N ⊂ V ×V which connects each voxel to its

adjacent voxels. For every voxel v ∈ V there is a bi-

nary labeling f

which is 1, if the voxel is occupied,

and 0, if it is not occupied.

EVENT DETECTION IN A SMART HOME ENVIRONMENT USING VITERBI FILTERING AND GRAPH CUTS IN

A 3D VOXEL OCCUPANCY GRID

243

The input to the algorithm comes from multi-

modal visual sensors, i.e. visual cameras, infrared

cameras as well as the photonic mixer device (PMD)

which produces a near infrared image (NIR) and a

range image. We distinguish between two principal

categories of sensors: intensity and range. There are

m intensity sensors and n range sensors. In our ex-

periments we have m = 5 intensity sensors and n = 1

range sensors. Details of our speciﬁc setup can be

found in Section 5.1.

The set of pixels in camera k is denoted as C

. We

use background modeling (Zivkovic and van der Hei-

jden, 2006) to determine, which of the pixels in C

are foreground. The subset F

⊂ C

denotes all the

pixels which are determined to be foreground by the

background modeling method. All of the cameras are

calibrated using the Tsai camera calibration method

(Tsai, 1986). With the use of this calibration, each

pixel c

∈ C

of camera k intersects with a set of vox-

els, which is denoted as V (c

) ⊂ V . Consequently,

each voxel v corresponds to a multitude of pixels in

the corresponding camera k. The visual observation

set O(v) describes for each voxel v, which sensors see

it as foreground:

O(v) =



k|∃c

with c

∈ V

−1

(v) ∧ c

∈ F



(1)

The range sensor is a special case. The function

r(v) describes, if the voxel v is foreground, based on

the range information.

r(v) =

(

1 range(V

−1

(v)) < dist(v, PMD)

0 else

(2)

Here dist(v, PMD) denotes the Euclidean distance

from the voxel v to the center of the PMD camera

and range(c

) denotes to distance measured with the

PMD device at pixel c

3.2 Fusion using Intersection

First experiments of fusing projected data in the 3D

voxel occupancy grid is by intersection of the visual

hulls. The fusion then efﬁciently becomes:

(

1 kO(v)k+ r(v) ≥ k + 1 − µ

0 else

, with µ = 0

(3)

This means that a voxel v is labeled as foreground

if it can be observed as foreground by all visual sen-

sors, and if in addition the voxel can be explained as

foreground by the PMD range channel.

In the case that detections are erroneous and suf-

fer from misses, the proposed algorithm can easily

be made more robust by setting µ > 0. In this case

only k − µ out of the available views have to intersect,

which leads to better detections at the cost of more

false positives.

3.3 Fusion using Graph Cuts

To further improve the reconstruction quality, we used

a global energy function with a data term D

( f

) and

a smoothness term S( f

, f

). This allows to naturally

include a smoothness constraint. Minimizing this en-

ergy function is superior to silhouette intersection,

which has no means of incorporating a smoothness

term. The energy function is given as

E( f ) =

∑

v∈V

( f

) + µ

∑

v,v

∈N(v)

S( f

, f

) (4)

For each voxel v, the data term D

( f

) as-

signs a cost depending on the label f

. We de-

ﬁne the visibility ratio h(v) =

kO(v)k+r(v)

O(v)k

O(v) =



k|∃c

with c

∈ V

−1

(v)



, which deﬁnes for each

voxel the ratio of the number of cameras observing

the voxel as foreground divided by the total number

of cameras which can see the voxel. This is an impor-

tant measure, because voxels can be oberserved by a

variable number of cameras. We then deﬁne the data

term as follows:

( f

) =

(

h(v) f

= 1

1 − h(v) f

= 0

(5)

The smoothness term is deﬁned on the close

neighborhood as:

S( f

, f

) =

(

0 f

= f

1 else

(6)

The ﬁnal labeling f = argmin

E( f ) is obtained

using graph cuts (Kolmogorov and Zabih, 2002). In

all our experiments we set µ =

100

in Equation 4. This

factor weighs the inﬂuence of the data term versus the

smoothness term.

4 EVENT TRACKER

In this section we present a combined low and high

level action recognition framework for smart home

scenarios. The basic idea is to formulate the event

detection stage jointly with the tracking stage. In

other words, we use a multi object tracking algorithm,

which not only tracks all the people in the scene, but

simultaneously tracks the conﬁguration (standing or

fallen down) of the person. The output of this ex-

tended tracking framework is rich enough to detect

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

244

a multitude of events without further classiﬁcation or

recognition steps.

The event tracker takes input solely from the ob-

servation space generated using the 3D voxel occu-

pancy grid described in the previous section. This 3D

reconstruction proved highly accurate and robust for

the purpose of event detection.

The main focus in this work is on detecting fallen

persons. However, as a byproduct, the method is also

capable of recognizing four additional events. More

speciﬁcally, ”Sitting down”, ”Standing up”, as well as

”Entering home” and ”Exiting home”.

4.1 Viterbi Formulation

In this section we present the optimization method of

the joint tracking and event detection framework. We

use a maximum a posteriori method, more speciﬁcally

the Viterbi algorithm, to ﬁnd the optimal trajectories.

To begin, we will ﬁrst introduce the state vari-

ables. At each time t, the state of a person i

is given by S



, y

, l



. Thus the state not

only contains the position (x

, y

), but an additional

ﬂag l

which can hold one of three values: l

∈

{

outside, standing, f allen). We denote by S



, . . . , S



the joint state space of all people at

time t. Here N is the maximum number of people

that can potentially be in the scene. Consequently,



, . . . , S



denotes the trajectory of person i.

The complete state of the full sequence containing T

frames is then given by S = (S

, . . . , S

Given the set of observations I = (I

, . . . , I

), we

seek to maximize the state sequence S, given the ob-

servations I.

S = arg max

P(S|I) (7)

There are many possibilities to optimize such a poste-

rior, for example using particle ﬁlters such as the con-

densation algorithm or Markov Chain Monte Carlo

methods. Because we already have a heavily dis-

cretized occupancy grid (and thus a rather low num-

ber of states), we propose to use the Viterbi algorithm

to ﬁnd the optimal state sequence. The Viterbi algo-

rithm is an iterative algorithm, which at each time step

returns the optimal trajectory up until this time step.

However, despite the discretized occupancy grid, the

optimal solution is intractable, because the number of

states increases exponentially with a higher number

of people.

A solution to this problem is to compute the tra-

jectories for each person one after the other:

= argmax

P(S

|I) (8)

= argmax

P(S

|I,

) (9)

= argmax

P(S

|I,

, . . . ,

N−1

) (10)

This means that the optimization of a trajectory is

conditioned on the results from optimizing all the pre-

vious trajectories. The conditioning implies that tra-

jectories cannot use locations which are already oc-

cupied by other trajectories. Assuming perfect ob-

servations this sequential approach does not do any

harm and the optimal trajectories can still be ob-

tained. However in practice, the observations suffer

from spurious detections, miss detections and noise.

Obviously the described greedy optimization fails in

these cases.

An elegant solution(Fleuret et al., 2007) is to pro-

cess the data in temporal batches of a certain length

T = T

. The basic idea is as follows: After the opti-

mization (Equations 8-10) is performed, only the ﬁrst

10% of the tracking results are kept and the rest is dis-

carded. The temporal batch is then shifted forward.

The trajectories are sorted such that for the next op-

timization the trajectory with the highest conﬁdence

is computed ﬁrst. This ensures that trajectories with

stable observations are optimized ﬁrst, while trajecto-

ries with weak observations cannot interfere with the

stable trajectories.

Optimizing a single trajectory then becomes a

matter of running the standard Viterbi algorithm (For-

nay, 1973). We need to ﬁnd the most likely path

through the state sequence, which maximizes the pos-

terior probability:

S = arg max

P(S|I) = arg max

P(I

, . . . , I

, S

, . . . , S

)

(11)

This is achieved with an iterative procedure. At each

time t,

(k) = max

,...,S

t−1

P(I

, . . . , I

, S

, . . . , S

t−1

, S

= k)

(12)

denotes the maximum probability of ending up in

state k at time t. With the markov assumptions, the

current state is only dependent on the previous state

P(S

t−1

, S

t−2

, . . .) = P(S

t−1

) and the observations

are independent given the state P(I|S) =

∏

P(I

Therefore the iterative Viterbi equation can be

written as:

(k) = P(I

= k) max

P(S

= k|S

t−1

= λ)Ψ

t−1

(λ)

(13)

EVENT DETECTION IN A SMART HOME ENVIRONMENT USING VITERBI FILTERING AND GRAPH CUTS IN

A 3D VOXEL OCCUPANCY GRID

245

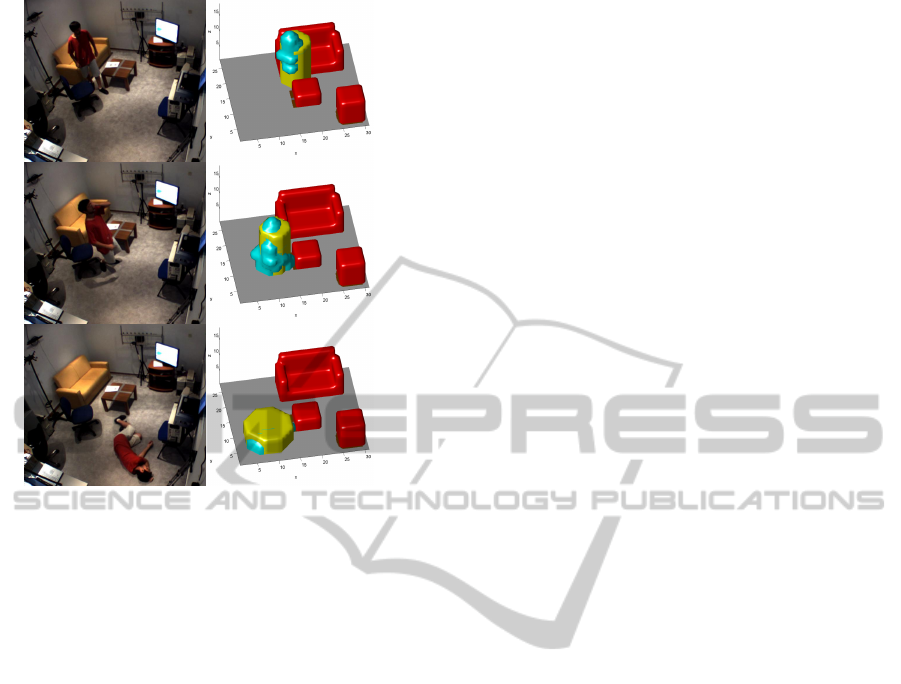

Figure 2: Sequence of a falling person and the correspond-

ing observation in the 3D voxel occupancy grid. The 3D

voxel occupancy grid is correlated with a tall thin template,

and a ﬂat wide template to get the observation likelihood

P(I|S). Manually modeled background objects (red); Ob-

servations in the 3D voxel occupancy grid (blue); human

correlation templates at the tracked position (yellow).

The maximization operator in Equation 13 ﬁnds the

optimal predecessor in frame t −1 when going to state

k at time t. Thus a backtracking starting from the ﬁnal

optimum at t = T yields the optimal trajectory.

4.2 Motion Model

The motion model is given by the term P(S

k|S

t−1

= λ). It is the probability of entering state

k, if the system was in state λ in the previous time

step. We model this probability with a Gaussian dis-

tribution centred at λ and with a standard deviation

of σ = 100mm. This way, motions of approximately

0.1 meter per time step and less are encouraged, while

bigger motions are not likely (but still possible).

4.3 Appearance Model

Here P(I

= λ) is the observation model. Given a

hypothesized state S

= λ, this is the likelihood of ob-

serving that state. This observation likelihood is de-

termined as follows: First we correlate the 3D voxel

occupancy grid with two templates. One template is

a thin and tall cylinder, representing a standing hu-

man (see Figure 2(top row)). The other template is

a ﬂat and wide template representing a fallen human

(see Figure 2(bottom row)). Then the output from the

correlation is normalized to a probability distribution.

4.4 Event Detection

Detecting events becomes very straight forward after

the rich output from the tracking module. The tracker

gives for each person the position and the stand-

ing/fallen ﬂag. Setting appropriate thresholds on the

position readily give results for ”entering”, ”exiting”,

”sitting down” and ”standing-up”. For example, a tra-

jectory which starts close to the entrance region will

invoke the ”entering” event. The event ”falling down”

can be directly detected from the standing/fallen ﬂag

. The event is detected at each transition from

= standing to l

t+1

= f allen.

5 EXPERIMENTS

5.1 Database and Setup

The data used in this paper has been recorded during

the 7th Framework EU Project PROMETHEUS (Nta-

lampiras et al., 2009). We use data from two smart

home indoor scenarios. In these scenarios up to 4 in-

dividuals, played by actors, portray daily behavior in

a living room. The data is therefore captured in a very

controlled environment.

The database contains two recordings which, be-

sides others, contain several instances of the falling

down events. The recordings are 15min and 30min

respectively. The scenario is recorded from ﬁve cam-

eras with a total of six image channels. These include

three visual channels from CCTV cameras, one ther-

mal channel from a thermal camera, as well as a near

infrared (NIR) channel and a range channel from a

Photonic Mixer Device. We divide the six channels

into two different kinds of data sources (intensity and

range), as described in Section 3.1. The m = 5 in-

tensity sensors consist of the three visual cameras,

the thermal camera and the NIR channel of the PMD

device. The PMD device generates the n = 1 range

channel.

The visual cameras deliver high resolution

(1024 × 768 and 768 × 576) color images. The ther-

mal camera has a medium resolution of 240 × 320.

The PMD sensor, a CMOS time of ﬂight Camera

(PMD[Vision]3k-S), delivers a range image with a

spatial resolution of 64 × 48 pixels for a range of up

to 7.5m in a depth resolution of ≈ 1cm as well as a

64 × 48-pixel NIR (Near-infrared) image.

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

246

Table 1: Performance results for the ﬁve detectable events.

Precision Recall F1-measure

falling down 85.7% 100% 96.1%

sitting down 100% 100% 100%

standing up 100% 100% 100%

entering home 83.2% 71.4% 76.8%

exiting home 80.0% 66.6% 72.7%

5.2 Evaluation and Results

For evaluation, the processing results are compared

against manually annotated ground truth. In order

to account for annotation errors and detection un-

certainty, we allow a temporal window of ∆ f = 30

frames for matching ground truth to detection results.

The ﬁnal results of our event detection method are

shown in Table 1. It can be seen that the event ”falling

down” has been recognized with 100% recall and a

few false positives. A few false positives are admis-

sible because in safety applications, the focus is on a

high recall rate. In our experiments a few false pos-

itives occured when people leaned down to help up

a person who has fallen down before. Our algorithm

is able to detect the ”sitting down” and ”standing up”

events with perfect precision and recall. The ”enter-

ing” and ”exiting” events are harder to detect, espe-

cially because in our dataset, people often enter or exit

the scene in groups of two or three.

6 CONCLUSIONS

In this paper we have shown how data from multi-

ple, heterogeneous image sensors can be efﬁciently

combined to detect a number of events with applica-

tion to surveillance in a smart home environment. We

have shown that for fusing multiple heterogeneous

data sources, a 3D voxel occupancy grid is beneﬁcial.

Furthermore, we demonstrated simultaneous tracking

and event detection using an extended multi-object

Viterbi tracking framework. We applied our method

to the multi-camera, multi-modal Prometheus smart

home database. In this speciﬁc application, our al-

gorithm is capable of detecting falling people and a

number of other events. We showed excellent results

on this smart home database and showed that the pro-

posed application setup can in fact be used for assis-

tance systems for the elderly.

REFERENCES

Boykov, Y., Veksler, O., and Zabih, R. (2001). Fast approxi-

mate energy minimization via graph cuts. IEEE Trans.

Pat. Analysis and Machine Intelligence, 23(11):1222–

1239.

Cheung, G. K., Baker, S., Simon, C., and Kanade, T. (2003).

Visual hull alignment and reﬁnement across time: A

3D reconstruction algorithm combining shape-from-

silhouette with stereo. Comp. Vis. Pat. Rec.

Cipolla, R. and Blake, A. (1992). Surface shape from the

deformation of apparent contours. Int. J. Comput. Vi-

sion, 9(2):83–112.

Diraco, G., Leone, A., and Siciliano, P. (2010). An active

vision system for fall detection and posture recogni-

tion in elderly healthcare. In Design Automation &

Test, pages 1536–1541.

Fleuret, F., Berclaz, J., Lengagne, R., and Fua, P. (2007).

Multi-camera people tracking with a probabilistic oc-

cupancy map. IEEE Trans. Pat. Analysis and Machine

Intelligence.

Fornay, G. D. (1973). The viterbi algorithm. Proceedings

of the IEEE, 61(3):268–278.

Foroughi, H., Rezvanian, A., and Paziraee, A. (2008).

Robust fall detection using human shape and multi-

class support vector machine. In Proc. Indian Conf.

on Computer Vision, Graphics & Image Processing,

pages 413–420.

Kolmogorov, V. and Zabih, R. (2002). What energy func-

tions can be minimized via graph cuts? In Proc. Eu-

ropean Conf. on Computer Vision, pages 65–81.

Martin, W. and Aggarwal, J. (1983). Volumetric descrip-

tions of objects from multiple views. IEEE Trans. Pat.

Analysis and Machine Intelligence, 5(2):150–158.

Ntalampiras, S., Arsi

c, D., St

ormer, A., Ganchev,

T., Potamitis, I., and Fakotakis, N. (2009).

PROMETHEUS database: A multi-modal cor-

pus for research on modeling and interpreting human

behavior. In Proc. Int. Conf. on Digital Signal

Processing.

Serra, J. (1983). Image Analysis and Mathematical Mor-

phology. Academic Press, Inc., Orlando, FL, USA.

Shoaib, M., Elbrandt, T., Dragon, R., and Ostermann, J.

(2010). Altcare: Safe living for elderly people. In 4th

Int. ICST Conf. on Pervasive Computing Technologies

for Healthcare 2010, volume 0.

Snow, D., Viola, P., and Zabih, R. (2000). Exact voxel oc-

cupancy with graph cuts. In IEEE Conf. on Computer

Vision and Pattern Recognition, pages 345–352.

Tsai, R. (1986). An efﬁcient and accurate camera calibra-

tion technique for 3-D machine vision. In IEEE Conf.

on Computer Vision and Pattern Recognition, pages

364–374.

Zivkovic, Z. and van der Heijden, F. (2006). Efﬁcient

adaptive density estimation per image pixel for the

task of background subtraction. Pattern Recogn. Lett.,

27(7):773–780.

EVENT DETECTION IN A SMART HOME ENVIRONMENT USING VITERBI FILTERING AND GRAPH CUTS IN

A 3D VOXEL OCCUPANCY GRID

247
