GLOBAL ILLUMINATION USING IMPERFECT VOLUMES

Pavlos Mavridis and Georgios Papaioannou

Department of Informatics, Athens University of Economics & Business, Athens, Greece

Keywords:

Real-Time Diffuse Global Illumination, Spherical Harmonics, Voxelization, Ray Marching.

Abstract:

This paper introduces the concept of imperfect volumes, a fast one-pass point-based voxelization algorithm,

and presents its applications to the global illumination problem. As often noted, diffuse indirect illumination

has the characteristics of a low frequency function, consisting of smooth gradations. We exploit this by

performing the indirect lighting computations on a rough approximation of the scene, the imperfect volume.

The scene is converted on the ﬂy to a dense point cloud, and each point is directly rendered to a volume texture,

marking the corresponding voxel as occupied. A framebuffer reprojection scheme ensures that voxels visible

to the main camera will get more points. Ray-marching is then used to compute the ambient occlusion or the

indirect illumination of each voxel, and the results are stored using spherical harmonics. We demonstrate that

the errors introduced by the imperfections in the volume are small and that our method maintains a high frame

rate on scenes with high geometric complexity.

1 INTRODUCTION

In computer graphics the goal of global illumination

algorithms is to produce convincing images of an arti-

ﬁcial world. Given a scene description, including the

geometry, surface properties and light source descrip-

tions, they simulate the complex interactions of the

light with the world, like diffuse and specular inter-

reﬂections, in order to generate realistic and accurate

images. Such accuracy is desired for architectural vi-

sualization, feature ﬁlm production and even for real-

time applications, but is often omitted due to the high

cost associated with the calculation of global illumi-

nation effects.

High quality global illumination at interactive

speed is still an unsolved problem for large and dy-

namic scenes. In this paper we propose a method that

produces realistic images of diffuse, dynamic envi-

ronments in real time, by estimating the diffuse in-

direct light transport at discrete locations in the envi-

ronment and applying the results on the scene geom-

etry. To do so, we introduce the imperfect volume, a

rough approximation of the scene, storing occupancy

and lighting information in a uniform grid data struc-

ture. The way this volume is constructed ensures that

visible surfaces will get a nearly perfect voxelization,

through a frame buffer reprojection scheme, while the

rest of the scene may contain inaccuracies, like miss-

ing voxels. Radiance or ambient occlusion (AO) is

computed at the center of each voxel using volume

ray-marching and the results are stored in the volume

using spherical harmonics. Finally the diffuse indirect

illumination of each visible point is reconstructed by

sampling the radiance of the closest voxels in the vol-

ume. We demonstrate that the low frequencynature of

the diffuse indirect illumination tends to mask the in-

troduced imperfections, while the performance gains

from such an approximation are substantial.

2 PREVIOUS WORK

Instant radiosity methods (Keller, 1997) approximate

the indirect illumination of a scene using a set of Vir-

tual Point Lights (VPLs). VPLs are created by tracing

photos on the scene, then the scene is rendered, as lit

by each VPL. The major cost of this method is the

visibility queries for a large number of point lights.

Lightcuts (Walter et al., 2005) reduce the number of

the required queries by clustering the VPLs in groups,

but the performance is still far from real-time.

Reﬂective shadow maps (Dachsbacher and Stam-

minger, 2005)(Dachsbacher and Stamminger, 2006)

consider the pixels of a shadow map as VPLs, but the

contribution of these lights is gathered without taking

scene occlusion into account. To achieve interactive

160

Mavridis P. and Papaioannou G..

GLOBAL ILLUMINATION USING IMPERFECT VOLUMES.

DOI: 10.5220/0003318601600165

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 160-165

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

frame rates, screen space interpolation is required and

the method is limited to the ﬁrst bounce of indirect il-

lumination. Imperfect shadow maps (ISM) (Ritschel

et al., 2008) use a point based representation of the

scene to efﬁciently render extremely rough approxi-

mations of the shadow maps for all the VPLs in one

pass. They achieve interactive frame rates but indirect

shadows are smoothed out considerably by the imper-

fections of the shadow maps. Like ISMs, our method

also uses an imperfect representation of the scene, but

our method has much better scalability with the ﬁnal

image resolution.

Micro-Rendering (Ritschel et al., 2009a) gathers

illumination by rasterizing a point based representa-

tion of the scene from many different viewpoints in

parallel. The results are accurate but the frame rate is

interactive only in relatively simple scenes.

McGuire (McGuire and Luebke, 2009) adapts

the photon mapping (Jensen, 1996) algorithm on the

GPU. The ﬁrst bounce of the photons is computed

using rasterization on the GPU, but the rest of the

bounces are computed on the CPU, making the al-

gorithm impractical unless a large number of parallel

cores are used.

Directional occlusion (Ritschel et al., 2009b) ex-

tends previous screen space methods (Shanmugam

and Arikan, 2007) and approximates the ﬁrst indirect

diffuse bounce of the light by only using information

in the frame buffer. The computational cost is low but

the resulting illumination is hardly accurate since it

depends on the projection of the visible objects on the

screen.

The irradiance cache (Ward et al., 1988) stores ac-

curate irradiance estimates on a few surface points

and for the remaining ones fast interpolation is used.

Radiance caching (Kˇriv´anek et al., 2005) extends the

concept to store radiance instead of irradiance, us-

ing spherical harmonics. (Wang et al., 2009) presents

a method to calculate the radiance sample points in

advance and implements the algorithm on the GPU.

The method is accurate but achieves interactive frame

rates only in very simple scenes. (Nijasure et al.,

2004) places the sample points on a grid, but to

estimate the radiance on each point, the complete

scene must be rendered on a cube map, making the

method expensive. (Kaplanyan and Dachsbacher,

2010) avoids this cost by using an iterative propaga-

tion scheme to calculate the radiance distribution on

the scene. The method achieves high performance but

indirect occlusion is only limited to surfaces visible in

the camera and the shadowmaps. Compared to that,

the imperfect volume has the advantage that occlusion

information is available for the whole scene.

(Papaioannou et al., 2010) computes AO by trac-

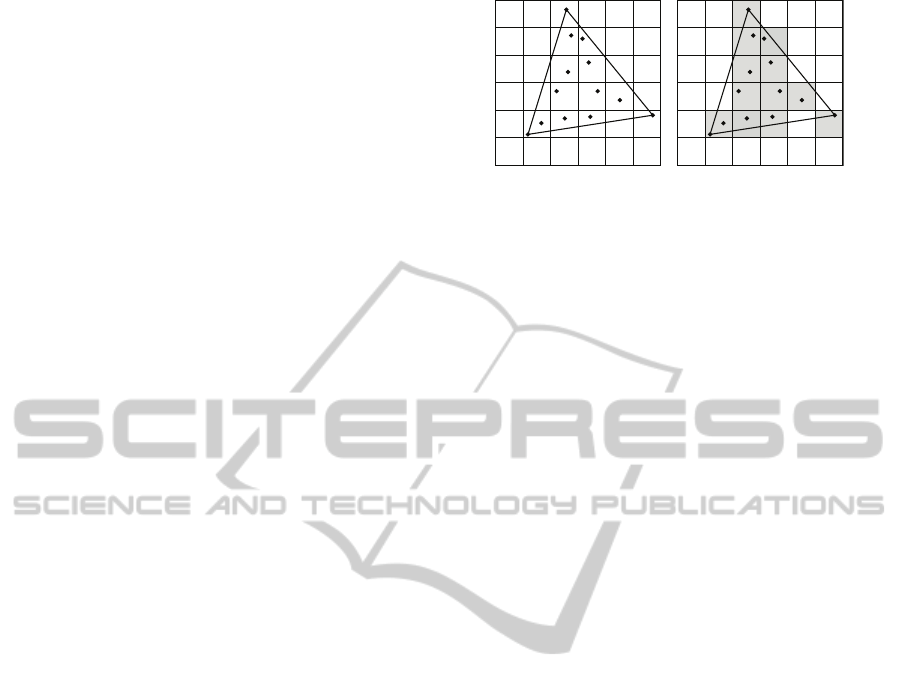

Figure 1: For each input triangle, random points are created,

marking the corresponding voxels as occupied.

ing rays on a volume representation of the scene from

visible points, but to achieve real time performance

AO is computed at a lower resolution. Our method

also traces rays in a volume, but can achieve better

performance by doing it at regular intervals in world

space and not for every visible surface point.

3 METHOD OVERVIEW

Our method ﬁrst creates the imperfect volume from

a dense point cloud representation of the scene, cre-

ated on the ﬂy using geometry shaders. After that, the

imperfect volume is reﬁned using the visible points

from the main camera. Next, the incoming radiance or

the AO of each voxel is computed using ray-marching

and monte carlo integration and ﬁnally, during image

rendering, the irradiance of each surface point is cal-

culated taking into account the radiance of the nearest

voxels.

3.1 Imperfect Volume Creation

Our goal is to create a volume representation of the

full scene, storing occupancy and illumination infor-

mation. Previous fast one-pass voxelization algo-

rithms, like (Eisemann and D´ecoret, 2008), cannot

be used because our algorithm requires multi-channel

ﬂoating point data rather than binary values in each

voxel. Since we consider our scenes fully dynamic,

the complete volume representation must be rebuilt in

every frame, so a high performance algorithm is es-

sential for our method.

The volume is created from a dense point-cloud

representation of the scene. Although we can pre-

calculate the point cloud in advance, we chose to gen-

erate it on the ﬂy using the geometry shader function-

ality of the latest graphics cards. This approach has

the advantage that an additional point-based represen-

tation and storage of the scene is not required, some-

thing that simpliﬁes the integration with the rendering

pipeline of typical real-time applications.

For each input triangle with area A, N random

GLOBAL ILLUMINATION USING IMPERFECT VOLUMES

161

points are generated with probability density p(x) =

1/A. The geometry shader takes as input a triangle

and emits N points. For each emitted point, the appro-

priate slice of the volume is calculated and the point

is directly rendered to this slice, marking the corre-

sponding voxel as occupied. For each point, the di-

rect illumination is calculated using the interpolated

normal from the input triangle and the result is stored

in the volume using a spherical harmonics represen-

tation.

The obvious ﬂaw in the above algorithm is that

there is guarantee that every occupied voxel will re-

ceive a random point, but as the density of the gener-

ated points increases, the probability that an occupied

will not receive a random point tends to zero.

It should be noted that geometry shaders are not

fast doing data ampliﬁcation, so when producing

more random points the performance quickly drops.

It’s more preferable to tessellate big triangles at load

or content creation time, than to generate more points

at run-time. We have also experimented with adap-

tively adjusting the number of generated points de-

pending on the size of the triangle, but the perfor-

mance turned out to be slower.

3.2 Visible Point Reprojection

In this step the visible regions of the imperfect volume

are reﬁned with data from the framebuffer. Before

this step, the depth, normals and albedo of the surface

points visible to the camera are recorded in a g-buffer

(Akenine-M¨oller et al., 2008) using deferred render-

ing. Direct illumination is calculated for all fragments

and the visible points from the main camera are repro-

jected in the imperfect volume and the corresponding

voxels are updated.

To perform this reprojection, an array of points is

used, each point corresponding to a pixel in the frame-

buffer. Each point reads the depth of the correspond-

ing pixel in the vertex shader and is projected from

clip coordinatesback to world space, to be reprojected

in the imperfect volume. A geometry shader routes

the points to a slice of the 3D volume according to

their depth in world space coordinates. Finally, the

fragment shader reads the albedo, normal and the di-

rect lighting of the point, already computed and stored

by the deferred renderer, and stores it to the volume

using a spherical harmonics representation according

to the normal of the point.

Since the number of the visible points that are pro-

jected in the volume is considerably larger than the

number of the visible voxels, this operation results in

an almost perfect voxelization of the visible surfaces,

eliminating most of the potential gaps in the visible

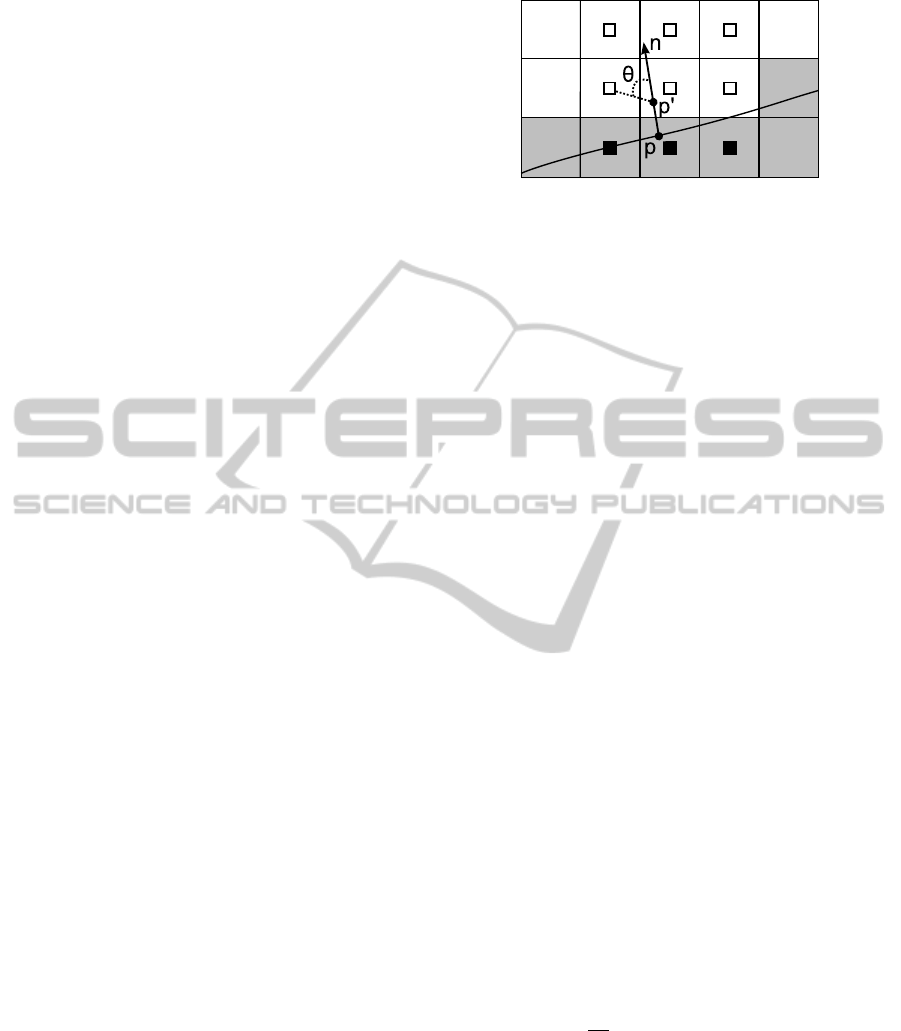

Figure 2: Computing the radiance or visibility distribution

at surface point p. To avoid bias from self intersections,

the point is displaced half a voxel along the normal n to

the position p

′

, and a more accurate radiance distribution is

recomputed from the radiance of neighboring voxels. Vox-

els behind the surface, marked with a black square, do not

contribute to the computation.

portion of the imperfect volume.

3.3 Volume Sampling and Radiance

Caching

The incoming radiance distribution of each voxel L

stored in the volume as a vector of spherical harmonic

coefﬁcients λ

, such as

(θ,φ) =

n−1

∑

l=0

∑

m=−l

(θ,φ) (1)

where n is the order of the SH representation

and Y

are the spherical harmonic basis func-

tions(Ramamoorthi and Hanrahan, 2001). Our im-

plementation uses a 2

order spherical harmonic rep-

resentation, since the four SH coefﬁcients map very

well to the four component buffers supported by the

graphics hardware. The coefﬁcients λ

can be com-

puted with the following integral

2π

π/2

−π/2

(θ,φ)Y

(θ,φ)sinθdθdφ (2)

Since we don’t have an analytical form for L

, but we

can take samples of this function using raycasting, we

compute λ

using monte carlo quadrature with uni-

form sampling

4π

∑

j=1

(θ

,φ

(θ

,φ

) (3)

where L

is the incoming radiance from the (θ

,φ

)

direction of the sphere and N is the total number of

samples.

In order to compute the L

term in equation 3, we

sample the radiance that is stored in the volume repre-

sentation of the scene. For every voxel, N random di-

rections on the sphere are created using stratiﬁed sam-

pling, and rays starting from the center of the voxel

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

162

are traced using ray-marching, a process where the

volume is sampled in regular intervals along the ray,

until an occupied cell is found or the extends of vol-

ume are reached.

In the case of AO calculation, we sample and store

the directional visibility instead of the incoming radi-

ance. We also limit the ray-marching distance to a

short range, making the AO calculation much faster

than GI.

Even though the rays start from the center of

each voxel, to avoid self intersections the actual ray-

marching should start outside the originating voxel.

To do this an initial distance d

along each ray should

be skipped. For cubic voxels of size s

the distance

that we skip is d

√

, which is the radius of the

bounding sphere of the voxel. This scheme does not

avoid self intersections with neighboring voxels po-

tentially generated from the same polygon, but we

skip these intersections when doing the ﬁnal per-pixel

irradiance reconstruction, as described in the next sec-

tion.

Our method samples the illumination from one

volume buffer and writes the results to another one.

By alternating between those two buffers in succes-

sive passes we compute multiple bounces of the light.

3.4 Irradiance Reconstruction

The diffusely reﬂected light, or radiosity B, of a point

x on a surface with diffuse reﬂectivity ρ is given by

the following equation (Kajiya, 1986):

B(x) =

ρ(x)

Ω

(x,ω)cosθdω (4)

where θ is the angle between the surface normal and

the incident radiance direction ω.

During the ﬁnal scene rendering, equation 4 must

be evaluated for every visible surface point in order to

determine the color of each pixel. To determine the

incident radiance L

of a surface point in the scene,

we don’t take in to account the radiance of the corre-

sponding voxel in the volume, because the stored ra-

diance distribution will be biased from intersections

with neighboring voxels, potentially generated from

the same surface. Instead, we shift the surface point

outside the current voxel by moving it half a voxel

along the normal, and then we recalculate a more ac-

curate distribution of the radiance, taking in to ac-

count the surface orientation and the radiance of the

N closest voxels, using the following equation

∑

j=1

∑

j=1

, where w



cosθ, θ < π/2

0, θ > π/2

(5)

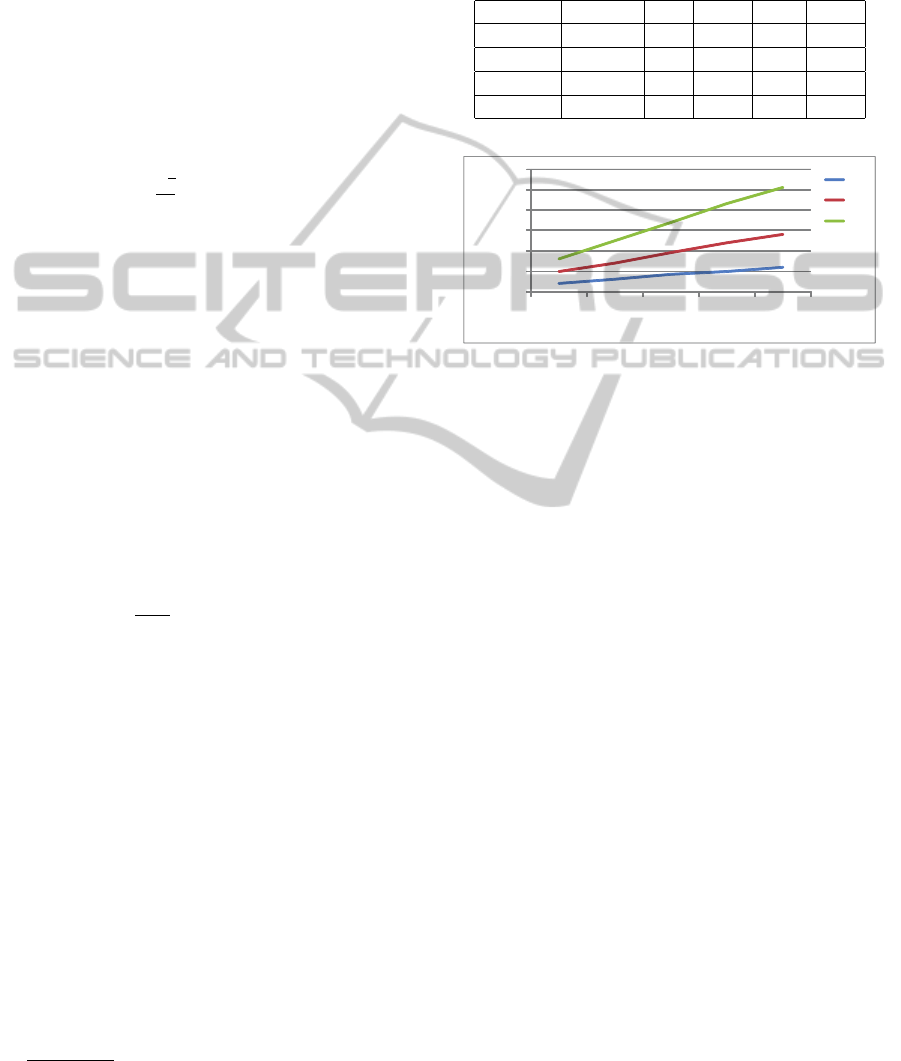

Table 1: The performance of our method (times in millisec-

onds on a NVIDIA GTX460). G: number of triangles, T

time when emitting i vertices per triangle, T

: Ray-

marching time for AO and GI(per bounce) respectively. The

framebuffer reprojection time for 512

points is 0.7ms on all

scenes.

G T

sponza 262267 3.8 11.6 4.4 31.2

knossos 109168 1.5 4.5 4.3 32.9

arena 10219 0.2 0.6 4.6 35.7

room 8760 0.3 0.8 4.3 35.0

20k

40k

60k

80k

100k

Milliseconds

Triangles

Figure 3: Volume creation scaling with the number of tri-

angles and the volume size. When the volume resolution

is doubled, the number of generated points per triangle are

also doubled, to keep the quality of the voxelization identi-

cal. Times measured in milliseconds on a ATI Radeon 3650.

where

L denotes the spherical harmonic representa-

tion of L. The weights w

, as illustrated in Figure 2,

guarantee that voxels behind the surface will not con-

tribute to the radiance computation, and that voxels

facing the normal of the surface will contribute the

most. For performance reasons, in the actual imple-

mentation of the algorithm we only consider the six

nearest voxels.

Finally, since the radiance

is represented using

spherical harmonics, we compute the irradiance in-

tegral in equation 4 as a simple dot product with an

analytically computed spherical harmonic representa-

tion of the cosine lobe(Ramamoorthi and Hanrahan,

2001), directed towards the surface normal.

4 RESULTS

We have integrated the above algorithm in a tradi-

tional real-time deferred renderer using OpenGL and

GLSL. Unless otherwise noted, all ﬁgures presented

here are created with 12 random points per triangle,

100 rays per voxel, 64

voxels and a ray marching

step size of one voxel.

Table 1 shows comprehensive time measurements

for our method. All scenes are considered to have

GLOBAL ILLUMINATION USING IMPERFECT VOLUMES

163

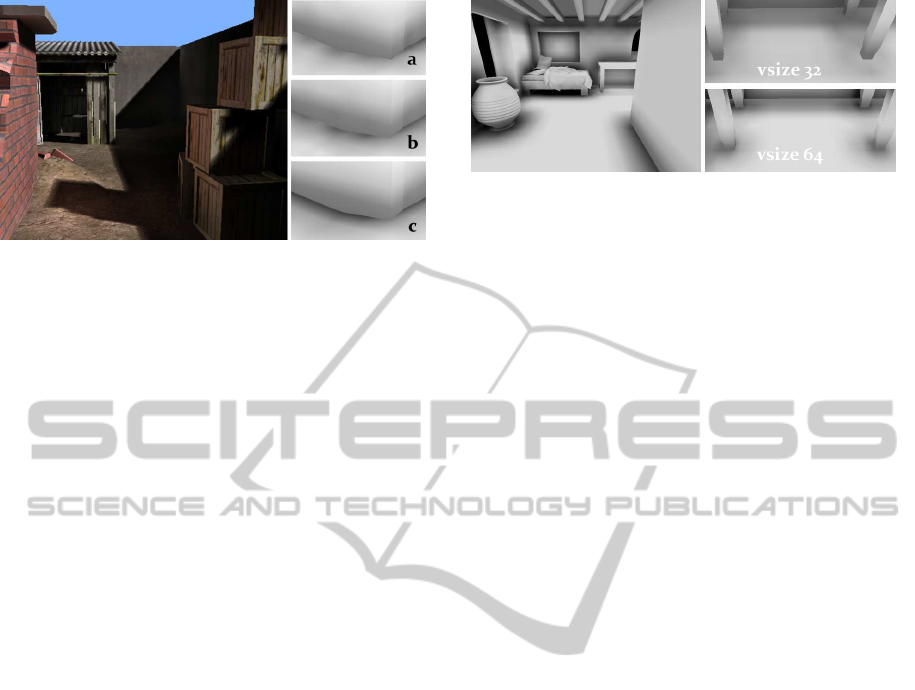

Figure 4: Left: Diffuse GI from one point light source. No-

tice the indirect light on the crates. Right: Occlusion using

a) 9 points per triangle, b) 12 points per triangle, c) 3 points

per triangle plus voxelization with framebuffer reprojection.

fully dynamic geometry and lighting conditions. We

can see that even on the most complex scenes, our

algorithm maintains an interactive framerate and, as

expected, the AO is much faster than GI, since the

ray-marched distance is shorter and only the coverage

information is fetched from the volume.

As shown, imperfect volumes can be created ex-

tremely fast, even for very large datasets. The per-

formance of our method, but also the quality of the

resulting volume, depends on the number of the gen-

erated points per triangle. In most scenes we get

nearly perfect voxelization with 12 to 19 points. But

since the framebuffer reprojection scheme guarantees

a nearly perfect voxelization of the visible portion of

the imperfect volume, in practice we rarely need to

use more than 6 points per triangle.

Figure 3 shows how the volume creation algo-

rithm scales with the number of input triangles and

the volume resolution. When the volume resolution is

doubled we also double the number of the generated

points, to keep the density of the points per voxel con-

stant. We observe sub-linear scaling with the number

of triangles and linear scaling with the volume size.

Figure 4 shows how the imperfections of the

volume are reﬁned by the framebuffer reprojection.

These imperfections result in smoothed out contact

shadows, but on the visible part of the volume are cor-

rected by the reprojectionof the framebuffer. Any fur-

ther imperfections in the invisible parts of the scene

do not produce any objectionable errors in the illumi-

nation, and they are mostly unnoticeable in the ﬁnal

textured image.

Figure 5 illustrates how the volume resolution af-

fects the ﬁnal image quality on the room scene. We

can see that when the volume resolution is insufﬁ-

cient, small scale details like the contact shadows of

the table, are lost. Figure 6 shows several shots of the

knossos scene, using ambient occlusion and diffuse

Figure 5: Left: Ambient occlusion on the room scene.

Right: Small scale details are lost when using insufﬁcient

volume resolution.

global illumination.

4.1 Discussion and Limitations

Since our method operates in voxel space, the perfor-

mance is mostly independent of the ﬁnal image reso-

lution. The performance and quality depends on the

number of points generated per triangle, the number

of rays traced per voxel, the step size when traversing

the volume and the volume resolution.

Since even perfect voxelization is a rough approx-

imation of the scene geometry, GI from small scale

geometric details cannot be reproduced accurately. A

multi-scale approach like the cascaded volumes (Ka-

planyan and Dachsbacher, 2010) could be applied to

alleviate this problem. Also, we have observed some

temporal aliasing in the resulting illumination, as the

state of the voxels changes from occupied to unoccu-

pied. One way to counter this phenomenon is to sam-

ple the radiance at more positions inside the voxels,

and not just the centers.

5 CONCLUSIONS

We have presented a method for the real-time compu-

tation of ambient occlusion and diffuse indirect light

transport in fully dynamic scenes. Our method op-

erates on a rough approximation of the entire scene,

created by a fast point-based vozelization algorithm.

Although this algorithm does not give any hard guar-

antees about the quality of the voxelization, we have

demonstrated that potential errors introduced by the

imperfections in the volume are small and that our

method always maintains an interactive frame rate in

a variety of test cases.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

164

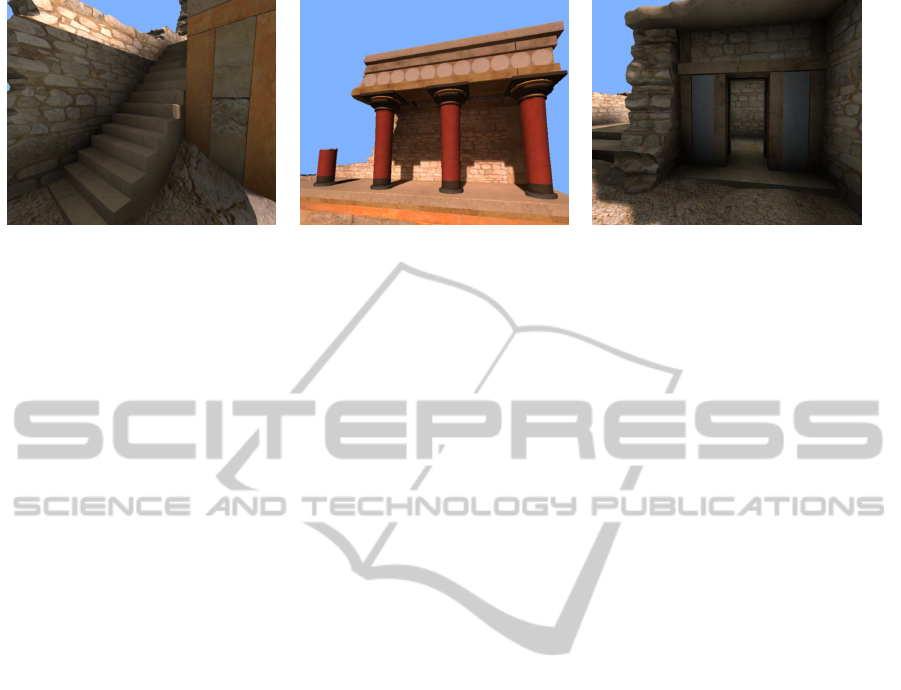

Figure 6: Several shots from of the knossos scene, showcasing ambient occlusion (left and right) and global illumination

using three bounces (middle).

REFERENCES

Akenine-M¨oller, T., Haines, E., and Hoffman, N. (2008).

Real-Time Rendering 3rd Edition. A. K. Peters, Ltd.,

Natick, MA, USA.

Dachsbacher, C. and Stamminger, M. (2005). Reﬂective

shadow maps. In Proceedings of the 2005 ACM Sym-

posium on Interactive 3D Graphics and Games, pages

203–231. ACM SIGGRAPH.

Dachsbacher, C. and Stamminger, M. (2006). Splatting in-

direct illumination. In Proceedings of the 2006 Sym-

posium on Interactive 3D Graphics and Games, pages

93–100. ACM SIGGRAPH, ACM Press.

Eisemann, E. and D´ecoret, X. (2008). Single-pass gpu solid

voxelization for real-time applications. In GI ’08:

Proceedings of graphics interface 2008, pages 73–80.

Canadian Information Processing Society.

Jensen, H. W. (1996). Global Illumination Using Photon

Maps. In Rendering Techniques ’96 (Proceedings of

the Seventh Eurographics Workshop on Rendering),

pages 21–30. Springer-Verlag/Wien.

Kajiya, J. T. (1986). The Rendering Equation. In Com-

puter Graphics (ACM SIGGRAPH ’86 Proceedings),

volume 20, pages 143–150.

Kaplanyan, A. and Dachsbacher, C. (2010). Cascaded light

propagation volumes for real-time indirect illumina-

tion. In I3D ’10: Proceedings of the 2010 ACM SIG-

GRAPH symposium on Interactive 3D Graphics and

Games, pages 99–107, New York, NY, USA. ACM.

Keller, A. (1997). Instant radiosity. In Computer Graph-

ics (ACM SIGGRAPH ’97 Proceedings), volume 31,

pages 49–56.

Kˇriv´anek, J., Gautron, P., Pattanaik, S., and Bouatouch, K.

(2005). Radiance caching for efﬁcient global illumi-

nation computation. IEEE Transactions on Visualiza-

tion and Computer Graphics, 11(5).

McGuire, M. and Luebke, D. (2009). Hardware-accelerated

global illumination by image space photon map-

ping. In Proceedings of the 2009 ACM SIG-

GRAPH/EuroGraphics conference on High Perfor-

mance Graphics, New York, NY, USA. ACM.

Nijasure, M., Pattanaik, S., and Goel, V. (2004). Real-time

global illumination on the GPU. Journal of Graphics

Tools, 10(2).

Papaioannou, G., Menexi, M. L., and Papadopoulos, C.

(2010). Real-time volume-based ambient occlusion.

IEEE Transactions on Visualization and Computer

Graphics, 99(RapidPosts).

Ramamoorthi, R. and Hanrahan, P. (2001). An efﬁcient

representation for irradiance environment maps. In

SIGGRAPH ’01: Proceedings of the 28th annual con-

ference on Computer graphics and interactive tech-

niques, pages 497–500, New York, NY, USA. ACM.

Ritschel, T., Englehardt, T., Grosch, T., Seidel, H.-P., Kautz,

J., and Dachsbacher, C. (2009a). Micro-rendering for

scable, parallel ﬁnal gathering. ACM Transactions on

Graphics (Proc. SIGGRAPH Asia 2009), 28(5).

Ritschel, T., Grosch, T., Kim, M. H., Seidel, H.-P., Dachs-

bacher, C., and Kautz, J. (2008). Imperfect shadow

maps for efﬁcient computation of indirect illumina-

tion. ACM Transactions on Graphics, 27(5).

Ritschel, T., Grosch, T., and Seidel, H.-P. (2009b). Approx-

imating dynamic global illumination in image space.

In Proc. ACM Symposium on Interactive 3D Graphics

and Games 2009 (I3D ’09).

Shanmugam, P. and Arikan, O. (2007). Hardware acceler-

ated ambient occlusion techniques on gpus. In I3D

’07: Proceedings of the 2007 symposium on Interac-

tive 3D graphics and games, pages 73–80. ACM.

Walter, B., Fernandez, S., Abree, A., Bala, K., Onikian, M.,

and Greenberg, D. P. (2005). Lightcuts: A scalable

approach to illumination. In ACM SIGGRAPH 2005

Full Conference DVD-ROM, pages 1098–1107.

Wang, R., Wang, R., Zhou, K., Pan, M., and Bao, H.

(2009). An efﬁcient GPU-based approach for inter-

active global illumination. volume 28.

Ward, G. J., Rubinstein, F. M., and Clear, R. D. (1988). A

Ray Tracing Solution for Diffuse Interreﬂection. In

Computer Graphics (ACM SIGGRAPH ’88 Proceed-

ings), volume 22, pages 85–92.

GLOBAL ILLUMINATION USING IMPERFECT VOLUMES

165
