MULTIMODAL SEARCH FOR GRAPHIC DESIGNERS

∗

Sandra Skaff

, David Rouquet

, Emmanuel Dellandrea

, Achille Falaise

Val

erie Bellynck

, Herv

e Blanchon

, Christian Boitet

, Didier Schwab

Liming Chen

, Alexandre Saidi

, Gabriela Csurka

and Luca Marchesotti

Xerox Research Centre Europe, Grenoble, France

Laboratoire d’Informatique de Grenoble, Grenoble, France

Ecole Centrale de Lyon,

Ecully, France

Keywords:

Interface, Visualization.

Abstract:

This paper describes OMNIA, a system and interface for searching in multimodal image collections. OMNIA

includes a set of tools which allow the user to retrieve assets using different features. The tools are based on

extracting different types of asset features, which are content, aesthetic, and emotion. Visual-based features

are used to retrieve assets using each of these tools. In addition, text-based features can be used to retrieve

image assets based on content. Different datasets are used in OMNIA and retrieved assets are displayed in

such a way which facilitates user navigation. It is shown how OMNIA can be used for simple, efﬁcient, and

intuitive asset search in the context of graphic design applications.

1 INTRODUCTION

In the OMNIA project, we devise different steps nec-

essary to build a system for digital asset retrieval and

management to address the needs in marketing and

public relation applications. In enterprise marketing,

content creation is needed. Commercial applications

such as Corbis, Getty images and Reuters have started

to employ semi-automatic tools for asset manage-

ment. There has also been work on applying existing

information visualization techniques to browsing im-

age type assets (Yang et al., 2006). However, the fact

remains that digital assets are still difﬁcult to mine,

manage, and use. The efforts of the OMNIA project

are focused on developing a prototype for digital as-

set management using cutting-edge technologies for

content-based image retrieval (Datta et al., 2008a). In

particular, one of our aims is to combine text annota-

tion techniques with digital asset analysis for content

creators.

The system proposed consists of different tools for

retrieval based on different types of asset analysis. On

one hand, digital assets are analyzed over a range of

features, namely, content, aesthetic, and emotion. On

another hand, the paper also proposes combining text-

based annotation techniques with such analysis. In

designing a search engine, it is important to provide

users with an interface which allows effective search,

∗

http://www.omnia-project.com

user-friendly interaction, and efﬁcient visualization.

These are characteristics of the OMNIA interface.

A graphic design scenario is used to demonstrate

the efﬁcacy of OMNIA in retrieving relevant images.

The designer has a brochure template which needs

to be illustrated with images. These are selected us-

ing OMNIA to query by content ﬁrst, before brows-

ing through and visualizing the images in one or two

dimensions by aesthetic and emotion features. Ad-

ditional functionalities which are not covered by the

given scenario are also shown.

The remainder of the article is structured as fol-

lows. Section 2 is an overview of the state of the art

in image retrieval systems. Section 3 describes the

datasets incorporated into OMNIA. Section 4 details

the multi-modal search tools as well as their quantita-

tive evaluations where applicable. Section 5 givens an

overview of the OMNIA system, which includes the

tools and interface. The utility of OMNIA for fast and

user-friendly search as well as intuitive visualization

of search results is shown in the context of graphic de-

paper.

2 STATE OF THE ART

Most image retrieval systems are based on textual

search such as Google images, or on manual annota-

164

Skaff S., Rouquet D., Dellandrea E., Falaise A., Bellynck V., Blanchon H., Boitet C., Schwab D., Chen L., Saidi A., Csurka G. and Marchesotti L..

MULTIMODAL SEARCH FOR GRAPHIC DESIGNERS.

DOI: 10.5220/0003322401640176

In Proceedings of the International Conference on Imaging Theory and Applications and International Conference on Information Visualization Theory

and Applications (IVAPP-2011), pages 164-176

ISBN: 978-989-8425-46-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

tions search such as Getty images and Flickr in spite

of the fact that content-based image search systems

were proposed by researchers several decades ago.

The most common method for comparing two images

in content-based image retrieval, typically a query im-

age and a database image, is using an image similarity

measure based on the distance between image signa-

tures.

Early systems mainly used global image descrip-

tors based on color (Swain and Ballard, 1991; Tsu-

jimura and Bannai, 1996; Kasutani, 2007) or on color

combined with texture and shape (Flickner et al.,

1995). More recent systems extract local features

from image patches or segmented image regions and

use techniques based on feature matching (Chen and

Wang, 2002), build inverted ﬁles (Squire et al., 1999),

Bag-Of-Visual words (Csurka et al., 2004) or Fisher

Vectors (Perronnin et al., 2010).

These new representations paved the way for large

advances in both content-based image retrieval (Laak-

sonen et al., 2002; Sahbi et al., 2007; Jegou et al.,

2008; Chum et al., 2009) and in auto-annotation (Jeon

et al., 2003; Monay and Gatica-Perez, 2003; Barnard

et al., 2004; Li et al., 2006; Zhang et al., 2006;

Guillaumin et al., 2009) applications. As images are

often accompanied by text and metadata, much re-

search work focuses also on information fusion and

multi-modal retrieval systems. Comparisons between

different retrieval systems such as visual-based and

text-based have been performed for different types

of images such as photo and medical in the Image-

Clef Evaluation Forum (http://www.imageclef.org).

In (M

uller et al., 2010) there are numerous articles

presenting results of several years of competition.

The proposed systems range from simple, early and

late fusion strategies to more complex cross-media

similarity measures (Ah-Pine et al., 2010).

On another hand, new methods were proposed

which incorporate aesthetics and emotion to annotate

images (Datta et al., 2006; Jacobsen et al., 2006; Datta

et al., 2008b; Fedorovskaya et al., 2008; Loui et al.,

2008; Davis and Lazebnik, 2008) using learning tech-

niques. Aesthetic and emotion concepts are highly

subjective and difﬁcult to learn as shown in these

methods. Unlike these approaches, our system does

not tag an image with a speciﬁc concept but assigns

a score to an image for each of the concepts. In this

respect, our system provides the ﬂexibility to search

by different combinations of these concepts without

the need for high accuracy in aesthetic or emotional

categorization, as compared with most systems cited

above. In addition, our system does not need to com-

bine scores pertaining to different aspects, content,

aesthetic, emotion, into a single value for an image

such as in (Loui et al., 2008).

Another advantage of our user interface is that it

facilitates not only a creative asset navigation, but also

visual content creation by allowing a combined visu-

alization of the working draft with different selected

images. Such a visualization is shown in the user sce-

nario in Section 6. The system proposed in this paper

can incorporate any of the methods mentioned above,

including ones based on keyword search. Finally, our

system as described in Section 4, can annotate images

based on analysis of multilingual text as well.

3 THE DATASETS

The digital assets used in OMNIA are obtained from

three databases: MIRFLICKR, BELGANews, and

Color Palettes.

Mirﬂickr. The Mirﬂickr collection consists of

25,000 photos obtained from Flickr with creative

commons license. For more detail, the reader is re-

ferred to (http://press.liacs.nl/mirﬂickr).

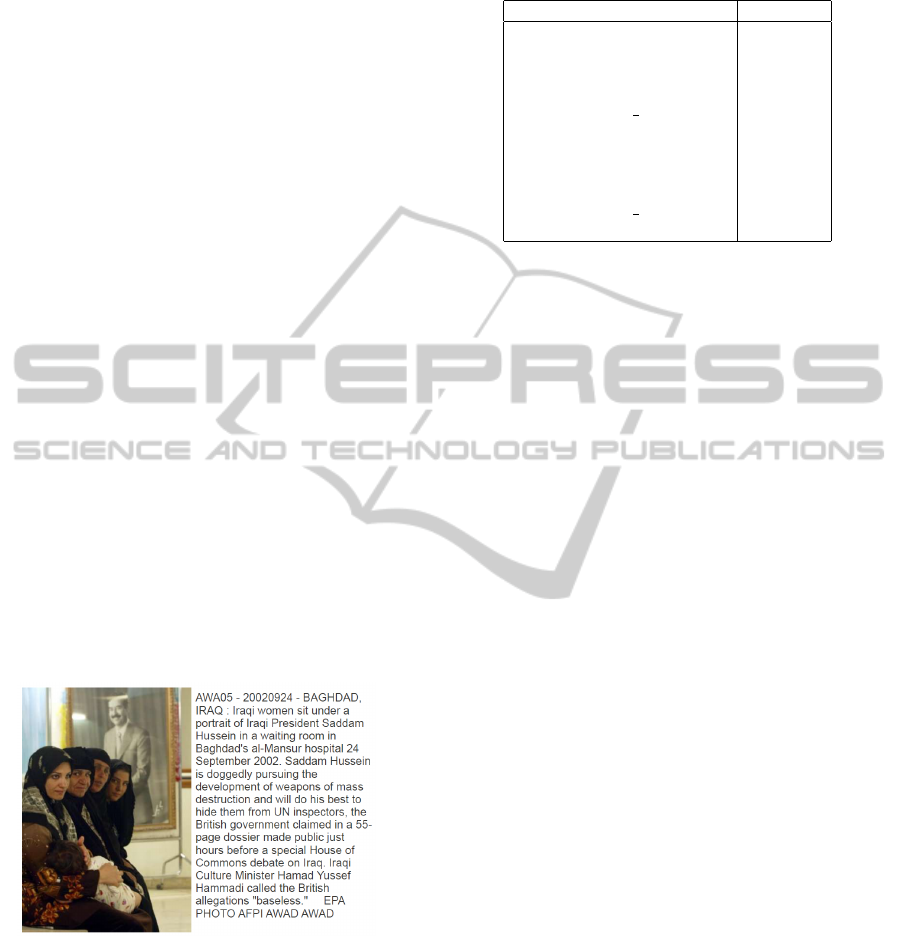

BelgaNews. The Belga news collection consists of

500,000 images and English companion texts (about

50 words) obtained from Belga, a Belgian press

agency. For more detail, the reader is referred to

(http://www.belga.be).

Color Palettes. This database consists of 25,000

color palettes extracted from the Mirﬂickr images.

These palettes are extracted using K-means cluster-

ing. The mean of each cluster is represented by one

color of the palette. In our work, we assume that

K = 5, thus extracting palettes with ﬁve colors from

each image. The color palettes are annotated with the

same content the images they are extracted from are

annotated with.

4 THE TOOLS

The OMNIA framework consists of a set of tools

which allow the user to search and organize digi-

tal assets according to their preference in three main

dimensions. These tools are based on three types

of analysis: content, aesthetic and emotion. While

the emotion and aesthetic analysis are solely visual-

based, the content analysis performed is either visual-

based or text-based.

MULTIMODAL SEARCH FOR GRAPHIC DESIGNERS

165

4.1 Semantic Content Analysis

The ﬁrst tool our system makes available to the user,

is a search by content. In other words, the user can

type in “ﬂower”, and visualize all the ﬂower images.

This search by content is based on tagging the images

with one of two techniques. The ﬁrst one is visual-

based, whereby the content of the image is inferred

from visual features of the image. The second one

is text-based, whereby the content of the image is in-

ferred from text surrounding the image. The two tech-

niques are described below.

4.1.1 Visual-based

One of the most popular approaches to image clas-

siﬁcation to date has been to describe images with a

Bag-Of-Visual-words (BOV) histograms and to clas-

sify them using non-linear Support Vector Machines

(SVMs) (Csurka et al., 2004). While several vari-

ants and extensions were proposed to the original ap-

proach, the main schema of the whole system remains

often the same. The mains steps of the classiﬁcation

algorithm, referred to as the Generic Visual Catego-

rization (GVC) algorithm, are:

• Detecting patches by interest point detectors, low

level image segmentation, or sampling patches on

regular grid at single or multiple scales.

• Extracting low level features on these patches.

• Building a visual dictionary using Kmeans, Mean

Shift, Gaussian Mixture Models (GMMs) or Ran-

dom Forest.

• Obtaining a high-level image representation using

BOV, Fisher Vectors or image GMMs.

• Employing learning and classiﬁcation techniques

such as Naive Bayes, SVMs or sparse logistic re-

gression.

In our exemplary implementation, we used

the training data and the 53 concepts organized

into an ontological hierarchy of the ImageClef09

Large Scale Detection and Photo Annotation Task

(http://www.imageclef.org/2009/PhotoAnnotation).

Therefore, we reproduced the system described in

(Ah-Pine et al., 2009) as follows. We sample patches

on regular grid at multiple scales and compute local

color statistics (COL) and orientation histograms

(ORH). We then build a GMM based visual vocabu-

lary on COL and one on ORH features. We use the

Fisher Vectors proposed in (Perronnin and Dance,

2007) as high level features and train a non-linear

classiﬁer per concept using sparse logistic regression.

Finally, the COL and ORH scores obtained for

each image from the GVC algorithm described

above are averaged and converted to probabilities

before post-processing them to verify the ontological

constraints.

While the original GVC (Csurka et al., 2004) or

any other extension of it as in (Zhang et al., 2007;

Tahir et al., 2009) can be employed in the OMNIA

system, we chose to use the algorithm of (Ah-Pine

et al., 2009) for the following reason. This algorithm

had the best scores according to the Hierarchical Mea-

sure (HM) which considers the relationships between

concepts and the agreement of annotators on con-

cepts (Nowak and Lukashevich, 2010). We consider

that this measure is more suitable to evaluate auto-

annotation as it scores simultaneously all concepts.

Furthermore, the algorithm (van de Sande et al., 2009)

which scored the best on Equal Error Rate (EER) and

the Area under Curve (AUC) measures at the chal-

lenge is more complex than the above system.

Our system used the same 5,000 images to train

the classiﬁer, but it annotated all 25,000 images of

the Mirﬂickr collection. The latter includes the 5,000

images but with different names.

4.1.2 Multilingual Text Analysis

In order to process both image companion text and

user free text queries, content extraction based on

multilingual text is required. A survey of such tech-

niques can be found in (Rouquet et al., 2010). We

describe the approach incorporated into the proposed

system brieﬂy in what follows as the reader can ﬁnd

more details in (Falaise et al., 2010). The aim is to

build formal descriptors or queries to be used in the

system. Multilingual content extraction does not im-

ply translation. It has been shown in (Daoud, 2006)

that annotating words or chunks with interlingual lex-

emes is a valid approach to initiate content extrac-

tion. We thus skip syntactical analysis, which is an ex-

pensive and low quality process, and obtain language

independent data early in our ﬂow, allowing further

processing to be language independent. We use the

lightweight ontology for image classiﬁcation as the

formal knowledge representation that determines rel-

evant information to extract. This ontology is consid-

ered as a domain parameter for the content extractor.

The general architecture may be summarized as

follows:

• Texts, including companions and queries, are ﬁrst

lemmatised with a language-dependent piece of

software. Ambiguities are preserved in a Q-graph

structure.

• Then, the lemmatised texts are annotated with in-

terlingual (ideally unambiguous) lexemes, namely

Universal Words (UW). This adds a lot of ambi-

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

166

guities to the structure, as an actual lemma may

refer to several semantically different lexemes.

• The possible meanings for lemmas are then

weighted in the Q-graph through a disambigua-

tion process.

• Finally, relevant conceptual information is ex-

tracted using an alignment between a domain on-

tology and the interlingual lexemes.

In the case of OMNIA, conceptual information ex-

tracted from companion texts is stored in a database,

while conceptual information extracted from user

queries are transformed into formal queries for the

database (such as SQL and SPARQL).

The implementation follows a Service Oriented

Architecture. Each part of the process corresponds

to a service. A service supervisor has been built as

an interface with the OMNIA prototype to deal with

heterogeneity and address normalization issues (e.g.

line-breaks, encoding, identiﬁcation, cookies, page

forwarding, etc.). This architecture is able to process

multiple tasks concurrently, allowing to deal with user

queries in real time while processing companion texts

in the background.

The Universal Network Language (UNL) (Boitet

et al., 2009; Uchida Hiroshi et al., 2009) is a pivot

language that represents the meaning of a sentence

with a semantic abstract structure (a hyper-graph) of

an equivalent English sentence. We use UNL vocab-

ulary, UniversalWords (UW), as interlingual lexemes

to annotate chunks of texts. Thus, further treatment

is not language dependent. To add a new language to

the system, we only need to link it to the set of UW;

otherwise we would have to link it with all other lan-

guages in the system. A UW consists of:

1. a headword, if possible derived from English,

which is a label for the concepts it represents in

its original language;

2. a list of restrictions, which aims to precisely spec-

ify the concept the UW refers to. Restrictions are

semantic relations with other UW. The most used

is the “icl” relation which points to a more general

UW.

Examples of such UW are book(icl>do, agt>human,

obj>thing) and book(icl>thing). They ideally refer

unambiguously to a concept, shared among several

languages, and form a pre-ontological structure. We

mainly use the 207k UW built by the U++ Consor-

tium (Jesus Cardeosa et al., 2009) from the synsets

of the Princeton WordNet, which are linked to natural

languages via bilingual dictionaries.

The Q-Systems (Colmerauer, 1970) are the for-

malism we use to represent ambiguities which can oc-

cur in a text interpretation. They represent texts in an

adequate graph structure decorated with bracketed ex-

pressions (trees) and, moreover, allow processing on

this structure via graph rewriting rules (a set of such

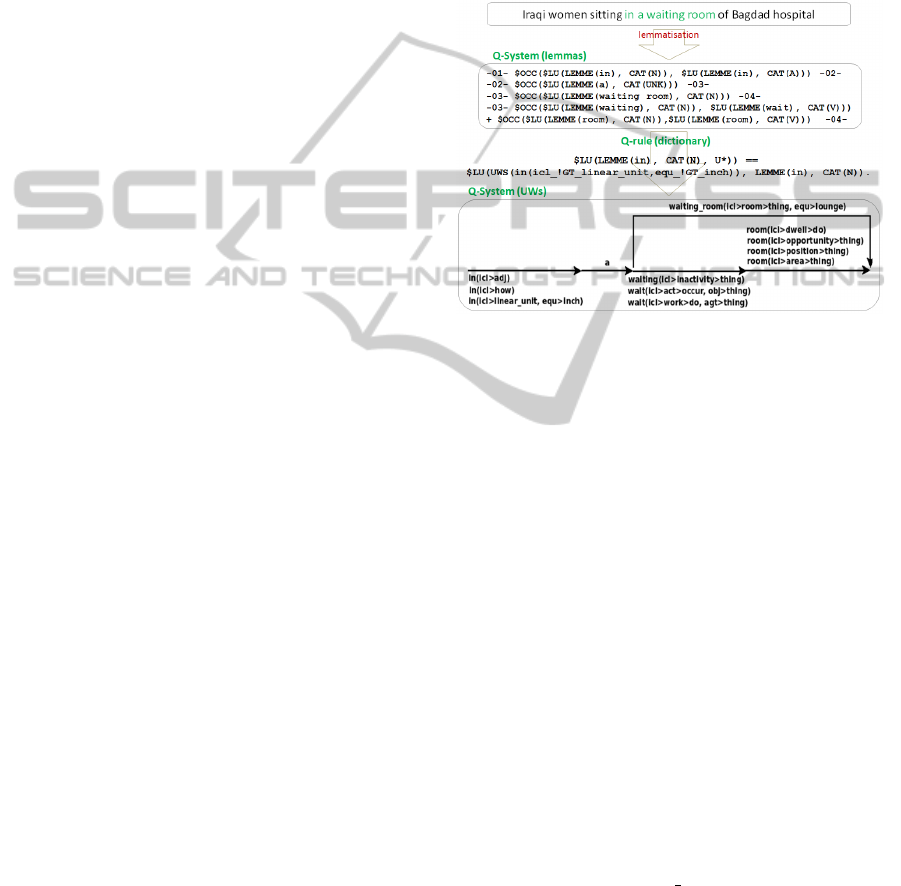

rewriting rules is a so called Q-System). An example

of this formalism is given in Figure 1. It presents suc-

cessively : the code representing a Q-graph, a rewrit-

ing rule and a graphical view of the Q-graph obtained

after the application of a set of rules that add UW to

the edges.

Figure 1: Creation and execution of a Q-System.

The annotation process is composed by the fol-

lowing steps:

1. split of the text in fragments if too long;

2. lemmatisation with a specialized software;

3. transcription in Q-graphs;

4. creation and execution of local bilingual dictio-

naries (source language - UW) as Q-systems;

5. disambiguation to score the likelihood of each

UW.

When texts are represented as Q-graphs decorated

with weighted UW, we can start content extraction.

The content extraction process is generic in two

aspects :

• It is language independent, as it processes an in-

terlingual representation of the texts.

• The content to be extracted can be speciﬁed using

a domain ontology as a parameter.

In the OMNIA project, the lightweight ontology for

image classiﬁcation (http://kaiko.getalp.org/kaiko/

ontology/OMNIA/OMNIA current.owl) contains

732 concepts; examples are “animals”, “politics”,

“religion”, “army”, “sports”, “monuments”, “trans-

ports”, “games”, and “entertainment”. Note that

the term concept here is used to refer to content.

As the content extractor processes only UW anno-

tations, it is necessary to link ontology elements

MULTIMODAL SEARCH FOR GRAPHIC DESIGNERS

167

to the UW lexicon (Rouquet and Nguyen, 2009).

This process is automatic so any OWL ontology

(http://www.w3.org/2004/OWL/) can be used to

improve performances on speciﬁc data collections.

Content extraction (relations are not considered yet)

is achieved through a three step process:

1. Concept Matching. Each UW in the Q-Graph,

which matches a concept according to the UW-

concept map, is labeled with this concept.

2. Conﬁdence Calculation. Each concept label is

given a conﬁdence score, in accordance with the

disambiguation score of the UW carrying the con-

cept.

3. Score Propagation. Since we need autonomous

results, we have to perform all ontology-based

calculations before releasing them. The conﬁ-

dence scores are propagated in the ontology con-

cept hierarchy according to a fuzzy model. UW

restrictions are used if no concept has been found

during annotation.

Quantitative Results. Experiments are run on a

sub-corpus of 1046 English companion texts from

the BelgaNews dataset with the 732 concepts OM-

NIA ontology. Concepts are retrieved from 77% of

texts. The remaining texts are very short: less than ten

words with often only dates or names. For example,

for the image and companion text shown in Figure 2,

we show the concepts extracted and their weights in

Table 1.

Figure 2: Image document and companion text example.

We ran a preliminary survey to evaluate the pre-

cision of the concept extraction on a sample of 30

images and accompanying texts. Weights were not

taken into account in the survey. An extracted concept

is considered to match the image and accompanying

text under one of two criteria:

1. Visual relevance, which considers a concept as

correct if it is represented by an element of the

image; for instance, it is regarded that there is a

Table 1: The concepts and their corresponding weights ex-

tracted from Figure 2.

CONCEPT WEIGHT

BUILDING 0.098

HOSPITAL 0.005

HOUSE 0.043

MINISTER 0.016

OTHER BUILDING 0.005

PEOPLE 0.142

PERSON 0.038

POLITICS 0.032

PRESIDENT 0.016

RESIDENTIAL BUILDING 0.043

WOMAN 0.005

match for the concept “sport” if an image contains

a minister of sports even if he/she is not actually

performing any sport.

2. Textual relevance, which considers a concept as

correct if it is included in the text, as parts of the

text may involve concepts that are not portrayed

by the image, such as contextual information, pre-

vious events, and so on.

While no concept was found for seven of the image

and text samples, 124 concepts were extracted from

23 samples. Of the extracted concepts, 99 matched

the sample according to the visual relevance criterion,

while 110 matched the sample according to the tex-

tual relevance criterion. 14 concepts were incorrect.

Therefore the overall precision score is 0.798 accord-

ing to the visual relevance and 0.887 according to the

textual relevance.

4.2 Aesthetic Analysis

A second search tool which can be used in OMNIA

is based on aesthetic image analysis. Given one type

of images as retrieved in a content search, a user can

then organize (cluster using K-means, for example)

these images by low level aesthetic feature of his/her

choice. The system includes the features listed below:

• Brightness refers to the luminance of an image. It

is the average of the brightness values of all the

pixels in an image.

• Contrast refers to the efﬁcient use of the dynamic

range.

• Saturation refers to the vividness of colored ob-

jects in an image.

• The blur of an image is a form of bandwidth re-

duction typically caused by relative motion be-

tween the camera and the original scene or by an

optical system which is out of focus.

• Hue refers to the ﬁrst characteristic of a color that

the eye detects.

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

168

• Image dimension refers to the number of pixels in

an image.

• Color, red, green, or blue, refers to the overall

color of an image.

As we will see in Section 6, these features have

the role of effectively organizing and representing vi-

sually the content of a search space, hence making the

search easier and more user-friendly. While, grouping

by colors or hue is not new, our system allows for a

larger choice of such features and also for combining

them. For example, the clustering or grouping of im-

ages can be performed in a multidimensional space.

4.3 Emotion Analysis

The third tool which can be used for search in OM-

NIA is based on the emotion properties of an image.

This information is particularly interesting when re-

trieving images and selecting them according to the

effect that they can produce on the viewer, which is

typically the case for a graphic designer searching for

images as described in Section 6.

Identifying the emotion communicated by an im-

age is still an open problem and even though it is gain-

ing more interest in the research community, contribu-

tions remain relatively rare (Wang and Wang, 2005;

Wang and He, 2008). To summarize, the three main

issues which need to be addressed are the following:

emotion representation, image features used to repre-

sent emotions and classiﬁcation schemes designed to

handle the distinctive characteristics of emotions. As

in any computer vision problems, the main difﬁculty

remains in bridging the gap between low-level fea-

tures extracted from images and high level semantic

concepts, which are emotions in this case.

Several models for the representation of emotions

have been considered in the literature (Dunker et al.,

2009), and the two main approaches are the discrete

one and the dimensional one. The ﬁrst model con-

sists in considering adjectives or nouns to specify

the emotions, such as “happiness”, “sadness”, “fear”,

“anger”, “disgust” and “surprise”. The second model

describes emotions according to one or more dimen-

sions representing a special emotion characteristic,

such as valence, arousal or control. Here we propose

to use the second model since it is more suitable to

image search for graphic design. Indeed, once images

have been retrieved for a given query, a reﬁnement can

be performed according to their valence and/or their

arousal properties.

Image feature extraction is a key issue for con-

cept recognition in images, and particularly emotions.

Features should therefore be designed to carry sufﬁ-

cient information for such recognition to be possible.

In this work we have chosen to make use of standard

features characterizing the color, texture and shape

properties of images. These features include moments

of colors, histograms of colors, color correlograms,

coocurrence matrices, tamura features (Tamura et al.,

1978) and histograms of line orientations. Moreover,

two higher level semantic features linked to the affec-

tive properties of images are considered: a measure of

the image color harmony related to the valence, and a

measure of the dynamism related to the arousal (Del-

landr

ea et al., 2010).

The color harmony feature is computed based on

Itten’s color theory (Itten, 1961) which states that vi-

sual harmony can be obtained by combining hues and

saturations so that an effect of stability on the human

eye can be produced. This harmony can be repre-

sented through the Itten sphere where, in case of har-

mony, color positions are connected through regular

polygons. Thus, to compute the the harmony feature,

dominant colors are identiﬁed in images and plot-

ted on the color sphere. Then, the polygons linking

these colors are characterized by values as follows.

A value close to one corresponds to a regular poly-

gon whose center is close to the sphere center which

characterizes a harmonious image, and a value close

to zero corresponds to an irregular polygon charac-

terizing a non harmonious image. The dynamism

feature is computed from the line properties in im-

ages. Oblique lines communicate dynamism and ac-

tion whereas horizontal or vertical lines communicate

calmness and relaxation (Columbo et al., 1999). This

can be combined with colors in order to produce com-

plex effects suggesting particular feelings or emotions

to the viewer. Thus, the dynamism feature is taken to

be the ratio of the number of oblique lines in an image

to the total number of lines.

An approach for classiﬁcation of images accord-

ing to their affective properties based on the theory

of evidence (Smets, 1990) has been proposed in (Del-

landr

ea et al., 2010) as an attempt to deal with the

ambiguous and subjective nature of emotions. How-

ever, this approach requires a discrete representation

of emotions, such as “anger”, “sadness”, and “happi-

ness”. As the idea in this paper is to aid in a creative

user, namely a graphic designer, in image search, we

do not necessarily need to tag images with speciﬁc

emotions, but to display them in a way which facil-

itates the search. Therefore a dimensional approach

would be more appropriate. We perform the pre-

diction of the emotion properties of images in terms

of valence and arousal given two traditional SVMs:

SVM valence and SVM arousal. Thus, each of these

SVMs is fed with the features described earlier and

outputs one value directly representing the valence

MULTIMODAL SEARCH FOR GRAPHIC DESIGNERS

169

through SVM valence and a second value represent-

ing the arousal through SVM arousal. For example,

a negative value given by SVM valence indicates that

the image communicates a negative feeling, whereas a

positive value indicates that the image communicates

a positive feeling. Moreover, a negative value given

by SVM arousal indicates that the image communi-

cates a passive feeling, whereas a positive value indi-

cates that the image communicates an active feeling.

In both cases, values close to 0 correspond to neutral

emotions.

Quantitative Results. This approach has been eval-

uated on a subset of the Mirﬂickr dataset contain-

ing 2000 images. In order to obtain the ground truth

related to the emotions communicated by these im-

ages, we organized an annotation campaign within

the OMNIA project. A total of 20 people have been

asked to annotate a subset of this dataset by assign-

ing a score for valence and a score for arousal ranging

from -10 (very negative/passive) to +10 (very posi-

tive/active) to each image. On average, each image

was annotated seven times. 80% of the annotated data

have been used for training the SVMs (SVM valence

and SVM arousal) and the remaining 20% for test-

ing them. Several conﬁgurations of these SVMs have

been experimented with and the best results were

attained using a Gaussian kernel as follows. For

SVM valence which is predicting the level of valence,

a classiﬁcation accuracy of 73.3% has been obtained

with recall and precision rates of 79.6% and 70.0% re-

spectively for the positive class, and 67.4% and 77.5%

respectively for the negative class. For SVM arousal

which is predicting the level of arousal, a classiﬁca-

tion accuracy of 71.9% has been obtained with recall

and precision rates of 81.0% and 69.1% respectively

for the active class, and 62.5% and 76.1% respectively

for the passive class. We consider these results to be

good given the fact that emotion recognition is a dif-

ﬁcult task even for humans. The results can also be

improved and one direction we envisage is enriching

the feature set used to represent images by computing

higher-level semantic features based on the Gestalt

theory of visual perception (Desolneux et al., 2004).

5 THE OMNIA SYSTEM

The searching tools as described in the previous sec-

tion are the core of the OMNIA system. These tools

are accessible through the user interface which was

designed to facilitate user interaction with the system.

This is done through a Web Interface that also pro-

vides different ways of visualizing the results as we

will show through examples in Section 6.

Through this interface, the user can provide three

different query modes: free-text, image, or a color

palette. For the free-text mode, the user can type in

a content name and retrieve images or color palettes

tagged with that content. In addition, the user can se-

lect an image and retrieve images or color palettes of

the same color combination as the query image. The

user can retrieve the same assets in the case of select-

ing a color palette.

The system offers different types of visualization

of results depending on user needs and queries. Fol-

lowing a content search by free-text, a user can ar-

range image results in one or two dimensions depend-

ing on the number of features he/she selects using

the aesthetic and/or emotion tools. Further details

through examples are given in Section 6.

6 APPLICATIONS IN GRAPHIC

DESIGN

In this section we demonstrate the use of the OM-

NIA system through showing its different function-

alities which can be used in the application of graphic

design. We start by going through a scenario which

is centered around a graphic designer editing a typi-

cal design product such as a brochure. We then show

additional functionalities of OMNIA which were not

covered in the scenario illustrated.

6.1 Graphic Design Scenario

We assume that the graphic designer needs to ﬁnal-

ize a given brochure by illustrating it with appropriate

images. The empty brochure as well as the illustrated

one are shown in Figure 3.

In this case, images need to have a pertinent con-

tent as well as a “look and feel” which goes well with

the rest of the brochure. Typically, a designer would

mine existing image repositories to select appropriate

images. Examples of search engines which may be

used are Getty images, Google images, Corbis and/or

a proprietary dataset. We show how the OMNIA sys-

tem can be used to perform the image search to select

images iteratively and illustrate the brochure shown

in Figure 3.

Firstly, the search space is presented unordered to

the user. Then the user creates a content search space

through a textual query such as “summer”. The im-

ages are presented in a compact visualization allow-

ing up to 350 thumbnails on the same page as shown

in Figure 4.

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

170

(a)

(b)

Figure 3: (a) The brochure which needs to be illustrated. (b)

The brochure after illustration with images obtained using

OMNIA.

Figure 4: Images retrieved with the query “summer”.

To reﬁne the query, the user can select one or sev-

eral of the aesthetic and emotion features to visual-

ize the grouped images in the space. For example,

if the designer selects “contrast” and the red color,

the system clusters the images in two dimensions into

a predeﬁned number of clusters. Our current imple-

mentation of the interface includes three clusters in

each dimension and for each corresponding axis. The

ranges of values of the axes are taken to be those

of the features computed for the images considered.

Figure 5 shows an example where the clusters are or-

dered by the red color on the vertical axis and by the

level of contrast on the horizontal axis to enforce a

visual coherence. Alternatively, for a quicker group-

ing and better visualization, especially in the case of

more than two features, the system can incorporate

the functionality of splitting the space into NxM di-

mensions and placing the images accordingly.

Figure 5: The “summer” images grouped and ordered by

“contrast” on the horizontal axis and their red color on the

vertical axis.

Then the user can click on one of these groups and

hence restrain the search space by the images of that

group. Figure 6 shows the images visualized in the

case the ones with the highest levels of red color and

contrast which are in the top left cluster of Figure 5.

Note that the displaying of images in Figure 6 does

not correspond to a visual coherence.

Figure 6: The “summer” images of the top left cluster of

Figure 5.

When the user is interested in a speciﬁc image,

he can visualize it in a higher resolution with a set

of extra information as illustrated in Figure 7. This

information can be the metadata which includes the

image ID, aesthetic feature values such as average

brightness or blur, and the color palette, which rep-

resents the main colors in the image. The system

additionally shows the nearest neighbor images ob-

tained based on the closeness in distance of the color

palettes extracted from the images (as described in

Section 3). More detail on computing distances be-

tween color palettes is given in Section 6.2. An

Expectation-Maximization (EM) algorithm which es-

timates the parameters of a GMM over the pixel rep-

MULTIMODAL SEARCH FOR GRAPHIC DESIGNERS

171

resentations has also been investigated (Csurka et al.,

2010). Note that other features such as Fisher Vector

representations of images can also be used to obtain

the nearest neighbor images. The selected image is

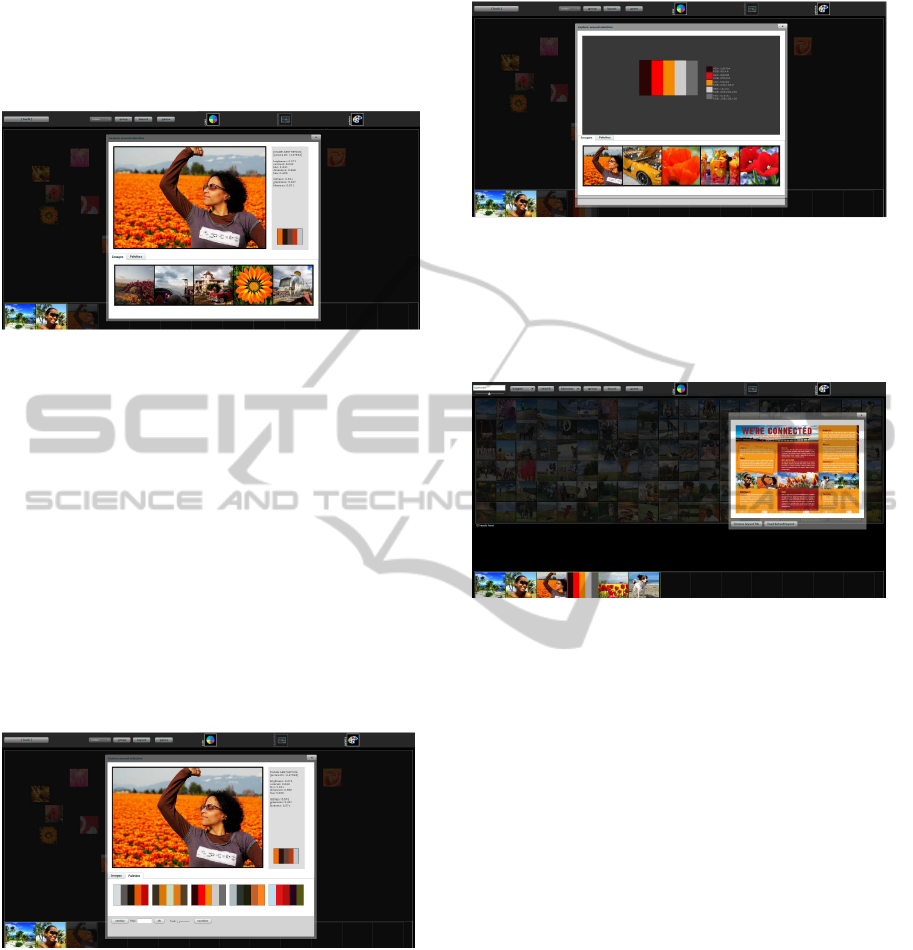

Figure 7: The selected image visualized in high resolution

with pertinent information and its nearest neighbors.

automatically saved in the light-box which is shown

at the bottom of the interface and which contains pre-

viously selected images saved at earlier stages. The

images in the light-box are potential candidates for

completing the brochure, but the light-box can also

contain images which the user selected for later us-

age.

For graphic designers, the “color feel” of the im-

age is often important. He/she might be also inter-

ested in ﬁnding a set of colors which ﬁts well with

the image. The OMNIA system hence allows the user

to visualize the nearest neighbors of the image color

palette as shown in Figure 8.

Figure 8: The selected image visualized with the its nearest

neighbor color palettes.

Then after selecting a palette, he/she can further

visualize the images which have their color palettes

similar to the one selected (Figure 9). Note that simi-

larly the selected palette is placed in the light-box and

hence can be further used for either querying or for

designing a new brochure.

An important feature of the OMNIA interface is

that it allows the user to visualize at any time the se-

lected images in the light-box concurrently with the

draft of the brochure. He/she can then easily place

Figure 9: The selected color palettes visualized with the

images which have similar color palettes.

images on the previewed document and resize them

to verifying compatibility and obtain a feeling of the

whole brochure as illustrated in Figure 10.

Figure 10: The working brochure previewed with the im-

ages selected in the light-box.

6.2 Additional Functionalities

There are additional functionalities of the OMNIA in-

terface which are not covered in the scenario illus-

trated in Section 6.1.

Search by Text-based Signatures. The content-

based search performed in Section 6.1 used images

annotated by their visual features. However, in most

databases, images are accompanied with text. De-

signers can query in this case using one or several key-

words. The system then searches a structured body of

text such as a sentence, a caption, or an article. The

OMNIA system builds text signatures for all the im-

ages using the Universal Words (UW) as described in

Section 4.1.2 and hence allowing to query those im-

ages in a language other than that of the original text.

In contrast to typical tag- or text-based searches, texts

are indexed using a predeﬁned image ontology and

for each concept in the ontology a concept score is

computed (see details in Section 4.1.2). We show in

Figure 11 images retrieved by the concept scores for

“sports”.

Similar to Section 6.1, we can again group these

images by aesthetic features to further restrain the

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

170

Figure 11: Images retrieved with the query “sport” using

concept scores computed on the text accompanying the im-

ages.

search space. In addition, when an image is selected,

the system also displays its nearest neighbors (Fig-

ure 12).

Figure 12: The selected image visualized in high resolution

with its metadata and its nearest neighbors. The accompa-

nying text is also visualized.

Figure 13: “Summer” images grouped by their emotion va-

lence score.

Finally, note that visual and textual scores can be

easily combined with score averaging after appropri-

ate normalization which ensures that all the scores are

between 0 and 1.

Ordering or Grouping by Image Emotion. As

mentioned earlier, emotion is highly subjective and

it is difﬁcult to categorize images according to a few

predeﬁned categories such as “happy”, “angry” or

Figure 14: Retrieved “sky” color palettes.

(a)

(b)

Figure 15: Selecting a palette and visualizing its nearest

neighbor (a) palettes and (b) images.

“boring”. Therefore a model which allows for rep-

resenting emotions in two dimensions, valence and

arousal, is used (see Section 4.3). Hence we obtain a

a valence and an arousal score for each image. These

scores are used in a similar way as the values of the

aesthetic features, and hence images are reordered

and clustered according to these scores. Figure 13

shows the “summer” images of Figure 4 grouped and

ordered by their valence score. The clusters are or-

dered from the highest, or most positive, scores to-

wards their lowest, or most negative, scores.

Browsing by Color Palettes. The OMNIA inter-

face allows users to browse through color palettes.

The idea is that given a query, instead of visualizing

the images the system visualizes palettes labeled with

MULTIMODAL SEARCH FOR GRAPHIC DESIGNERS

173

the concept given by the query. Figure 14 shows such

an example where “sky” color palettes were retrieved.

As in the case of images, similar techniques, in-

cluding ordering and grouping by aesthetic and emo-

tion values, can be applied to palettes. When a palette

is selected we can visualize pertinent information,

which includes the RGB and hexadecimal represen-

tations of its colors, as well as its nearest neighbors as

shown in Figure 15(a). We can also visualize images

which have the most similar palettes as the selected

one as shown in Figure 15(b). Similarity is assessed

based on the closeness in Euclidean distance between

the Lab color representations of the colors in the two

palettes.

Selecting a Background Color for an Image. Fi-

nally, a graphic designer can set the different colors

of a selected palette as backgrounds of a particular

image. This functionality aids the designer in select-

ing a background color which ﬁts a selected image as

shown in Figure 16.

(a)

(b)

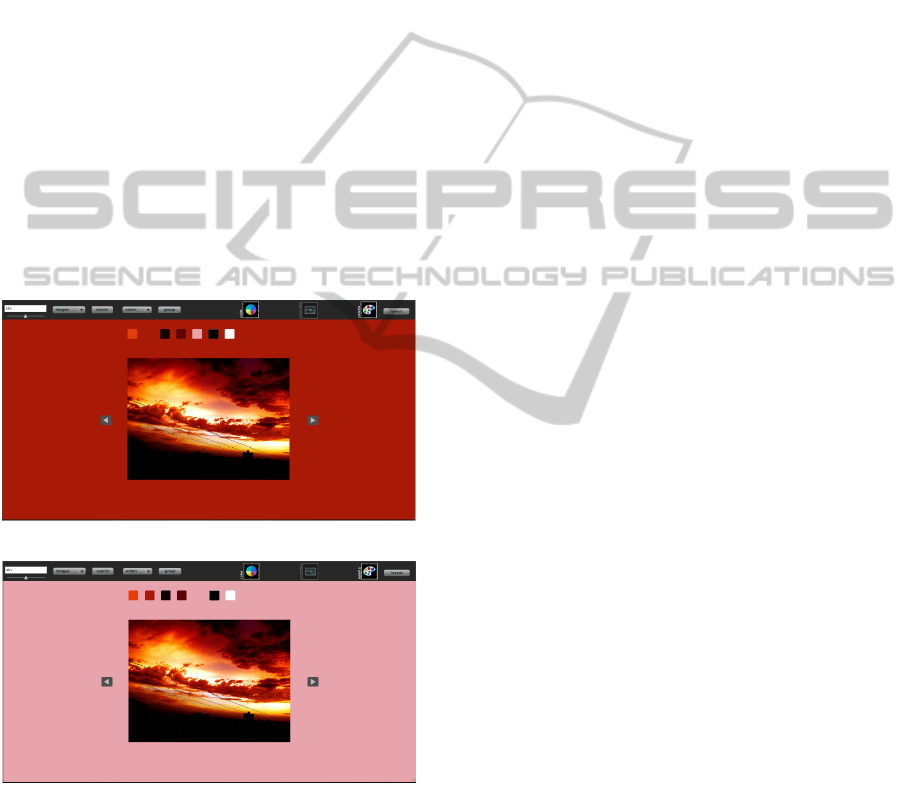

Figure 16: A sky image with the (a) second and (b) ﬁfth

color of the palette set as a background.

7 SUMMARY

This paper described OMNIA, a system and inter-

face for searching in multimodal image collections.

The different tools OMNIA includes are based on ex-

tracting different types of asset features, which are

content, aesthetic, and emotion. It was shown how

visual-based features are used to classify assets by

content and by emotion. In addition, these features

can be used to rank images by different aesthetic con-

cepts. It was then shown how text-based features are

used to classify images by content. In addition, text-

based features can be combined with visual-based

features to achieve better classiﬁcation. The paper

also described the OMNIA system which includes the

tools and interface. Finally, the utility of OMNIA in

simple, efﬁcient and intuitive search is demonstrated

through different applications in graphic design. In

the future, we plan on conducting user studies to show

the impact of OMNIA on the everyday life of graphic

designers.

ACKNOWLEDGEMENTS

This work was supported by the Agence Nationale de

la Recherche through the OMNIA project (ANR-07-

MDCO- 009-02).

REFERENCES

Ah-Pine, J., Clinchant, S., Csurka, G., and Liu, Y. (2009).

XRCE’s participation to ImageCLEF 2009. In Proc.

of the Working Notes of the 2009 CLEF Workshop,

Crete, Greece.

Ah-Pine, J., Clinchant, S., Csurka, G., Perronnin, F., and

Renders, J.-M. (2010). Leveraging image, text and

cross-media similarities for diversity-focused multi-

media retrieval. In The Information Retrieval Series.

Springer.

Barnard, K., Duygulu, P., de Freitas, N., Forsyth, D., Blei,

D., and Jordan, M. (2004). Matching words and

pictures. Journal of Machine Learning Research,

3:1107–1135.

Boitet, C., Boguslavskij, I., and Cardeosa, J. (2009). An

evaluation of UNL usability for high quality multilin-

gualization and projections for a future UNL++ lan-

guage. In Proc. of the International Conference on

Computational Linguistics and Intelligent Text Pro-

cessing, pages 361–373.

Chen, Y. and Wang, J. (2002). A region-based fuzzy feature

matching approach to content based image retrieval.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 24:1252–1267.

Chum, O., Perdoch, M., and Matas, J. (2009). Geometric

min-hashing: Finding a thick needle in a haystack. In

Proc. of the IEEE Conference on Comptuer Vision and

Pattern Recognition.

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

174

Colmerauer, A. (1970). Les systmes-q ou un formalisme

pour analyser et synthtiser des phrases sur ordinateur.

dpartement d’informatique de l’Universit de Montral,

publication interne, 43.

Columbo, C., Bimbo, A. D., and Pala, P. (1999). Seman-

tics in visual information retrieval. IEEE Multimedia,

6(3):38–53.

Csurka, G., Dance, C., Fan, L., Willamowski, J., and Bray,

C. (2004). Visual categorization with bags of key-

points. In Proc. of the ECCV Workshop on Statistical

Learning for Computer Vision.

Csurka, G., Skaff, S., Marchesotti, L., and Saunders, C.

(2010). Learning moods and emotions from color

combinations. In Proc. of the Indian Conference on

Computer Vision, Graphics, and Image Processing.

Daoud, D. (2006). Il faut et on peut construire des systmes

de commerce lectronique interface en langue na-

turelle restreints (et multilingues) en utilisant des mth-

odes orientes vers les sous-langages et le contenu.

PhD thesis, Universit

e Joseph Fourier.

Datta, R., Joshi, D., Li, J., and Wang, J. (2008a). Image

retrieval: Ideas, inﬂuences, and trends of the new age.

ACM Computing Surveys, 40(2):1–60.

Datta, R., Joshi, D., Li, J., and Wang, J. Z. (2006). Studying

aesthetics in photographic images using a computa-

tional approach. In Proc. of the European Conference

on Computer Vision, volume 3, pages 288–301.

Datta, R., Li, J., and Wang, J. Z. (2008b). Algorithmic infer-

encing of aesthetics and emotion in natural images. In

Proc. of the IEEE International Conference on Image

Processing, San Diego, CA.

Davis, B. and Lazebnik, S. (2008). Analysis of human at-

tractiveness using manifold kernel regression. In Proc.

of the IEEE International Conference on Image Pro-

cessing.

Dellandr

ea, E., Liu, N., and Chen, L. (2010). Classiﬁcation

of affective semantics in images based on discrete and

dimensional models of emotions. Proc. of the Inter-

national Workshop on Content-Based Multimedia In-

dexing, pages 1–6.

Desolneux, A., Moisan, L., and Morel, J.-M. (2004). See-

ing, Thinking and Knowing, chapter Gestalt Theory

and Computer Vision, pages 71–101. A. Carsetti ed.,

Kluwer Academic Publishers.

Dunker, P., Nowak, S., Begau, A., and Lanz, C. (2009).

Content-based mood classiﬁcation for photos and mu-

sic. Proc. of the ACM International Conference on

Multimedia Information Retrieval, pages 97–104.

Falaise, A., Rouquet, D., Schwab, D., Blanchon, H., and

Boitet, C. (2010). Ontology driven content extraction

using interlingual annotation of texts in the OMNIA

project. In Proc. of the International Workshop On

Cross Lingual Information Access, Peking, China.

Fedorovskaya, E., Neustaedter, C., and Wei, H. (2008). Im-

age harmony for consumer images. In Proc. of the

IEEE International Conference on Image Processing.

Flickner, M., Sawhney, H., Niblack, W., Ashley, J., Huang,

Q., Dom, B., Gorkani, M., Hafner, J., Lee, D.,

Petkovic, D., Steele, D., and Yanker, P. (1995). Query

by image and video content: the QBIC system. IEEE

Computer, 28:23–32.

Guillaumin, M., Mensink, T., Verbeek, J., and Schmid, C.

(2009). Tagprop: Discriminative metric learning in

nearest neighbor models for image auto-annotation. In

Proc. of the IEEE International Conference on Com-

puter Vision.

Itten, J. (1961). The art of color. Otto Maier Verlab, Ravens-

burg, Germany.

Jacobsen, T., Schubotz, R. I., Hfel, L., and v. Cramon,

D. Y. (2006). Brain correlates of aesthetic judgment

of beauty. NeuroImage, 29:276–285.

Jegou, H., Douze, M., and Schmid, C. (2008). Hamming

embedding and weak geometric consistency for large

scale image search. In Proc. of the European Confer-

ence on Computer Vision.

Jeon, J., Lavrenko, V., and Manmatha, R. (2003). Au-

tomatic image annotation and retrieval using cross-

media relevance models. In Proc. of the Annual ACM

SIGIR conference on Research and development in in-

formaion retrieval.

Jesus Cardeosa et al. (2009). The U++ con-

sortium (accessed on september 2009).

http://www.unl.ﬁ.upm.es/consorcio/index.php.

Kasutani, E. (2007). Image retrieval apparatus and image

retrieving method, US Patent application.

Laaksonen, J., Koskela, M., and Oja, E. (2002). Picsom

self-organizing image retrieval with mpeg-7 content

descriptions. IEEE Transactions on Neural Networks,

13:841–853.

Li, X., Chen, L., Zhang, L., Lin, F., and Ma, W. (2006).

Image annotation by large-scale content based image

retrieval. In Proc. of the ACM International Confer-

ence on Multimedia.

Loui, A., Wood, M. D., Scalise, A., and Birkelund, J.

(2008). Multidimensional image value assessment

and rating for automated albuming and retrieval. In

Proc. of the IEEE International Conference on Image

Processing.

Monay, F. and Gatica-Perez, D. (2003). On image auto-

annotation with latent space models. In Proc. of the

International Conference On Multimedia.

uller, H., Clough, P., Deselaers, T., and Caputo, B. (2010).

Imageclef- experimental evaluation in visual informa-

tion retrieval. In The Information Retrieval Series.

Springer.

Nowak, S. and Lukashevich, H. (2010). Multilabel clas-

siﬁcation evaluation using ontology information. In

Proc. of the International Conference on Multimedia

Information Retrieval, pages 35–44.

Perronnin, F. and Dance, C. (2007). Fisher kernels on vi-

sual vocabularies for image categorization. In Proc. of

the IEEE Conference on Computer Vision and Pattern

Recognition.

Perronnin, F., Liu, Y., Sanchez, J., and Poirier, H. (2010).

Large-scale image retrieval with compressed ﬁsher

vectors. In Proc. of the IEEE Conference on Com-

puter Vision and Pattern Recognition.

MULTIMODAL SEARCH FOR GRAPHIC DESIGNERS

175

Rouquet, D. and Nguyen, H. (2009). Multilingusation

d’une ontologie par des corespondances avec un lex-

ique pivot. In TOTh09, Annecy, France.

Rouquet, D., Trojahn, C., Scwab, D., and Srasset, G.

(2010). Building correspondences between ontologies

and lexical resources. In to be published.

Sahbi, H., Audibert, J., and Keriven, R. (2007). Graph-cut

transducers for relevance feedback in content based

image retrieval. In Proc. of the IEEE International

Conference on Computer Vision.

Smets, P. (1990). The combination of evidence in the trans-

ferable belief model. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 12(5):447–458.

Squire, D., W.M

uller, H.M

uller, and Raki, J. (1999).

Content-based query of image databases, inspirations

from text retrieval: Inverted ﬁles, frequency-based

weights and relevance feedback. In Proc. of the Scan-

dinavian Conference on Image Analysis.

Swain, M. and Ballard, D. (1991). Color indexing. Interna-

tional Journal of Computer Vision, 7:11–32.

Tahir, M., Kittler, J., Mikolajczyk, K., Yan, F., van de

Sande, K., and Gevers, T. (2009). Visual category

recognition using spectral regression and kernel dis-

criminant analysis. In Proc. of the IEEE International

Conference on Computer Vision Workshop on Sub-

space Methods.

Tamura, H., Mori, S., and Yamawaki, T. (1978). Tex-

tural features corresponding to visual perception.

IEEE Transaction on Systems, Man, and Cybernetics,

8(6):460.

Tsujimura, K. and Bannai, Y. (1996). Image searching

method and apparatus thereof using color information

of an input image, US Patent application.

Uchida Hiroshi et al. (2009). The UNDL foundation (ac-

cessed on september 2009). http://www.undl.org/.

van de Sande, K. E. A., Gevers, T., , and Smeulders, A.

W. M. (2009). The university of amsterdam’s concept

detection system at imageclef 2009. In Proc. of the

Working Notes for the CLEF 2009 Workshop, Corfu,

Greece.

Wang, S. and Wang, X. (2005). Emotion semantics image

retrieval: a brief overview. Proc. of the International

Conference on Affective Computing and Intelligent In-

teraction, pages 490–497.

Wang, W. and He, Q. (2008). A survey on emotional seman-

tic image retrieval. Proc. of the IEEE International

Conference on Image Processing, pages 117–120.

Yang, J., Fan, J., Hubball, D., and Gao, Y. (2006). Seman-

tic image browser: Bridging information visualization

with automated intelligent image analysis. In Proc. of

the IEEE Symposium on Visual Analytics Science And

Technology.

Zhang, J., Marszalek, M., Lazebnik, S., and Schmid, C.

(2007). Local features and kernels for classiﬁcation of

texture and object categories: a comprehensive study.

International Journal of Computer Vision, 73(2).

Zhang, X. W. L., Jing, F., and Ma, W. (2006). Annosearch:

Image auto-annotation by search. In Proc. of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion.

IVAPP 2011 - International Conference on Information Visualization Theory and Applications

176
