ANIMATION OF AIR BUBBLES WITH SPH

Markus Ihmsen, Julian Bader, Gizem Akinci and Matthias Teschner

Computer Science Department, University of Freiburg, Freiburg, Germany

Keywords:

Fluid Simulation, Smoothed Particle Hydrodynamics, Bubbles.

Abstract:

We present a physically-based multiphase model for simulating water and air bubbles with Smoothed

Particle Hydrodynamics (SPH). Since the high density ratio of air and water is problematic for existing

SPH solvers, we compute the density and pressure forces of both phases separately. The two-way coupling

is computed according to the velocity ﬁeld. The proposed model is capable of simulating the complex

bubble ﬂow, e. g. path instability, deformation and merging of bubbles and volume-dependent buoyancy.

Furthermore, we present a velocity-based heuristic for generating bubbles in regions where air is likely

trapped. Thereby, bubbles are generated on the ﬂy, without explicitly simulating the air phase surrounding

the liquid. Instead of deleting the bubbles when they reach the surface, we employ a simple foam model. By

incorporating our model into the predictive-corrective SPH method, large time steps can be used. Thus, we can

simulate scenarios of high resolution where the size of the bubbles is small in comparison to the liquid volume.

1 INTRODUCTION

Air bubbles are a natural phenomenon that occurs in

everyday life. Whenever a liquid is poured into a

glass, bubbles are created by trapped air. Accord-

ingly, the visual realism of ﬂuid animations is signif-

icantly enhanced by modeling the creation and ﬂow

of bubbles. They might be even used to synthesize

the sound generated by the ﬂuid (Moss et al., 2010).

However, the realistic simulation of air bubbles poses

some challenges.

In Computer Graphics, two major approaches are

employed for animating ﬂuids, the Eulerian grid-

based method and the Lagrangian particle method.

While the Eulerian approach is particularly suited to

simulate large volumes of water, its performance is

limited by the grid spacing. In order to simulate small

scale features, a very ﬁne resolution is required which

restricts the time step and increases the computing

time. In contrast, particle methods like Smoothed Par-

ticle Hydrodynamics (SPH) are suitable for capturing

small scale effects like the ﬂow of tiny air bubbles.

In order to capture the creation of bubbles, the

computation of the air phase is required. However,

this invokes a signiﬁcant computationaloverhead. For

grid-based methods, a second grid with ﬁne resolution

is required which computes the air ﬂow. In particle

methods, the air phase has to be represented explic-

itly.

In reality, air and water are interacting in a

two-way manner. Unlike water droplets, air bubbles

are under strong velocity diffusion because they are

coupled to the surrounding ﬂuid by drag and lift

forces. According to the very large density ratio of

air to water (≈ 1000), water exerts a high pressure

on air bubbles which makes them merge rapidly.

As the bubbles grow, they rise faster due to the

rapid increase in buoyancy. In turn, those large and

fast rising bubbles signiﬁcantly inﬂuence the liquid

ﬂow. As stated in (Solenthaler and Pajarola, 2008),

modeling high density ratios with SPH is problematic

and may lead to numerical instabilities due to large

forces. Thus, the simulation of air bubbles is not

possible by directly employing the standard SPH

method (M¨uller et al., 2005; Solenthaler and Pajarola,

2008).

Contribution. We present a new SPH model for sim-

ulating air bubbles and foam. In order to handle the

high density ratio of air and water, we treat the two

phases separately. We account for the interaction of

the two phases by employing a drag force. As we

show, the proposed drag force is sufﬁcient to capture

the two-way interaction realistically, while the numer-

225

Ihmsen M., Bader J., Akinci G. and Teschner M..

ANIMATION OF AIR BUBBLES WITH SPH.

DOI: 10.5220/0003322902250234

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 225-234

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: Trapped air. Air bubbles are generated on the ﬂy in regions of high velocity differences. The bubble ﬂow is

signiﬁcantly inﬂuenced by the liquid. Bubbles are merging and deforming. This simulation contains 1.4 million liquid

particles and up to 6000 air particles.

ical stability is not affected.

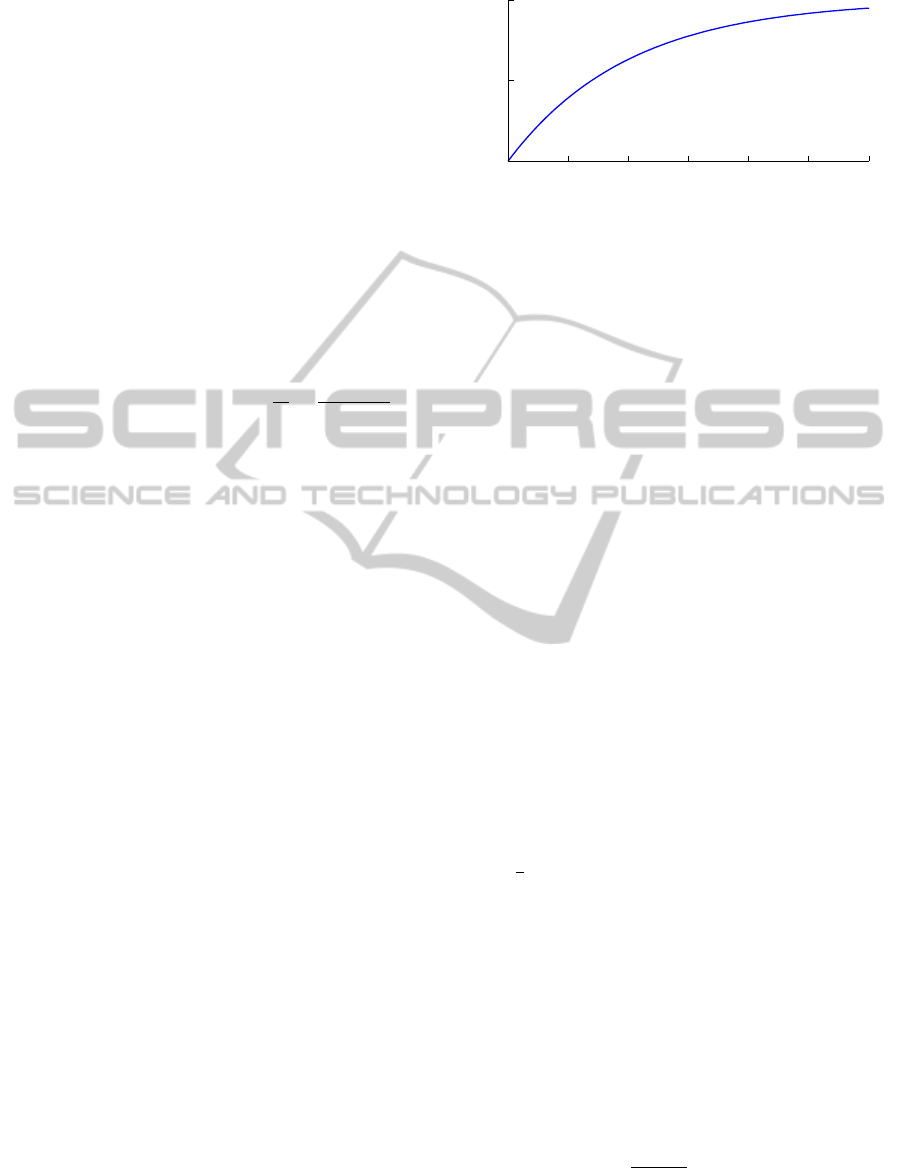

We model the buoyancy of the air bubbles by

a saturated function that accounts for the volume.

Thereby, large bubbles rise faster than small bubbles.

Furthermore, a cohesion force is employed that mini-

mizes the surface and makes rising bubbles merge.

In order to simulate trapped air without explicitly

modeling the air surrounding the ﬂuid, we generate

them on the ﬂy in surface regions with high velocity

differences. When air particles have reached the sur-

face, they are treated as foam and ﬁnally deleted after

a user deﬁned time.

The presented bubble model can be easily incor-

porated into any existing SPH solver with negligi-

ble computational overhead. We suggest to use the

predictive-corrective SPH (PCISPH) algorithm (So-

lenthaler and Pajarola, 2009) since it can handle large

time steps and is efﬁcient to compute. Therefore, high

resolution scenes can be simulated where the size of

the bubbles is small in comparison to the liquid vol-

ume. A ﬁrst example is illustrated in Fig. 1.

2 RELATED WORK

In this work, we focus on an SPH based ﬂuid simu-

lation for animating air bubbles and their interaction

with water. In Computer Graphics, SPH is applied to

model different materials like gas (Stam and Fiume,

1995), deformable objects (Desbrun and Cani, 1996),

(Solenthaler et al., 2007), hair (Hadap and Magnenat-

Thalmann, 2001) and liquids (M¨uller et al., 2003).

However, the interaction of air and water is hardly

coveredsince the high density ratio poses severeprob-

lems to the SPH algorithm (Monaghan, 2002).

In (M¨uller et al., 2005), the standard SPH model

for single-phase ﬂuid simulations (M¨uller et al., 2003)

is extended to handle multiple ﬂuids. This approach

can handle density ratios of up to 10. In order to

simulate air bubbles, an artiﬁcial buoyancy force is

applied. However, as stated in (Solenthaler and Pa-

jarola, 2008), this approach suffers from falsiﬁed den-

sity estimations at the interface which induce wrong

pressure values. This in turn, limits the time step and

might result in numerical instabilities for fast rising

air particles due to large pressure forces. (Solen-

thaler and Pajarola, 2008) overcomes this problem by

ignoring the mass in the computation of the particle

density. Thereby, sharp density changes at the ﬂuid

interface can be reproduced. Although this method

can handle density ratios of up to 100, the ﬂow of

small, light volumes like air bubbles can not be re-

alistically handled. According to Solenthaler et al.,

the buoyant volumes can not break up the crystallized

particle conﬁguration formed by the pressure forces.

In order to circumvent these problems, we ignore par-

ticle neighbors of other phases when computing the

density. Thus, we treat each phase separately. The in-

teraction of both phases is modeled via a drag force.

A similar idea is presented in (Cleary et al., 2007)

for simulating dynamic gas bubbles generated from

gas dissolution. In this approach, each phase is com-

puted separately, where the air bubbles are modeled

by discrete entities with ﬁxed shape and the liquid is

computed with SPH. The bubbles are coupled to the

liquid via a drag force while the inﬂuence of the bub-

bles onto the liquid is neglected. In contrast, our bub-

ble model is based on SPH and the governing forces

are computed differently. Furthermore, we couple the

liquid and air phase in a two-way manner using a dif-

ferent formulation of the drag force.

Capturing the ﬁne scale ﬂow of bubbles with Eule-

rian methods, requires very ﬁne grid resolutions. As

stated in (Hong et al., 2008), for numerical reasons,

each bubble should at least occupy 3 nodes in each di-

mension. Although, the computational overhead can

be minimized by adaptively reﬁning the grid using an

octree (Losasso et al., 2004), the required grid spac-

ing signiﬁcantly restricts the time step. Consequently,

pure grid-based methods like the regional level set

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

226

method (Zheng et al., 2006) are only suited to han-

dle relatively large bubbles in comparison to the ﬂuid

volume. Alternatively, hybrid methods have been pro-

posed (Hong and Kim, 2003; Greenwood and House,

2004), in which the bubbles are simulated by passive

air particles that are advected according to the under-

lying grid. Similar to (K¨uck et al., 2002), the particles

are modeled as spheres which do no not change their

shape. By coupling the bubble particles to a low res-

olution grid, millions of air particles can be simulated

efﬁciently as shown in (Kim et al., 2010). However,

in these models the interaction of particles is often ne-

glected. Therefore, the size and shape of air bubbles

is not varying over time. In contrast, in the proposed

model, the air bubbles can consist of many particles.

The employed cohesion force minimizes the bubble

surface and makes bubbles merge. Since we recon-

struct the bubble surface from the particle positions

as described in (Solenthaler and Pajarola, 2008), the

bubble shape is deformable.

A hybrid solver is also proposed in (Hong et al.,

2008), where bubbles are simulated with SPH and

coupled to a grid-based ﬂuid solver. The two phases

are coupled via the velocity ﬁeld. However, due to

the insufﬁcient resolution of the underlying grid, the

path instability of air bubbles can not be simulated by

this coupling. This is achieved by adapting the vor-

ticity conﬁnement method (Fedkiw et al., 2001; Selle

et al., 2005) and artiﬁcial velocity disturbance based

on random numbers. In contrast, we model the liq-

uid phase with SPH. Thus, ﬁne scale turbulences in

the liquid can be simulated. The proposed two-way

coupling is velocity based. Thereby, the bubble ﬂow

is signiﬁcantly inﬂuenced by the velocity ﬁeld of the

liquid. Consequently, the path instability of bubbles

can be realistically simulated without adding artiﬁcial

disturbance.

In (Th¨urey et al., 2007), a two-dimensional shal-

low water model is coupled to a particle-based bub-

ble simulation. In order to capture three-dimensional

effects, the shallow water model makes a number of

simplifying assumptions. In particular, the ﬂuid ﬂow

is only modeled around bubbles and only if bubbles

are in the ﬂuid. Thereby, the model is very efﬁcient to

compute, but some effects can not be modeled, e. g.

inertia effects of the ﬂuid. In contrast, the primary fo-

cus of the proposed model is not interactivity, but the

realism of the animation. However, we integrate our

model into the PCISPH algorithm presented in (So-

lenthaler and Pajarola, 2009). Thereby, large time

steps can be used which allows us to simulate mil-

lions of particles in reasonable time.

The remainder of the paper is organized as fol-

lows. First, we describe the basics of SPH and dis-

cuss its problems in handling high-density ratios. In

Sec. 4, the proposed model for simulating air bubbles

with SPH is explained in detail. Finally, we discuss

implementation issues and demonstrate the capability

of the presented method.

3 SPH

In this section, we brieﬂy explain the basics of the

SPH method for single-phase and multiphase ﬂuids.

3.1 Single-phase SPH

In SPH, the ﬂuid is discretized into a ﬁnite set of par-

ticles i with position x

and velocity v

. Generally, a

particle quantity A

is approximatedby a smooth func-

tion which interpolates A

using a ﬁnite set of sam-

pling points j located within a distance h. This set of

sampling points is called particle neighborhood. The

smooth function is deﬁned as

∑

W(x

− x

,h), (1)

where m

is the mass of j, ρ

its density and

W(x

− x

,h) is a kernel function with support radius

The particle positions and velocities are integrated

according to internal and external forces. Internal

forces are viscosity, surface tension and pressure

forces, where the pressure force mainly governs the

macroscopic ﬂow.

In Computer Graphics, two different algorithms

are generally used for computing the pressure of SPH

ﬂuids, namely the state equation based algorithm

(SESPH) and the predictive-correctiveSPH algorithm

(PCISPH), see Alg. 1 and Sec. 4.4, respectively.

In SESPH, the pressure is related with the den-

sity. Commonly, for compressible ﬂuids, the ideal

gas equation (2) (M¨uller et al., 2003) and for weakly-

compressible ﬂuids, the Tait equation (3) (Monaghan,

1992; Becker and Teschner, 2007) are used

= c

(ρ

− ρ

) (2)





− 1

(3)

where c

denotes the speed of sound and ρ

the rest

density of the ﬂuid. The density can be computed

with (1) as

∑

W(x

,h) (4)

ANIMATION OF AIR BUBBLES WITH SPH

227

Algorithm 1: SESPH.

foreach particle i do

compute density (4) ;

compute pressure (3) or (2);

foreach particle i do

compute acceleration (8);

integrate position, velocity;

where x

= x

− x

. The pressure force is directly

derived from the Navier-Stokes equations as

pressure

= −m

∑

∇W(x

,h). (5)

According to (Monaghan, 2005), the viscosity

force for particle pairs with v

· x

< 0 is computed

viscosity

= m

∑

· x



+ εh

∇

W(x

,h)

(6)

with the viscosity term ν = µ

2hc

+ρ

, where µ is the vis-

cosity constant.

The surface tension force can be elegantly com-

puted as proposed in (Becker and Teschner, 2007) as

sur face

= −k

∑

W(x

,h) (7)

where k

is a user-deﬁned surface tension coefﬁcient.

Finally, the acceleration a

of a particle i is com-

puted as

= m

−1



pressure

+ F

viscosity

+ F

sur face



+ g (8)

where g denotes the gravity. Similar to recent work

in the ﬁeld of SPH, we use the above force equations

in conjunction with the cubic spline kernel of (Mon-

aghan, 1992). Alternative force equations and kernels

can be found in (M¨uller et al., 2003).

3.2 Multiphase SPH

The SESPH algorithm can be easily extended in or-

der to handle multiple ﬂuids with different rest densi-

ties (M¨uller et al., 2005). However, as shown in (So-

lenthaler and Pajarola, 2008), miscible ﬂuids with a

density ratio larger than 10 can not be realistically

simulated if the standard SPH density summation (4)

is used. The reason is that in SPH, the macroscopic

ﬂow is mainly governed by the density computation.

Over- or underestimating the density leads to erro-

neous pressure values, which might result in unnat-

ural acceleration caused by erroneously introduced

pressure ratios. In (Solenthaler and Pajarola, 2008),

a different density model is proposed which treats

all particle neighbors as if they belong to the same

phase, i. e. have the same mass and rest density. This

model computes the density as ρ

= m

∑

W(x

,h).

Thereby, the densities at the interface are computed

correctly.

Although this method can represent sharp den-

sity changes at the interface, it suffers from severe

limitations when dealing with large density ratios.

The buoyancy of small, light volumes is signiﬁcantly

damped. As stated in (Solenthaler and Pajarola,

2008), this is due to the pressure force which com-

pels the particles to arrange in a stable lattice struc-

ture. This structure can not be broken by small vol-

umes like e. g. air bubbles.

In the following section, we present a new SPH

model for simulating the ﬂow of air bubbles and the

two-way coupled interaction of air and water. The

presented model avoids the above mentioned prob-

lems.

4 BUBBLES

In order to simulate bubbles with SPH, we propose

to simulate the air and liquid phase separately, i. e.

only particle neighbors of the same phase contribute

to the density, pressure and general force computa-

tions. Accordingly, problems like e. g. high pressure

ratios or buoyancy dampening do not occur. We ac-

count for the interaction of both phases by employing

a new velocity based coupling.

In the following, we present force equations for

controlling the bubble ﬂow and the interaction of both

phases. Subsequently, we propose an efﬁcient method

for generating air bubbles caused by trapped air and

discuss a simple model for transforming air bubbles

into foam. Finally, we show how this model can be

integrated into the PCISPH algorithm.

4.1 Bubble Physics

In order to simulate bubbles realistically, we have to

capture the prominent effects of their complex behav-

ior. In general, bubbles have a sphere like shape ac-

cording to cohesion forces (surface and interface ten-

sion). However, since bubbles are heavily inﬂuenced

by the velocity ﬁeld of the surrounding ﬂuid, the bub-

ble shape is deforming. Furthermore, bubbles are dif-

ferent in size, where larger bubbles rise faster and at-

tract smaller bubbles.

For modeling these effects, we employ two forces

that are computed for the air phase only, namely

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

228

the buoyancy force F

buyoancy

and the cohesion force

cohesion

. The coupling of the two phases is realized

by the drag force F

drag

Buoyancy. The buoyancy force accelerates the air

bubble in direction of the liquid surface. In order to

make larger bubbles rise faster than smaller ones, the

buoyancy force should account for the volume of the

air bubble V

bub

. This leads to

buoyancy

= −k

·V

bub

· g (9)

where k

controls the buoyancy. However, computing

bub

is not straight forward without knowing which

particle belongs to which bubble. The determination

thereof invokes a signiﬁcant computational overhead

which can be avoided by using a heuristic formula-

tion.

Replacing V

bub

in (9) with V

∑

W(x

,h)

not suitable since V

gets smaller as the number of

neighbors grows, i. e. an isolated particle would rise

faster than a large bubble. On the other hand, cor-

relating the buoyancy with the density ρ

is also not

optimal since thereby, a compressed bubble (smaller

volume) would rise faster than an expanded one.

We therefore propose to relate the magnitude of

the buoyancy force to the number of particle neigh-

bors n with

buoyancy

= −m



max

− (k

max

− 1) · e

−0.1n



· g

(10)

where k

controls the minimum buoyancy and k

max

the maximum buoyancy. The mass is added to the

force formulation, in order to make the resulting

acceleration independent of the simulation resolu-

tion. Thus, the resulting acceleration caused by the

buoyancy force can be perfectly controlled since

gk ≤



buoyancy



≤ kk

max

· k

· gk. This is also

illustrated in Fig. 2.

Cohesion. The coalescence of air bubbles is an im-

portant effect. Smaller air bubbles are attracted by

surrounding bubbles due to interface and surface ten-

sion forces. We model this behavior by employing an

artiﬁcial cohesion force

cohesion

= −k

∑

(11)

where k

controls the strength of the cohesion force.

According to (11), air particles are attracted by neigh-

boring air particles with higher density. Thereby,

spatially close air bubbles do merge. Note that the

pressure force (5) counteracts the attraction, when the

density ρ

becomes too high. As a result, the surface

of the bubble is minimized while the forces converge

0 5 10 15 20 25 30

buoyancy scaling (times k

)

number of air neighbors

Figure 2: Scaling of the proposed volume-dependent buoy-

ancy for k

max

= 3. In order to account for the unknown

total bubble volume, the buoyancy of an air particle is non-

linearly related to its number of air neighbors.

to an equilibrium.

Two-way Coupling. In (Cleary et al., 2007)

and (Hong et al., 2008), the air phase is coupled to the

liquid phase via an empirical drag force. The effect

of the bubble momentum on the liquid phase is ne-

glected. With respect to the generally high Reynolds

number for air bubbles, the drag force F

drag

acting on

an air particle i is computed as

drag

= −k

bub

∑

liq



− v

liq





air

− v

liq



(12)

where k

is a constant drag coefﬁcient, liq the liquid

neighbors of i and A

bub

is the surface area of the bub-

ble. Note that in (Cleary et al., 2007), air bubbles are

simulated as discrete spheres. Thus, A

bub

is easy to

compute. For the presented model, it is hard to com-

pute A

bub

since bubbles may have arbitrary shapes and

can consist of many particles.

In (12), the forces exerted by neighboring liquid

particles are related to the velocity difference, but the

ﬂow direction and the distance of the particles are ne-

glected. Thus, a liquid neighbor j, that is very close



≤



, inﬂuences the velocity of the air particle

by the same amount as a particle with distance h. Fur-

thermore, the partial drag force F

drag

is non-zero as

long as



> 0, whether the particles move towards

each other or not.

In contrast, we account for the distance and ﬂow

direction (see Fig. 3). Therefore, we propose a drag

force that is motivated by the viscosity force (6) and

couples both phases in a two-way manner. Conse-

quently, the movement of the bubbles inﬂuences the

velocity ﬁeld of the ﬂuid and vice versa. The drag

force is deﬁned as

drag

= m

∑

+ ρ

∇

W(x

,h) (13)

where k

denotes the drag constant. Π

is zero

if either i and j belong to the same phase or if

ANIMATION OF AIR BUBBLES WITH SPH

229

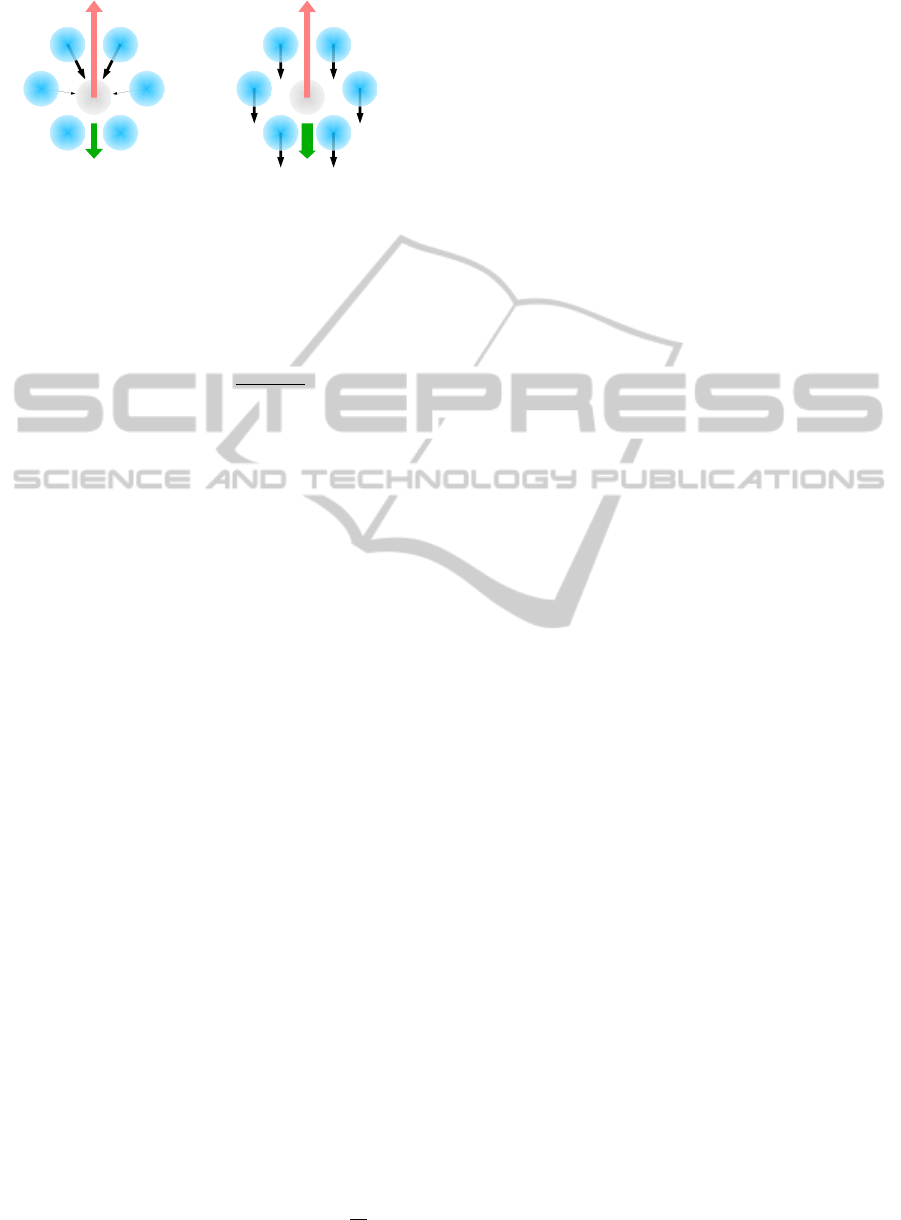

Figure 3: Comparison of the proposed drag force (left) and

the drag force used in(Cleary et al., 2007) (right). The inﬂu-

ence of the liquid particles (blue) onto the air particle (grey)

is shown. The velocity of the air particle is indicated by the

red arrow, the liquid is at rest. Partial forces are illustrated

by black arrows, while the resultant force is given by the

green arrow. The thickness denotes the magnitude.

· x

≤ 0, otherwise Π



·x

+εh



Acceleration. The acceleration of an air particle is

ﬁnally computed as

air

= m

−1

air



pressure

air

+ F

cohesion

air

+ F

buoyancy

air

+ F

drag

air



+g,

(14)

while for a liquid particle liq, the acceleration com-

putes to

liq

= m

−1

liq



pressure

liq

+ F

viscosity

liq

+ F

sur face

liq

+ F

drag

liq



+g.

(15)

Note that the proposed bubble model can be easily

integrated into any existing SPH solver. A discussion

is provided in Sec. 4.4, but ﬁrst we suggest an heuris-

tic for generating and deleting air particles on the ﬂy.

Thereby, trapped air can be simulated efﬁciently.

4.2 Trapped Air

Air bubbles are generated when air is trapped inside

the liquid. One possibility to capture this effect is to

simulate the air phase surrounding the liquid explic-

itly. In order to avoid the implied computational over-

head, we use a heuristic formulation in order to detect

regions where air is trapped.

The proposed heuristic is based on the following

observations:

• Air molecules are pulled inside the liquid by in-

ﬂows

• The amount of trapped air grows with the velocity

of the inﬂow.

Accordingly, we generate air particles in sur-

face regions of high velocity differences. Therefore,

for each liquid particle on the surface, the magni-

tude of the velocity difference v

dif f

∑

−

)W(x

,h) is compared with a user deﬁned thresh-

old v

. If



dif f



> v

, air is likely trapped at the po-

sition x

In order to relate the velocity of the inﬂow with

the volume of the generated air, two further conditions

must be met. First, the magnitude of the velocity must

be greater than a predeﬁned threshold kv

k > v

min

Second, the number of air particle neighbors n

air

particle i should not be greater than



dif f



. Con-

sequently, the number of generated particles grows

with the velocity of the inﬂow.

In summary, a liquid particle i generates

an air particle if



dif f



> v

, kv

k > v

min

and

air



dif f



. The position and velocity of the

air particle are chosen to be the same as for the liquid

particle i.

Discussion. Our model computes the density and

pressure of the air and liquid phase separately. There-

fore, an air particle can be generated at the position

of a liquid particle without introducing high pressure

forces causing unnatural acceleration. This is in con-

trast to the multiphase methods presented in (M¨uller

et al., 2005; Solenthaler and Pajarola, 2008) where

high pressures are introduced when the distance of air

and liquid particles is too small. Thus, in these mod-

els, determining an appropriate position for a gener-

ated air particle without causing numerical instabili-

ties is not straightforward.

4.3 Foam

When air bubbles reach the liquid surface they do not

rise anymore, but ﬂoat on the surface until they burst.

In reality, an air (foam) bubble disperses according

to ﬁlm rupture in a two step process that can create

smaller bubbles. Note that the physics that govern this

complex behavior is not fully discovered yet (Bird

et al., 2010). However, for the purpose of animation,

we use a simpliﬁed model to simulate the ﬂoating and

bursting of foam bubbles.

First of all, we differentiate between particles that

are inside the liquid (rising bubbles) and particles that

are on the surface (foam). The liquid surface can be

determined either via a smoothed color ﬁeld (M¨uller

et al., 2003; Keiser et al., 2005) or by comparing the

number of particle neighbors with a given threshold.

We treat an air particle i as on the surface (foam) ei-

ther if its density ρ

gets below a threshold t

or there

is no liquid neighbor j with (x

− x

) · g > 0.

The buoyancy force of foam particles is computed

buoyancy

= −m

g (16)

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

230

Figure 4: Foam bubbles. Air particles are not directly

deleted when they reach the surface, but treated as foam.

They ﬂoat on the surface, according to the buoyancy and

drag force. Due to the cohesion force, foam bubbles are

different in size and shape.

This force cancels out the acceleration due to gravity

g. Like rising bubble particles, foam particles are

coupled to the liquid by the drag force (13). Thereby,

the resulting velocity of foam particles is governed

by the surrounding liquid. Thus, the foam ﬂoats

on the liquid surface. Due to the cohesion force,

foam particles also cluster on the surface, trying to

minimize the surface. Consequently, foam bubbles

are different in size and shape (see Fig. 4).

Deletion of Foam Particles. When an air particle

reaches the surface it is given a ﬂoating time t

, i. e.

time until the particle is deleted. In order to improve

the realism, we vary t

for each particle randomly us-

ing a uniform distribution. However, if two foam par-

ticles merge, i. e. are neighbors, the minimum of their

ﬂoating times is assigned to both particles. Thereby,

foam bubbles consisting of more than one particle dis-

perse at once.

4.4 Algorithm

In order to simulate water realistically, the compress-

ibility should be set very low. In SESPH, the com-

pressibility is controlled by the speed of sound (see

(2), (3)). Setting c

higher reduces the compressibil-

ity, but also restricts the time step. In (Solenthaler

and Pajarola, 2009), an alternative SPH algorithm for

incompressible ﬂuids is suggested, called PCISPH.

In this approach, the compression error is predicted

and corrected iteratively. Thereby, signiﬁcantly larger

time steps can be used, while the computational over-

head is small compared to SESPH. Accordingly, high-

resolution ﬂuids can be simulated within reasonable

time.

The proposed bubble model can be directly incor-

Algorithm 2: PCISPH with bubbles.

foreach air particle do

compute forces (11), (10), (13), (16);

foreach liquid particle do

compute forces (6), (7), (13) ;

k = 0 ;

while (max(ρ

∗

err

) > η or k < 3) do

forall particles do

predict velocity ;

predict position ;

forall particles do

update distances to neighbors;

predict density variation;

update pressure ;

forall particles do

compute pressure force;

k+ = 1;

forall particles do

compute acceleration (14) or (15);

forall particles i do

integrate velocity and position;

if i is liquid then

test for air generation

else

test for deletion

porated into the PCISPH algorithm (see Alg. 2) with

negligible computational overhead. Furthermore, the

time step is not affected by the high density ratio of

water and air. This is due to the velocity based cou-

pling which avoids the computation of the pressure

forces at the water-air interface.

Explaining the prediction and correction loop of

the PCISPH algorithm is beyond the scope of this pa-

per. Detailed explanations can be found in (Solen-

thaler and Pajarola, 2009; Ihmsen et al., 2010).

5 RESULTS

In this section, we brieﬂy cover implementation as-

pects and parameter settings. Then, we demonstrate

the capability of the proposed model to animate the

air bubbles and their interaction with water.

Implementation. In order to correct the density

at the ﬂuid surface, we use the constant correction

technique as described in (Bonet and Kulasegaram,

2002). Positions and velocities are updated using

the Euler-Cromer scheme. The neighborhood search

is computed using the parallelized compact hashing

ANIMATION OF AIR BUBBLES WITH SPH

231

method (Ihmsen et al., 2011).

The surfaces are extracted by ﬁrst mapping the

particle positions to a scalar ﬁeld as described in (So-

lenthaler et al., 2007) and then using the Marching

Cubes algorithm (Lorensen and Cline, 1987). The

resulting meshes are rendered with POV-Ray.

Parameter Setting. In all our 3D scenes, we set the

reference density of water to 1000 kg/m

and for air

particles we set it to 1 kg/m

. The particle mass is

computed as ρ

/(0.5h)

, where 0.5h is the initial par-

ticle spacing, which is 0.02 in most of our scenes. The

gravity is set to (0, −9.81,0)

. Velocities and accel-

erations are given in m/s, m/s

respectively.

For the bubbles, we empirically found the follow-

ing setting to obtain good results: the buoyancy coef-

ﬁcients k

= 14 and k

max

= 6, cohesion k

= 12 and

the drag coefﬁcient k

is set to 8 for air particles and

to 3 for water. We have varied the parameters for gen-

erating air bubbles in order to show their effect on the

simulation (see Sec. 5.2).

Note that the coefﬁcients introduced for the bub-

ble model are independent of the resolution h. By

increasing the parameters k

and k

, the effect of

the corresponding force is ampliﬁed.

5.1 Bubble Flow

The basic capability of the presented bubble model

is demonstrated by simulating rising bubbles in calm

water (see Fig. 5). In this example scene, air particles

are randomly seeded at the bottom. The initial ﬂuid

velocity is zero. According to the proposed two-way

coupling, the velocity ﬁeld of the ﬂuid is inﬂuenced

by the air phase and vice versa. Thereby, small scale

turbulences are generated which results in a natural

zig-zag ﬂow of the bubbles without adding random

disturbance. As the example shows, the prominent

effects of air bubble ﬂow can be successfully cap-

tured, e. g. merging, path instability, volume depen-

dent buoyancy.

In this scene, 2.4 million water particles and up to

10k air particles are simulated. The time step is set

to 0.0015s which guarantees a compressibility of less

than 1.5%.

5.2 Bubble Generation

A major contribution of the presented model is the

generation of air bubbles. In contrast to existing work,

air is generated in surface regions with high local ve-

locity differences. According to the velocity based

coupling, bubbles can be generated on the ﬂy without

Figure 5: Rising bubbles in calm water. Bubbles are differ-

ent in shape and size due to the cohesion force.

causing numerical instabilities. The generation of air

bubbles is demonstrated in two example scenes.

In the ﬁrst example, an inﬂow is simulated that

is poured into a volume of water (see Fig. 1). High

velocity differences occur around the inﬂow. Accord-

ingly, air particles are generated. Although, the bub-

ble ﬂow is mainly inﬂuenced by the turbulent velocity

ﬁeld of the liquid, the individual ﬂow is quite differ-

ent. Bubbles are varying in size and shape according

to the cohesion force. Due to the volume dependent

buoyancy, larger bubbles rise faster and more straight,

while smaller bubbles are mainly inﬂuenced by the

liquid. According to the proposed foam model, the air

bubbles ﬂoat realistically on the surface before they

burst. For this example, we set the average ﬂoating

time t

to 0.7s. In this example, a liquid surface par-

ticle only generates an air particle if the velocity dif-

ference is larger than v

= 0.3 and the magnitude of

its velocity is larger than v

min

= 3. Note that less air

would be generated if v

or v

min

are set higher.

The second example demonstrates that the amount

of generated air particles scales with the magnitude

of the velocity difference. Therefore, three underwa-

ter inﬂows are simulated (see Fig. 6). The veloci-

ties v

= (x

,0,0)

of the water inﬂows are set dif-

ferently, where x

= 5.5, x

= 7.0 and x

= 9.0. v

is set to 0.75 and v

min

to 3.5. Thereby, the veloc-

ity differences around the inﬂow do vary. According

to the proposed heuristic (see Sec. 5.2), most of the

air particles are generated by the fastest inﬂow, while

the slowest inﬂow generates signiﬁcantly less bub-

bles. Furthermore, higher inﬂow velocities result in

larger turbulences. Since these vorticities are mapped

onto the bubble ﬂow, the bubbles indicate the liquid

ﬂow. Note that without the animation of bubbles, the

liquid inﬂow would not be visible in this example.

Again, spatially close air particles merge. Con-

sequently, some air bubbles get quite large, particu-

larly for the fast inﬂow. These large bubbles rise very

fast due to the volume dependent buoyancy force. Ac-

cording to the drag force, they signiﬁcantly inﬂuence

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

232

Figure 6: Underwater inﬂows. Water streams out of the three pipes with different velocities. The inﬂow in front has the lowest

velocity and the inﬂow in the back the highest. Note that the amount of generated air scales with the velocity of the inﬂow.

Larger air bubbles inﬂuence the liquid signiﬁcantly. The simulation uses 650k water particles and up to 2k air particles.

the liquid, as is clearly visible at the liquid surface. In

both scenes, we set the time step to 0.002s.

6 CONCLUSIONS

We have presented a new air bubble model for SPH.

Numerical instabilities, invoked by the high density

ratio at the bubbles interface, are avoided by coupling

the two phases via the velocity ﬁeld. Since the

coupling is in both directions, small scale turbulences

are naturally captured, e. g. path instability. In

contrast to existing models, the bubbles are simulated

with SPH and not just by solid spheres. According

to the proposed cohesion force, effects like merging

and deformation of bubbles can be successfully

simulated. Furthermore, we have proposed a ve-

locity based heuristic that generates air bubbles for

inﬂows. Thereby, trapped air is animated efﬁciently,

i.e. without explicitly simulating the air phase

surrounding the liquid. We also employ a simple

foam model in order to simulate ﬂoating air bubbles.

By incorporating the bubble model into the PCISPH

method, large time steps can be used. This allows

to simulate high-resolution animations where the

bubbles are small in size in comparison to the liquid

volume. This is demonstrated in the example scenes.

Future Work. In this work, we do not cover the in-

teraction of air bubbles with rigid or deformable bod-

ies. Effects like natural surface attraction of bubbles

to solid surfaces would certainly further improve the

realism of the simulation.

Moreover, we think that the performance can be

further improved by using smaller support radii for

air particles than for liquid particles. This is proposed

for single-phase ﬂuids in (Desbrun and Cani, 1996),

(Adams et al., 2007). In scenarios, where the inﬂu-

ence of air bubbles onto water can be neglected, the

air bubble model can be applied as a post-processing

step. The generation of bubbles and their ﬂow can

be sufﬁciently computed using the already simulated

velocity ﬁeld of the liquid. This could be interest-

ing for highly turbulent ﬂuid simulations like rivers

or waves.

ACKNOWLEDGEMENTS

This project is supported by the German Research

Foundation (DFG) under contract number TE 632/1-

REFERENCES

Adams, B., Pauly, M., Keiser, R., and Guibas, L. (2007).

Adaptively sampled particle ﬂuids. In SIGGRAPH

’07: ACM SIGGRAPH 2007 papers, page 48, New

York, USA. ACM Press.

Becker, M. and Teschner, M. (2007). Weakly compress-

ible SPH for free surface ﬂows. In SCA ’07: Pro-

ceedings of the 2007 ACM SIGGRAPH/Eurographics

symposium on Computer animation, pages 209–217,

Aire-la-Ville, Switzerland. Eurographics Association.

Bird, J. C., de Ruiter, R., Corbin, L., and Stone, H. A.

(2010). Daughter bubble cascades produced by fold-

ing of ruptured thin ﬁlms. Nature, 465:759–762.

Bonet, J. and Kulasegaram, S. (2002). A simpliﬁed ap-

proach to enhance the performance of smooth particle

hydrodynamics methods. Applied Mathematics and

Computation, 126(2-3):133–155.

Cleary, P., Pyo, S., Prakash, M., and Koo, B. (2007).

Bubbling and frothing liquids. ACM Transaction on

Graphics, 26(3):97.

Desbrun, M. and Cani, M.-P. (1996). Smoothed Particles: A

new paradigm for animating highly deformable bod-

ies. In Eurographics Workshop on Computer Anima-

tion and Simulation (EGCAS), pages 61–76. Springer-

Verlag.

Fedkiw, R., Stam, J., and Jensen, H. (2001). Visual sim-

ulation of smoke. In SIGGRAPH ’01: Proceedings

ANIMATION OF AIR BUBBLES WITH SPH

233

of the 28th annual conference on Computer graphics

and interactive techniques, pages 15–22, New York,

USA. ACM.

Greenwood, S. T. and House, D. H. (2004). Better with

bubbles: enhancing the visual realism of simulated

ﬂuid. In SCA ’04: Proceedings of the 2004 ACM SIG-

GRAPH/Eurographics symposium on Computer an-

imation, pages 287–296, Aire-la-Ville, Switzerland.

Eurographics Association.

Hadap, S. and Magnenat-Thalmann, N. (2001). Modeling

Dynamic Hair as a Continuum. Computer Graphics

Forum, 20(3):329–338.

Hong, J.-M. and Kim, C.-H. (2003). Animation of Bubbles

in Liquid. Computer Graphics Forum, 22:253–262.

Hong, J.-M., Lee, H.-Y., Yoon, J.-C., and Kim, C.-H.

(2008). Bubbles Alive. In SIGGRAPH ’08: ACMSIG-

GRAPH 2008 papers, pages 1–4, New York, USA.

ACM.

Ihmsen, M., Akinci, N., Becker, M., and Teschner, M.

(2011). A Parallel SPH Implementation on Multi-core

CPUs. Computer Graphics Forum. to appear.

Ihmsen, M., Akinci, N., Gissler, M., and Teschner, M.

(2010). Boundary Handling and Adaptive Time-

stepping for PCISPH. In Proc. VRIPHYS, pages 79–

88.

Keiser, R., Adams, B., Gasser, D., Bazzi, P., Dutr´e, P., and

Gross, M. (2005). A Uniﬁed Lagrangian Approach to

Solid-Fluid Animation. In Proceedings of the Euro-

graphics Symposium on Point-Based Graphics, pages

125–134.

Kim, D., Song, O.-Y., and Ko, H.-S. (2010). A practical

simulation of dispersed bubble ﬂow. In ACM SIG-

GRAPH 2010 papers, SIGGRAPH ’10, pages 70:1–

70:5, New York, USA. ACM.

K¨uck, H., Vogelgsang, C., and Greiner, G. (2002). Simula-

tion and rendering of liquid foams. In In Proc. Graph-

ics Interface 02 (2002), pages 81–88.

Lorensen, W. and Cline, H. (1987). Marching cubes: A

high resolution 3D surface construction algorithm. In

SIGGRAPH ’87: Proceedings of the 14th annual con-

ference on Computer graphics and interactive tech-

niques, pages 163–169, New York, USA. ACM Press.

Losasso, F., Gibou, F., and Fedkiw, R. (2004). Simulating

water and smoke with an octree data structure. In SIG-

GRAPH ’04: ACM SIGGRAPH 2004 Papers, pages

457–462, New York, USA. ACM.

Monaghan, J. (1992). Smoothed particle hydrodynamics.

Ann. Rev. Astron. Astrophys., 30:543–574.

Monaghan, J. (2002). SPH compressible turbulence.

Monthly Notices of the Royal Astronomical Society,

335(3):843–852.

Monaghan, J. (2005). Smoothed particle hydrodynamics.

Reports on Progress in Physics, 68(8):1703–1759.

Moss, W., Yeh, H., Hong, J.-M., Lin, M. C., and Manocha,

D. (2010). Sounding liquids: Automatic sound syn-

thesis from ﬂuid simulation. ACM Trans. Graph.,

29(3):1–13.

M¨uller, M., Charypar, D., and Gross, M. (2003). Particle-

based ﬂuid simulation for interactive applications.

In SCA ’03: Proceedings of the 2003 ACM SIG-

GRAPH/Eurographics symposium on Computer an-

imation, pages 154–159, Aire-la-Ville, Switzerland.

Eurographics Association.

M¨uller, M., Solenthaler, B., Keiser, R., and Gross, M.

(2005). Particle-based ﬂuid-ﬂuid interaction. In

SCA ’05: Proceedings of the 2005 ACM SIG-

GRAPH/Eurographics symposium on Computer ani-

mation, pages 237–244, New York, USA. ACM.

Selle, A., Rasmussen, N., and Fedkiw, R. (2005). A vor-

tex particle method for smoke, water and explosions.

In SIGGRAPH ’05: ACM SIGGRAPH 2005 Papers,

pages 910–914, New York, NY, USA. ACM.

Solenthaler, B. and Pajarola, R. (2008). Density Contrast

SPH Interfaces. In SCA ’08: Proceedings of the 2008

ACM SIGGRAPH/Eurographics Symposium on Com-

puter Animation, pages 211–218.

Solenthaler, B. and Pajarola, R. (2009). Predictive-

corrective incompressible SPH. In SIGGRAPH ’09:

ACM SIGGRAPH 2009 Papers, pages 1–6, New York,

USA. ACM.

Solenthaler, B., Schl¨aﬂi, J., and Pajarola, R. (2007). A uni-

ﬁed particle model for ﬂuid-solid interactions. Com-

puter Animation and Virtual Worlds, 18(1):69–82.

Stam, J. and Fiume, E. (1995). Depicting ﬁre and other

gaseous phenomena using diffusion processes. In

SIGGRAPH ’95: Proceedings of the 22nd annual con-

ference on Computer graphics and interactive tech-

niques, pages 129–136, New York, USA. ACM Press.

Th¨urey, N., Sadlo, F., Schirm, S., M¨uller-Fischer, M., and

Gross, M. (2007). Real-time simulations of bub-

bles and foam within a shallow water framework.

In SCA ’07: Proceedings of the 2007 ACM SIG-

GRAPH/Eurographics symposium on Computer an-

imation, pages 191–198, Aire-la-Ville, Switzerland.

Eurographics Association.

Zheng, W., Yong, J.-H., and Paul, J.-C. (2006). Simu-

lation of bubbles. In SCA ’06: Proceedings of the

2006 ACM SIGGRAPH/Eurographics symposium on

Computer animation, pages 325–333, Aire-la-Ville,

Switzerland. Eurographics Association.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

234
